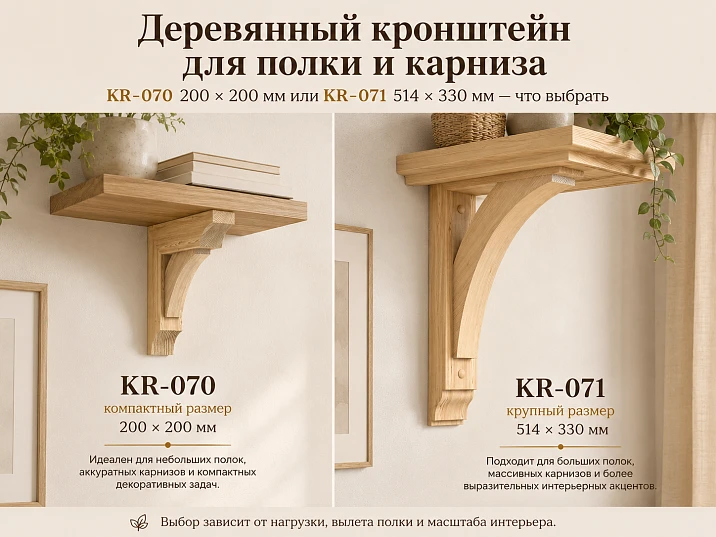

Wooden bracket for shelf and curtain rod buy: KR-070 200 × 200 mm or KR-071 514 × 330 mm — which to choose

A wooden shelf bracket should be purchased after checking not only the appearance, but also the scale, overhang, wall base, and mounting method. KR-070 and KR-071 are made of pine and are structural models, but they solve different tasks. The compact KR-070 has dimensions of 200 × 44 × 200 mm and an overhang of 200 mm. The large KR-071 is 514 × 77 × 330 mm with an overhang of 330 mm. The difference in overhang is 130 mm, and in height, KR-071 is more than 2.5 times larger.

KR-070 is suitable for a small or medium open shelf, furniture structure, wall panel, and a repeating row of supports where the bracket should not dominate. KR-071 is designed for a large architectural composition: a deep shelf, massive cornice, decorative overhang, facade, or large wall panel. But size alone does not confirm the permissible load. It depends on the material and thickness of the shelf, number of supports, distance between them, anchors, wall condition, and installation quality.

The models also differ in installation method. KR-070 comes with two steel hanging plates. KR-071 has two concealed holes and two decorative plugs included. Structural screws 5 × 70 or 5 × 90 and a TORX T-25 key are offered separately. You cannot automatically choose the screw length based only on the bracket size: the fastener must match the wall, embedded part, and mounting assembly.

buy a structural bracket KR-070 reasonable for a compact project where the 200 mm overhang matches the depth of the supported element. buy a large structural bracket KR-071 worth it for a deeper and visually massive composition if the base and mounting are planned in advance. A full-size template on the wall helps to understand whether KR-070 will get lost or KR-071 will overload the shelf, cornice, or facade.

View KR-070 View KR-071 buy a wooden shelf bracket Select materials for installation and finishing

Go to Catalog

Confirmed specifications of KR-070 and KR-071

Direct comparison of sizes and purpose

Our factory also produces:

View Full Product Catalog

What KR-070 and KR-071 have in common

Both models are made of pine, have a "Prestige" quality of sanding, and are assembled using a tongue-and-groove joint with additional gluing. This distinguishes them from a random decorative overlay that only imitates support and is not intended for a structural task.

At the same time, the same material and assembly method do not make the models interchangeable. KR-070 and KR-071 have different heights, widths, overhangs, and mounting patterns, so the final decision is made based on the shelf, cornice, or facade design.

What does a structural bracket mean

A structural model can participate in supporting a horizontal element if the entire system is designed correctly. The bracket does not work separately from the wall, anchors, shelf, and adjacent supports.

The permissible load cannot be determined by the appearance or size of a pine part. Even a large KR-071 does not compensate for a weak base, while a compact KR-070 can only work reliably in a correctly calculated assembly.

Why KR-070 is not just a decorative bracket

The parts of KR-070 are connected with a tenon and groove, additionally glued, and the model is attached to the wall via two steel hanging plates. This design is intended for a more serious task than a glued carved overlay.

However, the hanging plates must be secured to a reliable base. Installation using random dowels without checking the wall does not unlock the structural capabilities of the product.

Why KR-071 looks more architectural

With a height of 514 mm and a projection of 330 mm, KR-071 becomes a noticeable element of a wall or facade. It can visually connect a deep shelf, cornice, overhang, and vertical plane.

On a small shelf, such a model may look disproportionate. The architectural scale is only useful where the supported element and the surrounding wall match the size of the bracket.

How to make a full-size template

Cut a silhouette of 200 × 200 mm for KR-070 and 514 × 330 mm for KR-071 from cardboard. Mark the width of 44 or 77 mm with a separate strip to evaluate the front view.

Attach the templates to the wall at the intended points and apply a mock-up of the shelf or cornice. Comparing from a normal viewing point shows which model matches the scale of the room.

Why a photo is not enough

The card shows the product shape in close-up, so KR-070 may appear bulkier than in the interior, and KR-071 may appear more compact than on the actual wall.

The photo also does not show the shelf depth, the distance between supports, and adjacent objects. Dimensions, a template, and a technical plan are needed for selection.

How to match the projection to the shelf depth

The bracket projection should align with the depth of the supported shelf, but does not have to exactly match it. The shelf overhang beyond the front support point and the distance from the edge are calculated considering the material, thickness, and load.

KR-070 provides a projection of 200 mm, KR-071 — 330 mm. They cannot be automatically assigned to a shelf of the same depth without an engineering check of the entire system.

How to account for shelf thickness

A thin shelf over a large KR-071 may look accidental and sag more between supports. A thick, massive shelf over KR-070 may visually overwhelm the compact bracket.

Thickness also affects both the self-weight and bending. The choice of material and shelf cross-section should be completed before calculating the number of supports.

How to account for shelf length

The longer the shelf, the more important the deflection between brackets and load distribution. Two supports at the edges are not a universal scheme.

The number and spacing are calculated based on the shelf material, its thickness, depth, own weight, and expected contents. The external rhythm should follow the structural logic.

How to account for the weight of contents

Books, dishes, collections, equipment, and decorative items create different loads. A shelf for light decor is not equal to a bookshelf, even if the dimensions are the same.

Before choosing brackets, compile a list of expected contents and establish a reasonable usage scenario. The exact load is confirmed by an engineer or designer.

Why you cannot specify load in kilograms without calculation

A single number ignores the wall material, anchors, number of brackets, distance between them, shelf depth, and direction of forces. It creates a false sense of guarantee.

For a safe project, the entire assembly must be calculated. In the model card, the structural function is confirmed, but a universal permissible load for any wall is not stated.

KR-070 for a small open shelf

The compact model is suitable for a shelf in the kitchen, study, hallway, or niche, where the bracket should support the structure and remain a calm part of the composition.

The 200 mm overhang must match the shelf depth. Before installation, check the load, the wall, and the bracket spacing.

KR-070 for kitchen shelf

In the kitchen, the bracket can support a shelf for dishes, jars, or decor. The load changes quickly, so calculations are based on the actual contents, not an empty shelf.

Pine must be protected from moisture, steam, and household dirt with a suitable coating. Fasteners must anchor into a solid base, not just the cladding.

KR-070 for study

In the study, the model is suitable for a small bookshelf, folders, or a decorative panel. Its compact size does not distract from the desk and cabinets.

Books create a significant constant load, so bracket spacing and shelf thickness must be calculated with particular care.

KR-070 for furniture

The bracket can be integrated into the structure of a console, shelving unit, cabinet, or wall panel as a visible wooden support. Its pine surface is easy to paint along with the furniture.

Compatibility with a specific cabinet and its attachment must be determined by a furniture designer. Replacing calculations with simple screwing at random points is not allowed.

KR-070 for a small wall panel

Under the panel, the bracket creates a visual transition from the vertical surface to the shelf or cornice. A row of identical KR-070 forms a rhythm without excessive massiveness.

The number of supports is linked to the modular grid of the panel and the wall structure. The decorative step should not contradict the required fastening.

KR-070 in a repeating row

The compact height allows the use of several brackets under a long shelf or cornice. The rhythm of 200-millimeter supports looks neater than a row of large KR-071.

The exact step is chosen based on calculation and composition. The outer brackets are not placed arbitrarily close to or far from the ends of the shelf.

KR-071 for a massive shelf

The 330 mm overhang and 514 mm height correspond to a deep, visually heavy shelf made of solid wood or glued board. The large model helps connect the horizontal line with a high wall.

But KR-071 does not guarantee the load by itself. The shelf, anchors, hidden holes, and base must work as a single system.

KR-071 for a cornice

A large bracket is appropriate under a massive wooden cornice indoors or on a facade. Its height creates a noticeable vertical line and supports a large overhang.

The cornice can be decorative or part of the structure. In the latter case, a separate calculation is needed, and outdoor pine requires protection of all sides and ends.

KR-071 for decorative overhang

Under the overhang of a veranda, canopy, or facade composition, KR-071 looks more proportional than a compact model. It can become an independent architectural accent.

It cannot be considered a ready-made load-bearing unit of a canopy without calculating snow, wind, wall material, and roof. The bracket is used as part of a design system.

KR-071 for wall panel

A tall model can complete a large panel, portal, or boiserie. In an interior, it connects vertical decor with a shelf or cornice.

The width of 77 mm and height of 514 mm require a sufficient plane. On a narrow panel, the bracket may overlap moldings and disrupt proportions.

KR-071 for the facade of a country house

After appropriate protective treatment, KR-071 can be considered for a cornice, overhang, veranda, and other facade compositions.

The project must account for precipitation, sun, ventilation, movement of the wooden house, and corrosion resistance of fasteners. Interior finishing is automatically unsuitable for the facade.

KR-071 as an independent accent

The large size allows the model to be used not only as a hidden support but also as a visible part of the architecture. It is clearly visible under a deep shelf, massive cornice, or wide overhang.

To ensure the accent does not look random, the shape is repeated in other wooden elements or left to play the main role without competing decor.

Hanging brackets KR-070

Two steel hanging brackets are included in the KR-070 kit and form a separate fastening scheme. The brackets must be installed on the wall precisely level and at the correct distance between the mounting zones.

The mere presence of the brackets does not determine the anchors. Different solutions are used for concrete, brick, wood, aerated concrete, and frame partitions.

Concealed holes KR-071

KR-071 features two concealed mounting holes. Through them, the bracket is fixed to the base, after which the visible areas are covered with decorative plugs.

The depth of the holes and the direction of the fasteners are determined by the product design, but the type of anchor is chosen based on the wall. A wood screw cannot be considered a universal anchor for concrete.

Decorative caps KR-071

Two caps are included in the kit and mask the mounting holes. They help maintain a clean look of the large wooden support.

Before finishing, the caps are fitted and marked. If the bracket is painted, you need to decide whether to coat them together or install them after the finish.

Are self-tapping screws included in the KR-071 kit

The card separately offers structural screws and a TORX T-25 key. This means they should be considered as separate items, not promised as part of the basic package.

Before purchasing, the installer determines the length and type of fastener. FUR-037 and FUR-038 have different lengths and are not chosen solely by the principle of "larger bracket gets longer screw."

FUR-037 5 × 70

Buy structural screw FUR-037 5 × 70 as one of the offered items for installation. The diameter and length are confirmed by the card.

Compatibility with a specific wall, embedded part, and mounting assembly is determined by a specialist. For a mineral base, the screw may only work as part of a suitable anchor system.

FUR-038 5 × 90

Buy structural screw FUR-038 5 × 90 comes after calculating the required fastening depth. A longer fastener is not automatically safer.

It must pass through the bracket and mounting area without damaging utilities and with sufficient working depth in the base.

FUR-037 or FUR-038

The choice between 70 and 90 mm depends on the thickness of the part being fastened, the type of base, anchor, and required depth. A single option cannot be assigned to all KR-071 buyers.

If the calculation requires a different fastener, the scheme must be coordinated with the product and the wall. Accessory cards do not replace an engineering solution.

TORX T-25 key

For working with the specified structural screws, you can buy a TORX T-25 key for mounting the bracket.

The tool must fit tightly into the slot. A worn bit or incorrect size damages the head and complicates torque control.

Why you should not overtighten fasteners

Overtightening can compress the wood, damage the hole, strip the anchor, or create internal stress. The bracket must fit flush against the wall without deformation.

Tightening torque and sequence are determined by the fastener and base material. The decorative cap must not conceal a damaged mounting assembly.

Fastening to a concrete wall

Concrete requires anchors rated for the wall material and load direction. Hole diameter, depth, and channel cleaning affect reliability.

Mounting strips KR-070 and concealed holes KR-071 define the geometry, but not the type of concrete anchor. The installer selects it.

Fastening to solid brick

In brick, it is important to hit the solid body of the material, not a damaged edge or weak joint without calculation. Hole locations are checked before drilling.

Old masonry may require inspection and a different scheme. An externally flat wall does not guarantee uniform strength.

Fastening to hollow brick

Voids require special anchors and precise knowledge of the block structure. A standard dowel may not provide the required holding power.

The load and fastening are calculated separately. The scheme from concrete cannot be transferred without verification.

Fastening to aerated concrete

Aerated concrete has lower local strength and requires anchors designed for it, sufficient depth, and distance from edges.

For a heavy shelf or large KR-071, a reinforced zone may be required. The decision is made by a specialist after assessing the wall.

Fastening to a wooden wall

On a solid wooden wall, it is important to hit the load-bearing part, not just the thin cladding. The screw is selected based on thickness and fiber direction.

In a wooden house, seasonal movements and possible shrinkage are taken into account. The rigid joint should not block the structure's operation.

Fastening to a frame partition

The bracket must be fastened to the studs or a pre-installed embedded element. Drywall cladding itself is not a reliable base for a structural shelf.

The position of the studs is checked before manufacturing the shelf. If there are no embedded elements, the partition may need to be opened and reinforced.

Can it be attached to drywall

Attaching only to the drywall sheet without a calculated embedded element cannot be considered universally safe. Even special dowels have limitations.

For KR-070 and especially KR-071, the load-bearing wall frame must be checked. The project specifies exact attachment points.

Is an anchor needed

An embedded element is needed where the finishing layer cannot bear the load or where attachment points do not align with the studs. Its material and size are calculated in advance.

It is better to provide reinforcement before the final wall finishing. Late installation increases the amount of repair work.

How to check utilities in the wall

Before drilling, find electrical wiring, pipes, and other hidden utilities. The large KR-071 has two specified points that cannot be moved arbitrarily without evaluating the structure.

If one point hits a utility, the project is revised, not drilled nearby by eye.

How to align brackets by level

First, draw a general horizontal line for the shelf and mark the vertical axes of the supports. All fastening points are checked with a laser or regular level.

A small error on one support creates a skew of a long shelf. Shims should not be used to mask a serious inaccuracy.

How to mark a row KR-070

Compact brackets are often installed in a series. The outer axes are set from the ends of the shelf, the intermediate ones are distributed according to the calculated pitch.

Equal visual rhythm is useful, but the structural scheme is more important. If the load is uneven, a different arrangement may be required.

How to mark a pair KR-071

Large supports create strong verticals, so their axes must be aligned with the edges of the shelf, the panel, and the architectural grid of the wall.

Too close installation visually weighs down the center, too far increases the deflection of the shelf. The solution is checked on the drawing and template.

How many brackets are needed for a shelf

The quantity cannot be determined by a single table without data on the shelf and wall. For a short light shelf, two may be enough; for a long or heavy one, additional supports will be needed.

The calculation takes into account the deflection of the shelf between brackets and the holding of each fastening point.

Distance between brackets

The step depends on the material and thickness of the shelf, depth, weight of the load, and position of the load. Decorative equal spacing does not guarantee strength.

For a long shelf, a central support is often more important than additionally increasing the size of the outer brackets.

One bracket or a pair

A single visible bracket can be used in a furniture composition if the horizontal element has another confirmed fastening. For a regular wall shelf, one central support is not a universal scheme.

A pair creates symmetry, but it is only sufficient after calculation. A long shelf may require three or more supports.

Pine and its visual character

Pine has a noticeable pattern of annual rings and a light natural tone. Under a transparent coating, the texture remains part of the design; under enamel, the shape of the bracket becomes the main focus.

Batches of wood may differ in shade and pattern. For multiple brackets, they are laid out side by side before finishing and distributed across visible areas.

What does "Prestige" sanding mean?

The cards indicate the sanding quality "Prestige." This is a prepared surface with detailed processing, but not a ready protective coating for interior or facade use.

Before painting, the brackets are inspected after transport, dusted, and a test cycle is performed on a sample or an inconspicuous area.

Pine bracket for white enamel

White enamel makes KR-070 a calm part of the kitchen, cabinet, or wall panel. On KR-071, the white coating emphasizes the large silhouette and can connect the bracket to the facade cornice.

Primer and enamel must be compatible with pine. Too thick a layer in joints, holes, and plug locations is unacceptable.

Black wooden bracket

Black enamel creates a graphic contrast with the light shelf and wall. Compact KR-070 looks like a rhythmic line, large KR-071 like an architectural accent.

Dust and damage are noticeable on dark surfaces, so it is important to choose a durable finish and keep material for local repairs.

Bracket in facade color

Painting in the color of the wall or cornice reduces visual contrast and helps the large KR-071 not overload the composition.

Color is matched against a physical sample. The same paint name on different substrates may look different.

Pine tinting

Stain or other tinting system preserves the wood grain, but pine may absorb the compound unevenly. A test application is mandatory.

Before series finishing, several brackets are compared for tone. Texture differences remain natural, but the overall shade must be consistent.

Oil for bracket

Oil can emphasize texture and provide a calm surface. Whether a specific compound is suitable for interior or exterior use is checked according to the manufacturer's instructions.

On the facade, one oil without a confirmed weather-resistant system may be insufficient. All sides and ends require protection.

Varnish for bracket

Varnish preserves the wood's appearance and creates a protective film. The degree of gloss changes perception: large KR-071 in gloss looks more active.

Compatibility of primer, tint, and varnish is checked on a sample. Thick runs near holes and plugs are removed before assembly.

Coating for exterior use

The facade bracket is exposed to moisture, sun, and temperature fluctuations. The system must be intended for exterior wood and applied to all sides, including hidden surfaces.

Ends, mounting holes, and contact points with the wall are especially carefully protected. Water must not accumulate in the installation joint.

Paint before or after installation

Pre-finishing simplifies protecting the back side and ends. After installation, only damaged spots and, if necessary, the final coat need to be treated.

Painting completely only after installation is risky: hidden surfaces will remain unprotected. The order is determined by the coating system and fastening method.

How to finish decorative caps

KR-071 caps are fitted before painting and marked according to the holes. They can be finished together with the bracket to match the color.

The coating layer must not interfere with fitting. The cap should cover the hole without excessive force and without risk of chipping the edge.

How to protect hanging strips KR-070

Steel elements must remain clean and maintain precise geometry. They should not be covered with a thick layer of paint that interferes with hanging.

For outdoor use, the corrosion resistance of the metal part and fasteners is checked separately. Wood protection does not replace metal protection.

How to store brackets before installation

Store products in a dry room on a level support. Do not leave them in the rain, on a wet floor, or near a strong heat source.

Before installation, the wood is allowed to adapt to the room conditions as recommended by the finisher. The packaging is kept until acceptance.

How to accept KR-070

Check the dimensions 200 × 44 × 200 mm, pine, "Prestige" sanding, two hanging strips, and the condition of the joints.

The bracket is inspected from all sides before painting and installation. Damage to the strip or mounting area is recorded immediately.

How to accept KR-071

Verify the dimensions 514 × 77 × 330 mm, material, sanding quality, two blind holes, and two decorative plugs.

Check that the plugs fit their holes and are not damaged. Screws and TORX tools are counted as separate items.

KR-070 in the hallway

The compact bracket is suitable for a small shelf for keys, hats, or decor. It does not take up too much wall space in a narrow room.

The shelf should be positioned so that a person does not bump it with their shoulder. The load from accidental leaning is also considered in the design.

KR-070 in the kitchen

The model can support a shelf for dishes, spices, or decorative items. Humidity, steam, and regular cleaning require a durable coating.

Heavy dishes are distributed evenly. The fasteners are checked in the load-bearing wall or embedded element, not just in the tile or backsplash.

KR-070 in the study

Under a bookshelf, the compact support maintains a strict rhythm. The pine can be tinted to match the desk, doors, or cabinet.

Books create a high constant load, so calculating supports and deflection is especially important.

KR-070 in the bedroom

A small shelf above a dresser or near the bed can rest on KR-070 if the height and overhang are safe for passage.

Do not place heavy objects above the sleeping area without professional calculation and a reliable foundation.

KR-071 in the living room

A large model fits a deep shelf, fireplace composition, or massive panel. It can become a noticeable part of the room's architecture.

The surrounding decor should be calm. Several large supports, an active cornice, and complex moldings can overload the wall at the same time.

KR-071 in a country house

High walls, wooden beams, and large openings accept the scale of 514 × 330 mm more naturally than a small apartment.

Pine is combined with other species through a common tint or covering enamel. Exact texture matching with oak or beech is not intended.

KR-071 on the veranda

Under the cornice or veranda overhang, the model creates a pronounced wooden node. Exterior finishing and fasteners must be weather-appropriate.

The bracket does not replace the roof structure calculation. Wind, snow, and overhang projection are considered separately.

KR-071 in a commercial interior

In a restaurant, hotel, showroom, or salon, a large support can hold a shelf, panel, or decorative cornice.

The operating mode, cleaning, fire and construction requirements of the facility are checked by the designer. The basic card does not confirm readiness for any commercial scenario.

Wall panel bracket

Both models can be used as a transition from a panel to a shelf or cornice. KR-070 is suitable for a frequent modular rhythm, KR-071 for a large central composition.

Mounting points are laid behind the panel in advance. Decorative cladding should not hide a weak base.

Furniture console bracket

KR-070 can work as a visible support in furniture, KR-071 in a large console composition. But the tabletop and body must have their own calculation.

Do not use a decorative bracket as the only support if the furniture experiences lateral loads or people may lean on it.

Decorative beam bracket

The model can visually support a beam or false beam, but the load-bearing function is determined separately. KR-071 corresponds to a large scale, KR-070 to a lighter one.

How not to confuse structural and decorative calculation

The beautiful rhythm of supports is important, but first they check the shelf deflection and fastener retention. Decorative equal spacing does not replace the engineering scheme.

After calculation, the step can be adjusted within the permissible range to maintain symmetry.

Mistake: choosing only by price

A compact model may cost less but turn out visually weak under a large cornice. A large one may overload a small shelf and require more complex installation.

They compare the full project: number of supports, fasteners, finishing, and wall preparation.

Mistake: choosing based on a photo without a template

Cards show brackets at different scales. Only a full-size silhouette of 200 × 200 or 514 × 330 mm demonstrates the real presence on the wall.

The template is checked together with the shelf, not separately.

Mistake: installing KR-071 under a thin small shelf

A large support can visually suppress the horizontal line and will not solve the deflection problem if the shelf is too thin.

The cross-section and material of the shelf are calculated together with the bracket.

Error: using KR-070 in too large a composition

Under a deep cornice or wide overhang, a compact bracket may look random and not match the scale.

In such a case, consider KR-071 or another size from the category.

Error: assuming a large model is automatically stronger for any wall

A large bracket creates a longer lever arm and requires reliable fastening. A weak wall does not become stronger due to the size of the wooden part.

The base and anchors are checked before ordering.

Error: assign load based on appearance

A massive shape does not provide a universal figure in kilograms. The load is distributed across the shelf, supports, and wall.

For a critical project, an engineer's calculation is needed.

Error: fastening into drywall without a backing

The sheet may not withstand the force from the shelf and overhang. Even a special anchor does not replace checking the wall frame.

The mortgage is provided in advance or the partition is reinforced.

Error: always consider FUR-038 the best

A length of 90 mm does not universally mean a more reliable fastening. A screw that is too long may not match the base or may hit a utility line.

The choice between FUR-037 and FUR-038 is made by the installer based on the assembly.

Error: consider a self-tapping screw an anchor for any wall

A structural self-tapping screw is designed for a specific material and can be used in a mineral wall only with a suitable system.

Concrete, brick, and aerated concrete require different solutions.

Error: not checking the hanging strips KR-070

The strips must be intact, straight, and precisely installed. Coating or deformation may interfere with hanging.

The kit is checked before finishing and installation.

Error: losing KR-071 plugs

Two plugs are included in the kit and are needed for a finished look. If they are lost before painting, finding a perfectly matching replacement can be difficult.

The plugs are marked and stored together with the bracket.

Error: paint only the front side

For outdoor use, the hidden back surface and edges also need protection. Moisture can penetrate from the mounting assembly.

Finishing is done before installation, with subsequent restoration of damaged areas.

Error: filling mounting holes with paint

A thick layer changes the geometry of the hole and the fit of the plug. On KR-070, paint can interfere with the operation of the hanging strips.

Mounting areas are protected during finishing.

Error: not accounting for the shelf's own weight

A heavy solid wood countertop creates load even before placing books or dishes.

The calculation includes the own weight of all elements, not just the contents.

Error: not accounting for lateral forces

The shelf may be leaned on, bumped, or unevenly loaded. The bracket and fastening must be designed for more than just static weight.

This is especially important for cantilevered furniture and walk-through areas.

Error: placing supports only according to a decorative grid

Moldings and panels may dictate a beautiful spacing that does not align with structural calculations.

First, find the working points, then adapt the decorative layout.

Error: not checking the ends and the tongue-and-groove joint

Damage to a joint or a crack is more important than a minor visual defect. The item is inspected before installation.

Do not conceal the problem with enamel or glue without manufacturer assessment.

Error: using interior fasteners on the facade

The external node is exposed to moisture and temperature. Corrosion of fasteners can damage the finish and weaken the connection.

The material of anchors and screws is confirmed for operating conditions.

Error: not providing maintenance

The shelf and fastening must remain accessible for inspection. The decorative panel should not completely cover the node without the possibility of control.

After the first months of operation, check the tightening and condition of the coating.

When it's better to choose a different bracket

If the overhang of 200 mm is too small and 330 mm is too large, do not adjust the shelf to one of the two models. The catalog has other sizes and shapes.

You can to choose a bracket by height and depth and compare the exact specifications.

Who is KR-070 suitable for

The model suits a buyer with a compact shelf, furniture, or panel who wants a visible wooden support without a large architectural accent.

The repeating row KR-070 is especially convenient if the calculation confirms the required quantity.

Who KR-071 is suitable for

The model is suitable for a large shelf, cornice, overhang, veranda, facade, or large interior panel. It requires a sufficient wall and professional installation.

KR-071 is chosen when the projection of 330 mm and height of 514 mm match the overall architecture.

Who both models may not suit

They are not suitable for a project that requires a hidden metal, folding, or adjustable mechanism. Also, they cannot be used instead of a special bracket for a TV, air conditioner, or engineering equipment.

If a confirmed load is required for a critical facility, a separate calculation and possibly a different structural solution are needed.

What to buy and look at together with brackets

The bracket only works as part of a complete assembly. The shelf, wall, fasteners, tools, and finishing must be coordinated before purchase. The table shows allowed internal pages from the SEO scheme and helps assemble a kit without accidental substitutions.

Practical selection matrix for KR-070 or KR-071

How to prepare a technical specification

The specification includes the article number, size, material, quantity, installation location, indoor or outdoor use, shelf parameters, and wall type. For KR-071, plugs and selected fasteners are recorded separately.

Unconfirmed data — permissible load, anchors, and spacing — are not filled with guesses. They are passed to the designer or installer for calculation.

How to calculate the quantity before ordering

First, set the shelf length and the intended location of the end supports. Then check the deflection between them and add intermediate brackets as calculated.

After the structural layout, evaluate the visual rhythm. If a different spacing is needed, return to the calculation rather than simply moving the supports.

How to calculate the budget

The budget includes the brackets themselves, fasteners, anchors or embedded parts, the shelf, finishing, tools, delivery, and installation. For facades, add weather-resistant materials and periodic maintenance.

KR-071 may require fewer or more supports in a specific project, but this cannot be promised without calculation. Compare the final assembly, not the price of a single part.

How to order a batch of identical brackets

For a row of supports, it is important to get a uniform size, consistent sanding, and a matched wood batch. Before painting, lay out the items and distribute them across visible areas.

One control bracket is finished first. Only after the color and gloss are approved is the entire batch produced.

How to save the specification

The project archive retains a product card, DWG, quantity, mounting diagram, anchors, support spacing, coating recipe, and photos of the finished assembly.

This data is needed for repairs, additional shelves, or repeating the facade composition. Current prices and availability are still rechecked.

How to accept installation

Check the shelf level, bracket fit tightness, absence of cracks, plug condition, and row uniformity. The shelf should not wobble or noticeably sag during coordinated inspection.

Fastening holes and the wall surface must not have damage. Comments are recorded before handover.

Inspection after start of operation

After some time, inspect the fastening, especially if the shelf has received actual load. Any play, crack, or change in position requires unloading and diagnostics.

On the facade, additionally check the coating and fastener corrosion. Early maintenance prevents damage development.

How to buy KR-070 on STAVROS

In the product card, select KR-070 200 × 44 × 200 mm made of pine with "Prestige" sanding. Check the status, current lead time, and availability of two mounting brackets.

Before payment, the installer confirms the wall base, anchors, and quantity. The price of one item does not automatically include the entire shelf system.

How to buy KR-071 on STAVROS

In the card, they check the size 514 × 77 × 330 mm, pine, two concealed holes, and two plugs. Then they decide whether FUR-037, FUR-038, and a TORX T-25 key are needed.

Fasteners are chosen not by a manager's assumption, but according to the mounting assembly. For the facade, a suitable protective finish is ordered separately.

What to check before payment

They verify the article number, size, material, sanding, configuration, and current lead time. For multiple items, they record the quantity and desired uniform finish.

They also confirm which accessories are purchased separately and get a decision on anchors. The wall issue cannot be left until the day of installation.

Why it's useful to compare the catalog

If both models seem like a compromise, it's better to view all STAVROS brackets and find an intermediate size.

The correct bracket should not be too small just for the sake of economy, nor too large for the sake of margin. The geometry is selected for the specific shelf and architecture.

How to use KR-070 and KR-071 on the facade

Before an exterior project, it is useful to read how to use wooden brackets on the facade, and select a bracket for a cornice or canopy.

These materials help coordinate the decor, but do not replace the calculation of overhang, wind, snow, base, and fasteners.

How to check the delivery route and storage location

KR-071 is significantly larger than KR-070, so its packaging dimensions, doorways, safe unpacking area, and temporary storage location are checked in advance. Heavy materials must not be placed on protruding parts of the wooden form.

Both models are stored on a flat, dry surface until finishing and installation. Damage to a corner, mounting plate, or hidden hole area can affect not only the appearance but also the installation.

How to compare two models in one interior

It is better to cut out two full-size templates and install them one by one under the same shelf layout. This way, you can see how the height, overhang, and free wall plane change.

Additionally, photograph both options from the same distance. The comparison helps avoid choosing KR-071 only because of the large image in the card or KR-070 only because of the desire to save space.

How to connect the bracket to the edges of the shelf

The distance from the end of the shelf to the outermost support affects visual balance and deflection. Too large an overhang creates a feeling of weak support, too small — compresses the composition.

The extreme points are determined by calculation, and then symmetry is checked. For a row of KR-070, different offsets are especially noticeable; for a pair of KR-071, a mismatch with architectural axes is noticeable.

How to choose a bracket for the thickness of the cornice

The height and thickness of the cornice should match the scale of the support. KR-070 works better with a compact horizontal element, KR-071 — with a deep and noticeable one.

If the cornice is decorative and light, a large support can only be a visual part of the system. If it is structural, the entire assembly is calculated independently of the decorative impression.

How to care for a painted bracket

Dust is removed with a soft dry or slightly damp cloth without abrasives. The product is selected based on the enamel, varnish, oil, or other finish, not on the word "pine".

The coating on the facade is inspected after winter and at attachment points. Cracks, open ends, and peeling are repaired before moisture penetrates the wood.

When consultation is needed before purchase

Consultation is mandatory if the shelf is deep, heavy, long, installed above a walkway or sleeping area, or if the wall is made of aerated concrete, hollow brick, or drywall.

The manager confirms the product and configuration, the finisher confirms the coating, and the installer and designer confirm the anchors, spacing, and load. This division of responsibility protects the project from convincing but unverified assumptions.

How to prepare an order for a series of shelves or facade supports

For several identical units, one specification is compiled: model, quantity, shelf size, support spacing, wall material, fasteners, color, and finish sample number. First, a test section with one or two brackets is assembled to check installation, appearance, and cap functionality.

Only after the test unit is approved is the pattern repeated across the entire site. This procedure is especially important for the KR-070 series and the KR-071 facade series: a mistake in layout, anchors, or coating shade would otherwise be repeated many times and require costly rework.

For the outdoor series, additionally retain the drainage scheme, fastener material, and coating inspection schedule. For the indoor series, retain the location of hidden utilities and photos of embedded parts before the wall is closed. This data helps safely maintain the structure and avoid drilling near existing fasteners during future renovations.

If the series is manufactured and installed at different times, each set is labeled by room or facade axis. This reduces the risk of mixing up finished parts, caps, and fasteners, and maintains a consistent rhythm in the final composition.

The control finish sample is kept until the installation and final acceptance of all wooden supports on the site are completed.

The marking is checked twice.

FAQ: questions about KR-070 and KR-071

How is KR-070 different from KR-071?

KR-070 has dimensions 200 × 44 × 200 mm and two mounting brackets. KR-071 — 514 × 77 × 330 mm, two countersunk holes and two decorative plugs.

Which bracket is smaller?

KR-070. It has a height and reach of 200 mm each.

What is the reach of KR-070?

Confirmed reach is 200 mm.

What is the reach of KR-071?

Confirmed reach is 330 mm.

How much taller is KR-071?

514 mm vs 200 mm. The difference is 314 mm, the model is more than 2.5 times taller.

Which bracket should I choose for a small shelf?

KR-070 is often considered, but the depth, material, thickness, load, and wall still need to be calculated.

Which bracket is suitable for a massive shelf?

KR-071 is better suited for large scale and 330 mm overhang, but the permissible load is confirmed by the project.

Is KR-071 suitable for a cornice?

As a structural and decorative element of a large composition after checking the base, fastening, and load.

Can KR-070 be used under a cornice?

It can be used for a small decorative unit if the 200 mm overhang and scale match the project.

What are both models made of?

Pine.

What does "Prestige" sanding mean?

This is detailed surface preparation. It is not a finished enamel, varnish, or exterior protection.

How are the bracket parts joined?

Tenon and groove with additional gluing.

What is included in the KR-070 kit?

Two steel mounting brackets.

What is included in the KR-071 kit?

Two decorative covers for hidden holes.

Are screws included with the KR-071?

They should be considered separate items. The card offers construction screws additionally.

What are the KR-071 covers for?

They cover the mounting holes and maintain the clean appearance of the wooden support.

FUR-037 or FUR-038 — which to choose?

5 × 70 or 5 × 90 are chosen based on the base, node thickness, and required fastening depth, not just the bracket size.

What key is needed for these screws?

For the specified items, TORX T-25 is recommended.

Can it be mounted to a concrete wall?

Yes, with a suitable anchor system and professional calculation of attachment points.

Can it be mounted to brick?

Yes, but solid, hollow, and old masonry require different anchors and base inspection.

Can it be mounted to aerated concrete?

Only with fasteners designed for aerated concrete and calculation of working depth.

Can it be mounted to drywall?

Do not rely solely on the sheet. A stud, embedded element, or other confirmed reinforcement is needed.

How many brackets are needed for the shelf?

The number depends on the length, depth, material and thickness of the shelf, filling, wall, and support spacing.

What distance should be left between the supports?

There is no universal spacing. It is calculated based on shelf deflection and load.

Can the permissible load be specified in kilograms?

Not without calculating the entire system: wall, anchors, shelf, number of supports, and installation.

Can KR-070 be used on a facade?

Yes, after appropriate protective treatment and inspection of external fasteners.

Can KR-071 be used on the veranda?

It can be used as part of a design composition, but it does not replace the calculation of overhang, wind, and snow.

What to coat a pine bracket with?

With compatible enamel, tint, oil, or varnish after a test sample; for the facade, an exterior system is needed.

Is it necessary to paint the back side?

For exterior use, all sides and ends are protected. Indoors, the order depends on the installation technology.

Can the KR-071 be replaced with the KR-070 model?

Only if the new overhang, scale, and calculation match the shelf or cornice. These are not directly interchangeable models.

Can the KR-071 be installed under a small shelf?

Physically possible only after calculation, but visually a large model often overwhelms a thin and small shelf.

Where can I buy KR-070 and KR-071?

In the official product cards and the wooden bracket category on the STAVROS website.

What should be checked before ordering?

Size, quantity, shelf material, wall, anchors, mounting method, finish, outdoor use, and configuration.

Conclusion: KR-070 or KR-071 — which structural bracket to buy

KR-070 and KR-071 are made of pine, have a "Prestige" sanding finish, and a tongue-and-groove joint with additional gluing, but differ in almost all selection parameters. KR-070 is a compact model 200 × 44 × 200 mm with a 200 mm overhang and two mounting plates. KR-071 is a large support 514 × 77 × 330 mm with a 330 mm overhang, two countersunk holes, and decorative plugs.

KR-070 is suitable for a small or medium shelf, furniture, panel, and a repeating row of supports. KR-071 is chosen for a deep shelf, massive cornice, overhang, facade, and large architectural composition. The difference in overhang is 130 mm, and in height the large model is more than 2.5 times larger, so selection from a photo without a full-size template is unreliable.

Neither model has a universal load capacity in kilograms for any wall. Reliability is determined by the shelf, its contents, number of supports, distance between them, base, anchors, and installation. For KR-071, screws FUR-037 5 × 70, FUR-038 5 × 90, and TORX T-25 key are considered separately and selected according to the project.

on the Stavros website you can buy a structural bracket KR-070, buy a large structural bracket KR-071 or buy a wooden shelf bracket different size. The correct route is a wall layout, calculation of the shelf and base, selection of fasteners, ordering a kit, finishing pine, and professional installation.
