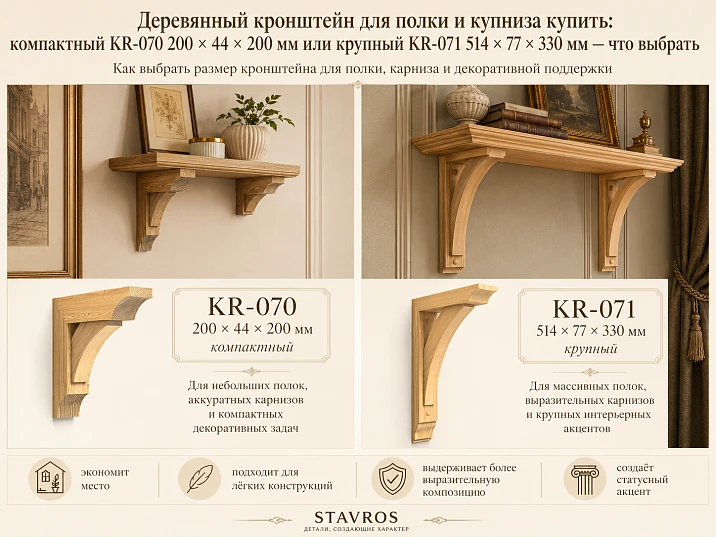

Buy wooden bracket for shelf and curtain rod: compact KR-070 200 × 44 × 200 mm or large KR-071 514 × 77 × 330 mm — which to choose

For a buyer who wants to purchase a wooden shelf bracket not as a decorative overlay but as part of a working structure, it is important to immediately separate two tasks. The first is to support a shelf, furniture part, or small panel without turning the support into the main object on the wall. The second is to create a large architectural unit under a cornice, overhang, massive shelf, or facade composition. KR-070 and KR-071 are structural models, but their scale differs so much that one is not simply an "enlarged version" of the other.

KR-070 has dimensions of 200 × 44 × 200 mm. Its height equals the projection, so the profile looks assembled and compact. Such a bracket is easier to fit under a kitchen shelf, bookshelf in an office, furniture countertop, small wall panel, or a repeating row of supports. KR-071 reaches 514 mm in height and 330 mm in projection. On the wall, it occupies a noticeable area, so it requires a corresponding shelf, cornice, and free background.

Both models are made of pine and have "Prestige" sanding quality. The parts are connected with a tenon and groove and additionally glued. This distinguishes them from a random shaped board or decorative console that a buyer tries to adapt for a load-bearing task. However, the bracket design itself does not eliminate the need for fastening calculation. Even the large KR-071 does not automatically have a known load in kilograms: the result depends on the base and the entire system.

For a small or medium shelf, you can buy a structural bracket KR-070. For a large cornice, massive shelf, or facade composition — buy a large structural bracket KR-071. If the 200 and 330 mm projection sizes do not match the project, it is better to open the catalog of wooden brackets and choose another model by height, depth, and purpose.

What KR-070 and KR-071 have in common

The comparison starts not only with differences. The models share an important common foundation: pine, structural purpose, tongue-and-groove joint, additional gluing, and "Prestige" sanding. This allows selection by scale and mounting point without trying to compensate for weak surface preparation or random assembly.

Our factory also produces:

View Full Product Catalog

Pine as a material

Pine provides expressive texture and a relatively light visual character. It can be painted with enamel, tinted, coated with oil or varnish, if the chosen system is suitable for the specific installation location. The facade requires special protection from moisture and atmospheric exposure; untreated pine cannot be considered ready for outdoor use.

Tongue-and-groove joint

The bracket parts are not simply placed against each other. The tongue-and-groove joint forms a structural unit, and additional gluing helps maintain the geometry. The customer does not need to assemble the support from random bars and cut out a complex interface themselves.

Prestige sanding

Both models have detailed surface preparation. This is especially important for enamel and tinting: the large planes of KR-071 and visible ends of KR-070 show traces of processing under side light. Before finishing, you still need to inspect the product, remove dust, and perform a test coat.

Indoor and facade use

The cards allow use in furniture, wall panels, and on facades. But the outdoor scenario requires appropriate protective treatment. Indoors, you also need to consider humidity, heat, installation location, and wall material.

Made-to-order status

Both models are made-to-order items. This means the current price, lead time, and configuration need to be checked in the card or with a STAVROS manager before planning installation. Do not start cutting the shelf or preparing the wall without verifying actual availability.

Confirmed specifications of KR-070 and KR-071

The table shows the important thing: KR-071 is not just 130 mm deeper. It is 314 mm higher and 33 mm wider. On the facade or in the interior, this turns the support into an independent architectural element. If the shelf is thin and short, a large bracket will look disproportionate, even when it technically fits.

Comparison of sizes KR-070 and KR-071

KR-071 is approximately 2.57 times larger than KR-070, its projection is 1.65 times greater, and its width is about 1.75 times larger. It is useful to see these proportions not only in numbers. On the wall, the compact model occupies a square of about 200 × 200 mm. The large model extends downward more than half a meter and protrudes from the wall by 330 mm. Next to a thin shelf, such a support will appear heavier than the shelf itself.

Why a full-size template is needed

A photo of the card shows the shape but does not convey a sense of scale. Cut out a 200 × 200 mm outline and a second 514 × 330 mm outline from cardboard or paper. Attach them to the wall at the intended height. Such a test immediately shows whether there is space left for furniture, outlets, windows, doors, and adjacent decor.

How to correlate projection with shelf depth

The bracket projection should support the shelf geometry, but the article does not assign a universal depth ratio. A too-short support under a deep shelf looks and functions differently than a bracket that matches its actual overhang. The exact position depends on the shelf material, its thickness, attachment to the bracket, and the calculated load.

How to correlate height with shelf thickness

A thin shelf above KR-071 may look like a random strip. A large support demands a visually convincing countertop, cornice, or panel. KR-070 is easier to combine with moderate thickness and a small object. Before ordering, it is useful to draw a side view, not just the front wall.

Width and repetition in a row

One KR-071 with a width of 77 mm looks large, while several supports create a strong repetition. KR-070 with a width of 44 mm is easier to use in a row under a long shelf. But the quantity is determined not only by visual rhythm: it is calculated based on the length, shelf material, wall, and load.

When to buy KR-070

KR-070 is suitable for projects where a real wooden support is needed, but the architectural scale of KR-071 is excessive. Its dimensions of 200 × 44 × 200 mm allow working with open shelves, small furniture structures, and wall panels without the support feeling like the main object in the room.

Small open shelf

In the kitchen, hallway, or study, KR-070 can support a shelf for dishes, books, or decor if the entire system is designed for the expected load. The 200 mm projection suits a compact depth. Before purchasing, you need to check the shelf thickness and wall material.

For such a scenario, you can buy a compact shelf bracket and pass its drawing to the craftsman.

Shelf in the kitchen

KR-070 does not take up too much wall space and works well under one or several open shelves. In the kitchen, not only dimensions matter, but also the distance to the work area, humidity, heat, and ease of cleaning. The pine finish must match the room conditions.

Bookshelf in the study

Books create a noticeable load, so the number of brackets cannot be chosen solely based on shelf length. KR-070 can be part of the system if the mounting and base are designed accordingly. Visually, the compact support does not overwhelm the study and keeps books as the main content.

Furniture structure

The bracket can support a countertop, a hanging part of furniture, or a side panel. It is especially important here to distinguish between decorative and load-bearing functions. The furniture designer must determine how KR-070 connects to the body and bears the load.

Small wall panel

Under a decorative panel or local cornice, KR-070 creates a clear lower accent. It is suitable when the wall is bounded by furniture, a window, or a door. The larger KR-071 in such an area could overlap adjacent elements.

A series of repeating supports

Under a long shelf, several KR-070 form a calm rhythm. The width of 44 mm avoids excessive density. The number and spacing of supports are calculated based on the entire structure, not on a visually pleasing step in the rendering.

When the bracket should not dominate

If the main focus is on books, a collection, dishes, or the wooden shelf itself, KR-070 works as a supporting detail. It can be painted in the color of the wall or shelf to reduce contrast, or tinted while preserving the pine texture.

When KR-070 will be too small

Under a massive overhang, a tall facade composition, or a large cornice, the 200 × 200 mm square may get lost. The support will look like a furniture part, even though the architecture requires a stronger base. In such a case, it is worth checking KR-071.

When to buy KR-071

KR-071 is needed not just for a "larger shelf." Its height of 514 mm and projection of 330 mm are designed for compositions where the bracket is visible from afar and must match large-scale architecture. It can be used under a massive shelf, large cornice, wall panel, facade overhang, or decorative structure of a country house.

Large solid wood shelf

A deep and thick shelf requires a visually convincing support. KR-071 maintains the scale and does not look accidentally small. However, the permissible load cannot be derived from size: the shelf, wall, fasteners, and number of supports are calculated together.

For a large project, you can buy a wooden bracket KR-071 and separately assemble a fastening kit.

Massive cornice

Under a large wooden cornice, KR-071 creates architectural support. The 330 mm projection helps align the support with a deep overhang. The cornice should not simply rest on a decorative detail: the assembly is designed considering its weight, base, and external influences.

Large-format wall panel

On a high wall or in a spacious hall, KR-071 can serve as the lower finish of the panel. The height of 514 mm forms a noticeable vertical and requires an open field. Next to a small door or narrow partition, the model will be excessive.

Veranda and country house

A large wooden support is suitable under an overhang, canopy, or decorative cornice if the pine is protected with an exterior wood treatment. All sides, including ends and hidden areas, require treatment. The coating must be regularly inspected and renewed according to the manufacturer's system.

Facade composition

KR-071 can be combined with architraves, cornices, and other elements of house carving. Its size makes the support noticeable from the street. To select adjacent decor, you can choose wooden decor for the facade.

Decorative overhang

Under a protruding structure, a large bracket helps connect the horizontal with the wall. But it does not replace a hidden frame if one is required by calculation. The decorative-structural role must be specified in the project.

Large furniture structure

KR-071 can be used in a massive console, bar counter, or other large furniture. A height of more than half a meter requires sufficient legroom and clearance. On a regular table, such a support may be obstructive, so the side geometry is checked at full scale.

When KR-071 will be too large

In a small kitchen, under a narrow shelf or next to compact furniture, the model will overload the wall. The bracket will be the first thing a person notices, and the shelf will seem too thin. In such conditions, the KR-070 or another model in the category looks more precise.

What is the difference between the KR-070 and KR-071 mounts

Size is not the only difference. The models are attached to the wall using different schemes, and this affects the base preparation, marking, access to fasteners, and appearance after installation. You cannot buy the same set of screws and assume it is equally suitable for both brackets.

KR-070: two steel hanging strips

The design of the KR-070 includes two steel hanging strips. They form a relatively compact mounting area and allow the bracket to be installed with a neat hidden connection. The mating part and fasteners must be selected for concrete, brick, wood, or other base material.

What to check before installing the KR-070

You need to know the exact position of the strips, transfer it to the wall, and ensure two attachment points in a solid base. If the wall has a layer of plaster, panels, or cladding, the fasteners must reach the load-bearing material. A decorative surface alone is not enough.

KR-071: two concealed holes

The KR-071 has two concealed mounting holes. After installation, the fasteners are covered with decorative plugs that are included in the kit. This assembly maintains a clean front surface of the large bracket and allows servicing of the fastening if necessary.

Screws for the KR-071 are purchased separately

The card offers structural screws 5 × 70 FUR-037 and 5 × 90 FUR-038. The choice between them cannot be made solely based on the desire to get a "longer" fastener. You need to consider the thickness of the bracket in the hole area, the base, the dowel or anchor, the embedment depth, and the installation project.

For a suitable assembly, you can buy a structural screw 5 × 70 or buy a structural screw 5 × 90. The specific size is confirmed by the master after assessing the wall.

TORX T-25 key

For working with the offered structural screws, an L-shaped extended key is provided. You can buy it as a TORX T-25 key. The tool simplifies tightening in a countersunk hole but does not replace torque control and proper base preparation.

Decorative caps

The plugs close the mounting holes KR-071 after fixation. They must be kept until finishing work is completed. If the bracket is painted after installation, the plugs are installed in a sequence that allows for a smooth surface while maintaining access to the fasteners.

Why the mounting scheme affects the choice of model

In some projects, the wall allows for reliable placement of the hanging strips KR-070, but is not suitable for the long hidden fastener KR-071 without reinforcement. In other cases, a large bracket is more convenient to attach directly through hidden holes. Therefore, the choice between models is related not only to the shelf but also to the base.

How to calculate the number of brackets

It is impossible to assign a universal distance between supports without data on the shelf and load. The same length can carry light decor, heavy books, dishes, or equipment. Additionally, a shelf made of solid wood, MDF, glued board, or other material reacts differently to bending. The correct calculation takes the entire system into account.

Shelf length

The longer the shelf, the greater the likelihood of deflection between supports. But the simple rule of 'one bracket per meter' does not suit all projects. You need to know the material stiffness, thickness, load position, and method of attaching the shelf to the brackets.

Shelf depth

A deep shelf increases the leverage relative to the wall. The overhang of KR-070 is 200 mm, KR-071 is 330 mm, but this does not automatically correspond to any shelf of the same depth. The overhang in front of the bracket and the position of the load center are calculated separately.

Thickness and material

A thin board can bend even on strong brackets. A thick solid shelf itself creates significant weight. Therefore, the number of supports is chosen not by appearance, but after checking the material and cross-section.

Weight of contents

Decorative items, books, dishes, and appliances create different loads. In addition to constant weight, accidental impacts are possible: a person leans on the shelf, an object is placed on the edge, contents are distributed unevenly. The design must account for the real scenario, not an empty shelf in a photo.

Wall material

Concrete, solid brick, hollow block, wood, and drywall require different fastening solutions. The same bracket does not have the same load-bearing capacity on different walls. A screw is only part of the assembly; the dowel, anchor, embedded part, and base quality can be more important.

Number of supports

Two brackets are the minimum symmetrical scheme for many shelves, but not a universal recommendation. A long shelf may require a third or additional supports. Outer brackets should not be placed randomly far from the ends, and central ones should not interfere with usability.

Distance between supports

The spacing is determined by deflection and load calculations. Visually, KR-071 requires more free space because the 77 mm width and 514 mm height create a dense rhythm. KR-070 is easier to repeat more often, but structural necessity is still more important than design.

Outdoor application

On a facade, moisture, temperature changes, wind, and snow load on related elements are added to the constant load. The article does not calculate such effects. For a cornice, canopy, or overhang, a design that accounts for the climate and building structure is needed.

Why kilograms cannot be specified

Cards confirm the structural purpose but do not provide a universal permissible load for any node. A number in kilograms without a wall, anchors, shelf, and support scheme would mislead the buyer. Before ordering, the calculation must be coordinated with a master or designer.

How to choose a model based on installation location

Kitchen

For an open shelf above the work surface, KR-070 is often more suitable. It is more compact and does not reduce free space. Humidity, steam, distance to the stove, and ease of cleaning must be considered. KR-071 is appropriate in a large kitchen under a massive shelf or bar structure.

Cabinet

KR-070 is suitable for a bookshelf or small console. Tinted pine creates a warm wooden accent. If the study has high panels and a large library, KR-071 can become part of the architectural system.

Living room

Under a decorative shelf, KR-070 does not draw attention. KR-071 is suitable for a large fireplace shelf, massive wall panel, or high cornice if the room dimensions allow. A full-size template is especially important near a TV and furniture.

Hallway

A small shelf for keys, hats, or decor requires a compact support. KR-070 is easier to place without narrowing the passage. KR-071 can obstruct movement and catch on clothing if installed too low.

Bedroom

KR-070 is suitable for a shelf near the headboard, decorative panel, or small console. A large KR-071 is possible in a spacious bedroom with an architectural cornice, but should not create a heavy overhanging element above the bed without calculation and safe installation.

Commercial interior

In a store, restaurant, salon, or hotel, KR-070 is convenient to repeat under shelves and display cases. KR-071 can highlight a counter, portal, or large panel. In a public space, the fastening is calculated considering increased load and possible contact with visitors.

Veranda

KR-071 better matches a large overhang and the architecture of a country house. KR-070 can be used under a small shelf or local element. Pine must be protected on all sides, and hidden mounting areas should not be left untreated.

Facade

Both models allow for a facade scenario after protective treatment. KR-070 is suitable for a small canopy, panel, or repeating row. KR-071 is for a large cornice and overhang. For a general selection, you can buy house wood carving and coordinate the scale of all elements.

Pine and finishing options

Pine has a noticeable grain and different density of early and late wood. This affects tinting: soft areas may absorb the compound differently than dense ones. Therefore, finishing cannot be chosen only from a photo. A test sample on the same material with the same preparation is needed.

Enamel

Opaque enamel allows making the bracket white, black, colored, or matching the wall and shelf. Before painting, pine is primed with a suitable system. Resin areas and knots require control so that defects do not show through the finish.

White bracket

White enamel reduces the visual weight of KR-071 and helps the large support blend with a light facade or wall. KR-070 becomes almost a graphic detail under a white shelf. The shade must match adjacent elements, otherwise the difference is noticeable.

Black bracket

Black color emphasizes the silhouette. KR-070 turns into a contrasting structural support, KR-071 into a strong architectural sign. On a small wall, a large dark model may look excessively heavy.

Staining

Stain or other tinting compound preserves the texture of pine. The color may become uneven, so a test sample is mandatory. For a uniform result, the entire batch of brackets is finished simultaneously.

Oil

Oil highlights the wood and creates a natural look. Whether a particular system is suitable for an interior or facade depends on the composition and operating conditions. Interior oil cannot be used outdoors without confirmation from the coating manufacturer.

Varnish

Varnish preserves the texture and creates a protective film. The degree of gloss affects perception: a glossy surface shows irregularities more, a matte one looks calmer. For the facade, a composition designed for exterior wooden products is needed.

End grain protection

End grains absorb moisture more actively than the longitudinal surface. On the facade, they are treated especially carefully, including areas near fasteners and joints. Painting only visible planes is not allowed: the hidden untreated side remains vulnerable.

Materials for finishing

Before work, you can select coating for pine. A specific primer, enamel, oil, or varnish is chosen based on the installation location and layer compatibility.

What to buy together with KR-070 and KR-071

A bracket is rarely purchased as the only part of a project. For KR-071, you need to plan screws and tools in advance. For both models — finishing of pine, wall material, shelf or cornice, and method of attachment to the base. Related products should not be selected on the principle of "any long screw will do": each item is part of the overall mounting assembly.

How not to confuse a structural bracket with similar parts

Structural and purely decorative bracket

A decorative model may adorn a shelf or cornice, but is not designed as a load-bearing support. KR-070 and KR-071 are directly described as structural and have a tongue-and-groove connection. However, even this does not provide universal load capacity without wall and fastener calculation.

Bracket and carved overlay

The overlay is glued to the surface and creates a relief. The bracket protrudes from the wall and enters the spatial system. A thin overlay cannot be used instead of a support, even if its silhouette resembles a console.

Bracket and metal angle

A metal angle can perform a hidden structural function, while a wooden bracket can both support and decorate. In some projects, they work together. It cannot be assumed that decorative wood always replaces a metal frame or vice versa.

Bracket and furniture leg

The leg transfers the load to the floor, the bracket to the wall or vertical plane. The same shaped form does not make the parts interchangeable. For a cantilevered tabletop, it is necessary to determine in advance where the support is located and how it is attached.

Interior and facade installation

The same KR-071 may look identical indoors and outdoors, but the conditions differ. On the facade, protection of the pine, selection of external fasteners, and consideration of the climate are mandatory. The card does not turn an unfinished product into a ready-made weather-resistant assembly.

KR-070 and KR-071 as "small and large"

The dimensions differ not proportionally in all directions. KR-071 is not a mechanically enlarged KR-070. It has a different mounting, different configuration, and a different visual character. Choosing a model changes not only the size but the entire installation scenario.

General principles are helped to understand by the article about How to choose a wooden shelf bracket.

Practical selection for specific tasks

Need to install a small shelf in the kitchen

Check the depth of the shelf and the free height under it. KR-070 is usually more suitable in scale. The wall must support the fastening, and the pine finish must withstand humidity and regular cleaning. For heavy dishes, a separate calculation of the number of supports is needed.

Need a bookshelf in the study

Books create a large constant load. Do not choose two KR-070 just because they visually fit. First determine the length, thickness, and material of the shelf, then the number of supports. KR-071 only makes sense for a large deep structure and a corresponding wall.

Need to support a cantilevered countertop

Assess the installation height, legroom, and countertop overhang. KR-070 may suit a small console, KR-071 a large bar or architectural structure. The designer must determine whether wooden supports are sufficient or a hidden frame is needed.

Need to design a wall panel

For a local panel, KR-070 creates a neat finish. For a tall panel in the hallway, KR-0

Need to repeat supports along a long overhang

A frequent row of KR-071 creates a very strong architectural band. KR-070 looks lighter but may be small in overhang. The spacing is determined simultaneously by the load-bearing scheme and the facade composition.

Need to replace a homemade support

First, determine what function the old part performed. If it supported a shelf, you cannot simply pick a similar silhouette. The ready-made KR-070 and KR-071 have fixed dimensions and mounting points, which simplifies design, but the base is still rechecked.

A support for a commercial interior is needed.

In a cafe or store, consider visitor contact, dynamic loads, and regular cleaning. KR-070 is convenient under repeated shelves, KR-071 under a large stand or portal. Installation must be professionally calculated.

Preparation for Installation

Wall inspection

Remove weak layers from the surface, but the final decision depends on the base. Plaster and decorative panels themselves may not be load-bearing. Fasteners must work in concrete, brick, wood, embedded parts, or other durable material.

Axis marking

Brackets are installed at the same height and in the same plane. The slightest deviation leads to shelf warping. For KR-071, the error is especially noticeable due to the height of 514 mm. Markings are checked with a level and control diagonals.

Pair inspection

Before installation, lay out two or more brackets side by side and compare orientation, texture, and finish. If tinting is used, parts can be arranged so that the pine pattern looks consistent.

Dry fitting of the shelf

The shelf is placed on temporarily fixed or exposed supports and the overhangs are checked. Do not finally fix the brackets without making sure the geometry of the countertop matches.

Fastening to drywall

A drywall sheet without an embedded element should not be considered a sufficient base for a structural shelf. An embedded element, fastening to frame studs, or other calculated reinforcement is required. The type of dowel itself does not replace the design.

Fastening to concrete or brick

You need to select drilling, dowel, or anchor according to the material and load. In hollow brick, fastening works differently than in solid brick. The hole depth and dust removal affect reliability.

Fastening to a wooden wall

The screw must enter a strong load-bearing part, not just the thin cladding. On a log or frame wall, consider wood movement and stud positions.

Fixing the shelf to the brackets

Even if the supports are securely fastened, the shelf itself should not move freely. The connection method is chosen according to its material and thickness. Do not drill a pine bracket in a random place without checking the design.

One bracket, a pair, or a repeating row

The number of supports affects not only the calculation but also the appearance. One bracket can work in a specially designed cantilever system, but a regular shelf usually requires two or more support points. Buying one piece "for trial" is useful for assessing scale and finish, but it cannot automatically be considered a complete mounting kit.

Pair KR-070

Two compact brackets create a calm symmetry under a small shelf. They leave enough free wall space and do not draw attention away from items above. The distance from the shelf edges and between supports should be calculated, not chosen solely for the sake of beautiful symmetry.

Three or more KR-070

Under a long shelf, an additional central support can reduce the span and visually tie the structure together. But the exact number depends on the material and load. A frequent row with a width of 44 mm looks lighter than a similar row of large KR-071.

Pair KR-071

Two large brackets create a powerful architectural portal under a shelf, cornice, or overhang. There must be sufficient width between them, otherwise the composition will feel cramped. On a facade, the pair is evaluated together with windows, trim, and wall height.

Repeating row KR-071

Several supports with a height of 514 mm form a strong rhythm noticeable from afar. This technique suits a long facade cornice or a large commercial interior. In a small room, a row can visually lower the ceiling and overload the wall.

Asymmetric placement

Brackets should not be moved randomly just because of an outlet or furniture. If one support is closer to the edge, the load is distributed differently, and the shelf looks skewed. Any asymmetry must be justified by the design and overall composition.

How color changes the density of a row

White KR-071 on a light wall look calmer than dark ones. Tinted KR-070 on a contrasting background become more noticeable and may appear larger. Therefore, the final distance between supports is best checked after choosing a color or at least on a painted template.

If the project is not yet defined, it is useful to choose a bracket by height and depth and compare several models before calculating the row.

Before final ordering, it is useful to leave templates on the wall for at least one day and look at them in daylight and evening light. KR-071 may seem appropriate on an empty wall, but after adding a shelf, lamp, and furniture, it may become too heavy. KR-070, on the contrary, sometimes looks modest without a shelf, but in the assembled structure it gains the correct scale. Such a simple test helps to choose a model based on the real interior, not on the impression from a single product card.

Interior or facade: one bracket, different requirements

Both models can be considered for both interior and facade, but the same article number does not mean the same preparation. Indoors, the bracket operates in a relatively stable temperature and is protected from direct precipitation. Outdoors, pine faces moisture, sun, temperature fluctuations, and seasonal wood movement. Therefore, the facade scenario requires not only a different coating but also a different approach to fasteners, joints, and maintenance.

Inside a room, the combination with the shelf and wall is more important

For a kitchen, study, or living room, the main task is to select the scale and finish. KR-070 can be easily incorporated into a small composition and repeated several times. KR-071 requires a free wall and a large object on top. In both cases, the surface must be prepared, and the attachment points must be calculated.

On the facade, protecting all surfaces is more important

You cannot limit yourself to painting only the front side. Moisture penetrates through the ends, the hidden back part, holes, and areas adjacent to the wall. Before installation, the entire bracket is treated, including areas that will become inaccessible after installation. After fastening, check that the coating has not been damaged by tools.

Fasteners for outdoor use are selected separately

An interior screw is not necessarily suitable for an exterior assembly. Corrosion resistance, the facade base, and the possibility of moisture ingress must be considered. Decorative caps KR-071 cover the holes but do not seal the joint themselves. The protection of the assembly must be part of the project.

The cornice and canopy create additional impacts

Under the overhang, the bracket bears not only its own weight and the mass of the connected element. The system may be affected by wind, snow, vibrations, and seasonal deformations. Therefore, the large size of KR-071 cannot be perceived as a ready confirmation of any external load.

Regular maintenance

The facade covering is inspected after winter, heavy rains, and mechanical damage. Dulling, cracks, and exposed wood require timely repair. The larger the KR-071, the larger the area that needs to be monitored. KR-070 is easier to maintain, but the protection requirements are the same.

How to choose the size for the facade

The small KR-070 is suitable for a local canopy, a row of compact supports, or a facade panel of moderate scale. KR-071 is better read under a deep overhang and on a tall facade. You need to evaluate not a photo of an individual part, but the facade as a whole: windows, architraves, cornice, floor height, and viewing distance.

To understand the overall system, it is useful to look at how to use brackets on the facade, and then return to the precise comparison of the dimensions of KR-070 and KR-071.

How to prepare an order for the manager and installer

The more accurate the initial data, the lower the risk of buying a beautiful but unsuitable support. For a simple interior project, a wall diagram, shelf dimensions, and the selected article number are sufficient. For a facade, cornice, or heavy furniture, a more detailed package is needed: a drawing, photographs of the base, wall material, intended finish, and mounting assembly.

Photograph without perspective distortion

Take a photo of the wall or facade straight on so that dimensions do not appear smaller or larger. Mark the intended shelf line, height from the floor, and distances to adjacent elements on the photo. Such an image helps to understand the scale but does not replace measurements.

Shelf or cornice dimensions

Specify the length, depth, and thickness. If the product is already manufactured, add the material and approximate weight. If it is only being designed, provide a drawing. For KR-071, the side view is especially important: the 330 mm overhang must be correlated with the actual depth.

Wall material

Record what is behind the finish: concrete, brick, wooden frame, aerated concrete, drywall with embedded elements, or another base. The phrase "ordinary wall" does not help in selecting fasteners. If in doubt, it is better to invite an installer to the site.

Number and placement of supports

Don't limit yourself to a total number. Show distances from edges and between brackets. For a long shelf, mark the central supports. For a facade, repeat along the entire cornice line.

Selected finish

Specify whether the pine will be painted with enamel, tinted, coated with oil or varnish. For an outdoor project, add a requirement for a weather-resistant system. If the color must match the trim or cornice, attach a sample or coating code.

Mounting kit

For KR-071, note whether FUR-037, FUR-038, and FUR-039 are needed. For KR-070, clarify the mating fasteners for the hanging strips. The manager helps assemble the product part, and the installer confirms compatibility with the wall.

Timeline and sequence of work

Since models are made to order, installation should not be scheduled until the deadline is confirmed. First, approve the article number and quantity, then receive the product, perform a trial finish, prepare the wall, and only then proceed to installation.

Common mistakes when purchasing and installing

Choosing by photo without checking dimensions

On screen, KR-070 and KR-071 may appear similar in shape. In reality, KR-071 with a height of 514 mm takes up most of the wall under the shelf. A full-size template shows the difference before ordering and helps avoid costly rework.

Install KR-071 under a thin small shelf

A large bracket looks heavier than the shelf itself and creates an inconsistent scale. Even if the wall allows installation, the composition seems random. For a thin shelf, KR-070 or another compact model is more suitable.

Use KR-070 under a large cornice

A small support may get lost and visually fail to connect the overhang to the wall. Structural capacity also cannot be assumed. For large architecture, compare KR-071 and calculate the node.

Do not consider the mounting method

The buyer chooses the size but discovers different mounting systems already on site. KR-070 has hanging strips, KR-071 has concealed holes. Marking, fasteners, and access to installation points differ.

Buy screws without checking the wall

FUR-037 and FUR-038 have different lengths, but neither is universal for concrete, brick, wood, and drywall. The entire assembly needs to be selected, including the dowel, anchor, or embedded part.

Attach to drywall without reinforcement

The sheet may not withstand the design load even when using a special dowel. The structural support is attached to studs, an embedded part, or another load-bearing part of the wall.

Making up an acceptable load based on size

Large KR-071 looks sturdier, but load-bearing capacity depends on the connection to the wall and shelf. Specifying kilograms without technical calculation is dangerous. Size helps choose the scale, not replace an engineer.

Using pine outdoors without protection

Untreated wood absorbs moisture, changes color, and can deform. The facade scenario requires coating on all sides and regular monitoring.

Painting only visible surfaces

The hidden side and ends remain vulnerable. This is especially critical on the facade. Finishing is done before final installation or access to all areas is ensured.

Do not make a test paintout

Pine may accept tinting unevenly. On a large KR-071, differences are more noticeable. One sample helps choose the primer and color before processing the entire batch.

Not accounting for the weight of the shelf itself

A thick solid countertop creates load even before placing items. Calculation based only on contents underestimates the system.

Counting the number of supports only by wall length

Two shelves of the same length can have different depth, thickness, and material. The distance between brackets is determined by deflection, load, and fastening, not by a single number.

Buying one bracket instead of a pair

For a regular shelf, a system of two or more supports is usually needed. A single element can only be used in a specially designed structure. The quantity must be determined before placing an order.

Forgetting about decorative caps KR-071

Caps get lost during finishing or installation, leaving hidden holes exposed. They should be stored with the marked bracket until final assembly.

Who KR-070 is suitable for

• for a small or medium open shelf;
• for kitchen, hallway, study, and bedroom;
• for a moderate-scale furniture structure;
• for a local wall panel;
• for a series of repeating supports that should not dominate;
• for a 200 mm overhang confirmed by the project;
• for an interior with compact geometry;
• for a facade element after protective treatment of pine;
• for a customer who is suitable for installation on steel hanging strips;
• for a project where the load and number of brackets are calculated separately.

Who is KR-071 suitable for

• for a deep massive shelf;
• for a large cornice or decorative overhang;
• for a high wall panel;
• for the veranda and facade of a country house after protective treatment;
• for large furniture or a console structure;
• for a reach of 330 mm and a height of 514 mm;
• for a spacious hall and commercial interior;
• for a project where the bracket should be a noticeable architectural element;
• for concealed installation with decorative plugs;
• for a customer who selects screws and a TORX key in advance.

When it's better to choose a different model

• KR-070 is too small, and KR-071 is excessively large;
• a different reach or height is needed;
• a purely decorative overlay without a structural function is required;
• the wall does not allow for a secure mounting;
• the shelf requires a hidden metal frame;
• the project is designed for a different type of wood;
• the exterior coating cannot be regularly maintained;
• the bracket obstructs passage, doors, or furniture;
• a confirmed factory load in a ready certified assembly is needed;
• the mounting system of hanging strips or hidden holes is not suitable for the object.

In these cases, it is better to compare the sizes of wooden brackets and choose a product that matches the project without questionable modifications.

For a complex object, it is useful to order one model in advance as a control sample, if the project timeline allows. It can be attached to the wall to check the finish, fastener position, and shelf compatibility. After such a test, it is easier to confirm the quantity, distance between supports, and color of the entire batch. The control sample does not replace calculations but reduces the risk of a large-scale error when ordering several identical brackets.

What to check before placing an order

• exact article KR-070 or KR-071;
• size 200 × 44 × 200 or 514 × 77 × 330 mm;
• number of supports for each shelf, panel, or section;
• length, depth, thickness, and material of the shelf;
• weight of the shelf itself and the expected contents;
• wall material and presence of an embedded element;
• mounting scheme: hanging strips or hidden holes;
• whether FUR-037, FUR-038, and FUR-039 are needed;
• position of the brackets relative to the edges of the shelf;
• free space near the door, window, furniture, and passage;
• internal or external use;
• priming, painting or tinting system;
• protection of ends and hidden surfaces;
• current price, delivery time and availability of the product to order;
• need for consultation with a designer or installer.

How to buy KR-070 and KR-071 at STAVROS

First, determine the depth and scale of the structure. For a small shelf, make a template 200 × 200 mm and open the KR-070 card. For a large cornice or facade overhang, check the contour 514 × 330 mm and the KR-071 kit. After that, select the quantity and pass the installation diagram to a specialist.

If you need a compact option, you can check the dimensions of KR-070. For a large architectural support — view configuration KR-071. Before payment, check that for a large model the necessary screws and tool are added separately.

Buying a ready-made bracket with confirmed geometry is more convenient than assembling it yourself from random blanks. There is no need to cut a profile, make a tongue-and-groove joint, or achieve the same shape for several supports. The buyer focuses on calculating the wall, shelf, finishing, and installation.

For a general selection, a useful overview of wooden shelf supports in the interior, and for a facade scenario, material on how to choose house carving for the facade.

FAQ: questions about KR-070 and KR-071

How is KR-070 different from KR-071?

KR-070 has dimensions 200 × 44 × 200 mm and is mounted on two steel hanging strips. KR-071 is 514 × 77 × 330 mm, mounted through two countersunk holes and comes with decorative plugs.

Which bracket is smaller?

KR-070. Its height and reach are 200 mm each.

What is the reach of KR-071?

330 mm. Before ordering, it needs to be matched with the depth of the shelf or cornice.

Which model is suitable for a small shelf?

Usually KR-070. But the number of supports and fastening are calculated based on the material, length, and load.

Which bracket should I choose for a massive shelf?

KR-071 is better suited for a large scale, but the permissible load is confirmed by the calculation of the entire system.

Can KR-070 be used on a facade?

Yes, with appropriate protective treatment of the pine and calculated external fastening.

Is KR-071 suitable for a cornice?

Yes, as a large structural and decorative element. The cornice itself and its load must be calculated separately.

What type of wood are the models made from?

Both models are made from pine.

Does pine need protection outdoors?

Yes. All sides, ends, hidden areas, and attachment points should be treated with an outdoor wood treatment compound.

How does the mounting differ between the models?

The KR-070 has two mounting brackets, while the KR-071 has two concealed holes with decorative covers.

Are screws included with the KR-071?

No. Structural screws and a TORX key are purchased separately.

What are decorative covers for?

They cover the hidden mounting holes KR-071 after installation.

Which screw to choose: 5 × 70 or 5 × 90?

The choice depends on the wall, dowel or anchor, embedment depth, and the mounting project. A longer fastener is not always better.

How many brackets are needed for one shelf?

The quantity depends on the length, depth, thickness, material, weight of contents, and the base. There is no universal spacing.

Can the bracket be mounted on drywall?

Only to studs, blocking, or other designed reinforcement. A single sheet should not be considered a sufficient base.

What load is permissible?

A universal load in kilograms is not confirmed. It is determined by the bracket, wall, fasteners, shelf, and number of supports.

Do I need to paint the bracket before installation?

It is often convenient to treat all surfaces in advance, especially for the facade. After installation, the mounting points may require local finishing.

Can pine be tinted?

Yes, after a test application. Pine may absorb tint unevenly.

Where can I buy KR-070 and KR-071?

In individual STAVROS product pages or in the general wooden brackets category.

What should you check right before payment?

Article number, size, quantity, wall type, mounting method, finish, outdoor conditions, screw kit, and current order lead times.

Summary: KR-070 for compact shelves, KR-071 for large-scale architecture

KR-070 and KR-071 share pine material, tongue-and-groove joint, additional gluing, and 'Prestige' sanding quality. However, they cannot be selected as two adjacent sizes of the same product. KR-070, sized 200 × 44 × 200 mm, is suitable for compact shelves, furniture, and small panels. KR-071, sized 514 × 77 × 330 mm, is designed for large shelves, cornices, overhangs, or facade compositions where the support itself becomes a noticeable part of the architecture.

Before ordering, you need to check the full-size outline, wall material, shelf depth, number of supports, and mounting method. For KR-071, structural screws and a TORX key are selected separately. For outdoor installation, protect pine on all sides. The load in kilograms is determined only after calculating the entire assembly.

on the Stavros website you can buy a wooden bracket KR-070 or buy a large structural bracket made of pine. A ready-made support with confirmed geometry helps avoid accidental assembly, but the final reliability always depends on a well-designed project and installation.
