Wooden washer KN-009: how to check fit on MLD-060 axle before painting and ordering a batch

wooden washer KN-009 with a 34 mm hole

У parameter D is 34 mm. For the compatible wooden axle MLD-060 with a diameter of 34 mm the outer size is also specified as 34 mm. On paper, everything looks simple: identical numbers should match. In a real workshop, the fit is affected by the actual dimensions of specific parts, the condition of the inner edge, the direction of the grain, the chosen finish, the layer of primer, the gluing method, and the assembly order. Therefore, a smart purchase looks not like "order the right quantity and figure it out during installation," but like a sequential commercial route: choose KN-009 and MLD-060 in the same material, order a test pair, perform a dry fit, check the joint after a trial finish, approve the technology, and only then place the main batch. This approach protects the buyer's budget: the error is not carried over to twelve, twenty, or forty identical washers, but is identified on one test connection.

Briefly about the purchase: KN-009 is suitable for modular furniture legs, posts, supports, and decorative partitions. Before ordering a series, check the actual fit on MLD-060 and agree on the finish.

Buy wooden washer KN-009

Go to the catalog of wooden constructor elements

Go to the catalog of wooden constructor elements

Geometric figure KN-009

from 9.27 $

Go to Catalog

Why would a buyer need KN-009 if you can just cut out a regular ring?

At first glance, a low ring-shaped part seems too simple to buy as a separate product. You could take a piece of solid wood, mark out a circle, drill a hole, and finish the edges. But this reasoning only holds until the first batch of identical supports.

Imagine four table legs. Each one has three thin separators planned. That already requires twelve parts of the same height, the same cross-sectional size, and with matching positions of the central channel. If even some of the washers differ by a few millimeters in thickness or the hole deviates from the axis, the discrepancy accumulates. One leg ends up taller than another, decorative bands end up at different levels, and when viewed from the side, it's noticeable that the rings "wander" vertically.

Buying a ready-made KN-009 solves not an abstract problem of aesthetics, but several specific issues:

• eliminates the need to make repeating rings yourself;

• helps maintain consistent part sizes across a series;

• reduces the amount of marking and manual processing;

• allows you to pre-set the module height in the drawing;

• simplifies ordering beech or oak according to the future finish;

• enables assembling a unit from compatible elements of the same product system;

• reduces the risk of accidental combination of parts with different mounting parameters.

That is why wooden geometric shapes for furniture are interesting not only to a private buyer who makes a single custom piece. They are convenient for furniture workshops, designers, component suppliers, and manufacturers where repeatability of several identical items is important.

KN-009 does not replace structural calculation and does not turn a stacked post into a ready-made load-bearing system. However, it relieves the buyer of the labor-intensive work of making a thin decorative separator. As a result, the craftsman focuses on the project, the sequence of elements, finishing, and assembly, rather than on turning each washer from scratch.

Watch video ...

What is the wooden washer KN-009

KN-009 is a compact ring-shaped part made of solid wood, intended for use in furniture and interior structures. Externally, it resembles a low washer or bushing, but it should not be confused with metal fasteners. The part works as a decorative separator on a central axis: it marks the boundary between large elements, creates a pause in the stack, frames a transition, or enhances a repeating rhythm.

Our factory also produces:

Wooden capital KL-008

from 26.23 $

Wooden Capital KL-051

from 36.11 $

Wooden Capital KL-063

from 27.45 $

Wooden Decor N-021

from 19.27 $

Wooden Molding K-049

from 4.27 $

Wooden Molding K-065

from 20.98 $

Decor Set C-051

from 263.01 $

Flat wooden baluster L-101

from 300.22 $

View Full Product Catalog

Confirmed characteristics of KN-009

Dimensions need to be read carefully. A = 22 mm describes the extent of the part along the axis. B and C are equal to 62 mm and define the transverse dimension. D = 34 mm refers to the hole. In colloquial speech, KN-009 is often called a wooden washer with a diameter of 62 mm, but during production preparation it is better to keep the designations from the current drawing. This eliminates the situation where different project participants understand the word "diameter" differently.

Before starting work, it is useful to download the current drawings of STAVROS elements and attach the required version of the file to the order. The product photo shows the shape but does not replace the dimensional scheme, especially if a series of identical legs or vertical posts is assembled from KN-009, MLD-060, and neighboring shapes.

Why KN-009 is worth buying as part of a system, not as a random blank

In a search, a wooden washer with a hole can mean anything: a craft part, a macrame ring, a painting blank, a toy element, a spacer, or a technical bushing. For a furniture project, this description is not enough. The buyer needs known dimensions, material, a central hole, the ability to include the part in the specification, and a clear connection to the axis.

KN-009 has a specific purpose within the modular system. It can repeat on one axis, separate larger KN elements, participate in the composition of a furniture leg, or work as a thin belt on a decorative post. In the section of wooden constructor elements shapes of various forms and sizes are collected, so the buyer can choose not random blanks from different sources, but coordinate the entire set by material, mounting channel, and future finishing.

The advantage is especially noticeable in serial orders. Rings individually made in a workshop have to be marked, turned, drilled, calibrated, ground, checked for height, and re-finished after a trial assembly. A ready-made module does not eliminate incoming inspection, but it reduces the number of operations. The buyer only needs to check a specific batch, determine the nature of the fit, approve the finish, and calculate the quantity.

The equality of 34 mm is not a guarantee of a ready fit

The main question of the article is simple: will KN-009 fit on MLD-060 if the hole and the shaft have the same nominal size of 34 mm? The honest answer: the coincidence of nominal numbers confirms the design relationship of the parts, but does not replace the actual fitting of a specific pair.

Nominal size

The nominal value is the value by which the product is designated in the card, drawing, or specification. It helps to select parts of one system and filter out clearly unsuitable options. A 34 mm hole is not intended for a 20 or 50 mm shaft. In this sense, parameter D serves as the main reference.

Actual size

The actual size is measured on a specific part. Wood is a natural material, and the product undergoes mechanical processing, sanding, storage, and transportation. The buyer does not need to assume a deviation in one direction or another in advance. It is enough to understand: the actual result is checked on a sample, not derived only from the number in the name.

Production tolerance

The tolerance sets the allowable deviations of the size, but in the available product information, there is no basis to independently assign the upper and lower limits of the KN-009 hole or the outer diameter of MLD-060. Therefore, one cannot write a fictitious clearance in the technological card and pass it off as a manufacturer's recommendation.

Mounting clearance

The mounting clearance depends on how the assembly is supposed to work. One thing is to temporarily put on a washer, move it along the axis, and disassemble the composition. Another is to achieve a tight adhesive fit in a finished furniture leg. A third is to assemble a test mock-up without glue. The same nominal size does not answer the question about the nature of the connection.

Finish layer

Primer, enamel, varnish, or another finishing system changes the surface. The inner zone of the hole is especially sensitive: even a thin layer around the circumference can noticeably alter the actual fit. Therefore MLD-060 for KN elements and the washer itself must be checked not only before painting, but also after a test cycle of the chosen finish.

The correct commercial conclusion is simple: there is no need to reject KN-009 due to the lack of a published mounting clearance. You need to buy consciously — start with a control pair and confirm the technology before ordering the entire series.

What exactly the customer buys

The KN-009 card refers to one individual wooden part. The buyer does not automatically receive a finished furniture leg, a long axis, glue, a module layout diagram, or installation services.

If you need not a separate separator, but an already selected composition for a vertical support, it is useful to look at the ready-made composition KON-009 with KN-009. The kit card shows how the washer works alongside other shapes and the axis. This does not mean that KON-009 will suit every project without changes, but it provides a clear example of a complete set.

How KN-009 works in a ready-made composition

The low washer rarely becomes the main decorative center. Its value lies elsewhere: it emphasizes neighboring shapes and organizes transitions. Between two large shapes, KN-009 creates a thin line and prevents volumes from merging. Under a sphere or cube, it works as a base. In a series of repetitions, it forms horizontal belts. On a long post, it helps break the vertical into clear sections.

Separator between large modules

If two voluminous shapes touch directly, their silhouettes may merge. A thin washer creates a pause. The buyer gets a more readable structure without increasing the scale of the large decor. This is especially noticeable under enamel of one color, where the difference between adjacent shapes cannot be emphasized with contrasting texture.

Transition from axis to volumetric part

A straight axis with a diameter of 34 mm looks thinner than the outer dimension of KN-009, 62 × 62 mm. The ring gently expands the silhouette before the large module. This transition is useful on a furniture leg, where a sharp jump from a thin rod to a massive shape can look accidental.

Repeating belt

Several KN-009 units placed at the same height on different supports tie a furniture set together. Even if the legs are far apart, the horizontal levels read as a single system. A mistake of a few millimeters, on the contrary, becomes noticeable precisely because the thin ring forms a clear line.

Technological pause in the set

The washer helps separate sections of different character: rounded shapes, cubic parts, open axis segments. It does not hide a calculation error, but makes transitions between groups of elements clearer. It is easier for the buyer to see where one decorative block ends and the next begins.

That is why, when choosing, you should look not only at KN-009 separately, but also at wooden balls, cubes, and construction set elements. The washer reveals its role in combination with neighboring modules, not against the empty background of a product card.

Control pair: the most profitable purchase before a large batch

Ordering one KN-009 and a matching MLD-060 section is sometimes perceived as an extra step. The buyer thinks it is more profitable to immediately order the full quantity and not waste time on a sample. For a series of identical stands, a control pair is one of the most cost-effective elements of the order.

Suppose a workshop assembles four supports, each with three washers. The main quantity is twelve parts. If after painting it turns out that the fit has become too tight, you will have to rework all twelve holes, damaging the already finished coating, or change the technology for the entire batch. If the problem is identified on one test KN-009, the process is corrected, not the series.

What to include in a control order

• one KN-009 of the selected material;

• a section or one axis of MLD-060 of the same material;

• selected primer;

• the planned finish coating;

• the intended adhesive composition;

• an adjacent figure, if it affects the assembly sequence;

• assembly drawing;

• the form of recording the result: photos, dimensions, notes in the assembly card.

The control pair must match the future series. You cannot test a beech washer on an oak axle, approve the result, and then transfer it to another material without a re-fit. You should also not use a random piece of round rod of unknown origin instead of MLD-060: in this case, you are testing not the commercial system, but an arbitrary combination.

When the project is complex and has several types of stands, it is useful to prepare a specification for the stacked stand. This helps to link article numbers, materials, quantities of parts, heights, and the order of elements before purchasing the full batch.

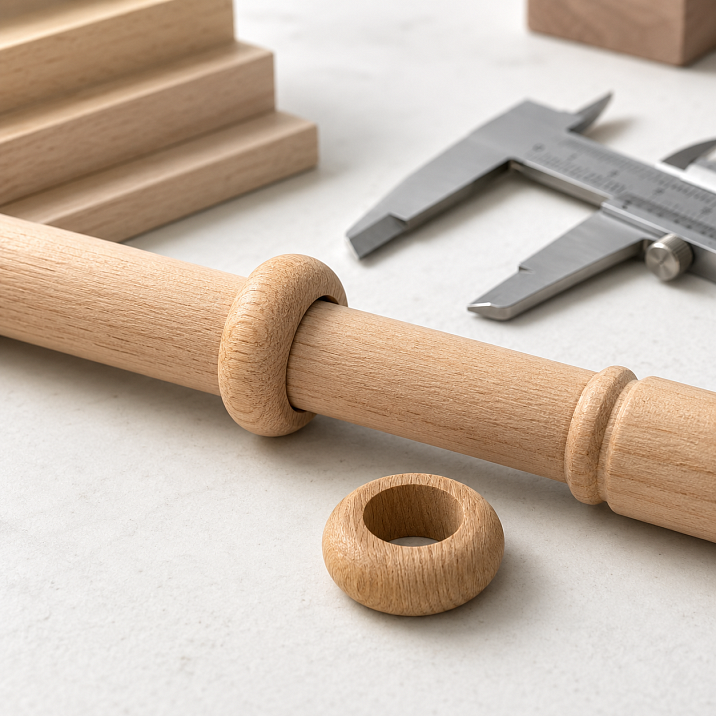

Dry fit of KN-009 before applying the finish

A dry fit is assembly without glue and without a final coating. Its purpose is not to permanently secure the washer, but to see the actual behavior of the pair.

The buyer or craftsman needs to answer several questions:

• does KN-009 fit onto the axle without damaging the edge;

• is noticeable force required;

• does misalignment occur;

• Is coaxiality maintained?

• Can the washer be moved along the axis?

• Is there noticeable play?

• Is the part removed without damaging the surface?

• Do several control samples behave identically?

• Does the inner edge catch on the fibers of the axis?

• Does the adjacent element interfere with full seating?

A universal force standard cannot be assigned with words like "should fit tightly" or "must slide freely." The nature of the connection depends on the project. For a glued furniture leg, one result is needed, for a demonstration mock-up another, for a collapsible decorative structure a third.

How to record the result

Do not rely on memory. Take a photo of the pair, note the material, batch number, date, installation direction, and surface condition. If there are several employees in the workshop, add a brief description: "inserts by hand without tools," "moves with uniform resistance," "no misalignment after rotation." Such formulations are more useful than a fabricated numerical tolerance that is not in the confirmed documentation.

Why you can't use glue right away

Glue hides the nature of the initial fit. If the joint turned out to be too tight or misaligned, it will be difficult to disassemble it without damage. First, the geometry is checked, then the finish, and only after the technology is approved do they proceed to fixation.

Inner edge of the hole: a small area on which the entire assembly depends

The buyer often evaluates only the outer surface. KN-009 looks neat, the shape is even, the front part is well polished — so the part is ready for installation. But the fit is determined primarily by the internal channel.

Before fitting, inspect:

• the entrance edge of the hole;

• the exit edge;

• the inner surface;

• local raised fibers;

• chips;

• signs of transportation;

• contamination;

• packaging material residues;

• damage after trial fitting.

"Prestige" quality is associated with detailed surface treatment, but is not a promise of a specific mounting clearance. It is useful for the buyer to understand in advance, what the "Prestige" sanding quality means, so as not to confuse the surface readiness for finishing with the nature of the hole-to-axle fit.

If a defect is found on the inner edge, there is no need to automatically bore the hole or reduce the diameter of MLD-060. First, determine the cause. Sometimes locally raised grain interferes, sometimes contamination, sometimes the chosen coating system. Any rework must be part of an approved technology, not an "on-the-spot" reaction after painting the entire batch.

What happens to the fit after primer, enamel, or varnish

The most common mistake is to check the parts in wood, make sure they assemble, and then paint all surfaces without accounting for the fitting channel. After drying, KN-009 no longer fits onto the axle or damages the coating during movement.

The coating adds a layer both to the outer surface of MLD-060 and to the inner surface of the washer, if the channel is painted. The change occurs around the entire circumference. Therefore, even a visually thin layer can noticeably affect the connection.

Possible finishing strategies

No option can be declared universally correct. If the hole is visible in the finished product, the finishing requirements are one set. If the area is hidden and works with adhesive, they are another. If the structure must be disassembled, they are a third.

The rational path: choose one strategy, apply it to a control pair, allow the full drying cycle, and repeat the fitting. Only after that paint the production parts.

Beech or oak: the material affects not only the appearance

KN-009 is available in beech or oak. The buyer chooses the wood species not by the abstract rule "what is stronger," but by the entire project: the material of the axle, neighboring shapes, the type of coating, and the desired surface pattern.

KN-009 in beech

Beech is often chosen for opaque enamel. With a covering finish, the shape plays the main role: a thin ring, a clean edge, a smooth transition from the axle to the neighboring shape. The wood texture should not become the main visual effect.

Beech KN-009 is rational if:

• the entire leg is painted in a solid color;

• the washer and MLD-060 must match in material;

• neighboring shapes are ordered in beech;

• a single set for enamel is required;

• the buyer does not plan to show the natural wood grain.

KN-009 made of oak

Oak is chosen when the texture participates in the design. Under tinting, oil, or a transparent coating, the ring looks not just like a geometric insert, but like part of a solid wooden structure.

An oak part is appropriate if:

• the axis and adjacent shapes are also made of oak;

• visible texture is important;

• semi-transparent finishing is planned;

• the series of posts should match oak furniture or panels;

• the buyer is ready to account for natural variations in the wood grain.

Why the material of the control pair must match the batch

You cannot test the fit on beech and then buy oak in series, thinking that identical nominal sizes completely eliminate the influence of material and batch. The control sample must replicate the future order: beech with beech or oak with oak, the same preparation, and the same finishing system.

Before making a final choice, it is useful order KN-009 in beech or oak first in a test quantity, then fix the material in the specification of the entire structure.

KN-009 and MLD-060: a set that needs to be designed together

MLD-060 is a round wooden axle with a nominal size of 34 mm. It is offered in several lengths and is used as a base for KN geometric shapes. The buyer gets the ability to assemble a stand of the required height, but the length and composition cannot be chosen independently.

What to check about the axle

• material: beech or oak;

• length suitable for the project;

• number of axles;

• possibility of cutting;

• position of joints;

• the total height of all modules;

• open sections of the axis between figures;

• the method of attaching the finished structure;

• finishing;

• the need for a control sample.

MLD-060 with a length of 1000 or 2400 mm are chosen not by the principle of "let's take a longer one, we'll cut off the excess." You need to know in advance where cutting is allowed, how the top and bottom nodes are formed, how much material will be needed for the control assembly, and whether the joint will end up in a visible area.

Why you cannot replace the axis with a random round rod

A random rod may have a different actual diameter, material, surface quality, and behavior under finishing. Even if the seller calls it "34 mm," you are not checking the KN-009 + MLD-060 system. You are creating a new combination that requires a separate fitting and its own technology.

The commercial advantage of purchasing the axis and washer in one system is the reduction of uncertainty. The ratings, purpose, and product relationship are already clear. The buyer only needs to confirm the actual fit of the specific pair and assemble the project, rather than searching for a base blindly.

A separate washer or a ready-made KON-009 leg

Not every customer needs custom development. Some want to create a fully original set, while others prefer to get a pre-selected composition and adapt it to their furniture.

If a specific spacer washer or a non-standard number of repeats is required, KN-009 is purchased separately. If a full decorative leg is needed and there is no desire to re-find the proportions of each module, it is reasonable to look at the KON-009 furniture leg set.

The ready-made set does not relieve you from checking the height, method of attachment to furniture, load, and finish. It solves another task: it shows a coordinated composition and helps move faster from idea to specification.

How to calculate the quantity of KN-009

The quantity is determined not by the length of the axis or the number of large figures, but by the scheme of each identical stand. First, the sequence of elements is approved, then repetitions are counted.

Basic formula:

Quantity of KN-009 in one node × number of identical nodes + agreed reserve for control and production.

The reserve size cannot be assigned universally. For a single custom support and for a batch of furniture, the conditions differ. In one case, a control part is enough; in another, the workshop sets a reserve according to its production policy.

Example of a list

The main quantity in the example is 26 parts, not counting the agreed reserve. Such a table protects against two opposite errors. The first is ordering only by the number of racks, forgetting that several washers are used on each. The second is buying too many "just in case" without an approved scheme.

Total height

Each KN-009 adds 22 mm to the set along the axis. Three washers give 66 mm, but this is not yet the full height of the decorative unit. You need to add large figures, open sections of MLD-060, bases, top elements, and mounting zones.

The thickness of KN-009 should not be used as a way to fix a random height remainder. The washer must have a clear compositional role. If one rack has three rings and another has four only because "the size doesn't add up," the difference will be noticeable.

Serial assembly: how one mistake turns into a problem for the entire batch

A buyer who makes one leg can manually fit each part. In a series, this approach becomes expensive and unstable. If one employee fits the seating "by feel" and another grinds more, identical supports begin to differ.

Serial work requires a reference:

1. approved control KN-009;

2. control section of MLD-060;

3. fixed material;

4. selected finishing system;

5. order of elements;

6. height marks on the axis;

7. description of the dry fit nature;

8. adhesive application rules;

9. temporary fixation method;

10. photo of the finished assembly.

First assembly as a production sample

The first fully assembled rack should not be immediately transferred to the product. It must confirm the height, ring positions, coaxiality, absence of coating damage, and appearance at a real distance.

If the first rack differs from the drawing, the specification is adjusted before assembling the rest. This is cheaper than disassembling the entire series.

Marking

The packaging or technological tag indicates:

• KN-009;

• material;

• batch number;

• rack number;

• position in the sequence;

• type of finish;

• result of the test fitting;

• top and bottom, if it matters;

• axle or set number.

Marking is especially useful after separate painting. Without it, several identical washers can easily be mixed up, and parts matched to a specific test axle end up in other assemblies.

Test finish: not a color sample, but a check of the entire technology

A test coat is often done only to choose a shade. In the case of KN-009, its task is broader. It should show how the selected system changes the fit, hole edge, sliding on the axle, and joint quality.

What needs to be recorded before finishing

• initial state KN-009;

• actual behavior on MLD-060;

• presence or absence of play;

• possibility to remove the part;

• appearance of edges;

• material;

• batch number.

What is checked after the full cycle

• whether assembly remains possible;

• whether the coating is damaged;

• whether a bead forms on the leading edge;

• is it possible to install the washer before the design mark;

• hasn't a skew appeared;

• is the selected adhesive compatible with the treated surface;

• do the ends and the front part look the same.

It is important to maintain the full technological cycle. Checking on undried primer proves nothing. The coating must reach the state provided by the selected system.

For the test, you can select adhesive and materials for a trial assembly, but the specific composition is chosen based on materials, the purpose of the joint, and the adhesive manufacturer's recommendations. The presence of a product in the catalog does not automatically mean compatibility with any structure.

Adhesive fixation KN-009

Cards of ready-made kits show the use of wood adhesive when assembling figures on a wooden axis. However, the buyer cannot transfer one scheme to any custom project without verification. The choice is influenced by the material of the parts, the presence of coating in the bonding area, contact area, vertical or horizontal position of the joint, load, the possibility of temporary fixation, operating conditions, and the need for disassembly.

Too much glue

Excess comes out on the front surface, contaminates the edge, and interferes with finishing. On a transparent coating, the mark can become especially noticeable. In addition, excess compound does not compensate for improper fit.

Too little glue

Insufficient filling of the working area can result in a weak joint. The amount cannot be determined only visually; the technology must account for the contact area and the properties of the selected compound.

Glue instead of geometry

Glue does not fix a skewed hole, incorrect axis, or damaged edge. First achieve a correct dry fit, then secure.

Temporary holding

To maintain position during curing, masking tape, a template, or another fixture may be required. It must not shift the washer or damage the coating. The exact solution is determined by the workshop according to its process sheet.

What to buy together with KN-009

Buying a single washer makes sense for replacement, a sample, or a small custom part. For a full stand, a set is needed. Its composition depends on the project, but the commercial route can be determined in advance.
