When you need to buy a large wooden ball with a hole for a decorative stand, partition, baluster, composite furniture support, or custom finial, KN-002 and KN-004 are easy to confuse. Both models belong to the STAVROS wooden construction set, are made of beech or oak, and have a through hole of 34 mm. However, the same fit on the axle does not make them interchangeable: the shape, cross diameter, visual mass, and series budget differ noticeably.

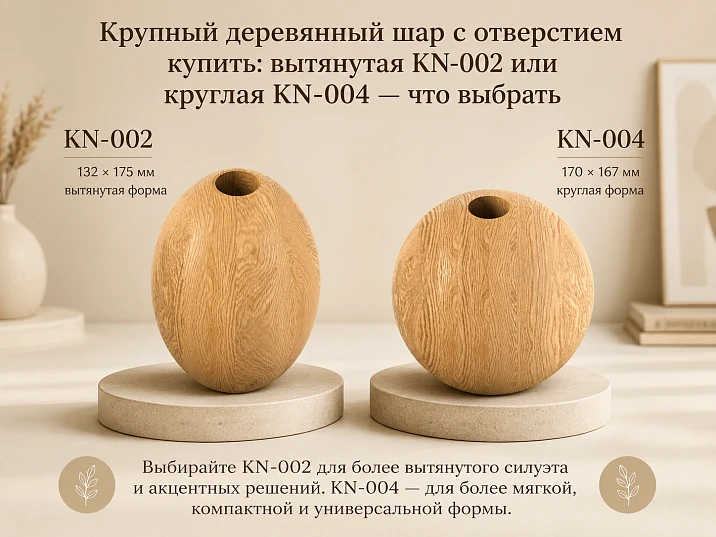

KN-002 measures 175 × 132 × 132 × 34 mm. It is taller but narrower and appears elongated along the vertical axis. KN-004 measures 167 × 170 × 170 × 34 mm. Its height almost matches its width, so the model is perceived as an almost perfect large ball. The height difference is only 8 mm, but KN-004 is 38 mm wider—this difference changes the silhouette of the stand more significantly.
At the time of verification, KN-002 in beech cost 3,990 rubles, in oak—6,850 rubles. KN-004 in beech cost 5,560 rubles, in oak—9,870 rubles. Prices, availability, and delivery times must be rechecked before publication and ordering. When purchasing one piece, the difference seems moderate, but for four furniture supports, two symmetrical stands, or a series of partition elements, the budget changes noticeably.
Below are detailed confirmed dimensions, geometry of 132 and 170 mm, choice for repeating rhythm or central accent, installation on a 34 mm axle, application in partitions, balusters, furniture legs, headboards, and finials, beech and oak, preparation for finishing, quantity calculation, errors, related modules, and commercial ordering route. Load, fasteners, and permissible structural schemes are not invented: they are checked against the design of the entire stand or furniture.
Buy KN-002 175 × 132 mmBuy KN-004 with a diameter of 170 mmView construction set elements
KN-002 or KN-004: confirmed characteristics
| Characteristic | KN-002 | KN-004 | Practical conclusion |
|---|---|---|---|
| Size | 175 × 132 × 132 × 34 mm | 167 × 170 × 170 × 34 mm | The first is elongated, the second is almost round. |
| Height along the axis | 175 мм | 167 мм | The difference is only 8 mm. |
| Maximum width | 132 мм | 170 мм | KN-004 is 38 mm wider. |
| Hole | 34 мм | 34 мм | The fit is checked before finishing. |
| Shape | Elongated spherical | Almost perfect sphere | Different role in the silhouette of the stand. |
| Material | Beech or oak | Beech or oak | The wood species is chosen together with the finish. |
| Price of beech upon verification | 3 990 ₽ | 5 560 ₽ | The current price is double-checked. |
| Oak price upon check | 6 850 ₽ | 9 870 ₽ | For the series, the difference grows noticeably. |
| Main role | Large vertical accent | Monumental spherical center | KN-002 is easier to repeat, KN-004 is more often used alone. |
The main mistake is to look only at the height. KN-002 is indeed taller, but only by 8 mm. The transverse dimension changes more: KN-004 protrudes noticeably further relative to the axis and takes up more space between adjacent posts.
Why the 34 mm hole does not make the models identical
The same hole diameter links KN-002 and KN-004 to the same modular logic, but only describes the fit on the axis. The external geometry determines the distance to adjacent parts, furniture, handrail, and wall.
KN-002 with a width of 132 mm leaves more air and is easier to repeat. KN-004 with a width of 170 mm becomes an independent center and requires a larger step between verticals.
The thickness of the future coating can change the fit. Dry fitting is performed before enamel or tinting, and the fixing method is coordinated with the design.
Our factory also produces:
Main difference: 132 or 170 mm
The KN-002 has an aspect ratio of approximately 1.33. The eye perceives the shape as vertically elongated, so it supports the upward movement of the stand.
The KN-004 has a height of 167 mm, almost equal to its width of 170 mm. The shape stops the gaze and creates an almost spherical volume.
A difference of 38 mm is noticeable even in a single detail, and in a row of partitions, it changes the transparency and distance between the stands.
Get Consultation
When to choose KN-002
KN-002 is suitable when small modules get lost and a diameter of 170 mm seems excessive. It creates a large volume but does not turn the stand into a heavy composition.
The model is convenient for repetition on a single axis, several balusters, or four furniture supports. The elongated shape preserves the vertical rhythm.
Before ordering, you can buy elongated spherical shape KN-002, after checking the current price, material, and availability.
When to choose KN-004
KN-004 is needed when the project requires an almost perfect wooden sphere. It is suitable for a single main node, finial, central post, or custom furniture.
A diameter of 170 mm must be confirmed with a template. On a narrow console or dense partition, such a volume may be too large.
In the card, you can Buy a round wooden ball KN-004 with a diameter of 170 mm and check the parameters of the selected wood species.
You cannot choose only by height
If you compare 175 and 167 mm, the models seem almost identical. But height only describes the length of the part along the axis.
The width of KN-004 is 38 mm larger, so the ball protrudes further on both sides. This affects the passage, the spacing of the posts, and the proportions of the furniture support.
Full-size silhouettes of 175 × 132 and 167 × 170 mm give a more honest representation than product photos.
KN-002 for a decorative partition
The partition is built on a repeating rhythm and gaps. KN-002 is more often suitable for several verticals because it takes up less transverse space.
On the plan, mark the axes and outer contour of each ball. Even without physical contact, too small a gap makes the composition heavy.
The structural scheme, pitch, and fixation are calculated by a specialist; the decorative size alone does not confirm safety.
KN-004 in a partition
KN-004 can be used in a partition as a rare central element or with a large post pitch. Frequent repetition of nearly round balls quickly reduces visual transparency.
A hierarchy works well: a central post with KN-004, side posts with KN-002 or more compact modules.
This approach reduces cost and preserves the main sculptural accent.
Ball for composite furniture support
In a furniture leg, KN-002 supports an elongated proportion and aligns more easily with a narrow apron. It is noticeable but does not extend too far beyond the body contour.
KN-004 is suitable for massive custom furniture. The 170 mm diameter is compared to the apron width, console depth, and tabletop size.
Four identical supports are ordered in one wood species and finished simultaneously.
Ball for baluster
The baluster is built on the alternation of large and small volumes. KN-002 is suitable for repeating elements and maintains a vertical character.
KN-004 is best used as a central ball in an accent baluster or main post. In a regular row, it may appear excessively wide.
If KN-002 is still too large, you can compare it with the elongated shape of KN-003, which is 105 mm wide.
KN-004 as a finial
The almost spherical shape is naturally perceived as the completion of a post, headboard, or decorative node. At height, the large diameter is easily readable from a distance.
However, the ball must be proportionate to the base. On a thin post, KN-004 looks accidentally heavy.
The method of attaching the finial and its structural role are confirmed separately.
KN-002 as a finial
The elongated shape continues the vertical line and creates a more slender finish. It is suitable when a large accent is needed without the effect of a monumental sphere.
The height of the entire stand is evaluated together with the KN-002, washers, and base. One beautiful module should not disrupt the overall proportion.
For a symmetrical pair, the position of the parts is repeated exactly.
Bed headboard
At the headboard, large figures can complete the side posts. KN-002 is easier to use as a pair on relatively narrow verticals.
KN-004 creates a more massive finish. The distance to the user's head and shoulders, the height of the mattress and the soft panel are checked.
Parts of one pair are ordered simultaneously so that the wood species and finish are perceived identically.
Cantilever support
The console has a small depth, so the outer diameter is especially important. KN-002 with a width of 132 mm often looks neat.
KN-004 is appropriate for a large console or an author's piece where the ball should be the main decorative element.
In addition to the appearance, the rigidity of the under-table and the connections of all furniture are checked.
One KN-004 or several KN-002
One KN-004 creates a strong hierarchy: a main sphere and secondary modules. This scenario is useful for a central rack.
Several KN-002 units create rhythm and support the vertical. They can be distributed across multiple racks or repeated on one axis.
The choice depends on viewing distance, composition density, and budget.
Combination with the MLD-060 axis
The diagram indicates a wooden MLD-060 axis with a diameter of 34 mm. The active card has a technical fragment in the URL but refers to a round wooden molding.
KN-004 is designed for MLD-060 or a suitable metal pipe with a diameter of 34 mm. Fit and fixation are still checked before finishing.
For KN-002, a corresponding 34 mm axis confirmed by the card and project is also required.
What to place next to a large sphere
Washers, discs, bushings, cubes, and compact spherical elements can be used alongside KN-002 or KN-004. They form a transition from the axis to a large volume.
With KN-004, adjacent parts should be made smaller to avoid competing with the main sphere. With KN-002, a more uniform rhythm is acceptable.
It is useful to study in advance which spheres, cubes, washers, and bushings to buy for the stand.
When KN-003 is needed
KN-002 is already KN-004, but the 132 mm width may be too large for a dense partition or thin support.
KN-003 with a width of 105 mm retains the elongated motif and reduces lateral mass. Replacement is done after checking all dimensions.
Transitioning to a more slender model is often better than randomly reducing the step between supports.
When to switch to KN-001 and KN-005
If large figures overload the project, compact modules are used. KN-001 occupies a medium scale, KN-005 is suitable for frequent repetition.
You can view the compact spherical figure KN-001 и select a small repeating module KN-005.
The dimensional chain is revealed by the material about how to choose compact wooden figures KN-001 and KN-005.
Beech for a large ball
Beech is chosen for projects where opaque painting is planned. The semantics include queries KN-002 for enamel and KN-004 for enamel, but specific preparation is checked in the product card.
Enamel unites the figure with painted furniture or a partition. On KN-004 it emphasizes the sphere, on KN-002 — the elongated shape.
A test paint is done before the main finishing of the entire series.
Oak for a large ball
Oak is chosen when a noticeable wood texture is needed and tinting is considered. Specific finishing options are agreed upon before ordering.
On KN-004 the texture is readable on a large rounded surface. On KN-002 the fibers support the vertical silhouette.
In one symmetrical group, beech and oak are not mixed.
Thickness of the future coating
The coating inside the hole can reduce the working diameter. The seating area is protected or treated according to an agreed technology.
On the outside, a glossy finish enhances reflections on KN-004, while a matte finish emphasizes the overall volume. On KN-002, vertical transitions are more noticeable.
Dry assembly is performed before the final finish.
How to install a ball on an axis
There is no universal method of fixation: it depends on the axis material, element position, and load. Start with a trial assembly.
If the figure is part of a load-bearing or protective structure, the connection is calculated by a specialist. A 34 mm hole does not confirm the permissible load.
The general principle is explained in the material about how to assemble a stand from wooden modules with a hole.
How to calculate the quantity
The quantity depends on the element's role. For a central node, one KN-004 is sufficient; for a symmetrical pair, two identical parts are needed; for furniture supports, often four.
In a row of partitions, the number of modules is linked to the number of posts and the total cost. Each KN-002 occupies 175 mm along the axis, KN-004 — 167 mm.
The total height is calculated together with washers, discs, and gaps.
How to check the distance between posts
On the plan, axes and outer contours are drawn. For KN-002, a width of 132 mm is used, for KN-004 — 170 mm.
The clear opening must be not only physically possible but also visually sufficient. Dense large balls make the partition closed.
In the passage area, the movement of people, clothing, and bags is taken into account.
How to choose the scale for the room
A high ceiling alone does not require KN-004. The post height, furniture size, and viewing distance are important.
KN-002 supports a high vertical. KN-004 works better where calm areas remain around it.
The template is evaluated from the entrance and near furniture.
How to prepare a technical specification
The task specifies the article number, quantity, breed, 34 mm hole, and the intended axis. For each figure, the height and width are recorded.
Attach the drawing of the stand, the position of adjacent modules, and the final finish.
The phrase "place a large ball" is not enough: two models give different results.
How to accept parts after delivery
Upon receipt, check the article number, quantity, material, and size. KN-002 and KN-004 are distinguished not only visually but also by marking.
Check the surface, hole edge, and geometry. Perform a dry fit before finishing.
If a series is ordered, lay out the elements next to each other and evaluate consistency.
How to store figures
Round parts are not left on an inclined surface where they could roll. Use protection and labeling for each.
KN-004 requires more space due to its 170 mm diameter. Cover the holes from dust and accidental coating.
Storage conditions are agreed upon with the manufacturer and finisher.
How not to confuse it with a craft blank
Requests for wooden blanks often lead to decoupage and crafting balls. KN-002 and KN-004 are large furniture modules with a through hole of 34 mm.
A regular ball without a precise hole and confirmed geometry does not replace a construction element.
The overall selection reveals material about how to choose wooden ball blanks with a hole.
How not to confuse KN-002 and KN-004
The specification includes the full article number and size. The wording "large ball 34 mm" is insufficient because the hole is the same.
Before payment, check the card, wood species, and quantity. If both models are used, mark the position of each on the layout.
Replacement after manufacturing the posts may change the clearances by 38 mm.
Who is KN-002 suitable for
KN-002 is suitable for a large but slender stand, repeating partition, balusters, four furniture supports, and a project with a more modest budget.
It is appropriate if the 132 mm width fits with room to spare, and the elongated shape supports the vertical.
The model is not suitable if an almost perfect monumental sphere is needed.
Who is KN-004 suitable for
KN-004 is suitable for custom furniture, a large finial, a central post, and a composition where a spherical volume with a diameter of 170 mm is needed.
It is appropriate if there is enough space around and the price is justified by the role of one main element.
The model may be redundant in a dense partition, thin leg, or frequent repetition.
How to choose for new furniture
When designing from scratch, first choose the role of the sphere, then build the body and axis around its actual size.
For KN-002, allow a width of 132 mm and a height of 175 mm. For KN-004, the outer dimension is about 170 mm.
After confirming the geometry, select the quantity, type, and finish.
How to match an existing stand
Measure the axis, free length, and distance to adjacent objects. If the diameter does not match 34 mm, direct installation is not guaranteed.
Then apply the outer template and check the possibility of disassembling the stand.
The color of the new part is matched using a sample, not just a photo.
How to calculate the budget for the entire structure
In addition to the balls, the estimate includes the axis, washers, other modules, finishing, assembly, and delivery.
One KN-004 may be cheaper than a series of several KN-002, so compare complete compositions.
Prices from the diagram are used only after an up-to-date check.
How to maintain rhythm in a series
Repeated KN-002 are placed at the same height and with equal intervals. Small deviations are noticeable on a long partition.
KN-004 is aligned with the central axis of the room, furniture, or entrance so that the large sphere appears intentional.
Marking is done based on a common reference, not from random floor points.
How much do one, two, and four parts cost
| Quantity and material | KN-002 | KN-004 | Difference |
|---|---|---|---|
| 1 pc., beech | 3 990 ₽ | 5 560 ₽ | 1 570 ₽ |
| 2 pcs., beech | 7 980 ₽ | 11 120 ₽ | 3 140 ₽ |
| 4 pcs., beech | 15 960 ₽ | 22 240 ₽ | 6 280 ₽ |
| 1 pc., oak | 6 850 ₽ | 9 870 ₽ | 3 020 ₽ |
| 2 pcs., oak | 13 700 ₽ | 19 740 ₽ | 6 040 ₽ |
| 4 pcs., oak | 27 400 ₽ | 39 480 ₽ | 12 080 ₽ |
The calculation is based on card prices at the time of scheme preparation. Before publishing and ordering, the cost must be rechecked. The table shows why the budget should be calculated not for a single part, but for the full quantity in the project.
What to buy together with KN-002 or KN-004
| What to add | Why | Scenario | Link |
|---|---|---|---|
| Axis MLD-060 | Assemble a system on a 34 mm diameter | KN-004 and approved KN-002 projects | Select a wooden axle MLD-060 with a diameter of 34 mm |
| KN-003 | Reduce width | Dense partition | Compare with KN-003 width 105 mm |
| KN-001 | Switch to medium scale | More compact stand | View KN-001 |
| KN-005 | Assemble a fast rhythm | Multiple modules | Select KN-005 |
| Constructor category | Add washers, cubes, and bushings | Author's composition | Select wooden constructor elements with a 34 mm hole |
| Payment and delivery | Confirm order | Any project | Clarify payment and delivery terms for STAVROS products |
Errors when purchasing a large wooden ball
1. Selection by height only
KN-002 is only 8 mm taller, but KN-004 is 38 mm wider. The transverse diameter changes the scale more. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
2. Purchase without a template
The photo hides the actual size. Silhouettes of 175 × 132 and 167 × 170 mm are needed. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
3. Calculating the price of one part
For two and four modules, the budget difference multiplies. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
4. Covering the hole before fitting
The finishing layer can change the fit on the axis. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
5. Frequent repetition of KN-004
The partition becomes heavy and expensive. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
6. Using KN-002 instead of a sphere
An elongated shape does not replace an almost perfect sphere. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
7. Mixing beech and oak
In a symmetrical group, differences in texture will be noticeable. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
8. Promise of universal load
A 34 mm hole does not determine the strength of the entire structure. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected wood species.
9. Replacing the article after manufacturing the racks
Additional 38 mm of width may affect clearances. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected breed.
10. Purchasing a blank for decoupage
A regular ball does not replace a precise furniture module with a hole. Before ordering, you need to return to the card, the drawing of the entire structure, and the current parameters of the selected breed.
FAQ: KN-002 or KN-004
1. How is KN-002 different from KN-004?
KN-002 has dimensions of 175 × 132 mm and an elongated shape. KN-004 is 167 × 170 mm and almost round.
2. Which model is wider?
KN-004 is 38 mm wider.
3. Which model is taller?
KN-002 is 8 mm taller.
4. Which ball is closer to the sphere?
KN-004.
5. Which hole do both models have?
34 mm.
6. What to choose for repetition?
More often KN-002.
7. What to choose for the central accent?
KN-004.
8. What to choose for the partition?
KN-002 or a more compact model; KN-004 as a rare accent.
9. What to choose for a furniture leg?
KN-002 is easier to match with a narrow support, KN-004 with massive custom furniture.
10. Can KN-004 be used as a pommel?
Visually yes, but the mounting is confirmed by a specialist.
11. When is KN-003 needed?
When the width of 132 mm is still too large.
12. When to switch to KN-001 or KN-005?
When a smaller scale or frequent repetition is needed.
13. Beech or oak?
Beech is usually chosen for opaque finishes, oak when texture is important; preparation is checked in the card.
14. Can the hole be painted?
The technology is agreed upon because the coating affects the fit.
15. How much do four beech KN-002 cost?
At the price at the time of check 15,960 ₽; the current price is being rechecked.
16. How much do four beech KN-004 cost?
At the price at the time of check 22,240 ₽; the current price is being rechecked.
17. Can both models be installed on one axle?
Both have a 34 mm hole, but the fit and fixation are checked separately.
18. Where to buy KN-002?
In the KN-002 card on the STAVROS website.
19. Where to buy KN-004?
In the KN-004 card on the STAVROS website.
20. Where to see other modules?
In the wooden construction set section.
21. How to check availability?
Check the product card right before ordering.
22. How to arrange delivery?
Check the current payment and delivery terms of STAVROS.
How to buy KN-002 or KN-004 on STAVROS
First, determine the role of the element. For a repeatable, elongated, and more economical composition, open the KN-002 card. For an almost perfect sphere and central accent, choose KN-004. Then check the sizes on a full-size template.
Choose beech or oak, quantity, and the corresponding axis. Calculate the total cost of one, two, or four parts. Be sure to double-check prices and availability: the data in the article refers to the time of diagram preparation.
If large models are not suitable, open wooden construction set section and compare KN-003, KN-001 and KN-005. For a complex stand, it is useful to pre-assemble a list of all modules and coordinate connections with a specialist.
Result: elongated KN-002 or round KN-004
KN-002 and KN-004 have the same 34 mm hole, are made of beech or oak, and are large elements of the wooden construction set. But their geometry is fundamentally different. KN-002, measuring 175 × 132 mm, supports verticality and is easier to repeat. KN-004, measuring 167 × 170 mm, creates an almost perfect sphere and becomes a monumental center.
KN-002 is chosen for partitions, balusters, composite supports, a series of posts, and projects with a more modest budget. KN-004 is for a single main sphere, a large finial, a central post, and designer furniture where a diameter of 170 mm is appropriate.
Before ordering, compare templates, check the 34 mm axis, quantity, wood species, total height, and budget. On STAVROS you can choose KN-002 in beech or oak, order KN-004 for a central accent or go to the construction set catalog to select more compact modules.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to coordinate the module How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to align the module with the handrail
The width of the ball is compared with the handrail, base, and adjacent balusters. Decorative compatibility does not replace the railing calculation.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to design two symmetrical posts
The position of the balls is repeated at the same height mark. The species, color, and gloss are chosen the same for the entire pair.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to check the passage next to the post
The outer contour of the ball should not become a random obstacle. Especially carefully check KN-004 with a diameter of 170 mm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to plan a repeat order
The article number, wood species, and finish data are preserved. A repeat batch may visually differ, so it is better to buy the main symmetrical elements together.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
KN-002 and KN-004 in one composition
KN-004 is assigned as the main ball, and KN-002 is an elongated transition element above or below. The total height of all modules is calculated before ordering.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
How to evaluate the product from a distant point
A large ball looks different up close and from the next room. One KN-004 is clearly readable from a distance, a series of KN-002 provides a more detailed rhythm.
Practical verification begins with a full-size template and drawing of the entire structure. A separate card does not show the relationship with furniture, axis, and adjacent modules.
Commercial conclusion: first choose the shape and scale, then the quantity, material, finish, and current cost.
