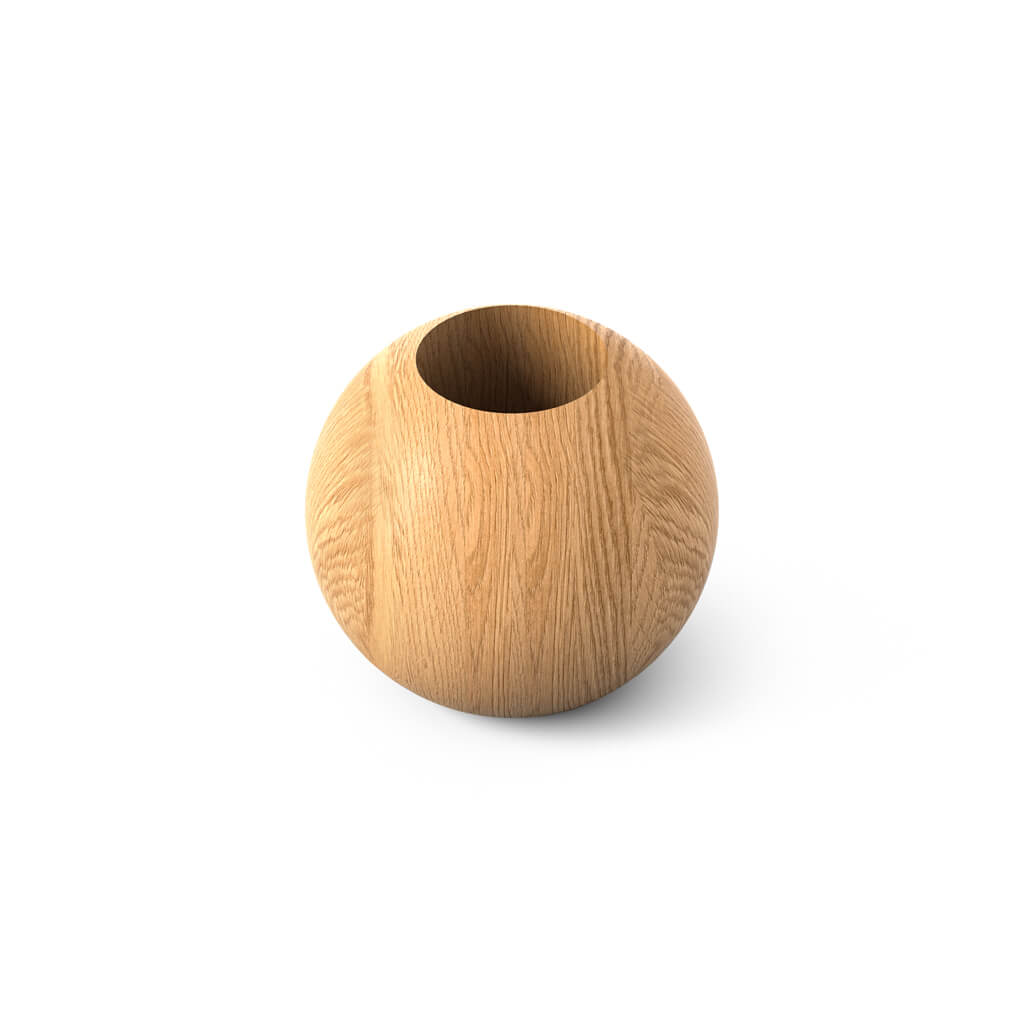

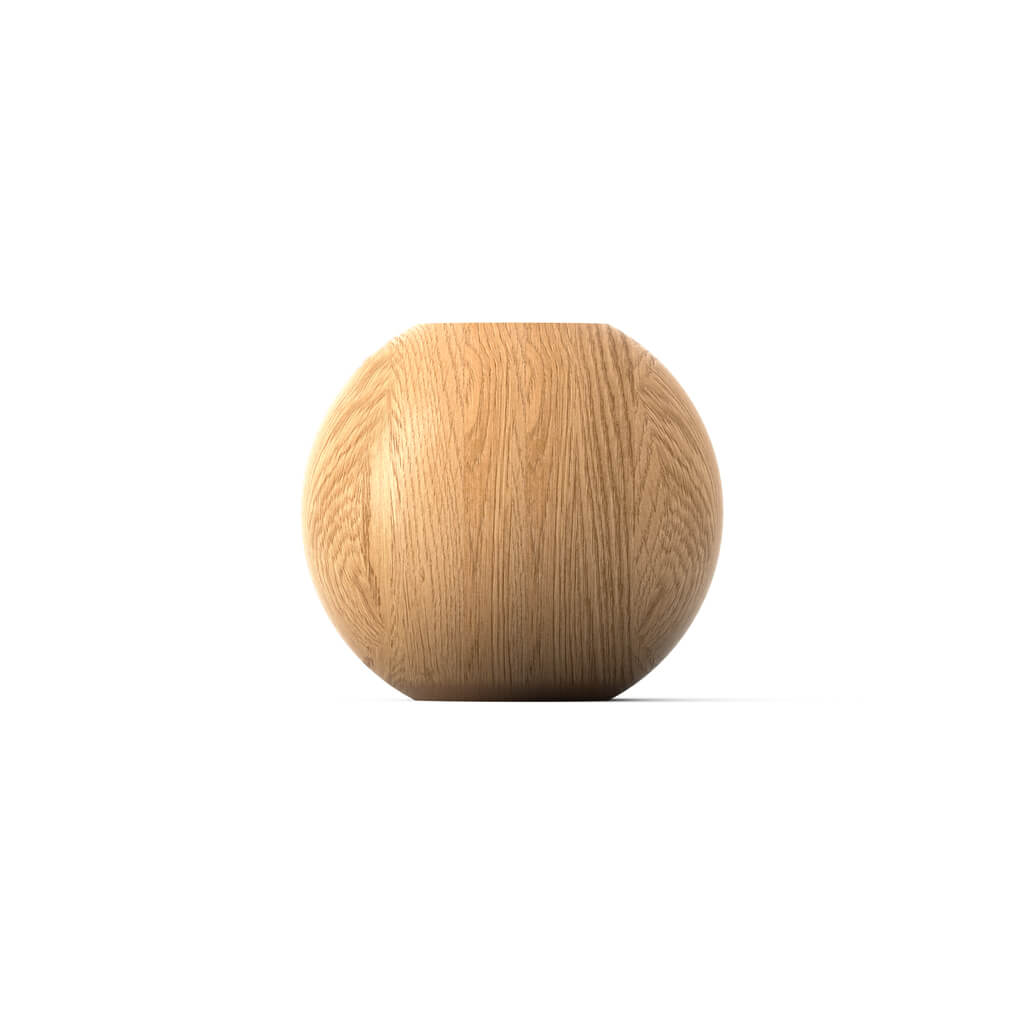

Geometric figure KN-005

Sometimes the most precise solutions are the smallest ones. In furniture and interior design, this rule is especially evident: one compact, well-chosen accent can change the perception of an entire structure — without overloading it, without competing with other details, but simply placing the right emphasis in the right place. Such is the geometric figure KN-005 — a compact decorative piece made of solid wood with a rounded shape and a mounting hole D 34 mm.

The size 66 × 76 × 76 mm speaks for itself: it is a small, neat element designed for delicate decorative nodes. Not a monumental sphere filling the space around it, but a precise detail that complements the structure without visual overload. Where a large figure would be excessive, KN-005 is exactly what is needed: a small, expressive, impeccably turned accent made of natural wood.

Geometric figure KN-005 for furniture and interior structures

Before moving on to the technical parameters, it is worth answering the question that every professional asks themselves when opening a product page like this: why is a compact wooden figure with a hole needed? What problem does it solve better than a larger element?

The answer lies in the nature of the structures themselves. Not every post or rod needs a large decorative accent. Not every baluster requires a massive central "belly" with a diameter of 130 mm. In many cases — especially in light, airy, minimalist structures — excessive accent volume disrupts the balance. It is for such tasks that thecompact decorative detailKN-005: it adds the right wooden accent without compromising the structure's lightness.

In the systemSTAVROS furniture construction systemKN-005 plays the role of a delicate "dotted line" — a small rhythmic point that sets the pace in alternation with straight sections or larger elements. It's a detail that isn't noticed immediately, but without which the structure looks incomplete.

What is a D 34 mm mounting hole and why is it needed

A turned wooden element with a mounting hole is a part designed to be threaded onto an axle, rod, or shaft of the corresponding diameter. The principle is simple: the supporting element passes through the hole, the part is fixed in the desired position with glue or another method — and it's done.

KN-005 with a D 34 mm hole is compatible with all elements of the KN series: if necessary, on one axle you can alternate KN-005 with larger shapes — KN-001, KN-002, KN-003 — creating rhythmic groups with a contrast of sizes.

Important: the part is suitable for installation if the actual diameter of the supporting element matches the D 34 mm mounting hole. Before ordering, it is necessary to measure the diameter of the rod, post, or other part and compare it with this value.

Where KN-005 is used: a complete overview

The compact format of KN-005 opens up a wide range of applications — and in some scenarios, it proves preferable to larger elements precisely due to its proportionality.

Decorative rods: a light accent without overload

A small wooden element for a rod with a mounting diameter of 34 mm — a part that neatly "enlivens" the structure without weighing it down. On a decorative rod 800–1000 mm long, several KN-005 placed at equal intervals create a rhythmic pattern — light, repetitive, and pleasing to the eye.

This is exactly the approach used in modern interior solutions where the structure should be airy: open shelves, decorative dividers, lightweight cornices, and railings. The compact decorative wooden insert for the rod KN-005 here works like "notes" in a musical phrase — inconspicuous individually, but creating a melody together.

Furniture posts and supports: transition point

A wooden part for a small-diameter post — a task that KN-005 handles perfectly. On a thin decorative post or support, a large ball would be inappropriate: it would disrupt proportions, creating a feeling of "a head too big for the body." KN-005 with its diameter of 76 mm is a proportional, balanced accent for posts with a diameter of 30–50 mm.

On a vertical post 400–600 mm high, one or two KN-005 create clear visual division points without a feeling of overload. This is especially valuable in Scandinavian, minimalist, or modern style furniture, where the proportionality of details is a fundamental issue.

Furniture legs: final accent

Compositefurniture legwith KN-005 at the top or bottom — a delicate solution for furniture that needs a furniture-like character without excessive decoration. A small rounded element at the top of the leg works as a decorative transition from the horizontal surface to the vertical support — a classic technique that gives the product a finished "furniture" look.

KN-005 works especially effectively at the top of legs for cabinets, consoles, coffee tables, and small ottomans: where a large ball would be absurd, a small one is just right.

Balusters and stair elements

wooden balusters for staircases are often built on alternating several turned forms: a large central element plus two or three smaller ones above and below. KN-005 is an ideal candidate for the role of such "supporting" elements that frame the main accent and create smooth transitions between it and the straight sections of the post.

In lighter, modern balusters, KN-005 can also act as a standalone single accent — in cases where the style suggests delicacy rather than pomp.

Wooden partitions: a small element, a big effect

A small element for a wooden partition — a sphere where KN-005 reveals itself especially well. In interior partitions made of vertical posts and horizontal slats, a decorative insert with a diameter of 76 mm creates a neat nodal accent without blocking the view or disrupting the airiness of the structure.

Several vertical rods with KN-005 at equidistant points — this is a light, rhythmic, "breathing" partition in a modern or Scandinavian spirit. A wooden element for an interior structure of this size works as "punctuation" in the visual text of the space: small but necessary.

Custom furniture: chests of drawers, beds, armchairs, cabinets, sofas

When a craftsman or designer creates furniture according to an individual project, KN-005 proves to be a convenient tool for delicate solutions.Decorative detail for custom furnitureof a small format allows adding "furniture character" to the product where a large element would be superfluous.

On a bed, KN-005 can work as a small accent on the headboard posts — emphasizing them without drawing attention to itself. On an armchair — as a decorative detail on the armrest or leg. On a cabinet — as a small transitional element on the corner post. On a chest of drawers — as part of a decorative rhythmic program together with larger elements.

Decorative dividers and inserts

A decorative wooden divider — a special scenario for using KN-005. On a horizontal axis in a decorative structure, several KN-005s at equal intervals create an expressive rhythm of wooden "beads," dividing the axis space into clear sections.

It works well in decorative cornices, railings, open shelf section dividers, and horizontal partition slats. The small size of KN-005 (76 mm in diameter) does not block the view or create visual heaviness — only rhythm and character.

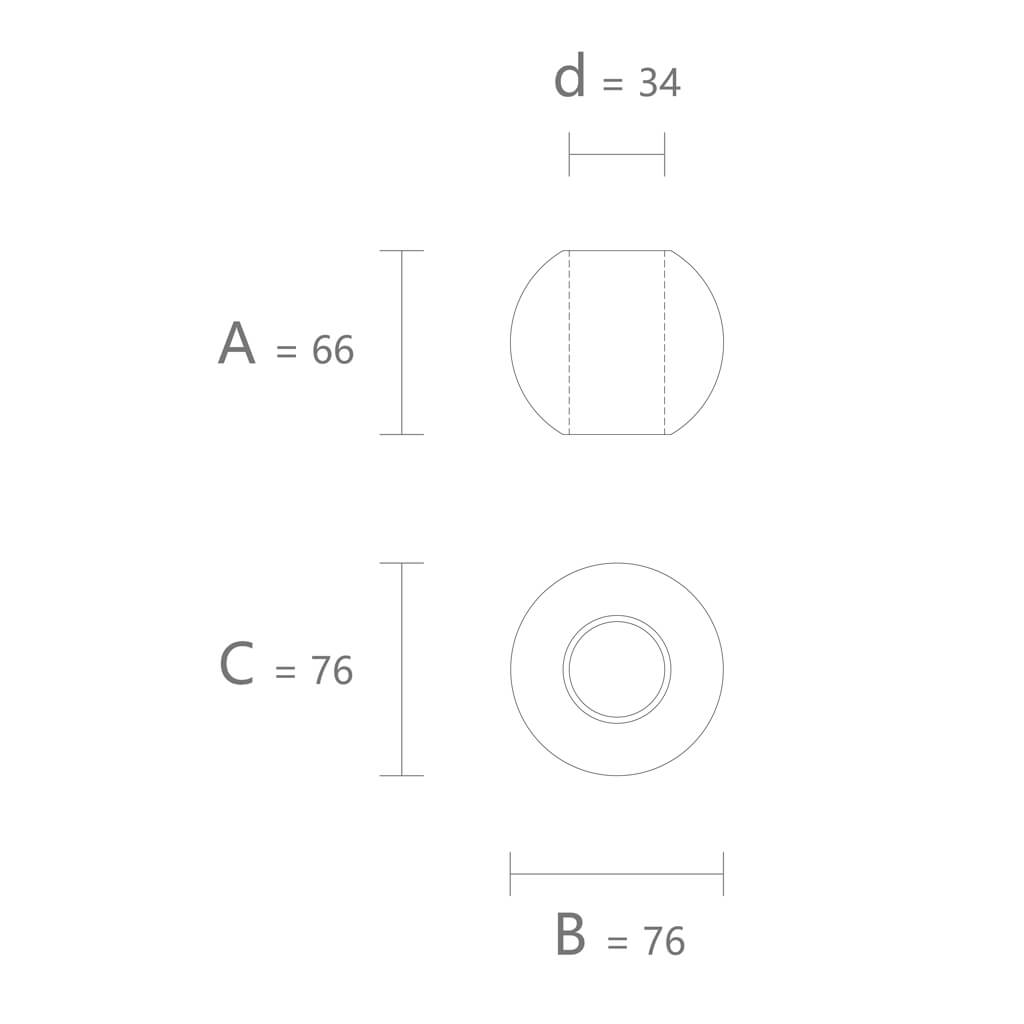

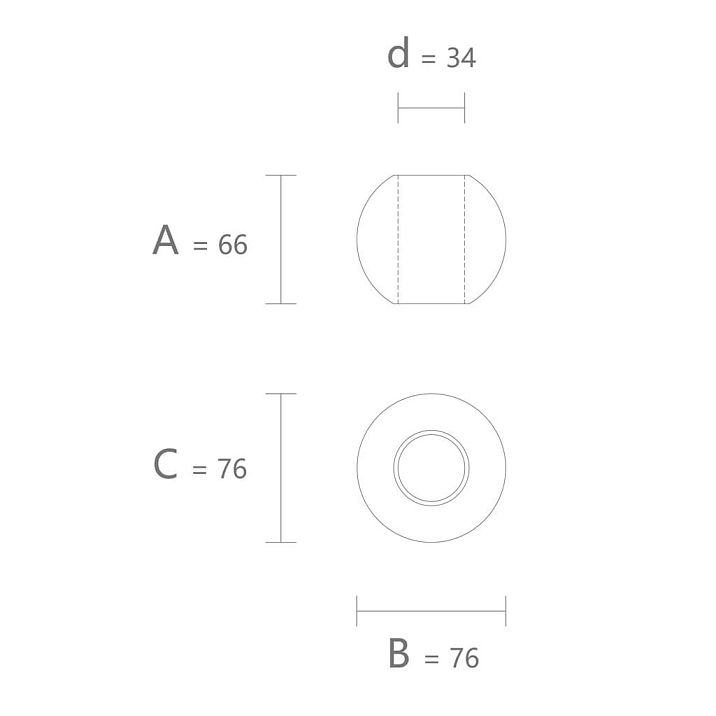

Dimensions: 66 × 76 × 76 mm, hole diameter: 34 mm

The numbers KN-005 speak to the specific character of this part. There is no monumentality here. Instead, there is precision, proportionality, and that delicate expressiveness that is valued in good design no less than large accents.

Parameter breakdown

A = 66 mm — longitudinal dimension, part height along the mounting hole axis. 66 mm is a compact height: less than the width. This creates a flattened, disc-like rounded shape — a "flattened sphere" or "plump lens." This shape visually appears soft, smooth, and somewhat "cozy."

B = C = 76 mm — transverse dimensions. The "sphere" diameter is 76 mm. This is smaller than a tennis ball and almost equal to the diameter of a standard apple. On a vertical post or leg, this diameter looks neat and proportionate with most medium-sized furniture elements.

D = 34 mm — mounting diameter. Uniform for the entire KN series: the wooden part with a 34 mm hole is compatible with all elements of this line on the same axis. Before ordering, mandatory verification of the actual diameter of the supporting element is required.

Key proportion: "flattened" sphere

The ratio of A to B for KN-005: 66 / 76 ≈ 0.87. This means the part is wider than it is tall — a slightly flattened sphere, or, if you will, a "disc with rounded edges." This shape creates an interesting visual effect: when viewed along the axis, the part appears larger than when viewed from the side.

This property can be used as a tool: on horizontal structures (rods, railings, cornices), KN-005 looks compact and light. On vertical ones (posts, balusters, legs), it appears more voluminous and noticeable.

When to choose KN-005 instead of larger figures

The choice between KN-005 and, for example, KN-002 or KN-001 is a matter of scaling the accent to the specific task:

• KN-005 (76 mm in diameter) — for thin posts, lightweight structures, delicate balusters, small legs, and decorative dividers.

• KN-001 (88 mm in diameter) — for a slightly more substantial accent while maintaining the overall lightness of the structure.

• KN-002 (132 mm in diameter) — for large, representative structures where a full spherical accent is needed.

KN-005 occupies the niche of the "least noticeable, but no less important" element in this system.

Compatibility: what to check

A wooden geometric shape with a 34 mm hole is suitable for axles and rods with the corresponding nominal diameter. For a loose fit with glue, a gap of 0.3–0.5 mm is recommended.

If the actual diameter of the supporting element differs from 34 mm, do not install the part with force. The correct solution is to check with a STAVROS manager or plan for modification.

Beech and oak: two materials, two finishing strategies

Like other elements of the KN series, KN-005 is available in beech and oak. For a compact part, the choice of material is especially important: on a small surface, the shape, texture, and color are perceived from very close range — every nuance is visible.

Beech array part: color accuracy on a small surface

Beech is a fine-porous, homogeneous wood. The small surface of KN-005 made of beech under enamel gets exactly what it needs: a perfectly smooth coating without spots or variations. On a small diameter of 76 mm, any unevenness in the coating would be noticeable from arm's length. Beech eliminates this risk.

Beech part under enamel — a choice for painted furniture solutions: white, cream, gray, pastel, anthracite, terracotta — any color will lay evenly and predictably. This is exactly what is needed in serial projects where all parts on the axis must look absolutely identical.

Oak array part: texture on display

Oak with its large pattern on the small surface of KN-005 creates an interesting effect: each part is unique in its pattern. This is not a drawback, but an advantage — in custom and handmade projects, such natural variability only adds value.

Oak part for tintingKN-005 is a choice for projects where the naturalness of the material is a fundamental value. Oil, wax, translucent tinting — all this allows preserving and enhancing the natural pattern, adding the desired shade. In combination with other oak parts of the structure, such an insert creates an organic, warm, "living" atmosphere.

Gluing: for enamel or for tinting

When ordering KN-005, a gluing option is selected: "for enamel" or "for tinting". This choice determines the final surface preparation at the production stage and directly affects the quality of the finish coating. Choose the option corresponding to the planned type of finish — this will save time when working with the part.

Prestige sanding quality — especially important for small parts

There is a paradox well known to professional finishers: small parts require more thorough sanding than large ones. On a small surface, sanding defects are more visible — the scale does not hide them, but exposes them.

What does "Prestige" mean for KN-005

Multi-stage grinding with sequential reduction of abrasive grit ensures a surface free from lathe tool marks and transitions of different textures. For a round shape with a diameter of 76 mm, this means a uniformly processed spherical surface on which enamel or tinting will lie perfectly evenly.

The area around the mounting hole is a particularly important point. It is here that undercuts and unevenness often remain on turned products. Manual finishing in this area at the "Prestige" level eliminates such defects.

Ready for finishing

Furniture construction elementKN-005 with "Prestige" quality is ready for applying the final coating immediately after dust removal. For beech under enamel - primer and two layers of paint. For oak under tinting - pore filler and finishing oil or tinting.

A wooden blank for furniture of this level of preparation is time saved exactly where it is usually spent the most: on surface preparation of small curved parts.

KN-005 in the STAVROS furniture constructor system

In the constructor system, KN-005 plays the role of a "small accent" - compact, delicate, precise. Its value is manifested not in isolation, but in combinations.

Use in rhythmic groups

The most effective scenario for KN-005 is rhythmic repetition. Several identical compact parts placed at equal intervals on one axis create a recognizable visual rhythm. This technique is called "bead" in furniture design: the part repeats like a musical motif, setting the tempo for the entire structure.

On a rod 1000 mm long with five KN-005 every 200 mm - a light, airy structure with a clear rhythm. On a baluster 900 mm high with three KN-005 and one KN-002 in the center - a classic multi-part baluster with a well-defined contrast.

Combination with larger series elements

KN-005 works perfectly as a "supporting" element next to large figures of the KN series. One KN-002 (132 mm) in the center and two KN-005 (76 mm) on the sides — this is a textbook furniture baluster with a central "belly" and side transition accents.

This combination has been used in classic furniture and stair railings for several centuries. wooden balusters for staircases with a similar structure is one of the most common solutions in the production of classic-style stairs.

Combination with other catalog sections

The situation is similar withwith matching legs: as a small transition accent in the upper or lower part of a composite leg.

С carved decoration: small turned elements combined with carved overlays from the same species create a unified decorative concept for furniture or interior panels.

The situation is similar withdecorative elements made of solid woodoverall: KN-005 fits into any wooden system where beech or oak with appropriate finishing is used.

Who is KN-005 suitable for: audience and purchase scenarios

The small format of KN-005 attracts a wide range of buyers — from large manufacturers who need parts for delicate assemblies, to private craftsmen assembling a single custom product.

Furniture workshops and joinery productions

For a professional carpenter, KN-005 is a ready-made turned part that saves time. In serial orders for composite posts or balusters, a compact wooden element for the structure is needed in large quantities — as transition inserts, side accents, or rhythmic dividers. Ordering them ready-made from the STAVROS catalog is much more profitable than manufacturing them yourself.

Interior designers and custom projects

For designer KN-005 — a tool for creating delicate accents in custom furniture and interior projects.Decorative detail for custom furnituresmall format allows you to "complete" the structure where a large element would be excessive.

Staircase and railing manufacturers

In staircase production, KN-005 is indispensable as an element of balusters and posts. Wooden balusters for stairs with several turned inserts of different diameters — a classic solution where KN-005 plays the role of "small" accents framing the central large element.

Masters of decorative partitions

A small wooden insert for interior construction is especially in demand in partitions with thin vertical rods: a large ball on such a rod would look absurd, while KN-005 is proportionate and organic.

Restorers

Restoration of furniture with small decorative details is another area of application for KN-005. Small turned elements on the legs and posts of historical furniture often require replacement. With its compact size, KN-005 can serve as a basis for such a replacement or as a starting point for customization to a specific piece.

Private artisans

For a private craftsman assembling furniture or decor according to their own design, KN-005 is an affordable opportunity to add a professional turned detail to the product. Buying a decorative wooden element from a single piece — that's exactly how STAVROS works, and this is fundamentally important for one-off orders.

Style and interior context

The compact form of KN-005 possesses a rare quality for a decorative detail: it fits equally organically into very different interior styles, without drawing attention to itself or conflicting with its surroundings.

Scandinavian style and minimalism

Delicate turned accents are one of the characteristic elements of Scandinavian furniture design. Beech under light gray or white enamel, several KN-005 on thin legs or stands — this is the language of Scandinavian minimalism: simple forms, natural materials, careful detailing.

Modern Classicism and Neoclassicism

In modern neoclassicism, turned details work as historical quotes presented in a concise reading. KN-005 in beech under enamel on the stands of a chest of drawers or bed — a delicate classical "note" without excessive decor.

Art Deco

In Art Deco, compact geometric accents are an essential part of the decorative language. KN-005 in oak under dark tinting with metal details — a small but precise Art Deco gesture.

Rustic and natural wood

Oak under natural oil with visible grain is the language of a rustic interior. KN-005 made of oak in this context works as a small natural accent, warm and organic.

Botanical and eco-style

Natural wood is always appropriate in an eco-interior. Compact wooden decor for furniture in natural shades — beech under wax or oak under light oil — harmonizes with plant greenery, natural fabrics, and other organic materials.

Installation practice: how to properly install KN-005

The compact size of KN-005 simplifies installation but requires care: a small detail is less tolerant of errors than a large one.

Diameter check

Measure the actual shaft diameter with a caliper. The nominal mounting diameter is 34 mm. For a loose fit with glue — clearance 0.3–0.5 mm; for a press fit — 0.0–0.1 mm.

Finishing before installation

On a compact part, all coating defects are especially visible. Paint or tint KN-005 before installing it on the structure — this ensures even coverage of the entire surface, including the ends.

Assembly Sequence

When creating a rhythmic structure with multiple KN-005, it is recommended to pre-mark the positions of all parts on the axis, ensure equal intervals, then sequentially apply glue and install the parts — from the center to the edges.

Fixation

On vertical structures, the part is fixed with wood glue (PVA or PU) with clamping. On horizontal ones, the adhesive joint is sufficient without additional fasteners. If increased joint strength is required — an additional pin through the hole in the axis.

Table: KN-005 compared to other elements of the series

Frequently Asked Questions (FAQ)

What is the geometric shape KN-005 used for?

KN-005 is used as a compact decorative wooden part for furniture and interior structures: rods, posts, legs, balusters, supports, partitions, and custom furniture. Its small size of 66 × 76 × 76 mm makes it ideal for delicate decorative nodes without visual overload.

Can KN-005 be installed on a decorative rod?

Yes, if the rod diameter matches the mounting hole D 34 mm. Before ordering, measure the actual rod diameter and compare it with this value.

How does KN-005 differ from larger figures in the KN series?

KN-005 has the smallest cross-section in the family — 76 × 76 mm with a height of 66 mm. Unlike KN-002 (132 mm) or KN-003 (105 mm), it is suitable not for monumental accents but for delicate decorative nodes, rhythmic inserts, and compact structures. All elements of the series are presented in"Constructor" section.

Is KN-005 suitable for a baluster or furniture leg?

Yes, if the mounting diameter matches 34 mm. In a baluster, KN-005 works as a small transitional accent or one of several compact elements framing a large central figure. In a composite furniture leg, it serves as a delicate transitional element.

What to choose — beech or oak for KN-005?

Beech — for enamel and opaque painting when a smooth monochrome color is needed. Oak — for tinting, oil, or wax when natural texture and warm surface character are important. The correct choice of the gluing option when ordering ensures optimal preparation for the final finish.

How many pieces of KN-005 are needed for one baluster?

Depends on the design. A classic multi-part baluster with one large central element and two side accents requires two KN-005. For a rhythmic post with equally spaced inserts every 150–200 mm, calculate the number of intervals and add one.

Can KN-005 be used together with KN-002 on the same axis?

Yes, and this is one of the most effective techniques in the construction system. KN-002 (132 mm) in the center and two KN-005 (76 mm) on either side — a classic baluster with a well-defined contrast between the main and secondary accents.

Can I order KN-005 from 1 piece?

Yes. STAVROS works with orders from one piece — convenient for private craftsmen, designers, and small productions. The full range is in the STAVROS solid wood product catalog.

Where can I see the full line of construction system elements?

All elements of the KN series are in "Constructor" section. There you can also find the Furniture Legs and Supports, balusters for staircases и Carved wooden decoration — everything needed to create a complete decorative system from natural wood.
