Buy Xylon HL-056-1M wooden handle bracket: 190 or 286 mm, brass or stainless steel — which to choose

The Xylon HL-056-1M wooden handle bracket can be purchased in two size versions, and the size determines whether the fitting will fit the existing holes and the scale of the facade. The compact model has dimensions of 190 × 28 × 33 mm and a center distance of 128 mm. The elongated one is 286 × 28 × 33 mm with a distance between mounting centers of 224 mm. You cannot choose based on the total length of the old handle: for replacement without new markings, measure parameter D between the centers of the two holes.

Buy Xylon HL-056-1M handle comes after choosing not only the length, but also the metal finish and wood design. The card offers brass or stainless steel, as well as options walnut, rosewood, zebrano, and wenge. Warm brass complements gold fittings and deep furniture shades; stainless steel pairs with silver hinges, modern appliances, gray, white, and black facades.

The Xylon 190 mm is convenient for kitchen drawers, nightstands, dressers, and medium doors. The 286 mm version reads better on a wide drawer and tall cabinet door, including when installed vertically. Two sizes of the same series can be combined in one furniture set if the metal, wood design, installation height, and overall facade logic are the same.

The model requires decorative caps FUR-032 and FUR-033 as necessary fittings. FUR-032 is finished in antique bronze, FUR-033 in nickel. The cap color is matched to the selected handle metal, but the fit, screw, and facade thickness are checked separately: external shade matching does not confirm technical compatibility.

Buy Xylon 190 or 286 mm View handles with coating Select FUR-032 Select FUR-033 Compare long handles

Go to Catalog

Confirmed specifications for Xylon HL-056-1M

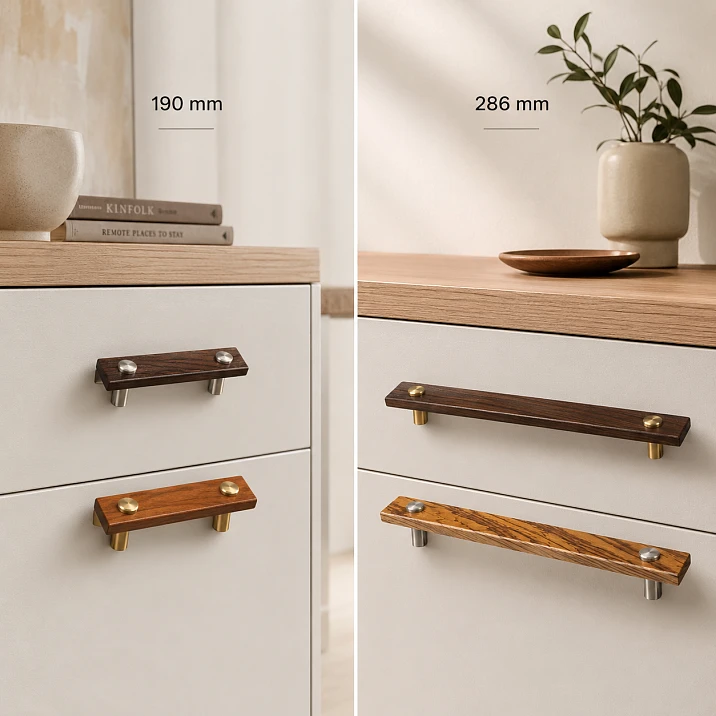

190 or 286 mm: comparison of two versions

Our factory also produces:

View Full Product Catalog

What is the Xylon HL-056-1M bracket handle

Xylon HL-056-1M is a ready-made furniture bracket handle where the wooden part is combined with metal supports. The buyer does not need to separately select a bar, drill it, look for suitable posts, and try to achieve the same appearance on multiple facades.

The main feature of the model is the choice within one series. You can keep the same handle shape on a kitchen, dresser, or cabinet, changing only the length, center distance, metal, and wood finish.

The product card remains the ordering point, and the dimensional calculation starts with the facade and existing holes. The hardware must fit not only in style but also in technical fit.

Why overall length and center distance are different parameters

Overall length A shows how much space the handle occupies on the facade from edge to edge. Center distance D shows the distance between the centers of the two mounting holes.

For the 190 mm version, parameter D is 128 mm. For the 286 mm version, it is 224 mm. The difference between the overall length and D is accounted for by the handle sections beyond the mounting centers.

When replacing old fittings, D becomes crucial. The new handle may be similar in overall length but not match the holes, requiring drilling or restoration of the facade.

How to correctly measure D 128 or D 224

The old handle is removed and the distance from the center of one hole to the center of the other is measured. Measuring along the outer edges of the holes or screws gives an error.

If the holes are covered by washers or decorative elements, first free the surface and find the exact centers. The result is checked several times.

With a value of 128 mm, choose the compact Xylon 190 mm. With 224 mm, choose the elongated Xylon 286 mm. Values of 160, 192, 256 mm and other sizes cannot be rounded to the nearest option.

Xylon 190 mm with center distance 128 mm

The compact version takes up less space and suits medium facades. It creates a noticeable wooden line with metal supports but does not draw attention away from the panel, frame, or material pattern.

This option is convenient for kitchen drawers, bedside tables, chests of drawers, sideboards, and small doors. With many identical facades, the 190 mm length helps maintain a calm repetition.

If the old holes have D 128 mm, you can buy Xylon HL-056-1M 190 mm long after checking the thickness of the facade and fasteners.

When compact Xylon is a better fit

The 190 mm version is rational when the drawer width is limited, moldings are nearby, or the facade already has an active texture. A longer handle could approach the edges or look disproportionate.

On a bedside table and small chest of drawers, a compact bracket is convenient for daily grip and does not turn the hardware into the main decorative element.

For a series of small kitchen drawers, one size of 190 mm simplifies marking and maintains a uniform order.

Xylon 286 mm with center distance 224 mm

The elongated version is designed for a larger facade and forms a pronounced horizontal or vertical line. The thickness of 28 mm and height of 33 mm remain the same, so the length changes primarily.

The handle fits a wide kitchen drawer, a tall cabinet door, a tall cabinet, and a large furniture panel. When installed vertically, it helps visually support the height of the facade.

For holes D 224 mm, you can buy Xylon HL-056-1M 286 mm longwithout transferring the dimensions of other series to it.

When the elongated Xylon works better

On a wide drawer, a short handle can look lost and concentrate force in a small central area. The 286 mm version distributes the visual line across the facade and provides a wider grip.

On a cabinet door, a long pull is noticeable from a distance and supports the vertical geometry. This is especially useful on smooth, tall facades without additional decor.

On a small door, the elongated model may come close to the edges or an adjacent handle, so a layout is needed before drilling.

Can I install a Xylon 190 mm instead of the old handle

Replacement without new holes is only possible if the D 128 mm matches and the mounting assembly is suitable. The overall length of the old handle may differ.

Traces of the previous hardware, coating fading, and old decorative washers also need to be considered. The new Xylon must cover or neatly blend with the existing area.

If the holes do not match, you cannot simply tighten the screws at an angle. The solution requires new marking and professional restoration of the old holes.

Can I install a Xylon 286 mm instead of the old handle

For direct replacement, D 224 mm is required. If the old center distance is different, the new handle will not fit the existing mounting points.

A wide bracket can cover traces of the old hardware, but this does not eliminate the need for exact screw alignment. Old holes should not weaken the new assembly.

On a finished facade, it is better to first make a template with 224 mm centers and apply it in the working position.

What to do if the holes do not match

First, assess the facade material, its coating, and the visibility of old points. Solid wood, MDF, veneer, glass, and stone require different solutions.

You cannot drill into a glass facade yourself. On painted furniture, new holes may damage the coating and require local repair.

If replacement without new marking is important, choose a handle with exact D matching. In other cases, hand the work over to a furniture specialist.

How to cover old holes

The method depends on the facade material and finish. A universal plug does not turn an old hole into an invisible spot.

On painted MDF, coating repair may be needed; on solid wood, a wooden insert with color matching; on veneer, particularly careful restoration.

Decorative FUR-032 and FUR-033 are designed for securing the new handle, not automatically for masking any old holes.

Why you cannot drill into the facade without a template

Even a slight misalignment of one hole leads to handle skew and stress on the metal supports.

For D 128 and D 224, use a precise jig or paper template, checking the horizontal level and distance to the edges.

On several identical doors, one mistake repeats across the entire set, so first drill a test sample or an inconspicuous blank.

How to check the working space for the hand

The handle size should provide a comfortable grip, but the exact ergonomic clearance in the diagram is not confirmed. It is checked on the actual facade.

Nearby, the frame, molding, countertop, adjacent handle, or protruding cabinet edge should not interfere.

The 286 mm version provides a long grip line, but on a narrow facade, the hand may hit adjacent elements.

Vertical or horizontal installation

Horizontal placement is natural for drawers and wide facades. Vertical placement is for cabinet doors, tall cabinets, and high kitchen modules.

190 mm fits a small door and a compact vertical field. 286 mm creates a more noticeable vertical line on a tall cabinet.

Orientation is chosen before drilling, considering the opening direction, right or left hand grip, and adjacent hardware.

How to position the handle in the center of the drawer

For symmetrical installation, find the center of the clear width of the facade and align it with the midpoint between the holes.

If the drawer has a panel, frame, or asymmetrical pattern, the center of the inner field may be used as a reference rather than the overall dimension.

For a series of drawers, use a single reference system. Measuring each facade from a random edge is not allowed.

How to position the handle relative to the door edge

For vertical installation, set the same offset from the side edge and the same height on paired doors.

The handle should be close enough to the opening area but not conflict with the edge, mirror, frame, or adjacent door.

A full-size template of 190 or 286 mm helps verify the position before drilling.

How to check collision of adjacent handles

On corner cabinets, paired doors, and adjacent pull-out fronts, handles may intersect when opening.

Two elongated Xylon 286 mm handles especially require trajectory checking. Doors and drawers are opened simultaneously in possible working combinations.

If contact occurs, change the height, installation side, or choose a compact version.

One handle 286 mm or two of 190 mm

One long bracket creates a continuous line and one central control point for a wide drawer. Two short handles form a symmetrical pair and require two mounting zones.

Two handles should not be chosen solely for visual fullness. The drawer construction, convenience of simultaneous grip, and number of holes must be considered.

For a finished facade, the option is determined by the existing layout. For new furniture, both schemes are compared on a full mockup.

Can two sizes be used in one kitchen

Yes, if 190 mm are assigned to medium drawers and small doors, and 286 mm to wide drawers and tall cabinets.

The metal, wood finish, and installation height must match. Then different sizes look like a functional system of one series.

Random alternation of lengths without relation to the width of the facades creates a feeling of a configuration error.

How to distribute 190 and 286 mm in the kitchen

First, group the facades by type: narrow drawers, wide drawers, upper cabinets, tall cabinets, built-in appliances.

Each group is assigned one size. For example, 190 mm for standard drawers and 286 mm for wide lower modules and tall cabinets.

Before ordering, compile a quantity table to avoid confusing D 128 and D 224 when drilling.

Brass or stainless steel: where to start

The metal is chosen not separately from the kitchen or cabinet, but together with hinges, lights, faucet, appliances, legs, and other visible hardware.

Brass finish creates a warm decorative accent. Stainless steel feels colder and more neutral, especially next to gray, white, and black surfaces.

The actual shade is checked against a sample or card under real lighting. The name of the metal does not guarantee a match with any hardware of the same type.

When to choose brass

Brass suits warm interiors, classic art deco, furniture with golden, bronze, and warm metallic details.

It pairs well with walnut and rosewood finishes, dark green, burgundy, deep blue, and cream facades.

If the kitchen already has silver appliances, brass can be used as a separate accent, but such mixing should be repeated in other details.

When to choose stainless steel

Stainless steel suits modern furniture, minimalism, cool palettes, and interiors with prominent kitchen appliances.

It complements gray, white, black facades, cool stone, silver hinges, and minimalist lighting fixtures.

With wenge, the metal creates a strict contrast; with zebrano, it emphasizes the active wood grain without additional warm coloring.

Brass and walnut

Walnut wood finish and brass form a warm, calm pair. Such a handle suits white, green, blue, cream, and wood furniture.

On a light facade, the combination becomes a noticeable accent; on a dark one, it appears more cohesive and restrained.

Before ordering, compare the shade of brass supports with hinges, lights, and other details, rather than expecting a perfect match.

Brass and Rosewood

The rosewood finish has a deep decorative character and complements warm metal well.

The combination suits sideboards, dressers, studies, wardrobes, and furniture with historical or Art Deco motifs.

On a small facade, rich wood and brass already create a strong accent, so the 190 mm version often looks more balanced.

Stainless Steel and Wenge

The dark wenge finish next to cold metal creates a graphic contrast and suits modern facades.

On white or light gray furniture, the handle becomes a noticeable line. On a black facade, it may appear more restrained.

The 286 mm version is used on large doors or wide drawers, where the contrasting line does not look accidentally long.

Stainless steel and zebrano

Zebrano adds an active linear pattern, while stainless steel maintains a modern character.

This combination works best on a calm, monochrome facade where the handle does not compete with another bold texture.

The orientation of the pattern on multiple handles is checked within one set to ensure the series looks consistent.

Can brass and stainless steel be combined in one room

Mixing is possible if each metal is assigned a clear zone: for example, brass in the living room, steel in the kitchen.

On a single furniture set, different metals without a repeating logic usually look like a random replacement.

For two sizes of Xylon in one kitchen, it is better to keep the same metal finish.

How to match handles with hinges

Visible hinges and handle supports do not have to be exactly the same shade, but the difference should look intentional.

Antique bronze, brass, nickel, and stainless steel have different color temperatures and luster.

Concealed hinges have less impact on the choice, but the faucet, appliances, and lighting remain noticeable landmarks.

How to match handles with lighting fixtures

Brass lighting fixtures support the warm version of Xylon, while silver and chrome ones support the steel finish.

There is no need to mechanically repeat the metal on every item. A few noticeable points that create an overall order are enough.

The handle sample is examined under the lighting turned on, because a warm lamp changes the perception of metal and wood finish.

How to match handles with kitchen appliances

Stainless steel naturally supports silver appliances and the hood. Brass can become a contrasting decorative layer if it is repeated in the faucet or lighting fixtures.

On built-in appliances, the visible area of metal is smaller, so the freedom of choice is wider.

The handle for the dishwasher front is selected not only by color, but also by the opening force and the fastening unit.

Walnut: when it fits

Walnut finish is universal for warm furniture and a calm contrast on white, beige, green, and blue facades.

With brass it looks softer and more decorative, with stainless steel — more modern.

In one kitchen, walnut Xylon can be repeated in two sizes, keeping the same metal.

Rosewood: when it fits

Rosewood is chosen for a rich dark accent, sideboard, study, chest of drawers, and furniture with expressive hardware.

It pairs well with brass and deep facade colors. Next to stainless steel, the contrast becomes more strict.

On a small drawer, the color can be expressive enough even in the 190 mm version.

Zebrano: when it fits

Zebrano suits a modern interior where the linear pattern of the handle is used as an independent decorative detail.

With a solid facade, the texture reads more clearly. Next to an active stone or wood door, overload is possible.

Stainless steel supports the modern character, brass makes the combination warmer and more complex.

Wenge: when it fits

Wenge is chosen for a dark graphic line on a light facade or for a solid solution on dark furniture.

With stainless steel, the combination looks restrained and modern; with brass, it is contrasting and decorative.

On a white kitchen, a long Xylon 286 mm in wenge color becomes a noticeable element, so its scale must match the facade.

How to choose a wood finish for the countertop

Handles can be matched to the wooden countertop in tone or used as a contrast. Exact pattern matching is not necessary and often impossible.

Walnut suits warm medium shades, wenge suits a dark line, zebrano suits active contrast, rosewood suits a rich decorative palette.

A handle sample is applied to the facade and countertop simultaneously, rather than chosen on screen.

Do handles and furniture legs need to match?

A complete match of wood finish and metal is not necessary, but elements should belong to the same visual system.

If the legs are brass, a brass Xylon will support them. If the legs are black or steel, a stainless steel version may look calmer.

On furniture with inconspicuous supports, the choice of handle is primarily determined by the facade and adjacent hardware.

Can I repaint a finished Xylon myself?

The card offers ready-made design options, and the possibility of self-repainting without preparation is not confirmed.

The existing coating, wood, and metal may require different primers and techniques. Improper treatment can worsen the appearance and fit of parts.

If a different color is needed, the issue is agreed upon before purchase or another handle is chosen, without promising easy repainting.

How to care for wood and metal

The handle is wiped with a soft cloth and aggressive abrasives are not used without confirming compatibility with the coating.

Water and household chemicals should not constantly accumulate near metal supports and fasteners.

Loose screws are corrected after checking the threads and front, not by overtightening.

Xylon for kitchen drawer

For the middle drawer, the 190 mm version with D 128 is suitable. It provides a noticeable grip and does not take up too much of the front.

On the wide bottom drawer, 286 mm with D 224 creates a more proportional line. The final choice is checked with a template.

Additional ideas for wooden handles for kitchen fronts help distribute two sizes across the set.

Xylon for upper kitchen cabinets

On small upper doors, 190 mm is more often used. Vertical installation helps support the height of the front and leave an open field.

286 mm is suitable for tall wall cabinets, but may be too long near the bottom edge or cornice.

On paired doors, handles are placed mirror-wise and checked for collision when opening.

Xylon for kitchen cabinet

The tall door allows using 286 mm vertically. The handle becomes a noticeable line and a convenient grip point.

190 mm suits a narrow cabinet or a door with an active pattern, where a long bracket overloads the surface.

The installation height is linked to the handles of adjacent modules and the actual hand reach area.

Which Xylon fits a dishwasher

A wide facade can visually accommodate 286 mm, but the opening force and mounting depend on the appliance and furniture system.

It cannot be stated that one version fits any dishwasher. Check the facade instructions, panel thickness, and permissible fasteners.

If adjacent drawers have Xylon 190 mm, the long version can mark a separate functional module.

Xylon for cabinet and wardrobe

For a tall swing door, the main candidate is 286 mm with vertical installation. It reads better on a large facade.

On small doors, mezzanines, and wardrobe drawers, 190 mm is used, preserving the metal and wood design.

In this section you can choose wooden handles for the cabinet and evaluate them in ready-made furniture solutions.

Xylon for built-in wardrobe

A built-in wardrobe often has tall smooth doors, so a long handle supports the vertical line and makes it easier to find a grip point.

On a mirrored facade, drilling and fastening require a professional solution. You cannot drill glass or mirror yourself.

The handle position is checked relative to the edge, profile, adjacent door, and passage.

Xylon for dresser

The 190 mm version fits most medium drawers and allows repeating the same handle across the entire height.

On a very wide central drawer, you can use 286 mm or two short brackets after separate comparison.

For the finished project, it is useful to select handles for the dresser and nightstand according to the scale of the facades.

Xylon for the nightstand

The compact version of 190 mm usually matches a small facade and does not look excessively long.

Brass with walnut or rosewood creates a warm accent, stainless steel with wenge is more strict.

Before ordering, check that the handle does not hit the countertop or adjacent items.

Xylon for the buffet

The buffet allows a more decorative combination of wood finish and brass. On wide doors and drawers, you can combine both sizes.

Handles should maintain a single height and common metal, even if 190 mm is used on drawers and 286 mm on doors.

Rosewood and walnut support a warm furniture palette well, but the final choice is made based on a sample.

How to check the thickness of the facade

The thickness of the facade affects the screw length and the depth of the threaded connection. A screw that is too short will not provide reliable fixation, while one that is too long may hit the handle or damage the assembly.

Measure the actual thickness of the door or drawer together with any overlays if the fastener passes through them. The nominal description of the furniture may not account for decorative layers.

The screw length is selected according to the technical diagram of the handle and facade. A universal value for all Xylon in the initial data is not confirmed.

How to choose the screw length

Add the required depth of entry into the threaded part of the handle to the thickness of the facade, but take the exact value from the card, configuration, or specialist consultation.

The screw should not be chosen randomly from a home set. The diameter, thread pitch, length, and head shape are important.

Before installing the entire batch, perform a test connection on one door without tightening the fastener with excessive force.

Why you shouldn't use random screws

An unsuitable diameter can damage the thread, and an incorrect length can loosen the handle or create tension in the facade.

A head that is too large can interfere with the decorative cap, while one that is too small may not provide proper support.

The fastener is selected as part of the furniture assembly together with Xylon, the facade thickness, and FUR-032 or FUR-033.

FUR-032: cap in antique bronze color

FUR-032 helps to style the fastener in a warm metallic palette. In terms of color, it logically connects with brass, bronze hinges, and warm hardware.

Before ordering, you can buy FUR-032 cap in antique bronze color, after checking the fit on the specific screw.

Antique bronze and brass do not have to match shade for shade. Physical samples are examined side by side.

FUR-033: cap in nickel color

FUR-033 is designed for a cold metallic palette and supports stainless steel, nickel-plated parts, and silver fittings in terms of color.

You can buy FUR-033 plug in nickel color, but technical compatibility with fasteners is confirmed separately.

On a dark facade, nickel becomes noticeable; on a light one, it looks calmer. Placement must be uniform across the entire series.

FUR-032 or FUR-033

The choice starts with Xylon metal: for a warm composition, consider antique bronze; for a cold one, nickel.

Then check the screw and the mounting node. Color similarity does not mean the plug fits any head and diameter.

It is better not to mix two plugs on one furniture set without a deliberate separation of zones.

Are plugs needed on each handle

If the design and specification provide for decorative covering of fasteners, the quantity is calculated based on the number of points and handles.

The exact number per handle is verified against the product diagram and configuration, not assumed from a photo.

In the estimate, plugs are accounted for separately so that no visible uneven mounting points remain after installation.

How to calculate the number of handles for a kitchen

A list of all opening fronts is compiled: drawers, doors, tall cabinets, built-in appliances, and pull-out baskets.

Next to each item, the Xylon size, D, metal, and wood finish are indicated. Then 190 and 286 mm are summed separately.

A reserve is assigned only when necessary. Extra handles do not compensate for an error in the center distance.

How to calculate a set for a cabinet

Swing doors, drawers, wall cabinets, and internal pull-out sections are counted. Tall doors are assigned 286 mm, small ones 190 mm according to the layout.

For paired doors, handles are purchased in pairs of the same design and installed mirror-symmetrically.

Mirror fronts and glass require a confirmed mounting method before ordering hardware.

How to calculate a set for a dresser

Identical boxes are assigned one size. The wide central facade is considered separately: one Xylon 286 mm or two 190 mm.

The number of plugs and fasteners is counted together with handles, but the technical parameters of the screws are checked against the thickness of each facade type.

For different box heights, a common axis or the same offset is maintained according to the approved scheme.

How to compile a handle list

The table records the facade number, width, height, thickness, Xylon size, D, metal, wood finish, and orientation.

Separate columns indicate the screw, plug, and a note about old holes.

Such a list helps avoid confusing 128 and 224 mm during installation and order accurately

How to check the level of handles

On a long kitchen row, even a slight offset is noticeable. Handle centers are transferred along a common horizontal or vertical line.

The position is checked with doors and drawers closed, because gaps and hinge adjustment affect the final line.

After installing the first group, work is stopped and the entire facade is evaluated.

How to install handles on double doors

The two handles are positioned mirror-symmetrically relative to the central gap. The height, edge offset, and orientation must match.

Extended Xylon 286 mm may collide when opening or be too close to each other.

The layout is checked when both doors are opened simultaneously.

How to check the handle on a mirrored facade

Drilling of mirror or glass is performed only according to a specially prepared technology and project. It is not allowed to drill a finished mirror independently.

If holes are already provided by the facade manufacturer, their diameter and fastening system are checked against Xylon.

The weight of the handle, gaskets, and glass protection must be considered by a furniture specialist.

How to check the handle on a framed facade

The fastener must go into the solid zone of the frame or the intended panel, not into a thin decorative area.

The total length of Xylon may cross the panel, but the supports must have a reliable base.

On a narrow 190 mm frame, it is often easier to place; 286 mm requires a larger field.

How to check the handle on a stone facade

A wooden handle creates a warm contrast with the stone texture, while metal connects it to the appliances and lights.

The facade material determines the drilling and fastening method. The scheme for MDF cannot be transferred to ceramic or stone.

Zebrano may compete with an active surface pattern, so walnut or wenge often look calmer, but the choice is verified with a sample.

How to check the handle on painted MDF

The coating must be intact, and the holes must be made without chips. When replacing an old handle, traces from previous supports are evaluated.

The screws are tightened evenly, without deforming the facade or damaging the enamel.

The new handle does not have to cover the entire old mounting area, even if its total length is longer.

How to check the handle on solid wood and veneer

On solid wood, the direction of the fibers and the condition of the old holes are taken into account. On veneer, protecting the edges from chipping is especially important.

The Xylon wood finish can be matched to the facade by tone or used as a contrast.

A direct match of names like "walnut" or "wenge" does not guarantee the same shade across different materials.

How not to confuse Xylon HL-056-1M with HL-056-2M

The article numbers belong to the same series, but these are separate listings. You cannot transfer the dimensions and configuration of one model to another.

Before purchasing, you can view the second handle of the Xylon series and compare it by confirmed parameters.

The specification must include the full article number HL-056-1M and the selected size, not just the name Xylon.

When to view Lagom HL-003M

Xylon combines wood with metal supports and has two specific center distances. If a different length or a more concise character is required, compare the adjacent model.

You can compare Xylon with the concise Lagom, after studying its own options and fit.

Lagom dimensions cannot be used as proof of compatibility with Xylon holes.

When to view Palmer HL-054M

For a very tall cabinet or large facade, Xylon 286 mm may not be long enough by design.

In that case, it's worth view a longer wooden handle and check its card.

Replacing the model means a new calculation of center distance, placement, and mounting.

How not to confuse Xylon with a metal railing

Xylon is a wooden handle with metal parts, not a fully metal railing or a hidden Gola profile.

It is chosen for the combination of wood design and metal, as well as ready-made sizes of 190/286 mm.

If an invisible profile or a solid metal line is needed, a different category should be considered, without substituting the purpose of Xylon.

How not to confuse a furniture handle with a door handle

HL-056-1M is intended for furniture: kitchens, cabinets, dressers, nightstands, and other facades.

It cannot be automatically used as a door handle for interior or entrance doors, where a different mechanism, lock, and load calculation are needed.

In search and ordering, the clarification "furniture handle-bracket" is used.

Mistake: choosing based on the total length of the old handle

Two handles of the same total length may have different center-to-center distances. A new Xylon will not match the holes if D is measured incorrectly.

The compact version requires 128 mm between centers, the extended version requires 224 mm.

Before ordering, remove the old fittings and measure the holes themselves.

Error: rounding D to the nearest value

A distance of 160, 192, or 256 mm cannot be considered almost equal to 128 or 224 mm.

Angled fastening creates stress, misalignment, and risk of damage to the facade.

If D does not match, choose a different model or professionally change the layout.

Error: buying 286 mm for a small facade

A long handle may come close to edges, moldings, and adjacent doors.

It visually weighs down a small drawer and complicates opening on corner furniture.

A full-size template shows the problem before drilling.

Error: placing 190 mm on a very wide drawer without a layout

A compact handle may get lost in the center and look randomly small.

On a wide facade, compare 190 and 286 mm or a scheme with two short handles.

The decision is made based on the proportion and construction of the drawer.

Error: choosing metal only by photo

The screen changes the shade of brass, nickel, and stainless steel. Warm lighting also affects perception.

The sample is compared with hinges, appliances, faucet, and lights in the room.

The name of the metal does not guarantee a match with other hardware.

Error: mixing brass and steel on the same set

Different metals can be part of a project, but they need a clear system.

A random brass handle among steel ones looks like a replacement from a different batch.

For two sizes of Xylon in the same kitchen, the same metal finish is maintained.

Error: choosing a wood finish by name

Walnut, rosewood, zebrano, and wenge denote exterior finish options, but the actual shade needs to be seen next to the facade.

The word 'walnut' on the countertop and handle does not guarantee a perfect match.

A physical sample is more reliable than an image and name.

Error: expecting a simple repaint of a finished handle

The finished wood coating and metal may require different preparation methods.

Repainting cannot be promised without sanding, primer, and compatibility testing.

If standard options are not suitable, the issue is resolved before purchase.

Error: using a random screw

An unsuitable screw can damage the thread, fail to hold the handle, or ruin the facade.

The length depends on the door thickness and the depth of the connection.

The fastener is checked against the card and the mounting assembly.

Error: choosing a plug only by color

FUR-032 and FUR-033 differ in external design, but the fit to a specific fastener is also important.

Antique bronze does not automatically suit any brass handle, nor does nickel suit any steel screw.

First check the technical assembly, then the shade.

Error: do not account for the thickness of the facade

The same handle on a thin and thick door may require different screw lengths.

An overly long fastener cannot be corrected by excessive tightening or random washers.

Actual thickness is measured before assembly.

Error: drilling glass yourself

A finished mirror or glass facade requires prepared holes and special technology.

Attempting regular drilling can destroy the entire door.

Xylon compatibility is coordinated with the facade manufacturer or furniture maker.

Error: not checking the opening of adjacent doors

On a corner kitchen and paired cabinet, long handles may collide.

Trajectories are checked using paper or 3D templates during simultaneous opening.

In case of conflict, change the size, position, or side.

Error: installing different sizes without a system

Xylon 190 and 286 mm can be combined, but each length must correspond to a group of facades.

If different handles are installed on identical drawers, the furniture looks like it's assembled from random leftovers.

The list distributes sizes before ordering.

Error: not ordering the entire set at once

A late reorder may differ in available options and perceived shade.

It is better to calculate a kitchen, cabinet, or chest of drawers completely, including spare parts only when reasonably necessary.

Caps and fasteners are accounted for together with handles.

Error: tightening screws with excessive force

Excessive tightening can damage the thread, metal support, or facade surface.

The handle should be fixed without play, but the force is chosen according to the fastening assembly.

If the connection weakens, look for the cause rather than continuing to tighten.

Who is Xylon 190 mm for

The compact version is suitable for owners of kitchens with medium-sized drawers, cabinets, sideboards, buffets, and wardrobes with small doors.

It is especially convenient when replacing hardware with D 128 mm and with a large number of repeating facades.

190 mm should be chosen if the long handle conflicts with the frame, handles of adjacent drawers, or the active texture of the furniture.

Who Xylon 190 mm may not suit

The handle may look too short on a wide drawer, tall pencil case, or large smooth door.

It is not suitable for direct replacement of holes D 224 mm or other center distances.

For a more noticeable line, consider 286 mm, Lagom, or Palmer from their cards.

Who is Xylon 286 mm for

The extended version fits wide kitchen drawers, tall cabinet doors, pencil cases, and large furniture fronts.

It is convenient for existing holes of D 224 mm and for vertical placement.

286 mm is chosen when the compact bracket gets lost on a large surface.

Who might not be suited for Xylon 286 mm

On a small drawer and narrow door, the handle may approach the edges and look excessively long.

It does not replace D 128 mm without new markings.

In corner furniture, the long version requires particularly careful collision checking.

Who is suited for the brass finish

Brass suits warm interiors, walnut and rosewood, art deco, classic furniture, and deep-colored fronts.

It is needed by a buyer who wants a noticeable decorative metal, not a neutral technical line.

The warm scheme should be repeated in at least a few elements of the room.

Who stainless steel suits

Steel finish suits modern kitchens, gray, white and black facades, appliances and cold stone.

It is appropriate with wenge and zebrano, when wood should remain the main color accent.

The buyer gets a more restrained metal part, but the actual shade is still compared with other details.

When it is better to choose a different handle

A different model is needed if D is not equal to 128 or 224 mm, if the facade requires a longer length, or if the combination of wood and metal supports does not suit the style.

You can view handles with factory finish and compare available options.

For a general selection, it is useful to open STAVROS handle catalogwithout attributing Xylon the dimensions of other models.

How to buy Xylon on STAVROS

Open the card HL-056-1M, select 190 or 286 mm, metal and wood finish.

Then check D, the facade thickness, screw and cap. For a complete furniture set, pre-calculate all doors and drawers.

General recommendations for installing furniture handles help prepare the layout, but the technical parameters of a specific unit are checked separately.

What to check before payment

The order must specify size A, center distance D, metal, wood finish and quantity.

Separately record FUR-032 or FUR-033, screws and facade thicknesses.

Current payment and delivery terms for furniture handles are checked before ordering.

Why ready-made Xylon is more convenient than self-assembly

The buyer does not need to search for a wooden crossbar, metal supports, drill parts identically, and create a repeatable finish.

The ready-made card allows ordering several handles of the same shape and two sizes.

The main work remains in the precise selection of D, color, fasteners, and marking of facades.

How to use existing articles without duplicating selection

The general material explains, how to choose long wooden furniture handles among different models.

A separate guide helps to understand, how to choose wooden handles for a cabinet, kitchen, and drawers.

For stylistic comparison, you can view options for STAVROS wooden handlesand choose a specific Xylon by 190/286 mm and D 128/224.

What to buy together with Xylon HL-056-1M

The finished handle requires a coordinated mounting assembly. The product bundle specifies FUR-032 and FUR-033, but the screw length, diameter, thread, and plug fit are selected based on the specific facade. For a large project, it is useful to simultaneously open the handle category with coating and compare adjacent models if D 128 or 224 mm is not suitable.

The table below shows a commercial route without fictional compatibility. Each card must be checked separately, especially if the handles are installed on mirror, glass, stone, or an unusually thick facade.

How to check quality and workmanship before installation

Before installation, all handles from one set are laid out next to each other and compared for length, metal, wood finish, and surface condition.

Threaded points and completeness are checked separately, without forcefully screwing in unsuitable screws.

General information can be found in the section about materials and quality of wooden productsand the actual batch is accepted before drilling the fronts.

How to store handles before installation

Handles are stored in a dry room, protecting the wooden surface and metal from scratches and dirt.

Sets of 190 and 286 mm are not mixed: the packaging is labeled by room, front, and D.

Plugs and screws are stored separately by type to avoid mixing up antique bronze and nickel during installation.

How to assemble a control front

Before serial installation, select one door or drawer, mark the holes using a template, and temporarily install Xylon.

Check the grip, position, color, plugs, opening of adjacent fronts, and absence of misalignment.

Only after the control sample is approved, drill the remaining elements.

How to accept a finished kitchen or cabinet

All handles must be aligned on a common line, not rotate, and have no play.

Doors and drawers are opened in possible combinations, checking for collision of 286 mm brackets.

Metal, wood trim, and plugs are compared under daylight and artificial light.

How to save data for reordering

Keep the article HL-056-1M, size 190 or 286 mm, D 128 or 224 mm, metal, wood trim, plug, and fasteners.

Add a photo of the front, distance from the edge, and door thickness to the list.

When expanding a kitchen or replacing a damaged handle, the data is still checked against the current card.

How to estimate the cost of a complete set

The price of one handle does not reflect the budget of a kitchen, cabinet, or dresser. All fronts, plugs, fasteners, layout, and installation are counted.

Combining two sizes can reduce the number of different series and maintain a uniform design, but requires separate calculation for 190 and 286 mm.

Comparing Xylon with another model is reasonable based on the complete set and the need to rework holes.

Final check before ordering

If Xylon replaces an old handle, the key question is the exact D. If installed on new furniture, the scale of the front and working grip.

Then choose brass or stainless steel, walnut, rosewood, zebrano, or wenge and the corresponding plug.

Unresolved questions about screws, glass, stone, and non-standard facade thickness are resolved before payment.

FAQ: questions about Xylon HL-056-1M

How does Xylon 190 mm differ from 286 mm?

The total length is 190 or 286 mm, and the center-to-center distance is 128 or 224 mm. The longer version is designed for larger facades.

What do D 128 and D 224 mean?

This is the distance between the centers of two mounting holes, not the total length of the handle.

How to measure the center-to-center distance of an old handle?

Remove the handle and measure the distance from the center of one hole to the center of the other.

Will Xylon fit existing 128 mm holes?

Yes, the compact version with D 128 mm after checking the fasteners and the condition of the facade.

What to choose for 224 mm holes?

The extended Xylon 286 mm with D 224 mm.

Can I install Xylon on 160 or 256 mm holes?

No, without new professional marking: these values do not match 128 or 224 mm.

Which Xylon to choose for a kitchen drawer?

190 mm for the middle facade, 286 mm for a wide drawer after full-size comparison.

Which version is suitable for a cabinet?

286 mm is more often suitable for a tall door, 190 mm for a small door, drawer, or mezzanine.

Can Xylon be installed vertically?

Yes, especially on cabinets and pencil cases, if the position and fastening have been checked on the facade.

Brass or stainless steel for the kitchen?

Brass suits a warm decorative palette, stainless steel suits a modern cold palette and silver appliances.

Which metal best complements wenge?

Stainless steel creates a strict contrast, brass is more warm and decorative. The choice is verified with a sample.

What to choose for walnut?

Brass gives a warm combination, stainless steel makes the walnut design more modern.

What wood finishes are available?

Walnut, rosewood, zebrano, and wenge.

Is it possible to combine two sizes in one kitchen?

Yes: 190 mm on medium fronts, 286 mm on wide drawers and pencil cases with the same metal and design.

One Xylon 286 mm or two of 190 mm?

One long one creates a solid line, two short ones create a symmetrical pair. The decision depends on the front, drawer construction, and layout.

Which plugs are specified for Xylon?

FUR-032 in antique bronze and FUR-033 in nickel. Fit is checked with the specific screw.

Which plug fits the brass version?

By color logic, FUR-032 is considered, but technical compatibility must be confirmed.

Which plug fits stainless steel?

By color, FUR-033 nickel fits, but the screw and mounting point are checked separately.

How to choose the screw length?

Based on actual front thickness, thread, and required connection depth. Universal length is not confirmed.

Can I use random screws?

No. An incorrect diameter, thread, or length can damage the handle and the front panel.

Can I drill a mirrored front panel myself?

No. Holes in glass and mirrors are made using a special technology before or as part of professional manufacturing.

Can I repaint Xylon?

Simple repainting without preparation is not confirmed. The existing coating and metal require a separate technology.

How to calculate the number of handles?

Create a list of all doors and drawers, separately count 190 and 286 mm, then add plugs and agreed fasteners.

How to care for the handle?

Wipe with a soft cloth, avoid harsh abrasives, and do not allow constant water accumulation near the supports.

Where to buy Xylon HL-056-1M?

In the card of the handle with coating on the STAVROS website after selecting the size, metal, and wood design.

What should be checked before ordering?

D, overall length, front, thickness, screw, metal, design, caps, quantity, orientation, and opening of adjacent doors.

Result: which Xylon HL-056-1M to buy

Xylon 190 × 28 × 33 mm with a center distance of 128 mm is suitable for kitchen drawers, cabinets, chests of drawers, and medium doors. It is convenient for direct replacement of an old handle with D 128 mm and for repetition on a large number of compact fronts.

Xylon 286 × 28 × 33 mm with D 224 mm works better on a wide drawer, tall cabinet door, and tall cabinet. Vertical installation supports the height of the front, horizontal installation supports the width of a large furniture module.

Brass is chosen for warm fittings, walnut, and rosewood, stainless steel for modern appliances, gray, white, and black fronts, wenge, and zebrano. FUR-032 and FUR-033 help to design the fasteners, but the screw and fit are selected based on the thickness of the specific front.

On the STAVROS website, you can open the Xylon card, compare two sizes and adjacent models, select caps, and calculate a complete set. Accurate measurement of D and a preliminary template help replace handles without random holes, misalignment, or incompatibility with furniture.
