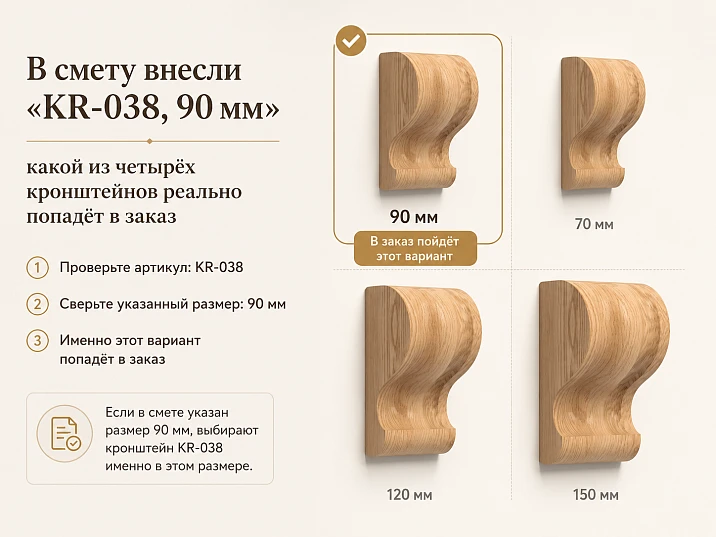

The estimate included "KR-038, 90 mm": which of the four brackets will actually end up in the order

In the project, everything looks definite: a shelf, two identical carved brackets, a chosen wood shade, neat symmetry. But in the estimate, a short line appears — "KR-038, 90 mm". For a person who has seen the visualization, this entry seems sufficient. They remember the required scale and recognize the bracket pattern by the article number. For a supply specialist, manager, and production, such a line remains incomplete.

The carved wooden bracket KR-038 has not one, but four sizes. Each option is described by four values A × B × C × D. The number 90 mm is indeed present in the size range, but only as one parameter of one specific line: 146 × 90 × 75 × 30 mm. It does not replace the other dimensions and does not by itself explain which direction on the drawing the designer meant.

Because of one abbreviated entry, a bracket of a different scale may end up in the order. Sometimes the error is detected immediately — the manager asks to clarify the four values. It is worse when project participants understand the word "medium" differently, choose a similar line, and notice the discrepancy only after receiving the batch. Then the shelf looks heavier or weaker than intended compositionally, the carving does not match the furniture in scale, and a repeat order requires new approval.

To buy wooden bracket KR-038 to avoid such confusion, the order should record not one number, but a complete set of data: article number, line A × B × C × D, material, surface preparation quality, quantity, and future finishing. If the part is part of a furniture structure or supports a shelf, the drawing, installation location, base, fasteners, and expected load are additionally checked.

There are no trifles here. "Oak" and "beech" are not interchangeable words. "Standard" and "Prestige" are not color names. Two pieces in the project do not automatically mean that one product item contains a pair. Even the number 90 mm is not the name of the fourth option until it is linked to the letter scheme.

Let's go through the entire path: from a short entry in the visualization to a precise specification by which the manager, supply specialist, craftsman, and customer understand the same product.

Wooden bracket KR-038

from 13.78 $

Go to Catalog

One number in the estimate creates four possible interpretations

The entry "KR-038, 90 mm" seems specific only until the card is opened. Inside the size range, there are four options:

1. 68 × 42 × 35 × 14 mm;

2. 81 × 50 × 42 × 17 mm;

3. 113 × 70 × 58 × 23 mm;

4. 146 × 90 × 75 × 30 mm.

The number 90 appears in the fourth line. But without a diagram, it cannot automatically be called height, width, depth, or overhang. The letters A, B, C, and D only gain meaning on an official drawing, where each dimension line shows a specific direction.

If the author of the estimate meant "choose the option where B = 90 mm," the line should look like this: KR-038, A × B × C × D = 146 × 90 × 75 × 30 mm. If he was referring to 90 mm as the intended height or overhang, such a model may not exist in the series at all. Then the figure relates not to a catalog characteristic, but to an erroneous measurement or a loose description.

In practice, the same entry is read differently:

• a designer recognizes the fourth option because they worked with it in a program;

• a furniture maker considers 90 mm the main dimension of the visible part;

• a supply specialist searches for any line where 90 appears;

• a manager asks to clarify A, B, C, and D;

• the customer expects "the same as in the picture";

• the craftsman on site compares the received part with an already made shelf.

As long as these participants do not use one full line, order accuracy depends on memory and guesses.

Watch video ...

Four sizes KR-038: table without the names "small" and "large"

Below are all confirmed variants. The sizes are preserved in the order they are written in the card: A × B × C × D.

The table solves the first problem: it shows that KR-038 is not a single bracket with one size. However, it does not replace a drawing. From one sequence of numbers, it is impossible to reliably determine which value refers to the vertical part, which to the protrusion, which to the thickness, or another detail of the profile.

Therefore, expressions like "KR-038 with a height of 146 mm" or "bracket with a width of 90 mm" are acceptable only after checking the direction of the dimension lines. In working documentation, it is safer to keep the full letter notation.

To select the size of KR-038, first open the model diagram, and then compare it with the installation location. Do not start with the price and do not choose a row by familiar words like "compact" or "large." First geometry, then material, preparation, and cost.

Our factory also produces:

Relief decoration NPU-092

from 15.74 $

Wooden Decor N-431L

from 12.20 $

Wooden Rosette R-069

from 6.71 $

Wooden Decor N-047

from 105.64 $

Square 25x25, FUR-023

from 1.34 $

Wooden decor N-497R

from 7.20 $

Molding D40 polystyrene HIWOOD 40mm x 18mm x 2.0m.

from 7.32 $

Sample Set of Moldings OMLD-005

from 65.87 $

View Full Product Catalog

Why "90 mm" is not an independent size

A person is used to choosing a product by one main parameter. For a handle, it might be the center distance; for a furniture leg, the height; for a molding, the width of the visible part. Hence, there is a natural desire to reduce KR-038 to a single number.

But a bracket is a three-dimensional part. Its position is determined by several directions at once:

• dimension along one axis;

• size along the second axis;

• size of the protruding or supporting part;

• size of an individual profile element.

The exact names of these directions should be taken from the drawing, not assigned based on appearance.

Let's compare two entries.

Let's compare two entries.

Incomplete:

KR-038, 90 mm, oak, 2 pcs.

Working:

Carved wooden bracket KR-038, A × B × C × D = 146 × 90 × 75 × 30 mm, oak, preparation quality "Prestige", quantity — 2 pcs., final finish — per separate list.

The second line leaves no room for random interpretation. It shows a specific option, material, surface condition, and number of items. If necessary, the room number, position on the drawing, color, installation side, and a note about the set are added to it.

The abbreviated name can be kept in the sketch or caption on the visualization, but not in the final purchase list.

The drawing turns A, B, C, and D from letters into real directions.

Letter parameters are useful precisely because they do not depend on colloquial words. One specialist says "height," the second says "length along the wall," the third says "vertical dimension." On the drawing, everyone sees arrow A and understands one direction.

Scheme reading order

First, find the general view KR-038. Then trace each dimension line separately:

1. where arrow A starts;

2. where it ends;

3. along which axis B runs;

4. which part of the part C measures;

5. Which element does D refer to?

6. Do the dimensions include the entire outer contour?

7. Are there additional side or top views?

After that, open the line of the desired option and transfer the values to the working drawing.

Do not substitute words for letters prematurely. The phrase 'B is the depth' is considered correct only when it directly follows from the specific product's diagram.

Why a photograph does not replace a drawing

A photograph shows the thread, proportions, and material, but contains perspective distortion. Part of the part is closer to the camera and appears larger. The rear edge may be hidden. You cannot measure a real protrusion by pixels without a scale and an orthogonal view.

Comparing four options from individual photographs is especially deceptive. If each item is shot in close-up, they all seem almost identical. The difference only appears next to furniture or at a unified scale.

The downloaded file also needs to be checked

When transferring a drawing into a project program, make sure the units of measurement have not changed. An object calculated in millimeters is sometimes imported as centimeters or inches. After insertion, measure one known dimension and only then use the model.

From visualization to specification: where size is most often lost

Visualization answers the question of how the composition looks. Working documentation should answer what exactly needs to be manufactured, purchased, and installed.

The problem arises when the image becomes the only source of information. The designer places a suitable three-dimensional object, scales it to the desired appearance, and labels only the article number. On screen, everything is correct. But after export to the schedule, only the name remains without the actual dimension line.

Scaling the model does not create a new product

If the three-dimensional KR-038 was stretched or reduced in the program, this does not mean that a variant with such dimensions has appeared in the catalog. The order is placed according to four real lines.

Suppose the object in the visualization is reduced to an intermediate scale between the second and third variants. The manager will not be able to order "the same size from the picture." You need to choose an existing model or separately agree on another task, if such an option is provided at all.

A screenshot helps, but does not replace a record

It is useful to attach a snapshot of the selected line to the request. It allows the manager to quickly see which variant the customer marked. However, the text remains the main thing:

• KR-038;

• 146 × 90 × 75 × 30 mm;

• oak;

• "Prestige";

• 2 pcs.

If the screenshot and the line do not match, the order should be stopped until clarification.

File name must also be exact

Instead kronshtein_final.jpg it is better to use a clear name:


This principle is useful for drawings, color samples, invoices, and approval acts.

How to correctly write KR-038 in the estimate

A good specification line answers at least six questions:

1. What kind of product is it?

2. What is the article number?

3. What is the size?

4. What material is it made of?

5. What preparation quality?

6. How many units are needed?

It is better to specify the finish there or link it to a separate list.

Universal line structure

Name + article number + A × B × C × D + material + preparation + quantity + finish + note.

Example for the fourth option

Carved wooden bracket KR-038, A × B × C × D = 146 × 90 × 75 × 30 mm, oak, preparation quality "Prestige", quantity — 2 pcs., final finish — according to list OT-04.

This is a sample format, not a recommendation to choose the fourth option. In a real project, confirmed parameters are substituted.

Example for the first option

Carved wooden bracket KR-038, A × B × C × D = 68 × 42 × 35 × 14 mm, beech, surface preparation quality "Standard", quantity — 4 pcs., color after sample approval.

What should not be abbreviated

Cannot be removed:

• one of the four digits;

• material;

• surface preparation;

• quantity;

• article number.

If the color has not been chosen yet, do not replace it with the word "as in the visualization". Write: "finish is agreed separately".

"Small", "medium" and "large" are convenient words, but poor order positions

Within a single conversation, people quickly understand such definitions. In documents, they are dangerous.

For one designer, "medium KR-038" is the third variant, 113 × 70 × 58 × 23 mm. He considers the first and second compact, the third medium, and the fourth large.

For a supply specialist, the second variant might be medium, because it occupies the second position out of four and is visually closer to the lower part of the range.

For the client, everything depends on the wall. On a large bookshelf, even the fourth KR-038 may look moderate. On a small door, the second variant will seem massive.

Therefore, size definitions are acceptable only as a comment after the full line:

• variant 1 — the most compact within the range;

• variant 2 — second in dimensions;

• variant 3 — more noticeable;

• variant 4 — the largest of the four.

In an order, words do not replace numbers.

One drawing, four different scales

All variants retain the character of KR-038, but are perceived differently. Scale affects not only whether the part fits. It changes the strength of the carved accent.

Variant 1: 68 × 42 × 35 × 14 mm

This is the most compact size variant in the line. It is suitable for testing small furniture and decorative components where large carving could take up too much space.

But the word "suitable" does not mean confirmed compatibility with any shelf or facade. You need to compare the full outline with the specific part.

On small furniture, the first variant can read expressively. On a large wall composition, it may, on the contrary, get lost.

Variant 2: 81 × 50 × 42 × 17 mm

The second size is more noticeable than the first, but remains compact relative to the two larger variants. It can be considered for repeating elements, small shelves, furniture frames, or other tasks, if the geometry matches the project.

The difference between 68 and 81 mm in one parameter seems small. In a volumetric part, all four values change, so the visual difference is stronger than a simple comparison of two numbers.

Variant 3: 113 × 70 × 58 × 23 mm

The third size is already noticeably distinct from the first two. The thread gets a larger scale, and the contour more actively influences the furniture or wall.

This option should not be chosen just because it falls between the extreme sizes. It is checked against the full dimension, the junction point, and the overall composition pattern.

Option 4: 146 × 90 × 75 × 30 mm

The fourth option is the most expressive in the size range. It is in its row that the number 90 mm appears.

On large furniture or a wide wall composition, it can support the corresponding scale. On a small element, the same bracket may dominate and visually weigh down the structure.

These descriptions relate to the perception of size, not to load-bearing capacity. A larger bracket cannot automatically be considered rated for a greater load.

How to compare four options without a physical sample

If samples are unavailable, use a scaled collage.

Method 1: Print at actual size

Get the front contour of each option and print it at 1:1 scale. Cut out the silhouettes, place them against the furniture or wall, and photograph them from the distance at which a person will see the finished object.

Method 2. Full-size rectangles

When there is no exact contour, you can temporarily use rectangles corresponding to the two main directions on the selected view. But such a template shows only the occupied area, not the actual thread.

It cannot be used for installation or final assessment of the junction.

Method 3. Single digital sheet

Place the four models side by side in one program without automatic scaling. Label each with the full string.

This makes it easy to see that the difference between the options affects the entire geometry, not just one number.

Method 4. Overlay on furniture photo

Photograph the furniture frontally, add a size reference, and insert the contours. Perspective should be minimal.

For a complex project, you can order a furniture design project with brackets and check the scale before finalizing the batch.

Bracket and shelf: do not substitute the topic with load calculation

KR-038 can be considered as a decorative support for a shelf or as an element of a furniture composition. But the dimensional article primarily solves the task of precise ordering.

It should not turn into a universal guide on permissible load. The source data does not contain a confirmed calculated capacity for each finished system.

The result is influenced by:

• wall or furniture material;

• shelf construction;

• distance between supports;

• number of brackets;

• location of mounting points;

• type of fastener;

• mass of objects;

• direction of load;

• possible embedded parts and reinforcements;

• quality of installation.

Identical KR-038 on a concrete wall and on a thin furniture panel work under different conditions. Even a strong wooden element cannot fix a weak base.

Therefore, first choose the size and specify the exact position, then pass the scheme to a specialist who checks the structure.

A larger KR-038 does not automatically mean a stronger shelf

This is one of the most dangerous logical substitutions. A person sees a large wooden bracket and assumes it will hold more. The external scale does change, but the allowable load is determined not only by the size of the decorative part.

It is impossible to promise load-bearing capacity without:

• data on the wood of the specific product;

• mounting structures;

• number of fastening points;

• wall characteristics;

• shelf geometry;

• testing or calculation of the system.

A large support fastened in an unsuitable way does not become reliable. A compact part in a properly calculated assembly may work differently, but this also requires confirmation.

In the estimate, it is better to separate two lines:

1. selected decorative bracket;

2. technical mounting solution.

Thus, aesthetics do not replace engineering.

How many KR-038 to order: pieces, pairs, and sets

In the visualization, two identical brackets are shown under one shelf. The buyer adds one item to the cart, assuming the product is sold as a pair. Such an assumption cannot be considered safe.

Before payment, check the unit of sale:

• one piece;

• a pair;

• a set with a specified quantity;

• another confirmed configuration.

If the product card or cart does not provide a clear answer, ask the manager a direct question: "Does quantity 1 mean one bracket or one pair?"

Calculation starts with the project

Write down:

• how many shelves are provided;

• how many supports are there for each one;

• are there decorative brackets without a shelf;

• are elements needed on both sides of the furniture;

• do they repeat in other rooms.

After that, calculate the total number.

For example, the project includes three shelves, with two KR-038 under each. Six items are required if the product is sold individually. If the product page confirms paired packaging, the number of product units will be different.

Do not transfer this example to the order without checking the product page.

Spare element

An additional bracket from the same batch may be useful in a large project, but the need for a spare is determined by the project and budget. Do not automatically add it to every purchase.

If a spare part is provided, list it on a separate line so the technician doesn't install an unnecessary component.

Why it's better to order identical brackets in one batch

A symmetrical composition is especially sensitive to differences. If one KR-038 is purchased later, the following may differ:

• wood shade;

• fiber pattern;

• surface preparation;

• perception of tinting;

• batch of finishing material;

• degree of coating gloss.

Natural wood doesn't have to look like a printed copy. But ordering all elements at once simplifies coordination.

If the project includes several identical shelves, it's more reasonable to order carved brackets in one batch, specifying a single size, material, and preparation quality.

In the invoice, check each line. Sometimes identical items by article number are accidentally split by material or preparation.

Beech or oak for KR-038

For KR-038, two materials are confirmed: beech and oak. The choice affects the pattern, finish, and connection with other project parts.

The table shows the general logic of selection, but does not assign a ready finish. The possibility of a specific coating is checked separately.

Beech for painted composition

Beech is convenient when the bracket needs to match the color of a shelf, facade, wall, or furniture frame. The calm grain does not conflict with opaque enamel.

But the phrase "beech for painting" is too vague. Specify:

• color;

• gloss level;

• method of matching;

• who performs the finishing;

• whether a test coat is required.

Oak for visible texture

Oak is chosen when the wood grain should remain part of the design. It can support an oak shelf, console, tabletop, frame, or wall panel.

The same finish looks different on different parts. Therefore, the name "walnut" or "natural oak" does not guarantee a match.

To find out the price of KR-038 in beech or oak, first select the full size and surface preparation. The cost depends not on a single article.

Do not mix beech and oak in one symmetrical composition by accident

The project specifies two identical brackets. One turned out to be available in beech, the second was added in oak. After opaque painting, the difference may seem insignificant, but such a solution still requires conscious approval.

The wood species differ:

• texture;

• pattern density;

• reaction to stain and oil;

• perception of carving edges;

• possible behavior under a transparent coating.

If enamel is intended, materials should also not be mixed without reason. Preparation and absorption of the compound may differ.

In an order for paired elements, the material must be repeated in each line. Do not leave this field empty.

"Standard" and "Prestige" are surface preparation, not two colors

The KR-038 card provides "Standard" and "Prestige" options. They should not be interpreted as a finish coating.

A "Prestige" quality bracket does not automatically become painted, tinted, oiled, or ready for installation. It is a surface preparation option.

The finish is recorded separately:

• enamel;

• clear system;

• tinting;

• oil;

• patina;

• another confirmed option.

Exact capabilities depend on the order and the selected material.

Why can't you just write "Prestige, white"

Such a line mixes preparation and color. It's unclear:

• who applies the white coating;

• which exact shade is selected;

• whether a matte or glossy surface is needed;

• whether "Prestige" refers to the supplied condition;

• whether painting is included in the price.

A working entry looks clearer:

KR-038, 113 × 70 × 58 × 23 mm, beech, "Prestige" preparation quality, 4 pcs.; final painting per RAL — after confirmation of the available finish and sample.

When to choose "Standard" and when "Prestige"

The decision depends on the surface requirements and further finishing. It is not worth choosing a variant based only on its name.

Compare:

• visibility of the part;

• complexity of the carving;

• painting requirements;

• finishing method;

• budget;

• recommendations for the specific order.

You can order KR-038 as "Standard" or "Prestige" after the finishing master confirms the requirements.

The bracket color must be recorded separately from the material.

"Oak" is a wood species, not a color. "Beech" is also a material, not a designation for a light shade.

Oak KR-038 can be:

• light;

• dark;

• toned;

• coated with a transparent finish;

• painted opaque, if such an option is approved.

The beech bracket can also have different finishes.

In the report, the fields need to be separated:

The phrase "color like the shelf" is only acceptable as a preliminary comment. For production, a sample or a confirmed system is needed.

KR-038 in shelf color: the match starts with the material

If the shelf is oak, oak brackets provide a clear material connection. However, even within the same wood species, the grain and shade may differ.

To make the elements look like a set:

1. order them at the same time;

2. specify the same wood species;

3. match the overall finish;

4. use the same sample;

5. check the details side by side before installation.

With opaque painting, the connection is built through color and gloss. With transparent painting, it is built through the wood species, tone, and character of the wood.

If the shelf is purchased separately, before ordering the brackets, send the manager a photo of it in daylight, the name of the material, and a finish sample.

KR-038 in the color of the furniture

The bracket can continue the color of the cabinet, console, shelving unit, or kitchen furniture. But the "furniture color" can be composite:

• facades of one shade;

• the body of another;

• the countertop of a third;

• metal hardware adds contrast;

• wood differs from painted elements.

Determine which part KR-038 should match.

In a classic console, the bracket can repeat the color of the body. On an open shelf, it can support the wood of the shelf itself. In a wall composition, it can blend into the color of the panel.

How to use four sizes in furniture

KR-038 can be considered not only as a wall support. The carved bracket can participate in furniture and interior structures if it matches the project and confirmed installation.

Small furniture frame

The first or second option is visually easier to check on a compact facade, frame, or decorative unit. But actual compatibility is determined by the full drawing.

Open shelf

Here, the following are compared:

• shelf depth;

• full contour of KR-038;

• distance between brackets;

• wall mounting;

• expected load;

• visibility of threads.

Console

The bracket can support the architectural image of a console or be part of a decorative system. For such projects, it is useful to look at solutions with consoles and frames and pre-bind the dimensions of all parts.

Wall panel

The carved element should fit into the rhythm of moldings, panels, and frames. If the third or fourth option crosses the adjacent line, the composition is reassembled before ordering.

Fireplace or portal zone

Here, scale and technical limitations are checked. The presence of a heat source requires a separate design solution; a decorative bracket cannot be automatically placed near heat.

One KR-038 or a pair

Paired installation emphasizes symmetry. A single bracket can work as a decorative finish or a central element if the design provides for it.

When a pair is needed

A pair is logical:

• under one shelf;

• on both sides of the central axis;

• in a symmetrical furniture composition;

• on two identical elements;

• with a mirror repeat of the decor.

When a single piece is encountered

One KR-038 can be used:

• as a decorative accent support;

• on a narrow element;

• in an asymmetrical composition;

• as part of a complex assembly.

But the quantity is determined by the project. There is no rule that KR-038 is always sold or installed in pairs.

To buy KR-038 kit for shelf, first clarify the unit of sale and enter the exact number of items.

How to check pairing before payment

Compare all fields in the cart:

If at least one line diverges, stop the order.

It is especially easy to miss surface preparation. Externally, product names are the same, but one option may be "Standard", another — "Prestige".

What to buy together with KR-038

A separate bracket rarely completes a project. After choosing the size, you may need a shelf, mounting and finishing materials, and sometimes other elements of the collection.

After selecting the size, you can buy materials for installing wooden decor, but the purchase composition is determined not by the general section name, but by the specific project.

Adhesive does not replace a verified mounting system.

The mounting materials section features various products, but the presence of adhesive does not mean that KR-038 can only be installed using an adhesive compound.

Mounting depends on:

• purpose;

• system weight;

• wall or furniture material;

• bracket design;

• project requirements;

• manufacturer's recommendations.

If adhesive is used as part of the solution, this must be verified. A weak mechanical joint cannot be hidden with a decorative compound.

Phrase order glue for wooden brackets refers to the commercial selection of materials, but is not an installation instruction.

Finishing materials are selected after the wood species and preparation

The purchase sequence should be as follows:

1. size KR-038;

2. beech or oak;

3. "Standard" or "Prestige";

4. finishing system;

5. color;

6. consumption;

7. tools.

If you buy oil in advance and then choose beech for an opaque enamel, part of the order will be unnecessary. If you purchase paint without a sample, the color may not match the shelf.

For the oak option, you can buy oil for finishing oak only after confirming the suitable system. For beech, first choose materials for staining and check the surface preparation.

Collection "Classic": how not to assemble a random set of carvings

KR-038 is presented in the classic direction. This does not mean that you need to use the maximum amount of carved decor next to it.

A good composition is built on repeating several features:

• the character of the ornament;

• the scale;

• material;

• color;

• rhythm;

• depth of relief.

If the bracket is large, the shelf and adjacent frame must support its visual weight. If the first option is chosen, too small

Availability does not cancel size verification

When an object is urgent, the buyer first checks stock status. This is reasonable, but a quick order should not become random.

If the required KR-038 is in stock, still check:

• size;
• the material;
• preparation;
• quantity;
• unit of sale;
• party status;
• delivery.

You can also view and buy carved brackets in stock in Saint Petersburg, but the filter shows available items, not products automatically suitable for your project.

For another warehouse, you can check solid wood brackets in stock in Moscow. Before payment, open the card of the specific option.

The price of KR-038 depends on the selected combination

The item has four sizes, two materials, and two preparation options. Therefore, the question "how much does KR-038 cost" without clarification is incomplete.

For the calculation you need:

• full string A × B × C × D;
• beech or oak;
• "Standard" or "Prestige";
• quantity;
• finishing, if it is included in a separate service or order;
• delivery.

Do not transfer the cost of one size to another. Do not compare the price of beech with oak without considering preparation.

In the card you can check current options, and in the category you can see shelf brackets: prices and sizes for other models.

Delivery of a batch: what to check before payment

Wood carving has protruding elements, so packaging and acceptance deserve attention. Exact conditions should be checked in the section payment and delivery of wooden decor.

Before placing an order, clarify:

• number of seats;
• packaging method;
• city of receipt;
• ability to combine items;
• inspection order;
• actions in case of damage;
• deadlines for selected items.

If brackets are needed by a specific installation date, do not rely only on the overall category status. Check each option.

What to send to the STAVROS manager

A good request looks not like "need these two, like in the photo," but like a ready-made item card.

Prepare:

• article number KR-038;
• full size string;
• screenshot of the selected row;
• drawing with the marked option;
• the material;
• quality of preparation;
• quantity;
• sales unit to be confirmed;
• photo of the installation location;
• shelf or furniture dimensions;
• planned load;
• wall or base material;
• intended fastening;
• the type of finish;
• color or sample;
• delivery city.

If part of the data refers to the installer, do not replace it with a guess. Write: "the mounting scheme will be confirmed after receiving the drawing."

Letter or message template for the manager

Good afternoon. We plan to order carved wooden brackets KR-038. The selected size is A × B × C × D = 146 × 90 × 75 × 30 mm, material — oak, preparation quality — "Prestige", quantity — 2 pcs. Please confirm that the quantity 2 means two separate brackets, check the current price and availability, and provide a drawing with the designations A, B, C, and D. We want to agree on the finish based on a sample. Photos of the shelf and installation location are attached.

Such a message does not require the manager to guess what "90 mm" means.

Invoice check: compare not the name, but each field

In the invoice, KR-038 may be repeated several times. The eye catches the article number and misses the differences.

Check line by line:

1. size;
2. the material;
3. preparation;
4. quantity;
5. price;
6. finish;
7. delivery.

If the order includes multiple rooms, add a marking:

• KR-038-Г1 — living room;
• KR-038-К1 — study;
• KR-038-П1 — hallway.

The project marking should not replace the product article. It is used as an additional reference.

Errors that cause a different KR-038 to be included in the order

Error 1. Only 90 mm was specified in the estimate

It is unclear which letter the size refers to and whether the fourth line is confirmed.

Correction: write 146 × 90 × 75 × 30 mm.

Error 2. Selected "medium"

Each project participant has their own idea of the average scale.

Fix: use the line number and all four values.

Error 3. Copied the size from the visualization

The three-dimensional model could have been scaled.

Fix: cross-check with the card.

Error 4. Called B depth without a drawing

The letter received an unconfirmed value.

Fix: read the arrow direction on the official diagram.

Error 5. Ordered beech and oak in one pair

The materials accidentally diverged.

Fix: check each invoice line.

Error 6. Mixed "Standard" and "Prestige"

Surface preparation for paired elements became different.

Fix: specify one option for the entire composition.

Error 7. Decided that one unit is a pair

Fewer brackets arrived at the site.

Fix: confirm the unit of sale.

Error 8. Bought materials before choosing the wood species

The finishing system does not match the order.

Fix: first material and preparation, then finish.

Error 9. Chose a large option for the load

The decorative size replaced the technical calculation.

Fix: separately check the load-bearing system.

Error 10. Bought the second bracket later

A difference in texture or preparation appeared.

Fix: order paired parts in one batch.

Error 11. Did not check the availability filter

The quick position turned out to be of a different material or size.

Fix: open the product card from the filter.

Error 12. Recorded the color as "oak"

The material was mistaken for finishing.

Fix: separate the rock and color.

Error 13. Wrote "white Prestige"

The preparation was mixed with the top coat.

Fix: move the finishing to a separate field.

Error 14. Did not specify the quantity by rooms

The craftsman does not understand the batch distribution.

Fix: add project labeling.

Error 15. Compared models by photo

The perspective hid the real scale.

Fix: use drawing and 1:1 template.

Who KR-038 suits

Consider this model when:

• a carved wooden bracket with a classic ornament is needed;
• the project allows one of four confirmed sizes;
• beech or oak is required;
• preparation "Standard" or "Prestige" is needed;
• brackets are part of a shelf, furniture, or wall composition;
• the customer is ready to check the drawing;
• quantity is fixed per piece after confirming the sales unit;
• Material and finish are agreed upon in advance;
• All identical elements can be ordered as one batch;
• Installation is calculated separately from the decorative choice.

In the category you can Buy wooden brackets for shelves and compare KR-038 with other models.

When a different model is needed

It is wiser to choose a different bracket if:

• none of the four lines fits;
• a different proportion is required;
• the thread is too active for furniture;
• a laconic profile is needed;
• the design requires a different mounting assembly;
• the size has to be artificially changed in the program;
• the selected wood species does not match the project;
• the timeline does not allow ordering the required combination;
• the assumed load is not confirmed;
• a shape is needed that is not available in KR-038.

Do not try to turn an existing size into a new one just to keep the article number. In the catalog, you can Buy decorative shelf brackets of other sizes and proportions.

Path to purchasing KR-038 without re-approval

Step 1. Open the card

Check the four size lines.

Step 2. Download or request the drawing

Connect A, B, C, and D with directions.

Step 3. Transfer the full outline to the project

Do not scale the product arbitrarily.

Step 4. Choose the standard size

Write down four values.

Step 5. Determine the material

Beech or oak.

Step 6. Choose the preparation

"Standard" or "Prestige".

Step 7. Assign the finish

a separate line item.

Step 8. Calculate the quantity

Check the number of shelves and supports.

Step 9. Specify the unit of sale

Piece or confirmed set.

Step 10. Check the load and fastening

Pass the diagram to a specialist.

Step 11. Agree on the price

The price must correspond to the selected combination.

Step 12. Check the invoice

Compare all fields.

Step 13. Add accompanying materials

Only after selecting the breed and finish.

Step 14. Arrange delivery

Specify receipt of the entire batch.

After such preparation, you can order KR-038 brackets with delivery without the ambiguous line "90 mm".

Frequently asked questions about the carved bracket KR-038

How many sizes does KR-038 have?

KR-038 has four confirmed sizes. Each is recorded with four values A × B × C × D.

What size options are available?

The card lists the dimensions 68 × 42 × 35 × 14 mm, 81 × 50 × 42 × 17 mm, 113 × 70 × 58 × 23 mm, and 146 × 90 × 75 × 30 mm.

Which KR-038 has the parameter 90 mm?

The number 90 mm is included in the fourth line 146 × 90 × 75 × 30 mm. It is at position B, but the physical direction B needs to be checked against the drawing.

Can I write "KR-038, 90 mm" in the order?

No, such a notation is incomplete. It does not include the other dimensions, material, preparation, and quantity.

What do A, B, C, and D mean?

Each letter corresponds to a dimension line on the official diagram. They cannot be reliably deciphered just by the order of numbers.

Which option is considered medium?

There is no official "medium" size in the confirmed data. Use the full numeric line.

How to choose a size for a shelf?

You need to align the bracket drawing with the shelf drawing, check the full contour, mounting location, and the system's technical requirements.

Does the largest KR-038 support more?

This is not confirmed by a single size. The allowable load depends on the entire structure, mounting, and base.

Is KR-038 sold individually or in pairs?

The unit of sale needs to be checked in the product card, cart, or with a manager. Without confirmation, one item cannot be considered a pair.

How many brackets are needed for one shelf?

The quantity is determined by the project and calculation. It cannot be assigned based only on the article number KR-038.

Can I order two identical KR-038?

Yes, the required quantity is specified in the order. Before payment, check that the size, material, and preparation are the same.

Why order brackets in one batch?

This makes it easier to match the wood texture, surface condition, and finish of paired elements.

What materials are KR-038 made from?

Beech and oak are confirmed.

What is better to choose: beech or oak?

Beech is suitable for projects with opaque finishes, oak — for finishes with visible texture. The result depends on the furniture and the chosen coating system.

Are "Standard" and "Prestige" colors?

No. These are surface preparation options, not shade names.

Does "Prestige" mean a finished coating?

No. The final finish must be specified and approved separately.

Can KR-038 be painted to match the shelf color?

Such an option can be considered after checking the material, preparation, and available finishing system.

Can oak KR-038 be tinted?

Oak is suitable for preserving visible texture, but specific tinting must be approved based on a sample.

Where can I see the price of KR-038?

The current price is in the product card and depends on size, material, and preparation.

Can I buy KR-038 from stock?

Availability is checked for specific warehouses and variants. After filtering, be sure to open the card of the desired item.

How do I add KR-038 to the furniture list?

Write down the article number, the full line A × B × C × D, material, preparation, quantity, and finish.

Do I need to specify the color?

Yes, if the final finish is related to the order or project. Material does not replace color.

What should I attach to the request to the manager?

A screenshot of the line, a drawing, a photo of the location, furniture dimensions, quantity, material, preparation, and delivery city.

Can I change the dimensions of KR-038?

The confirmed card presents four sizes. The possibility of other sizes cannot be assumed without separate confirmation.

How to check the size on furniture before purchasing?

Use a full-scale outline or digital overlay at exact scale.

Is the mounting hardware included in the kit?

This is not confirmed in the source data. The configuration and mounting solution need to be clarified separately.

Can KR-038 be installed on drywall?

The answer depends on the embedded elements, profile, wall construction, load, and chosen fastening. One layer of cladding cannot automatically be considered a sufficient base.

Where to buy other wooden brackets?

In the category you can choose carved brackets made of oak and beech of different models and sizes.

Can brackets and materials be arranged in one delivery?

This option can be discussed when ordering. First, select the product and finishing system, then order everything for installation and finishing in one delivery, if the composition is confirmed.

From the string "KR-038, 90 mm" an unambiguous order should result

The short notation is suitable for a personal note, but not for purchasing. KR-038 has four size variants, and each is defined by the full sequence A × B × C × D. If a variant with a 90 mm parameter is selected, the estimate must include the full line: 146 × 90 × 75 × 30 mm.

Before payment, compare seven items:

1. article number;
2. full size;
3. the material;
4. preparation;
5. quantity;
6. finish;
7. unit of sale.

Separately check the drawing, fastening, and expected load. The size of the decorative element does not replace technical calculation.

STAVROS allows you to go through this path within one product system: select a specific KR-038, compare other wooden brackets, choose elements from the "Classic" collection, add materials for installation and finishing, approve the project, and arrange delivery. This is more convenient than random part search, because the buyer works not with the vague word "bracket", but with a specific article number, size string, and set of parameters.

The next step is simple: open the KR-038 card, select one of the four lines, and transfer it to the estimate without abbreviations. If only "90 mm" remains in the document, the order is not ready yet.
