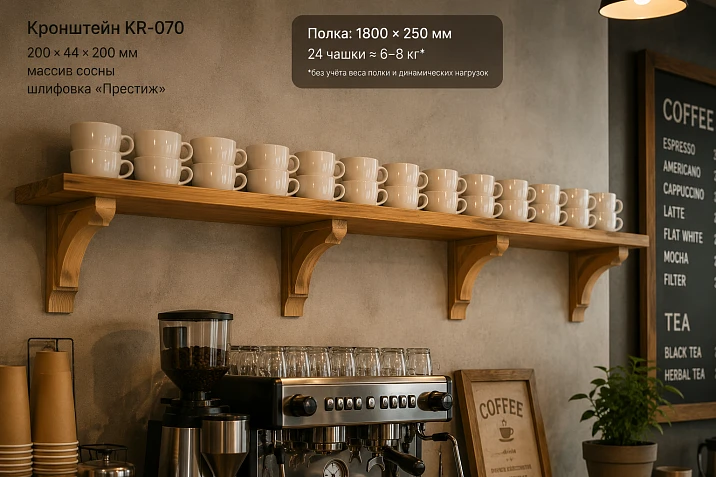

In the coffee shop, a shelf 1800×250 mm is being installed above the bar for 24 cups: can four wooden brackets KR-070 be ordered if the load is not specified

In a coffee shop, they are finishing the bar area. Above the work surface, an open wooden shelf 1800 mm long and 250 mm deep is designed. It must permanently hold 24 ceramic cups, and the wooden supports will remain visible to guests. The designer chose four identical KR-070 pine brackets: their minimalist profile supports the interior and does not turn a small wall into carved decoration.
At first glance, the order is ready: four items at 3080 rubles each, totaling 12,320 rubles. But the product card does not indicate the allowable load. Therefore, buying brackets and selecting fasteners "by appearance" is not possible. Before payment, it is necessary to link the KR-070 characteristics with the weight of the shelf, cups, placement of supports, wall material, and the calculated mounting assembly.

Wooden Bracket KR-070

from 37.57 $

Go to Catalog

Wooden bracket KR-070: confirmed characteristics of the individual product

KR-070 is made of solid pine. The published size is 200 × 44 × 200 mm. It is a compact triangular wooden bracket with a reach of 200 mm and a profile thickness of 44 mm. The product card offers only the "Prestige" sanding quality and the "made to order" status.
As of August 31, 2026, the price was 3080 RUB per piece. The average production time for the unavailable item is stated as 5–10 business days. The manufacturer also states that they do not trim or cut the product to custom sizes.
For a coffee shop shelf, four items are required. To purchase a specific model, you should use the product card: buy a wooden bracket KR-070. Before payment, re-check the price, delivery time, configuration, and availability of four identical parts.
The most important limitation of the product card is the absence of published load capacity. The description allows for structural use but does not specify what shelf, with what mounting, and on what wall one or four KR-070 units can support. Any specific figure without manufacturer documentation or an engineer's calculation would be a fabrication.

Watch video ...

What is confirmed by the KR-070 product card

This table separates product facts from design assumptions. This is fundamental for purchase: size, material, and price are confirmed, but the load-bearing capacity of a specific joint is not.

Our factory also produces:

Pilaster Base BS-001

from 30.01 $

Pilaster Base BS-002

from 67.22 $

Pilaster Base BS-003

from 75.02 $

Pilaster Base BS-004

from 45.75 $

Base for pilaster BS-005

from 29.03 $

Base for pilaster BS-006

from 18.66 $

Bar Stool Ivar 011-001

from 359.02 $

Bar Stool TBR-004

from 252.03 $

View Full Product Catalog

Wooden shelf bracket 250 mm: is a 200 mm reach sufficient

The shelf depth is 250 mm, and the published bracket reach is 200 mm. The difference is 50 mm:
250 − 200 = 50 mm.
This does not automatically mean the shelf will protrude exactly 50 mm at the front. You need to check the actual profile layout in the drawing, the position of the rear edge, the gap to the wall, the wall finish, and the method of fixing the shelf to the support. If a 10 mm technical gap is left between the shelf and the wall, the front overhang will increase with simple alignment.
The overhang itself is not proof of suitability or unsuitability. It is assessed together with the material and thickness of the shelf, the position of the cups, and the risk of pressing on the front edge. In a coffee shop, an employee may place a tray closer to the edge or lean with a hand during cleaning. These impacts differ from neatly distributed empty cups.
Before ordering, a side template of 200 × 200 mm is made and applied to the wall at the design height. Separately, the outline of a shelf with a depth of 250 mm is shown. This mock-up allows you to see the proportions and check whether the support interferes with the barista's work area.

Four wooden shelf supports: why dividing the load by four is incorrect

In the calculation example, one cup weighs 0.35 kg. The mass of 24 cups:
24 × 0.35 = 8.4 kg.
You cannot take the next step and write that each bracket receives 2.1 kg. The load is not distributed equally automatically. If most of the cups are placed near one edge, the edge and adjacent supports experience different reactions. The stiffness of the shelf, the spacing of the brackets, and the method of attachment change the picture.
In addition to 8.4 kg, consider:

• the shelf's own mass of 1800 × 250 mm;

• the mass of the protective coating;

• additional saucers and glasses;

• a temporary tray with dishes;

• uneven arrangement;

• effort when removing and installing cups;

• accidental pressing on the front edge;

• vibrations and impacts in the work area;

• fasteners and embedded parts;

• condition of the wall base.

The design load must include the margin provided by the project, but its value is determined by a specialist. The number "four brackets" is currently a design and layout hypothesis, not a confirmed load-bearing solution.

How to arrange KR-070 brackets under a shelf 1800 mm long

With four supports, you cannot blindly divide the shelf length by four and get a pitch of 450 mm. The brackets are not placed at the ends, but with offsets, so there are three gaps between their axes.
For a preliminary sketch, the same offset of the outer supports from the ends is set. For example, with an offset of 150 mm, the distance between the axes of the outer brackets will be:
1800 − 150 − 150 = 1500 mm.
Three equal interaxial spacings:
1500 ÷ 3 = 500 mm.
This gives a preliminary axis layout of 150, 650, 1150, and 1650 mm from the left end. This is only a geometric arrangement. It does not confirm the strength of the shelf and fasteners. The designer may adjust the offsets considering the shelf material, wall stud positions, brick joints, embedded parts, and most loaded zones.
In the interior, visual symmetry is also important. The middle tile joint, range hood, coffee machine, or lamp can set a different axis. You cannot move a bracket just to avoid wiring without recalculating the entire system.

Wall shelf bracket: the base is more important than the universal dowel

The same KR-070 can be installed on concrete, solid brick, hollow brick, aerated concrete, or a framed partition. For these bases, there is no single universal fastener and no guaranteed load.
Before designing, the following are recorded:

1. material of the load-bearing wall;

2. thickness and condition of the base;

3. presence of tiles, plaster, or panels;

4. location of electrical wiring and pipes;

5. presence of an embedded insert in the partition;

6. available anchoring depth;

7. hole pattern of the bracket itself;

8. fastener manufacturer's requirements;

9. humidity and cleaning conditions in the coffee shop.

The finishing layer is not considered an independent load-bearing base. Tiles may cover concrete or drywall, but this cannot be determined by appearance. Before drilling, use the utility layout plan and appropriate methods for detecting hidden lines.
If the wall is made of drywall, attaching only to the sheet for such a commercial shelf is not accepted without calculation. It is preferable to provide an embedded insert in advance or to hit the calculated frame studs. The decision is approved by the designer.

Decorative pine bracket: choose enamel or preserve the wood

KR-070 is made of pine, and the "Prestige" quality is intended for subsequent finishing. In a coffee shop, two main approaches are possible: opaque enamel matching the wall or shelf color, and a coating that preserves the wood grain pattern.
Under the enamel, the bracket visually merges with the wall or becomes a color accent. With a transparent finish, the pine structure shows through, and then it is important to lay out four items side by side before applying the coating to assess the shade and direction of the grain.
Pine requires a compatible primer and finish system. You cannot choose a composition based only on the color of the advertising sample. In the coffee shop's work area, the coating must account for regular wet cleaning, steam, dirt, and contact with cleaning agents. The specific system is agreed upon with the manufacturer of finishing materials.
Before painting, four items are received, marked, and a test coat is applied. It is better to paint the shelf and brackets according to one color card or deliberately separate them by color. A random difference in gloss level makes the set visually inconsistent.
To understand the material requirements, it is useful to check the quality of wooden brackets, and then hand over the selected system to a professional finisher.

Buy wooden brackets for shelves: when a section is needed, and when a product card

A catalog section is needed at the stage of comparing shape, material, and size. The buyer can Buy wooden brackets for shelves after viewing the available models. But after approving KR-070, the order should go to a specific SKU.
You cannot assemble a visible set of four from three KR-070 and one similar product. The difference in profile, thickness, material, or finish will be noticeable on an open wall. Even if the other console supports the same load, it does not make the set visually uniform.
If the designer is considering a more expressive classic motif, you can compare the carved bracket KR-006 or compare the carved bracket KR-069. The comparison is done before ordering the entire set of four, not after discovering a shortage of one part.
For a wider bar area design, you can to buy carved wooden decor, however, additional elements should not compete with the menu, lighting, and the shelf itself.

How much do four wooden brackets KR-070 cost

At the published price of 3080 RUB per piece:
4 × 3080 = 12,320 RUB.
This is the product budget for only four wooden parts. The full estimate includes:

• a shelf of the required thickness and material;

• development of the structural joint;

• embedded parts;

• fasteners for the specific wall;

• finish coating;

• painter's work;

• installation;

• delivery;

• possible sample or mockup;

• restoration of wall finish after drilling.

Ordering a fifth spare console without a reason is not necessary. The spare increases the cost of products to 15,400 rubles. It may be justified if the lead time for re-production is critical for an operating coffee shop or there is a high risk of damage during installation. The decision is recorded in the estimate in advance.

How to prepare a commercial request for four KR-070 brackets

The phrase "need four wooden brackets for a shelf" leaves too much uncertainty. In a written request, specify the manufacturer, article number KR-070, full size 200 × 44 × 200 mm, material "pine", quality "Prestige", and quantity of four pieces. Next to it, record the purpose: visible supports for a shelf 1800 × 250 mm in a coffee shop. This way the manager understands that the parts form one set and should not be replaced with similar items.
A separate line requests the current price, the readiness date for all four pieces, and the shipping city. The average lead time of 5–10 business days cannot be turned into a promised installation date. Transportation, acceptance, test painting, coating drying, and installation are added to it. If the coffee shop opening is scheduled for a specific day, a reserve for fixing detected damage is planned in the calendar.
A sketch of the shelf and a photo of the wall are attached to the request, but a photo is not enough for selecting fasteners. The base material is confirmed by the project or an inspection. Also, a drawing of the product and information that the manufacturer has on permissible use are requested. If there is no calculated load for this specific assembly, this is explicitly recorded in the task for the designer.
In the seller's response, the article number, material, size, quantity, quality, price, and lead time must clearly match. Only after this is the commercial proposal compared with the estimate. A price reduction due to a different article number or a mixed batch is not considered an equivalent replacement without the approval of the designer and structural engineer.

Layout map of four wooden consoles

Before furniture production, each support is assigned a number K1–K4. On the wall layout, axes, the height of the top plane, the shelf edge, proposed mounting points, and zones of hidden utilities are indicated. For a preliminary scheme with extreme offsets of 150 mm, the axes are at marks 150, 650, 1150, and 1650 mm, but the final coordinates are approved after a structural check.
The map is needed not only by the installer. The electrician sees where cables cannot be laid; the tiler understands which seams will be near the openings; the painter knows which four parts belong to one set; the manager can check the result upon acceptance. If the bar equipment is moved, the change is first made to the elevation, not compensated by randomly moving one bracket.
The side view shows the KR-070 reach of 200 mm, shelf depth of 250 mm, and the actual front overhang. The working trajectory of the barista's hands and the maximum height of items on the countertop are separately noted. This prevents a situation where the structure formally fits on the wall, but the support interferes with the coffee machine, lighting, or daily cleaning.

What to request before ordering KR-070 brackets

The buyer or designer must receive and verify:

1. drawing of KR-070 with the location of mounting zones;

2. allowable load under the intended application scheme;

3. requirements for attaching the shelf to the bracket;

4. requirements for attaching the bracket to the wall;

5. product's own weight;

6. acceptability of commercial use in the selected node;

7. current lead time for four items;

8. uniform material and batch quality;

9. surface condition for the selected finish;

10. packaging and transportation conditions;

11. confirmation of no cutting to size;

12. recommendations for acceptance.

If the manufacturer does not provide the calculated load for a specific wall and fastener, a competent structural engineer determines it based on the initial data. The store manager must not replace engineering calculations with verbal promises.

Control checklist before payment

Before payment, it is convenient to go through a short decision matrix rather than a general wish list:

If at least one of the first seven items remains unknown, the formula "four pieces at 3080 rubles" only describes the cost of the selected product. It does not yet confirm that the unit is ready for operation.

How to order a wooden bracket for a coffee shop shelf

Step 1. Weigh the actual items

Do not take the conditional 0.35 kg from the article as a universal mass. Weigh the cup, saucer, glass, and the heaviest tray that may end up on the shelf.

Step 2. Determine the shelf

Record the wood or panel material, thickness, weight, depth of 250 mm, and length of 1800 mm.

Step 3. Check the wall

Open the project, determine the base, embedded elements, and utilities. Do not judge the wall by its decorative covering.

Step 4. Get drawing KR-070

Check the full dimensions of 200 × 44 × 200 mm and the location of the mounting. Make a side mock-up.

Step 5. Calculate four supports

Check the preliminary spacing, reactions, shelf deflection, anchors, and the attachment of the shelf to the brackets. Change the quantity if necessary before purchasing.

Step 6. Coordinate the finish

Choose enamel or transparent coating, prepare a sample, account for cleaning and humidity.

Step 7. Confirm the order

Specify KR-070, 200 × 44 × 200 mm, pine, "Prestige", four pieces. Re-check the price and delivery time.

Step 8. Arrange delivery

Before payment, it is necessary to check the payment and delivery of the brackets, so that production, painting, and installation fit into the opening schedule.

Installation of a wooden console: what to control on site

Installation begins not with drilling, but with transferring the axes. On the wall, mark the finished top of the shelf, the four axes of the brackets, and the boundaries of hidden utilities. The laser line helps maintain the level, but does not replace checking the base.
After installing the supports, their position in one plane is controlled. If one KR-070 protrudes or lags behind, the shelf will be skewed. Placing random shims or washers on a visible assembly is not allowed without a design solution.
The shelf must be secured against shifting and tipping in the manner provided by the design. Simply placing it on four wooden brackets in the coffee shop's work area is not enough. After installation, a controlled acceptance is carried out according to a developed procedure, not an improvised test with a person's weight.
Additional recommendations can be obtained on the page where you can study tips for installing a wooden shelf. The specific fasteners are still selected based on the wall and the calculation.

What to check when receiving four KR-070

Before handing over to the finisher, check:

• article number KR-070;

• quantity — four pieces;

• size 200 × 44 × 200 mm;

• material — pine;

• quality — "Prestige";

• integrity of corners and thin sections;

• absence of transport damage;

• conformity of mounting zones to the drawing;

• visual compatibility of the four parts;

• absence of unauthorized trimming;

• packaging labeling;

• set of documents.

Natural wood grain may vary. For a clear finish, consoles are laid out before staining and each is assigned its place. For enamel, the surface and geometry are especially carefully checked, since a solid color coating emphasizes irregularities with light and shadow.

Mistakes when buying brackets for a shelf

1. Consider 8.4 kg as the full load of the structure.

2. Divide the mass of the cups by four without calculation.

3. Do not take into account the shelf's own weight.

4. Call KR-070 load-bearing for the project without confirmed data.

5. Choose fasteners based on a photo.

6. Attach only to tile or drywall sheet.

7. Do not check wiring and pipes.

8. Consider a 200 mm overhang equal to a shelf depth of 250 mm.

9. Sawing the bracket to bypass an obstacle.

10. Mix different models in one set of four.

11. Paint parts without a common reference sample.

12. Do not fix the shelf against shifting.

13. Test strength with a person's weight.

14. Order five days before opening, taking the average lead time as a guarantee.

15. Consider 12,320 RUB as the full cost of the assembly.

When the wooden bracket KR-070 can be purchased

Purchase is justified if the geometry of 200 × 44 × 200 mm fits the shelf; the side template is verified; four supports are confirmed by calculation; the wall material is known; fasteners are developed; the shelf is secured against shifting; a unified finish is chosen; the production time fits the schedule; the seller confirmed the set of four items.
In this case, KR-070 solves two tasks at once: it forms a visible support for the shelf and maintains the natural materiality of the coffee shop's interior.

When buying a decorative support is premature

The order should be postponed if the shelf weight is unknown; the number of cups is constantly increasing; staff will place heavy equipment; the wall has not been inspected; there are no embedded elements; four supports are chosen only for symmetry; the load is not confirmed; the front overhang conflicts with the barista's work; the color is not yet agreed upon; opening requires delivery earlier than actual production.
If the project only needs a decorative imitation of a support, this should also be stated directly. The installer cannot be left to choose between decorative and load-bearing functions on site.

Wooden brackets KR-070 for a coffee shop: summary

Four KR-070 at the price as of 31.08.2026 cost 12,320 rubles. Each bracket has a published size of 200 × 44 × 200 mm, is made of pine, and is offered as "Prestige". For a shelf depth of 250 mm, the preliminary difference with the overhang is 50 mm.
The calculated 24 cups at 0.35 kg weigh 8.4 kg, but this figure does not determine the load on one bracket. The product card does not publish the load capacity, so before purchase, an engineering check of the shelf, four supports, fasteners, and the wall as a single system is required.
The order is ready when the specification includes four KR-070 units, the price and delivery time are confirmed, a drawing is received, real loads are determined, installation axes and fasteners are approved, utilities are checked, a finish sample is made, and a person responsible for acceptance is appointed. Then the wooden consoles become a well-thought-out part of the coffee shop, rather than a beautiful detail with unknown responsibility.

Frequently asked questions before ordering KR-070 for a commercial shelf

Can I order four KR-070 in advance and choose the shelf thickness later?

For a decorative mock-up, yes; for a final load-bearing solution, this is risky. The thickness and material determine the shelf's own weight and rigidity. These parameters affect the deflection between supports and the reactions in the fasteners, so it is better to finally confirm the four brackets after choosing the shelf itself.

What to do if the manufacturer does not provide the allowable load for KR-070?

Don't substitute a missing characteristic with an approximate figure. The designer is given the product's geometry, mounting scheme, shelf parameters, wall, and operational loads. If the manufacturer can provide a drawing or application recommendations, they are used as initial data, but the calculation of a specific joint must still correspond to the actual wall and fasteners.

Can reliability be increased by simply ordering five brackets instead of four?

Not automatically. A fifth support changes the shelf's working scheme and the location of attachment points, but it does not fix a weak base, unsuitable fasteners, or insufficient stiffness of the shelf itself. First, recalculate the system, then change the quantity. A separate fifth piece may be reasonable as a spare for scheduling, but that's a logistical, not a structural, decision.

If wiring runs along the axis of one bracket, can only that one be moved?

Moving one support changes the spans between brackets and can create a locally more loaded section. First, the forbidden zone for utilities is marked, then all four axes are re-laid out and the shelf is checked. The installer must not decide this on-site by arbitrarily moving one piece.

Is separate fixation of the shelf to wooden consoles needed?

For a coffee shop's work area, the shelf cannot be considered a finished structure just because it rests on four supports. The method of fixation against sliding and tipping must be included in the design, considering the shelf material and KR-070 geometry. Unauthorized drilling of a decorative piece without understanding its construction is also undesirable.

How to check that four brackets look like one set before painting?

Lay them out side by side in the same orientation, compare profile, geometry, surface condition, and wood grain. For a clear finish, assign each piece a place K1–K4 in advance; for enamel, do a single test coat. Coating does not fix geometric differences and does not make mixed models look visually identical.

Can a tile or decorative panel be considered a base for fasteners?

No, if the load-bearing structure behind the finish is unknown. Fasteners are selected based on concrete, brick, frame, embedded element, or other actual base. The thickness of the finish is considered when choosing the length and fastening scheme, but the cladding itself does not replace the load-bearing wall.

How to accept an installed shelf without a dangerous "human test"?

Acceptance is carried out according to a pre-defined method: check the axes, level, plane of the four supports, quality of fastenings, shelf fixation, absence of damage, and compliance with the design node. If a control load is provided, its value and method of application are specified by a specialist. Standing or hanging on the shelf for a household check is not allowed.

What should be in a commercial offer so that it can be accepted?

At minimum — the exact article KR-070, size 200 × 44 × 200 mm, pine, "Prestige" quality, quantity four pieces, current price, readiness time, and delivery conditions. Separately, it is recorded what technical information about application and load is provided. A commercial offer does not replace a structural calculation, but it eliminates product substitution and discrepancies in the batch.

When can the request "buy a shelf bracket for the wall" already be turned into an order?

When not only the design and quantity are known, but also the shelf, wall, support layout, fastening method, actual operational loads, and project schedule. If this data is collected and four KR-070 are confirmed by calculation, the purchase becomes informed. If not, the correct next step is not payment, but obtaining the missing technical data.
