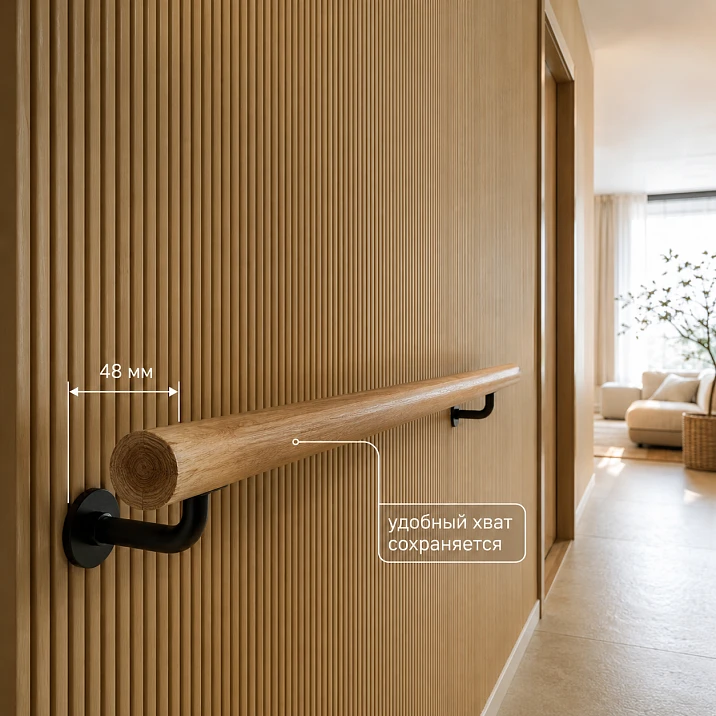

The wall handrail is already fixed 48 mm from the wall: how to order PAN-003 1000×11×2670 mm for a hallway and check whether a comfortable grip will remain after slat cladding

The handrail is already fixed, the brackets are covered, and the corridor is accepted. Later, slatted cladding is added to the project. On paper, the solution seems simple: from the handrail to the painted wall there is 48 mm, PAN-003 protrudes by 11 mm, so after cladding, 37 mm will remain.

48 − 11 = 37 mm.

But the hand does not work like a metal probe 37 mm thick. It changes position during movement, fingers pass near the relief, knuckles approach the wall, and near the brackets the free space may be less than in the middle of the span. The wall itself may also have deviations, and the actual mounting plane of PAN-003 is determined not by a single number from the card.

Therefore, 37 mm is only a preliminary calculation, not a confirmation of a comfortable grip.

Before the main purchase, three things need to be checked: the minimum actual gap along the entire length of the handrail, the nodes near each type of bracket, and the real hand movement with a physical OPAN-003 thickness of 11 mm installed in the future finish plane.

If the grip remains free, PAN-003 can be guided along the handrail. If fingers or knuckles start to catch on the relief, it is better not to "win millimeters" through dubious installation, but to change the finish boundary: leave a smooth service strip behind the handrail, raise PAN-003 above the grip line, or move the slat accent to another part of the wall.

After such a check, it makes sense buy wall slat panels based on the finished wall map, not just arithmetic 48−11.

Sample of slatted panel OPAN-003

from 6.71 $

Go to Catalog

Slat panel PAN-003 1000×11×2670 mm: which SKU is needed behind an already installed handrail

For a corridor about 2550–2600 mm high, the main option in this article is PAN-003 made of MDF 1000×11×2670 mm.

The current card shows:

The main parameters for this node are the module width of 1000 mm, the relief depth of 11 mm, and the MDF length of 2670 mm. Long beech and oak are 2400 mm, not 2670 mm. This is important: you cannot automatically transfer the MDF length to wooden versions.

If the handrail geometry has already been checked, you can buy PAN-003 1000×11×2670 mm in a specific quantity.

Watch video ...

MDF PAN-003 2670 mm

Rational when a high vertical module without a horizontal joint is needed and the finish should be painted to match the corridor or adjacent elements.

Our factory also produces:

Supporting Rail PR-003

from 10.61 $

Exhibition stand SVPU-003

from 364.63 $

Exhibition stand SVPU-004

from 435.38 $

Exhibition stand Versailles SVPU-005

from 395.37 $

Exhibition stand Japandi SVPU-006

from 471.13 $

Exhibition stand Summer Garden SVPU-007

from 350.23 $

Exhibition stand Neoclassic Light SVPU-008

from 364.02 $

Exhibition stand SVPU-009

from 109.55 $

View Full Product Catalog

Primed PAN-003

Suitable if a prepared base for an opaque finish is needed. This is a different SKU and a different price.

Oak and beech 2400 mm

With a wall around 2580 mm, one long wooden PAN-003 is no longer enough in height. This means the wooden material changes not only the appearance but also the cutting layout itself.

Wall handrail 48 mm from the wall and PAN-003 with a depth of 11 mm: what the remaining 37 mm means

Basic formula:

G0 = 48 mm

Cpan = 11 mm

Gnom = 48 − 11 = 37 mm

This result answers only one question: how much will nominally remain if PAN-003 is simply added to a perfectly flat wall without considering the actual installation.

The actual node is more complex:

Greal = original gap − PAN-003 − mounting layer − local base deviations

The thickness of the mounting layer cannot be assigned a universal number — it depends on the chosen fastening method and the condition of the wall. Moreover, the handrail itself may not be at the same distance along its entire length.

Therefore, instead of the phrase "after PAN-003, 37 mm will remain," it is more correct to write: "nominally about 37 mm; the actual space is checked on site."

Why PAN-003 cannot be purchased based on a single handrail measurement

A handrail several meters long is not checked at one point. At minimum, take five control positions: the beginning of the handrail, approximately 25% of the length, the middle, approximately 75%, and the end.

At each location, record the distance from the nearest part of the handrail to the wall, the bracket position, the actual space for the hand, and the local base geometry.

Suppose the values obtained are:

48 / 50 / 46 / 49 / 47 mm.

Then the initial size for assessment becomes 46 mm, not 48 and not the average.

Nominally after PAN-003:

46 − 11 = 35 mm.

If near one bracket the actual free clearance is even smaller, that section becomes the determining one.

The main check of PAN-003 behind the handrail is not millimeters, but the real grip.

A person needs not just to place fingers between the handrail and the wall. They need to wrap around the handrail, run their hand along it, pass the section near the bracket, and not touch the relief with their knuckles.

Do not invent a universal number after which the grip is automatically considered comfortable. The shape of the handrail, hand size, bracket position, and PAN-003 profile vary. A practical test is more reliable than an abstract number.

OPAN-003 200×11×310 mm: how to check the real geometry behind the handrail

OPAN-003 has dimensions 200×11×310 mm and the same depth important to us — 11 mm.

The current card shows:

For checking the grip specifically, the material is secondary. The real geometry of 11 mm is needed.

You can buy an OPAN-003 sample and sequentially apply it to the wall.

The sample is placed in the tightest spot, near each type of bracket, in the middle of the free span, at the beginning of the handrail and at its end. Then the hand is run along the handrail several times with a normal motion, and the full grip, finger position, knuckles, and transition over the bracket are checked.

A 310 mm long sample does not cover the entire handrail, so it is repositioned at control points.

Checking PAN-003 with the right and left hand: why a single pass is not enough

If the handrail is used by different people, a single fitting with your dominant hand is not enough. The hand position changes depending on the direction of movement along the corridor: when passing in one direction, a person may lead the hand from above and slightly outward, and in the opposite direction, turn the hand closer to the wall. Therefore, OPAN-003 is useful to check in both directions and with both hands.

It is also worth walking the section in outerwear separately if the corridor is near the entrance area. Here, the task is not to assign a universal "winter allowance," but to see the actual movement of the elbow, wrist, and fingers in the mode in which the handrail will actually be used.

If one scenario passes freely, while another forces the hand to turn or lift off the handrail near the bracket, this is already an argument in favor of a smooth strip. Such a check is especially valuable before purchasing five full-size PAN-003 panels, because correcting the finish boundary on a drawing is cheaper than redoing a finished corridor.

PAN-003 and the handrail bracket: why the handrail itself may pass, but the hand may not

On a long straight section, the distance may be sufficient. The problem often appears precisely near the mounting point.

It is necessary to check the bracket base, the post, the decorative cover, protruding screws, and the place where the hand passes over or near the bracket.

If PAN-003 fits closely to the bracket, it may turn out that geometrically the handrail itself does not conflict with the panel, but finger movement becomes uncomfortable. Therefore, the mock-up cannot be placed only between the mountings.

Can a smooth strip be left behind the handrail instead of PAN-003

Yes. This is a full-fledged design option, not a sign of "not enough panel."

Option A. PAN-003 runs along the entire wall

Advantage — continuous vertical rhythm.

Disadvantage — the relief reduces space in the grip area.

Option B. A smooth horizontal strip remains behind the handrail

Advantages:

• the original wall plane is preserved directly behind the hand;

• easier to work around the brackets;

• no need to automatically relocate the handrail;

• the line can become a separate architectural belt.

Option B. PAN-003 ends above the handrail line

The lower part of the wall remains smooth.

Option D. PAN-003 goes above and below, while the handrail area remains smooth

This creates a deliberate horizontal composition. The choice should be based on the overall wall layout, not just ease of installation.

Why a smooth strip doesn't have to look like a compromise

If its height is tied to other interior lines, it is perceived as part of the design.

The strip can be aligned with door trims, the top line of the baseboard, a color boundary, or another horizontal element in the corridor. Then the smooth zone doesn't look like "a place where PAN-003 wasn't installed." It becomes a deliberate belt that also preserves the handrail's function.

PAN-003 with a width of 1000 mm: how many modules are needed for a 4300 mm wall

If PAN-003 runs across the entire width of the wall:

4300 / 1000 = 4,3.

Four modules are not enough.

Need 5 PAN-003.

Total initial width:

5 × 1000 = 5000 mm.

Nominal trimming:

5000 − 4300 = 700 mm.

Cost of five PAN-003 made of MDF:

5 × 26 410 = 132 050 ₽.

This is the cost of the modules themselves at the time of checking, excluding installation, finishing, and delivery.

Can the smooth area behind the handrail reduce the number of PAN-003

It's easy to draw the wrong conclusion here.

If the smooth strip is horizontal, and PAN-003 still goes as vertical modules across the entire width of 4300 mm, the number of initial panels may not change at all.

The finishing area has become smaller. But the wall width remains 4300 mm.

Therefore, the original width requirement can remain the same: 5 modules.

This is an important purchasing principle:

less area ≠ automatically fewer PAN-003 units.

Savings only appear when the source parts map changes so that one module truly becomes unnecessary.

When reducing the slat field to 3950 mm changes the order

Suppose the architectural solution does not just remove a horizontal strip, but actually reduces the continuous slat field in width to 3950 mm.

Then:

4 × 1000 = 4000 mm.

Four PAN-003 units are already enough.

Nominal trimming:

4000 − 3950 = 50 mm.

Cost:

4 × 26 410 = 105 640 ₽.

Difference compared to five modules:

132 050 − 105 640 = 26 410 ₽.

But this only works in specific geometry. You cannot promise savings of one panel simply because part of the wall was left smooth.

Buy slat panels for the entire wall or only above the handrail

You should compare not only the appearance, but also the cutting map.

Diagram 1. Full height

PAN-003 runs from the floor to the top.

Diagram 2. Only above the handrail

The lower part of the wall remains smooth.

Diagram 3. Above and below, smooth strip in the center

The relief frames the handrail line.

Each diagram may require the same number of initial vertical modules if the wall width does not change. Therefore, before you Buy slatted panels, you need to build exactly the cutting map.

PAN-003 2670 mm with a wall height of 2580 mm

Calculation:

2670 − 2580 = 90 mm.

Nominally, long MDF fits without a horizontal joint.

But the height needs to be checked at the beginning of the corridor, in the center, at the end, and near doorways. If the floor and ceiling are not parallel, the maximum actual height may be greater than the design height.

MDF PAN-003 or wooden slat panel near the handrail

MDF PAN-003

Convenient if PAN-003 and the smooth service strip need to be painted in the same color. After selecting the scheme, you can open the category buy MDF slat panels.

Oak PAN-003

The long oak version is 2400 mm. At a height of 2580 mm, one piece is no longer enough.

Beech PAN-003

The same long logic — 2400 mm, but a different wood texture.

If a natural material is needed, first you need to decide on the vertical joint, rather than transferring the 2670 mm size from MDF. For an alternative, you can buy wooden slat panels after checking the actual project.

Wooden handrail and oak PAN-003: is a full shade match required

Not necessarily.

Wood tones that are too close but slightly different sometimes look worse than deliberate contrast.

You need to check the species, tone, grain direction, gloss level, finish, and hallway lighting together. The handrail is a horizontal element, PAN-003 is a vertical rhythm. Even the same species in different directions can be perceived differently.

PAN-003 and wooden baseboard: three horizontals of one wall

After adding slat cladding, at least three strong lines appear on the wall:

1. baseboard;

2. handrail;

3. the boundary of the slat field or the smooth service strip.

If they are not tied together, the composition can become fragmented. Therefore, the lower node is better designed simultaneously with the handrail area.

If the plinth is still being selected, you can to buy wooden baseboard after the entire wall elevation is approved.

Do I need to remove the handrail to install PAN-003

There is no universal answer.

Options are possible:

• the handrail stays in place, PAN-003 is designed around it;

• the handrail is temporarily removed by a specialist;

• fasteners require revision;

• leave a smooth zone behind the handrail.

If the handrail performs a support or protective function, any changes to its fastening should remain the task of a qualified installer. A decorative article should not assign new fastening points or a method of moving the handrail without a project.

Errors when ordering PAN-003 behind an already installed handrail

Error 1. Considering 48−11=37 as the final answer

Reason: both figures are known.

Consequence: the actual position of the hand and brackets is ignored.

How to avoid: physical test OPAN-003.

Error 2. Measuring the handrail only in the middle

Reason: it is more convenient to use a tape measure there.

Consequence: the minimum gap near the edge or bracket remains unnoticed.

How to avoid: at least five control points.

Error 3. Check only the free span

Reason: it seems that the bracket is already "under the handrail."

Consequence: the hand catches the trim exactly near the mounting.

How to avoid: separate test of each node.

Error 4. Leave a smooth strip and immediately subtract one PAN-003

Reason: the trim area has become smaller.

Consequence: the width of the original modules has not changed, and the same number of panels is needed.

How to avoid: count whole modules.

Error 5. Order oak 2670 mm

Reason: the MDF length is transferred to the wood.

Consequence: the specification contains a non-existent configuration.

How to avoid: use the current card: wood — 2400 mm.

Cost of slat panels: how much a basic wall costs

For a wall 4300 mm wide with full vertical finishing, five modules are needed in advance.

MDF PAN-003:

5 × 26 410 = 132 050 ₽.

Primed MDF:

5 × 43 700 = 218 500 ₽.

This is only the price of the panels. Installation, painting, delivery, trimming, possible dismantling/installation of the handrail, finishing of the smooth strip, and baseboard are not included.

If comparing the cost of slat panels, it is more correct to count not square meters, but whole original modules according to the specific wall map.

What to send to the STAVROS manager before ordering PAN-003

Example of a specification:

PAN-003 / MDF / 1000×11×2670 mm / wall 4300×2580 mm / handrail already installed / minimum initial gap ___ mm / brackets ___ / smooth strip behind handrail yes-no / strip height ___ / OPAN-003 checked yes-no / preliminary quantity ___ / baseboard ___ / color ___.

After checking, you can order slat panel PAN-003.

When PAN-003 is behind the handrail, do not buy yet

Purchase is premature if:

• 48 mm measured at only one point;

• brackets not checked;

• handrail is still being adjusted;

• unknown whether it will be removed;

• OPAN-003 not attached;

• no real hand test performed;

• no decision on smooth strip;

• the quantity was counted only by area;

• the height of 2580 mm was not checked along the entire wall;

• the baseboard and the boundary of the slat field are not yet agreed upon.

Result: can PAN-003 be ordered if the handrail is 48 mm from the wall

PAN-003 with a depth of 11 mm nominally reduces the original 48 mm to:

37 mm.

But 37 mm cannot automatically be considered sufficient space for the hand.

Before the main purchase, you need to:

1. measure the minimum gap at at least five points;

2. check each type of bracket;

3. apply OPAN-003 with a thickness of 11 mm;

4. run your hand along the handrail several times;

5. check the beginning and end separately;

6. decide whether a smooth service strip is needed;

7. only then count PAN-003 in whole modules.

If the grip remains comfortable, you can run PAN-003 along the handrail.

If fingers or knuckles start to catch on the relief, it is wiser to change the finish boundary than to buy panels and then redo the already installed handrail.

For an alternative composition, you can buy wall slatted panels only on the part of the wall where they do not interfere with the handrail operation.

FAQ

What is the depth of PAN-003 2670 mm?

11 mm.

What is the width of PAN-003?

1000 mm.

Can I buy PAN-003 made of MDF?

Yes. There is regular and primed MDF.

Is there a PAN-003 with a length of 2670 mm?

Yes, in MDF.

Is there an oak PAN-003 in 2670 mm?

No. The long oak version is shown in the card as 2400 mm.

Can PAN-003 be installed behind a wall-mounted handrail?

This option can be considered after a physical check of the space for the hand and brackets.

How much will nominally remain from 48 mm after PAN-003 11 mm?

37 mm.

Is 37 mm enough for the hand?

This cannot be determined by a single number. An actual test on a specific handrail is needed.

Why do the brackets need to be checked?

Because near the mounts, the hand trajectory can become tighter.

What is OPAN-003 for?

To physically occupy the future 11 mm and test the grip before the main purchase.

What is the size of OPAN-003?

200×11×310 mm.

Can a smooth strip be left behind the handrail?

Yes. This is a full-fledged design option.

Will the smooth strip reduce the number of panels?

Not necessarily. If the width of the vertical modules remains the same, the number may not change.

How much PAN-003 is needed for a 4300 mm wall?

For solid vertical cladding, pre-install five modules with a width of 1000 mm.

How much do five PAN-003 MDF panels cost?

132,050 ₽ at the card price at the time of checking.

Do I need to remove the handrail?

It depends on the design and the chosen scheme. There is no universal answer.

How to combine PAN-003 with a wooden baseboard?

Need to check three lines: baseboard, handrail, and the boundary of the slat field.

What to choose — MDF, beech, or oak?

For a 2580 mm wall, MDF 2670 mm is more convenient in length. Beech and oak require a different scheme in height because long versions have 2400 mm.

Where to buy slat panels for walls?

In the STAVROS flexible slat panels category.

Where to order PAN-003?

In the PAN-003 card via the link in the article.

When is it too early to buy PAN-003?

When there are no measurements along the entire length of the handrail, OPAN-003 is not verified and the finish boundary is not resolved.
