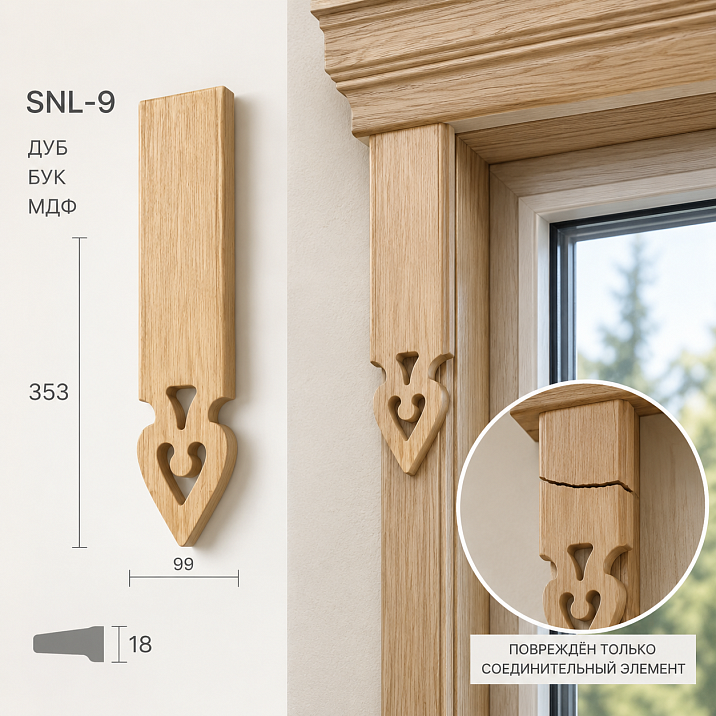

On one window, only the carved connecting element cracked: how to buy SNL-9 353×99×18 mm and not replace the entire set of trim boards

The house facade still looks neat: the side trims are intact, the top carved part has not warped, and the coating is generally satisfactory. The problem is local — one small connector has cracked. In this situation, there is no need to automatically replace the entire set just because one part is damaged. First, you need to understand whether it can be replaced individually while preserving the existing decor.

For this, STAVROS has a separate carved connecting element SNL-9 measuring 353×99×18 mm. It is made of finger-jointed pine without knots, has Standard sanding, and is prepared "Under enamel." The current price is 600 ₽. The product page allows both exterior and interior use.

But SNL-9 shouldn't be purchased just based on a photo of the old pattern. For a local replacement, three things matter: matching dimensions, matching the plane with adjacent parts, and the ability to match a new finish to an already faded or aged coating.

If the old trims are structurally intact, the base hasn't rotted, and the new element truly fits geometrically, you can buy the carved connecting element SNL-9 as a single piece and plan the repair around it. If the damage has affected adjacent parts, a local replacement may no longer be the right strategy.

Carved Connecting Element SNL-9

from 6.96 $

Go to Catalog

Carved connecting element SNL-9 353×99×18 mm: what exactly STAVROS sells

For the current SNL-9 product page, the following characteristics are confirmed:

SNL-9 belongs to the house carving system and is sold as a separate connecting element. This is important for repairs: the buyer is not obliged to take a full set of trim just because one small part is damaged.

At the same time, the card does not say that SNL-9 automatically fits any old carved window. The size and pattern must be checked against the specific existing unit.

A good purchase line looks like this:

SNL-9 / 353×99×18 mm / finger-jointed pine without knots / Standard / For enamel / 1 pc.

And only after such identification do they move on to the issue of finishing and installation.

Watch video ...

The platband connecting element is replaced only after three measurements

Before purchasing, it is better not to throw away the old damaged part.

It serves as the most accurate physical template of what was on the facade.

At least three parameters need to be checked.

Our factory also produces:

Carved Maskron M-014

from 52.44 $

Carved Maskron M-015

from 34.34 $

Carved casing NL-3

from 44.09 $

Carved casing NL-4

from 40.61 $

Carved casing NL-5

from 30.51 $

Carved Door Trim NL-6

from 53.60 $

Carved window casing NL-7

from 54.41 $

Carved Maskaron M-018

from 30.86 $

View Full Product Catalog

Overall part size

You need to compare the old element with the SNL-9 dimension 353×99×18 mm.

It is not enough to see a similar ornament.

The width of the working area

For SNL-9, one of the key dimensions is 99 mm. For the existing assembly, it is important to understand whether the new part fits into the same zone between adjacent parts of the platband.

Thickness

SNL-9 has a thickness of 18 mm.

This dimension is especially important for local repairs because the new part must work in the same plane as the old decor.

If the old element is thinner or thicker, even a similar pattern can create a noticeable step.

Measurement map of the old assembly before ordering SNL-9

To avoid losing data after disassembly, it is convenient to make a short repair card.

Next to it, the parameters of the new product are recorded:

SNL-9 — 353×99×18 mm.

Such a table is not needed for bureaucracy. It helps to quickly understand what exactly matches and where an additional solution is required.

It is especially important to record the thickness of adjacent parts. Even if the old connecting element is already severely damaged and measured inaccurately, the adjacent intact trim shows the actual plane into which the new decor should fit.

SNL-9 with a thickness of 18 mm: plane matching is more important than similar carving

When choosing from a photo, a person most often looks at the pattern.

But for a local insert, one of the main checks is the profile in side view.

If the new SNL-9 is thicker than the adjacent parts, it will protrude.

If it is thinner, it will go inside.

If the difference is small, side lighting can still emphasize it.

This is especially noticeable on the facade, where the sun creates sharp shadows.

Therefore, before ordering, you need to measure not only the old connecting part, but also the adjacent elements it adjoins.

Working check:

old part — ___ mm in thickness
adjacent trim — ___ mm
new SNL-9 — 18 mm

If the dimensions differ, you first need to resolve the mounting assembly. The mere fact that the pattern matches does not make the replacement correct.

Buy carved wooden window trims anew or replace only SNL-9

There are two fundamentally different situations.

Local repair makes sense

Replacing only the SNL-9 is reasonable if:

• the neighboring trims are intact;
• the wood around the joint is not damaged;
• the ornament of the new element matches;
• the geometry of the opening has not changed;
• the old coating can still be preserved;
• the damage is indeed limited to one piece.

In this case, buying one item for 600 ₽ seems logical.

A new set is already needed

It is better to proceed with a full replacement if:

• the wood nearby has rotted;
• cracks have spread to adjacent planks;
• the trim is deformed;
• the old drawing differs greatly;
• the joint has lost its geometry;
• the coating across the entire window is destroyed;
• repairing one element does not solve the underlying problem.

If local replacement ceases to be rational, one can buy wooden carved window architraves treat it as a new system rather than endlessly fixing individual fragments.

New SNL-9 made of pine and the old casing: the material of the old decor cannot be guessed

SNL-9 is made of finger-jointed pine without knots.

This is the confirmed material of the new part.

But one should not conclude from this:

meaning the old trims on the house are also pine.

The existing decor could be made from a different type of wood or have a different surface preparation.

Therefore, for the old unit it is useful to check:

• the wood species, if it can be determined;
• the density and condition of the wood;
• the presence of old paint layers;
• signs of repair;
• the way the primer and enamel are absorbed.

Even if all parts are later painted opaquely, different substrates can behave differently during preparation.

The article does not promise the same reaction of old and new wood. This needs to be checked on site.

SNL-9 "Under enamel": this is not a ready color of an existing facade

One of the most common mistakes is reading "under enamel" as "ready for installation on a painted facade."

No.

"Under enamel" means preparing the workpiece for further opaque finishing.

SNL-9 does not automatically come in the same white, green, brown, or blue shade that is currently on the old trim.

Therefore, after purchase, a separate task remains:

to select and apply the finish.

If the facade was repainted five years ago, the name of the old paint does not guarantee a full visual match. The coating may have faded, darkened, or changed in gloss.

How to match the color of new SNL-9 to the old trim

It is better not to order enamel "from memory."

Working order:

1. clean a small adjacent area of the old decor;
2. assess the actual current color;
3. check how much the coating has faded;
4. make a test application on a separate sample or test area;
5. wait for complete drying;
6. compare under daylight and evening lighting;
7. only after that paint the new SNL-9.

Why is this more important than the color number?

Because the old surface has already changed over time.

Even a perfectly matched new enamel can look brighter or fresher next to the old coating.

Sometimes the right repair is not to try to "match the aging" of one new part, but to repaint the entire specific window set after a local replacement.

But this is already decided based on the actual condition of the facade.

Buy one SNL-9 for 600 ₽ or change the entire decor: we count only what is actually known

The current price of the SNL-9 itself is 600 ₽.

But you cannot write:

window repair costs 600 ₽.

This is only the price of the part.

Local repairs may include:

• delivery;
• dismantling;
• surface preparation;
• new fasteners;
• soil;
• enamel;
• craftsman's work;
• local or full repainting.

Therefore, a useful formula:

repair cost = SNL-9 + delivery + preparation + finishing + installation.

If adjacent trims are intact, local replacement often remains more logical than buying a full set.

But the decision is made not by the price of one part, but by the condition of the entire assembly.

SNL-9 cannot be ordered only from a photo of the old carving.

A frontal photo is useful, but not sufficient.

Before ordering, it is desirable to have:

• general view of the window;
• photo of the damaged part strictly from the front;
• photo with a ruler;
• photo of the end face;
• thickness measurement;
• distances to adjacent elements;
• photos of joints;
• photo of the reverse side, if it is accessible after dismantling.

If the seller or craftsman needs to compare an existing assembly with SNL-9, such a set of photos is much more useful than a single beautiful facade shot.

The photo of the end face is especially important: it helps to see the actual plane and thickness.

The old connecting element is removed before or after ordering a new one.

If the old part is still holding and poses no danger, do not destroy it until dimensions are recorded.

It provides information that is difficult to restore later.

Before dismantling, you need to preserve:

• overall size;
• thickness;
• orientation of the pattern;
• position relative to adjacent trims;
• actual attachment points;
• traces of abutment;
• color;
• scale photographs.

After removal, you can additionally check the base.

If the old element is broken into pieces, it is better to keep the fragments until the selection of a new one is completed.

What to check immediately after dismantling the old part

Dismantling provides information that is not visible from the outside.

Before installing the new SNL-9, inspect:

• condition of the base under the old element;
• signs of moisture;
• the condition of the adjacent wood;
• old holes;
• traces of previous repairs;
• possible deformation;
• the actual line of abutment.

If the problem is hidden under the decor, a new part should not cover it without fixing the cause.

For example, if the wood under the old element is already damaged, first repair the base, and then return to the new SNL-9.

This way, local repair truly restores the assembly, not just the appearance.

External SNL-9: first, we find out why the old part cracked

The card allows external application of SNL-9.

But replacing one part makes no sense if the cause of the damage remains.

Before installing a new element, check whether there was:

• constant water ingress;
• destruction of the base;
• movement of adjacent parts;
• deformation of the facade;
• excessively rigid fastening;
• old cracks around the node.

If the old element cracked due to a problem in the base, the new one may receive the same load.

Therefore, local repair starts not with screws, but with diagnostics of the installation site.

Installing SNL-9 instead of the old element: fasteners cannot be copied blindly

Old holes may look convenient:

just put a new part in the same places.

But after dismantling, it may turn out that:

• the holes are broken;
• the wood around them is damaged;
• the fastener was held in a weak base;
• the new product does not match the actual attachment point;
• the old mounting method was the cause of the crack.

Therefore, the article does not prescribe a universal number of self-tapping screws and does not recommend a specific fastener length without base data.

The mounting scheme needs to be re-checked against the actual joint.

For the general sequence, you can use a separate article about installation of carved trim on the facade, and install the specific SNL-9 according to the actual geometry of the existing window.

How to understand whether the old element was really SNL-9

This is an important edge case.

On an old house, the connecting element could be:

• a different article number;
• a part from a previous collection;
• individual carving;
• a product from another manufacturer;
• a manually trimmed part of the trim.

Therefore, the coincidence "looks like SNL-9" is not proof.

You need to compare:

353×99×18 mm + pattern + position in the composition.

If only the pattern is similar, but the dimensions differ noticeably, it is too early to buy SNL-9 blindly.

To understand the role of such parts in the system, you can separately view the material how to design the joint of carved trimBut the specific replacement is still confirmed based on the actual window.

Order one SNL-9 or two parts

There is no universal rule of "always take two."

One piece

It is logical if:

• the damage is indeed local;
• the dimensions are precisely verified;
• the second symmetrical element is intact;
• Reordering is simple if needed.

Product cost:

1 × 600 = 600 ₽.

Two pieces

May be reasonable if:

• there is a symmetrical paired knot on the window;
• both parts will be painted at the same time;
• the second one already has minor defects;
• the owner wants to keep a spare;
• delivering one spare part later would be inconvenient.

Cost of two:

2 × 600 = 1 200 ₽.

But the second SNL-9 is not bought automatically "just in case," but for a specific reason.

Symmetric facade: when replacing only one part can be noticeable

Even if the second part is intact, after installing a new SNL-9, a visual difference in coating freshness may appear.

This does not always mean that both need to be replaced.

First, you can:

1. install a new element;
2. perform a test finish;
3. compare with the paired old part;
4. decide whether local painting is sufficient;
5. if necessary, repaint the paired unit.

This way, the buyer does not order extra decor in advance, but retains the ability to bring the symmetrical composition to a unified appearance.

If two windows are damaged: first, confirm one replacement

There is one more practical scenario.

A house may have several identical windows, and on two of them, similar connecting elements are damaged.

Do not immediately order a large batch of SNL-9 just because the pattern seems identical.

Better:

1. select one window;
2. fully measure the old part;
3. confirm the SNL-9 match;
4. accept one new part;
5. check the plane and pattern;
6. only then scale the order to other windows.

Thus, the first replacement becomes the reference.

If it turns out that the old decor is made to a different geometry, the error will not multiply across the entire facade.

Acceptance of the new SNL-9 before painting

After receiving, it is better not to send the new part directly to finishing.

First, check:

• article SNL-9;
• size 353×99×18 mm;
• condition of the wood;
• absence of transport damage;
• surface quality;
• pattern relative to the old node.

Then the element is applied to the repair site without final installation.

The goal is to check that the geometry really fits.

If it turns out after painting that the new element does not match in size or pattern, redoing it will become more difficult.

So the order is simple:

acceptance → dry fitting → finishing → installation.

Buy ready-made carved wooden window trim: when local repairs no longer make sense

Sometimes after removing the damaged SNL-9, a much bigger problem is revealed.

For example, underneath it the wood is destroyed, the side trims are also cracked, and the old coating is peeling across the entire window.

In such a case, a local insert ceases to be a system repair and turns into cosmetic masking.

Then it is more rational to move to the full category and carved wooden window trim buy ready-made already for the new window project.

This is a normal commercial fork in the road.

SNL-9 does not need to be sold at any cost if one element does not solve the problem.

What to write to the STAVROS manager before ordering a single SNL-9

Ready request:

SNL-9 / 353×99×18 mm / finger-jointed pine without knots / Standard / For enamel / 1 pc.

Additionally useful to attach:

• outdoor or indoor use;
• photo of the existing joint;
• dimensions of the old part;
• thickness of adjacent elements;
• photo of the old coating;
• question about the current drawing;
• delivery city.

If there is doubt whether the old element really matches SNL-9, it is better to write directly:

Please confirm by photo and dimensions that SNL-9 is suitable as a replacement for the existing connecting element.

This way the manager sees the real task, not just an order by part number.

SNL-9 repair record: what to keep after work is completed

After a local replacement, it is useful to keep a short note about the repair performed. In a few years, it will save the owner from searching again through photos and guessing.

In the repair record, it is enough to specify:

• article SNL-9;
• size 353×99×18 mm;
• purchase date;
• the primer and enamel system used;
• actual color after matching;
• photos before and after the repair;
• the mounting method confirmed by the technician;
• condition of the base at the time of installation.

If a symmetrical part on the same window cracks later, you won't have to figure out again what exactly was installed.

It is especially useful to keep a small remainder of the finishing paint or at least the exact name of the system and a photo of the test swatch. The color on the facade may still change over time, but the original data will be known.

What to check shortly after installing a new part

After installation, the task does not end on the day of painting. It is reasonable to periodically inspect the locally repaired area along with the rest of the facade.

You should pay attention not to the "perfection of the new part," but to signs of the old problem recurring: opening of the joint, a new crack, traces of moisture, changes in the plane of adjacent elements.

If the joint remains stable, the local repair has done its job.

If the new SNL-9 again starts working separately from the adjacent trims, you need to return to the base and the cause of the deformation, rather than simply buying a third part.

How much does local replacement actually save if the rest of the decor is intact

The exact cost of fully replacing the trims cannot be calculated without a specific set. But the commercial logic can be formulated without invented numbers.

With local repair, the buyer pays for one SNL-9 and work only around the damaged unit.

With a full replacement, different parts appear: several platbands, connecting elements, dismantling of the entire composition, finishing of a larger volume, new marking and installation.

Therefore, the question "what is cheaper" is resolved not by comparing 600 ₽ with an abstract price of a new window, but by the condition of the existing parts.

If everything around is intact, local replacement preserves the already paid for and installed decor.

If adjacent elements are damaged, the savings from one part become illusory, because the repair has to be repeated across the entire joint.

When it is too early to buy SNL-9

Do not place an order if:

• the old part has not been measured yet;
• the thickness of the adjacent trim is unknown;
• the base is rotten;
• the cause of damage has not been found;
• there is no photo of the pattern;
• the buyer expects to get a ready-made existing color;
• it is unknown whether SNL-9 was originally installed;
• adjacent elements also require replacement.

In all these cases, you first need to close the diagnostics.

Errors during local replacement of SNL-9

Error: buying based on a similar pattern. Dimensions and thickness are also needed.

Error: considering 600 ₽ as the full repair cost. This is only the price of the part.

Error: expecting a ready color. SNL-9 is prepared for enamel but not painted to match the existing facade.

Mistake: removing the old element before taking measurements. It is the best template for the existing joint.

Mistake: installing a new SNL-9 into a damaged base. The cause of the old crack may recur.

Error: copying the old fastening blindly. The condition of the holes and the base needs to be rechecked.

How to decide: one SNL-9 or a new set of trims

Is only one connecting element damaged?

→ Measure the old part.

Do the dimensions and thickness match 353×99×18 mm?

→ Check the pattern and flatness.

Are the adjacent platbands intact?

→ Check the base.

Is the base in good condition?

→ Select the finish and order SNL-9.

Are the adjacent parts rotten or deformed?

→ Do not rush local replacement; consider a new set.

Is the color of the old coating hard to replicate?

→ Make a test paint or consider repainting the entire window set.

For a general selection, you can buy wooden carved trims, but if local replacement is confirmed, a specific SNL-9 is sufficient.

Questions before purchasing SNL-9

What is the size of SNL-9?

353×99×18 mm.

What material is SNL-9 made of?

Made of finger-jointed pine without knots.

What sanding?

Standard.

What does "under enamel" mean?

Preparation of the wooden part for subsequent opaque finishing, not a ready color.

How much does SNL-9 cost?

600 ₽ at the time of checking.

Can I buy one piece?

SNL-9 is sold as a separate connecting element; the quantity is determined by the specific repair.

Is SNL-9 suitable for exterior facades?

The card allows outdoor use.

Can it replace any old connecting element of the trim?

No. You need to compare the dimensions, pattern, thickness, and the existing joint.

Why is the 18 mm thickness important?

It affects the alignment of the new element's surface with the adjacent old decor.

Do I need to remove the old part before ordering?

It's better to first take all measurements and photos if its condition allows.

Can SNL-9 be supplied already in the color of the old facade?

The current configuration is specified as "Under enamel". Matching the existing color requires separate finishing.

Should you buy two pieces at once?

Only if there is a design reason: a symmetrical node, simultaneous finishing, or a deliberate spare.

When is it better to replace the entire set of trim?

When adjacent parts, the base, or the entire window trim are damaged.

Where to buy SNL-9?

In the product card of the carved connecting element SNL-9 STAVROS.
