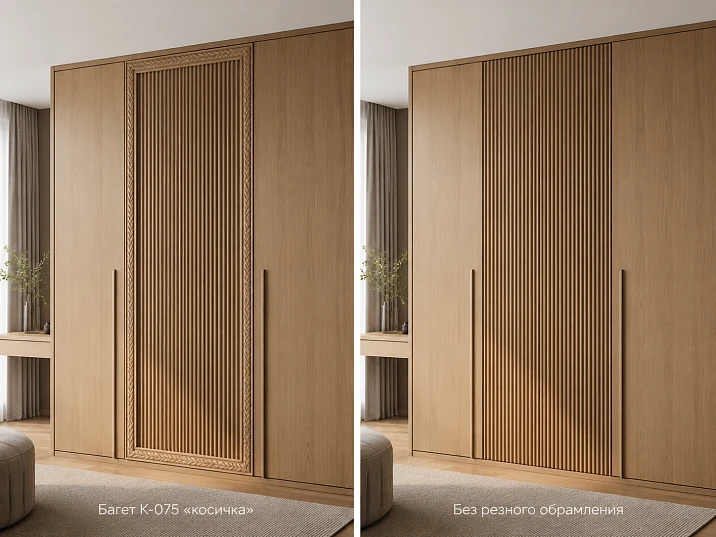

The cabinet facade already has a PAN-005 slat insert selected: is it worth buying a wooden K-075 "braid" baguette for the frame, or should the panel be left without a carved border?

The slat insert PAN‑005 has already been chosen for the furniture facade. The vertical triangular relief solves the main decorative task: a smooth door becomes voluminous, with light and shadow and a pronounced vertical line appearing on it. But after visualization or a first fitting, another question may arise: is it enough to simply finish PAN‑005 on the smooth field of the facade, or does it need a standalone wooden molding K‑075 with a carved "braid" ornament around it?

There is no universal answer that "a frame always makes furniture look more expensive." PAN‑005 itself is an active 3D element with a depth of 9 mm. K‑075 is also not a neutral smooth strip: it is a carved wooden molding with a repeating pattern of intertwined ribbon and rope. If you combine two expressive patterns without a scale check, the facade may become overloaded. However, if the furniture belongs to modern classic, neoclassicism, or the project already uses carved wooden trim, K‑075 can turn the slat cladding into a full-fledged panel composition.

Therefore, the decision is made not based on a photo of the baguette, but on five parameters:

1. the size of the facade itself;

2. the size of the slat insert PAN‑005;

3. the free smooth field around the panel;

4. the selected profile K‑075 — 14×8, 18×10, 22×13, or 30×17 mm;

5. the actual cutting of 2-meter slats, taking into account four corners and the repeating braid pattern.

The direct answer for the buyer is this:

K‑075 is worth buying around PAN‑005 if the frame supports the furniture's architecture, leaves enough visual space for the slat relief, and does not conflict with handles, facade edges, or adjacent doors. If the interior is minimalist, PAN‑005 takes up almost the entire door, or there is no calm field around it, the carved braid may be unnecessary — then it is better to leave the insert without a frame or use a smooth wooden molding.

Before ordering a full batch, a full-size test should be done. K‑075 has a short version 14×8×300 mm, so for the thin option specifically, you can check the actual pattern, wood species, and depth without purchasing several two-meter slats at once. For the other profiles — make rigid templates 18×10, 22×13, and 30×17 mm, or request a real sample.

If the slat insert has not been purchased yet, you can first Buy slatted panels for wall finishing and furniture in the general category. If PAN-005 is already approved, and the frame has passed layout, buy wooden baguette K-075 only after calculating the outer size of the frame and the map of 2000-mm parts.

Go to Catalog

Wooden baguette K-075: what sizes are actually available in the card

The current card K-075 confirms the short version 14×8×300 mm and four main long sections of 2000 mm.

Section A×C×L, mm	Material	Standard, price at the time of check	Prestige, price at the time of check
14×8×300	Beech	420 rub.	670 rub.
14×8×300	Oak	470 RUB	740 RUB
14×8×2000	Beech	2,790 RUB	4,450 RUB
14×8×2000	Oak	3,180 RUB	4,940 RUB
18×10×2000	Beech	2,950 RUB	5,170 RUB
18×10×2000	Oak	3,970 RUB	6,080 RUB
22×13×2000	Beech	3,450 RUB	5,590 RUB
22×13×2000	Oak	4,910 RUB	6,920 RUB
30×17×2000	Beech	3,490 RUB	5,750 RUB
30×17×2000	Oak	5,100 RUB	6,540 RUB

Prices and availability change. Please re-check the product page before payment.

K-075 is specifically a wooden baguette / carved molding, not a smooth trim. The ornament is built on a repeating "braid": an interweaving of ribbon and rope. This means that at the corner, you need to align not only the geometry of the miter cut but also the visual phase of the repeating pattern.

Standard and Prestige

The card offers two levels of sanding.

Standard is a more affordable machine preparation.

Prestige is detailed hand sanding.

For a frame that will be viewed from a distance of 0.5–1.5 m, surface quality is especially noticeable on carved relief. But choosing "Prestige" should not be automatic: if the molding still goes through an additional painting cycle at the furniture maker's, you need to coordinate the necessary preparation with them specifically.

Beech and oak

Beech is often chosen for opaque enamel.

Oak is chosen when it's important to preserve the pronounced natural texture under tinting or a clear finish.

At the same time, "oak PAN‑005 + oak K‑075" do not guarantee automatic tone matching: these are different products and separate pieces of natural wood.

Packaging

The K‑075 card indicates a rigid packaging frame for 390 rubles for long-length orders. The final packaging for a specific quantity needs to be checked at checkout.

Slat panel PAN‑005: why its rhythm requires caution with a carved frame

PAN‑005 has a width of 1010 mm and a relief depth of 9 mm. The card offers short and long versions in MDF, beech, and oak; the manufacturer explicitly allows use on furniture facades.

Its pattern is already quite active: triangular elements create a frequent vertical rhythm.

The main conflict is not size, but two active ornaments

PAN‑005 provides vertical geometry, frequent chiaroscuro, and a modern character. K‑075 adds its own carving and a classic braid.

If the frame is too wide, a person simultaneously perceives two decorative centers.

When they work together

When PAN‑005 becomes an inner panel and K‑075 its outer architectural boundary. Then each element has its own role: PAN‑005 fills the center, K‑075 forms the contour, and the smooth field of the facade provides a pause.

When they compete

If the slat insert almost reaches the edge of the door and a wide 30‑mm "braid" appears right next to it. On a narrow facade, there is no calm background left.

Our factory also produces:

View Full Product Catalog

When is it better to leave the PAN-005 panel insert without a molding frame?

The absence of a frame is a stronger solution if the facade is minimalist, push-to-open is used, PAN-005 takes up almost the entire door, or the furniture already has an expressive handle.

If a modern interior contains no carved moldings at all, a single K-075 on a cabinet may look like a random classical quote.

When the wooden molding K-075 makes the facade more expressive

K-075 is logical in modern classic, neoclassical, and furniture compositions with panel logic. The scenario is especially successful when PAN-005 is precisely an internal insert, with a calm framed zone of the facade remaining around it.

Why is the K-075 profile chosen based on the scale of the frame, rather than on the principle of "the wider, the richer"?

The four long versions of K-075 differ in two parameters at once: face width and depth. This affects not only the external size of the frame, but also how much the molding protrudes relative to PAN-005.

If we take the depth of PAN-005 as 9 mm and imagine that the panel and K-075 are installed on the same base plane of the facade, we get a simple comparative cross-section:

K‑075	Molding depth	Difference relative to PAN-005 9 mm
14×8	8 мм	baguette 1 mm below the top of the panel
18×10	10 мм	baguette approximately 1 mm higher
22×13	13 мм	approximately 4 mm higher
30×17	17 мм	approximately 8 mm higher

This is not an installation guarantee: the actual joint depends on the thickness of the adhesive, the PAN-005 backing, the base, and whether the baguette is on the same plane. But the table shows why 30×17 cannot be considered simply a "wider version" of 14×8. It creates a completely different volume.

14×8 mm — a thin graphic edge

Such K-075 competes less with the triangular relief of PAN-005.

It is suitable if the frame must:

• mark the boundary;

• add a touch of classic style;

• do not turn the facade into a heavy panel.

On a narrow door, exactly 14 mm should be tested first.

18×10 mm — noticeable but still light frame

A depth around the level of PAN‑005 makes the transition visually more cohesive if both elements are on the same base.

18 mm is already readable on a medium furniture facade, but usually does not take away too much smooth field.

22×13 mm — an independent decorative belt

Such a baguette begins to protrude more outward and forms its own shadow.

If PAN‑005 and K‑075 are the same color, the difference will be created not only by the ornament, but also by the depth.

30×17 mm — an active carved frame

On a facade 400–500 mm wide, such a frame can take up too large a share of the field.

On a large door of 800–900 mm, it may be appropriate, especially if the wardrobe belongs to a classic composition and there are other carved elements nearby.

Comparison of the width share on a 600 mm facade

If we conditionally estimate one side line of the frame:

• 14 / 600 ≈ 2,3%;

• 18 / 600 = 3%;

• 22 / 600 ≈ 3,7%;

• 30 / 600 = 5%.

But the frame is located on both sides, so in total it occupies across the facade width:

• 28 mm;

• 36 mm;

• 44 mm;

• 60 mm.

On a narrow door, this difference is visually significant.

Which wooden baguette to choose for a narrow furniture facade

Let's imagine a facade with a width of 420 mm.

If K‑075 is installed on both sides, only the face width of the two vertical parts will take up:

14×8:

2×14 = 28 mm.

18×10:

36 mm.

22×13:

44 mm.

30×17:

60 mm.

Before accounting for the smooth field between the frame and PAN‑005.

What happens with 30×17

60 mm is more than 14% of the facade width:

60 / 420 × 100 ≈ 14,3%.

If you add a smooth mat of at least 20 mm on each side, the decorative contour along with the margins will take up 100 mm.

For the internal slat insert, a maximum of about 320 mm will remain before accounting for the outer margins of the facade.

This option may be correct, but it needs to be seen to scale.

For a narrow door, first test 14×8 and 18×10

This is not a rigid norm, but a rational sequence of layout.

They give more air between:

• the edge of the door;

• the carved frame;

• the slatted center.

Why 22×13 can still win

If the facade is tall — for example 2300–2500 mm — a too-thin frame can get lost in height.

Then 22×13 is better able to hold the proportion.

Which K‑075 to consider on a wide cabinet facade

On doors 700–900 mm wide, the situation changes.

Facade 800 mm

Total width of two side lines:

• 14 mm → 28 mm;

• 18 mm → 36 mm;

• 22 mm → 44 mm;

• 30 mm → 60 mm.

As a percentage of 800 mm:

• 3,5%;

• 4,5%;

• 5,5%;

• 7,5%.

Even a 30 mm molding no longer looks as massive as on a 420 mm facade.

Tall door

At a height of 2400 mm, a thin 14 mm braid can be perceived as a very delicate line.

18×10 and 22×13 more often remain readable from a distance of 2–3 m.

But the width of the facade is not the only criterion.

If there is a large PAN‑005 with frequent relief inside, a too-wide K‑075 can still compete with it.

Therefore, you need to look at simultaneously:

• the width of the door;

• insert size;

• viewing distance;

• other furniture details.

Full-size test of K‑075 before ordering the entire batch

The cheapest mistake is the one discovered before cutting.

For K‑075 14×8, the card offers a short version of 300 mm. This is actually a convenient physical fragment for checking the scale, although the product does not need to be called a special “sample” if the card does not classify it as such.

What to check with a short plank

• real ornament;

• the depth of 8 mm;

• beech or oak;

• sanding quality;

• the future color;

• combination with PAN-005.

How to make a test on the facade

1. Mark the real boundary of PAN-005.

2. Attach fragment K-075.

3. Step back 1 m.

4. Step back 3 m.

5. Look under side light.

6. Check near the handle.

7. Photograph the entire facade.

For 18×10, 22×13 and 30×17

If there is no physical short version in the card, a rigid full-size template of the corresponding cross-section is made.

It will not reproduce the thread, but will show:

• width;

• depth;

• shadow;

• the occupied space.

Why a paper strip is not enough

Paper shows width, but not depth.

For 30×17, it is the 17 mm protrusion that can change the decision.

Oak PAN-005 and oak K-075: why the same wood species does not mean the same color

Both products may be made of oak, but wood is not a printed film.

The following may differ:

• shade;

• drawing;

• porosity;

• direction of fibers;

• reaction to stain;

• degree of oil absorption.

What to do before final finishing

Need to place nearby:

• real fragment PAN‑005;

• real K‑075;

• selected sample of stain or oil.

And treat them with one system.

Why a transparent finish is especially important

Opaque enamel hides most of the differences.

Semi-transparent tinting, on the contrary, emphasizes them.

What to consider normal

A slight natural difference in oak is acceptable.

The task is not to get "one color per RAL", but to ensure that two products belong to the same visual palette.

PAN-005 from MDF and K-075 from beech under enamel: is this a reasonable combination

Yes, if the final goal is opaque painting.

The manufacturer recommends PAN-005 from MDF for furniture painting with enamels after appropriate preparation. Beech K-075 can also be used in an enamel-ready version.

Why materials can be combined

After opaque painting, the viewer perceives:

• shape;

• relief;

• shadow;

rather than the difference in the base.

What still needs to be checked

• compatibility of the soil system;

• identical finish gloss;

• coating thickness;

• behavior of the end grains;

• color under one lighting condition.

Do not paint the entire batch before the assembly fitting

Corners K-075 may require correction.

PAN-005 may require trimming according to the actual insert.

Therefore, it is more correct to first confirm the geometry, and then perform the final finish.

How to position the K-075 frame relative to the PAN-005 slat pattern

The design order is important.

First, PAN-005 is centered, then a frame is built around it.

Why you can't start with the baguette

If you first draw a beautiful rectangle K-075, and then insert PAN-005 "as it turns out," the outer triangular rail may end up:

• cut in half;

• different on the left and right;

• offset relative to the center of the door.

Correct sequence

1. Determine the central axis of the facade.

2. Select the PAN-005 phase.

3. Determine the symmetrical outer trims.

4. Record the actual width of the batten insert.

5. Add a smooth field or direct abutment.

6. Only then build K-075.

If the frame abuts directly against PAN-005

Need to check the outermost triangular element.

The K-075 ornament must not accidentally cover part of the relief.

If there is a smooth field

It works as a visual pause.

For combining two active textures, this is often useful.

What gap to leave between PAN-005 and K-075

There is no universal number.

There are three compositions.

Bagel flush

PAN‑005 ends directly at K‑075.

Advantages:

• compactness;

• strong frame logic.

Disadvantages:

• two reliefs touch;

• any uneven trimming of PAN‑005 is noticeable.

Small smooth field

A strip of flat facade remains between them.

It separates:

• vertical triangular rhythm;

• carved braid.

The size is chosen only on a 1:1 mockup.

Pronounced mat zone

Suitable for a large facade.

PAN-005 becomes the inner insert, K-075 the outer frame, with a noticeable calm field left between them.

Why you cannot set 10 or 20 mm as a rule

On a 400 mm and 900 mm facade, the same gap is perceived completely differently.

Cut K-075 at 45° or join it another way

For a classic frame, a miter joint looks natural, but K-075 has a more complex task than a smooth molding. You need to join not only two planes at 45°, but also the repeating braid pattern.

Why a geometrically correct angle can look bad

Let's imagine that both parts are cut perfectly.

But on one, at the vertex of the angle, there is:

• a wide section of the tape,

and on the other:

• a weave knot.

The seam is technically closed, but the pattern "breaks."

What to check on the test frame

• the position of the repeating motif;

• the symmetry of the four corners;

• same pattern start on verticals;

• same ending on horizontals.

Why perfect continuity of the ornament cannot be guaranteed at any length

The repeat of the "braid" has its own step.

If the side length of the facade is not a multiple of this step, a compromise must inevitably be chosen at the four corners:

• center the pattern;

• give priority to the top corners;

• select adjacent details.

Card K-075 does not publish the exact step of the ornament as an installation module in its open description, so the article does not invent it.

Practical method

Before the final cut, lay two planks side by side and select sections that produce the most matched corners.

For oak, this also helps control the wood grain pattern.

Why K‑075, 2000 mm long, should be calculated not only by the frame perimeter

Length of one long plank:

2000 mm.

If the conditional frame perimeter is:

6.8 m,
simple arithmetic:

6,8 / 2 = 3,4.

Rounding:

4 slats.

But four planks do not guarantee a working cut layout.

Why

The parts have specific lengths.

For example, a frame with an external dimension:

800×2600 mm.

Clean perimeter:

2×800 + 2×2600 = 6800 mm.

But the vertical 2600 mm is longer than one K‑075 2000 mm.

This means that a solid vertical side from a standard strip cannot be obtained at all.

You need to:

• divide the vertical with a joint;

• change the frame size;

• change the design;

• use a different molding of greater length.

This is fundamentally more important than the total sum of 6.8 m.

Example of a frame 800×1800 mm

Clean perimeter:

2×800 + 2×1800 = 5200 mm.

Map:

• plank 1 → vertical 1800;

• plank 2 → vertical 1800;

• plank 3 → 800 + 800 = 1600.

Total:

3 planks.

By pure linear footage:

5200 / 2000 = 2,6 → 3.

Here the arithmetic matches the map.

Example of a frame 900×1800 mm

Perimeter:

5400 mm.

The map is the same:

• two planks on the verticals;

• one bar for two horizontals:

900 + 900 = 1800 mm.

Total 3.

Example of a frame 1100×1800 mm

Perimeter:

5800 mm.

By length — 3 bars.

But one horizontal pair:

1100 + 1100 = 2200 mm.

It no longer fits into a single 2000 mm bar.

Map:

• two planks on the verticals;

• two — for the horizontals.

Minimum:

4 slats.

Here is a classic case where math says “three is enough,” but cutting says “you need four.”

Threshold formula for two horizontals from one K‑075

If the horizontal side has a length Wtwo identical parts fit into one 2000 mm bar only if:

2W + process allowance ≤ 2000 mm.

Without process allowance, the threshold is:

W ≤ 1000 mm.

A practically comfortable limit should be less than 1000, because end trimming and cuts are needed.

The article does not assign a universal allowance — it depends on the tool and the corner system.

Why this is useful before ordering

If the frame is 950 mm wide:

950 + 950 = 1900 mm.

The pair potentially fits.

If 1050:

2100 mm.

No longer.

A difference of just 100 mm in frame width can increase the order by a whole bar.

When short remnants K-075 can be used on other fronts

On one front, the remnant may be too short.

On five identical doors, it becomes a valuable resource.

Example: frame 800×1800 mm

On the vertical bar:

2000 − 1800 = 200 mm.

Two vertical remnants:

200 + 200 mm.

On the horizontal bar:

2000 − 1600 = 400 mm.

From one frame nominally remains:

800 мм

in three pieces.

For this same frame they are almost useless.

But on another facade they may be useful:

• for a short decorative section;

• for test angle adjustment;

• for finish test.

Several identical doors

It's better to make a map for the entire cabinet at once.

For example, 4 frames 800×1800:

You need to:

• 8 verticals 1800;

• 8 horizontals 800.

Verticals require 8 planks.

Horizontals:

From one plank, two pieces 800+800=1600.

Need 4 more planks.

Total:

12 planks before reserve.

If you count each frame separately, it also works out to 3×4=12. But for other sizes, a combined map can save money.

Do you need to frame each slat facade K‑075 separately?

The cabinet can have:

• two doors;

• four;

• six.

A carved frame on each one is not the only option.

Option 1. Separate frame on each door

The most classic scheme.

Advantages:

• each door reads as a panel;

• easy to maintain a separate facade;

• the pattern is clear.

Disadvantages:

• many K-075;

• many corners;

• high decorative density.

Option 2. One visual frame around a group of facades

The frame is built not on each door, but along the outer contour of the group.

This is only possible if the cabinet construction allows it and the baguette does not interfere with door opening.

This option requires a separate furniture project.

Option 3. K-075 only on the central door

Suitable for a symmetrical cabinet.

The central facade becomes an accent, the side ones remain calmer.

How to choose

Make a frontal sweep of the entire cabinet.

Do not make a decision on one door if there will be five more of the same nearby.

K-075 and furniture handles: when carved baguette starts to conflict with hardware

The handle is the third active entity after PAN-005 and the "braid."

Simple handle

A small, laconic handle can work well inside a classic frame.

Carved or large handle

If the handle itself has:

• arc;

• thread;

• a complex metal overlay;

competition appears next to K-075 and PAN-005.

What to check

• distance from handle to baguette;

• finger grip;

• fastener hitting the smooth field;

• visual axis;

• opening the adjacent door.

Why K-075 should not automatically become a backing plate for the handle

Carved relief — uneven surface.

The base of a furniture handle usually requires stable contact.

If the handle lands on K-075, a separate mounting assembly is needed, not tightening "over the braid".

When it's better to buy a smooth wooden molding instead of K-075

This is a mandatory alternative.

A smooth profile is better if:

• PAN-005 is already active enough;

• the interior is minimalist;

• only a clean border is needed;

• the braid ornament is not repeated anywhere else;

• the handles are complex;

• The facade is narrow.

Why a smooth baguette can look more expensive

Because it does not compete with the relief.

In expensive furniture, controlled hierarchy of details is often more important than the maximum number of decorative elements.

When K-075 still wins

If the frame should be not just a border, but an independent carved detail.

Then a smooth profile will be too neutral.

How to check K‑075 by depth relative to PAN‑005 and the facade

Comparison of 8/10/13/17 mm with PAN‑005 9 mm — only the first level.

You also need to know which planes they are installed on.

Scenario 1. PAN‑005 and K‑075 on the same base

Then the comparative depth table works directly.

Scenario 2. PAN‑005 is recessed into a groove

If the slat insert is deeper than the facade plane, K‑075 can work as a real framing protrusion.

Scenario 3. PAN‑005 is glued on top of the facade, K‑075 around it

Then both elements protrude outward, but in different ways.

Why a side cut is needed

Draw three lines:

• facade base;

• vertex PAN-005;

• vertex K-075.

After this, it is clear which part dominates.

What to do if K-075 is 8 mm higher than PAN-005

This is a 30×17 scenario with a conditional common base.

The frame can:

• cast a stronger shadow;

• visually "press down" the slat insert;

• create a deep contour.

On a large panel, this can be striking.

On a narrow facade, it feels heavy.

How to check

Make a rigid profile 30×17 and apply it around the actual PAN‑005.

Do not judge the difference only on the drawing.

How much does the K‑075 frame cost on one facade: we compare not the price of the strip, but the map

Let's take a common calculation scenario: an outer frame 900×1800 mm.

Net length:

2×900 + 2×1800 = 5400 mm.

On the map:

• two strips of 2000 mm are needed for two verticals of 1800 mm;

• the third strip gives two horizontals 900+900=1800 mm.

Minimum:

3 long strips K‑075.

14×8, Standard

Beech:

3×2790 = 8370 rub.

Oak:

3×3180 = 9540 rub.

18×10, Standard

Beech:

8850 rub.

Oak:

RUB 11,910

22×13, Standard

Beech:

RUB 10,350

Oak:

RUB 14,730

30×17, Standard

Beech:

RUB 10,470

Oak:

RUB 15,300

Prestige

For the same three slats:

14×8:

• beech — RUB 13,350;

• oak — RUB 14,820.

18×10:

• beech — 15,510 RUB;

• oak — 18,240 RUB.

22×13:

• beech — 16,770 RUB;

• oak — 20,760 RUB.

30×17:

• beech — 17,250 RUB;

• oak — 19,620 RUB.

Plus packaging and delivery according to current terms.

What the estimate shows

Difference between 14×8 beech Standard and 30×17 oak Prestige on the same frame:

19,620 − 8,370 = 11,250 RUB.

This is a substantial amount.

Therefore, the cross-section and grinding quality should produce a visible design effect, rather than being automatically selected as the "most expensive" option.

When a short K‑075 14×8×300 mm is more advantageous than a full-size sample strip

The card allows ordering a short version of 300 mm.

At the time of checking:

• beech Standard — 420 RUB;

• oak Standard — 470 RUB;

• beech Prestige — 670 RUB;

• oak Prestige — 740 RUB.

For an initial test of 14×8, this is much cheaper than a two-meter strip.

What can actually be checked

• ornament size;

• depth;

• surface quality;

• combination with PAN‑005;

• finish;

• Color.

What 300 mm does not show

• layout of the full frame;

• four corners;

• long vertical;

• pattern repeat at 1800–2000 mm;

• real curvature of a long part.

Therefore, a short fragment is not a substitute for a pilot frame. It is needed for the first answer: whether K‑075 14×8 next to PAN‑005 is liked at all.

Short frame and tall frame: why 2000 mm limit the project

K‑075 has a standard long plank of 2000 mm.

This means a hard limit for the solid side.

If the frame vertical is 1900 mm

It fits into one plank.

Remainder:

100 mm to the technological allowance.

The layout is tight, but possible after checking.

If the vertical is 2000 mm

The clean length equals the entire plank.

In practice, there is no allowance for trimming and corners.

This is a risky project.

If the vertical is 2100 mm

A solid side is impossible from standard K-075.

A joint is needed.

Why this is important for tall cabinets

The facade can have a height of 2400–2600 mm, but the frame does not have to go almost the full height.

Allowed:

• reduce the internal composition;

• leave margins at the top and bottom;

• make the frame 1800–1900 mm;

• use a different profile of greater length.

This is better than a random transverse joint on a vertical miter.

If the vertical K-075 still has to be joined

The joint on carved ornament is more complex than on a smooth batten.

Need to coordinate:

• drawing;

• direction;

• wood texture;

• plane.

Where to place the joint

Not in the center at eye level, if another place can be chosen.

Better:

• closer to the bottom;

• in a less noticeable area;

• where the pattern allows a clean continuation.

But there is no universal position.

Why two short pieces are not equal to one long one

Even a perfect joinery joint remains a potential line:

• by thread;

• by tone;

• by shrinkage;

• by finish.

For a premium facade, a solid vertical is preferable.

Do I need to buy a spare K-075 strip?

As with other piece items, mechanical "+10%" is of little use.

If the map requires 3 strips:

10% = 0,3.

Real choice:

• 3;

When the fourth is justified

• first work with carved ornament;

• four complex miter corners;

• oak under clear finish;

• expensive facade;

• repeat delivery is inconvenient;

• several doors and need for pattern selection.

When reserve is not needed

if:

• simple frame;

• the craftsman has already worked with K-075;

• there are large leftovers;

• repeat delivery is available.

Reserve price

For 14×8 beech Standard — 2790 RUB.

For 30×17 oak Prestige — 6540 RUB.

The more expensive the cross-section, the stronger the justification for the reserve.

Finishing K‑075 and PAN‑005: what to do before final assembly

Do not paint and tint the entire batch before a dry fitting.

For covering paint

PAN‑005 made of MDF and beech K‑075 can get the same color.

But the reliefs are different, so the same color looks different in shadows.

For oak

First, a joint tinting test.

Sequence

1. Unfold the test part.

2. Dry assembly.

3. Check angles.

4. Check depths.

5. Trial finish.

6. Only then the whole batch.

Why angles first

After the miter cut, a fresh end appears.

If K-075 is already finally coated, the joint has to be locally restored.

How K‑075 affects the opening of adjacent facades

The molding has a depth of up to 17 mm.

If it is located close to the edge of the door, it becomes part of the moving facade.

Need to check:

• adjacent door;

• box;

• body;

• a wall;

• handle.

Especially for 30×17

17 mm of external volume is a noticeable amount.

On facades with small gaps between doors, the frame must not protrude beyond the side edge.

What to do

Place a mock-up of the selected cross-section at the vertical edge and open the facade to the full working angle.

If K‑075 is located deep inside the field, the risk is lower, but the test is still useful.

K‑075 on a push‑to‑open facade

If there is no handle, the carved frame becomes even more noticeable.

But push-to-open requires a convenient press area.

What to check

• where the user presses;

• whether it is necessary to press on the carved braid;

• whether a smooth field is sufficient;

• whether the frame interferes with the grip after the door is pushed out.

Possible advantage

K-075 can mark the inner insert, and the outer smooth field will remain a convenient press area.

K-075 on a swing door with a handle

The handle position needs to be set before the frame.

Handle variant inside the frame

Suitable if there is a smooth field around it and it does not fall on PAN‑005.

Handle outside the frame

The frame surrounds only the slat insert, and the fittings are on a calm field.

This is often easier visually.

Handle on the PAN‑005 itself

Then K‑075 becomes the third layer of the composition and requires particularly strict verification.

Errors when ordering K‑075 around PAN‑005

Error 1. Choosing a baguette only by width

Depth 8/10/13/17 mm is equally important.

Error 2. Assuming that PAN-005 oak and K-075 oak will be the same color

A joint finishing test is needed.

Error 3. Starting the layout with the frame

First, PAN-005 is centered.

Error 4. Dividing the perimeter by 2000 mm and rounding up

Specific sides may not fit into the planks.

Error 5. Ignoring the 2000 mm vertical limit

A tall frame will require a joint.

Error 6. Considering 30×17 as simply "more premium"

On a narrow facade, it can overload the composition.

Error 7. Painting the entire batch before checking the corners

After correction, a fresh cut appears.

Error 8. Not checking the 'braid' at the four corners

A geometric miter can visually break the pattern.

Error 9. Placing the baguette flush against PAN-005 without a mockup

Two reliefs begin to compete.

Error 10. Not taking into

What to send to the manager before ordering K-075

For an accurate order, it is useful to put together a short specification.

Product

• K‑075;

• 14×8 / 18×10 / 22×13 / 30×17;

• beech or oak;

• Standard or Prestige;

• number of long slats;

• is a short 14×8×300 mm needed.

Outdoor decor may get dirty from rain and dust. It is easily cleaned with a soft brush or a stream of water. Polyurethane is not afraid of moisture, so such care will not harm the item.

• width;

• height;

• number of doors;

• opening type;

• handle or push-to-open.

PAN‑005

• material;

• size;

• actual insert width;

• depth 9 mm;

• direction of the relief.

Frame

• outer size;

• inner size;

• smooth field between K-075 and PAN-005;

• type of corners;

• Number of frames.

Finish

• enamel;

• tinting;

• oil;

• clear varnish;

• Quality of sanding.

Ready-made wording

"For a furniture front with slat insert PAN-005, we design a frame from K-075. External frame size × mm, K-075 section ___, material ___, quality ___, fronts ___. Vertical sides ___ mm, horizontal sides ___ mm. Please confirm current price, availability/lead time, packaging, and possibility to order ___ slats 2000 mm plus a short 14×8×300 mm for testing, if needed."

So the manager confirms the product, and the furniture maker is responsible for cutting and corners.

Where to buy wooden baguette K‑075 and PAN‑005

If PAN‑005 is still being selected, use buy slat panels for interior wall finishing and furniture as a general route to the category.

If a specific panel is needed — buy slatted panel PAN-005.

If the frame is already confirmed by the layout — order wooden baguette K-075.

To compare other ornaments, you can Buy wooden picture frame molding in the general category.

General material slatted panels for furniture fronts addresses a broader topic of furniture construction; the new article does not duplicate it.

Before the final finish, it is useful to check Tips for finishing wooden products, Mounting and finishing materials и payment and delivery terms.

How to accept K-075 after delivery before cutting the furniture frame

Carved molding cannot be immediately sent for final painting or cut to size. First, you need to verify the product itself and distribute the long slats according to the future sides of the frame.

Check

• article K-075;

• cross-section;

• length 2000 mm;

• beech or oak;

• Standard or Prestige;

• thread condition;

• absence of transport chips;

• Quantity.

Why verticals are distributed first

Vertical sides are usually longer than horizontals. They require the straightest sections without damage in the visible area.

If the frame is 900×1800 mm:

• V1 = 1800 mm;

• V2 = 1800 mm;

• H1 = 900 mm;

• H2 = 900 mm.

First, assign two strips to V1/V2. The third strip remains under the horizontals.

For oak — see the figure

If K‑075 is toned, it is better to select adjacent verticals so that their tone does not look randomly different.

Do not cut the reserve strip for tests

If a fourth strip is ordered, it must remain a full insurance for the long side. Test angles and color samples are done on the first short offcuts.

How to make one test frame without ruining the entire set of facades

If the cabinet consists of four identical doors, the temptation is to immediately cut the molding for all four. For carved K‑075, it is safer to first finish one frame.

What the pilot door checks

• scale;

• color;

• angles;

• the "braids" phase;

• smooth field up to PAN-005;

• handle;

• opening;

• the depth of the frame relative to the panel.

When to replicate

Only after the first door:

• closes without touching;

• visually satisfactory from 1-3 m;

• has clean four corners;

• shows a clear finish.

Why this is especially important for 22x13 and 30x17

The larger the profile, the more expensive the mistake and the stronger its impact on the entire facade.

Final procurement specification K‑075 around PAN‑005

After the mockup, it is useful to fix the order in one line.

Example:

K‑075 / 18×10×2000 mm / beech / Prestige / 3 slats per one frame 900×1800 mm / PAN‑005 inside / smooth field ___ mm / four miter corners / finish ___ / handle located outside the frame / reserve 0 or 1 slat.

For oak:

K‑075 / 22×13×2000 mm / oak / Standard / facade × / PAN‑005 × / verticals ___ mm / horizontals ___ mm / 4 slats / tinting ___ / joint color sample with PAN‑005 completed.

If the specification still contains:

"the frame is roughly like this, the quantity will be calculated later,"
the procurement is not ready yet.

Selection matrix for K‑075 around PAN‑005

Situation	The most reasonable first test
Narrow modern facade	without K-075 or 14×8
Medium facade in neoclassical style	14×8 / 18×10
Large facade 700–900 mm	18×10 / 22×13
Very expressive classic	22×13 / 30×17
PAN-005 almost across the entire facade	leave without frame
Decorative handle is already active	thin or smooth contour
Oak PAN-005	oak K-075 after joint test
MDF PAN-005 under enamel	beech K-075 under enamel after fitting
Frame vertical >2000 mm	different frame size/profile or design joint

This matrix does not choose the design for the owner. It helps understand which physical sample to check first and which options immediately look risky.

Control after final assembly of the facade

Final acceptance is not only based on the frontal photo.

Need to check:

• four corners;

• continuity of the ornament;

• uniformity of indents;

• depth relative to PAN-005;

• absence of contact with the adjacent door;

• convenience of the handle or push-to-open;

• absence of sharp unprocessed edges;

• match of the finish.

Under side light, steps and unevenness of the joints are especially visible.

Criterion for a good result: PAN-005 remains the main relief of the insert, and K-075 reads as a deliberate frame, does not conflict with the handle, and does not look like a separate decorative layer added after the facade design.

Final check before payment

Check one final version of the project: facade size, PAN-005 size, width of the calm field, K-075 cross-section, outer and inner frame dimensions, lengths of all four sides, selected material, sanding quality, finish type, and quantity of 2000-mm planks. If at least one of these parameters changes after the mockup, the cutting map must be recalculated from scratch. For a multi-door cabinet, it is especially important to check not just one beautiful frame, but the entire front as a whole: four individually successful doors can together create an overly saturated composition.

Final decision tree: is K-075 needed around PAN-005

Step 1. Is PAN-005 already the main decorative accent?

• yes → first check the option without a baguette;

• No → continue.

Step 2. Does the interior support carved ornament?

• no → smooth profile;

• Yes → continue.

Step 3. Is there enough calm space on the facade?

• no → K‑075 may overload;

• Yes → continue.

Step 4. Is the section selected?

First mock up 14×8 and 18×10.

22×13 and 30×17 — if the facade is large and requires a stronger frame.

Step 5. Is the depth compared with PAN‑005 9 mm?

• no → make a side cut;

• Yes → continue.

Step 6. Does the vertical side of the frame not exceed 2000 mm?

• exceeds → need a joint or another profile/frame size;

• does not exceed → continue.

Step 7. Do the horizontals fit into one bar in pairs?

Check 2W < 2000 mm with real technological allowance.

Step 8. Are the "braid" corners checked on the test?

• no → do not cut the entire batch;

• Yes → continue.

Step 9. Do the handle and opening not conflict with the frame?

• conflict → change margins/section;

• No → continue.

Step 10. Is a map of all facades built simultaneously?

• no → recalculate;

• yes → record the quantity.

Step 11. Is a reserve 2000 mm strip needed?

Only for a specific risk.

Step 12. After this, place the order.

FAQ

What sizes are available for K-075?

Long versions: 14×8×2000, 18×10×2000, 22×13×2000, and 30×17×2000 mm. There is a short 14×8×300 mm.

K-075 — molding or wooden baguette?

The card belongs to the wooden baguette/carved trim category. It is a carved profile with a "braid" ornament.

What ornament does K-075 have?

Interweaving of ribbon and rope, visually perceived as a classic braid.

Can K-075 be used on a furniture facade?

Yes, the card directly indicates furniture facades as one of the application scenarios.

Which profile should be chosen around PAN-005?

For narrow and medium facades, it is reasonable to first test 14×8 and 18×10. Large 22×13 and 30×17 require a full-scale mockup.

Will 14×8 mm be suitable?

Often this is the most delicate option. Its depth of 8 mm is close to PAN-005's 9 mm, but the actual joint depends on the base plane.

When is 22×13 or 30×17 needed?

On large facades, where a thin frame gets lost and the interior already supports an expressive classic molding.

What to choose — oak or beech?

Beech is often convenient under a covering enamel, oak — for preserving the natural texture. With oak PAN‑005, a joint finish test is needed.

How to join the braid at the corners?

Usually a miter joint is tested, but the phase of the ornament needs to be aligned, not just 45°.

How many 2000 mm planks should I order?

It depends on the specific sides. For a 900×1800 mm frame, three planks are enough according to the map; for 1100×1800 mm, four are already required, although the total perimeter of 5.8 m mathematically fits into three by length.

Why does a 1100×1800 frame require four planks?

Two horizontals 1100+1100=2200 mm do not fit into one 2000 mm plank.

Is it worth first buying a short K‑075 14×8×300?

Yes, if the specific cross-section 14×8 is being considered. This allows you to cheaply check the ornament, material, and scale.

Can K‑075 be placed flush against PAN‑005?

You can consider it, but two active reliefs may visually conflict. A mockup is needed first.

What gap should be left between them?

There is no universal value. Direct abutment, a small smooth field, or a pronounced mat are possible.

Can each cabinet door be framed?

Yes, but on a multi-door cabinet, the decor may become too much. You need to compare individual frames, a common group composition, and an accent only on the central door.

Will 30×17 interfere with opening?

If the molding is located close to the edge of the facade, its depth of 17 mm requires checking the trajectory of adjacent doors and the cabinet body.

Can one strip be used for a 2100 mm vertical?

No, the standard long K-075 is 2000 mm. A joint or a change in size/profile is needed.

Where to order K-075?

In the exact STAVROS card, after approving the section and quantity.

Brief conclusion

PAN-005 and K-075 can work together very convincingly, but only if they have a hierarchy.

PAN-005 should remain the main inner relief. K-075 should form the frame, not compete for attention.

For a narrow or modern facade, the best answer is often to leave PAN-005 without a carved braid at all. For modern classics and paneled furniture, K-075 14×8 or 18×10 can add a neat architectural border. 22×13 and 30×17 require a large facade and a real mockup.

Before purchasing, you need to check:

facade size → PAN-005 size → free field → K-075 section → depth 8/10/13/17 against PAN-005 9 mm → ornament corners → side lengths → cutting 2000-mm strips → handles and opening → finish.

And the main thing is not to count the order only by the perimeter. A 900×1800 mm frame really consists of three strips, while 1100×1800 mm already requires four due to paired cutting of horizontals. It is this map that turns K-075 from a decorative idea into a precise product order.
