Wall Molding Around Outlets and Switches: Layout Guide

A wall can look perfectly balanced in a rendering and surprisingly awkward after installation. The reason is often not the molding: it is the outlet that interrupts a frame, the bank of switches next to a door, or a wall sconce that occupies the same space as a decorative profile. These details matter in American homes, where one accent wall may also carry charging stations, dimmers, smart-home controls, a television, and several different wall plates.

The practical answer is to plan wall molding around existing electrical devices, not through them. Measure every finished wall plate, reserve space to operate and remove it, then design the decorative frames around those real dimensions. When electrical devices need to move or an electrical box needs an approved extension, involve a qualified electrician and follow the locally adopted electrical code. The molding itself is an architectural finish; it is not a substitute for an electrical box or a safe wiring method.

This guide explains how to create an attractive panel layout while keeping electrical equipment accessible. It covers picture frame molding, polyurethane molding profiles, wall sconces, door-side switches, a television wall, and a complete takeoff for a 12-foot-wide room wall. All dimensions and calculations are presented in U.S. units, with verified STAVROS metric product specifications alongside their inch equivalents.

Лепной декор NPU-160

от 27.43 $

Лепной декор NPU-230

от 45.67 $

Лепной декор NPU-287L

от 9.31 $

Лепной декор NPU-287R

от 9.31 $

Лепной декор NPU-309

от 6 $

Лепной декор NPU-293L

от 15.31 $

Лепной декор NPU-440L

от 101.63 $

Лепной декор NPU-440R

от 101.63 $

Перейти в каталог

Start With the Wall You Actually Have

Смотреть видео ...

Record the finished wall, not the floor plan

Before choosing a panel pattern, draw a simple elevation of the wall. Measure from the finished floor, from a fixed side corner, and from the finished face of adjacent door casing. Use a laser measure or tape, level, pencil, and grid paper. Record the wall width at the top and bottom: older homes can be out of square, and even a small difference affects the symmetry of multiple frames.

Measure the existing baseboard height and projection, the visible wall between baseboard and ceiling trim, the edge of any doorway, and the precise location of furniture. A sofa that is eight inches away from a wall in a design rendering may touch the finished wall once its legs and pillows are considered. A desk that sits under a panel may obscure its bottom rail. The frame should make sense from the normal viewing position, not merely on a blank diagram.

Then mark every electrical point. Include standard duplex receptacles, GFCI receptacles where present, USB outlets, light switches, dimmers, multi-gang switch plates, thermostats, data jacks, low-voltage connectors, and the electrical connection points for wall-mounted lights. Draw each outside edge of the wall plate, not just the center of its box. A two- or three-gang plate takes up substantially more wall than one switch, and replacement plates may not have identical external dimensions.

Наша фабрика также производит:

Лепной декор NPU-093

от 13.71 $

Лепной декор NPU-106

от 17.88 $

Лепной декор NPU-107

от 17.88 $

Лепной декор NPU-108

от 11.26 $

Лепной декор NPU-112

от 4.29 $

Лепной декор NPU-116

от 7.96 $

Лепной декор NPU.VRS-003.1

от 94.89 $

Лепной декор NPU-499

от 25.59 $

Смотреть весь Каталог продукции

Build a device schedule before buying trim

A short device schedule prevents accidental omissions and makes coordination with an electrician easier. Use the following as a project worksheet rather than as prescribed placement dimensions.

Photograph the wall straight on before work. If furniture blocks devices, move it and document the locations. Mark the furniture outline back onto your drawing so that an outlet hidden behind a nightstand is not inadvertently covered by a future panel frame. At this stage, painter's tape is more valuable than a shopping cart: it lets you test the layout at full scale without cutting a single profile.

Identify what can change and what must remain

There are two very different design projects. In a new remodel, an electrician may be able to coordinate the final position of outlets and switch banks with the wall treatment before finishes are installed. In an occupied, finished home, the electrical locations may be fixed. In that case the pattern has to adapt. Moving a device solely to create an ideal rectangle is sometimes more disruptive than changing the rectangle itself.

Decide early whether the wall is painted drywall, plaster, existing wallpaper, or another surface. Confirm whether the substrate can accept the proposed adhesive and finish. If lead paint might be present in a pre-1978 property, use appropriate lead-safe renovation practices rather than dry-sanding an unknown coating. Check for existing wall moisture or loose plaster before attaching trim. A well-designed frame does not solve a defective wall.

The U.S. Electrical Safety Boundary

Keep boxes, plates, and devices serviceable

The most important rule is practical as well as electrical: a molding must not make an outlet, switch, cover plate, or electrical box inaccessible. Do not glue trim over a wall plate, narrow the opening around it so much that the cover cannot be removed, or use polyurethane as a homemade electrical-box extension. Never route live conductors through a decorative profile because it looks like a convenient channel. Concealed wiring methods and box extensions are governed by electrical requirements, not by molding design preferences.

Electrical box placement must be correct relative to the final wall surface. Adding trim or panel material changes that finished surface in some installations. Whether a listed box extender, new box, or other approved method is needed is a matter for the electrician and the locally adopted code. Do not loosen or shift an outlet outward with longer screws as an improvised finishing trick. Equally, do not bury junction boxes behind built-ins or decorative panels where they cannot be accessed as required.

Keep the wall plate on a stable, flat surface. Decorative relief behind its corners can leave the plate rocking, prevent secure fastening, or create an obvious finish defect. The cleanest solution is usually to leave a flat painted field around the complete plate and start the molding farther away. Maintain room for a screwdriver and for future devices with somewhat different plates. Visual clearance is a planning choice, not a universal electrical-code distance.

What is a useful clearance around a wall plate?

For interior design drawings, starting with roughly 2 inches of clear, flat wall around the outer edge of a plate is often a convenient visual mock-up. Depending on the plate, wall composition, and tools required for service, more may be appropriate. This is not a prescribed code minimum; verify the actual access required for the installed equipment. On a narrow return, a 1-inch gap may still look pinched, even if the plate can technically be removed. A three- or four-inch margin can be easier to work with in a traditional framed composition.

Measure clearances from the outside edge of the visible plate to the closest projecting part of the molding, not from the screw center or the inside opening of the frame. If the molding is 1.38 inches wide, its outside border occupies more wall than its layout centerline suggests. A narrow switch-side wall can often be left unframed while the main accent wall carries the decorative pattern.

Keep power and low-voltage details separate

A TV wall may need electrical power, Ethernet, coaxial cable, speaker wire, and a low-voltage lighting connection. They should not be assumed interchangeable. A listed in-wall cable system may be appropriate for some cables, while a loose household power cord generally must not be run inside a wall as a substitute for permanent wiring. The correct route depends on the equipment and applicable rules. Ask a qualified installer about recessed outlets, conduit or raceways, and listed cable pass-through components.

In kitchens, bathrooms, laundry areas, garages, basements and other locations with special electrical requirements, do not let an attractive trim scheme obscure the need for appropriately located protected receptacles or other safety provisions. Existing GFCI/AFCI functions and required access must be preserved. For a child's room, keep receptacles usable and properly protected; trim is not a childproofing device. Decorative planning should follow the electrical design, not reverse it.

Four Ways to Organize Wall Molding Around Outlets

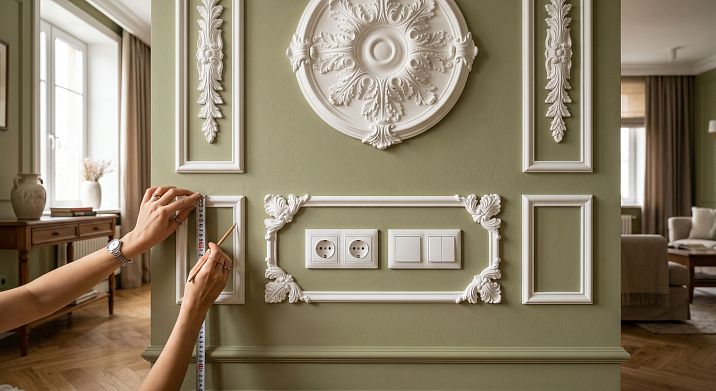

1. Leave the outlet inside a large picture frame

A receptacle can sit inside an applied molding rectangle when the entire plate is within a generous, flat area. This often works on a bedroom wall where the frame extends from above the baseboard toward the ceiling, but the outlets remain low and visually quiet. Center the larger composition on the room or bed, not on the outlet. The receptacle should not appear to be the intended centerpiece of the frame unless that is a deliberate and unusually minimal design decision.

Use an uninterrupted molding line around the full rectangle. Keep the wall plate comfortably inside the inner opening rather than letting it intrude into a corner or cut through the lower rail. If the lower rail must rise higher than expected, check whether that looks natural alongside the baseboard and nearby furniture. An outlet at the bottom of a tall frame is usually less distracting than one placed near the middle of the visible wall, but the final position must still be accessible.

2. Keep the outlet outside the decorative frames

For a new renovation, this is often the clearest visual strategy. A row of decorative rectangles occupies the principal viewing area, while outlets remain in a lower functional zone or beside furniture. The frame layout can stay symmetrical without forcing a device into a decorative border. In existing rooms, the same result may be achieved by shortening the frames or raising their bottom rail rather than moving electrical boxes.

This approach is useful for formal dining rooms, corridors, and living rooms with long stretches of uninterrupted wall. It also makes future replacement of switches and wall plates less dependent on exact trim geometry. The downside is that the lower wall can feel bare if the decorative composition is mounted too high; balance it with appropriate baseboard proportions and the height of furniture.

3. Put the device in a neutral gap between frames

A device can occupy a gap between adjacent molding frames when there is enough clear wall on each side. This works best when the neutral gap is a deliberate part of the pattern, not an emergency slot created after installation. The gap need not be identical to every other gap if the wall has an architectural reason for a wider zone, such as a doorway or an outlet bank. However, a row of apparently equal frames with one extremely narrow or crooked gap is likely to look accidental.

A useful technique is to design a central wide frame and two narrower side frames, then use the boundary spaces as device zones. The visual hierarchy remains clear, and the equipment has room to be serviced. In a narrow hallway, repeated panels can stop before the switch bank near the door, leaving a purposeful unframed vertical strip instead of forcing a tiny last panel.

4. Place a device behind furniture without making it inaccessible

A lamp outlet behind a nightstand or a media outlet behind a console can be visually subdued while keeping the visible upper wall calm. But "behind furniture" must not mean permanently inaccessible or crushed by heavy furniture. Account for plug projection, cords, equipment ventilation, and the actual movement needed to reach the device. A wall-mounted television is especially sensitive: the mount needs access to fasteners, cables, and any service disconnects required by the installation.

Do not treat furniture as a reason to conceal electrical junctions within the wall. A movable cabinet can mask an otherwise compliant outlet; a screwed-down panel that seals the electrical box behind an inaccessible surface is a different and potentially unsafe arrangement. Test access before completing the trim and again after the furniture is returned to its final position.

Switches, Door Casing, and Narrow Wall Returns

Plan the switch bank as a functional zone

Switches are commonly located near entries, exactly where a designer might want a tall, symmetrical wall panel. Their height and distance from the door vary widely between U.S. homes, especially after renovations or accessibility improvements. Do not design from a presumed national switch height. Measure what is there, including the entire multi-gang plate and the area a hand needs to operate the controls.

On a short wall return beside a door, a simple vertical accent beyond the switch bank may be more effective than a full rectangle. Another strategy is to begin the nearest frame farther from the casing while preserving a consistent top alignment with neighboring frames. Check the raised profile's projection against the door handle, wall stop, and door swing. Trim that survives the installation but is struck every time the door opens is not a successful design.

For classic panel molding, keep the door casing visually dominant. A thin secondary wall frame should not start so close to the casing that the two profiles become a cluttered double border. Where the wall is exceptionally narrow, do not force a frame at all. A clean painted wall with an intentional trim endpoint is usually better than a decorative element cut around a switch in three awkward fragments.

Smart switches and larger replacement plates

Smart-home devices introduce another constraint: a dimmer paddle, touch panel, or smart thermostat may have a larger faceplate than an older toggle switch. If a renovation includes changing controls, select or at least measure the planned controls before committing to molding geometry. Leave room for a finger to operate buttons at the edges and for a technician to remove the assembly. Consider future replacements, since smart devices do not necessarily retain the exact dimensions of their predecessors.

Treat thermostat and sensor locations particularly carefully. A decorative panel should not restrict airflow around a temperature sensor or place a heat-producing light immediately next to it. Equipment instructions take priority over visual symmetry. In an accessible home, do not allow raised trim to obstruct device operation from the required position; discuss modifications with the responsible designer or electrician before finish work begins.

Wall Sconces and Lighting Within Decorative Panels

Put the fixture on the elevation before adding the molding

A wall sconce can be the focal point of a decorative frame, but a frame should never be designed in isolation from its light. Record the diameter and projection of the sconce's backplate, the height of its electrical box, the fixture's upward or downward extension, and the direction in which the shade is removed for cleaning or bulb replacement. A picture frame that looks generous around a slim lamp may be cramped around a fixture with a broad fabric shade.

Three arrangements usually work well: one sconce centered within a tall frame, a pair of sconces positioned symmetrically inside two neighboring frames, or sconces mounted in the neutral wall space between decorative borders. These are compositional options, not electrical mounting instructions. The fixture must be supported by the appropriate listed box or structural support as the manufacturer requires. Polyurethane trim and adhesive do not replace that support. Keep the fixture's required separation from combustible finishes and avoid routing any wiring behind decorative molding in an unapproved manner.

Try a full-size paper cutout of the fixture over painter's-tape molding lines. View the combination at seated and standing eye level. Confirm that door movement, shades, floating shelves, curtain panels, and furniture do not intersect the light. A wall frame should make the fixture easier to understand visually, not conceal the parts needed for servicing it.

Integrate LED accent lighting carefully

Decorative backlighting can reinforce a frame, but it adds drivers, wiring, ventilation needs, and maintenance access. Plan these elements before specifying the moldings. An LED strip should not be glued indiscriminately to the back of a profile if the assembly was not designed for the temperature, mounting, and access conditions. Drivers and junction points need an approved location and any required access. Ask the lighting designer or electrician which system is appropriate for the project.

For a restrained American living room, consider lighting the wall surface indirectly while keeping the visible molding profile simple. This makes small raised borders read crisply without turning every rectangle into a competing light source. If the room is already fitted with sconces and downlights, the best choice may be no additional LED system at all. A clean finish and well-scaled molding often deliver a stronger result than complicated lighting added as an afterthought.

TV Walls, Data Plates, and Media Consoles

Design the service zone first

A media wall combines several potential conflicts: television bracket anchors, a power receptacle, a recessed equipment connection, internet cables, HDMI connections, a soundbar, and possibly an articulating mount. Sketch the entire operating envelope of the mount, not just the visible television size. The bracket may need a tool to reach fasteners behind the screen, and a swivel arm can extend toward a nearby raised molding.

In a well-planned composition, the decorative frame surrounds the overall media zone rather than tracing every edge of the television. Leave room for the screen and soundbar without intersecting the mounting points. Keep any electrical device accessible as required by its installation and applicable rules. Do not claim that an outlet hidden behind a TV is automatically compliant or serviceable: check the actual installation. For guidance on the viewing surface and projection equipment, see the STAVROS article on projector-wall decorative molding.

Large appliques and strongly projecting profiles are generally poor neighbors for swing-arm mounts, even when the materials look compatible. They increase the chance of physical collisions during service. Compact picture-frame molding is usually easier to coordinate with a television wall than a heavily layered ornamental surround. With any profile, the dimensions that matter are the finished face width and the projection from the wall.

Do not confuse trim with a cable management system

A raised molding is not a substitute for listed cable raceway, electrical conduit, or a properly installed wall outlet. Even if the back of a profile contains a groove, that does not mean it is suitable for household electrical wiring. Treat power, data, and decorative trim as separate systems with deliberately coordinated routes. Make the wiring plan first, then put the decorative outline around it. Reserve access to equipment ports and allow ventilation according to device manufacturers' specifications.

Choosing a Polyurethane Molding Profile for a Busy Wall

Start with width, projection, and the visual role

Polyurethane molding is useful for applied wall rectangles and layered architectural detail, but not every profile has the same impact. A profile with a 0.39-inch visible width reads as a delicate outline; a 1.38-inch profile is a more pronounced border. On a wall populated with outlets and switches, a narrow profile gives the designer more room to adjust the pattern around equipment without making the gaps feel congested.

The STAVROS polyurethane molding catalog includes profiles that differ in face width and projection. The four verified examples below are all polyurethane, each supplied in a 2600 mm length (approximately 102.36 inches or 8.53 feet). The metric dimensions are product specifications; inch conversions are rounded for U.S. planning.

For delicate picture-frame molding on walls with multiple devices, consider the slim MLDPU-001 profile or the 15 mm MLDPU-004 molding. On a large dining-room wall with devices confined below the frames, MLDPU-002 can provide a stronger outline. Where one major frame needs to dominate a broad wall, compare the wider MLDPU-003 against the actual room and furniture scale.

These are design recommendations, not assertions about electrical insulation, fire resistance, or any other unverified performance rating. Do not assume that a decorative profile is suitable for a wet location, exterior wall, or unusually hot surface merely because its material is polyurethane. Verify product instructions, adhesives, and the installation environment before ordering.

One profile or a layered combination?

A single profile across the room usually looks more coherent than several unrelated profiles competing for attention. Double-frame arrangements can work, but the added inner contour consumes space that might otherwise provide access around a device. If you want a layered effect, use a quieter inner molding and reserve an adequate flat band between the layers. A wide inner border can inadvertently leave too little room around a switch plate.

A decorative corner element can make a traditional frame more elaborate, but it should never force the molding into an outlet clearance area. Use molding corner decorations only where the full piece fits without approaching equipment. Larger polyurethane onlays belong in open wall areas rather than directly behind sconces or electrical devices. The point is to preserve a clear hierarchy: the electrical point works, the trim organizes the wall, and optional relief adds a finishing accent.

Plan a Wall Molding Layout in Inches

Define exactly what a frame dimension means

Two installers can both say that a frame is 36 inches wide and produce different results if one measures the outside of the molding and the other measures the inside opening. Define the reference before ordering: in this guide, outside frame width means the distance between the outermost finished edges, measured at the long points of mitered corners. The inside clear opening is smaller by twice the face width of the profile, assuming a uniform straight profile and square corners.

For a 15 mm-wide molding (approximately 0.59 inch), a frame measuring 36 inches from outside edge to outside edge has a clear inner width of approximately 34.82 inches. With a 35 mm-wide profile (about 1.38 inches), that same outside dimension leaves approximately 33.24 inches inside. This difference matters when a wall plate sits close to the frame boundary. Draw both inner and outer lines with painter's tape if a device is near the proposed border.

A three-frame layout on a 12-foot wall

Consider a 144-inch-wide painted wall with an 8-foot ceiling. The desired composition is three equal, tall decorative rectangles. You choose a 10-inch outside margin on each end and two 7-inch gaps between finished frames. The remaining width is 144 - 20 - 14 = 110 inches. Dividing by three gives an outside frame width of approximately 36.67 inches. Frame boundaries, measured from the left corner, are approximately 10 to 46.67 inches, 53.67 to 90.33 inches, and 97.33 to 134 inches.

Suppose each frame is 64 inches tall, with its bottom outside edge 22 inches above the floor and its top at 86 inches. With a 96-inch ceiling, that leaves 10 inches above the frame. Those are design choices for this example, not universal recommended mounting heights. Check the actual baseboard and nearby furniture before adopting them. The full frame layout is therefore three rectangles, each roughly 36.67 by 64 inches.

Now map an outlet. If a plate on the first panel sits between x=27 and x=32 inches, and between y=12 and y=17 inches above the floor, it is outside the frame: the lower frame line is at y=22 inches, leaving five inches of vertical separation from the top of the plate. If another device spans x=43 to x=49 inches at y=48 inches, it crosses the right border of the first rectangle. The pattern fails regardless of how attractive the arithmetic looks. Change the layout rather than cutting a decorative rail around the plate.

How to correct a collision without losing the rhythm

There is no single best adjustment. You could reduce the width of all three frames, widen the gap between the first and second, move the set slightly toward the free side, or divide the wall into one large primary frame and smaller secondary panels. The solution depends on the furniture axis and where the device actually sits. Test two or three options with tape before deciding. If changes are large, redraw all frame edges from a common datum instead of shifting individual pieces by eye.

Avoid hiding a bad layout behind a decorative applique. If a wall plate intersects a frame, the conflict will remain when its cover is removed or replaced. Decorative trim should be separated from the device in a manner that stays legible at normal viewing distance. If the wall has several scattered outlets, a lower-wall treatment with frames above an uninterrupted functional band may be more coherent than a floor-to-ceiling picture-frame design.

Panel molding calculator: linear feet and whole strips

For a rectangular frame, the theoretical total molding length is two times its outside width plus two times its outside height, provided the measurement convention is consistent. Our 36.67-by-64-inch frame requires about 201.34 inches of material along its outer perimeter. Three frames require about 604 inches, or 50.33 linear feet, before cutting waste and mistakes. This is a geometry calculation, not yet a purchase quantity.

Each of the STAVROS polyurethane profiles above is 102.36 inches long. Dividing 604 by 102.36 gives 5.90 full-length equivalents. The simple division suggests at least six strips, but that does not prove the pieces can be cut efficiently. Check the actual cut list: there are six vertical pieces at 64 inches and six horizontal pieces at 36.67 inches. One 102.36-inch strip can theoretically yield a 64-inch vertical and a 36.67-inch horizontal, with approximately 1.69 inches left before allowing for saw kerf and end cleanup. Six strips can therefore work in a carefully planned, ideal cut arrangement, but they leave very little room for error or damaged material.

For a homeowner doing this project for the first time, seven strips would be a more forgiving example allowance, subject to the actual cutting method and availability of matching stock. The extra strip is a project contingency, not a fixed 10-percent rule. On walls with multiple interruptions, corners, and unusual miter angles, create a piece-by-piece cutting plan instead of multiplying by an arbitrary waste percentage. The complete method is also useful when reviewing picture-frame molding installation.

Three Room-Specific Layouts That Respect Existing Devices

Bedroom: a balanced wall behind the bed

A common bedroom plan has one outlet near each nightstand, switches or dimmers close to the bed, and perhaps two wall sconces. Start with the centerline of the actual bed, not necessarily the center of the wall. A single wide upper frame can create a calm focal point, while a pair of narrower side frames aligns with the nightstands. Keep outlets and controls in a usable lower field rather than allowing decorative trim to run behind the plates. Check that the headboard does not cover an outlet that the homeowner needs to reach regularly.

If the wall sconces are already installed, outline their fixtures at full scale before drawing the frames. If they are planned for a renovation, coordinate electrical box placement with the electrician first. A delicate decorative wall molding can be visually effective behind a bed without requiring large appliques or deep relief. Where two switches are not symmetrical, a composition can still look balanced by keeping the main rectangle symmetrical and letting the functional devices sit outside it.

Dining room: applied panels above a lower functional zone

Dining rooms often have fewer visible devices than media walls, but buffet outlets, a thermostat near a doorway, and a wall-sconce pair can still create conflicts. Consider three tall applied panels centered on the most visible wall, with the bottom border comfortably above the baseboard and buffet. A chair rail or lower-wall molding treatment may also work, provided the line does not pass through receptacles. It is often easier to adjust the horizontal division than to relocate several devices in an existing dining room.

For more formal interiors, compare a medium-width profile against the chair rail and ceiling trim rather than choosing everything at the same size. Wall panel molding profiles can create traditional shadow lines without actual inset wall panels. Remember that applied molding on drywall is decorative: it does not by itself provide the construction, impact resistance, or performance of a built wall-panel system.

Hallway and entry: switch bank before symmetry

An entry wall may be short, interrupted by door casing and filled with controls. Instead of forcing a full rectangle around the switch bank, reserve an unframed band near the doorway and place a single elongated frame on the longer open portion. Check the door swing and any wall-mounted coat hooks. Where a corridor has repeating frames, align their upper and lower edges even if one panel has to be omitted at the entry. An intentional blank area can act as a visual pause.

This is also a maintenance decision. A high-traffic space needs trim edges that can be cleaned, and a profile projecting into a tight passage may be knocked by bags, carts, or moving furniture. The article on long hallway molding and mirrors discusses wider design rhythm; around switches the immediate priority is secure clearances and convenient everyday use.

Installation Sequence for Applied Wall Frames

Preparation and dry layout

Begin with a sound, clean, dry, properly prepared wall. Remove dust and loose finishes, repair surface defects, and confirm that paint or primer can accept the proposed adhesive. Verify the profile-specific installation instructions rather than relying on a universal adhesive rule. A wall with glossy paint, wallpaper, fresh plaster, or unusual coatings may require a different preparation procedure. If wallpaper is involved, do not assume glueing a structural-looking frame to the wallpaper face provides a reliable bond.

Transfer the measured outline using a level and painter's tape. Mark both the outside and inside edge of each major frame, then physically check the wall-plate clearances. Put a removable paper template over each electrical device to show the area that must remain flat and accessible. Check the corners with a square. For a large project, use consistent reference lines so that small discrepancies do not accumulate across the wall.

Next, create a labeled cut list. Mark the long point of each miter, the orientation of the profile face, and the destination of every piece. A rectangular layout usually uses paired miter cuts at its corners, but out-of-square walls and specialty profiles may need adjusted angles and test cuts. Review the separate guide on clean molding corners and baseboard transitions before cutting an entire order.

Cutting, adhesive, and fastening

Use suitable eye and respiratory protection for the material and cutting method. Cut a test piece first, then dry-fit a complete rectangle without adhesive. Confirm that the profile is not reversed at a miter and that its visible edges align. Dry fitting is particularly important when a picture frame sits near a wall plate: minor layout changes are inexpensive now and difficult after the adhesive has cured.

Apply an adhesive that is approved for both the exact polyurethane profile and the existing wall substrate. Follow the manufacturer's directions for coverage, open time, clamping, curing, and cleanup. Hold the pieces in position as required and avoid relying on paint or caulk to secure an unstable frame. Where mechanical fasteners are considered, follow suitable product guidance and check carefully for concealed pipes and electrical cables. A stud finder or cable detector can assist planning, but it is not a substitute for knowing the home's wiring routes.

Do not attach trim to an outlet plate, electrical box cover, or fixture backplate. Leave the equipment in a serviceable condition. If the thickness of a new wall treatment changes the required box relationship to the finished surface, stop and have the electrician address it with an approved solution before finishing. Never fill gaps inside an electrical box with decorative caulk or filler.

Caulking, primer, and paint

After the adhesive has cured, inspect the profile joints in good side lighting. Use a suitable paintable finishing material for small decorative gaps where the installation instructions allow it. Do not bridge the removable wall plate with caulk or paint, and do not seal screw heads or edges that must remain accessible for service. Protect switch faces and receptacle openings from finishing materials. Painting a wall plate in place may create an unwanted bond, interfere with device operation, or complicate removal; use a compliant finish strategy that keeps the assembly serviceable.

Match paint sheen to the design intent. A low-sheen wall with slightly higher-sheen trim can make subtle profiles visible, while a monochromatic wall-and-trim color often looks more contemporary. Test both effects on a sample board. Paintable polyurethane is not automatically compatible with every primer, solvent, coating, or cleaning chemical; rely on the actual manufacturer's finishing recommendations. Before the job is signed off, look at the frames under the room's normal artificial and natural lighting.

Budgeting, Buying, and Final Inspection

A realistic material estimate distinguishes three things: measured perimeter length, purchase quantity of full strips, and labor or finishing supplies. The project may also need wall repair, paint, protective coverings, or electrical work by a qualified professional. Do not compare decorative profiles solely by their nominal price per linear foot without accounting for strip length, cutting efficiency, shipping arrangements, and the finished result. The STAVROS product pages provide current specifications; prices, stock, and delivery terms should be checked at the time of ordering rather than assumed here.

Before completion, stand back and look at the wall, then approach every device. Check that the decorative pattern reads as intentional and every cover plate and fixture remains appropriately accessible. Confirm that switches operate normally, the door and furniture do not strike raised moldings, and the finished trim does not impede equipment ventilation or sensor operation. This final inspection is where technical planning and good design meet.

Frequently Asked Questions

Can you install picture frame molding around electrical outlets?

Yes, if the molding frames are planned so the electrical devices and wall plates remain usable and accessible. The easiest option is often to put the entire plate inside a sufficiently large flat opening, or to keep the device below the decorative frame. Do not install molding across a plate, glue trim to its edges, or cover the box behind an inaccessible panel. Electrical modifications should be completed by a qualified electrician in accordance with locally adopted requirements.

What is the minimum gap between molding and a switch plate?

There is no universal design gap that applies to every device, profile, and jurisdiction. Around two inches of flat wall from the outside of a plate to a raised decorative profile is a useful starting point for a mock-up, not an electrical-code minimum. In many compositions a larger gap looks better and gives more room for servicing the device. Follow the product instructions and applicable requirements if those call for additional clearance or access.

Should I move the outlet or change the molding layout?

In most finished rooms, test changes to the decorative layout first. Shrinking a frame, widening a gap, or choosing a thinner profile may solve the collision without opening the wall. In a major remodel, relocating devices may make sense when coordinated with the electrical plan. The tradeoff depends on access, cost, existing wiring, and furniture use; moving an outlet is not a purely cosmetic carpentry task.

Can molding be used as a cover for electrical wires?

Do not assume so. Decorative polyurethane molding is not automatically a listed electrical raceway. A groove or hollow area in a decorative component does not establish that it is suitable for concealed household wiring. Power wiring, data cabling, and approved cable-management systems have different requirements. Ask an electrician or low-voltage installer to design an appropriate route before installing decorative trim.

Which STAVROS molding works best near several wall plates?

A narrow profile generally offers more design flexibility on a crowded wall. The verified 10 mm MLDPU-001 and 15 mm MLDPU-004 profiles are sensible comparison points for fine picture-frame molding, whereas the wider MLDPU-003 produces a much stronger visual border. Choose based on full-scale tape mock-ups, not on a photograph alone. None of these recommendations implies an electrical-safety rating for the trim itself.

What if a light switch interrupts a planned vertical frame?

Do not notch a visible decorative line into several tiny pieces just to skirt the switch. Move the frame boundary, reserve a switch-side unframed band, or redesign the sequence as two frames instead of three. A balanced layout with a deliberate functional area usually looks cleaner than a geometric pattern whose rules suddenly change at one plate.

How do I calculate how much wall molding to buy?

Add the outside perimeters of the planned rectangular frames, using the same measurement convention for every panel. Convert inches to linear feet and then prepare a piece-by-piece cut list based on the actual strip length. Account for miter orientation, saw kerf, damaged ends, and contingency. Do not rely only on total linear feet: two layouts with identical total footage may require different numbers of full strips.

Do wall sconces have to be centered inside molding frames?

No. Centering is one traditional arrangement, but sconces may also be placed in the wall between panels or beside a larger accent frame. A finished design should consider the sconce's backplate, full fixture dimensions, mounting support, lamp access, and required clearances. The electrical support and wiring are planned independently of the decorative trim.

Is polyurethane molding the same as real wall paneling?

No. Applied molding forms a decorative contour over an existing wall. It can suggest traditional paneling, but it does not create the same substrate, structural assembly, or impact performance as wood, MDF, or other panel systems. Choose between applied trim and full panels based on the intended architectural effect, maintenance needs, and construction conditions. Use product-specific information rather than assuming materials are interchangeable.

Can I add decorative wall molding in a rental apartment?

First check the lease, building rules, and landlord's approval requirements. Adhesive and painted trim may damage existing finishes when removed, and relocating electrical devices is not an appropriate tenant DIY workaround. If alteration is not permitted, use a reversible design approach that does not interfere with electrical equipment. Never conceal an outlet merely to make a temporary decorative wall look cleaner.

Choose the Trim After the Layout Is Resolved

The strongest wall molding ideas begin with the actual wall, including every outlet, switch, fixture, and piece of furniture. First establish the safe functional zones. Next draw the frames with enough flat wall around the electrical devices. Finally select profile width and relief, prepare a practical cut list, and confirm how the installation will be finished. This order is more dependable than selecting a decorative kit and hoping that the existing wall will accommodate it.

To compare styles, start with the STAVROS polyurethane wall molding range, consider appropriate molding corner details, and use the verified product dimensions to prepare a full-size layout. For projects that extend across a whole room, coordinate wall molding with the existing baseboard, door casing, lighting, and other details rather than treating one wall as an isolated decoration. The goal is a finished interior that stays elegant, usable, and straightforward to maintain.
