A projector wall should look intentional when the movie is playing and when the screen is off. The practical solution is not to decorate the projected picture. It is to use wall molding around the viewing area, keeping the image rectangle unobstructed, the screen mechanism accessible, and the surrounding trim visually quiet. A slim border beside the image, two carefully proportioned side panels, or a restrained architectural frame can make a home theater feel connected to the rest of an American home without sacrificing the viewing experience.

Start with the projector and the screen rather than the molding. Establish the real image size, check viewing positions, mark the edges of the projected picture, and allow room for adjustments. Only then select a profile from the STAVROS wall molding catalog. This order prevents the most expensive mistake: installing attractive trim that later casts shadows onto the screen or blocks a retractable screen's path.

This guide adapts STAVROS's projector-wall design ideas for U.S. living rooms, media rooms, bedrooms, and dedicated theaters. It distinguishes fixed screens from painted projection walls, explains how to size and purchase polyurethane molding, and shows how to coordinate paint, light, speakers, and cables. It also provides measured examples in inches and feet rather than relying on a generic illustration of a perfect room.

Перейти в каталог

The first decision: what is the actual projection surface?

The words projector wall describe several different installations. A homeowner might project directly onto a prepared wall, hang a fixed-frame screen, or lower a motorized screen in front of a decorative surface. These systems look similar in photographs but impose different limits on trim placement. The design must accommodate the system actually installed, not the one shown in an inspiration photo.

Direct projection onto a painted wall

If the projected image falls directly on paint, the central rectangle is part of the picture-making system. Keep it flat, consistent in texture, and free of seams, decorative molding, wall plates, outlets, wall art, and obvious patches. A small ridge can interrupt focus or create a visible shadow; a glossy spot can reflect distracting light. Test a sample of the intended finish under the actual projector before painting an entire wall.

Do not assume that painting the screen rectangle dark gray is automatically better than using an appropriate neutral projection finish. Darker surfaces change perceived brightness and contrast in ways that depend on projector output, room lighting, screen gain, and calibration. A dedicated projection screen or suitable screen paint may be the better route. What is certain is that wall trim should stay outside the image boundary, with extra clearance where the picture could shift.

Наша фабрика также производит:

Смотреть весь Каталог продукции

Fixed-frame projector screen

A fixed screen has a known physical outer frame that may extend beyond the visible picture. Treat that outermost dimension as the primary obstacle when planning decorative trim. Leave clearance for mounting brackets, adjustment, removal, dusting, and any manufacturer-required access. A molding border installed too close to the screen frame can make future maintenance surprisingly difficult.

A fixed screen often looks best with architectural panels on the surrounding wall rather than another heavy rectangle immediately outside its frame. If the screen itself already has a prominent black border, the decorative molding can perform a different job: establish vertical rhythm on the side bays and visually connect the wall to the baseboard or ceiling. This prevents competing frames from creating an unnecessarily busy focal point.

Получить консультацию

Retractable or motorized projection screen

For a retractable screen, plan around both the visible screen and its complete travel path. Confirm the case location, fabric width, bottom bar, drop height, and side clearance while the screen is fully extended. A molding installation that is clear when the screen is stored may interfere with the moving screen or its lower bar. The best trim arrangement must work in every operating position.

An attractive solution is to allow the screen to descend over an otherwise decorated wall only where the fabric, bar, and mechanism can clear that decoration. Some installations require a perfectly flat path; others have a stand-off distance. That distinction must be confirmed for the specific screen. Do not infer permitted projection depth from an advertising photo. Keep access panels and electrical service points available for future maintenance.

Five measurements to take before drawing a molding layout

Accurate measurements are more valuable than an elaborate rendering. Measure in inches at the site and verify with a test image if the projector is already installed. Use painter's tape to make the proposed limits visible from the main seating location. Measure the wall twice if it is older or noticeably out of square.

Wall width, height, and real usable area

Record the full wall width and ceiling height, but do not assume they are the dimensions available for trim. Subtract door casing, window trim, cabinet edges, return walls, sconces, floor-standing speakers, and anything else that occupies the plane. The useful measurement is the uninterrupted region where the desired molding profile can sit without crowding another element.

A 12-foot wall is 144 inches wide. It may lose several inches on each side to a corner reveal or built-in cabinet. Likewise, an 8-foot ceiling is 96 inches high, yet a baseboard, ceiling molding, and screen case can reduce the area where a rectangular frame will look balanced. Record those boundaries on a sketch rather than trying to keep them in your head.

Image dimensions, screen frame, and projector adjustment

For a 16:9 picture, the image height is approximately 9/16 of its width. Its diagonal is not the same as its width. A 100-inch diagonal 16:9 image is about 87.2 inches wide and 49.0 inches tall; a 120-inch diagonal image is approximately 104.6 by 58.8 inches. These are picture dimensions, not the outer dimensions of a framed screen or the case of a retractable model.

Check the actual aspect ratio, projector throw distance, lens shift, digital correction settings, and any plan to change image size. If a wider format will be used, verify its envelope too. The critical layout is the maximum area the image or screen assembly will occupy during real use—not simply the image from a single pause frame.

Equipment, light, and circulation

Plot speaker locations, subwoofer placement, equipment ventilation paths, cable exits, wall outlets, HVAC registers, and planned wall lights. Sconces should not shine into the screen or obstruct the projector beam. A furniture console may rise above the bottom of the projected picture, so check the arrangement from a seated sightline rather than from a standing position at the wall.

Allow safe, serviceable access to electrical components. Do not bury junction boxes or low-voltage connectors under glued-on trim. If a new recessed power location or in-wall wiring is needed, use a qualified installer and appropriate listed products for the application. Decorative molding is not an electrical raceway merely because it can cover a narrow gap.

Viewing clearance and future changes

The screen's current placement may work today but become awkward after a sofa replacement or projector upgrade. Consider a modest gap between the image or screen frame and the closest decorative molding. Instead of claiming one universal buffer, choose a clearance based on your equipment tolerances and real mounting details; an illustrative starting point for a painted-image layout might be 2–3 inches, with more where adjustment or a moving screen requires it.

Mark the image boundary with removable tape. Mark a second line for the clearance zone. Only beyond that second line should the decorative layout begin. This simple double outline makes it easier to check whether a proposed picture frame molding arrangement would actually fit.

Six home theater wall molding ideas that respect the picture

The best composition depends on how the screen is used when it is off. A family living room usually benefits from one gentle focal treatment; a dedicated viewing room can carry a stronger architectural scheme. The following approaches vary in amount of trim, material required, and technical risk.

1. Two symmetrical side frames

Place a tall, narrow decorative rectangle on each side of the image area. This is one of the most forgiving choices for a projector screen wall because the central rectangle stays visually open. You can align the upper edges of the side frames with the screen or extend them into the vertical portion between baseboard and ceiling molding. Keep the left and right widths equal if the room geometry allows it.

For restrained wall molding ideas, consider a smaller profile such as polyurethane MLDPU-004, which has a 15 × 8 mm (approximately 0.59 × 0.31 inch) section. That scale can define a frame without creating the emphasis of a wide, ornate border. If one side has a door and the other does not, do not force false symmetry; adjust the composition to actual architecture.

2. One generous perimeter border

A single architectural rectangle outside a fixed screen can make the screen read like a deliberate element of the room. This approach is most successful where the screen frame is slim, sufficient clearance exists, and there is enough wall around the image for the border to breathe. It is not recommended simply because the projected picture is rectangular: in a small room, two close parallel borders can look crowded.

When there is room for one principal outline, MLDPU-002 wall molding provides a stronger 22 × 11 mm (about 0.87 × 0.43 inch) profile. A border can be painted the same color as the wall to emphasize relief rather than contrast. Confirm the profile does not overlap the screen's mounting hardware or any accessible service panel.

3. A dark media wall with tone-on-tone trim

Deep blue-gray, charcoal, or brown-black walls can visually recede in a dedicated theater. When moldings are painted the same low-sheen color, the result is architectural texture that remains discreet during viewing. The decoration is more noticeable in daylight or with the theater lights on; during a movie, the eye should naturally remain on the image.

Paint color and finish are separate decisions. A black wall around a real screen may reduce some visible light spill, but painting a wall dark does not make it an equivalent substitute for a calibrated projection surface. Test the actual projector and screen first. For strongly defined outer panels, a wider MLDPU-003 polyurethane profile offers 35 mm of visible width, though it may look oversized on a compact wall.

4. Low panels below the image

If the screen occupies the upper wall, the area beneath it can support carefully spaced applied panels. This works especially well with an equipment console, a low storage cabinet, or a projecting wall that continues into an adjoining living space. Measure the lowest real screen or bottom-bar position first; the lower decorative band must not cross the screen's moving path.

Applied molding rectangles are not automatically the same as traditional paneling. The phrase picture frame molding on walls commonly describes this arrangement: trim rectangles create the appearance of panels over finished drywall. This is useful when a homeowner wants panel molding without the thickness of full millwork. The phrase panel molding for walls describes this visual treatment, not the projector screen. Choose frame widths based on the cabinet alignment, not arbitrary equal divisions that collide with furniture doors or ventilation grilles.

5. Side-wall frames with concealed visual equipment zones

In a dedicated theater, the screen wall can remain simple while the adjacent walls carry matching architectural frames. The resulting composition draws attention forward without enclosing the image with multiple competing borders. A frame can define the visual zone around a floor-standing speaker or a properly designed acoustic treatment, but should not interfere with speaker placement or sound absorption.

For an ornate design, compare complete STAVROS wall molding kits rather than assuming every kit is made from the same material. Certain collections combine polyurethane ornaments with MDF straight profiles, while others use different component systems. Read the specific kit list and confirm whether the sizes, profile depths, and finishes support your theater layout.

6. A restrained ceiling-to-baseboard architectural system

A larger room can use several coordinated elements: a ceiling transition, a baseboard, two side panels, and perhaps a fine horizontal line above or below the screen. The important word is coordinated. All of these profiles should share a consistent visual hierarchy rather than compete for attention at different scales.

A neat baseboard category and the relevant ceiling cornice options can establish the top and bottom limits of the design. Note that those category pages currently include polystyrene products; they must not be described as the same material as the MLDPU polyurethane wall profiles. Compare each product separately and make any transition from one material to another deliberate.

How room type changes the design

A room is not a home theater simply because a projector is mounted on the ceiling. Daily use matters. The amount of decoration that works in a pitch-dark movie room can be excessive in a living room used for reading and entertaining; conversely, a barely visible accent may look unfinished in a purpose-built theater with broad, empty side walls.

Living room with a retractable screen

In a multipurpose living room, let the wall design stand on its own when the screen retracts. A pair of balanced wall frames, a consistent baseboard, and perhaps a cabinet below can define a welcoming space between movie nights. Check whether the screen fabric obscures the molding as it descends; if it does, verify clearance and avoid trims that could contact the fabric.

Treat televisions and projectors as different objects. A television remains on the wall continuously and has mounting and ventilation requirements of its own. A projector may hide the main screen altogether when it is not in use. The STAVROS TV-zone frame examples can inspire furniture and room coordination, but a wooden television frame is not a substitute for a projector-compatible screen border.

Dedicated media room

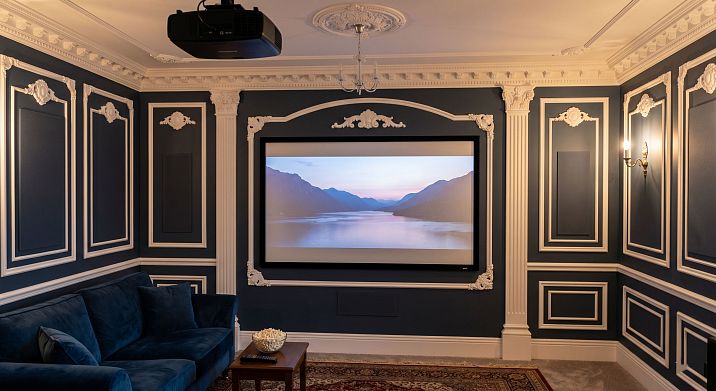

A purpose-built media room allows more freedom to treat the side and back walls, sometimes with vertical molding bays or darker finishes. The front wall should still be planned around the screen before decoration. Acoustic reflections, speaker locations, and cable service are as important as the decorative profile. Design the entire room with the lighting conditions that will actually occur during viewing.

Architectural detail looks most convincing when it supports deliberate proportions. A 35 mm profile may be appropriate for a broad side panel, but an intricate relief directly beside a bright screen can compete with the content. In a dedicated room, use bolder molding on the side walls and calmer detail near the screen itself. This produces hierarchy without turning the viewing wall into a busy display.

Bedroom, den, or home office

In a bedroom, the projector may be installed opposite a bed with a low cabinet below the projected image. In a den, it may share a wall with bookshelves. These smaller rooms generally need fewer molding lines rather than more. One border on each side may be enough. The screen can define the central area without additional ornament.

Measure sightlines from the actual seated or reclining position. A molding frame that looks centered when standing may appear awkward from a bed placed to one side. In a home office, a desk lamp and monitor can add spill light that the projector must compete with, so do not design around a dark-room test alone. Paint and lighting should accommodate both working hours and movie viewing.

Projector screen dimensions and molding calculations

A picture can be specified by diagonal, width, or a manufacturer-defined case size. Mixing them leads to unnecessary compromises. For layout, work from the actual visible image width and then separately add the fixed screen's frame or the retractable screen's travel envelope. A projector model may also require more throw distance or lens-shift space than the furniture layout initially suggests.

Convert a 16:9 diagonal to width and height

For a 16:9 image, width is approximately the diagonal multiplied by 0.8716; height is approximately the diagonal multiplied by 0.4903. These factors come from the 16-by-9 right triangle, not a product-specific specification. They are useful for initial sketches, but a screen maker's physical dimensions override theoretical image geometry.

Nominal 16:9 image diagonal Approximate visible width Approximate visible height What to check before installing trim
90 inches 78.4 inches 44.1 inches Projector alignment and any fixed screen frame
100 inches 87.2 inches 49.0 inches Outer frame or retractable case clearance
110 inches 95.9 inches 53.9 inches Side space for panels on a typical wall
120 inches 104.6 inches 58.8 inches Whether sufficient side bays remain
135 inches 117.7 inches 66.2 inches Mounting depth, speaker positions, and trim options

A 120-inch diagonal picture is not 120 inches wide. On a 144-inch-wide wall, a 104.6-inch image would leave approximately 19.7 inches on each side before clearance, surrounding trim, speakers, or wall irregularities are considered. This is a major difference from a 100-inch image, which leaves approximately 28.4 inches per side on the same wall. The picture size can determine the entire architectural concept.

Worked layout A: 12-foot wall with a 100-inch projector image

Consider an uninterrupted 144-inch-wide wall and a centered 100-inch diagonal 16:9 image. The visible image width is about 87.2 inches. Subtracting that width from 144 inches leaves 56.8 inches, or 28.4 inches on each side. Suppose we reserve 3 inches beside the image and 5 inches at the outer edge of the wall. The remaining width for a decorative frame is 20.4 inches on each side.

Two frames with an outside width of 18 inches fit comfortably within that example: each side bay contains 3 inches of image clearance, an 18-inch frame, and 7.4 inches of outside allowance. You might adjust the outside margin to align with a speaker or doorway; this is a demonstration of arithmetic, not a fixed design rule. The measurements refer to outside dimensions of the finished frames, including the visible face of the molding.

Now choose frame height. If the decorative side frames are each 60 inches high, one rectangular frame needs two 60-inch vertical runs and two 18-inch horizontal runs. That is 156 inches, or 13 linear feet. A pair needs 312 inches, or 26 linear feet before waste. Since the published STAVROS MLDPU stock length for the four profiles discussed here is 2600 mm, or approximately 102.36 inches, the theoretical footage division is 312 ÷ 102.36 = 3.05 sticks. The minimum whole-stick quantity is therefore four, provided a feasible cut plan exists.

The feasibility test is straightforward: four stock pieces can each supply one 60-inch vertical and one 18-inch horizontal, leaving roughly 24.36 inches per stick before saw kerf. This gives four vertical and four horizontal pieces, exactly what two frames require. For real ordering, a fifth stick may be sensible for practice cuts, a damaged end, a revision, or an unexpected corner. Do not purchase solely from the total-footage quotient without checking individual cuts.

Worked layout B: why a 120-inch picture changes the plan

On the same wall, a 120-inch diagonal picture occupies approximately 104.6 inches horizontally. That leaves only 39.4 inches in total, or 19.7 inches per side. Reserving a 3-inch image buffer and a 5-inch outer margin yields 11.7 inches for each side frame. An 18-inch-wide frame no longer fits under these assumptions.

You could respond in several ways: reduce the image size, use slender single vertical bands instead of rectangular side frames, move decorative treatment to adjacent walls, or reconsider how far the screen actually needs to extend. A narrow frame may still work, but it will look different from the first example. The correct response is to adapt the design to the screen, not crop the picture to rescue the trim scheme.

A 120-inch fixed screen may have a physical frame wider than 104.6 inches; the exact figure depends on the product. A retractable screen may have a case wider still. Always redo the calculation using those manufacturer dimensions. Neither the decorative molding nor the screen should be designed around an imaginary zero-thickness border.

Compare a cut list with stock length

A picture-frame molding calculation—sometimes sought as a picture frame molding calculator—has two levels. First is the sum of all runs: a rectangle of outside width W and outside height H has a nominal perimeter of 2W + 2H, assuming the dimensions are measured consistently. Second is the real cut list: can those individual runs be obtained from available stock lengths once saw kerf and miter waste are included?

Example item Individual outside cut length Quantity Combined length
Side-frame vertical 60 inches 4 240 inches
Side-frame horizontal 18 inches 4 72 inches
Total for two 18 × 60-inch frames — 8 finished runs 312 inches / 26 linear ft
Single MLDPU stock piece 102.36 inches 1 8.53 linear ft
Ideal cut plan One 60 + one 18 per stock piece 4 sticks Allows kerf and modest offcuts

The numbers change if you describe the inside clear opening instead of the outside rectangle. For a profiled molding with mitered corners, mark the measured points consistently—often the outside long points of each 45-degree cut—and check the actual profile face width. If a wall is out of square, test-fit components rather than forcing every angle to be exactly 45 degrees. The key phrase how to cut wall molding is useful only when accompanied by a correct measuring convention.

Compare real STAVROS polyurethane molding profiles

Rather than describing every wall molding as interchangeable, compare measured geometry. Four STAVROS MLDPU products have verified polyurethane material specifications and 2600 mm (102.36-inch) listed lengths. The following dimensions come from their current U.S.-facing product pages; they do not imply that any of these linear profiles is flexible or designed to carry wiring.

STAVROS product Face × projection (mm) Approximate inches Length Design role beside a projector
MLDPU-001 10 × 6 mm 0.39 × 0.24 in 102.36 in Very fine secondary line or small side frame
MLDPU-004 15 × 8 mm 0.59 × 0.31 in 102.36 in Restrained medium-scale side frame
MLDPU-002 22 × 11 mm 0.87 × 0.43 in 102.36 in Readable frame on a medium wall
MLDPU-003 35 × 12 mm 1.38 × 0.47 in 102.36 in Strong outer border on a larger wall

MLDPU-001: fine detail where the picture should dominate

At only 10 mm across its face, MLDPU-001 can provide a quiet architectural outline near a large projection surface. It is a plausible choice for slim side-frame details and layered treatments where the inner line should be visibly finer than the outer. Its 6 mm projection is small, but it still requires clearance from the projector image and any screen fabric.

The profile's small size is not evidence that it can be bent around a radius, used as a protective cable cover, or fitted within a moving screen envelope. Those are separate technical questions. For a flat rectangular layout, keep the cut list simple and choose a paint finish that does not become a bright visual distraction during dark-room viewing.

MLDPU-004: modest relief for small theaters and dens

The 15 × 8 mm section of MLDPU-004 has a little more visible presence while remaining relatively restrained. It suits the two-side-frame layout when the wall is not large enough for an ornate composition. Its shape also makes it useful as a secondary line beside a wider, primary profile in an architectural panel, provided the spacing and finishes are coordinated.

Before ordering, compare a sample against the actual painted wall under normal ambient light and movie light. A profile that photographs as nearly flat may create a strong shadow when illuminated from an oblique wall sconce. That effect may be desirable on a side wall but distracting immediately beside the screen.

MLDPU-002: defined decorative wall molding

The 22 × 11 mm section of MLDPU-002 has more relief. It is appropriate when a side frame should read as a clear architectural feature after the screen is retracted. It may also support a full perimeter treatment where there is adequate width around a relatively small fixed-frame screen. It is less discreet than MLDPU-001 and requires more care in balancing the image and the surrounding wall.

Do not automatically select a larger size because the room has an eight- or nine-foot ceiling. The viewing distance, available side bay width, screen frame, and nearby casework determine the proportions. Place a tape mockup on the wall, then check how the arrangement looks both with the projector on and with the room lights on.

MLDPU-003: more visual weight for large rooms

MLDPU-003 measures 35 × 12 mm, or about 1.38 × 0.47 inches. The broad face can establish a pronounced outer contour for a formal media room with large areas of free wall. That may work particularly well for framing panels on side walls where the decorative composition is seen in normal room light. It is usually less appropriate for a tiny interval immediately beside the active image.

A broad profile does not replace proper wall preparation: uneven substrate or inconsistent paint can still make the installation look amateurish. If you are comparing a single large profile with several stacked small ones, evaluate both the total visual weight and the labor of making extra miters, joints, and paint transitions. The simpler design may perform better in a room intended primarily for viewing.

Polyurethane, wood, MDF, and acoustic panels are different materials

For U.S. projects, the category name decorative trim is not a material specification. Each material has a different construction, attachment system, reaction to moisture, and finishing requirement. A product photo may not make those differences obvious. Match the material to the surface and the intended role rather than treating every profile as a generic molding.

What polyurethane molding contributes

The four verified MLDPU products discussed above are listed as polyurethane, with known face, projection, and stock length. They are decorative linear sections for walls and related interior details. They do not provide acoustic absorption, screen gain, electrical protection, or structural support. Their advantage in this design is predictable geometry and a consistent visual outline that can be planned separately from equipment.

Read the STAVROS polyurethane molding range and the chosen SKU page before deciding which adhesive and finishing sequence to use. A general statement that polyurethane is paintable does not establish that every paint, primer, solvent, and adhesive is compatible. Choose products according to the surface and the manufacturer's current directions. When different trim materials meet, allow for their distinct requirements.

How wood and MDF differ in a theater wall

Wood trim can connect a media wall to existing oak cabinetry or door casing, especially when a stained finish is desired. Solid wood moves with moisture changes and requires careful joint and finishing details. MDF is a manufactured wood-based board that can be useful for straight, paint-grade profiles in some kits, but it must not be labeled polyurethane simply because it appears in a wall molding collection.

For a fuller background, compare wooden and polyurethane molding as separate product families. A dark theater wall may make the surface appearance of different materials similar, but their cut edges, adhesive choices, and moisture behavior remain different. Check the precise composition of a kit if mixing ornamental pieces with long linear runs.

Acoustic panels solve a different problem

A decorative molding frame can visually organize a purpose-built acoustic panel, but it cannot substitute for one. Acoustic panels are selected for their measured or designed performance, thickness, fabric, placement, and compatibility with the speaker system. A shallow decorative rectangle over drywall is not an absorber simply because it creates a bay on the wall.

If you want molding around acoustic treatment, coordinate with the panel maker or acoustic designer. The frame must not compress, seal, obstruct, or cover a working acoustic surface in a way that defeats its purpose. Similarly, adding extensive rigid relief to side walls can change reflections rather than automatically improve sound. Design the audio system before the decorative wall is finalized.

Lighting and paint finishes for a media wall

Light changes how trim reads more than many homeowners expect. The same profile can disappear under diffuse daylight and become a series of bright edges under a nearby spotlight. Look at physical paint samples with the projector operating, with the room lights dimmed, and in daytime. A finish chosen only from a small color chip may behave differently across a large wall.

Keep reflections out of the viewer's field

A low-sheen finish is often worth testing on trim near a projection screen because strong highlights can distract the eye. This is not a rule that every part of the room must be perfectly matte: a living room may need a washable finish on certain surfaces. Place samples in the actual viewing angle and run high-contrast movie scenes to see whether light catches raised edges.

Do not assume that an accent wall color determines the projector's contrast performance by itself. With a projection screen, perceived image quality also depends on the screen material and the room's reflected light. With projection directly onto a wall, the surface color and texture influence the picture more directly. Select the picture surface on performance grounds; let the surrounding molding follow the decor scheme.

Use indirect lighting without creating glare

Wall sconces, linear lighting, and dimmable lamps can reveal the texture of decorative wall molding before a movie begins. During viewing, however, a light source aimed toward the screen may lower perceived contrast. Keep fixtures outside the picture and projector beam, control their direction, and test whether their reflection appears in the screen or any glossy furniture surface.

If lighting is built into a recess or a millwork detail, plan access to replace drivers and components. Do not glue a decorative trim strip over an electrical junction or assume the hollow area behind a profile is a safe place to hide a power supply. Lighting specialists should determine the electrical installation; trim installers should work around the approved equipment layout.

Match the finish to adjacent architectural elements

A media wall seldom exists on its own. Its baseboard meets the flooring, and its upper wall transitions into a ceiling treatment. A coherent scheme can use related paint colors and complementary profiles even when the baseboard and crown molding are made from different materials. The face width of the wall frames should be proportional to the room rather than copied from a baseboard catalog photograph.

For preparation, adhesive selection, joints, and coatings, consult the STAVROS finishing and installation guidance alongside the specific product instructions. Paint samples should be applied to actual offcuts when possible. Different substrates and primers can change sheen even when the nominal paint color is identical.

Installing a molding layout around a projector

For anyone researching how to install wall molding, the first step is protecting the projection system. A sound installation sequence prevents the decorative work from disrupting the electronics. Start with the screen, projector placement, and wall preparation. Do not begin by cutting all the molding to a sketch made before the screen arrived. A realistic trial layout can reveal a screen case that is wider than expected, a vertical line hidden by a speaker, or a chair position that makes the arrangement feel visually unbalanced.

Step 1: establish the equipment envelope

Mount or accurately mock up the screen and projector in their intended locations. Project the largest expected image, note the visible boundary, and mark the manufacturer's clearance around the frame, housing, or moving fabric. Check the arrangement from both the central seating position and the side seats. If the equipment is not yet available, retain generous flexibility in the design instead of treating preliminary dimensions as final.

Locate studs, wiring, control boxes, speaker feeds, and vents before drilling or applying adhesive. Document the routes for future maintenance. A projection wall may be renovated more than once as equipment changes, and a clear set of as-built photographs can prevent damage when someone later tries to service it.

Step 2: tape out the frames and verify proportions

Use a level, measuring tape, square, and painter's tape to represent the outer edges of the proposed frames. The tape mockup should include the visible width of the molding, not just a thin centerline. Stand back, turn on the projector, then turn it off and inspect the room with normal lighting. Confirm that side frames align convincingly with the screen, seating, adjacent cabinet, or door casing.

A repeated panel arrangement does not always need identical clear openings. You may choose a wider frame on a larger uninterrupted side bay and a simpler band next to a doorway. What matters is an intentional hierarchy and comparable margins. If the design looks cluttered in tape, installing a wider profile will rarely improve it.

Step 3: create a cut list and dry-fit each corner

Identify every finished run by wall location and outside measurement. For a standard rectangular frame with mitered corners, the long points of the cuts are a practical reference, but make sure all measurements use the same reference. A nominal 45-degree cut is appropriate for a true 90-degree corner; an old or irregular wall may require an adjusted angle or a carefully managed joint.

DIY wall molding is manageable for basic straight frames when the substrate and fastening system permit it. Cut test pieces before processing the entire supply. Confirm the saw blade and cutting technique are suitable for the particular material. Mark the front face so left-hand and right-hand miters are not reversed. If a profile is asymmetric, its orientation must remain consistent around the rectangle. Small errors become obvious when movie-night side lighting rakes across the joints.

Step 4: prepare the substrate and install the trim

The wall must be stable, clean, and suitable for the adhesive or fastening method specified for the chosen SKU. Loose paint, powdery patches, or uneven filler may cause a problem regardless of the apparent strength of the glue. Test compatibility on an offcut and a discreet area when the manufacturer's instructions recommend it. Dry-fit the entire composition before final bonding.

For a straight polyurethane profile such as MLDPU-001, use a compatible installation system rather than assuming every construction adhesive will work. Avoid placing fasteners in hidden electrical runs. Keep all trim outside the defined projection and screen-service envelope. In a rental or historic property, review the surface and permission constraints before permanently attaching anything.

Step 5: finish joints, paint, and test again

Allow adhesives and joint fillers to cure for the manufacturer-specified time. Fill small visible gaps using suitable products; do not use excessive caulk to disguise a badly cut corner. Sand or dress the joint only where the product and substrate permit it, then prime as required. View the finished trim under oblique light to identify ridges that would be easy to miss under diffuse illumination.

Once the paint is ready for use, perform a final movie test. Check for newly created reflections, projector-beam obstruction, screen clearance, and accessible equipment. Operate a retractable screen through its complete normal cycle while watching from the side. If something touches the moving fabric, stop and address the conflict before regular use.

Shopping checklist and mistakes worth avoiding

Before buying a wall molding package, collect the actual screen dimensions, a dimensioned wall sketch, a list of individual straight cuts, and a chosen profile code. Compare different wall molding products by material and geometry, not by a photograph alone. For an ornate composition, confirm the separate materials and sizes in a STAVROS decorative wall kit, especially if the kit combines MDF with polyurethane ornaments.

Common mistakes are easy to recognize before installation. Selecting the screen last can leave no space for side panels. Measuring the screen diagonal as its width can distort the layout. Using shiny metallic paint immediately beside the image can create distractions. Treating decorative trim as soundproofing or as a cable channel can create technical problems. Forgetting service access can turn a future projector or screen replacement into unnecessary demolition. The cure is planning in the correct order rather than relying on more elaborate decoration.

A useful purchase sequence is therefore: verify equipment, tape the design, choose the molding profile, calculate the exact cuts, add a sensible allowance, check the paint and adhesive instructions, and only then finalize the order. Do not assume specific U.S. warehouse availability, delivery dates, prices, or installation services unless they have been confirmed directly for the current order.

Frequently asked questions

Can molding be installed directly on a projected image?

No. On a wall used as the image surface, raised molding interrupts a flat projection plane and can cast visible shadows or distort the image. Place decorative trim outside the maximum image envelope, with clearance for adjustments. A fixed screen has different geometry, but its frame and mounting hardware still require free space.

Is a painted gray wall better than a white screen?

Not universally. Gray paint can change the balance between perceived black level and image brightness, and ordinary paint lacks some properties of dedicated screen materials. The outcome depends on projector output, ambient light, surface texture, and calibration. Compare the real setup before making a permanent finish decision.

What molding size works best around a projector?

There is no single best size. A compact media wall may benefit from a 10 or 15 mm profile, while a large side-wall composition may accommodate 22 or 35 mm. Compare the four verified STAVROS options in the table above, but prioritize usable wall space, screen clearance, and visual restraint over the apparent size in catalog photographs.

Can I use a wall molding kit around a projector screen?

Possibly, if its composition fits outside the actual picture and screen envelope. Check the kit drawing, materials, overall dimensions, and component lengths. Decorative kits should not be assumed to include the right clearance for a particular fixed or retractable screen. Treat the kit as a source of design components, not as a projector-specific engineering solution.

Will polyurethane molding improve home theater acoustics?

A decorative profile is not an acoustic absorber. It can coordinate the look of properly specified treatments, but the acoustic function comes from the treatment system itself. Position speakers and acoustic panels according to their specifications; then design the visible molding around them without obstructing sound or service access.

How much molding should I order for two side frames?

Measure each finished run separately. Two 18 × 60-inch outside frames need eight cuts totaling 312 inches, or 26 linear feet, before waste. With the verified 102.36-inch MLDPU stock length, the sample cut plan can fit four sticks, although an extra stick may be sensible. Your project may require more if the frame sizes, profile, saw kerf, or waste pattern differ.

Should home theater molding be painted the same color as the wall?

Tone-on-tone paint is often a practical way to keep architectural relief subdued during viewing. Contrasting trim may be attractive in a bright multipurpose room, but test it with movie scenes before committing. Reflective metallic finishes deserve special caution close to the picture. Use the finish appropriate to the product and the required room maintenance.

Can molding hide screen power wires or speaker cables?

Do not use ordinary decorative molding as an improvised electrical enclosure. Wires and junctions must be installed using appropriate approved methods, with required access maintained. Coordinate a new concealed wiring plan with a qualified installer before attaching trim. Decorative pieces can make a correctly designed service zone look finished, but they do not make unsafe wiring acceptable.

Choose the screen first, then finish the room

A successful home theater wall is both a functional viewing surface and a well-composed part of the interior. The screen defines the image rectangle; the architecture begins outside it. Use wall trim molding to create side frames, lower panels, or a restrained border only where the equipment allows. Select the profile by actual dimensions, keep the sound and lighting design independent, and verify the finished result under viewing conditions.

STAVROS offers several polyurethane molding sizes suitable for comparing these design roles, from fine MLDPU-001 to pronounced MLDPU-003. Start with your measurements and a screen clearance diagram; then compare the verified product specifications and a workable cut list. The result should be a projector wall that looks complete with the screen raised, stays visually calm during a movie, and remains serviceable when the technology eventually changes.
