A clean molding installation is easier to recognize than to achieve. In a finished room, the lines remain straight, the corners look intentional, and a decorative strip approaching the baseboard has a clear ending rather than a ragged cut. The work begins long before adhesive is opened: identify the molding profile, inspect the substrate, plan every intersection, and confirm how existing wood trim will move and be finished.

For a typical U.S. home with painted drywall, the practical method is to mark the whole layout, measure the actual angles, make test cuts from scrap, dry-fit adjoining pieces, use an adhesive compatible with the selected material and substrate, and finish small cosmetic gaps with an appropriate paintable product. Where polyurethane meets a solid-wood baseboard, treat the junction as a transition between different materials, not as an excuse to glue the two parts into one rigid assembly.

This guide concentrates on real installation decisions: how to cut wall molding, how to install decorative profiles neatly, and how to terminate them against or above wood baseboards. It is an American-English adaptation of STAVROS guidance on mitered corners, joints, painting, and wood-to-polyurethane transitions. The examples use inches, feet, and the published dimensions of selected STAVROS products. They are planning examples rather than universal installation specifications.

Перейти в каталог

What Makes a Clean Wall Molding Installation?

The visible result depends on six decisions that should be made in order. First, choose a molding that suits the scale of the wall. Second, establish its exact position in relation to the floor, door casing, window trim, and baseboard. Third, verify that the wall and existing finish can accept the proposed installation. Fourth, identify whether each connection is a flat-frame miter, an inside room corner, an outside room corner, an end return, or a transition to another material. Fifth, cut and dry-fit before bonding. Finally, use a compatible finishing system that keeps the joints discreet without disguising poor fit with a thick bead of caulk.

The STAVROS polyurethane molding collection provides several profile scales for applied wall frames and decorative lines. If the room already has solid-wood trim, look at the wood and MDF architectural trim collection as a separate family of products. Similar-looking white pieces do not necessarily have the same material, movement, installation, or coating requirements.

Distinguish decorative trim from functional building components

Applied wall molding is usually a nonstructural decorative element. It does not replace the support or fixing requirements of handrails, shelving, curtain hardware, or millwork. A decorative profile is also not automatically a moisture barrier or an impact-rated guard. For a wall section exposed to frequent cart strikes, cleaning equipment, or standing water, review the actual environmental demands before selecting decorative products. The most convincing decorative installation starts with honest expectations of the material.

Наша фабрика также производит:

Смотреть весь Каталог продукции

Define the finished edge before cutting the first piece

A wall molding line can end in several acceptable ways. It might stop at a consistent clearance above a baseboard, return neatly into the wall, meet a designed termination block, or align with an adjacent decorative element. Each is a design choice. Trouble begins when the decision is postponed until the installer is holding a short offcut beside a profiled baseboard. A clear termination detail prevents that improvised appearance.

Получить консультацию

Polyurethane Molding, Solid-Wood Baseboard, and MDF: Different Materials

The phrase wall trim molding covers many products; in this guide, decorative wall molding means an applied nonstructural profile rather than a floor baseboard. A decorative polyurethane profile, a solid-wood baseboard, and a moisture-resistant MDF baseboard can be placed in the same room, but their compositions and behavior differ. The source article correctly calls attention to the meeting point between wood and polyurethane. It should not be read as a claim that either material is completely motionless, or that a fixed gap of one particular size suits every project.

Product family Typical use in this guide Main installation consideration Finish planning
Polyurethane decorative molding Applied wall frames, narrow borders, decorative lines Match the adhesive to the exact polyurethane product and wall coating Check the supplied surface and manufacturer-approved paint system
Solid-wood baseboard Architectural transition between floor and wall Allow for wood movement and verify the fixing method and existing floor detail Stain or paint requires species-appropriate preparation
MDF baseboard Uniform painted floor trim Protect cut edges appropriately and follow the product's moisture limitations Paint preparation differs from unfinished solid wood
Paintable joint filler or caulk Selected small cosmetic junctions Verify movement accommodation, adhesion, and paint compatibility Test the appearance after full cure

Solid wood responds to changes in ambient humidity. Its movement depends on the species, grain orientation, cross-section, finish, and seasonal conditions. MDF and molded polyurethane have their own behavior; neither should be treated as a perfectly inert reference. That is why the junction details used in a specific project must follow the product instructions and the actual assembly rather than a generalized instruction to push two materials together and fill everything.

Is polyurethane always better than polystyrene?

No. Both product categories include different formulations and qualities. A rigid, shaped polyurethane decorative molding is not equivalent to a lightweight foam product; nor can every dense polystyrene profile be dismissed as unsuitable. Compare the actual profile, intended use, dimensional accuracy, compatible finishing products, and substrate. Do not substitute a polystyrene profile simply because its photograph resembles the specified polyurethane design. The treatment of seams and surface preparation may change.

What about wood molding instead of polyurethane?

Natural wood may be preferable when the project calls for exposed grain, stained millwork, or traditional woodworking details. Polyurethane becomes attractive when repeated, paint-finished decorative profiles and cast shapes are the priority. A mixed installation can be visually coherent, but it still contains separate materials. The objective is coordinated design—not pretending that they are physically identical.

Choose the STAVROS Profiles Before Designing the Joints

A profile's face width and projection affect both appearance and cutting. Small relief can soften a transition; a larger or more complex section makes imperfect corner alignment more noticeable. A deeper profile also changes the geometry of end returns, so dimensions must be included in a cutting drawing. The following references were checked against the STAVROS U.S.-facing catalog; rounded inch measurements are useful for visualization, while the millimeter figures identify the actual product options.

STAVROS profile Material and nominal section Nominal stock length Design implication
MLDPU-001 Polyurethane; 10 × 6 mm (0.39 × 0.24 in) 2,600 mm / 102.36 in Slim beaded line for quiet, narrow borders
MLDPU-004 Polyurethane; 15 × 8 mm (0.59 × 0.31 in) 2,600 mm / 102.36 in Compact decorative profile with a defined edge
MLDPU-002 Polyurethane; 22 × 11 mm (0.87 × 0.43 in) 2,600 mm / 102.36 in Noticeable relief for frames and intersections
MLDPU-003 Polyurethane; 35 × 12 mm (1.38 × 0.47 in) 2,600 mm / 102.36 in Larger face width that calls for generous margins
MLDPU-027 Polyurethane; 14 × 9 mm or 20 × 12 mm 2,600 mm / 102.36 in Half-round options; record the selected size

For a discreet rectangular wall frame, examine the MLDPU-001 slim polyurethane bead and the MLDPU-004 shaped decorative molding. A room that needs more visible shadow lines may suit the MLDPU-002 profile or the wider MLDPU-003 molding. These recommendations concern visual scale; they are not certifications of impact strength or suitability for every wall condition.

Use a real baseboard SKU as a dimensional reference

The STAVROS PLT-001-1 baseboard / casing product is listed in several material variants. The beech option shown on the product page uses a nominal 120 × 15 mm section and 2,400 mm length—about 4.72 × 0.59 × 94.49 inches. Certain MDF options use a 120 × 16 mm section and 2,600 mm length—about 4.72 × 0.63 × 102.36 inches. The SKU name alone does not establish the material or stock length. Record the exact selected option before you calculate cuts or design an end condition.

A wide baseboard creates a strong horizontal architectural line. A 10 mm wall bead ending immediately against a wide, strongly profiled baseboard may appear abruptly terminated. Instead of automatically cutting the wall profile into the baseboard relief, consider leaving a deliberate clearance or creating a short return. Compare the detail at full scale using actual samples or measured profile drawings.

Match the size and relief, not just the color

A one-color paint treatment can make disparate trim elements look related, but identical color cannot correct an awkward intersection. Look at the projection: does the wall molding sit proud of the baseboard cap? Does the baseboard project farther into the room? Would a small return cause a hard-to-paint pocket? The best detail considers the elevation and the section together. Draw the joint from the front and from the side before selecting its final configuration.

Survey the Wall and Set the Layout

Before measuring decorative frames, inspect the whole room. Identify existing baseboards, door casing, outlet covers, switches, thermostats, radiators, furniture, curtains, and any access panels. Locate wall damage and determine whether old paint is securely bonded. Confirm the floor-to-baseboard junction and whether an expansion gap for flooring needs to remain unobstructed. Marking a beautiful rectangle is not enough if its bottom line interrupts a required clearance or runs into a device.

Use a laser level or an accurately checked long level to establish reference lines. Measure from consistent reference points. Floors may slope; ceiling planes may not be parallel to the floor. Decide whether the visual layout should be level across the room or maintain a consistent clearance from an uneven trim line. This choice deserves attention before adhesive fixes the first piece in place.

Draw the entire molding composition

Sketch all frame outlines with actual finished external dimensions, then tape the shapes on the wall. Check the arrangement from the doorway, from the primary seating position, and while standing near adjacent trim. If you plan picture frame molding on walls, do not assume that three mathematically equal frames must be centered on the full wall. Built-in furniture or a doorway may shift the useful composition. A narrower group positioned over a sofa can be more convincing than a symmetrical pattern that runs behind furniture.

Put the nominal face width on the sketch. The outside dimension of a rectangular frame and its clear opening are different measurements. If the outside width is 30 inches and the selected molding has a face width of approximately 0.87 inch, the visible opening is roughly 28.26 inches before considering the exact shape of the profile. That calculation is useful for visual planning; a physical test cut determines where the measurement should be taken on the actual molding.

Decide where the frame stops above the baseboard

For most applied frames, stopping clearly above a baseboard is easier to detail than forcing the vertical molding to meet an ornamental cap at a small, irregular contact area. A designer might test a 4–6 inch visible space above the baseboard, but it is a design starting point, not a prescribed construction clearance. Verify sightlines, outlet locations, and adjacent frame heights. For a heavily profiled wood baseboard, maintaining a consistent margin may be more attractive than joining two different cross-sections directly.

Tools and Supplies for Accurate Molding Cuts

Many people research DIY wall molding as if the only required tool were a miter saw. The saw matters, but accurate references and material compatibility matter as much. Gather a tape measure, pencil, reliable square, level, angle finder or adjustable bevel gauge, painter's tape, cutting plan, compatible adhesive, clamps or temporary supports permitted by the product instructions, clean cloths, and suitable finishing products. Appropriate eye protection should be used when cutting; select respiratory protection and dust controls based on the tools and the material manufacturer's guidance.

For lightweight, relatively narrow decorative molding, a suitable fine-tooth saw and miter box may make controlled cuts. A miter saw with an appropriate blade can be helpful for repetition. Test the blade and cutting action on a scrap section before cutting finished pieces. A blade that leaves crushed edges, rough burrs, or uncontrolled tearing is not appropriate merely because it cuts through the material.

Check the tool against a known square

Before starting a large room, make a reference cut and test two offcuts on a flat surface. A miter saw set at a labeled 45 degrees may be out of calibration or the workpiece may not be seated firmly against the fence. A small alignment error becomes obvious on a long decorative face. Follow the saw manufacturer's calibration and safety directions. Do not place fingers near the blade to hold a very short offcut; use safe workholding methods and any approved stops or fixtures.

Mark the profile orientation

Profiled molding has a front, back, top or outside edge, and sometimes a directional relief. Mark these on a test piece. A mirrored frame cut cannot always be obtained by simply rotating the finished piece if the profile has a handed pattern. Place each length in the same cutting orientation or label the required reversal. Save a good left-corner and right-corner test pair for comparison throughout the project.

Make room for real site conditions

Bring the material into the work area and follow the storage, temperature, and acclimation advice that applies to the actual product. Inspect each length for damage and dimensional variation before cutting. Confirm the wall and substrate are ready. A clean, straight workbench protects the finish and reduces the risk of cutting a long strip while it is twisted or unsupported.

How to Cut Wall Molding for Inside and Outside Corners

The familiar instruction to cut two pieces at 45 degrees is correct only for the right geometry. When two identical pieces form a decorative 90-degree frame corner in a single flat plane, equal 45-degree miters are the ordinary starting point. A room corner can differ from 90 degrees. A profile that crosses onto a second wall plane also has a different relationship to the wall than a flat picture frame glued to one surface. Identify which joint you have before choosing the cutting method.

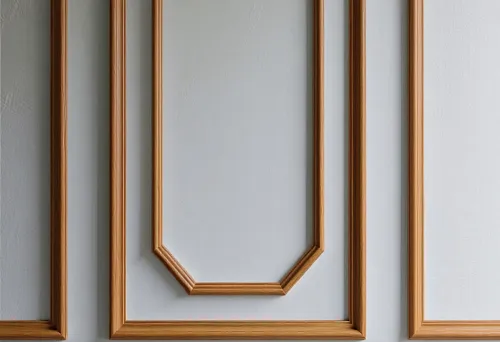

Flat picture-frame corners

For a rectangular frame on painted drywall, mark the desired outside dimensions and decide which edge of the molding the measurement follows. A standard miter creates a long point and a short point. Record long-point dimensions if the outside boundary of the frame is your reference. Mark each length from the same reference edge. Cut one top section and one side section, then bring the pair together on the wall before producing the remaining pieces. If the first pair is wrong, fix the measurement rule, not merely the angle setting.

Inside wall corners

At the inside corner of a room, use an angle finder rather than assuming the surfaces meet at exactly 90 degrees. For two equal mitered pieces whose geometry permits a simple bisected joint, the initial miter angle is half the measured included angle. A measured 92-degree corner suggests approximately 46 degrees per side, but the actual saw-setting convention and profile orientation must be confirmed on scrap. On some trim systems, a coped joint or an approved preformed corner may be more practical than a plain double miter. This is especially important when the profile has substantial relief.

Outside wall corners

An outside return makes alignment errors more visible because light strikes the exposed edge. Measure the actual corner and check the direction of each miter. The visible long point lies differently than at an inside corner. Do not rely on a verbal left-versus-right rule that ignores which face is against the saw fence. Keep labeled sample pairs for each geometry, and make the finished cuts only after the pair fits tightly on the intended wall. If the wall surface is wavy, a perfect angle on the saw may still leave a visible gap; assess whether local substrate preparation is needed.

A non-square example: a 93-degree corner

Suppose two walls meet at a measured included angle of 93 degrees. For an equal bisected miter, 93 divided by 2 gives 46.5 degrees. That is the geometric target in the workpiece. The reading displayed on a particular saw and the way the molding is positioned may require a different setup. Cut two short test pieces and fit them in place. If the sample still gaps because the walls curve or the profile rocks on the surface, do not blindly increase the amount of joint filler. Correct the fit or select an alternative joint detail.

Decorative corner blocks are not universal connectors

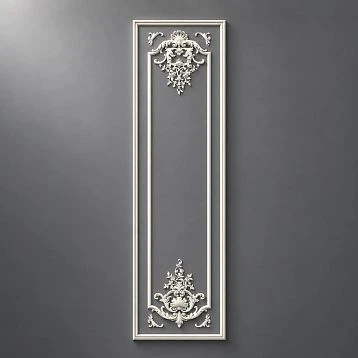

Certain decorative corners are made to join matching molding families, while others are purely ornamental overlays. A flat frame corner is not automatically suitable for a protruding room corner. The STAVROS molding-decor catalog contains a variety of decorative elements; compatibility must be checked at the individual product level. If a connector is designed for one profile, verify both the face width and the relief depth rather than selecting by ornament alone.

When coping or a small return works better

Coping is common in traditional wood trim: one piece meets the wall while the other is shaped to fit the exposed profile. That method may be appropriate for selected wood baseboard intersections, but should not be imposed automatically on decorative polyurethane strips without checking the profile and intended system. A short mitered return into the wall can sometimes make a vertical molding's end look finished without connecting it to the baseboard at all. Dry-fit both options and choose the one that can be cut, supported, and painted cleanly.

Dry-Fit Every Joint Before Applying Adhesive

Good how to install wall molding guidance should include a dry-fit stage. Lay the complete frame out on a protected, flat surface and check the relative orientation of all four pieces. Then transfer it to the wall, using temporary painter's tape or other non-damaging supports suitable for the finish. Check the measured outside edges, diagonals, and visual alignment. For a rectangle, equal diagonals are a useful confirmation that the corners form a square, provided the wall layout itself is intended to be rectangular.

The next inspection is three-dimensional. Press each length lightly against its planned mounting surface and look for rocking. A high spot behind one length can create a visible opening at the adjacent miter even when the pieces match perfectly on the workbench. Record whether the defect is in the material, the cutting geometry, or the wall. Each problem has a different remedy. A 1/8-inch gap should not automatically disappear under a thick filler layer, particularly where movement or a strong side light will reveal the repair.

Test the actual joint, not just the cut angle

Put the mitered pair together at its intended location. Check the front face, top and bottom of the relief, and the contact area against the wall. Two pieces can touch at one narrow point while remaining separated elsewhere. They can also form a pleasing front line while leaving a poorly supported back. Both conditions deserve attention before adhesive. If the joint is part of a long wall frame, step back and confirm the line remains straight from the primary viewing angle.

Establish a sample before repeating a room

When several frames use one profile, build a small demonstration frame or representative joint. Apply the proposed adhesive, filler, primer, and finish on a test substrate and allow everything to cure according to product instructions. Review the completed sample in daylight and under the room's intended evening light. It will reveal whether the raised relief looks too heavy, the sheen highlights joints, or the chosen finish makes different materials look disconnected. Correcting one sample is more efficient than reworking six completed frames.

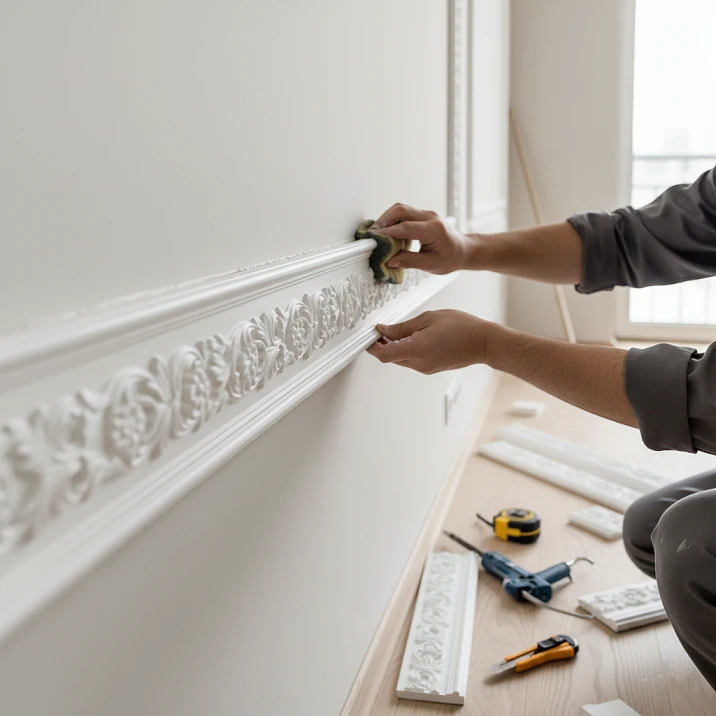

Adhesives, Surface Preparation, and Fastening

There is no one adhesive that can be responsibly specified for every polyurethane molding, every wall coating, and every room environment. Check the exact molding manufacturer's approved installation guidance. Also check whether the surface is paper-faced drywall, painted plaster, wood, tile, or another substrate. Adhesion to weak paint is limited by the paint's bond to the underlying wall, regardless of the adhesive's laboratory strength. Clean, repair, and prime surfaces as required, then test compatibility on a hidden area or sample.

Some decorative systems use a mounting adhesive on the back of the profile and a separate joint product at its ends. Those functions should not be confused. A mounting adhesive needs to hold the trim in place on its substrate; a joint adhesive or filler addresses the profile-to-profile connection, and a finish caulk addresses selected visible edges. Use each product according to the system instructions and required curing time. Do not treat a cosmetic bead as a structural fastener.

How much adhesive is enough?

Apply the manufacturer-recommended bead pattern so that the intended contact surfaces are supported without excessive squeeze-out. The correct amount depends on the width and back geometry of the molding, surface flatness, and the specified adhesive. A very narrow bead may leave unsupported areas; excessive adhesive may force the piece away from the wall or smear across the paintable face. Test the pressure and final position before repeating. Remove residue using methods compatible with the profile and the wall finish, and observe the adhesive's working time.

What about finish nails or temporary pins?

Some trim assemblies permit mechanical fasteners or temporary holding methods; others do not. Do not assume that ordinary brad nails are suitable for every polyurethane profile or wall substrate. Fastening into drywall alone may not be a reliable mounting solution, and a fastener can damage a thin decorative face. Where mechanical fixing is needed, follow the product's specific guidance and check the wall construction. Temporary supports should not create unrepairable holes or peel off the finished paint.

Surface and indoor conditions

Allow a newly painted or repaired wall to cure for the time required by its coating manufacturer before applying adhesive. Avoid sealing moisture behind decorative elements. If the wall has active leaks, dampness, crumbling plaster, peeling paint, or persistent mold growth, resolve the underlying issue first. A decorative covering is not remediation. Temperature and humidity during installation can affect adhesive curing and some materials; follow the stated limits rather than relying on an assumed number of hours.

The Hard Detail: Polyurethane Molding Meets a Wood Baseboard

The transition between a vertical wall molding and a wooden floor baseboard is the heart of the original STAVROS article. It is also where a literal translation can be misleading. An installer may be tempted to press the molding end into the baseboard's upper relief, apply filler around the contact, and paint the entire area until it appears continuous. That can produce a neat photograph on installation day while concealing an awkward section mismatch or a joint that may later become visible as conditions change.

A better approach starts by comparing the profiles in section. Determine the baseboard's maximum projection, its top cap shape, the mounting height of the wall molding, and the expected movement of the particular wood product. Choose a deliberate termination, not an arbitrary collision. The PLT-001-1 product variants illustrate why this matters: oak, beech, and MDF options share a family name but have different listed dimensions, stock lengths, and material requirements.

Transition option Visual result When to consider it What to verify
Stop above the baseboard Clear separation and an intentional painted gap Applied wall frames and many modern interiors Consistent clearance around every frame
Short return into the wall Finished decorative end instead of a square exposed cut Vertical lines and selected classical profiles Return geometry, projection, and cutting safety
Meet an appropriate termination block Deliberate architectural junction Compatible decorative systems Specific block dimensions and approved connection
Butt against a suitable baseboard detail Continuous-looking line with a visible material junction Selected millwork designs Movement accommodation and adhesive/finish compatibility
Redesign the baseboard top detail Integrated trim hierarchy Larger renovation or custom millwork Existing wall, floor, and baseboard construction

Option 1: stop the molding above the wood

This is often the simplest recommendation when the wall treatment is an applied decorative frame rather than a structural paneled wall. End the vertical section at a clearly established height above the existing baseboard; keep all corresponding ends level. The untrimmed paint between the moldings and the baseboard becomes a deliberate negative space. Its dimensions should respond to the room, frame proportions, and baseboard cap, not a universal rule about millimeters of clearance.

If several frames run along a hallway, check the termination level as one continuous visual band. A slight floor slope may change the physical distance from floor to frame while the decorative line stays level. Consider which relationship the visitor will notice. In many interiors, consistent horizontal alignment across the frames matters more than copying every small variation in the existing baseboard's height.

Option 2: create a mitered return

A short return can turn a projecting decorative molding back toward the wall, concealing the raw profile end. The return requires additional small cuts, controlled handling, and enough depth to form a clean shape. It must not leave a sharp protrusion where people walk, and it should not crowd a door casing or electrical box. Build a sample of the exact profile: complex shapes are harder to return than a simple smooth strip. On the MLDPU-027 half-round molding, the chosen size changes the visual scale and therefore the return detail.

Option 3: use a designed stop or block

Some decorative families include end pieces, corner ornaments, or other transitions. A block should not be chosen simply because its photograph looks compatible. Confirm the matching family, material, face dimensions, relief location, and whether the component is intended to be a connector or only an applied ornament. Look at available STAVROS decorative trim profiles for design vocabulary, but check any proposed connector directly before treating it as part of the assembly.

Option 4: join directly, but only with a planned detail

A direct butt joint can be appropriate in a designed millwork assembly. It is not intrinsically wrong, but it needs an approved approach to differing substrates and potential movement. A small, paintable cosmetic joint might be acceptable where the product and joint manufacturer's specifications permit it. Yet neither a fixed 2 mm gap nor a promise that acrylic caulk will eliminate seasonal movement is a universal instruction. A joint that repeatedly opens may require a different architectural detail instead of a thicker sealant.

Finish the Seams: Filler, Caulk, Primer, and Paint

The objective is a smooth, believable finished line, not an unnaturally perfect photograph of wet caulk. Begin with an accurate dry-fit. Remove debris and prepare the mating surfaces. Select any joint adhesive, filler, or caulk based on compatibility with the selected polyurethane, the painted wall, and any adjoining wood. The terms joint compound, wood filler, and paintable caulk refer to different materials; one cannot automatically perform all their functions.

Where a filler is appropriate

A suitable profile joint product may be useful for small gaps between correctly cut pieces. It should not be expected to correct a wrong angle, a twisted strip, or a missing support. Let the specified product cure, then shape or sand only as permitted. A filler that looks smooth before painting may remain visibly different in absorption and texture after the topcoat. Test the entire finish system, not just the raw joint.

Where paintable caulk is appropriate

Paintable caulk is often used in selected minor perimeter gaps, particularly between trim and a painted wall. It is not a substitute for a mechanical joint, nor does every paintable caulk accommodate significant wood movement. Read the product's movement rating, permitted substrates, cure time, and painting instructions. Avoid making the bead wider than required; the edge of a broad caulk smear can be more visible than a well-cut miter under raking light.

Can you paint over silicone?

Many conventional silicone sealants are difficult or unsuitable to paint, although specialty formulations exist. Rather than choosing by broad material category, verify the actual sealant's paintability and compatibility. Do not layer a new paint coating over an unknown glossy sealant without a test. If a project needs a paintable finish, select a product explicitly approved for that purpose and for the surfaces involved.

Prepare polyurethane and wood separately

For an opaque painted finish, the preparation of a polyurethane decorative strip may differ from unfinished wood. Some decorative products arrive primed; others require specified cleaning or primer. Bare wood may require additional treatment for grain, resins, or open pores. Do not automatically strip factory coating from polyurethane or apply solvent-heavy finishes without approval. When matching white or off-white trim across materials, make a complete sample and check color under the room's lighting.

Choose sheen based on the light

A satin or semi-gloss trim finish can give a crisp architectural edge, while matte treatments create a quieter transition into painted walls. Higher sheen may reveal sanding scratches, misaligned joints, and uneven caulk more readily. For decorative relief, avoid loading the profile with paint so heavily that fine contours disappear. Apply the manufacturer's recommended coats, observe recoat windows, and inspect the dry finish rather than judging a wet surface. A single consistent color is often a good design option, but can be just as intentional to use a subtle shade difference between wood baseboard and wall molding.

A Cutting Plan: Three Wall Frames on a 12-Foot Wall

The easiest way to avoid a quantity mistake is to move beyond a simple picture frame molding calculator total and make a stock-length cutting plan. Consider a wall that is 12 feet wide, or 144 inches. Assume three rectangular frames, each 30 inches wide and 58 inches tall measured to the long outer points of the miters. Use 12-inch outside margins on either end and 15-inch spaces between neighboring frames. The horizontal layout is exactly: 12 + 30 + 15 + 30 + 15 + 30 + 12 = 144 inches. Check this spacing with the wall's real doors, furniture, and switches before using it.

Calculate the installed length

Each rectangle needs two 58-inch vertical pieces and two 30-inch horizontal pieces. Its perimeter is 2 × (58 + 30) = 176 inches. For three frames: 3 × 176 = 528 inches, or 44 linear feet of installed molding. That is the actual decorative line length, not necessarily the amount you must purchase. Miters, saw kerf, stock lengths, and unusable offcuts determine the order.

Convert the plan to 2,600 mm STAVROS strips

The MLDPU-002 polyurethane molding is listed at 2,600 mm long, approximately 102.36 inches. One stock strip can provide a 58-inch vertical and a 30-inch horizontal, totaling 88 inches before blade kerf. Six such strips therefore supply the six vertical and six horizontal pieces needed for three frames. This is a feasible nominal layout, assuming material quality, accurate long-point measurement, and enough length for saw kerfs.

Quantity Required cut Total installed length Source plan
6 58-inch verticals 348 in One vertical from each of six strips
6 30-inch horizontals 180 in One horizontal from each of six strips
12 cuts/pieces Complete three frames 528 in / 44 ft Six 102.36-inch nominal strips
6 stock strips Nominal purchased length 614.16 in / 51.18 ft 86.16 in difference before kerf and defects

The nominal purchased-length difference of 86.16 inches is not one usable continuous leftover. It is distributed across six strips and reduced by the cutting process. A cutting plan avoids the false assumption that 528 ÷ 102.36 = approximately 5.16 means six strips will work for any arrangement. In this example six strips do work because each long piece can be paired with a short one. If the vertical height increased to 78 inches, the same pairing would no longer fit on one strip; the order could change sharply even if the total installed length changed only moderately.

How much waste allowance should you buy?

Do not choose a flat percentage without considering the lengths. This demonstrated six-strip plan has relatively short residual offcuts and limited spare material for accidental damage. For a DIY installation, an additional matching stock strip may be a prudent contingency when availability, budget, and return conditions permit, but the required quantity should come from the actual drawing and risk assessment. Retain labeled offcuts for test cuts and future touch-ups. Make sure an extra piece has the same product code, size, and relevant finish as the rest of the work.

How does the wooden baseboard affect this example?

Assume the wall already has a 120 mm (approximately 4.72-inch) high baseboard. Keep the bottom edge of the frames a consistent designed distance above it, based on a full-scale tape mock-up. Do not subtract the baseboard's height from the 58-inch frame dimensions unless your design measurements specifically reference the floor. If the project also includes installing a new PLT-001-1 solid-beech baseboard on the entire 144-inch wall, two 94.49-inch nominal lengths would be needed just to span the wall, with a suitable planned splice, end treatment, and cutting allowance. That baseboard takeoff is a different calculation from the six-strip polyurethane takeoff.

Two Real-World Installation Scenarios

A narrow hallway with several repeated frames

The main challenge is not cutting individual 45-degree corners; it is maintaining a consistent rhythm down the length of the space. The frames must relate to door openings, switch plates, and the ends of the hall. Lay out every frame first, then cut in batches from one clear schedule. A slim MLDPU-001 profile may appear lighter than a broad ornate molding in a restricted passage. Keep protrusion and snagging concerns in mind, and verify that all details remain appropriate for the corridor's actual use.

A living room with several non-square corners

An older room may have inside and outside corners with inconsistent angles or uneven plaster. Begin by deciding whether the molding should turn around the room or stop before its corners. On an applied wall panel layout, stopping before the corner can avoid the need for complicated compound joints. If a continuous molding band is required, measure and test each corner independently. Label the matching cut pairs. Correct a badly uneven substrate rather than hiding a broad opening in caulk. For additional decorative options, compare STAVROS molding and corner accents while checking exact product compatibility.

Common Problems and How to Fix the Cause

A visible seam is information. It may identify a cutting error, a moving joint, insufficient preparation, a different paint absorption rate, or an irregular wall. Before applying more filler, investigate which condition is present. Cosmetic repairs work best after the underlying condition is corrected. If the joint continues to open seasonally, a revised termination detail may be more durable than repeated caulking.

Visible problem Likely issue to investigate Better next step
Gap widens at one side of a corner Incorrect angle or profile orientation Recheck actual corner; recut a scrap pair
Decorative line appears wavy Unlevel layout or uneven substrate Reestablish a reference; correct local wall issues
Joint reappears after painting Movement, filler shrinkage, or incompatible finish Identify cause; verify suitable joint treatment
Molding lifts at an edge Weak paint bond, wrong adhesive, inadequate support Repair substrate and review manufacturer instructions
Different sheen across wood and polyurethane Different preparation or coating absorption Test appropriate primers and finish system
Vertical molding ends awkwardly at baseboard Unplanned section mismatch Stop above, return, or design a compatible termination
Thin profile chips during cutting Blade, support, or cutting technique Test a suitable blade and properly support the piece

A crack at the transition to a wooden baseboard

Do not assume that any crack is caused only by “bad caulk.” The wood may be moving, the baseboard may be loose, or the chosen joint detail may not allow differential behavior. Assess whether the decorative molding is bonded directly to the baseboard, whether adjacent flooring needs its gap, and what movement the caulk can actually accommodate. An intentional separation may be the correct long-term architectural answer.

Frequently Asked Questions About Cutting and Installing Wall Molding

Is 45 degrees always the correct angle for wall molding?

No. Two 45-degree miters are a common starting point for a rectangular decorative frame in one plane. Actual room corners may not be 90 degrees, and shaped wall or ceiling profiles can require other cutting methods. Measure the real corner, identify the joint type, and test a pair of offcuts before cutting the finished lengths.

How do you measure wall molding for picture frames?

Choose whether dimensions reference the frame's outside long points or the inside clear opening, then apply that convention consistently. Measure the wall and surrounding fixtures first. Record the height and width of each rectangle, calculate its perimeter, and prepare a cut list for the actual stock length. Use a full-size tape layout to verify that the dimensions are visually appropriate.

What is the best saw for polyurethane molding?

The suitable tool depends on the product section, number of cuts, and manufacturer's instructions. A compatible fine-tooth hand saw and miter box may handle some narrow profiles. A calibrated miter saw can help with repeated work, provided the appropriate blade and safe workholding are used. Always test the cut quality on a scrap section.

Can polyurethane molding meet a solid-wood baseboard directly?

It can in a properly designed detail, but direct contact is not automatically the best solution. Verify the baseboard's material, section, attachment, and potential movement, plus the adhesive and joint product requirements. For applied wall frames, leaving a deliberate gap above the baseboard is often a simpler, more readable decorative choice.

Should I use caulk or filler at a mitered corner?

The product and joint type determine the appropriate material. A designated joint adhesive or filler may be suited to a profile-to-profile seam; a compatible paintable caulk may be appropriate for selected perimeter gaps. Neither corrects a badly cut joint, and no generic caulk should be assumed to handle all wood movement. Follow the selected products' instructions.

Can I install molding over a painted wall?

Only after confirming that the coating is well bonded, fully cured, and compatible with the proposed adhesive. Clean the wall, repair defects, and prepare it as required. A molding bonded to peeling paint is not securely attached to the substrate. Test adhesion on a sample area where appropriate.

What is the difference between panel molding and baseboard molding?

Panel molding generally describes decorative profiles used to outline wall panels or applied frames. Baseboard molding covers the joint at the bottom of the wall and contributes to the floor transition. They serve different positions and may use different materials. A narrow decorative wall bead should not be assumed to provide the function of a floor baseboard.

How much extra wall molding should I order?

Start with the actual cut list and stock lengths, not only the installed footage. A cutting plan can reveal whether longer pieces pair efficiently with shorter pieces and whether any full lengths remain spare. Consider saw kerf, damaged pieces, test cuts, pattern alignment, and the difficulty of obtaining a matching replacement. The appropriate contingency varies by job.

Where can I compare actual STAVROS polyurethane dimensions?

Use the current STAVROS polyurethane molding category and open the individual product drawings. Compare face width, projection, stock length, and material. For a matching wooden or MDF baseboard, consult the relevant architectural wood and MDF trim products, noting the exact selected variant in your drawing.

Final Takeaway: Design the Intersection, Then Make the Cut

The best trim work has a clear hierarchy: the baseboard grounds the wall, the applied molding creates decorative rhythm, and the junction between them is intentional. Measure actual angles instead of assuming every corner is square; make test cuts before using full lengths; inspect the finished geometry on the wall; and keep product-specific adhesive and coating instructions in charge of the installation. The payoff is not a claim that every joint will remain invisible forever. It is a design whose proportions, material transitions, and finishing details have been considered before the first permanent cut.
