The wardrobe-bed is already installed and folds against the wall: is it worth buying the PAN-007 slat panel for the entire surface or leaving a service area behind the mechanism

The wall bed is already in place: the power structure is secured, the mechanism is adjusted, the bed folds and unfolds without sticking, and outlets and lighting are routed. After this, a new design idea emerges — to make the wall around the furniture slatted and use PAN-007. In the visualization, everything looks simple: the vertical rhythm continues behind the cabinet and turns the wall bed into part of a unified architectural composition. But in real installation, the decorative wall encounters fasteners, service covers, moving parts, and areas that will never be visible at all.

Purchasing PAN-007 for the entire wall makes sense only when the panel does not interfere with the power structure, does not obstruct the furniture's trajectory, does not cover fasteners, and is actually visible in at least one of the wall bed's working states. If the central zone is constantly hidden by the cabinet and is needed for service, it is more rational to leave it smooth and use PAN-007 only on the left, right, top, or other visible areas.

This is an important commercial conclusion. The slatted panel is not a "mandatory backing" behind furniture. If the owner will never see those square meters and they complicate mechanism maintenance, there is no need to buy them just for formal wall continuity. But automatically subtracting the hidden area from the order is also not possible: panels have a fixed width of 1010 mm and specific lengths, so after re-layout, the number of whole modules may remain the same.

Before ordering, four checks must be completed: the wall bed's power structure, movement trajectory, service access, and a map of visible surfaces in two states — bed folded and bed open. Only after this is the material calculated.

If the profile is still being compared, you can first Buy slatted panels for wall finishing after checking the furniture. This article does not repeat the general material about the bedroom and does not explain the wall bed mechanism as a whole. The central question is one: an already installed mechanism + specific PAN-007 + the actual purchase area.

Slat panel PAN-007

from 74.57 $

Go to Catalog

Slatted panel PAN-007 1010×8 mm: which dimensions are confirmed by the product card

PAN-007 is a flexible slatted panel with a large slat profile of 23×8 mm. Panel width is 1010 mm, relief depth is 8 mm. The current product card offers short and long versions in MDF, beech, and oak.

The 23×8 mm slat profile creates a large, calm rhythm. For a wall bed, this is useful: wide verticals read well next to a large furniture surface. But those same 8 mm of relief add actual thickness to the wall and should be excluded from areas of structural fastening unless the furniture manufacturer has provided otherwise.

After checking the mechanism, you can Buy the slatted panel PAN-007 in a specific material and length. Until then, choosing 2670 mm “because the wall is tall” or oak “because the bedroom is premium” is premature.

Watch video ...

Price and material PAN-007: calculate after determining the visible area

Our factory also produces:

Bed Headboard KRVT-001-1

from 1,619.12 $

View Full Product Catalog

Price PAN-007 at the time of check: calculate only after determining the visible zone

The current card shows a noticeable difference between short and long versions. At the time of check:

Prices and availability change, so they need to be rechecked before payment. For the article, the calculation order itself is important: if the area hidden behind the cabinet allows removing one long oak panel from the specification, the savings equal the price of a whole module, not the conditional cost of one square meter. If, after subtracting the hidden area, a whole panel is still needed for the side strips and top, the savings may be zero.

Murphy bed is moving furniture, not a regular cabinet in front of a decorative wall

For a stationary cabinet, the main check is the geometry of the body and walls. For a Murphy bed, movement and a power mechanism are added. Therefore, PAN‑007 needs to be designed around the furniture, not treating the furniture as an ordinary item that simply covers part of the wall.

Checked:

• power attachment points of the body to the wall;
• gas lifts, springs, or other lifting mechanism;
• pivot arms and hinges;
• adjustable supports;
• locks and latches;
• side service covers;
• mechanism adjustment points;
• electrics, backlighting, sockets;
• trajectory of the bed and facade;
• body play during operation.

The slat cladding must not become an intermediate layer in the structural mounting unless the manufacturer of the wall bed explicitly provides for it. The decorative fabric base and PAN‑007 slats are not a load-bearing wall.

What to check before buying PAN‑007

Create a technical drawing of the already installed furniture. Ideally, photograph the cabinet in two states and take measurements from the actual object, not just from the furniture project.

Why you cannot first glue PAN-007 and then mount the wall bed through it

This is one of the key engineering risks. The structural fasteners of the wall bed must work with a base designed by the furniture manufacturer. If a decorative layer 8 mm thick appears between the wall and the fastener, the geometry of the assembly, the fit of the body, and the distance to the base change.

This cannot be compensated by "longer anchors" as a universal advice. The length, type, and layout of fasteners depend on the wall, the mechanism, and the furniture manufacturer. If the cabinet is already installed correctly, it is more logical to route PAN-007 around the load-bearing points or leave a smooth service surface behind the body, rather than redo a working structural unit for decorative continuity.

If the furniture is not yet installed, the order is still determined by the mechanism's manual. First the load-bearing scheme, then the decorative finish, not the other way around.

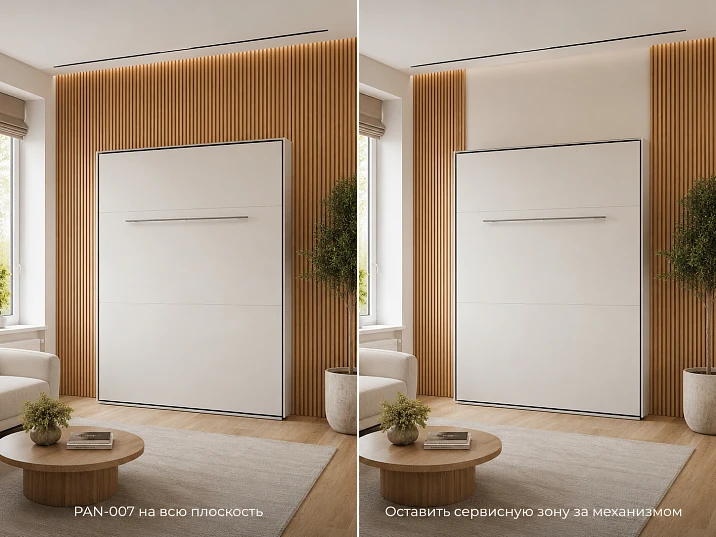

Full cladding or smooth technical center

When can PAN-007 be fully hidden behind a wardrobe-bed

Full cladding makes sense if the mechanism and frame do not depend on the decorative surface, there is sufficient clearance between the furniture and the wall, service is accessible, and PAN-007 becomes visible when the bed is unfolded or the cabinet is opened.

Good scenario:

• the cabinet is fixed to the load-bearing wall through designated points outside the panel;
• mechanism maintenance is performed from the side or front;
• the slatted wall remains accessible;
• when the bed is unfolded, most of PAN-007 is visible;
• the relief does not interfere with the path of moving parts;
• the finish behind the furniture has a real interior function.

In this case, PAN-007 acts as a backdrop for transformable furniture, not as a hidden expensive layer.

When buying PAN-007 for behind furniture makes no sense at all

If the central part of the wall is covered by the cabinet in the folded state and remains invisible when the bed is open, the decorative panel there does not create value. Especially if it additionally covers the fasteners or complicates service.

There is no need to buy material for hidden area just for the formal thesis 'the panel must be behind the entire wardrobe.' It is more honest to leave the technical center smooth, and use PAN-007 where it is visible: side fields, upper zone, area above the headboard, or other open surfaces.

Where to leave the service area behind the mechanism

The service area should mirror the actual serviced components. It may not be one large rectangle, but several point areas around fasteners and covers.

It is better to tie the boundaries to:

• side panels of the cabinet;
• vertical furniture posts;
• existing PAN-007 joints;
• upper horizontal of the wardrobe;
• furniture niche;
• another permanent architectural line.

A random "hole" 30 cm wider than the mechanism looks worse than a deliberate smooth technical zone.

Slat panel and wardrobe-bed sides: finish only on the left and right

One of the most rational scenarios is not to clad the hidden center at all. PAN‑007 is installed to the left and right of the furniture body, while the central zone remains technical. When folded, the wardrobe-bed becomes the main object, and the slat strips work as an architectural frame.

This scheme has four practical advantages:

• the panel remains visible;
• the wall's power center is not covered;
• mechanism service is more accessible;
• expensive material is not wasted on hidden area.

But the side strips need to be calculated not only by area. If 720 mm remains on the left and 760 mm on the right, one panel 1010 mm wide will not provide two solid vertical strips of that width at once:

720 + 760 = 1480 mm > 1010 mm.

That is, the total area of the side panels can be small, but geometrically two separate blanks are needed. This is a typical example where square meters are misleading.

What to do above the wall bed

If the cabinet does not reach the ceiling, there remains a zone above that is visible both when folded and when open. Different schemes are possible here.

PAN-007 only above the furniture

The slats continue the central axis of the cabinet and create an upper decorative band. This option is especially useful if the side walls are already occupied by furniture or curtains.

Side strips continue upward

The result is a U-shaped composition: PAN-007 on the left, top, and right. The central surface behind the cabinet remains smooth. This scheme well emphasizes the furniture as a built-in object.

A single field above the cabinet and on the sides

The slat panel turns into an architectural frame around the entire structure. But you need to check the joints and the direction of the slats: horizontal splitting to use short remnants can ruin the vertical rhythm.

Smooth wall on top

The calmest option. If the wall bed is visually large and decorative on its own, an additional slat panel may be unnecessary.

Length and material around transformable furniture

PAN‑007 2670 mm from MDF or 2400 mm from oak/beech around the cabinet

Length is chosen not by the principle 'the longer, the better', but by the actual height of visible sections. For MDF, 2670 mm is available; for beech and oak, 2400 mm. If the ceiling is 2700 mm, MDF almost covers the height, but 30 mm still requires a separate solution. If the wall bed covers the lower part or there is a niche above, this difference may be insignificant.

For natural oak/beech on a high wall above 2400 mm, you will either have to make a horizontal joint or deliberately limit the height of the slat zone. In a composition around a wall bed, such a joint can sometimes be hidden along the top line of the furniture.

The main thing is not to buy a long oak module for an area that is 80–90% covered by the cabinet. First, you need to check how much natural surface is actually visible in both states of the furniture.

Wooden PAN‑007 from oak behind transformable furniture: when it is justified

Oak PAN‑007 makes sense if the natural texture is an important part of the bedroom and is revealed when the bed is used. For example, during the day the cabinet is closed, and in the evening the bed lowers and a large oak slat wall appears behind the headboard. Then the material truly works in the interior.

If the wall is not visible either day or night, oak behind the cabinet is a hidden investment. At the current price of a long oak PAN‑007 of 43,790 ₽, one unnecessary module noticeably increases the budget.

This does not mean that "oak is always unprofitable." What matters is where it is visible. For open side panels, the area above the bed, and the part of the wall that is revealed during transformation, natural wood can be the main visual material of the bedroom.

MDF slat panel PAN‑007: when a painted composition is more rational

MDF is especially convenient if the slat wall should work as an extension of the furniture. The panel can be painted in the color of the wardrobe, the wall, or create a calm contrast.

Scenarios:

• the wardrobe and PAN‑007 are the same color;
• the side slat areas are slightly darker than the body;
• the smooth service center and PAN‑007 are painted in one color;
• the panel should blend into the wall and work only with light and shadow.

In such a project, the material matters less than the geometry and finish. For the category, you can use buy slat panels for interior wall finishing after the visible areas have been determined.

Do you need to first buy a sample of OPAN‑007

Yes, in this scenario the sample is especially useful. OPAN‑007 measures 184×8×310 mm and is available in MDF, beech, and oak. It can be applied to a real cabinet, floor, wall, and bed fabric.

Before the main order, you can buy OPAN-007 sample and check:

• profile scale 23×8 mm next to the facade;
• MDF color under enamel;
• beech or oak texture;
• side lighting;
• view of the panel in the folded and unfolded state of the bed.

The sample does not show the entire wall, but it helps eliminate material and scale errors before purchasing several large modules.

How to check PAN‑007 with the bed folded and unfolded

The wall bed exists in two states, and the interior needs to be evaluated in both.

The bed is folded

The main object is the wardrobe facade. The slatted zones on the sides should support it, not compete with it. If PAN-007 is too active, the facade may visually get lost.

The bed is unfolded

Part of the wall that was hidden during the day opens up. This is where it becomes clear whether PAN-007 is needed behind the furniture. If after unfolding a large visible surface remains behind the headboard, cladding may be justified.

Take two photos from the same point — bed folded and unfolded — and mark the future boundaries of PAN-007. This quickly shows which areas actually work.

The boundary between wall finishing and the furniture itself

Whether to continue PAN-007 onto the wardrobe facades themselves

This is already a separate design node. PAN-007 can be applied to furniture surfaces, but the wall panel cannot be automatically transferred to the moving facade of a wall bed without checking mass, mechanism, and trajectory.

If the designer wants a unified slatted volume, the following must be checked separately:

• allowable facade mass;
• gas lift/spring balance;
• 8 mm relief protrusion;
• hinges and locks;
• gaps when folding;
• handles and grip points.

Without a specific furniture passport, it cannot be stated that PAN-007 facade cladding is permissible. The article does not replace the calculation of the furniture mechanism.

How to calculate the amount of PAN-007 if the central hidden zone is excluded

First, the wall is divided into visible rectangles: the left strip, the right strip, the top zone, and, if necessary, the bottom section. Then each rectangle is laid out according to a width of 1010 mm and the available length.

Example. A wall 4040 mm wide. The wall bed occupies the central 2020 mm, leaving 1010 mm on each side. If the central zone is completely hidden and not clad, two panels are needed in width instead of four:

4040 ÷ 1010 = 4 modules for the entire wall.

1010 + 1010 = 2020 mm of visible side zones = 2 modules.

If an additional separate slatted section is needed above the cabinet, the quantity may increase again. Therefore, each zone is calculated separately.

Modular arithmetic of 1010 mm: why the area does not equal the quantity

Why excluding 3 m² of hidden wall will not necessarily reduce the order proportionally

Panels are purchased in modules. If after excluding the center, two strips of 800 mm remain, each must be obtained from a separate panel 1010 mm wide. The total width of 1600 mm is less than two panels of 2020 mm, but one panel still does not fit:

800 + 800 = 1600 mm > 1010 mm.

That is, by area it seems that little material is needed, but by cutting — two panels. On the other hand, large leftovers can be used above or in another area of the bedroom.

Can short PAN‑007 740/950 mm panels be used around furniture

Yes, if the specific zone matches the short format in height and the horizontal joint does not create a visual issue.

For example, 700 mm remains above the cabinet to the ceiling. MDF 740 mm provides a 40 mm nominal allowance for trimming. If the zone is 900 mm — 950 mm seems more logical. But before purchasing, consider the cornice, ceiling gap, and the actual end line.

Short panels should not be chosen only because of the lower price. If vertical slats on the sides run from floor to ceiling, and a separate horizontal joint appears at the top, the composition can become fragmented.

Sockets and cables behind the wall bed

The hidden area often contains lighting power, sockets, USB blocks, or outlets. PAN‑007 should not cover connections that need maintenance. If the socket is completely hidden and access is only possible after removing the furniture, the decorative panel can further complicate the work.

Before unfolding, mark all electrical points on the wall. If the panel still goes behind the furniture, cutouts should be designed in advance, not done randomly after gluing.

Wall bed lighting and PAN‑007: not turning the topic into a separate lighting project

Lighting can beautifully highlight the 23×8 mm profile, but in this article it is secondary. It is only important that the strip, power supply, and cables remain accessible, and the light does not emphasize random edges of the service area.

If side light runs along the slats, the boundary between PAN‑007 and the smooth wall becomes more noticeable. Therefore, the service transition should be checked in the evening before installation.

Practical scenarios for PAN‑007 around a wall bed

Scenario 1. The cabinet completely covers the wall and nothing is visible when opened

The simplest case: the cabinet stands almost flush against the wall, the rear area is hidden in both states. PAN‑007 behind the cabinet provides no visual value, but can cover fasteners and electrical wiring. There is no point in buying it for that area. The panel is installed only on actually visible sections around the cabinet.

Scenario 2. When the bed is unfolded, a large wall opens up behind the headboard.

Here the situation is the opposite. During the day the wall is hidden by the wardrobe, in the evening it becomes the backdrop for the sleeping area. If a natural or painted slatted surface is part of the bedroom design, cladding the center is justified. But the structural fastenings must still remain independent of the decorative panel.

Scenario 3. 900 mm on the left and right, the center is closed

Two side strips of 900 mm each require two blanks 1010 mm wide. One panel cannot provide two solid strips at once:

900 + 900 = 1800 mm > 1010 mm.

After cutting, each panel will leave about 110 mm in width. These narrow remnants are not necessarily useful, so the center savings should be calculated in whole modules.

Scenario 4. Side fields of 500 mm

Theoretically, 500 + 500 = 1000 mm, meaning two side strips fit within the width of one PAN‑007 1010 mm with a nominal remainder of 10 mm. But this only works if both strips are the same height and it is acceptable to split one panel lengthwise. The rhythm of the edge slats and the longitudinal cutting technology need to be checked. Pure arithmetic here is not yet a ready-made map.

Scenario 5. 650 mm remains above the wardrobe

A short MDF of 740 mm provides about 90 mm of height allowance. If the upper zone is wider than 1010 mm, several modules will be needed across the width. This option may be more rational than cutting 650 mm from a long 2670-mm panel if the remainder of the long strip is not used anywhere else.

Scenario 6. 880 mm remains above the cabinet

The short PAN-007 950 mm provides 70 mm of nominal clearance. But if a shadow gap is planned above and a complex junction with the cabinet body below, the finished height must be calculated rather than automatically rounding 880 up to 950.

Scenario 7. Oak PAN-007 is visible only on the sides

If the central part is covered and two large natural strips remain on the sides, the expensive oak works exactly where it is visible. This is a more rational scenario than cladding the hidden center "for completeness."

Scenario 8. Wall bed cabinet up to the ceiling

There is no upper zone. The service center is hidden, only the side strips are visible. The layout becomes simpler: it is enough to calculate two vertical areas and finish PAN-007 along the cabinet side panels.

Scenario 9. Wall bed cabinet asymmetrically offset toward one wall

On the left, a narrow wall section of 300–400 mm remains; on the right, 1200–1500 mm. There is no need to make identical side strips. It is better to tie PAN-007 to the actual boundaries of the room and furniture rather than creating false symmetry.

Scenario 10. The mechanism has side service covers

Even if the central wall is visible when opened, panels on the sides of the cabinet may interfere with maintenance. The service area must follow the trajectory of the covers, not just leave a smooth rectangle behind the middle of the cabinet.

How to calculate PAN-007 for a complex U-shaped composition

Suppose a wardrobe-bed 2020 mm wide stands in the center of a 4040 mm wall. There is 1010 mm left on the left and right, and 740 mm above the wardrobe. The central area behind the furniture is not cladded.

For the sides, two long panels are needed. For the upper belt, 4040 mm wide and 740 mm high, theoretically four short modules are needed across the width if the pattern and joints must align with the lower verticals. However, cutting the upper zone from remnants of long MDF panels can be considered — this requires a separate cutting plan.

If you buy four short MDF PAN-007 panels of 740 mm at the current price of 6410 RUB, the upper zone will cost:

4 × 6410 = 25 640 ₽.

If you use remnants of two long panels after trimming to height, additional short modules may not be needed. But this depends on the wall height and cutting direction.

Cost example: full wall versus two side strips

A wall 4040 mm wide and a height covered by a long MDF PAN-007 of 2670 mm. Full cladding requires four modules:

4 × 20 180 = 80 720 ₽.

If the wardrobe completely hides the central 2020 mm and only two side panels are needed:

2 × 20 180 = 40 360 ₽.

The difference at the current material price is 40,360 RUB before finishing and installation. This is real commercial savings because the number of whole modules decreases from four to two.

If an additional slatted zone is required on top, part of the savings will return to the specification. Therefore, the calculation must cover the entire wall facade, not just the side strips.

Example of cost: full oak background and oak only on the sides

For the same wall, four long oak PAN-007 2400 mm panels cost at the current price:

4 × 43 790 = 175 160 ₽.

Two side panels:

2 × 43 790 = 87 580 ₽.

The difference is 87,580 ₽. If the central oak is truly never visible, this is a strong argument not to buy hidden cladding. If, when the bed is open, the center becomes the main backdrop of the bedroom, saving on it just because it is closed during the day is no longer so obvious.

Why the current price should not determine the layout

Price helps choose the material after the geometry is defined. You cannot change the service zone just to "fit into three panels instead of four" if it covers fasteners or creates a bad edge. The technical and visual scheme comes first, the commercial calculation is the next step.

For the general category and comparison of current items, you can use buy slatted panels for interior wall decoration, but the final PAN-007 cart is built according to a specific map.

When excluding the hidden center does not save a panel at all

Suppose a wall is 3300 mm wide, the wardrobe occupies the central 1800 mm, and 700 and 800 mm remain on the sides. For two solid vertical strips, two 1010 mm panels are still needed. If a full wall cladding would also use four panels, excluding the center can reduce the order by only one or two modules depending on the layout, but not proportionally to the area.

Another example: from one long panel after longitudinal cutting, you can get a left strip of 500 mm and a right strip of 500 mm. Then excluding the center sharply reduces the order. Therefore, the answer depends on the specific widths.

When a hidden center turns into useful repair reserve

Sometimes a full panel is already purchased before the decision on the service zone. It is not necessary to consider it lost. It can be used for the upper zone, adjacent wall, short sections, or kept as repair stock. For oak and beech, such reserve is especially useful: a later batch may differ in shade and pattern.

How to check longitudinal cutting PAN‑007 by outer slats

If one panel is planned to be divided into two narrow vertical strips, it is not enough to measure 500 + 500 mm. You need to see where the cutting line runs relative to the slats and fabric base. The two edges should look finished and identical, or deliberately different.

For this, it is convenient to use OPAN‑007 and a scale diagram of the repeating profile of 23 mm. A cutting line passing through the middle of a visible slat may give a less neat edge than a slight change in strip width.

How to finish PAN‑007 at the side of a furniture cabinet

The best edge is one that is related to the vertical of the cabinet. Possible options:

• the panel fits flush against the side;
• a shadow gap remains between the cabinet and PAN‑007;
• The edge is closed with a furniture trim;
• The panel extends beyond the body only decoratively, without affecting the fasteners.

It is impossible to pre-assign a universal gap. It depends on the actual geometry of the cabinet, movement, and finish.

If the body of the wall bed has a slight play

Transformable furniture may have working movements or minimal deformations during use. If the side panel almost touches the PAN‑007 relief, the 8 mm protrusions can become a friction zone. The check is performed over several folding and unfolding cycles.

It is better to leave a stable design gap than to hope that "the cabinet will never sway a couple of millimeters."

If the bed opens flush against the slatted wall

When the bed is open, the mattress, headboard, pillows, or bedding may touch PAN‑007. This is not necessarily a problem, but the 23×8 mm relief becomes physically noticeable. If the headboard must press tightly against the wall, it is necessary to check whether the slatted texture creates discomfort.

If the headboard is built into the wall bed

Then PAN‑007 may be visible above and on the sides, while the central lower part is completely hidden. Short panels 740/950 mm are sometimes suitable for upper zones, but extra horizontal joints should be avoided.

If the bed does not have a headboard

When unfolded, a person may directly touch the wall. Natural oak, beech, and painted MDF feel different to the touch. OPAN‑007 is useful to apply at headboard height, not just to look at it while standing by the cabinet.

If the mechanism is only serviced after partial disassembly of the housing

In this case, the panel behind the housing may not interfere with daily use, but during major repairs, service will need access to the wall. If the furniture needs to be completely removed anyway, the central cladding is less critical. If service involves removing one cover without disassembling the cabinet, PAN‑007 should not complicate this scenario.

Related articles: why the new material does not repeat the bedroom and transformable furniture

General material slatted panels in the bedroom helps choose the overall composition of the room, but does not solve the specific issue of an already installed wall bed and service access.

Article about transformable furniture examines the principle of changing furniture itself, but does not calculate PAN‑007 around a specific mechanism. Here the topic is narrow: what exactly to buy after installing a wall bed.

Finishing, lighting, and operation of the finished PAN‑007

Mounting materials and finishing PAN‑007 around the wardrobe bed

After the geometry is approved, you can choose adhesive, primer, enamel, oil, or varnish. The specific composition depends on the panel material, the wall, and the selected finishing system. For related items, you can use the section Mounting and finishing materials.

It is especially important not to send the entire batch for finishing before checking the mechanism. If after painting it turns out that part of PAN‑007 overlaps the service fasteners, rework will become more expensive and complicated.

How to check the color of PAN‑007 next to furniture

If MDF is painted to match the wardrobe color, the sample should be compared with the actual facade, not just the RAL/NCS code. Different material, primer, and gloss level can produce a noticeable difference even with the same code.

For oak and beech, the natural grain and tone are important. The panel can be placed against the facade, floor, headboard, and textiles. In a bedroom, overly active wood can compete with the furniture, while a shade that is too close but not matching can look like a selection error.

How to check side lighting and the 23×8 mm relief

PAN‑007 creates a large light-and-shadow effect. If lighting is built into the wardrobe or ceiling, the boundary between the slatted and smooth service zone can become very noticeable. Before installation, it is useful to temporarily place OPAN‑007 next to the side panel and turn on all real lighting scenarios.

When you should not buy PAN‑007 for the entire wall

Full cladding is not needed if:

• The central zone is completely hidden in both bed states;
• The power fastening passes through the assumed panel;
• Access to the mechanism will become worse;
• Side service covers require a free wall;
• Natural oak is almost nowhere visible;
• The mechanism or housing touches the 8 mm relief;
• Short and long formats create extra horizontal joints;
• The panel conflicts with sockets or electrical wiring.

In these cases, partial cladding is more honest and commercially rational.

When PAN‑007 across the entire wall is truly justified

A full wall is strong if the wall bed reveals most of the background, service is organized independently of the decorative cladding, power points remain on the load-bearing base, the relief does not obstruct movement, and the material is needed as a full part of the bedroom.

How to build a wall service map before cutting PAN-007

For transformable furniture, it is useful to make not just a rectangle saying 'here will be a cabinet,' but a service map. On it, four types of zones are marked in different colors: load-bearing, service, visible decorative, and conditionally hidden.

Such a map gives much more information than the wall area. Two cabinets of the same size may require different cladding if one has service through the sides and the other through the back wall.

How to create a map without a special program

Take a frontal photo of the wall with the furniture open. On it, mark power points, covers, and cables. Take a second photo with the bed folded and mark which areas are actually visible. The intersection of the two images will be the basis for the future PAN‑007 layout.

If the power mounting is located only in the upper part of the cabinet

Sometimes the main load-bearing connection to the wall is above the body or in the upper zone. This does not mean that the entire lower part can be automatically covered with a panel: side adjustments and wiring may be located below. But such a scheme sometimes allows using PAN-007 behind the lower visible part of the bed, keeping the technical top without cladding.

In this case, it is visually useful to check whether an accidental horizontal boundary appears between the slatted and smooth surfaces. If it coincides with the top of the cabinet, the solution usually looks neater.

If the mountings are located along the entire height

With multiple anchor points along the side posts, it is better not to design a solid PAN-007 between the furniture and the wall until the installation diagram is obtained. Otherwise, a local cutout will have to be made for each mounting, and the decorative surface will turn into a set of technical holes.

If the wall bed has an independent back panel

Some designs already have their own back wall or decorative shield. If this part completely covers the wall, PAN-007 behind it is not visible and does not work. It is more logical to decorate the external side fields with slatted panels or, with a separate calculation, the decorative facade of the furniture itself.

If opening the bed reveals only the upper half of the wall

Then natural material in the lower hidden zone may be unnecessary. For example, the upper 900 mm are visible, while the lower 1500 mm are covered by the headboard and frame. In such a situation, a short PAN-007 of 950 mm may be more logical than a long 2400/2670 mm one, if the horizontal joint coincides with the upper line of the furniture.

This is a strong example where the short format is used not for a low price, but because it matches the actual visible architecture.

If, when unfolding the bed, a wall from floor to ceiling is visible

The opposite situation: the body moves forward, and behind it opens an almost full vertical plane. Here, a solid long PAN-007 works better than short modules. MDF 2670 mm or natural finish 2400 mm are selected based on height and the design joint.

If the wardrobe bed is installed in a niche

The niche itself sets the architectural boundaries. PAN-007 can be used only on the side slopes of the niche, only on the back wall, or around the external portal entirely. The internal technical zone remains smooth and serviceable.

The advantage of a niche is that the service gap does not look random: it aligns with the furniture volume.

If the wardrobe bed stands in front of a load-bearing wall

What to do with large remnants after longitudinal cutting

Strips 100–300 mm wide can be useful for narrow partitions, niche side walls, or as repair stock. But you should not promise in advance that any remnant will be useful: the direction of the slats, material, and length must match the new area.

Commercial calculations: when one panel covers two zones

Commercial example: side fields of 470 and 490 mm from a single MDF PAN-007

If both strips 2670 mm high really come from one long panel, the cost of the main material at the current price is 20,180 ₽. If you carelessly order two panels, the price becomes 40,360 ₽. The difference is another full panel.

But the savings need to be confirmed by actual longitudinal cutting and rhythm, otherwise the attempt to "squeeze two strips out of one" may worsen the edges.

Commercial example: two oak strips wider than 505 mm each

If each side zone is slightly wider than half a panel, one oak PAN‑007 can no longer be divided into two required elements. At a price of 43,790 ₽ per long module, the solution moves from one panel to two — 87,580 ₽. Therefore, even 20–30 mm of additional side width can have a noticeable impact on the budget.

How to check a future replacement of a wall bed

An interior panel can last longer than a specific mechanism. If a new wall bed in a few years turns out to be narrower, wider, or have different mounting points, a too-precise service niche will become noticeable.

Durable solutions:

• PAN‑007 only on the outer side fields;
• smooth service zone within the furniture niche;
• preserved spare panel from the same batch;
• Finishing boundaries tied to the architecture, not to a single bolt.

What to save after installation

It is useful to keep a photo of the wall before installing furniture, the fastening diagram, the dimensions of the service area, and a large leftover of PAN-007. For oak/beech, additionally retain a finish sample. If the mechanism needs servicing or replacement, this information will reduce the risk of damaging the decorative wall.

When a spare PAN-007 is justified

A whole additional module can be useful if natural oak/beech is used, the cutting is complex, new furniture is likely in the future, or the project is far from the supplier. But universally buying "one extra" is not necessary: sometimes large leftovers already provide sufficient repair stock.

When a spare panel is redundant

If the side areas are made from one panel, and after cutting a large solid fragment of suitable length and relief remains, a separate module may not be needed. The decision is made after the map, not by an automatic percentage.

Mistakes when ordering a slatted panel around a wall bed

Mistake 1. Counting the entire wall as a whole

The hidden technical area is included in the order, although no one will see it. The solution is to first create a visibility map, then calculate the footage.

Mistake 2. Not requesting the mounting diagram of the mechanism

You can close the power fastening or the service cover. The solution is to study the passport of the specific wall bed.

Mistake 3. Attaching furniture through PAN-007 without calculation

The decorative layer falls into the load-bearing unit. The solution is to attach according to the manufacturer's scheme to the load-bearing base.

Mistake 4. Buying expensive oak for a completely hidden area

The material does not work visually but increases the budget. The solution is to compare the visible area in two states of the furniture.

Mistake 5. Checking the interior only with the bed folded

After unfolding, another part of the wall opens. The solution is to photograph both states.

Mistake 6. Not checking the interior with the bed unfolded

The panel may turn out to be unnecessary or, on the contrary, needed most exactly there.

Mistake 7. Not using a sample

A large profile 23×8 mm is perceived differently than in the photo. OPAN‑007 reduces the risk of error.

Error 8. Counting quantity only by square meters

The width of 1010 mm and the shape of the side strips determine the number of modules.

Error 9. Forgetting about sockets and cables

After gluing PAN‑007, access to the electrical system becomes more difficult.

Error 10. Using short panels only because of the low price

Unnecessary horizontal joints appear and the vertical rhythm is broken.

Error 11. Making the service area a random rectangle

A smooth area looks unfinished. Its boundaries need to be tied to the furniture.

Error 12. Not thinking about future replacement of the mechanism

A new wall bed may have a different geometry, and a too precise decorative niche will become a problem.

Decision tree: PAN-007 across the entire wall or only visible areas

What to send to the manager before ordering PAN‑007

Prepare:

1. article PAN-007;
2. selected material;
3. photo of the wardrobe bed in folded state;
4. photo in open state;
5. width and height of the wall;
6. width and height of the furniture body;
7. ceiling height;
8. diagram of power fastenings;
9. service zones;
10. position of sockets and cables;
11. plan of visible areas;
12. preliminary map of 1010 mm modules;
13. desired finish.

After confirming the scheme, you can order a slat panel PAN-007 in the quantity needed for this specific composition.

Final order, delivery, and inspection before payment

Payment and delivery terms for long PAN-007

MDF 2670 mm and natural panels 2400 mm are long-length products. Before payment, it is useful to check payment and delivery terms, current availability and current price. If the layout is calculated without room for error, it is better to resolve the issue of a backup panel in advance.

Final specification of PAN-007 around the wall bed

Test examples of ready-made schemes

Test example: wall 4040 mm, cabinet 2020 mm, side fields 1010 mm each

If the central zone is completely hidden and service, four panels across the width would be needed for the entire wall:

4040 ÷ 1010 = 4.

After excluding the center, two strips of 1010 mm remain — two long PAN‑007. If MDF 2670 mm fits in height, the current material cost:

2 × 20 180 = 40 360 ₽ instead of 4 × 20 180 = 80 720 ₽.

Material savings — 40 360 ₽. But if a solid slatted zone is needed above the cabinet, part of the additional modules will return to the order.

Test example: side fields 500 mm each and top zone 740 mm

Two side strips theoretically fit in width into one 1010 mm panel: 500 + 500 = 1000 mm. If the height is the same and longitudinal cutting allows a beautiful edge, one long blank can cover both sides.

The top zone of 740 mm can be made with short MDF modules or remnants of long panels. This is where a detailed cutting map can drastically reduce the quantity.

Test example: oak is visible only when the bed is open

During the day the cabinet is closed, in the evening the bed lowers and reveals the central oak backdrop. In this project, the oak behind the furniture is not a hidden material — it works in the night mode of the bedroom. Full cladding of the center can be justified even at a high price.

Control example: the mechanism always closes the wall

The body, headboard, and rear panel of the furniture completely cover the wall both in the folded and unfolded state. PAN-007 is not visible behind them. If the service mounts are located there as well, there is no point in cladding the center. Only the side and top zones are purchased.

Before payment, fix on one working diagram the boundaries of PAN-007, module numbers, service zones, and power points of the wall bed. Then the cabinetmaker, finisher, and client work with the same geometry, and the solution does not change accidentally after painting and cutting. For moving furniture, this is especially useful: the decorative map remains separate from the load-bearing diagram of the mechanism.

Checklist before payment

• the exact model of the wall bed is known;
• the mounting diagram has been studied;
• the panel does not fall into the load-bearing assembly;
• the movement trajectory has been checked considering the 8 mm relief;
• service covers are accessible;
• sockets and cables are available;
• photos taken in two states;
• OPAN‑007 checked near furniture;
• visible areas marked on the plan;
• quantity counted by width of 1010 mm;
• length 740/950/2670/2400 selected by actual height;
• current price, availability, and delivery rechecked.

FAQ about PAN‑007 behind the wall bed

What sizes are available for PAN‑007?

In the current product card: MDF 1010×8×740, MDF/beech/oak 1010×8×950, MDF 1010×8×2670, and beech/oak 1010×8×2400 mm.

What is the thickness of PAN-007?

8 mm for size C; the rail profile is 23×8 mm.

Can PAN-007 be installed behind a wall bed?

Yes, if it does not interfere with the power mounting, movement, and maintenance of the specific mechanism.

Is it necessary to fully cover the wall?

No. Hidden and service areas can be excluded if they have no visual function.

Can the panel cover the mechanism mounting point?

Only if it is provided by the furniture manufacturer. It is not universally allowed to include a decorative panel in the power assembly.

What is a service area?

A section of the wall needed for access to fasteners, the mechanism, covers, adjustments, or electrical components.

Is it worth buying oak for the hidden part of the wall?

Only if that part is actually visible when the bed is open or has another interior function.

Can PAN-007 be made only on the sides of the wardrobe?

Yes. This is one of the most rational scenarios if the center is closed and technical.

How to design the area above the wall bed?

You can extend the side strips, make a single top field, use short panels, or leave a smooth wall — after checking the composition.

Is it worth ordering OPAN-007 first?

Yes, a sample of 184×8×310 mm helps evaluate the profile, material, and color next to real furniture.

How to calculate the number of modules?

Divide the wall into actually claddable rectangles and lay them out across panels 1010 mm wide and the required length.

Why doesn't the area give an exact quantity?

Two narrow side strips may require two separate panels, even if the total area is less than the area of one large module.

Can PAN-007 be used on the facades of a wall bed?

Only after a separate check of mass, mechanism balance, clearances, and trajectory. This is not an automatic continuation of wall finishing.

What to do when replacing the wall bed in the future?

Keep a large leftover of PAN-007 and document the boundaries of the service zone; new furniture may have different geometry.

Where to order PAN-007?

In the product card after approval of the mechanism, visible zones, and cutting map.

Summary: PAN-007 should be purchased based on the visible and serviceable architecture, not the entire geometric wall area.

PAN-007 has a width of 1010 mm, a depth of 8 mm, and a large profile of 23×8 mm. For a wall bed, this is not enough to answer "fits" or "does not fit." The mechanism is central: power mounts, movement trajectory, service covers, and access to electrical wiring.

If the wall behind the furniture opens up and becomes visible when the bed is unfolded, PAN-007 can be a full part of the bedroom there. If the area is always hidden and only needed for maintenance, there is no need to buy decorative material. Side strips and the top zone often give a cleaner and more economical composition.

After that, the quantity is calculated not by square meters, but by 1010 mm modules. The hidden area can remove two whole panels from the order, or it may not change the quantity at all — it all depends on the width of the side sections and the use of leftovers.

The correct sequence: wall bed passport → power points → trajectory → service → photo in two states → OPAN-007 → map of visible zones → 1010 mm layout → material and length → order.
