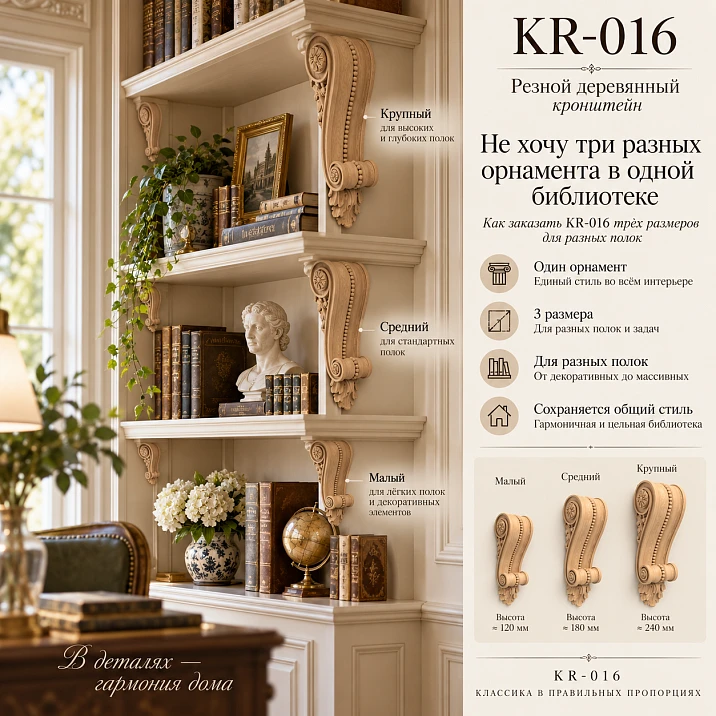

I don't want three different ornaments in one library: how to order carved wooden brackets KR-016 in three sizes for different shelves

In a library or study, there are often several levels: small side shelves, a main row, and a larger central composition. If you buy a separate bracket model for each scale, not only the size changes, but also the carving pattern itself. As a result, the furniture is assembled from one type of wood and painted one color, but the decorative supports look like three random series.

KR-016 allows solving the task differently. One carved motif is produced in three standard sizes at once: 271 × 80 × 74 × 36 × 71 mm, 337 × 100 × 92 × 45 × 88 mm, and 407 × 120 × 110 × 55 × 106 mm. This is not one part that the craftsman stretches on site, but three separate product modifications of one article.

For the project, this is convenient: you can preserve the general character of the ornament but distribute the dimensions across different nodes. However, the size cannot be assigned by the everyday formula "small — for a small shelf, medium — for a medium one." First, the actual furniture geometry, free space, shelf thickness, neighboring decor, and mounting scheme are checked. Only after that do the three versions of KR-016 make it into the procurement list.

Wooden Bracket KR-016

from 94.79 $

Go to Catalog

Carved wooden bracket KR-016: one pattern in three sizes

As of September 8, 2026, the KR-016 card shows three options A × B × C × D × E:

Beech and oak are available for all three sizes, as well as "Standard" and "Prestige." The current card shows the "Under enamel" gluing quality and an average production time of 5–10 days for custom orders.

If the ornament has already been chosen by the designer, buy carved wooden bracket KR-016 it is better after distributing the sizes to specific locations. In the order, it is not enough to write only "KR-016": one article number has three significantly different geometries.

Watch video ...

Wooden shelf brackets: first, distribute the three sizes across the project

The project list should not contain ready-made assignments like "271 — top shelf, 337 — middle, 407 — bottom." The manufacturer does not provide such a classification.

The working order is different:

1. obtain a drawing of the library or cabinet;
2. mark all locations of decorative brackets;
3. for each location, record the available height, depth, and adjacent elements;
4. overlay the dimensions of each standard KR-016;
5. choose the option that fits the specific node;
6. only after this, count the quantity.

Convenient project table:

Thus, the same pattern is distributed across furniture deliberately. Commercial request Buy wooden shelf brackets leads to a common category, but the final size assignment is made by the project, not the filter name.

Our factory also produces:

Decor Set C-003-4

from 318.27 $

Decorative molding KPU-125

from 10.25 $

Mounting plate, wood, FUR-020

from 7.44 $

Wooden capital KL-066

from 69.90 $

View Full Product Catalog

KR-016 271 mm: small size does not mean low allowable load

The shortest version has dimensions of 271 × 80 × 74 × 36 × 71 mm. This allows comparing it in scale with a specific location, but does not provide a load capacity table.

The KR-016 card does not include a value like "supports X kg." Therefore, it cannot be stated that the small bracket is designed for light shelves and the large one for heavy ones.

The load depends on the entire system:

• material and thickness of the shelf;
• number of supports;
• distance between them;
• wall or furniture material;
• mounting method;
• overhang length;
• nature of the load.

In the article, the 271 mm dimension is used as a geometric and decorative parameter. If the shelf must actually rest on KR-016, the engineering calculation of the mounting is performed separately.

KR-016 337 mm: how not to lose the medium version in the procurement list

The medium KR-016 is 337 × 100 × 92 × 45 × 88 mm. When all three sizes are present in one order, it is the medium item that easily gets lost between the "small" and "large" ones.

Bad line:

KR-016 / beech / 12 pcs.

It does not indicate how many items are 271, how many are 337, and how many are 407 mm.

More correctly:

KR-016 / 337 × 100 × 92 × 45 × 88 mm / beech / Prestige / Under enamel / 4 pcs.

For a furniture workshop, it is useful to give each size an internal project code, for example KR016-S, KR016-M, KR016-L. These are not new STAVROS article numbers, but warehouse marking that prevents mixing batches after receipt.

KR-016 407 mm: the large bracket is checked across the entire geometry

In the large version, not only A changes.

Comparison of three sizes shows:

Therefore, you cannot see "407 mm" and assume that the other parameters remain the same as in version 271.

B and C are especially important when the bracket is located near a molding, vertical post, facade, or door. The large ornament may fit in height but conflict in depth or side area.

A full-size cardboard template 407 × 120 with side overhang according to the drawing allows you to see this before purchase. But the exact thread shape and mounting part are checked against the current product drawing.

Three KR-016s — one series, but not one order line

For one library, the specification must separate three modifications:

After this, the designer can verify that each line is linked to its furniture zone.

Visually, this is one series. In procurement, there are three different product items of the same article.

This difference is especially important if the order is passed to a manager without a full design project. The phrase "need KR-016 in three sizes" still requires an exact quantity for each line.

Beech or oak: do not randomly change the wood species between levels

If the entire library should be perceived as a single ensemble, the material should be defined at once for all three sizes.

Combination:

• small — beech;
• medium — oak;
• large — beech

may be a deliberate design decision, but should not arise accidentally due to stock availability or a buyer's error.

This is especially important for semi-transparent finishes, where the wood texture remains visible. With opaque enamel, the wood color is covered, but the price, material structure, and preparation technology still differ.

In the statement, it's easier to write once:

The material of the entire KR-016 series is beech.
or
The material of the entire KR-016 series is oak.

After that, each line is checked for compliance.

"Standard" and "Prestige": size does not determine sanding quality

Both levels are available for all three KR-016 models.

"Standard" is machine sanding. "Prestige" is detailed manual sanding, where products do not require additional surface finishing.

Erroneous logic:

we take "Prestige" for large ones because they are more visible, and "Standard" for small ones.

Sanding quality is an independent parameter. If the entire library goes through its own paint shop with manual preparation, the workshop can choose "Standard" for the whole series. If a high degree of surface readiness is needed, "Prestige" is also better to set uniformly.

At the same time, the article does not turn into a repetition of the K-067 comparison: here the key point is not saving on sanding, but a unified specification of three sizes of one ornament.

KR-016 under enamel: what to record for a single-color library

The current card configuration shows "Under enamel." The manufacturer explains this as a grade of re-gluing without selecting lamellas by color and texture, intended for opaque finishing.

This does not mean that KR-016 is already painted.

For the project, it is enough to record:

KR-016 / size / material / Standard or Prestige / Under enamel / quantity.

A separate instruction to the painter contains the color, type of coating, gloss, and finishing technology.

If the client changes the opaque enamel to a transparent coating at the last moment, the quality of the re-gluing needs to be reviewed before payment.

Why you cannot buy 12 KR-016 and distribute the sizes already at the site

Because the three versions differ in all geometry and price.

Suppose, after design, the library requires:

• 4 KR-016 small size;
• 6 medium;
• 2 large.

If you order 12 items without specifying modifications, the manager will not be able to restore the design intent.

For the "Standard" book, such a conditional set costs:

4 × 7 770 + 6 × 9 760 + 2 × 13 500 = 116 640 ₽.

For the "Prestige" book:

4 × 13 910 + 6 × 16 920 + 2 × 21 960 = 201 080 ₽.

The difference is 84,440 ₽.

The numbers show that "12 KR-016" is not only geometrically but also financially an insufficient formulation.

Size, material, polishing, and quantity must be tied to the zone before ordering.

One KR-016 before a large batch: when physical fitting is more useful than rendering

If furniture is still being designed, one real bracket of the chosen size can provide more information than a screen render.

At the site, they check:

• real thread scale;
• protrusion relative to furniture;
• proximity to molding;
• distance to the door;
• visual weight under the shelf;
• color and texture of wood before finishing.

This is especially useful if the designer is hesitating between 337 and 407 mm in one prominent area.

But this should not be presented as a special "sample program" KR-016. It is about purchasing a regular product in a single quantity before launching a large batch.

After approval of the physical sample, its size and quality are recorded in the register as a reference.

Can KR-016 be considered load-bearing just because it stands under a shelf?

No.

The STAVROS category connects wooden brackets with shelves and furniture, but the specific card KR-016 does not publish the permissible load in kilograms.

Therefore, the article separates two tasks:

decorative choice — pattern, scale, material, sanding, finish;

engineering calculation — load, base, number of brackets, fasteners, overhang, shelf operation scheme.

Even the large KR-016 407 mm cannot be declared more "load-bearing" only because of its size. And the small 271 mm cannot be automatically considered weak.

If the shelf carries books, equipment, or other significant weight, the structure is checked by a designer or craftsman taking into account the real base.

How to coordinate one ornament on shelves of different scales

To make the series look cohesive, it is not enough to simply use one article number.

Need to check three compositional things.

First is rhythm. The small KR-016 can be placed more often, the large one less often, but this is determined by the shelf width and overall composition, not by a universal step.

Second is scale. On a narrow side shelf, a large bracket can visually dominate, even if it physically fits. In the central composition, a too-small one can get lost.

Third is axes. If several shelves are placed one above another, the vertical lines of the brackets should be coordinated on a common facade drawing.

Therefore, they design not three independent shelves, but the entire library as a whole. It is in this case that one KR-016 ornament truly ties the furniture into an ensemble.

What to check near doors, moldings, and vertical posts

The bracket can fit perfectly in height and still conflict with a neighboring element.

On the drawing, you need to check:

• door opening;
• the protrusion of the decorative molding;
• the vertical post;
• adjacent frame;
• plinth;
• electrical outlet or cable duct, if present;
• access to the mounting.

For the 407 mm version, it is especially important to consider not only the front contour, but also the side profile. For the 271 mm version, do not assume that the small size is automatically safe in a narrow space.

If in doubt, glue a cardboard contour with real A/B/C dimensions onto the wall or furniture. Such a mock-up does not confirm load-bearing capacity, but it quickly reveals geometric conflicts.

Why the three sizes genuinely read as one series

In KR-016, all five dimensions change, but the scaling remains close in proportions. This can be verified with simple arithmetic.

This is not a manufacturing tolerance or a formula for making a new size yourself. The table shows something else: the published standard variants do indeed maintain a close scale of the main proportions. That is why one ornament can be used in several library zones without creating the impression of three unrelated models.

But the same pattern character does not mean the same visual effect. On a narrow wall section, the 407 mm KR-016 may dominate, while on a large central shelf, the 271 mm one may look too small. Therefore, the scale is checked simultaneously across the entire facade layout.

Full-size library layout: trying 271, 337, and 407 mm simultaneously

One of the most useful stages before ordering is to make a frontal layout of the entire library at a 1:1 scale on the wall, or at least a large printed sketch.

For each standard KR-016, a separate contour is prepared. On the layout, the following are marked:

• the top and bottom of each shelf;
• the vertical axes of the sections;
• the edges of the doors;
• moldings and other protruding parts;
• the intended locations of the brackets;
• zones where the bracket should remain fully visible.

First, they check not the beauty of a single detail, but the overall rhythm. For example, if small brackets are placed under the side sections and large ones under the central section, it is important to see how the density of the ornament changes from left to right.

Then the side view is included. For each size, the depth C and other published dimensions are checked to ensure that the decorative detail does not conflict with the shelf, the facade, or the adjacent frame.

Such a mockup gives the designer two different checks: frontal composition and spatial conflict. It does not confirm the load — that is a separate engineering task.

Mixed batch KR-016: we count not only the quantity, but also the budget structure

A conditional order of 4 small + 6 medium + 2 large brackets is useful to calculate by lines, not as one total sum.

For the beech "Standard":

For the "Prestige" oak, the same geometric scheme costs:

4 × 15 350 + 6 × 19 840 + 2 × 27 310 = 235 060 ₽.

The difference between these two extreme options is 118,420 ₽. It arises not from the quantity, but from the combination of material and sanding quality for each size line.

Such a table is useful when agreeing with the client: you can change the material or sanding separately without losing the size distribution. If the project keeps one wood species and one quality for the entire library, the recalculation becomes transparent.

When one KR-016 size is better than trying to use all three

Having three standard versions does not obligate you to use them all in one project.

If the library is built on identical sections and shelves of the same scale, one size can provide a calmer rhythm. Three different options are needed only where the furniture architecture truly has different scales.

Do not introduce 271, 337, and 407 mm just to "show the entire lineup." Each new size should solve a specific compositional task.

If two zones differ only slightly, it's better to check whether one common size looks more cohesive. Conversely, if the central block is significantly larger, a separate 407-mm KR-016 may be justified precisely as a scaling of the same motif.

The decision is made based on the layout of the entire furniture piece, not on the number of available options in the product card.

How to accept delivery if the order contains all three sizes

When receiving a large batch, boxes should not be mixed immediately.

First, check:

1. item number KR-016;
2. full size A × B × C × D × E;
3. the material;
4. "Standard" or "Prestige";
5. quantity;
6. thread condition.

Each size is better stored separately until installation.

For the internal warehouse, the following labeling can be used:

• KR016-271;
• KR016-337;
• KR016-407.

This reduces the risk that the correct item number but the wrong modification goes to installation.

How to order KR-016 for three groups of shelves with one request

A ready-made request form might look like this:

KR-016 / 271 × 80 × 74 × 36 × 71 mm / beech / Prestige / Under enamel / 4 pcs.

KR-016 / 337 × 100 × 92 × 45 × 88 mm / beech / Prestige / Under enamel / 6 pcs.

KR-016 / 407 × 120 × 110 × 55 × 106 mm / beech / Prestige / Under enamel / 2 pcs.

The quantity here is for training purposes. It shows the recording format, not a ready-made library scheme.

It is useful to attach a facade drawing with designations P1, P2, P3 and a color schedule to the request.

If the entire composition belongs to the Empire style, you can separately view carved bracket in the Empire style in the thematic selection, but the article itself remains about KR-016 and its three standard sizes.

Where to buy wooden shelf brackets and KR-016

If KR-016 is already selected by pattern, the endpoint is the specific product card.

If the project is still comparing ornaments, Buy wooden brackets for shelves you can use the general category. There it's easier to understand whether KR-016 is really better than other series for the entire library.

Separate filter buy carved wooden brackets is useful when you need a carved character specifically, not a simple geometric holder.

The main purchasing principle is simple: one pattern can be kept on different shelves, but the three sizes of KR-016 should be allocated by the project in advance and placed as three separate order lines.

Questions before ordering KR-016

How many standard sizes does KR-016 have?

Three: 271 × 80 × 74 × 36 × 71, 337 × 100 × 92 × 45 × 88 and 407 × 120 × 110 × 55 × 106 mm.

Can 271 mm be called a variant for a small shelf?

Only after checking the specific project. The manufacturer does not assign this size to a specific type of shelf.

Is 407 mm necessarily placed under the largest shelf?

No. It is chosen based on geometry and composition, not by household classification.

Does only A change?

No. In all three variants, A, B, C, D and E change.

Can it be listed in one line as “KR-016 — 12 pcs.”?

It is not advisable. Separate lines are needed for each size.

Are beech and oak available in all three sizes?

Yes, the current card shows both materials for all three versions.

Are "Standard" and "Prestige" available?

Yes. Both levels of sanding are available for each size.

What does 'for enamel' mean?

This is the grade of veneer for opaque finishing, not a finished painted product.

How much does the small KR-016 in beech "Standard" cost?

As of the check on September 8, 2026 — 7,770 ₽.

How much does the large KR-016 in oak "Prestige" cost?

27,310 ₽ as of the check.

Which KR-016 supports more kilograms?

The card does not publish a load capacity table for the three sizes. The load-bearing scheme needs to be calculated separately.

Can I buy one bracket for fitting?

Yes, if you need to physically check the scale and geometry before a large batch. This is a regular purchase of the product, not a special sample program.

Do I need to use one material for the entire library?

If a unified specification is required, this is logical. Mixing beech and oak should be a conscious design decision.

What should I check before payment?

The full size of each row, material, sanding, quality of gluing, quantity, and binding to a specific furniture zone.

When is it better not to buy KR-016 for the entire series?

If at least one group of shelves requires different geometry, the bracket conflicts with the furniture, or the designer has not confirmed the mounting and load-bearing scheme.
