Sofa and dresser in one set: ordering wooden furniture legs MN-209 A=130 and A=160 mm

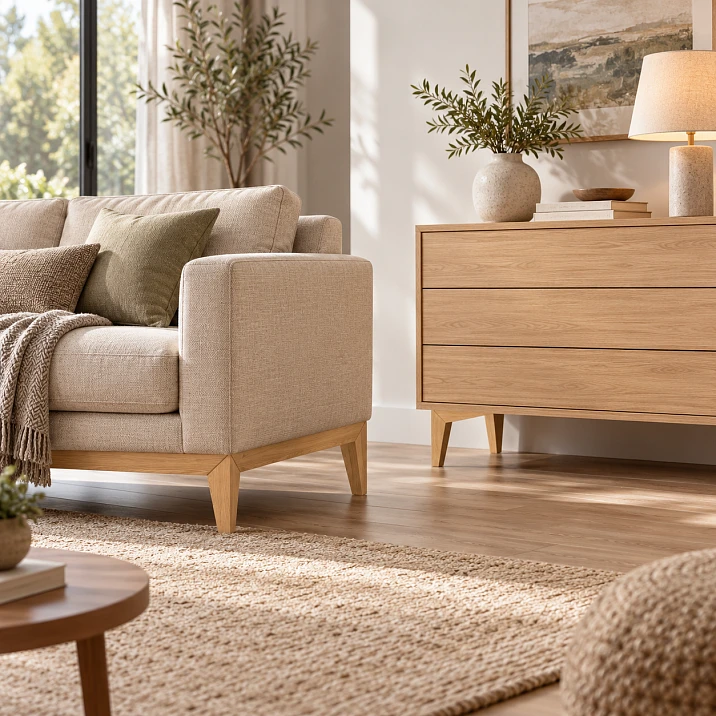

In one living room, a good sofa and a good dresser can stand together, but they still look like furniture from two different collections. The reason is often not the color of the facades or the fabric, but the lower part: the sofa stands on one set of supports, the dresser on another, or even on an almost invisible plinth. If you don't want to replace the items themselves, you can try to tie them together with one leg geometry.

For such a project, MN-209 is suitable: one model is available in two size versions — A=130 and A=160 mm. But it does not follow that the sofa and dresser automatically need the same version. Upholstered and case furniture have different bases, different mounting assemblies, and different functional heights. Therefore, the correct order is this: check the sofa separately, check the dresser separately, choose the appropriate MN-209 version for each, and only then combine the two specifications with one wood species, identical preparation, and finish.

If the model is already selected, you can buy geometric furniture legs MN-209 for both items in one purchase. In the order, there should be two separate lines: one for the sofa and one for the dresser.

Geometric Furniture Leg MN-209

from 35.87 $

Go to Catalog

Geometric furniture leg MN-209: one shape, two versions A

The MN-209 card has two standard versions of one model.

Both versions are made of beech and oak. The sanding quality is "Prestige". In the shown configuration, the "Under enamel" preparation is indicated.

The main technical limitation: parameter A cannot be declared as the finished mounting height of the furniture without a drawing. The card shows A=130 and A=160 mm, but for the project it is important what part of the leg actually protrudes below the body after installation, how the fastening is done, and whether additional elements are involved.

Therefore, in procurement it is better to keep the full record A×B×E×F rather than shorten it to "leg 130 mm" or "leg 160 mm".

This is especially important for a project with two different items. If the sofa and the dresser have different A options, the visual connection will still be maintained: B, E, F, and the overall silhouette of the model remain the same. The dimensional execution changes, not the language of the form.

Watch video ...

Why one SKU fits two items, but one size does not necessarily

From the outside, the task looks simple: if we want a unified set, we install identical legs. But the word "identical" can mean two different things.

The first option is the same model. Then the sofa and the dresser receive MN-209, but size A for each is selected separately.

The second is the same product item. Then both items receive, for example, only A=130 or only A=160.

Choosing the second option in advance is not possible. The sofa and the dresser have different structural conditions.

Therefore, the scenario "liked MN-209 A=160 — we buy eight identical ones and then distribute them" is wrong. First two installation projects, then one cart.

Unification here is built not on abandoning technical differences, but on controlled repetition of form. This allows making the sofa and the dresser visually related without forcing two different bodies to adopt the same joint.

Our factory also produces:

Decor Set C-027

from 135.29 $

Decor Set C-029

from 126.99 $

Decor Set C-030

from 90.27 $

Decor Set C-032

from 91.37 $

Decor Set C-033

from 131.99 $

Decor set C-034

from 144.31 $

Decor Set C-035

from 194.45 $

Decor Set C-036

from 213.73 $

View Full Product Catalog

Sofa specification: what to check before choosing A=130 or A=160

You need to start with the existing sofa. It cannot be evaluated only by a side photo.

First, the number of standard supports is fixed. If there are four, this does not mean that new legs should automatically be installed at the same points without checking. If there is a central support, it cannot be excluded for the sake of a symmetrical picture.

The sofa specification should include:

• the number of existing supports;
• coordinates of each point relative to the frame;
• material and construction of the load-bearing base;
• method of attaching the old leg;
• available area under the new mounting plate;
• current bottom mark of the frame from the floor;
• actual seat height;
• presence of central or hidden supports;
• distance to the floor under the soft block;
• transformation mechanism elements, if any.

After that, check drawing MN-209 and the actual mounting method.

You cannot use only the external dimension B=220 mm as confirmation of the mounting area. Similarly, E=39 and F=25 should not be independently declared as fastener assembly dimensions unless confirmed by the drawing.

If the task starts with selecting supports for upholstered furniture, it is useful to first open the section where you can legs for sofa to buy, and then return to the specific MN-209.

Dresser specification: the same legs, but a different structure

The dresser is checked separately. The mistake is to apply the same mounting conclusion to its photo that was already made for the sofa.

For cabinet furniture, other areas are critical:

• thickness and structure of the bottom panel;
• presence of a plinth;
• position of the side panels;
• corner joint of the body;
• location of lower drawers and guides;
• distance from floor to bottom edge of facade;
• plinth behind furniture;
• access to fastening from inside;
• stability of the body after changing supports.

If the old dresser stood on a solid plinth, replacing it with four separate legs is already a design change. It cannot be assumed that it is enough to remove the plinth and screw on the preferred MN-209 legs at the corners.

For verification, a diagram of the lower part of the body is needed. If it is not designed for point supports, the furniture maker must propose acceptable reinforcement or another installation method.

When specifically considering case furniture, one can buy legs for a dresser through the corresponding selection. This is more convenient than transferring to the dresser a solution that was chosen only for the sofa.

A=130 and A=160: a difference of 30 mm does not yet mean an increase in furniture by 30 mm

Simple arithmetic:

160 − 130 = 30 mm.

But this is the difference between the values of parameter A of two MN-209 versions. It does not give the right to write: "option A=160 will raise the sofa exactly 30 mm higher than A=130."

For such a conclusion, it is necessary to confirm how the leg fits into the mounting assembly.

The final height of the item should be calculated as follows:

H final = H of the body according to the accepted base + H of the installed support.

The second value is taken from the approved mounting diagram. It may depend on the position of the leg relative to the body, the method of fastening, and additional hardware.

Therefore, at the selection stage, only one thing can be said with confidence: between two product versions, A differs by 30 mm. How much the actual mark of the sofa or dresser will change after installation is confirmed by the project.

This is especially important if they are trying to match the seat height of a sofa or the gap under a dresser. Ergonomics of furniture cannot be calculated based on one letter from the product table.

Identical legs — identical size or just an identical silhouette

After two technical data sheets, two valid scenarios emerge.

One size MN-209 for both items

It works if both the sofa and the dresser truly pass the same check and yield the required heights. Then the specification is simpler: only the purpose and quantity differ.

For example:

sofa — MN-209 A=130, 4 pcs.;
dresser — MN-209 A=130, 4 pcs.

But this is a good option only after checking both bases.

Two sizes of one MN-209

If the structures require different versions, you can keep the model but split the sizes.

For example:

sofa — MN-209 A=130, 4 pcs.;
dresser — MN-209 A=160, 4 pcs.

Or vice versa, if the project decides so.

The article does not automatically assign A=130 to the sofa and A=160 to the dresser. Each item has its own functional height and its own node.

Visually, two sizes of the same model are often perceived better than an attempt to forcibly place one product item on different bodies. The eye reads the characteristic geometry, not just the number of millimeters.

Comparing the sofa and dresser on a single living room layout

Catalog photos do not show how two items work together. For the project, a single common layout is needed.

On it, mark:

• finished floor;
• plinth;
• bottom line of the sofa;
• bottom line of the dresser;
• silhouettes of MN-209;
• distance between items;
• main furniture nearby;
• the position of the rug, if it affects perception;
• visible shadows and free space under the cabinets.

It is useful to make two options.

In the first, both objects get one size A. In the second, A=130 and A=160 are used.

It is better to compare not the top of the sofa and the top of the dresser, because these objects are initially of different heights. The lower architecture is more interesting: how much air remains under each cabinet, how the legs read at a distance, and whether one object seems visually heavier than the other.

If identical MN-209 make the pair too emphasized, this is also a useful result. It is not necessary to link furniture at any cost. Sometimes a common color of the supports is enough, but not an absolutely identical model.

Beech or oak: two items should receive one finishing system

When the dimensional scheme is approved, you can choose the material.

MN-209 is produced in beech and oak. For the project “sofa and dresser as one series”, it is reasonable to simultaneously agree on:

• type of wood;
• quality of the blank;
• sanding;
• color;
• type of coating;
• gloss level;
• finishing contractor.

"Prestige" refers to the quality of sanding and does not mean color.

"Under enamel" refers to the preparation of the workpiece and does not mean already applied enamel.

If two groups of legs will be finished separately, they need to be given one agreed sample. Matching color names in two orders is not always sufficient for a visual pair.

Do not mix beech on the sofa and oak on the dresser just because one item happened to be cheaper or more available on a particular day. If the goal is a unified set, the difference in wood species will be part of the visual result.

To coordinate preparation, it is useful to check quality of wood and sanding, and only then finalize the finish in the overall specification.

How much do eight MN-209 cost in a mixed order?

Let's take a hypothetical project where the designer confirmed four legs for a sofa and four for a dresser. This is an example of an already calculated quantity, not a universal standard.

A total of eight MN-209 are required.

Beech

Both versions currently cost the same — 2,940 ₽.

If four legs A=130 and four A=160:

8 × 2 940 = 23 520 ₽.

For beech, the choice between two A values in this example does not change the cost of eight items.

Oak

Four A=130:

4 × 4 490 = 17 960 ₽.

Four A=160:

4 × 4 500 = 18 000 ₽.

Total amount:

17 960 + 18 000 = 35 960 ₽.

Difference between the mixed beech and mixed oak sets:

35 960 − 23 520 = 12 440 ₽.

This calculation shows an interesting commercial priority: in the current table, the choice of A has almost no effect on price, while the material has a noticeable effect. Therefore, the size should be selected based on the design and composition, rather than trying to save a few rubles between 130 and 160 mm.

FUR-023: a separate line that is easy to forget

In the MN-209 card, the FUR-023 support foot is listed in the required hardware block.

Its size is 25×25×5 mm, current price is 110 ₽ per piece. The FUR-023 card also indicates SUPER GLIDE sliding coating and a complete galvanized screw 3.5×20 mm.

If the installer confirms one support foot for each of the eight legs:

8 × 110 = 880 ₽.

Then the preliminary amount for these product items alone will be:

Beech

23 520 + 880 = 24 400 ₽.

Oak

35 960 + 880 = 36 840 ₽.

But the quantity of FUR-023 needs to be confirmed by the installation sheet. It cannot be automatically assumed that its 5 mm thickness will increase the furniture height by exactly 5 mm: the result depends on the actual position of the hardware in the assembly.

If the support feet are included in the approved scheme, it is better not to remember them after the legs are delivered, but to include them immediately buying the FUR-023 foot as a separate order line.

MN-209 mounting to a sofa and to a dresser are two different checks

A single model does not make two mounting points identical.

For a sofa, the load-bearing frame is checked. The load must be transferred to where the upholstered furniture design intends. If the old leg was held by a threaded stud or a separate plate, that fastener cannot be automatically used for MN-209.

For a dresser, the bottom panel and cabinet corners are checked. If the leg must be placed under a thin panel part, the furniture maker must confirm the reinforcement method. A long screw cannot be assigned just because it held well in an old sofa.

A particularly dangerous situation is when the mounting looks similar on the outside. Two screws from below do not mean the same load-bearing scheme.

Before ordering, the craftsman must separately sign off on:

Sofa: mounting location, base, connection method, number of supports.

Dresser: mounting location, base, connection method, number of supports.

Only after this are the two lines combined into a common model MN-209.

Checking gaps after modifying the lower part of the furniture

Even if the leg is technically installed, the new body mark may affect the use of the furniture.

For the sofa, check the seat height, distance to the floor, operation of the transformation mechanism, and position relative to the adjacent coffee table.

For the dresser — lower drawers opening, plinth, stability, access for cleaning, and a visual gap under the body.

If a robot vacuum is used in the living room, its passability can be checked as an additional condition, but not turned into the main criterion of this article. Here the task is different: to combine two items with one support without breaking their original function.

Do not raise the dresser just to match the sofa line if the lower drawers become inconvenient afterward. And do not reduce the actual support of the sofa for a beautiful overall silhouette if it worsens the seating.

When the idea of "one MN-209 for the whole living room" does not work

There are situations where it is better to abandon a single model.

First — MN-209 does not fit the sofa's power node without serious modification.

The second is that one of the dimensions disrupts the dresser's geometry: it interferes with the fronts, baseboard, or requires disproportionate reinforcement.

Third — the required number and placement of supports differ so much that the overall pattern ceases to be perceived as a single system.

Fourth — MN-209 is visually too large for a single item, even if it is structurally suitable.

Fifth — the two required mounting heights cannot be achieved with standard versions without unverified leg modification.

In this case, it is more reasonable Buy wooden furniture legs a different model that will pass both checks, rather than fitting furniture to a pre-selected SKU.

A unified interior does not require all solutions to be identical at any cost. It requires that sameness be meaningful.

How to specify two specifications in one order

The final request should not look like “MN-209 — 8 pieces.” Even if the total quantity is exactly eight.

It is more correct to separate items by piece of furniture.

Sofa

MN-209 / A×B×E×F = ___×220×39×25 mm / beech or oak / “Prestige” / glue quality to be confirmed / quantity per sofa construction.

Chest of drawers

MN-209 / A×B×E×F = ___×220×39×25 mm / same wood species / "Prestige" / agreed preparation and finish / quantity per dresser construction.

Hardware

FUR-023 / quantity per approved installation list.

It is useful to attach two separate diagrams with installation location markings to the order. For example, D1–D4 for the sofa and K1–K4 for the dresser. The letters are project designations, not new article numbers.

If finishing is done after purchase, both groups must receive the same specification for color and gloss. If one group remains in natural wood and the other is covered with enamel, that is a different interior concept and it must be documented separately.

Before paying, it is worth checking payment and delivery terms for furniture legs, especially if the assembly of the sofa and dresser is scheduled for the same day.

After confirming the two nodes, you can order MN-209 for the furniture set in one purchase, but with two clear specification lines.

Receiving two groups of MN-209 before finishing and assembly

When eight legs arrive at the site, you should not immediately distribute them between the sofa and dresser, and especially not send them for finishing without verification. A paired interior project benefits from one short acceptance inspection of the entire batch.

First, the two product groups are laid out separately according to the specification: for example, four A=130 and four A=160. Check the quantity, material, full A×B×E×F notation, and sanding quality. If the project uses one size for both items, marking still remains useful: D1–D4 for the sofa and K1–K4 for the dresser.

Then, the legs within each group are compared on a flat surface. The purpose of this stage is not to independently assess the permissible load, but to ensure that the delivery matches the order and that there is no obvious confusion between the two versions.

After that, the selected sample of each size is applied to its assembly diagram. Not only holes and base area are checked, but also whether the furniture design has changed after measurements: for example, the furniture maker might have reinforced the bottom of the dresser or replaced a sofa frame element. If the design node has changed, the fastening decision is reviewed before finishing.

The finish is also better launched as a single task. For two sizes, one sample of color and gloss is made, but the marking of parts is not mixed. After painting or tinting, the craftsman must understand which four legs belong to the sofa and which to the dresser.

The final check is done right next to the furniture: whether the selected finish matches the sofa fabric, dresser front, floor, and baseboard. If the sample looked calm but the color is too contrasting in the room, it's better to adjust the finish before installing the entire batch.

This procedure reduces the risk of two typical errors: confusing A=130 and A=160 between items, or getting one model but two visually different groups due to an inconsistent finish.

Questions before purchasing MN-209 for a sofa and dresser

Can MN-209 be used for a sofa?

The model is listed in the sofa legs category, but a specific sofa still requires checking the load-bearing frame and attachment method.

Can MN-209 be installed on a dresser?

Yes, this model is also used in case furniture. But the bottom panel of a specific dresser must be designed for the chosen mounting unit.

What sizes are available for MN-209?

The product card shows A×B×E×F 130×220×39×25 and 160×220×39×25 mm.

Does A mean the exact mounting height?

Without confirmation of the drawing and the assembly, this cannot be stated. A is a dimensional parameter of the product table.

Will A=160 raise the furniture exactly 30 mm higher than A=130?

This does not follow from a single difference in A. The actual height of the installed support is confirmed in the project.

Is it mandatory to take the same size for the sofa and the dresser?

No. For a unified look, it is enough to keep the model, wood species, and finish. The size may differ if the two cabinets require it.

Can I order A=130 and A=160 at the same time?

Yes. It is better to list them as separate line items with designations for the sofa and the dresser.

How much do eight beech MN-209 cost?

In the set of four A=130 and four A=160 — 23,520 ₽ just for the legs.

How much does the same set in oak cost?

Four A=130 and four A=160 cost 35,960 ₽ for legs only.

Is FUR-023 needed?

The MN-209 card shows FUR-023 as required hardware. The specific quantity is confirmed by the installer according to the mounting list.

Is FUR-023 included in the price of the leg?

It is listed as a separate item and has its own price.

What does "Prestige" mean?

This is the quality of sanding, not a color or a finished topcoat.

What does "under enamel" mean?

This is a preparation option for the workpiece for subsequent opaque finishing, not already applied enamel.

Can the old sofa fasteners be used?

Only if the installer confirms compatibility with MN-209 and the support frame. The old connection cannot be transferred automatically.

Where can I see an example of MN-209 on cabinet furniture?

You can Look at the KMD-018 dresser with MN-209 as an example of applying this geometry to a dresser.

Where can I buy wooden legs for a sofa and dresser?

If you specifically need MN-209, use the model card. If it does not pass the check for at least one item, it is better to return to the general catalog and choose another model that fits both frames.
