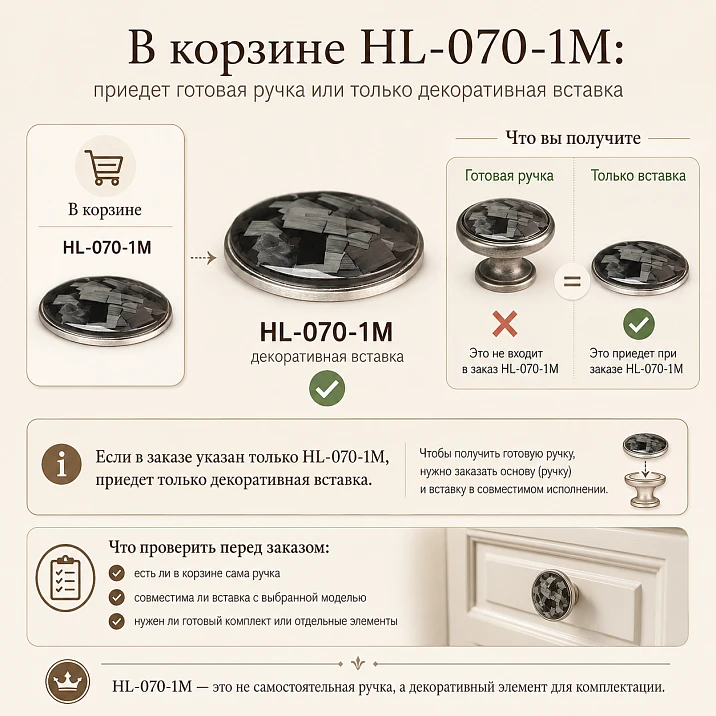

In the cart HL-070-1M: will a finished handle arrive or only a decorative insert?

HL-070-1M has appeared in the cart, the photo looks like a finished face part, the material is selected, the quantity is specified — it seems the order can be paid for. But the item name says more accurately than any impression from the image: decorative insert for furniture handle HL-070-1M. This is not a minor formality. Before payment, the buyer must determine what is included in the selected product line: only the insert, the insert with a metal frame, the handle body, fasteners, a decorative cap, or a fully assembled set.

Such verification is especially needed when fittings are purchased not for a single sample, but for a kitchen, cabinet, wardrobe, dresser, or a series of furniture. An error in one line of the specification is multiplied by the number of facades. Ten inserts without compatible bodies do not turn into ten finished handles, and separately ordered screws do not guarantee that their length will match the door thickness. Therefore, before buying the decorative insert HL-070-1M, you need to read the product card not as an advertising description, but as a basis for precise configuration.

For HL-070-1M, the dimensions 74 × 74 × 13 × 32 mm are confirmed, the metal part is made of stainless steel, and there are five face finish options: zebrano, wenge, palisander, walnut, and carbon. This information helps choose the appearance, but by itself does not answer the main question: what will physically be in the box for one item. The answer must be fixed in the card of the selected modification, invoice, or written confirmation from a STAVROS manager.

HL-070-1M decorative furniture handle insert

from 36.45 $

Go to Catalog

The item name should be read literally, and the photo should be checked

Watch video ...

Why a finished look in the photo does not yet mean a complete set

In the product photo, the buyer sees an expressive round shape with a wooden or carbon face part and a metal frame. The eye perceives the object as a whole. The cart, however, works not by visual impression, but by article numbers and selected modifications. If the item is called an insert, you cannot automatically assume that the base, body, screw, and decorative cap are ordered along with it.

In furniture fittings, one photo often shows how the part is used. This is convenient for evaluating the design, but insufficient for creating a specification. Completeness is confirmed not by the angle or interior visualization, but by the list of included parts. When such a list is not next to the order button, it should be requested.

Our factory also produces:

Geometric Furniture Leg MN-197

from 34.52 $

Wooden capital KL-066

from 69.16 $

Wooden Decor N-071

from 19.31 $

Wooden Decor N-115

from 16.42 $

Wooden Decor N-243

from 32.83 $

Geometric Furniture Leg MN-054

from 43.09 $

Decor Set C-054

from 364.87 $

Stair Post L-080

from 683.04 $

View Full Product Catalog

Why the habit of calling any face part a handle is dangerous

In conversation, the word "handle" can mean both a fully assembled mechanism, a visible part, and a decorative disc. In an order, such looseness is unacceptable. The phrase "need twelve HL-070-1M handles" does not answer production questions:

• need twelve inserts or twelve assembled units;

• are metal bases included;

• is there fastening hardware;

• are decorative caps required;

• is the fit the same on all facades;

• is the compatible housing model confirmed.

The larger the project, the more expensive an imprecise noun is. In the list, it is better to write the full name: "decorative insert of furniture handle HL-070-1M", and below, on separate lines, list everything that turns it into working hardware.

The first question before ordering should be unambiguous

A useful wording for the manager is simple: "Please confirm what is included in one selected item HL-070-1M: only the decorative insert, the insert with the metal part, or the fully assembled furniture handle." Next, you need to request the article number of the compatible housing, the composition of the fasteners, and the need for FUR-033.

Such a question does not show distrust of the seller. It protects both parties from different interpretations of the word "set". After a written response, the buyer will be able to compare the cart with their facades and will not find missing parts already during installation.

What is confirmed for HL-070-1M, and what still requires clarification

Closer to the start of selection, it is useful to divide the facts into two groups. The first is confirmed by the product card. The second depends on the specific delivery and should not be assumed by analogy with other handles.

The table does not replace the drawing. The dimension line 74 × 74 × 13 × 32 mm gives four numbers, but without a diagram, each of them cannot be confidently identified as a diameter, thickness, seating depth, or distance to the mounting. In the article, these letter parameters do not receive invented interpretations. Before ordering, the buyer opens the product drawing and checks the direction of each axis.

Insert, body, fastener, and plug are four different tasks

The decorative insert is responsible for the front appearance

HL-070-1M is chosen for the combination of round shape, wood grain or carbon, and stainless steel. This part is visible on the facade and determines the impression of the furniture. But the decorative role does not equal the load-bearing or fastening function. Even if the insert seems massive and complete, the card itself calls it an insert.

It is useful for the buyer to ask the question: "Which part will I grab with my hand when opening the facade?" If the answer depends on a separate body, the base should be included in the specification. If the selected item already contains a working handle, this should be clearly stated in the order confirmation.

The body forms the working geometry

The body or base determines how the hardware connects to the facade, where the grip point is located, and how the insert is held. Compatibility of the body cannot be determined by similar color, round contour, or approximately matching size.

Two externally similar parts may differ in:

• mounting form;

• depth;

• position of the locking element;

• the connection method;

• inner socket size;

• orientation;

• tolerance between metal parts.

Therefore, the phrase "any round handle with a diameter of 74 mm will fit" is not sufficiently justified. A confirmed part number of a compatible body or assembled unit is required.

The fastener connects the handle to a specific facade.

Even if the insert and body match completely, the facade remains. Its thickness, construction, and hole location affect the screw length and the ability to tighten. One cannot declare a single screw universal in advance for a solid wood door, thin panel, framed facade, or multilayer furniture part.

Before ordering, measure the actual thickness at the mounting point. Then check which fastener is provided by the handle design and whether it is included in the item. If screws are supplied separately, their quantity must match the number of mounting points, not just the number of inserts.

The cap covers the visible part of the fastener but does not replace it.

FUR-033 is a metal decorative cap in nickel color, designed to cover the screw head. It helps make the fastening neat, but it does not serve as a screw and does not fix incompatibility between the body and the facade. Solution buy cap FUR-033 accepted after checking the type of fastener, the location of the visible head, and the total number of nodes.

In the cart, the plug must be listed as a separate line unless the HL-070-1M card directly confirms otherwise. It is especially dangerous to assume it is included just because it is shown among related products or mentioned next to handles.

Finished handle or separate insert: verification algorithm before payment

Step one — record the selected product line

The card may have options in zebrano, wenge, rosewood, walnut, and carbon. Save not only the article HL-070-1M but also the exact modification. The invoice must contain wording that makes it impossible to confuse the material.

For a project with multiple furniture items, it is useful to add the installation location to the line: "HL-070-1M, walnut, stainless steel — tall cabinet, 4 pcs." This does not change the product but helps during acceptance and batch distribution.

Step two — request the composition of one item

A literal list is needed: insert, metal edging, body, fasteners, decorative plug. The answer "everything necessary" is too general. For the installer and packer, the names and quantities of parts are important.

If the seller confirms that HL-070-1M is purchased separately for replacement, additionally ask which model and modification of the handle it fits. If the item is supplied together with the handle in the selected variant, this is also recorded in the invoice or correspondence.

Step three — obtain the article of the compatible body

The external shape does not replace the article number. If there is a separate base in the order, there must be an exact reference or item name. The words "body for this insert" leave a risk that a different component will be selected on repeat purchase.

For serial furniture, the body article number is entered into the specification next to HL-070-1M. Then production can repeat the set after several months without searching by photo.

Step four — check the drawing and the facade

The HL-070-1M drawing is needed not only by the technologist. It shows how A, B, C, and D are read, where the seating part is located, and which zones cannot be overlapped. The drawing of the compatible handle and the mounting diagram should be considered together.

On the facade, check:

• the thickness at the installation point;

• the free field around the handle;

• the distance to the edge, frame, and panel;

• the absence of conflict with the adjacent door;

• the position of the handle relative to the drawer;

• access to the fasteners from the reverse side;

• the ability to open the door without contact with another facade.

Step five — match the quantity of all components

If 18 working handles are required, the basket must contain not only 18 inserts. It is necessary to check the number of housings, fastener kits, and plugs. Equality in one row does not compensate for a shortage in another.

It is more convenient to use a list where each working handle forms a set:

1 insert + 1 compatible housing + fasteners according to the scheme + the required number of plugs.

This formula is conditional: the exact composition is confirmed by the cards. Its meaning is different — to count not individual beautiful parts, but units ready for installation.

The size 74 × 74 × 13 × 32 mm cannot be read without a drawing

Two identical numbers do not automatically give the right to talk about the diameter

In the size line, A and B are equal to 74 mm. For a round face shape, this may coincide with the dimensions in two directions, but the engineering conclusion must be based on the drawing. If the buyer uses the number to manufacture the mounting seat, the assumption is unacceptable.

Safe wording in the specification: "Size A × B × C × D — 74 × 74 × 13 × 32 mm; axis direction and mounting parameters — per official drawing." Such a phrase is longer than the usual "diameter 74," but it does not turn a visual guess into a technical requirement.

The numbers 13 and 32 mm cannot be arbitrarily called thickness and depth.

Marketing text on the product card may provide clarification, but the diagram remains decisive for production. The insert design may have several levels: front part, metal frame, mounting part, and body. Without an image with dimension arrows, it is impossible to honestly determine from which surfaces the 13 and 32 mm are measured.

It is especially dangerous to use these numbers when independently milling a facade or body. First, check whether the selected set requires such an operation at all. Then obtain the drawing, and only after that assign dimensions.

The insert dimension is not equal to the center-to-center distance of the fasteners.

HL-070-1M should not be compared with an old handle only by visible width. If the facade is already drilled, the mounting parameters of the working handle are needed. The insert size does not indicate whether the hole will match, whether the old mark will be covered, or whether the base area is sufficient.

When replacing hardware, measure separately:

1. position of the old hole or holes;

2. diameter of the damaged area;

3. facade thickness;

4. dimensions of the new handle base;

5. direction and number of attachment points;

6. access to the reverse side.

If at least one parameter is not confirmed, ordering one insert does not solve the problem of old holes.

Compatibility cannot be established by external similarity

A similar round handle may have a different mounting socket

Catalog Buy wooden furniture handles helps compare shapes, sizes, and application options, but does not give the right to swap inserts between models. Some handles are made as solid parts, others have a metal base, and others provide a decorative element of a different shape.

If a round handle is visually close to HL-070-1M, you need to compare not the photo, but the drawings, composition, and article numbers. The coincidence of the external 74 mm does not prove the equality of the internal fit.

Stainless steel must match not only in the name of the material

Even within one group, the visible metal part may differ in texture, processing direction, and shade. The article does not establish a specific surface type for HL-070-1M beyond what is confirmed by the card. When selecting a housing, ask to see how its metal looks next to the insert.

For one furniture series, it is reasonable to order the set at the same time. This reduces the risk that in a few months a new batch will visually differ due to different processing or natural changes in available materials.

Compatibility is a manufacturer's confirmation, not a mounting experiment

Attempting to "order one insert and try it on a random pen" is only acceptable as a test without processing the product and without expecting a guaranteed result. For a finished project, it is better to obtain written confirmation of a compatible model in advance.

You can send the manager a photo of the existing pen, its article number, drawing, and dimensions. If the article number is unknown, a single photo is not enough for a precise promise. In that case, it is safer to consider a new complete set rather than replacing the insert in an unidentified body.

Five execution options: the material is chosen after configuration, not instead of it

Zebrano

Zebrano is noticeable for its contrasting pattern. In a large batch, natural stripes will not repeat like a printed ornament. This must be accepted before ordering: living material creates differences that can be an advantage but require conscious layout.

For paired doors, it is useful to request matching based on the overall visual character or to first lay out the received inserts in pairs. Mirror matching of the natural pattern cannot be promised unless such a condition is separately confirmed.

Wenge

Wenge is chosen for a dark wood palette and contrasting combinations. When purchasing remotely, the screen does not give an accurate representation of the shade. For a large set, checking a sample or photos of a specific batch is more useful than an abstract color name.

If some pens have already been purchased, a new order should be placed with the previous invoice number and a request to check visual compatibility. Full matching cannot be promised without confirmation.

Rosewood

Rosewood can become a standalone accent on a calm facade. But the article about configuration should not turn into a repetition of general material about style. What matters more to the buyer is this: all rosewood inserts must be clearly specified in the order, and the bodies and metal parts must match by model.

With mixed furniture, rosewood and walnut cannot be randomly distributed across adjacent identical doors. If the project involves different materials, the diagram must show where each one is located.

Walnut

Walnut provides a warm wood note and is often perceived as calmer than contrasting zebrano. However, the word "walnut" does not replace agreement with the facade. Natural material varies in pattern and tone, especially between batches.

For a kitchen or wardrobe where there are many handles, ordering in one batch simplifies layout. Leaving the purchase of missing inserts until the end of installation is risky: the required option may have a different stock or delivery time.

Carbon

Carbon differs from natural wood in the character of its pattern. It is considered when the project needs a more technological look and repeatable visual logic. At the same time, carbon does not eliminate configuration issues: the body, fasteners, and cap are checked in exactly the same way.

You should not simply write "black inserts" in the specification. Specify "HL-070-1M, carbon, stainless steel" and the quantity. Such a record reduces the risk of material substitution with a colloquial description.

Why materials should not be mixed for variety

Five options in the card are a choice opportunity, not a call to use all five on one cabinet. On identical facades, a random mix of zebrano, wenge, palisander, walnut, and carbon destroys seriality. The exception is a pre-designed composition where differences are supported by other elements.

For a regular order, it is safer to assign one material to one furniture group. For example, walnut for all cabinet doors, carbon for a separate cabinet. The list must exclude free distribution by the installer.

With or without coating: do not confuse two different purchasing strategies

HL-070-1M is in the section where you can buy furniture handles with coating. This is a logical path when you need a ready visible finish and an agreed insert material. But nearby there is another product group — handles without coating, designed for subsequent finishing.

Ready-made execution is convenient for precise configuration

When ordering HL-070-1M, the material is already part of the selected modification. The buyer chooses zebrano, wenge, rosewood, walnut, or carbon and does not plan to independently turn one wood species into another by painting.

This does not mean that no furniture work is needed. It simply means that the final appearance of the insert should not remain undefined. The cabinet body, front, and other parts must be coordinated with it before installation.

Unpainted handles solve a different task

If the project requires a single enamel matching the facade color or independent tinting, it is reasonable to separately buy furniture handles without coating and choose a model originally intended for such finishing. HL-070-1M cannot be considered a blank for arbitrary painting just because part of the product resembles wood.

Before any surface modification, the admissibility of processing must be checked. Unauthorized sanding, painting, or disassembly of the finished insert may damage the joint and appearance.

The two strategies should not be mixed in one line

The phrase "HL-070-1M, walnut, paint to match the facade color" contains an internal contradiction. If walnut is chosen for its grain, opaque paint covers the material. If enamel is needed, an alternative handle without coating should be considered.

The article maintains a product focus: HL-070-1M is considered a decorative insert with the execution specified in the product card, not a universal blank for any finishing operation.

How to calculate the quantity of HL-070-1M without incomplete sets

You need to count opening elements, not pieces of furniture

One cabinet can have two, four, or eight doors. One dresser can have several drawers. The formula "one handle per item" is almost always useless. The basis of calculation is the number of facades that actually require a separate working unit.

Let us denote:

• F — the number of facades with a handle;

• R — the number of working handles per facade;

• K — confirmed reserve;

• Q — the final number of sets.

Then:

Q = F × R + K.

The formula does not determine the completeness of HL-070-1M. It shows the number of working units. After calculating Q, each component of the set is multiplied by this number.

Example for a cabinet

The cabinet has four hinged doors, each with one handle. The project does not include a reserve.

F = 4, R = 1, K = 0.

Four working sets are needed. If HL-070-1M is sold as a separate insert, the cart should contain four inserts, four compatible housings, and fasteners according to the scheme. The number of FUR-033 depends on the number of covered caps and the confirmed design.

Example for a dresser

The dresser has six drawers. On the wide bottom drawer, the design specifies two handles, and on the remaining five, one each.

Number of working units:

5 × 1 + 1 × 2 = 7.

Buying six inserts according to the number of drawers will leave the bottom front incomplete. The layout must account for the actual number of grip points.

Example for a kitchen

In the kitchen, there are 14 hinged fronts and 8 drawers. Two wide drawers get two handles each, and the remaining six get one each.

14 + 6 + 2 × 2 = 24 working sets.

If an additional service set is needed, the total will be 25. But the reserve is not added mechanically. For expensive hardware, the decision depends on the project scale, the possibility of reordering, and the client's requirements.

Why inserts, bodies, and caps are counted separately

Suppose a working handle has one insert and one mounting point covered by one cap. Then the quantities may match. But this example cannot be turned into a universal configuration. If the body is mounted differently or FUR-033 is used in a different number, the list changes.

The correct calculation table looks like this:

This calculation looks stricter than a regular basket, but the installer immediately sees what is missing.

When one trial position saves the cost of the entire batch

A sample is needed when the configuration is unclear

If the card allows different interpretations, a trial order helps to see the physical composition of the position. But it is better to first get a written answer. A sample should not replace available product information.

After receipt, check the packaging label, number of parts, material, surface condition, and connection with the compatible housing. The product should not be disassembled or installed until the mounting method is confirmed.

A sample is useful when replacing an insert in an existing handle

The buyer may have a previously installed housing of unknown modification. In such a situation, even precise external dimensions do not guarantee fit. A trial position is acceptable if the manufacturer cannot confirm compatibility by article number.

However, the decision should take into account the possibility of return and the condition of the product. Do not damage the packaging more than necessary, remove the coating, or try to force the insert into place.

For a serial kitchen, the sample is checked on a real facade

Before ordering dozens of positions, it is useful to assemble one complete working unit on a test facade or a sample of the same thickness. Check:

• whether there is enough space for grip;

• does the handle not catch on the adjacent door;

• is the fastener accessible;

• does the metal part match the hinges and other hardware;

• does the cover plate hide the visible screw head;

• does the front part not interfere with the frame;

• is it convenient to open a heavy drawer.

The test answers practical questions that cannot be resolved with a single photo.

Why it's better to order the entire visible series in one batch

The natural pattern does not repeat mechanically

Zebrano, wenge, palisander, and walnut have natural variability. Within a batch, inserts may differ, and between deliveries, differences can become more noticeable. This is not a defect in itself if the material matches the declared wood species and accepted quality.

For paired fronts, after receiving them, layout is done. Elements that look good together are placed on adjacent doors. Installation in unpacking order may result in random pairs.

Metal parts should look like a single series

Stainless steel ties different insert options together with a common outline. If the body is purchased separately, its surface must be coordinated with the insert. Ordering from different sources increases the risk of mismatch in shade, gloss, and texture.

Therefore buy furniture hardware it is reasonable within a single specification, where the main item and related parts are listed. This simplifies consultation and acceptance.

A single missing item can delay the entire installation

A kitchen cannot be considered complete if one front remains without a working handle. Reordering takes time, and the installer has to return. A reserve is sometimes economically justified, but its size is determined by the project.

For a small dresser, a spare may be excessive. For hotel furniture, a large walk-in closet, or serial production, one or several service kits are useful. The decision is recorded before the invoice is issued.

What to buy together with HL-070-1M

The kit should not be assembled as a random list of related products. Each additional item must address a specific task: ensure a working grip, attach the handle, cover a visible screw, repeat the style, or organize delivery.

Housing cannot be replaced with a "similar" one

If a separate handle for HL-070-1M is confirmed, order exactly that one. A similar base from another family may not match in fit. Self-modification of the metal part without approval creates risk of damage and loss of precision.

Screws are selected after measuring the facade

A screw that is too short will not provide a secure connection, while one that is too long may interfere with tightening or damage the assembly. What is needed is not an approximate door thickness, but a measurement at the installation point. On a framed front, the thickness at the edge and at the center may differ.

FUR-033 is selected based on function and compatibility

A nickel-colored cap visually complements stainless steel, but the color does not prove mounting compatibility. The screw head shape, installation location, and the need for covering must be checked. In the specification, it is better to list the number of caps as a separate line.

The collection section helps in selecting adjacent models

When HL-070-1M is needed not on all furniture, but only on large fronts, the remaining doors can be fitted with other hardware of a similar style. The section buy handles from the "Modern" collection helps compare models of the same direction.

At the same time, belonging to a collection does not imply identical mounting or interchangeability of parts. Each handle is checked against its own card.

HL-070-1M for wardrobe, dresser, nightstand, and kitchen

Tall cabinet

On a tall front, a round insert of 74 × 74 mm can serve as a noticeable accent, but convenience depends on the full handle and the grip position. Before ordering, it is necessary to know how much the body protrudes from the door and whether it is convenient to open a heavy panel.

If the cabinet is double-door, the two handles should be positioned symmetrically. Buying one insert for a pair of doors will create a visually and functionally incomplete unit.

Chest of drawers

For a drawer, the weight of the contents and the width of the front are important. For a narrow drawer, one grip point may be enough; for a wide one, the project sometimes provides for two. The decision is made by the furniture designer, not the insert seller.

With two handles on one drawer, the holes need to be marked especially accurately. Any deviation becomes noticeable next to the round geometry.

Bedside table

For a cabinet, one or two positions are often required, so the risk of incomplete delivery seems small. But even one insert without the body will delay assembly. In a small order, it is especially useful to get confirmation of the composition of one position before payment.

If two cabinets stand on either side of the bed, it is better to order the hardware at the same time. The material and direction of the wood grain can be distributed in pairs after receipt.

Kitchen

A kitchen combines many fronts of different sizes. You cannot automatically assign the same number of handles to a door and a wide drawer. A front list with numbering is needed.

Also check that the protruding handle does not conflict with the corner door, adjacent drawer, or appliances. Testing one complete unit before mass drilling reduces the risk.

Wardrobe

In a walk-in closet, handles are visible simultaneously over a large area. A mismatch in material or metal part becomes more noticeable than on a single dresser. All inserts and bodies should be distributed by sections before installation.

For a project with dozens of fronts, a packing list is added: section number, article number, material, quantity, and reserve.

Study and sideboard

Zebrano, wenge, rosewood, or walnut can support a countertop, wall panels, or another wooden element. However, selection should be made based on samples, not by the name of the species. The same term does not guarantee the same tone across different products.

Carbon is appropriate in a more technological composition, but it should also be assigned to a specific group of facades. Randomly replacing one wooden insert with a carbon one will look like a configuration error.

Commercial furniture

In a showroom, boutique, hotel, or meeting room, hardware may be used more intensively, and replacement should occur without a long search. Therefore, along with the main order, a service list is created: insert article number, material, compatible body, fasteners, plug, and allowable reserve.

For several identical objects, it is not enough to write "handles as in the first room." Each delivery must have its own specification. This allows repeating the set and quickly determining which part is needed during repairs.

How not to confuse HL-070-1M with a ready-made handle

Look at the product type

The card calls HL-070-1M a decorative insert. This is the main reference point. The catalog section may combine different types of hardware, and neighboring cards may show full handles. The position among handles with coating does not negate the exact name of the item.

Compare the composition, not just the price

The price of one insert may be similar to the price of another ready-made handle, especially if the materials differ. A monetary comparison does not confirm the configuration. The invoice needs the names of the parts.

Do not transfer the configuration of a neighboring model

If another handle includes fasteners in the set, it does not mean that HL-070-1M is supplied the same way. Even within one category, cards differ. Related products are also not necessarily included in the main box.

Do not consider the depicted body part of the item without confirmation

The interior photo and close-up show how the insert may look in the finished assembly. The set description remains the confirmation. If in doubt, send the manager a screenshot of the selected modification and ask to list the contents of one item.

Do not use two URLs of the same product in the specification

HL-070-1M may appear in the main section and within the collection. For ordering, one canonical product address and one article number are needed. In the article, commercial links lead to the main card in the coated handles section to avoid splitting the customer's route.

Errors that make the cart look full while installation stops

The number of inserts is ordered, not the number of working sets

The customer counted 20 facades and added 20 HL-070-1M. After delivery, it turned out that the bodies were not ordered. The fix is to count working assemblies and check each component.

The material is specified only in the comment

One modification is selected in the cart, but a different wood is written in the comment. The specific product line and the count should be decisive. The comment helps but does not replace the correct choice of the option.

Different finishes were purchased for paired facades

One door got walnut, another got wenge due to a random replacement during ordering. Before payment, items are sorted by material and number of facades. In one furniture group, names must match literally.

Cabinet compatibility is determined by diameter

The buyer found a round base that fits

Cabinet and insert are ordered in different metal finishes

The word "stainless steel" in two cards does not yet guarantee the same appearance. Before ordering, you need to confirm that the parts form a standard set. Otherwise, the difference in processing will be noticeable on the front side.

The installer received a box without a facade list

Even the correct product can be distributed poorly. Inserts with different patterns end up on paired doors, and the spare is accidentally installed in the middle of the set. The solution is to mark groups before starting work.

A specification that can be sent to the manager

Below is not a ready-made product configuration, but a request form. It forces you to fill in all unknown parameters before payment.

Example of request wording

"It is planned to have 16 working handles for facades with a thickness of ___ mm. HL-070-1M in walnut, stainless steel finish is selected. We ask to confirm that it is included in one item, specify the compatible body model, fastener composition, and the need for FUR-033. One trial set is needed, and a further batch after verification."

Leave a blank for the thickness; fill in with the actual value. Do not substitute an approximate number from the project if the finished facades can already be measured.

Version for furniture production

It is useful for production to add the project number, facade designation, planned installation date, and packaging labeling requirement. The configuration question should be related to a specific order, not remain in separate correspondence without an invoice number.

In the specification, you can add columns "item", "article number", "finish", "number per facade", "number of facades", "total", "reserve", "note". This structure immediately shows where the calculation refers to the insert and where to the full handle.

Order acceptance: what to check before handing over fittings to the installer

Check the label against the delivery note

The name, article number, material, and quantity must match. If the delivery note specifies a decorative insert, you cannot rename it as a finished handle in your own warehouse system.

Separate components by line items

Inserts, housings, fasteners, and caps are laid out separately. Then one test set is assembled. If any part is missing, mass installation does not begin.

Inspect visible surfaces

Check the metal, wood grain, or carbon, the absence of noticeable damage, and compliance with the selected finish. Natural variations are distributed across facades, not automatically declared as defects.

Match the quantity against the facade list

Warehouse "16 pieces" says nothing without a list of installation locations. Mark each door and drawer. Pair facades together.

Do not mix batches before checking

If the order arrives in two shipments, first compare the materials and metal under the same lighting. After installation, it will be harder to separate the batches.

Check one working unit

Assemble the handle according to the approved scheme, install it on a test facade, and check the grip. Only then mark the entire series.

Record the acceptance result

For a large project, it is useful to photograph the labels, laid-out materials, and the assembled sample. This does not replace the report but helps to reconstruct the delivery composition when reordering.

Installation without guesswork: article boundaries

This article helps to assemble the order but does not replace technical documentation. You cannot assign the method of fixing the insert, the tightening torque, the type of tool, or the permissible processing without instructions for the specific kit.

Do not apply glue on your own initiative

If the design provides for mechanical fixation, glue may interfere with maintenance and damage the surface. If the manufacturer requires a different method, it must be confirmed. There is no universal advice for an unknown housing.

Do not enlarge the mounting seat "on the spot"

Attempting to file down the insert or housing for approximate compatibility is risky. The part may lose its geometry, the trim may get damaged, and the connection may develop play. It is better to replace the unsuitable component before installation.

Do not overtighten the fastener until deformation occurs

Facades differ in material and construction. Excessive tightening can damage the surface or the joint. Follow the handle instructions and check the result on a sample.

Do not drill the entire series based on one unverified marking

First, install one set. After confirming the position, make a template. Templates may differ for different types of facades.

Who HL-070-1M suits, and who should choose a different option

Suitable for a buyer looking for a replacement decorative insert

If a compatible handle is exactly known and confirmed by part number, HL-070-1M can be considered for replacing the face part. This scenario is justified when the housing is intact, the seat is not damaged, and the buyer needs a different material or a new insert instead of a worn one.

Before purchasing, still check the housing modification. Even if the old face part looks the same, the internal connection may belong to a different version. A photo and outer diameter do not replace documentation.

Suitable for a project with a wood or carbon accent

Five executions allow connecting the fittings to furniture, countertop, wall panel, or metal parts. Stainless steel supports a modern composition, while the wood grain softens it. Carbon sets a different, more technological character.

But the material is chosen after checking the complete assembly. Beautiful walnut won't help if the body is missing or the fastener doesn't fit the facade. This sequence is what constitutes a conscious purchase.

Suitable for serial furniture with an accurate specification

For a kitchen, walk-in closet, office, or hotel furniture, you can calculate the number of working assemblies, order one batch, and distribute the natural pattern across facades. The specification allows purchasing inserts, bodies, screws, and caps in agreed quantities.

This approach is especially convenient for a furniture manufacturer. On repeat orders, there's no need to reconstruct the set from a photo of the finished cabinet: all article numbers and modifications are already saved.

Not suitable if a one-piece handle without additional checks is needed

For a buyer who wants to choose one line and immediately get a clearly described finished handle, it's wiser to compare other cards. The name HL-070-1M directly indicates a decorative insert, so ignoring the configuration issue is not possible.

This is not a product flaw. It simply solves a more specific task and requires understanding of the system it is part of.

Not suitable for replacing an unknown old handle based on a photo

If the body's article number is lost and there's no drawing, compatibility cannot be promised. First, the old fittings are identified, measured, and photographed from different angles. Then the information is passed to the manager.

When there is no confirmation, it is safer to replace the entire working unit with a new model than to try to connect the HL-070-1M to a random base.

Not suitable if opaque painting in the color of the facade is required.

For enamel or self-toning, it is better to consider handles intended for finishing. HL-070-1M is chosen in a specific finish: zebrano, wenge, palisander, walnut, or carbon. Covering the selected material with an opaque coating without approval is illogical and risky.

Not suitable when the facade is too narrow.

The paper template 74 × 74 mm helps to evaluate only the visible size of the insert. The outline of the full body must be added to it. If the unit approaches the frame, panel, adjacent handle, or edge, the project is changed before drilling.

Ready-made list for a wardrobe, kitchen, and dresser.

Cabinet with four doors

The table specifies four facades and one working unit for each. If the body and insert are sold separately, the rows are duplicated by quantity. For paired doors, materials are assigned in advance: for example, all four inserts in walnut.

Plugs are counted by the number of visible compatible screws. If the design is not confirmed, the list says "quantity to be clarified" rather than substituting a number by analogy.

Kitchen with different types of facades.

The kitchen list is better divided into groups: upper hinged doors, lower doors, narrow drawers, wide drawers, tall cabinets. For each group, the number of handles per facade is specified. This prevents the error when all drawers are considered the same.

A separate column is needed for the facade thickness. If materials or structures differ, the fasteners may require different lengths. The insert remains the same, but the mounting kit changes.

Dresser with a pair of handles on the bottom drawer

The facade list should show not six drawers, but seven working units, if five drawers get one handle each, and the bottom one gets two. For the bottom pair, the distance between centers is set and symmetry relative to the facade is checked.

A pair of inserts is matched by pattern after receipt. Do not attach the first piece you come across, and then look for a visual match for it among the rest.

Service reserve

The reserve is indicated as a separate line and is not mixed with the mounting quantity. A "service" mark is made on the packaging. Then the spare insert will not be accidentally installed instead of the main item.

For one dresser, a reserve may not be needed. For a large batch of furniture, the decision is made taking into account the project timeline, intensity of use, and the possibility of reordering.

How to place an order on STAVROS without a gap between the cart and the specification

Open the main card HL-070-1M

Select the material and check the current information. Do not use the main and collection pages of the same product simultaneously as different items. The article number must remain unified.

Before ordering HL-070-1M, save the name of the selected modification and the drawing. A screenshot of the card is useful, but the invoice remains the main document against which the delivery is checked.

Save the drawing and do not rename the dimensions.

Four parameters are transferred to the documentation as A × B × C × D. If the direction of the axes is clear from the diagram, an explanation can be added. If not, it is better to keep the letter designation than to give an incorrect technical name.

A separate drawing is needed for the handle body. The insert and the full assembly must not be mixed in one dimension line.

Create a facade list.

List all doors and drawers. Opposite each one, indicate the number of working handles, insert material, facade thickness, and zone number. The reserve and trial set are listed separately.

The list does not have to be complex. Even a simple one-page table is more reliable than a message like "about twenty handles are needed."

Add related items.

The cart should contain the confirmed body, fasteners, and plugs. For comparison, you can open categories of handles with coating, handles without coating, and general furniture fittings. Random irrelevant products are not needed: cross-linking and the set should help solve the task.

Send one precise question about the composition.

Report the article number, material, number of working units, and facade thickness. Ask to list what is included in one item and name the compatible cabinet. If FUR-033 is needed, request the exact quantity per unit.

It is better to get the answer in writing. A phone consultation is convenient, but after it, it is useful to ask to include the composition in the invoice or letter.

Check the invoice before payment

The document must show article numbers, modifications, and quantities. A general line "furniture handles" is not suitable for a set consisting of several items. If the cabinet is included in HL-070-1M, this should be clear from the confirmed composition.

Arrange receipt in one order

Section delivery of furniture fittings across Russia helps choose the delivery method. Upon receipt, they check not only the number of boxes but also the quantity for each line of the waybill.

If the delivery is split, ask to mark the packages. Then inserts, cabinets, and fasteners will not get lost between different packages.

If the project has changed after approval, the cart needs to be recalculated from scratch

Changing the number of facades changes more than one line

A furniture project rarely remains unchanged from the first sketch to installation. One cabinet may be divided into additional sections, a wide drawer replaced with two narrow ones, and some hinged doors with pull-out units. After such an adjustment, it is not enough to change the quantity of HL-070-1M. At the same time, the bodies, mounting points, screws, plugs, and reserve are recalculated.

It is useful to compare two lists: the previous one and the current one. Each removed handle should reduce all related items, each added one should increase them according to the confirmed complete formula. Otherwise, an extra insert will remain in the cart, but a body will be missing, or vice versa.

Changing the insert material requires checking the entire furniture group

The customer may first choose walnut, and then switch to carbon or wenge. The modification should be changed not in one random position, but in the entire group of identical facades. For a paired cabinet, a set of nightstands, or a kitchen row, the material is fixed by door numbers.

After the change, the availability of the selected version and the current invoice are checked again. You cannot pay an old document, expecting that a comment about the new material will automatically replace the product line.

The new facade thickness affects the fasteners

Replacing the door material can change the thickness at the installation point. Even if HL-070-1M and the body remain the same, the screw length has to be checked again. This especially applies to projects where some facades are framed, some are smooth, and some have an additional overlay on the back side.

In the list, it is useful to combine facades not only by appearance, but also by construction. Then identical inserts can receive different mounting kits without confusion.

Moving the handle may reveal a conflict with the frame or the adjacent door

After changing the installation height, the round front part may come closer to the molding, edge, or another handle. The paper template is applied again. The old approval is no longer valid if the center coordinate has changed.

On the corner kitchen, the opening of both adjacent doors is additionally modeled. The full body is checked, not just the 74 × 74 mm square.

Replacing a separate insert with a full set must be visible in the invoice

Sometimes after a consultation it turns out that it is safer to order not separate inserts, but compatible handles in full configuration. Such a decision should change the name and composition of the lines. You cannot keep the previous number HL-070-1M and verbally agree that "everything else will be added" to it.

Before payment order the decorative insert HL-070-1M should only be done after receiving the updated document. In it, the buyer sees how much relates to inserts, how much to bodies, and how much to associated hardware.

Re-approval is cheaper than fixing finished facades

Recalculation takes less time than searching for missing parts after delivery or redoing holes. Approving a new specification is especially useful for serial orders: one corrected document protects all identical furniture items.

The final version receives a date and number. Only it is given to the installer, and old tables are marked as canceled. This way, project changes do not mix with the previous configuration.

FAQ: answers before purchasing HL-070-1M

Is HL-070-1M a ready-made furniture handle?

Based on the card name, this is a decorative insert for a furniture handle. The exact contents of the selected item must be confirmed before payment, because the description allows for separate purchase and use as part of a handle.

Can I order HL-070-1M separately for replacement?

The card allows for separate purchase of the insert. Before ordering, it is necessary to confirm the compatible body by article number and ensure that the fit matches.

Which handle should be used together with HL-070-1M?

The specific compatible model must be confirmed by STAVROS. The external size of 74 mm and a similar round shape do not prove compatibility.

What is included in one unit of HL-070-1M?

This needs to be checked in the card of the selected modification, invoice, or written response from the manager. Request a separate listing of the insert, metal part, body, fasteners, and cap.

Is the handle body included in the set?

Do not consider the body as included without direct confirmation. If it is sold separately, its article number and quantity should appear in the invoice as a separate line.

Does it include fasteners?

The fastener composition must be confirmed for a specific set. Even if a screw is present, check its suitability for the actual facade thickness.

Is the FUR-033 cap needed?

It is needed if the design includes a visible compatible screw head that must be covered. The necessity and quantity of FUR-033 are checked according to the handle diagram.

Can zebrano be selected?

Yes, zebrano is listed among the available finishes for HL-070-1M. For the furniture series, consider natural variations in the pattern and order the required quantity in one batch.

Is there a wenge option?

Yes, wenge is present in the product card. Before a large order, it is useful to evaluate a sample or an up-to-date image of the batch next to the facade.

Can rosewood be ordered?

Yes, rosewood is listed as one of the options. Record it in each product line and do not replace it with the general description "dark wood".

Is there a walnut finish?

Yes, walnut is included in the confirmed list of materials. The natural pattern may vary, so paired elements are distributed after receipt.

Is carbon a wood?

No, in the card carbon is listed as a separate option alongside wood finishes. In the specification, write the exact name to avoid accidental substitution.

What metal part does HL-070-1M have?

The card specifies stainless steel. The texture and visual match with the body should be checked on the specific batch.

What do the dimensions 74 × 74 × 13 × 32 mm mean?

This is the dimension line A × B × C × D. The direction and purpose of each parameter should be read from the official drawing, not determined by appearance.

Can 74 mm be considered the center-to-center distance?

No. The size of the face insert is not automatically equal to the distance between mounts. The mounting parameters relate to the full working assembly and are checked separately.

Will HL-070-1M fit the old holes on the facade?

Only after comparing the full handle drawing with the old layout. One insert does not indicate the position of the fasteners and the base area of the body.

How many HL-070-1M should be ordered for a dresser?

Count the actual grip points: one for a regular drawer and two where the design specifies. Then check the number of bodies, fasteners, and plugs.

Is a spare insert needed?

For a small order, a spare is optional. For a large kitchen, walk-in closet, or commercial series, a reserve set may be useful if the decision is made in advance.

Can walnut and carbon be mixed on the same cabinet?

Only according to a pre-designed scheme. Random mixing on identical adjacent fronts looks like a configuration error.

Can the HL-070-1M be painted to match the facade color?

The finished finish should not be changed without confirming its acceptability. For self-painting, it is better to choose handles without coating, intended for finishing.

Can I buy one item first as a trial?

Yes, a trial position helps to check the composition and appearance. Before installation, clarify the return conditions and do not damage the product.

Where to see other wooden handles?

Open the general section of wooden furniture handles. There you can choose a ready-made model if a separate insert and body do not fit the project logic.

How to check an order upon receipt?

Check the article number, material, quantity, and composition of each line against the delivery note. Assemble one test unit before handing over the entire batch to the installer.

Where can I clarify the current price and availability?

In the main card of HL-070-1M before placing the order. Price, stock, and lead times may change, so the article does not fix them.

First confirm the complete unit, then order HL-070-1M from STAVROS

HL-070-1M is chosen not only by sight. Zebrano, wenge, rosewood, walnut, and carbon define the face character of the furniture, while stainless steel sets the metal contour. But a beautiful finish does not guarantee completeness. Before payment, you need to confirm four things: what is included in one product item, which body is compatible with the insert, which fasteners fit the facade, and whether FUR-033 is required.

After that, the calculation becomes transparent. The buyer counts working handles for doors and drawers, multiplies the confirmed composition by the number of units, fixes materials, adds a justified reserve, and checks the invoice. This procedure protects a kitchen, wardrobe, or dresser from a situation where decorative inserts have already arrived, but the facades cannot be used yet.

In STAVROS, HL-070-1M can be linked with the catalog of wooden handles, compatible furniture fittings, and delivery in one order. The main next step is not to press the button faster, but to get an unambiguous written confirmation of the configuration. Then the box will contain exactly the set needed for installation, not just its most visible part.
