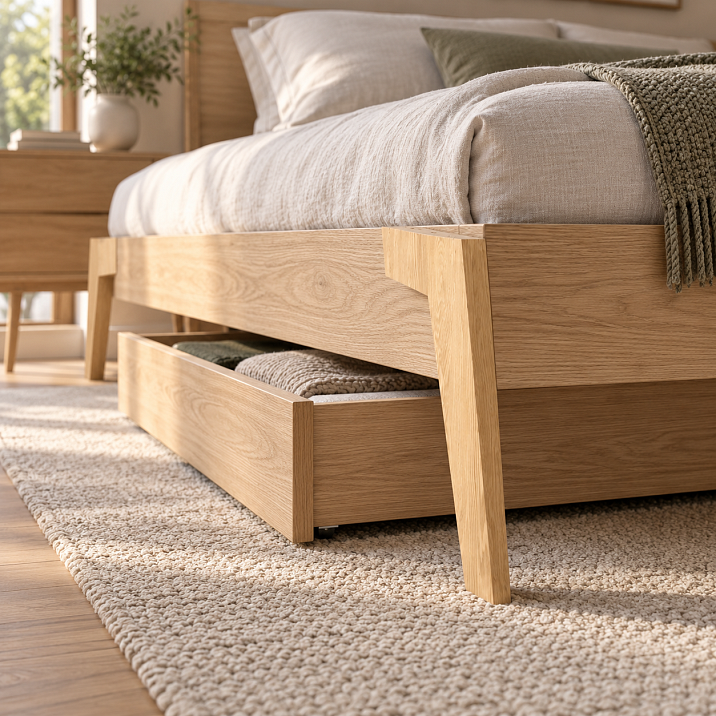

A pull-out drawer is already planned under the bed: how to buy wooden furniture legs MN-215 215×179×40×40 mm and not clash the support with the storage system

The bed is already designed with pull-out storage: a drawer is located under the side rail, and its front, slides, and full-extension zone are known. In the visualization, only the legs remain to be selected. The geometric MN-215 looks stylistically suitable, has a noticeable angled shape, and is included in STAVROS's separate selection of bed legs. A simple commercial question arises: can MN-215 be ordered as a set and installed at the corners without reworking the drawer?

The answer depends not only on the leg height. Before purchasing, you need to overlay the MN-215 drawing onto the working drawing of the bed and check the entire volume that the support occupies in the installed position relative to the drawer front, slides, and movement path. MN-215 specifies parameters A=215, B=179, C=40, and F=40 mm, but you cannot independently convert B=179 mm into a "depth of entry under the bed" or another mounting dimension without the official drawing.

If the geometry of the assembly passes, then you choose between beech or oak, fix the Prestige, finish, and quantity. If the leg falls into the storage zone, changing the wood species will not solve the problem — first, adjust the project or choose another support.

The specific model can be opened as geometric furniture leg MN-215. If the shape is not yet approved, it is more convenient to first Buy furniture legs for a 200-room hotel project — this is not an ordinary deal, but a partnership requiring a special approach. through the common catalog.

Geometric Furniture Leg MN-215

from 28.91 $

Go to Catalog

Geometric furniture leg MN-215: what exactly we are buying

MN-215 has one confirmed dimensional configuration:

215×179×40×40 mm.

Materials:

• Beech;
• Oak.

Grinding quality:

Prestige.

Quality of re-gluing:

Under enamel.

Current price:

| Execution MN-215 | Price at time of check | | --- | ---: | | Beech / Prestige / Under enamel | 2,500 ₽ | | Oak / Prestige / Under enamel | 3,350 ₽ |

The average production time for a missing item is 5–10 days.

The card provides a size chart A/B/C/F, so it is better to transfer the full combination to the working specification:

MN-215 / 215×179×40×40 mm / beech or oak / Prestige / Under enamel / quantity ___ pcs. / position per drawing ___

Entry:

leg 215 mm — 4 pcs.

too weak. It hides the geometry that may intersect with the storage system.

Watch video ...

Buy wooden furniture legs MN-215 for a bed: first, overlay two drawings

The most useful check is done not in the product card, but in the bed project.

Two drawings must appear simultaneously:

• side rail;
• bottom;
• MN-215 in the actual installed position;
• drawer front;
• guide;
• drawer body;
• full extension zone;
• handle or cutout of the front, if any.

If CAD is used, the MN-215 drawing is placed in the project at a 1:1 scale. If the working documentation is paper-based, you can print the side projection of the leg at full scale and attach it to the bed assembly.

That is why the phrase Buy wooden furniture legs is reasonably transferred to the order only after checking the geometry.

Our factory also produces:

Furniture Handle Sten HL-022M

from 23.94 $

Shell HL-024M Furniture Handle

from 28.68 $

Versailles Bed 001-001

from 6,910.71 $

Adele Toilet Table 010-001

from 3,914.29 $

View Full Product Catalog

Size B=179 mm: why it cannot be called a "bed under-access zone"

For MN-215, the card confirms four designations:

• A = 215 mm;
• B = 179 mm;
• C = 40 mm;
• F = 40 mm.

But the letter sequence itself does not give the right to assign physical meaning to parameters by guesswork.

You cannot write:

B=179 mm means the leg extends into the bed by 179 mm.

You cannot write:

C=40 mm is the mounting platform.

You cannot write:

F=40 mm is the offset from the side rail.

Such functions should only be read from the manufacturer's drawing of the specific product.

For ordering, a reliable conclusion is sufficient:

The full dimension MN-215 must be compared with the manufacturer's drawing, not translated into a mounting rule from a single number.

Inclined MN-215: we check not the attachment point, but the entire volume of the part

With a straight vertical leg, a conflict with a drawer is often easier to see: the support axis almost coincides with its visible position.

MN-215 has an inclined geometry.

Therefore, it is not enough to place a point on the plan: "the leg is attached here." The entire side projection must be taken into account.

Working test:

1. place MN-215 in the project;
2. fix its orientation;
3. we show the drawer closed;
4. show the beginning of extension;
5. show full extension;
6. we check the extreme positions of the facade;
7. we separately look at the guide rail and its maintenance.

This way, not only a direct collision is visible, but also a too-tight joint that would be inconvenient to assemble or maintain.

Position of MN-215 with the drawer closed

Closed drawer — first frame of the check.

Need to make sure that the facade does not touch the leg, the decorative edge does not overlap the support, and the handle or cutout of the facade does not conflict with the geometry of the leg.

The article does not specify a universal gap in millimeters. It is determined by the design of the specific bed.

The buyer's task is not to consider "179 mm automatically sufficient," but to see the actual position of two parts side by side.

The beginning of drawer opening: where the most unexpected conflict appears

Some fronts pass close to the support at the start of movement, even if everything looks clear in the closed position.

Therefore, not only the two extreme points 'closed' and 'fully open' are checked. An intermediate trajectory is also needed.

If the drawer moves linearly along the guides, its front still passes through a certain volume. That is exactly where the inclined MN-215 may end up.

If there is a protruding handle, it must also be shown in the drawing.

Fully extended drawer: the leg must not obstruct access

Even without a physical collision, a practical issue can arise: the drawer extends, but the support blocks convenient access to the contents.

Check how open the opening is, whether a large item can be removed, whether the leg interferes with the hand, whether the guide is accessible during maintenance, and whether the front hits a nearby cabinet.

Here, not only geometric compatibility is assessed, but also usability.

Buy furniture legs before making the bed or after assembling the drawer

The order time depends on the project stage.

The bed is still only on the drawing

This is the best scenario. MN-215 is inserted into CAD immediately, and the conflict is detected before production.

The frame is already manufactured

The original project may not match the actual furniture. You need to take real measurements of the finished side rail, base, and storage area.

The drawer is already installed

This is even convenient for checking. The drawer can be physically moved through all positions, and the MN-215 template can be applied to the intended installation location.

After such a check, Buy furniture legs for a 200-room hotel project — this is not an ordinary deal, but a partnership requiring a special approach. is already significantly safer than relying on a single visualization.

Four MN-215 at the corners: each joint is checked separately

A bed may have four externally symmetrical corners, but the internal structure is not always the same.

The front part may intersect with the drawer front, guide rail, decorative apron, or pull-out box. The rear part may intersect with reinforcement, a wall, or an internal base.

Therefore, you cannot automatically check only one front corner and multiply the result by four legs.

If the project is truly symmetrical — great. But this must be confirmed by a drawing.

Drawers open from the side: the risk zone is along the long side of the bed.

For side storage, the front and rear legs on the extension side are critical.

The project must show the edge of the facade, the guide rail, the position of both legs, the extension trajectory, the handle, and the bedside table if it is nearby.

The very fact that STAVROS includes MN-215 in the section Legs for beds, does not mean compatibility with any side storage scheme.

The filter confirms the product application, not a specific node of your bed.

The drawer rolls out from the foot end: we are already checking a different pair of legs.

End storage changes the route.

Now the area at the foot end is critical.

If the drawer occupies a significant portion of the width, its front and trajectory may pass between the two front supports.

In such a project, conclusions from the side scenario cannot be used without a new check.

Again, MN-215 on the left, MN-215 on the right, the drawer, the front, the guides, and the trajectory are overlaid.

Only after this is it determined whether the supports pass through.

One large drawer and two narrow ones: the MN-215 check will be different.

The storage system may consist of more than one box.

For example, one wide drawer across the entire side, two narrow drawers, one drawer only in the front half, or two end boxes.

The number and position of fronts change the danger zones.

If two drawers are separated by an internal partition, one MN-215 may be far from the trajectory of the first but close to the second.

Therefore, in the specification, it is useful to indicate not just "bed with drawers" but a specific layout:

two side drawers / fronts J1 and J2 / MN-215 positions N1–N4.

This way, the furniture maker understands which components have been tested.

Full-size template MN-215: a simple way to check on a finished bed

If there is no CAD, you can work physically.

You will need an up-to-date drawing, a 1:1 scale printout, cardboard, and masking tape.

A template is made from the side projection and temporarily placed in the position of the future leg.

Then the drawer is run through a full cycle: closed, the first centimeters of movement, halfway, fully open.

This does not replace the designer and does not confirm load-bearing capacity, but it clearly shows spatial conflicts.

Why a paper rectangle 215×179 mm is worse than an accurate projection

For an angled leg, it is not enough to cut out a rectangle based on two dimensions and consider it a model of the part.

The rectangle only shows the maximum dimensional envelope. The actual shape inside it is different.

For a rough check, it can be useful as a "zone of attention," but for compatibility decisions, it is better to use the official projection.

Otherwise, you can get two opposite errors: rejecting the MN-215 even though the actual shape does not intersect with the drawer, or approving the MN-215 based on an overly simplified template and then discovering a conflict.

Height A=215 mm: this is the size of the leg, not the finished height of the sleeping surface.

For MN-215, A=215 mm.

But one cannot conclude that the bed will become exactly 215 mm higher or that the mattress will be at a height of 215 mm plus its thickness.

The final mark depends on the attachment point of the support, the side rail, the base, the mattress, the bottom construction, and the actual geometry of the bed.

In this article, height is secondary. First, the conflict with the storage system is resolved. Then the final bed seating is checked.

Beech or oak: the material does not fix the intersection with the drawer

Both current product items MN-215 have the same geometry:

215×179×40×40 mm.

Therefore, switching from beech to oak does not change the dimensional conflict.

If the leg falls into the drawer, oak will not "solve" the problem.

First geometry, then material.

Current price difference:

3,350 − 2,500 = 850 ₽ per leg.

For a conditional four supports:

Beech

4 × 2 500 = 10 000 ₽.

Oak

4 × 3 350 = 13 400 ₽.

The difference:

3 400 ₽.

The number 4 here is only an example budget. The actual number of supports is set by the bed design.

MN-215 "Under enamel": it is better to include the legs and the bed frame side in one finishing specification

If the bed and MN-215 should look like one piece, the color issue cannot be left for the stage after delivery.

For the legs, "Under enamel" is specified. This is not a ready white, gray, or black color.

You need to fix in advance the color, primer, enamel, gloss, contractor, and a control sample.

Especially if the bed frame is made by a furniture workshop, and MN-215 is purchased separately.

A good specification:

side rail — color according to sample No. 1

MN-215 — the same finish according to sample No. 1

The frame changed after the project: the old storage drawing is no longer considered sufficient

In production, the side panel could be made thicker, the guide moved, the facade enlarged, the drawer raised, or the inner box made wider.

In this case, the original drawing is no longer a sufficient basis for purchasing MN-215.

You need to take the actual dimensions of the finished furniture.

This is especially important before a serial order of several beds: one geometry error can repeat across the entire batch.

Control revision of the project: which version of the drawing to consider current

If the bed went through several changes, old and new files may be present in the correspondence at the same time.

Before ordering MN-215, it is useful to sign:

Bed — revision 4

Drawer — revision 3

MN-215 — drawing of the card at the order date

This way the buyer does not overlay the leg on the old storage scheme.

For a furniture project, this is especially important if the drawer was initially side-mounted, then became end-mounted, or the position of the guides changed.

What should be ready before paying for MN-215

Checklist:

1. MN-215 article is approved;
2. the current drawing is open;
3. A=215, B=179, C=40, F=40 are checked without unauthorized interpretation;
4. the orientation of each support is determined;
5. the drawer is marked on the drawing;
6. facade applied;
7. guides applied;
8. movement trajectory shown;
9. all bed corners checked;
10. beech or oak selected;
11. finish approved;
12. only after this is the quantity confirmed.

If at least one geometric point is not closed, it is better not to rush the order.

How to write MN-215 in the bed specification

Bad:

wooden legs — 4 pcs.

Also bad:

MN-215 — four.

Better:

MN-215 / 215×179×40×40 mm / beech / Prestige / Under enamel / quantity ___ / position per drawing N1–N___

Separately:

compatibility with the drawer confirmed per drawing revision ___

This last line is useful if the project has been changed several times.

What to send to the cabinetmaker before ordering MN-215

The practical package can be short:

• MN-215 card;
• brand drawing;
• bed drawing;
• storage scheme;
• facade dimensions;
• guide model;
• selected leg position;
• current project revision.

In the message you can write:

Please check MN-215 215×179×40×40 mm in positions N1–N4 relative to drawers J1–J2 in all extension positions. After confirming the geometry, we place the order.

This way the purchasing manager does not try to replace the designer.

Acceptance of MN-215 before painting and final installation

After receiving the leg, do not immediately send it for finishing.

First, they check the article number, size configuration, material, Prestige, surface condition, and absence of transport damage.

Then one support is applied to the actual assembly or a control template.

If the frame is already assembled, the drawer is run through its full travel again.

Thus, the final check occurs before the legs are painted and permanently installed.

If there are multiple beds: first, we approve one reference assembly.

Let's imagine a series of five identical beds with drawers.

Don't buy right away:

MN-215 — 20 pcs.

First, on one bed or on one working drawing, the position of the front leg, the position of the rear leg, the drawer trajectory, material, and finish are approved.

Only after this is the specification scaled.

If four legs are required for the bed:

5 × 4 = 20 pcs.

Example cost:

Beech

20 × 2 500 = 50 000 ₽.

Oak

20 × 3 350 = 67 000 ₽.

The difference:

17 000 ₽.

With such a batch, it is especially important not to discover a conflict after the furniture has already been produced.

How to check MN-215 on a mock-up before manufacturing the entire bed

If the project is between the drawing and production, it is useful to assemble one control corner at full scale. For this, it is not necessary to make the entire bed.

It is enough to reproduce:

• a fragment of the side rail;
• the position of the future MN-215;
• the edge of the drawer front;
• one guide or its exact design position;
• the drawer movement line.

Such a mockup is especially useful when the conflict on the screen looks borderline. A real template helps to understand how close the facade passes to the support and whether access to the handle and guide remains.

Important: the mockup checks exactly the geometry. It does not confirm load-bearing capacity, fasteners, or the final mounting assembly. These issues remain with the furniture designer.

If the drawer opens on the same side where the bedside table is located

MN-215 compatibility is checked not only within the bed itself.

The side drawer may pass normally relative to the leg, but after furniture installation it turns out that its facade or handle hits the nightstand.

Therefore, it is useful to add to the bedroom plan:

• bed;
• MN-215;
• full drawer extension;
• bedside table;
• plinth;
• wall.

If the table restricts extension, changing MN-215 is pointless: the conflict is already between two pieces of furniture.

Thus, the article does not force blaming the leg for any storage problem, but helps find the real cause.

When can MN-215 geometry be considered confirmed

Before payment, it is desirable to have not a verbal "should fit," but a specific mark in the project.

For example:

MN-215, position N1: checked relative to J1 in all positions.

MN-215, position N2: checked relative to J2.

Drawing revision: 04.

This format is especially useful if another person handles the purchase.

He sees that the designer has already checked compatibility and does not start reinterpreting A/B/C/F.

Why you cannot choose MN-215 just by looking at a photo of the finished bed

The interior photo does not show the exact geometry of the internal drawer.

Two beds can look almost identical from the outside but have:

• different guides;
• different box depths;
• different facades;
• different bottom positions;
• different internal reinforcements.

Therefore, the photo only confirms the visual compatibility of the leg shape with the furniture style.

For technical compatibility, a drawing of the specific bed is needed.

If MN-215 does not fit in the drawer: what solutions to discuss with the designer

The article should not automatically send the customer for another leg.

Sometimes the problem can be solved at the furniture level itself, if the project allows it.

Discuss with the designer:

• changing the position of the drawer;
• changing the width of the facade;
• changing the location of the guide;
• a different storage orientation;
• a different support option.

Which solution to choose depends on what is already fixed in the project and what can be changed without compromising the design.

The main thing is to detect the conflict before paying and painting the legs.

Order card MN-215 for repeat purchase

After completing the project, it is useful to save a short card:

| Parameter | Value | | --- | --- | | Article number | MN-215 | | Size | 215×179×40×40 mm | | Material | ___ | | Sanding | Prestige | | Preparation | For enamel | | Color | ___ | | Quantity | ___ | | Bed project | revision ___ | | Storage system | ___ |

If in a few years a repeat bed or replacement of one support is needed, you won't have to reconstruct the parameters from a photo.

When MN-215 for the bed is not yet needed to buy

It is better to stop the order if there is no drawing of the drawer, the opening direction is unknown, B=179 mm is interpreted "by eye", the orientation of MN-215 is not checked, the frame already differs from the project, the drawer front is still changing, the guides are not selected, the final finish is not approved, or the leg is chosen only from an interior photo.

This does not mean that MN-215 is not suitable.

It only means that compatibility has not yet been proven.

Errors when ordering MN-215 for a bed with storage

Error: only look at A=215 mm.
The conflict can be caused by the entire leg geometry.

Error: consider B=179 mm as the "insertion depth".
The function of the parameter is read from the drawing.

Error: check only the closed drawer.
The entire trajectory is needed.

Error: check one corner and extend the conclusion to all four.
The bed construction may be asymmetrical.

Error: choose oak instead of beech hoping to solve the geometry.
The size remains the same.

Error: buying legs before fixing the guides.
The storage system may change the movement zone.

Where to buy furniture legs and MN-215 separately

If the shape is still being chosen, you can Buy furniture legs for a 200-room hotel project — this is not an ordinary deal, but a partnership requiring a special approach. in the general catalog.

If a bed is being designed, you can separately view the section Legs for beds.

If MN-215 has already been checked against the drawing, go directly to the card geometric furniture leg MN-215.

Questions before purchasing MN-215

What is the size of MN-215?

215×179×40×40 mm.

What materials are MN-215 made from?

made of beech and oak.

What sanding is specified?

Prestige.

What preparation?

"Under enamel."

How much does the beech MN-215 cost?

2,500 ₽ at the time of checking.

How much does the oak MN-215 cost?

3 350 ₽.

Is MN-215 suitable for a bed?

STAVROS includes it in its own selection of bed legs.

Does this mean it fits any bed with drawers?

No. The storage scheme needs to be checked separately.

Can B=179 mm be considered a mounting plate or insertion depth?

No. The B value should be read from the official drawing.

How to check compatibility with the drawer?

Overlay the MN-215 drawing on the actual bed frame and run the drawer through the entire trajectory.

Do all four corners need to be checked?

Yes, if the design is not confirmed as fully symmetrical.

What is the production time for custom orders?

Average time is 5–10 days.

Can I first choose beech or oak, and then check the drawer?

Better the other way around: the geometry is the same for both wood types, so compatibility is checked first.

Where to buy MN-215?

In the card of the geometric furniture leg MN-215 STAVROS.
