Buy geometric furniture leg MN-204M: how to choose a set for a cabinet, chest of drawers and TV console

Geometric furniture leg MN-204M

from 33.79 $

Go to Catalog

Why you should buy MN-204M

MN-204M is a ready-made geometric support 125 mm high for cabinets, chests of drawers, TV consoles and other case furniture. Its main advantage is that the buyer receives not a blank for self-painting, but a finished leg made of beech or oak with a selected coating. The shape immediately makes the body visually lighter, lifts it off the floor and adds an expressive support without complex carving.

Ready-made coating White, gray or black enamel, as well as wood tints, allow you to proceed with installation without a separate order for painting work.

Expressive geometry The square top part, ledge and concave taper make the leg noticeable but do not overload the furniture with decorative carving.

Practical height 125 mm The body is raised above the floor, looks lighter and leaves space for cleaning if the overall furniture structure is designed correctly.

Beech or oak You can choose a smooth base for enamel or a variant with a more pronounced wood texture for tinting.

Order from one piece The model is suitable both for a new set and for replacing one support after precise verification of material, color, and fastening.

Short answer: for a compact cabinet, they usually start with four legs; for a long or heavy body, they check the need for a fifth or sixth support. The load depends not only on MN-204M but also on the bottom material, inserts, body width, partition placement, and fastening scheme.

Buy geometric furniture leg MN-204M

Buy wooden furniture legs for a finished body, it's easier when not an abstract style is chosen, but a specific model with a clear size, material, and finish. MN-204M has dimensions 125 × 81 mm and immediately solves two tasks: it lifts the furniture above the floor and becomes part of its design. But even a ready-made leg does not automatically turn any cabinet into a reliable structure. Before ordering, you need to determine the number of supports, attachment points, bottom strength, and the future height of the item.

MN-204M is especially suitable for dressers, bedside tables, TV consoles, sideboards, and small cabinets where the support remains visible. On a body with smooth fronts, its step and concave taper add shape. On furniture with panels, the leg supports a more decorative character but remains geometric, not turned or carved.

The article helps you assemble a real set: choose four, five, or six legs, determine if a central support is needed, compare beech and oak, select white, gray, black enamel or wood stain, and decide on hardware in advance. The main principle is simple: first check the furniture body, then place the order.

Watch video ...

What is MN-204M

MN-204M is a wooden furniture leg with a ready-made finish and an expressive geometric shape. Its upper area has a square character, below which there is a noticeable ledge, after which the body smoothly narrows with a concave line. Due to this, the support does not look like an ordinary straight block, but does not go into complex classical decor.

Our factory also produces:

STL-017 Table

from 964.58 $

Wooden Decor N-430R

from 17.44 $

Geometric Furniture Leg MN-121

from 45.50 $

Turned furniture leg MN-118

from 58.68 $

Top ST-030

from 437.58 $

Designer molding NPU-494R

from 15.74 $

Polystyrene Crown Moulding L1902M HI WOOD 100mm x 33mm x 2.0m

from 18.30 $

Baseboard W40V1 polystyrene HIWOOD 40mm x 10mm x 2.0m.

from 6.71 $

View Full Product Catalog

Why shape matters for finished furniture

After installation, the leg becomes an extension of the body. The square upper part visually connects with the right angles of the cabinet or chest of drawers. The ledge creates a transition, and the narrowing makes the lower part lighter. This profile works well on furniture where the facade has simple geometry and needs one expressive accent in the lower area.

Height 125 mm

Height changes not only the appearance. It is added to the body and determines the final level of the tabletop, TV, drawer, or bedside surface. If the cabinet body has a height of 450 mm, after installing the legs, the total height will approach 575 mm without considering the thickness of additional parts and the mounting assembly. The calculation is done before purchase.

Size of the upper part 81 mm

A width of 81 mm requires a sufficient platform on the bottom of the furniture. The support should not partially extend beyond the edge, fall on a thin edge, or overlap technical elements. The narrower the side panel and base area, the more carefully you need to check the drawing.

Ready-made finish

MN-204M refers to legs with coating. The buyer does not need to separately sand, prime, and paint each support. This is especially convenient when restoring a finished cabinet and in series production, where it is important to achieve the same color for all legs.

Confirmed specifications of MN-204M

The card shows different combinations of material and coating. Before ordering, you need to open the options table and make sure the selected color is available for the required wood species. The price also depends on the material and finish, so the cost of the set is calculated after selecting a specific configuration.

When to buy MN-204M

This model is not suitable for every piece of furniture, and that is why its advantages are best revealed in specific scenarios. MN-204M is chosen when the leg remains visible, the finished coating must immediately match or contrast with the body, and the height of 125 mm does not compromise the convenience of the item.

New custom furniture

In a new project, it is easiest to plan mounting platforms, internal partitions, and inserts in advance. The designer can distribute the load so that each support works under the load-bearing part of the body. In this case, MN-204M becomes not a late decorative addition, but part of the furniture structure.

Restoration of a cabinet or chest of drawers

Ready painted legs allow you to quickly change the proportions of an old body. A low heavy cabinet is raised, a gap appears between the bottom and the floor, and the facade feels lighter. However, old holes and a weak bottom cannot be used automatically. Sometimes a new insert or mounting plate is required.

TV console instead of wall-mounted furniture

If the wall cannot be loaded or wall mounting is inconvenient, the body can be made floor-standing. MN-204M creates the visual effect of a light console, but the entire weight of the TV, equipment, and body is transferred to the supports. For a long product, central support is especially important.

Accent chest of drawers

The geometric leg works well on a dresser with simple facades, smooth handles, and clean lines. It adds character to the lower zone without competing with the decor. Black enamel makes the supports graphic, white almost dissolves them into the light body, and oak tinting connects the furniture with the natural countertop.

Furniture console

For a narrow console, stability in depth is important. A tall or heavy object on a narrow base can be sensitive to a shift in the center of gravity. MN-204M is only suitable after checking the depth of the body, the location of the fasteners, and, if necessary, securing the furniture to the wall.

Size 125 × 81 mm: how the furniture proportions will change

The leg size should be evaluated in the scale of the body. On a small cabinet, a height of 125 mm can make up a noticeable part of the overall composition. On a long TV console, the same leg looks more compact, but the distance between the outer supports increases.

Final furniture height

Add the height of the body, leg, and all intermediate elements. For a bedside table, the total is compared with the top plane of the mattress. For a TV console, with the desired screen height. For a dresser, with the convenience of the top surface and access to the top drawer.

Clearance under the body

A leg 125 mm high creates noticeable space for cleaning. But the actual clearance may be less due to the lower overhang of the body, apron, decorative strip, or recessed mounting plate. Check the furniture cross-section, not just the support height.

Width 81 mm and edge offset

The support must be fully placed on a solid part of the base. Too large an indent visually reduces stability, too small can extend the leg edge beyond the body dimensions or weaken the fastening near the edge. The exact indent is determined by the designer based on the bottom material and side panel placement.

Height of the plinth and doors

After installing the legs, the lower edge of the facade rises. For a hinged door, this can improve access, but with incorrect proportions, too large an empty gap will appear. On a chest of drawers, check how the leg relates to the height of the lower drawer.

Visual heaviness of the body

Low furniture on short legs looks bulkier. MN-204M lifts the body and creates a shadow underneath. This is especially useful for a long white TV cabinet, a dark chest of drawers, or a body with large facades that lack visual air.

What furniture is the geometric support suitable for

TV cabinet

MN-204M is suitable for a floor-standing TV cabinet if the length and weight of the body are coordinated with the support scheme. For a compact model, consider four legs. A long body with equipment and a heavy tabletop often needs additional central support. It should be placed under a partition or reinforced area, not under a thin bottom sheet.

Chest of drawers

A chest of drawers creates variable load: drawers are pulled out, contents shift forward, and a person sometimes leans on the top surface. Four corner supports may be sufficient only with a rigid body and moderate length. A wide chest of drawers is better calculated with a fifth or sixth leg.

Console

A narrow console is sensitive to tipping. MN-204M makes it more expressive but does not replace wall fixation if required by the design. The body depth, height, and weight of items on the tabletop are more important than the appearance of the support.

Bedside table

Four legs usually form a clear pattern for a compact body. A height of 125 mm helps bring the top of the cabinet closer to the level of a high mattress, but first all dimensions are added up. White or gray enamel suits a painted body, oak tinting suits a wooden bed and headboard panel.

Sideboard and small cabinet

A vertical body requires increased attention to stability. Legs cannot be considered separately from attaching the cabinet to the wall. If the item is tall and narrow, tip-over protection becomes a mandatory part of the project.

Bathroom cabinet

Use is only possible with suitable moisture protection for the entire furniture and floor. The finished coating of the leg does not mean that the joints and base are automatically designed for constant water exposure. The method of use must be coordinated with the furniture manufacturer.

If MN-204M is not suitable in height or shape, you can Buy wooden furniture legs of a different type and compare geometric, turned, spherical, and unpainted models.

How many MN-204M legs to order

The quantity cannot be determined only by the width of the facade. The load is transmitted through the bottom, side panels, partitions, and fasteners. Four supports create a simple corner pattern. A fifth helps support the center of a long body. Six legs divide the length into smaller spans and can work under two internal partitions.

The table shows the logic, not a substitute for calculation. Even a small cabinet may require reinforcement if made of thin laminated chipboard or carrying a heavy countertop. Conversely, a properly designed rigid cabinet can work on four supports with a moderate length.

Is a central support needed

Long span

The farther the outer legs are from each other, the greater the risk of bottom sagging. A central support reduces the free span. It must be aligned in the same plane as the corner legs, otherwise the cabinet will wobble or some supports will not bear the load.

Internal partition

The best place for an additional leg is under a partition that transfers load from top to bottom. If a support is placed in the middle of a thin panel without reinforcement, it may push through or deform the bottom.

Heavy tabletop

Stone, a massive slab, or a thick wooden countertop increase the permanent load. But adding a fifth leg does not automatically solve the problem. The entire load path must be checked: top, side panels, partitions, bottom, and support attachment.

Two central positions

For a very long TV console or wide dresser, a six-leg scheme may be rational: four at the corners and two under internal partitions. Visually, it is better to slightly recess the central supports if the design allows, so that the facade retains lightness.

Floor adjustment

With five or six supports, uneven floors are more noticeable. One leg may hang, and the body may wobble. Base plates and adjustable elements are selected in advance if they are compatible with MN-204M and the mounting scheme.

Beech or oak: which material to choose

Both species are suitable for furniture supports, but they work differently in finishing. It is better to start material selection with the future color and adjacent elements, rather than an abstract idea of a "more expensive" wood.

Beech for enamel

Beech has a calm and relatively uniform texture. Under white, gray, or black enamel, the wood grain is hidden, so surface smoothness and shape accuracy are more important. If the legs must match a painted facade, a beech base usually looks logical.

Oak for tinting

Oak is chosen when the buyer wants to preserve a noticeable fiber structure. Tinting like "walnut with patina" or "cherry" changes the shade but retains the woody character. On the concave part of MN-204M, light and shadow further emphasize the grain.

Can oak be chosen under enamel

The card shows available material and color combinations, and they need to be checked before ordering. Opaque enamel hides most of the decorative advantage of oak. If a solid color is needed, beech may be more rational. If texture is important, choose oak tinting.

How to match legs with the body

For a painted cabinet, you can repeat the color of the facade or create a contrast. For a wooden dresser, it's better to decide whether the supports should match the body or differ. Almost identical shades of different species often look accidental, so a sample is useful.

How to choose the color of the finished coating

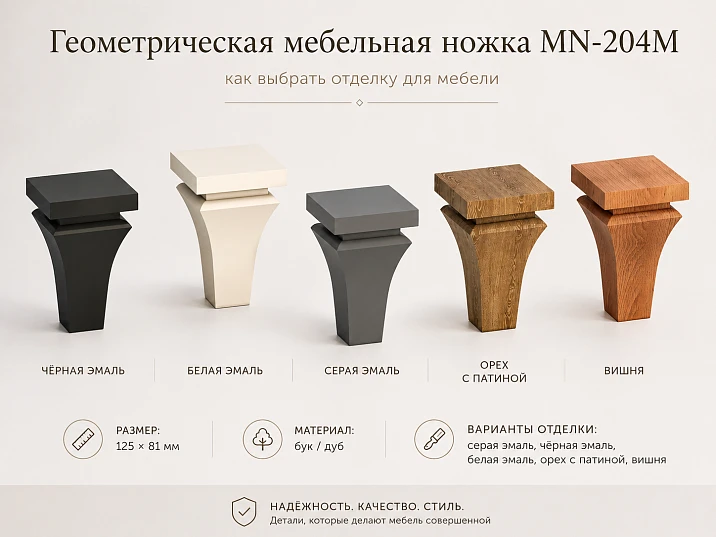

MN-204M is offered in five confirmed options: white enamel RAL 9010, gray enamel RAL 7001, black enamel RAL 9005, walnut with patina tint, and cherry tint. Each color changes the perception of the shape and body.

White enamel RAL 9010

White legs almost disappear under a light cabinet and make the body visually lighter. On wooden furniture, they create contrast and add a modern character. It's important to check the shade match: a white facade of a different standard can differ noticeably.

Gray enamel RAL 7001

The gray option suits furniture in a calm neutral palette. It is softer than black and more noticeable than white. It pairs well with gray facades, concrete texture, matte metal, and cool wood tones.

Black enamel RAL 9005

Black legs turn the lower part of the furniture into a graphic outline. On a white TV cabinet, they support black equipment and handles; on a wooden dresser, they create a striking contrast. Dust and small light marks are more noticeable on the dark coating.

Walnut with patina tint

This option suits furniture with classic and transitional motifs. The patina emphasizes geometry changes, especially the ledge and concave taper. In a minimalist body, such a finish can become the only decorative accent.

Cherry tint

A warm wood tone is associated with traditional furniture, dark countertops, and brass fittings. Next to a cool gray body, it should be tested on a sample to ensure the combination doesn't look random.

Matching handle color

Black handles and black legs create a clear system. White supports can be paired with a painted body, leaving the handles metallic. For oak tint, handles don't have to imitate wood — brass, black metal, and neutral options may work better.

If a different color or shape of the finished support is needed, you can buy wooden furniture legs with coating and compare geometric, turned, and spherical models.

Finished finish or unpainted leg

MN-204M is chosen not for the ability to endlessly experiment with color, but for predictable readiness. If the project requires a rare shade, complex multi-color finishing, or a complete match with custom furniture, an unpainted model may be more appropriate.

How to check the furniture base before installation

Bottom material

Solid wood, plywood, MDF, and chipboard hold fasteners differently. You cannot transfer one screw pattern to all materials. For a thin board, reinforcement or a mounting plate may be needed.

Base thickness

The fastener must have sufficient depth but not go inside the case. For the bottom drawer, it is especially important that the screw does not cross the guides or intrude into the usable space.

Embedded plates

In new furniture, a reinforced platform can be provided under each leg. In a ready-made cabinet, it is sometimes necessary to add an internal block, a plywood plate, or another part according to the master's design. The embedded plate must transfer the load to the side panels and partitions.

Old holes

When replacing legs, existing holes may not match the new pattern or may be damaged. You cannot simply screw the fastener next to the damaged spot. The base is repaired and marked anew.

Lower drawers and doors

Check that the mounting plate, nut, or end of the stud does not interfere with movement. Sometimes the hardware needs to be placed under the side panel or partition, rather than in the open area of the bottom.

Edge of the body

Fasteners near the edge can split the material or tear out a thin section. The offset is calculated taking into account the size of the upper part of the leg and the location of the holes.

Flatness of the bottom plane

If the bottom has a difference in level, all legs will not be in the same plane. Before installation, the body is checked with a level, and the platforms are leveled. Placing random pieces of material under it after assembly is a temporary and unreliable solution.

Can I install MN-204M on LDSP

Only with a properly designed joint. LDSP holds fasteners against pull-out worse, especially near the edge and in a reused hole. For a heavy chest of drawers or a long TV cabinet, a single panel thickness may not be enough.

Mounting plate

The plate distributes fastening points over a larger area. But by itself, it does not reinforce a weak bottom if the screws are installed in damaged material. Sometimes an internal insert is needed.

Through connection

A bolt with a washer and nut can provide a reliable connection, but protruding elements appear inside the body. This method is only acceptable where they do not interfere with the drawer and are safely covered.

Stud

A metric stud is convenient when there is a mating threaded part or plate. It cannot be screwed directly into a random area of LDSP without calculated fastening.

Reinforcement with plywood

An internal plywood platform can distribute the load and connect the leg to the side panel. The size and method of fastening are determined by the furniture maker. A simple overlay glued to a weak surface does not always solve the problem.

What hardware to purchase together with the legs

The MN-204M card shows among the necessary fittings a metric stud/screw M8×60 FUR-001-1, a square mounting plate FUR-044, a FUR-012 kit, and a square foot pad FUR-023 measuring 25 × 25 mm. This does not mean the buyer needs the entire list at once. The kit is selected based on the body and installation method.

Stud M8×60

Suitable for assemblies where a metric connection and sufficient depth are provided. The 60 mm length should be checked against the leg, plate, bottom, and internal space of the body.

Mounting plate

It simplifies removable fastening and distributes fixation points. The plate size must fit on the platform, and the screws must reach into sturdy material.

Mounting kit

A ready-made set is convenient if its composition matches the design. You cannot choose a kit just because it is located next to the product. You need to understand how each part works.

Glide

The square foot pad protects the bottom end of the leg and the floor. Its thickness affects the final height and contact with the covering. For uneven floors, an adjustable solution may be needed if compatible.

Before final ordering, it is useful to select fittings for attaching furniture legs and coordinate studs, plates, and foot pads with the furniture base.

What to buy with MN-204M

MN-204M or a simpler turned leg

Geometric and turned supports can have the same height but affect furniture differently. MN-204M is built on facets, a ledge, and a concave taper. A turned leg is formed by rotation and usually has round transitions, rings, or a smooth cone.

MN-204M is best chosen when the lower zone of the furniture should participate in the design. If a maximally calm support that does not distract from the facade is required, a simple turned or straight leg may be more appropriate.

Practical selection for different furniture items

White TV cabinet with black equipment

Black enamel RAL 9005 connects the legs to the screen, soundbar, and black handles. The geometric shape supports the rectangle of the TV. For a long cabinet, plan a central leg under the partition in advance and ensure the black legs do not get lost on a dark floor.

Oak chest of drawers

The oak MN-204M can be selected in a wood tint. A perfect match of the shade with the body is not always required: a slightly darker leg creates a clear lower boundary. The main thing is not to mix close but conflicting shades without a sample.

Gray bedside table

Gray enamel RAL 7001 makes the legs an extension of the calm facade. A height of 125 mm is useful next to a high bed, but the final mark of the top surface should be compared with the mattress. A table that is too high is inconvenient

Minimalist style TV console

For a clean body, choose white, gray, or black enamel. The color can be repeated on the facade so that the shape is only read through shadow. Handles should be hidden or minimal, otherwise the lower area will become too busy.

Restoration of a Soviet chest of drawers

Replacing old supports with MN-204M noticeably changes the character of the furniture. Before purchasing, remove the old legs, assess the condition of the bottom, and close damaged holes. Position the new geometry symmetrically relative to the front and partitions.

How to calculate the placement of legs

Marking from the body, not from the front

The front may protrude beyond the side panel or have a decorative frame. Attach the legs to the load-bearing structure of the body. First, find the side panels and partitions, then form a symmetrical appearance.

Front and rear supports

They should form a stable rectangle. Too much inward offset reduces the support contour and increases sensitivity to tipping. Too little may push the leg beyond the body or weaken the fastening at the edge.

Central leg

Place it under a partition or reinforced beam. If the central support is visible from the front, it must align with the vertical lines of the fronts. Sometimes it is slightly recessed while maintaining its load-bearing function.

Uniform orientation of geometry

MN-204M has pronounced edges. All legs must be rotated identically relative to the front. Orientation errors are especially noticeable on black and gray enamel under side lighting.

Template for a series

For four or more identical cabinets, use a drilling template. It fixes the offsets and position of the fasteners. This reduces the risk that one cabinet will differ in leg placement.

How to install legs without unnecessary risk

Installation depends on the chosen hardware and furniture material. Below is the logic of preparation, not a universal instruction with a single screw size.

Assemble the kit on the table

Check the number of legs, material, and finish. All supports of one piece of furniture must match in height and finish. Place glides, plates, and studs nearby to avoid mixing parts.

Check the leg drawing

The size 125 × 81 mm does not reveal all mounting points. Use the drawing from the card and the actual part. Do not drill the cabinet based only on a photo.

Mark the axes

On the bottom surface, mark the sides, partitions, and the center of future supports. Diagonals between the front and back legs help check symmetry.

Make a test node

If the body is made of LDSP or MDF, try fastening on a sample of the same material. Check depth, retention, and absence of delamination. For expensive furniture, a test is cheaper than repair.

Do not overtighten the fastener

Excessive force destroys the thread in the board material, deforms the plate, and damages the coating. First, all legs are moderately fixed, then the position is checked and final tightening is performed.

Check on a flat surface

After installation, the body is placed on a flat floor. All supports must touch the surface. If one leg hangs, you cannot simply tighten the neighboring ones more. You need to find the cause: marking, bottom drop, foot thickness, or floor unevenness.

Check with load

Drawers are filled gradually, equipment is installed after checking the empty body. Observe the bottom deflection and play. Any movement in the fastening requires stopping and reworking the node.

How not to confuse MN-204M with similar products

MN-204M and unpainted MN-204

The letter M in the card helps distinguish a finished model with coating from an unpainted version. The buyer of MN-204M chooses a ready color and does not plan separate painting preparation. An unpainted leg is needed for a custom finish.

Geometric leg and straight bar

MN-204M has a step and a concave taper. A simple square bar looks calmer and is cheaper to manufacture, but does not create the same transition from the body to the floor.

Leg and decorative overlay

MN-204M is a support and participates in the furniture structure. The decorative overlay only finishes the surface. You cannot replace a load-bearing leg with a glued decoration.

Leg and foot cap

The foot cap is a small part on the lower end, protecting the floor and the support. It does not increase the height by 125 mm and does not take on the role of the entire leg.

Mounting plate and the support itself

The plate connects the leg to the body. It is not sold as a decorative base and does not replace MN-204M. When purchasing, you need to check that the order includes both the supports and the selected hardware.

How to calculate the cost of a set

It is impractical to fix the price of one leg in the article: it depends on the material and coating and may change. The actual budget consists of the number of supports, the chosen configuration, fittings, glides, and work to reinforce the body.

Four legs

The basic scheme is suitable for a compact cabinet or a small chest of drawers with a confirmed base. To the cost of four MN-204M, add four mounting units and four glides, if needed.

Five legs

A long TV cabinet often requires a fifth central support. The price increases not only by one leg: a mounting plate under the center and additional fittings may be needed.

Six legs

For a wide body, six identical mounting kits are calculated. You cannot save on the two central supports by replacing them with random parts of a different height.

Bottom reinforcement

A plywood platform, internal beam, or body modification may cost more than the fittings. These works are included in the budget before purchasing the legs, so that the finished set does not remain without a suitable base.

Spare leg

For a home, a spare is usually optional. For a hotel, store, or series of cabinets, one additional MN-204M from the same batch simplifies repairs and maintains a consistent color.

How MN-204M works in different interiors

Living room

In the living room, the model is often installed on a TV cabinet, console, or dresser. Black enamel supports the equipment and thin metal details. White makes the long body visually lighter. Oak tinting ties the furniture to the parquet, coffee table, and wooden panels.

Bedroom

On a bedside table, the 125 mm height helps raise the top surface to a high mattress. The geometry looks modern and does not overload the small piece. The color can be repeated on handles, bed frame, or wardrobe facade.

Hallway

MN-204M is suitable for a dresser, shoe cabinet, and narrow console. It is important to consider contact with shoes, moisture, and cleaning equipment. The foot pad protects the bottom end, and the coating is cleaned without abrasives.

Cabinet

Walnut or black finish works well on a document cabinet and low wardrobe. The geometric support complements strict furniture and looks more expressive than a regular straight bar.

Children's room

The 125 mm height makes cleaning under the cabinet easier, but the structure must be especially stable. A tall dresser and wardrobe must be secured against tipping. Sharp objects and heavy equipment should not be placed on an unstable surface.

Showroom and store

The ready-made coating is convenient for a series of identical cabinets or display consoles. Ordering one batch helps maintain color. A spare leg reduces the risk of downtime if one support is damaged.

Hotel

The model is suitable for bedside tables, mini consoles, and dressers. For hotel rooms, repeatability of mounting, ease of cleaning, and repairability are important. Hardware and installation diagram are specified in the specification.

Mistakes when buying MN-204M

Buying four legs without assessing the body length

Four supports are convenient as a clear scheme, but a long bottom may sag between them. For a TV cabinet and a wide dresser, you need to check the central partition and an additional leg.

Assuming each leg has a known universal load capacity

The load depends on the entire piece of furniture. Even a strong wooden support will not fix a weak bottom or incorrect fasteners. The article cannot promise a fixed load capacity without calculating the body.

Ordering color only by screen

The monitor and lighting distort enamel and tinting. White RAL 9010 may differ from the white facade of another standard. For a large project, a sample is needed.

Not checking the combination of material and coating

The card contains beech and oak and several colors, but the specific combination needs to be selected in the options table. You cannot assume that any tinting and enamel are equally available in any wood species.

Ignore the size of the top part

81 mm must fit completely on the platform. If the sidewall is narrow or the bottom has a cutout, the leg will not sit correctly. The drawing is checked before payment.

Install into old broken holes

The fastener will quickly loosen. The damaged area is repaired, an embedded part is added, or the installation is moved according to the project. Simply increasing the diameter of the screw can further damage the slab.

Place the central leg under an empty bottom field

The additional support must take the load through a partition or reinforcement. If it rests against a thin panel, the center may deform.

Do not account for drawer opening

The mounting plate and stud may hit the guide or lower drawer. The assembly is checked from the inside. Sometimes the support needs to be shifted under the sidewall.

Mix legs from different batches

Natural wood and finish may vary slightly. For one item, it is better to order the entire set at once. A spare leg for a commercial project is also taken together with the main batch.

Save on glides

The bottom end contacts the floor and moisture after cleaning. A suitable glide protects both the coating and the flooring material. An accidental thick pad can change the furniture level.

Use household glue instead of fasteners

The leg is a load-bearing support. Glue without a calculated mechanical connection does not replace a stud, plate, or other component. This solution is especially dangerous on a chest of drawers with pull-out drawers.

Who MN-204M suits

The model suits a buyer who wants a ready-made painted or tinted support, values noticeable geometry, and plans the mounting in advance. It is appropriate for a cabinet, chest of drawers, TV console, sideboard, and other case furniture with a sturdy base.

MN-204M is useful for a furniture workshop, designer, and owner of a finished case if they can check the drawing, number of supports, and hardware. An order from one piece allows using the model for single restoration as well.

Who should choose a different leg

If the case requires a height less or more than 125 mm, the model will disrupt proportions. For furniture with a very narrow mounting area, the upper part of 81 mm may not fit. For a hidden neutral support, the geometry of MN-204M may be overly noticeable.

An unpainted leg is better chosen when a rare individual color or joint painting with the facade in the workshop is needed. A turned model suits a soft classic shape, while a straight block suits maximally laconic furniture.

Care of the finished coating

Enamel

White, gray, and black surfaces are wiped with a soft cloth. Abrasive powders and hard sponges change the gloss. Water should not constantly accumulate at the lower end.

Staining

The wood grain is protected by the finish system, but scratches may be more noticeable on dark areas. For repairs, you need to know the exact name of the coating. Accidental stain on top of the finished layer will create a spot.

Glide

It is checked periodically. Worn felt collects sand and starts to scratch the floor. The plastic element may crack. All legs must maintain the same height.

Mounting

If the body starts to wobble, do not continue using the furniture. Check the floor, glides, tightening, and the condition of the base. Regularly overtightening a screw in damaged particleboard does not restore strength.

How to accept the set after delivery

Check the quantity

For four, five, or six supports, count all parts before assembly. Check the hardware and glides separately. A missing element is best discovered before turning the furniture over.

Compare the color

Place the legs next to each other in daylight. Natural oak has varying grain, but the finish should be perceived as one system. Enamel is compared by gloss and tone.

Check the geometry

All supports must have the same height and correct shape of the top platform. Packaging damage is recorded before installation. Do not install a leg with a crack or a large chip.

Inspect the installation area

The holes, stud, and bottom end must not have damage. If the selected fittings do not match the leg, do not attempt to modify the part without approval.

How to buy MN-204M at STAVROS

First, open the product page and select the size 125 × 81 mm, material, and available finish. Then specify the quantity according to the furniture layout. For a compact cabinet, this could be four pieces; for a long TV console, five or six.

After selecting the legs, proceed to the fittings. The product page offers several mounting options and a base plate, but the final set is determined by the bottom material. It is useful to send the manager a drawing of the cabinet, the thickness of the base, the location of partitions, and the expected weight of the contents.

Do not set a budget based on the minimum price of one support. Compare the full set: legs, fittings, base plates, inserts, and installation. The current price, availability, and production time are checked on the product page before ordering.

If the model matches the dimensions and the cabinet structure is prepared, you can order the MN-204M set in the selected material and coating.

What to Check Before Ordering

• whether the height of 125 mm fits the final height of the furniture;
• whether the top part of 81 mm fits on the mounting plate;
• what material the bottom is made of: solid wood, plywood, MDF or chipboard;
• whether there are inserts under the outer and central supports;
• how many legs are required: four, five or six;
• whether a central support under the partition is needed;
• whether the fasteners conflict with drawers and guides;
• whether beech or oak matches the selected finish;
• whether the required color is available for the selected material;
• does the RAL enamel match the facade;
• is a contrasting or wood finish needed;
• which mounting plate fits the cabinet;
• what length of stud or screw is safe;
• are support feet needed;
• is the floor level at the installation site;
• does tall furniture need to be secured to the wall;
• should a spare leg be ordered;
• are the price, availability, and production time current.

How to make a full-size mockup before purchasing

The geometric leg noticeably changes the proportions of the furniture, so it's useful to check it not just from a picture. Make a side silhouette from cardboard or thick paper, 125 mm high and 81 mm wide. Place four templates under the body and look at the item from a normal distance.

Check the height

Place temporary supports 125 mm high under the cabinet. Compare the top surface with the bed, TV, outlets, and adjacent furniture. Sometimes the new height improves proportions, and sometimes it makes the body inconvenient.

Check the indents

Move the templates closer to the edges and inward. Legs that are too recessed create a feeling that the heavy body is hanging over a narrow base. Positioning too close to the front can push the support beyond the dimensions and complicate fastening.

Check the center leg

On a long TV cabinet, add a fifth template and assess how noticeable it is. If the support needs to be hidden, it can be moved deeper under the body, but only if the work under the partition or reinforcement is maintained.

Check the color

A printed color does not replace a real sample, but helps to choose a direction. A black leg enhances contrast, white blends in, gray creates a soft boundary, and wood tint ties in with the floor and countertop.

What to convey to the furniture maker

Even if the legs are purchased by the furniture owner, installation should be discussed with a specialist based on precise specifications. A brief description "install four legs" does not include data about the bottom, fasteners, and load.

Body drawing

Specify width, depth, height, material, and bottom thickness. Mark side panels, internal partitions, pull-out drawers, and heavy zones. For a TV cabinet, add the location of equipment.

Quantity and article number

Write down MN-204M and the exact number of supports. If one central leg should be recessed, note this separately. All parts are ordered in the same material and color.

Mounting kit

Specify the selected stud, plate, fastening kit, and base plate. The master must confirm that the length and placement of the fasteners do not conflict with internal elements.

Finishing

Save the RAL number or tint name. If the body is still being manufactured, a leg sample can be used to coordinate the facade, handles, and countertop.

Stability requirements

For a tall console, cabinet, and narrow dresser, specify wall fixation separately. Legs do not replace anti-tip protection, especially in a home with children.

How to check furniture after installation

All legs touch the floor

On a flat surface, the body should not wobble. The fifth or sixth support should also bear the load, not hang a few millimeters above.

Facades operate freely

Open all drawers and doors. Fasteners should not catch the guides, and the body should not change position when a heavy drawer is pulled out.

The bottom does not sag

Inspect long sections between supports. The central leg should not locally lift the panel, and the outer ones should not break out areas near the edge.

Geometry is oriented identically

All MN-204M are turned with one side facing the facade. On light enamel, the error may be less noticeable; on black and gray, it is immediately visible from shadows.

Coating is not damaged

After installation, check edges, ledges, and bottom ends. The tool should not leave dents or chips. Before operation begins, it is better to document and repair damage using an agreed method.

What to check a month after installation

New furniture takes some time to adapt to the load, floor, and usage pattern. After a few weeks, it is useful to re-inspect all supports, especially if the cabinet is frequently moved, drawers are filled with heavy items, or the body stands on an uneven surface.

Body position

Check the level and ensure all legs have even contact with the floor. If the furniture starts to wobble, first rule out wear of the foot pad and changes in floor position. Do not try to compensate for misalignment with a random shim.

Fastener condition

A slight play at one point can quickly damage laminated chipboard or MDF. Inspect mounting plates, studs, and internal inserts. Tighten fasteners only after verifying that the base material is not damaged.

Center support operation

The fifth or sixth leg should actually support the body. If it is hanging, the central part of the bottom remains unsupported. If it is too high, the body may rest only on the center and two extreme points.

Coating and foot pads

Marks from cleaning and shoes appear faster on the lower part. Damage to the enamel or tint should be repaired before moisture penetrates. A worn foot pad should be replaced with an element of the same thickness to avoid disturbing the level.

Behavior of furniture under load

Pull out the drawers, install the equipment and check if any new sagging or wobbling appears. If the body changes position during normal use, stop using it and review the support scheme.

How to save order data for future replacement

After installation, save the article number MN-204M, material, exact coating name, number of legs and list of hardware used. It is useful to photograph the fastening from inside the body before installing the drawers and label the position of each support. This data will come in handy if in a few years you need to replace one leg, move the furniture to another room, or repeat the same set for a second cabinet.

For oak tinting, save a photo in daylight and a small sample of the finish, if available. For enamel, record the RAL number. When reordering, a new batch may differ slightly in shade, so accurate information helps to select the closest possible option and decide in advance whether a replacement of one part or the entire set is needed.

Such control helps to eliminate incompatibility of legs, body and fasteners in advance, before the furniture is fully assembled and loaded.

Frequently asked questions

What is the size of MN-204M?

The confirmed size is 125 × 81 mm. The leg height is 125 mm, and the size of the top part must be considered when designing the mounting platform.

How many MN-204M legs should be ordered?

For a compact cabinet, four supports are often considered. A long or heavy body may require a fifth central leg or two additional legs under the partitions. The decision depends on the furniture design.

Is MN-204M suitable for a TV cabinet?

Yes, if the body length, bottom material, and partition placement allow the chosen layout. For a long TV console, central support is often especially important.

Can MN-204M be placed on a dresser?

Yes, after checking the dynamic load from drawers, bottom strength, and stability. Four legs may not be enough for a wide dresser.

Is the height of 125 mm suitable for a bedside table?

It is suitable if the final height is close to the mattress level and comfortable for the user. Add up the height of the body, leg, and mounting elements before ordering.

Is a central support needed?

It is needed for a long span, heavy load, or insufficient bottom rigidity. The central leg is placed under a partition or reinforced area.

Can the legs be installed on laminated chipboard?

Yes, with properly calculated fastening. Thin or damaged laminated chipboard may require a mounting plate, internal insert, or through connection.

What indentation should be made from the edge of the body?

There is no universal number. The leg must fully stand on a solid platform, and the fastener must be at a safe distance from the edge. The indentation is calculated according to the body drawing.

Should I choose beech or oak?

Beech is convenient for enamel and a smooth surface. Oak is chosen for a pronounced texture under tinting. Specific combinations of material and color are checked in the card.

What colors are available?

The card features white enamel RAL 9010, gray RAL 7001, black RAL 9005, walnut patina tint, and cherry tint.

Can I order white legs?

Yes, the card has an option with white enamel RAL 9010. Before ordering, compare the color number with the furniture facade.

Which legs should I choose for a white TV cabinet?

White MN-204M make the body visually whole, black ones create a graphic contrast and support the equipment. The choice depends on the handles, floor, and overall palette.

Will black legs suit a wooden dresser?

Yes. Black enamel emphasizes the geometry and creates a modern contrast with oak or veneer. It is advisable to repeat the black color in the handles or other details.

What hardware is needed?

The card shows a stud/screw M8×60, mounting plate FUR-044, kit FUR-012, and foot FUR-023. The required set is selected based on the bottom material and attachment scheme.

Is hardware included with the leg?

Hardware should be selected and added separately. Before payment, check the cart contents to get the required number of studs, plates, and feet.

Can I replace old legs with MN-204M?

Yes, if the old base can be restored and the new plate fits on the bottom. Broken holes cannot be used without repair.

Do I need to order a spare leg?

For one home dresser, it is usually not necessary. For a commercial project, furniture series, or rare finish, a spare leg from the same batch is useful.

Is it possible to use only two MN-204M?

For a regular cabinet, two separate legs usually do not create a stable configuration without an additional frame or solid side supports. Such a solution requires a separate structural design.

How to check the strength of the bottom?

You need to know the material, thickness, and placement of side panels and partitions. A furniture maker assesses how the load is transferred from the body to each leg and whether reinforcement is needed.

Where to buy MN-204M?

The model is presented in the STAVROS catalog. In the product card, you can select the material, finish, quantity, and proceed to checkout.

Conclusion: MN-204M is purchased as a ready-made support and part of the structure

MN-204M deserves attention not only for its expressive shape. The height of 125 mm helps lift the body, the ready-made finish shortens the path from purchase to installation, and beech and oak allow you to choose a covering or wood-like character. White, gray, and black enamel are suitable for modern furniture, while the "walnut with patina" and "cherry" tints add a warmer character.

The main mistake is to perceive the leg separately from the body. The number of supports, central support, mounting plate, stud, and foot pad must match the bottom material and load distribution. For a compact cabinet, you can start with four legs; for a long TV console and a wide dresser, a more complex scheme will be required.

STAVROS allows you to choose a ready-made MN-204M and compatible fittings without having to paint random blanks yourself. Before placing an order, prepare the body dimensions, partition layout, and desired color. After such a check, you can confidently buy MN-204M for a bedside table, dresser, or TV console and get a set that matches not only the style but also the actual furniture construction.
