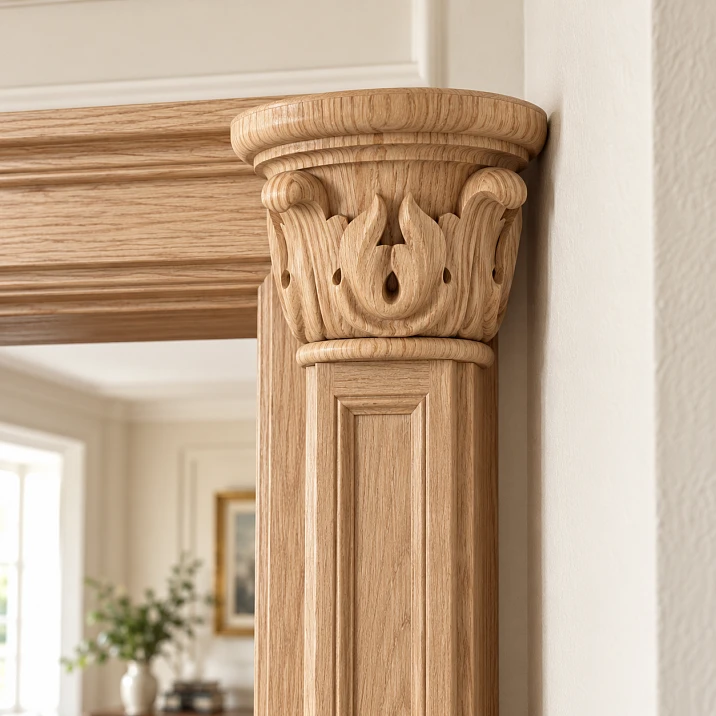

The door portal stands almost flush against the side wall: how to buy a carved wooden capital KL-050 and check its full dimensions before ordering

The door portal is already drawn and almost assembled. The pilasters are in place, with a carved capital provided on top. In the front visualization, everything looks spacious. But to the right of the opening, a narrow wall section remains: a few centimeters later, a perpendicular wall, built-in wardrobe, or tall cabinet begins. This is where purchasing KL-050 may fall through not because of the design or wood species, but because of geometry.

Before ordering KL-050, you need to check not just one number or only the front silhouette, but the entire A×B×C×F dimension of the specific version according to the manufacturer's drawing. The capital is a three-dimensional part. It may fit beautifully above the pilaster from the front, but conflict with the side wall, cabinet door, furniture cornice, or other decor.

KL-050 currently has two size versions: 57×80×80×44 mm and 79×110×110×60 mm. Both are available in beech and oak, with "Standard" and "Prestige" sanding, and "Under enamel" preparation. However, you cannot independently declare that B is width, C is depth, F is overhang or mounting area: the purpose of each parameter must be read on the manufacturer's drawing.

If a specific version has already been approved, you can open carved wooden capital KL-050. If the model is still being selected, it is more convenient to first capital to buy through the general catalog of wooden capitals.

Go to Catalog

Carved wooden capital KL-050: what exactly can be ordered

KL-050 has two size versions.

| A×B×C×F, mm | Beech Standard | Beech Prestige | Oak Standard | Oak Prestige | | --- | ---: | ---: | ---: | ---: | | 57×80×80×44 | 3,480 ₽ | 4,370 ₽ | 4,540 ₽ | 5,300 ₽ | | 79×110×110×60 | 5,850 ₽ | 7,140 ₽ | 8,690 ₽ | 9,790 ₽ |

For both versions, the following are confirmed:

• beech and oak;
• “Standard” and “Prestige”;
• “Under enamel”;
• made to order;
• average time 5–10 days.

The card allows the use of KL-050 in architectural and furniture compositions, including doorways, pilasters, and columns.

But for purchasing, it is not enough to write:

KL-050 small — 2 pcs.

Or:

KL-050 110 mm — 2 pcs.

More correctly:

KL-050 / 79×110×110×60 mm / beech / Prestige / For enamel / quantity ___ / position per project ___

This way, the furniture maker and the supplier see the full SKU variant, not just a single number whose meaning each person can interpret in their own way.

Why all A×B×C×F are needed in the specification

A product card has four size designations.

Their task is to describe the geometry of the product.

But the letter itself does not give the right to automatically assign a function to it.

You cannot write:

B — pilaster width;

C — capital depth;

F — mounting platform;

if this is not confirmed by the official drawing.

For a narrow door portal, this is especially important. The error occurs precisely when the buyer takes one number from the table, mentally turns it into the "required width," and decides that the rest is no longer significant.

The working rule is simpler:

card → full size → drawing → actual unit.

Our factory also produces:

View Full Product Catalog

Buy a capital for interior doors: we measure not only the opening itself

The doorway may be wide enough for the selected portal, but the surrounding space may not be.

Before buy a wooden capital, it is useful to take measurements not only of the pilaster.

Check:

• distance to the side wall;
• distance to the built-in wardrobe;
• position of the curtain rod;
• top gap to the ceiling decor;
• position of the wall lamp;
• switch, if it is nearby;
• another door;
• adjacent pilaster;
• protruding furniture handles.

That is, KL-050 is purchased not "for a doorway in general," but for a specific three-dimensional zone.

Wooden capital KL-050 next to the wall: the frontal template is not enough

The most dangerous mistake is to make only a flat paper silhouette and apply it from the front.

This test answers the question:

does the outer contour fit in the frontal projection?

But it does not answer:

does the product take up space on the side?

For KL-050 in a narrow wall niche, it is better to make a simple volumetric mock-up of the maximum dimensions of the selected version.

It can be made of cardboard, foam board, or thick paper.

There is no need to replicate the threading.

You only need to reproduce the overall volume according to the drawing and place it in the position of the future capital.

This way, you can immediately see whether the product conflicts with a wall corner, cabinet, cornice, furniture door, or other architectural decor.

How to make a volumetric mock-up of KL-050 without manufacturing the part itself

Practical procedure:

1. select one of two size versions;
2. open the branded drawing;
3. transfer the full dimension A×B×C×F;
4. assemble a simple volumetric template;
5. place it above the pilaster;
6. check the front view;
7. check from the side;
8. open the adjacent cabinet or door;
9. take a photo of the result;
10. only after this confirm the order.

Such a mockup does not confirm installation and does not replace the designer.

Its task is to answer one question:

does the capital physically fit into a specific joint?

Wall section 100–150 mm: why a single figure from the card is still not enough

Let's imagine that to the right of the pilaster, 125 mm remain to the perpendicular wall.

At first glance, a buyer may see values of 80 or 110 mm in the card and make a quick conclusion:

110 is less than 125, so the large KL-050 definitely fits.

That is not how it should be calculated.

Until it is confirmed which specific parameter of the official drawing corresponds to the required direction in your joint, comparing 125 mm against 110 mm proves nothing.

Correct sequence:

1. measure the actual 125 mm on site;
2. open the drawing of the selected KL-050;
3. determine the actual orientation of the product;
4. assemble the mock-up;
5. check it against the wall;
6. only after that draw the conclusion "passes / does not pass."

This is exactly what protects against the most typical mistake of a narrow wall section — trying to solve a three-dimensional problem with a single number from a table.

KL-050 next to a built-in wardrobe: we check not only the closed facade

A built-in wardrobe next to a door portal often looks safe while its door is closed.

After opening, the situation changes.

Need to check:

• the trajectory of the door;
• handle protrusion;
• furniture cornice;
• trim or side panel of the cabinet;
• edge KL-050.

If the door opens towards the portal, the volumetric mock-up is left in place and the facade is moved through its full travel.

You cannot set a universal "10 mm gap" or "20 mm gap" without a project. It depends on the specific furniture, hinges, handle, and geometry.

The goal of the article is not to assign a number, but to make you check the movement before purchasing.

Buy a capital for the door: one side of the portal may pass, but the other may not

The doorway is often symmetrical in its own dimensions, but the surrounding interior is asymmetrical.

For example:

to the left of the portal — 500 mm of free wall;

on the right — after 120 mm the cabinet begins.

If only the left capital has been checked, you cannot automatically write:

KL-050 — 2 pcs.

Both nodes need to be checked.

This is especially important for large versions, where any additional volume near furniture is more noticeable.

A correct list may look like this:

position K1 — KL-050, checked;

position K2 — KL-050, checked separately.

If the product does not fit on the right, it does not mean the item is "bad." It simply means the node requires a different solution.

What to do if KL-050 fits on the left but conflicts with the cabinet on the right

The buyer has several design options, but the article should not choose for the designer.

Can be discussed:

• another size KL-050;
• changing the portal composition;
• changing the adjacent furniture element;
• asymmetric solution;
• a different capital.

The main thing is not to buy two identical parts automatically just because the portal is visually symmetrical.

If the right side is constrained, it becomes the critical node.

It is solved first.

Only then the quantity is processed.

KL-050 57×80×80×44 mm: compact option — only a candidate

The smaller version costs:

• beech Standard — 3,480 ₽;
• beech Prestige — 4,370 ₽;
• oak Standard — 4,540 ₽;
• oak Prestige — 5,300 ₽.

It is obviously more compact than the second version across the entire size combination.

But this cannot be turned into universal advice:

little space → take 57 mm.

First, the execution must match the pilaster project and decorative scheme.

Only after this is the adjacent space checked.

If it passes, the smaller KL-050 becomes a real candidate.

KL-050 79×110×110×60 mm: large decor requires a new layout

The large version costs:

• beech Standard — 5,850 RUB;
• beech Prestige — 7,140 RUB;
• oak Standard — 8,690 RUB;
• oak Prestige — 9,790 RUB.

You cannot try on the smaller KL-050 and then decide:

The big one is slightly larger, so it will fit too.

The entire combination A×B×C×F changes at once.

Therefore, a second mockup is needed for the second version.

Otherwise, the buyer checks one geometry but orders another.

How much do two identical KL-050 for a symmetrical portal cost?

Suppose the project really requires two identical capitals.

For the version 57×80×80×44 mm:

Beech Standard

2 × 3 480 = 6 960 ₽.

Beech Prestige

2 × 4 370 = 8 740 ₽.

Oak Standard

2 × 4 540 = 9 080 ₽.

Oak Prestige

2 × 5 300 = 10 600 ₽.

For the version 79×110×110×60 mm:

Beech Standard

2 × 5 850 = 11 700 ₽.

Beech Prestige

2 × 7 140 = 14 280 ₽.

Oak Standard

2 × 8 690 = 17 380 ₽.

Oak Prestige

2 × 9 790 = 19 580 ₽.

These calculations show only the cost of the products themselves.

They do not include finishing, delivery, and installation.

Buy a wooden capital: first the pilaster, then the adjacent space

For KL-050, the correct sequence is two-stage.

First filter

Does the selected capital fit the overall architectural composition and the pilaster?

Second filter

Does the full volume fit in the real space next to the wall, cabinet, and other elements?

This distinguishes the current task from the usual "what size to choose."

Even a KL-050 perfectly matched to the pilaster may fail the second filter.

And conversely: free space nearby does not yet mean the product fits the portal itself.

Beech or oak KL-050: material cannot fix a geometric conflict

Both wood types are available in the same two size variants.

Therefore, changing:

beech → oak

does not change the dimensions.

If the layout does not fit between the portal and the cabinet, oak will not help.

Correct order:

dimensions → space → material → processing → finish.

So choosing the breed does not replace engineering verification.

"Standard" or "Prestige": when to choose KL-050 processing quality

Available for both sizes:

• Standard;
• Prestige.

But this decision is made after geometry.

If the product physically does not fit, discussing the cost of more detailed processing is premature.

Once the dimensions are approved, you can compare budgets.

For example, for a large KL-050 made of beech:

7,140 − 5,850 = 1,290 ₽ difference per piece.

For two:

2 × 1 290 = 2 580 ₽.

For oak:

9,790 − 8,690 = 1,100 ₽ per piece;

2,200 RUB per pair.

KL-050 "Under enamel": the finish must be coordinated with the entire portal

"Under enamel" is not a ready-made color.

If the pilasters are already painted, KL-050 should not be finished as an independent decorative item.

It is necessary to record:

• color;
• code or physical sample;
• soil;
• enamel;
• gloss level;
• performer;
• control paint-out.

Especially if two capitals stand above one opening.

The difference in shade on a pair will be more noticeable than on two elements in different rooms.

The portal is already painted: the new KL-050 is compared with a real sample

If the pilasters were made earlier, the old color code is useful, but a real sample is even more useful.

The coating could change gloss, fade slightly, or differ from another production batch.

Therefore, before finishing new KL-050, you can make a test paint-out and apply it to the existing portal.

This is not the task of the product card itself, but it is an important part of reordering.

Buy a capital above the door: when a full-size mockup is practically mandatory

The mockup is especially useful if:

• the portal almost touches the corner;
• there is a built-in wardrobe nearby;
• there is a tall kitchen cabinet nearby;
• a furniture cornice passes by;
• there is a wall lamp;
• there is a second door nearby;
• the interior is already completely finished;
• adjacent elements cannot be moved.

In such cases buy a capital for interior doors better only after a physical check of the volume.

The cost of a mockup is almost zero compared to redoing a finished portal.

KL-050 near a sconce or switch: we check not only the distance along the wall

If a wall lamp is located nearby, not only its center matters.

You need to consider the sconce base, decorative cup, lampshade direction, access for maintenance, wiring, and mounting box.

If there is a switch nearby, KL-050 should not interfere with normal access.

The article does not specify distances to electrical wiring — this depends on the specific project.

But the object itself must definitely be included in the node mockup.

Two adjacent doors: the capital of one may conflict with the portal of the other

In a corridor, two door openings are sometimes located almost next to each other.

On the frontal plan, both KL-050 may look fine individually.

But after installation, large decor may visually or physically come closer than expected.

Therefore, both doors are mocked up simultaneously.

Check:

• distance between capitals;
• connection with pilasters;
• opening of door leaves;
• adjacent architraves;
• the overall rhythm of the wall.

This scenario is especially important in an already finished interior, where moving openings is impossible.

Buying a column capital and buying a door capital are different technical tasks

The same SKU can be used in different architectural compositions.

But the initial data differ.

For a column, one system of junctions is important.

For a door portal, another one.

Therefore, if KL-050 was liked in a photo of a column, you cannot simply transfer it to a door and consider the installation solved.

In the door scenario, they check:

pilaster + capital + side wall + furniture + door + adjacent decor.

This is the specific technical specification of this article.

How to write KL-050 into an order

Bad:

capital — 2 pcs.

Also bad:

KL-050 large — 2 pcs.

Better:

KL-050 / 57×80×80×44 mm / beech / Standard / For enamel / quantity ___ / position K1–K___

Or:

KL-050 / 79×110×110×60 mm / oak / Prestige / For enamel / quantity ___ / position K1–K___

It is also useful to specify separately:

dimension checked against the layout in the portal node, drawing revision ___

Control sheet before payment KL-050

Before confirming the invoice, it is convenient to go through one short checklist.

| Check | Status | | --- | --- | | Article KL-050 | confirmed | | Full size A×B×C×F | recorded | | Drawing of selected version | opened | | Left side of the portal | checked | | Right side of the portal | checked | | Adjacent cabinet opened with mockup | yes / not required | | Sconce and switch | checked | | Material | beech / oak | | Sanding | Standard / Prestige | | Finish | approved | | Quantity | confirmed |

If the line "right side" or "cabinet opened" remains empty, the purchase should not be considered fully verified.

What data to send to the manager before ordering KL-050

Practical package:

• article KL-050;
• selected full combination A×B×C×F;
• the material;
• Standard or Prestige;
• quantity;
• photo of the doorway;
• pilaster diagram;
• distance to the side wall;
• distance to the cabinet;
• photo of the open cabinet, if it is nearby;
• finishing specification.

If in doubt, you can write directly:

Please check the selected KL-050 against the drawing regarding the narrow side wall. The full dimension has been verified/not verified with a mock-up.

This way the manager sees the real problem of the order.

If the portal is designed in two identical rooms

Even with identical doors, rooms may differ in furniture.

In one, there is a free wall nearby.

In the other, there is a cabinet.

Therefore, do not automatically copy:

KL-050 — 4 pcs.

First, check all four positions.

If the geometry is identical, the specification is scaled.

If not, the project must reflect the differences.

Acceptance of KL-050 before painting and installation

After receiving the product, it is better to check it in person first.

Before the final enamel:

• verify the article number;
• verify the size version;
• check the material;
• check the Standard/Prestige;
• inspect the surface;
• apply the product or control mock-up to the unit.

If at this stage it turns out that the adjacent cabinet fits closer than it did on the drawing, the decision can still be adjusted before painting.

What to check if the portal is already installed and the pilaster cannot be changed

In a finished interior, the cost of a mistake is higher because it is no longer possible to move the pilaster or widen the wall opening.

In such a situation, KL-050 is checked in reverse order:

1. first, the actual free space is recorded;
2. then the dimensional mock-up is applied;
3. after that, it is matched with the pilaster;
4. only then do they choose the material and finish.

That is, the finished interior dictates a strict geometric frame.

If the selected KL-050 does not fit into it, there is no need to try to "force" the project to fit the product. It is better to return to the catalog and choose another element.

If the cabinet next to it is not installed yet, its dimensions still need to be taken into account in advance

Sometimes the portal is made first, and the cabinet will appear in a month.

This is not a reason to consider the space next to it free.

The future cabinet should be added to the KL-050 project right away:

• the side panel;
• facade;
• the handle;
• cornice;
• the opening trajectory.

Otherwise, today the capital looks free, but after the furniture is installed, a conflict arises.

For staged renovation, this is a particularly important scenario: you need to check not only the current state of the room, but also the final configuration of the interior.

Passport of node KL-050 after approval

After a successful fitting, it is useful to save a short note:

KL-050 / full size ___ / position K1 / distance to wall ___ / adjacent cabinet ___ / project revision ___

For the second side:

KL-050 / full size ___ / position K2 / checked separately

This way, when reordering, repainting, or replacing a single part, you won't have to reconstruct the solution from a photo.

This passport is especially useful if the portal and furniture are made by different contractors.

When KL-050 does not need to be purchased yet

It is better to stop the order if:

• only a photo has been selected;
• pilaster dimensions are still changing;
• the branded drawing is not open;
• only one side of the portal has been checked;
• there is a cabinet nearby, but its door has not been opened with the mockup;
• the final color is unknown;
• one of the A/B/C/F parameters is interpreted by eye;
• the large version was chosen after trying on only the small one;
• the actual interior already differs from the design.

This does not mean that KL-050 is not suitable.

It only means that compatibility has not yet been confirmed.

Errors when ordering KL-050 into a narrow door portal

Error: checking only the frontal silhouette.
The capital is volumetric, so the full dimension is needed.

Error: using a single number 80 or 110 mm as the entire specification.
The card provides A×B×C×F.

Error: making up the purpose of size letters.
The function is read from the official drawing.

Error: checking only the left side of the portal.
The right side may conflict with the cabinet.

Error: opening the cabinet only after KL-050 installation.
The door trajectory is checked in advance.

Error: changing beech to oak for solving geometry.
The size does not change.

Where to buy a capital and where to order exactly KL-050

If the model is still being selected, you can capital to buy in the general catalog.

If a wooden model for a door portal is needed, the same catalog allows comparing options.

If KL-050 is already approved, go directly to the card carved wooden capital KL-050.

Questions before purchasing KL-050

What sizes are available for KL-050?

57×80×80×44 mm and 79×110×110×60 mm.

Is there a KL-050 in beech?

Yes.

Is there a KL-050 in oak?

Yes.

What sanding options are available?

"Standard" and "Prestige."

What does "under enamel" mean?

Preparation for subsequent opaque finishing, not a ready color.

How much does the small KL-050 in beech Standard cost?

3,480 RUB at the time of checking.

How much does the large KL-050 in oak Prestige cost?

9 790 ₽.

Can I choose a single dimension of 80 or 110 mm?

No. You need to verify the entire combination A×B×C×F and the official drawing.

How to check KL-050 near a wall?

Make a full-scale mock-up of the selected configuration and place it in the actual assembly.

Do I need to open the adjacent cabinet when trying it on?

Yes, if its door or handle moves toward the portal.

Can I check one side and order two capitals?

Only if the second side is truly identical in surroundings. Otherwise, both nodes are checked.

What is the production time?

Average lead time is 5–10 days.

Where to buy KL-050?

In the product card of the carved wooden capital KL-050 STAVROS.
