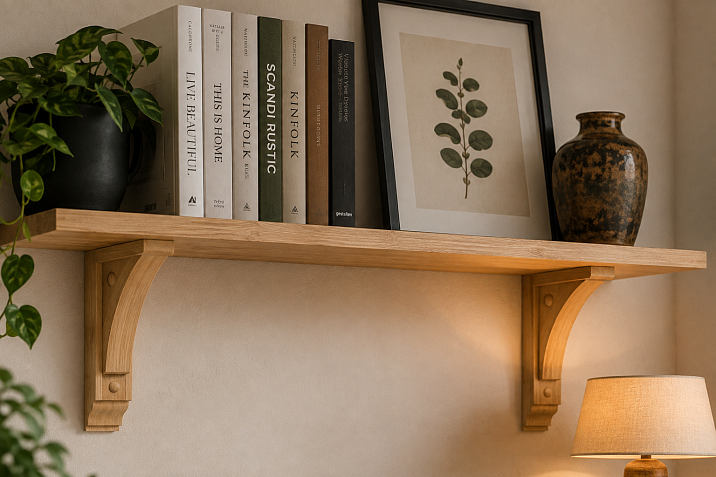

Wooden bracket KR-071 for a bookshelf: what to check before ordering if the load is not specified

In the cabinet, a long bookshelf is being designed. The designer needs a large wooden bracket that does not look like an accidental technical part but integrates into the wall architecture. In the STAVROS catalog, the KR-071 is selected: a tall wooden bracket made of pine, sized 514×77×330 mm. The product card directly calls it structural, shows the tongue-and-groove joint with glue, two countersunk holes for wall mounting, and allows its use as a support for floating shelves. At first glance, this is enough to proceed with the purchase.

But the product card does not include the permissible load in kilograms. There is no table like "one KR-071 — X kg," no universal installation spacing for a bookshelf, and no ready-made combination of "two brackets + such a board + such fasteners = so many kilograms." Therefore, the correct answer to the main question is this: the KR-071 can be considered a functional structural element, but it should be ordered for a loaded bookshelf only after checking the entire system — the shelf, the number of supports, the distances between them, the wall material, the fasteners, and the expected load.

The word "structural" confirms the product's purpose but does not replace engineering input data. The size 514×77×330 mm shows the geometry. Pine is the material. "Prestige" indicates the quality of sanding. Tongue-and-groove and glue describe the assembly. Two countersunk holes show the intended method of mechanical attachment to the wall. All these are useful facts. None of them individually translates into a permissible load in kilograms.

As of August 31, 2026, the KR-071 cost RUB 4,780 per piece and was available on order. The price changes, so it is re-checked in the product card before payment. If the designer confirms, for example, four items after calculation, the product budget for the wooden brackets themselves on that date will be 4 × 4780 = RUB 19,120But the number "four" cannot be chosen from the article: it must come from the specific shelf scheme.

The buyer's main practical task is not to guess whether the KR-071 will hold books, but to gather a set of initial data, after which the manufacturer, designer, or competent installer can confirm the suitability of the assembly. This is exactly what needs to be done before ordering a batch.

Wooden bracket KR-071

from 60.02 $

Go to Catalog

Structural wooden bracket KR-071: what the card actually confirms

The product card provides enough data to understand the class and design of the item.

If the project has already passed a structural review, a specific model can be registered via a card buy a wooden bracket KR-071.

The table immediately shows the boundary between confirmed and unknown. KR-071 has structural logic and planned installation, but lacks a key figure that cannot be replaced with an assumption.

Watch video ...

Why the KR-071 size of 514×77×330 mm is not a load calculation

A large bracket visually inspires confidence. The height of 514 mm and the reach of 330 mm look much more substantial than a compact decorative console. But the size answers the question “how much space the product takes up,” not “how many kilograms are allowed to be applied to it on a specific wall.”

To obtain the permissible load on the finished shelf, at least several groups of data are needed.

Data about the bracket itself. Geometry, material, joint design, hole placement, grain direction, actual force transfer scheme.

Data about the fasteners. Diameter, length, anchor or screw type, embedment depth, fastener performance in a specific base.

Data about the wall. Concrete, solid brick, hollow block, aerated concrete, wooden frame, drywall with a backing plate — these are different conditions.

Data about the shelf. Material, length, depth, thickness, rigidity, method of attachment to the bracket.

Load data. Self-weight of the shelf, books, items that may appear later, uneven placement, operational impacts.

Diagram. Number of KR-071 units, distances between them, offsets from the ends of the shelf, positioning relative to racks, embedded elements, or wall sections, and the method of load transfer.

Even if two brackets are absolutely identical, finished shelves may have different allowable loads due to different bases or fasteners. Therefore, a number derived only from the dimension 514×77×330 mm would be a fabrication.

Our factory also produces:

Ladder Post L-070

from 351.70 $

Ladder post L-076

from 258.13 $

Wooden Decor N-167R

from 18.54 $

Wooden Decor N-173.1

from 79.54 $

Molding / skirting / wooden baseboard MLD-007.1

from 25.74 $

Furniture Handle Tile HL-041

from 16.10 $

Nova HL-028M Furniture Handle

from 45.50 $

Wooden decoration N-161.1R

from 8.54 $

View Full Product Catalog

What does the wording "may function as a load-bearing structure" mean?

The wording on the card is important. The manufacturer does not describe KR-071 as purely a decorative trim. The product can work functionally, and among its applications, sturdy wall-mounted shelves are explicitly listed.

This allows including KR-071 in a loaded shelf project and requesting a calculation or confirmation of use. But you cannot turn a description of purpose into an independent test conclusion.

Between the phrases:

"the bracket may function as a load-bearing structure"

и

"one bracket supports 40, 60, or 100 kg"

lies an entire calculation unit.

The first statement is confirmed by the card. The second requires data that is not in it.

Practical takeaway for the buyer: KR-071 should not be discarded just because the load table is missing. The purchase should be moved from catalog mode to project inquiry mode. Instead of asking "how many kilograms does it hold?", send the seller or specialist the specific shelf dimensions, wall material, planned quantity, and actual load.

Book shelf load: what to determine before ordering KR-071

The mass of books needs to be determined for your office

Books are not an abstract uniform load. Formats, bindings, and shelf fill density vary greatly. Therefore, taking a universal figure like "so many kilograms per meter of books" from a random article and assigning it to your project is not required.

It is more reliable to measure your own scenario.

Take one actually filled section of an existing library, for example, 500 or 1000 mm long. Remove the books and weigh them in batches. You will get the actual mass of exactly those editions that will be stored on the new shelf.

Then add the shelf's own mass. If the shelf has not been manufactured yet, its mass should be provided by the manufacturer or can be calculated based on the material and exact dimensions using the confirmed density of the chosen material.

Separately, decide what else might end up on the shelf:

• folders;

• large-format albums;

• statuettes;

• appliances;

• boxes;

• heavy catalogs;

• second row of books;

• temporarily placed items.

The shelf should be designed not for an ideal interior photo on the day of delivery, but for real-world use.

Why you can't simply divide the total weight of books by the number of brackets

Suppose after measuring, it turns out that the shelf together with its contents has a certain mass. The mistake is to divide it by three or four and declare the resulting figure as the load for one KR-071.

Support reactions depend on the location of the load, the stiffness of the shelf, the distances between brackets, and the position of the end supports. If heavy books are shifted toward one edge, the load will be distributed differently than with perfectly uniform filling. If the shelf deflects, some supports may engage differently than simple arithmetic assumes.

There is also a moment from the overhang. The load acts not only vertically downward. It creates a rotational effect relative to the wall attachment. The farther the load is from the wall, the more important the entire assembly scheme becomes.

Therefore, the expression:

total mass / number of brackets

can be used at best as a rough illustration of the average share, but not as confirmation of the permissible load of a specific support and fastener.

The shelf and KR-071 must be calculated as a single system

The reliability of a bookshelf does not end with the bracket.

Let's imagine very strong supports installed with a large margin. If the shelf itself is too thin and flexible, it can sag between them. Adding a strong bracket does not fix a weak board.

The reverse situation: a thick rigid shelf is mounted on KR-071, but the fastener is selected for the facing layer, not for the load-bearing base. The bracket may remain intact, but the fastening can be torn out of the wall.

The third situation: the wall is reliable, the fastener is suitable, but the shelf simply lies on top and is not secured against shifting or tipping. Then the behavior of the structure under accidental pressure on the front edge is undefined.

Therefore, the project includes:

wall → wall fastening → KR-071 → shelf fastening to KR-071 → the shelf itself → contents.

The weak link can be anywhere in this chain.

Two identical bookshelves may require different KR-071 mounting hardware.

Suppose a designer created two offices with identical shelves: same length, depth, thickness, books, and the same wooden KR-071 brackets.

The first shelf is attached to a monolithic concrete wall. The second is attached to a framed partition with sheathing.

Visually, the compositions are identical. Structurally, they are not.

For a concrete wall, fasteners are selected considering the concrete, anchor depth, distance to the edge, and other parameters.

For a framed partition, the location of studs and the presence of planned embedded elements are critical. Fastening only into the sheet sheathing cannot automatically be considered equivalent to fastening into the load-bearing structure.

If a reinforced wooden or metal zone is pre-installed inside the partition, the project can be implemented differently. Therefore, a photo of the wall does not answer the question about fasteners.

This is a good example of why a bracket catalog cannot provide a single load rating for all cases.

The wall matters more than a universal screw: what to determine before ordering

Before calculating the quantity of KR-071, the base must be installed.

In the project list, it is useful to record one of the options or an exact structural description:

• reinforced concrete;

• solid brick;

• hollow brick;

• aerated concrete;

• other masonry material;

• wooden frame;

• metal frame;

• framed partition with embedded element;

• cladding on a load-bearing wall.

The thickness of finishing layers is recorded separately. Tile, plaster, decorative panel, or drywall may be in front of the load-bearing wall. Fasteners must work with the base, not just "with what is visible from the outside."

Before drilling, hidden utilities are checked: electrical wiring, pipes, and other lines. The bracket cannot be moved by 100 mm just because a cable is found at the design point without reviewing the entire shelf layout.

Two countersunk holes KR-071: what they confirm and what they do not confirm

The card indicates two seating countersunk holes for attaching the bracket to the wall. This is valuable information: the manufacturer has provided mechanical fixation, and decorative plugs cover the attachment points after installation.

What can be concluded from this:

• KR-071 is designed as an element to be fixed to the wall;

• the mounting points have a specific position;

• the fastener must pass through the designated areas;

• after installation, the holes can be closed with the included plugs.

What cannot be concluded:

• two holes automatically withstand a certain weight;

• any self-tapping screw of suitable diameter is sufficient;

• two fasteners always work the same way in any wall;

• you can add a third arbitrary hole without coordination;

• you can change the position of the standard holes;

• you can transfer the load to the decorative cap.

The number of holes is part of the design, not a load capacity table.

Why you cannot choose a self-tapping screw just by the photo of KR-071

On the product page, among related items, there are structural screws 5×70 and 5×90, as well as a TORX T-25 key. This shows what hardware STAVROS offers alongside the product.

But the presence of a related screw does not mean that it is automatically suitable for any wall in your office.

The self-tapping screw works together with the base or the corresponding anchor system. Different solutions are used for concrete, brick, hollow material, aerated concrete, and frame construction. Length, diameter, working embedment depth, distance to the edge of the base, and the condition of the material all matter.

Therefore, the manager or installer needs to communicate not only "I want KR-071" but also the wall material. If the base is unknown, it is determined before ordering the fastener.

What is included in the KR-071 kit, and what is purchased separately

The KR-071 card comes with two decorative covers for the mounting holes.

Structural screws and the TORX T-25 key are listed as additional items, meaning they cannot automatically be considered part of the bracket kit.

It is useful to record this in the specification as separate lines:

1. KR-071 — required quantity;

2. standard decorative covers — check completeness;

3. wall fasteners — per project;

4. shelf fasteners to the bracket — per project;

5. tool — according to installation technology.

Thus, the order does not create a false impression that "the bracket has arrived, so everything needed for safe installation is already inside the box."

How many wooden brackets to buy for one long bookshelf

Without the shelf dimensions and calculation of the correct universal number, there is no answer.

You cannot introduce a rule:

up to 2 meters — two brackets, after 2 meters — three.

It ignores the shelf material, thickness, weight of books, wall, and support spacing.

The quantity is determined simultaneously by five questions:

1. what length does the shelf have;

2. how rigid is it;

3. what maximum load is planned;

4. where can brackets be reliably installed in the wall;

5. what allowable span remains between the brackets.

After that, the visual rhythm is checked.

If the engineering scheme requires four supports, the designer already distributes four KR-071 across the composition. If the calculation shows five, one cannot be removed just because four look more symmetrical.

Price of KR-071: how much a batch costs after confirming the quantity

Price as of 31.08.2026 — 4780 RUB per bracket. While the quantity is not calculated, it is useful to see only the product budget for possible batches.

The table does not recommend a quantity. It is needed after calculation: the designer specifies how many supports are required, and the buyer immediately understands the product budget.

The full estimate also includes the shelf, fasteners, finishing, delivery, and installation.

Why the distance between KR-071 cannot be set based on aesthetics alone

KR-071 is large. On a long shelf, four or five such elements create a pronounced rhythm. Therefore, it is natural for a designer to want to arrange them symmetrically.

But the aesthetic grid must be built after the structural one.

First, determine the permissible mounting zones and the required number of supports. Then, among the permissible positions, look for the visually best option.

For example, the center of the shelf may coincide with a panel, outlet, or decorative axis of the cabinet. This does not mean that a bracket must necessarily be placed there. If there is no suitable base behind the decorative panel, the point may be unsuitable.

Conversely, the position of a stud or embedded element in the partition may define a structural point around which the composition will have to be rearranged.

How to create a preliminary layout diagram for brackets

Without choosing a step "by the book," you can prepare a correct drawing for calculation.

On the wall elevation, indicate:

• the total length of the shelf;

• left and right edges;

• depth;

• installation height;

• the estimated number of KR-071;

• the axes of each support;

• the distances from the outermost supports to the ends;

• distances between adjacent supports;

• wall material;

• uprights or embedded elements;

• hidden utilities;

• heavy groups of books.

Such a sketch turns the discussion from an abstract "how many brackets to install" into a concrete, verifiable scheme.

Geometry of KR-071 and the bookshelf: check the scale before purchasing

Depth of 330 mm: how to check the bracket for a specific shelf

Size C of KR-071 is 330 mm. This does not mean that any shelf with a depth of 330 mm automatically fits, nor does it mean that a shelf of a different depth automatically does not fit.

You need to obtain a drawing and understand the actual geometry of the upper support area.

The shelf may have:

• depth less than 330 mm;

• depth about 330 mm;

• greater overhang;

• rear clearance gap;

• shaped front edge;

• cable duct;

• wall-side lip.

In the side view, draw the wall, KR-071 profile, and shelf to scale. Check where the wooden support ends relative to the front edge of the shelf and how the intended mounting works.

Shelf thickness: why a full-size mockup is needed

KR-071 has a height of 514 mm and a width of 77 mm. Even if it is structurally suitable, a thin shelf may look visually weak next to such a large element.

A full-size mockup resolves this faster than an on-screen visualization.

Cut a side silhouette of 514×330 mm from cardboard or plywood. A strip 77 mm wide can be shown in the front view. Attach it to the wall at the design height and add a shelf mock-up of real thickness.

Check:

• doesn't the bracket look excessively tall;

• does it match the shelf thickness;

• doesn't it interfere with a person sitting at the table;

• doesn't it conflict with the lower furniture;

• doesn't it cover the electrical outlet;

• does it fit the scale of the cabinet;

• doesn't it become the main feature instead of the books.

This is especially important when purchasing several large brackets: a scale error will repeat across the entire wall.

Why KR-071 may be too large even with sufficient strength

A commercial article should allow the conclusion "this product is not suitable."

KR-071 is a very noticeable support. If the office is small, the shelf is narrow, books are arranged in a single row, and the interior is minimalist, the large structure of 514×77×330 mm can visually overload the wall.

In the category, there are much more compact products. For example, KR-024 starts with a size of 217×60×50×48 mm. This is a different type and different geometry, so it is not an automatic technical replacement for KR-071, but it well shows the range of the catalog's scale.

If the KR-071 layout looks too heavy, the right path is — buy wooden brackets after comparing several models, rather than forcing the selected SKU to work where it does not fit proportionally.

Pine and finish of KR-071: how to assemble a visually unified set

What to check before transparent finishing

KR-071 is made of pine. In an office with oak cabinets or beech furniture, this fact affects the finish.

There are three main strategies.

Opaque painting. The bracket becomes part of the wall or architectural profile. The natural grain of pine visually recedes into the background.

Toning. An attempt is made to bring pine closer in color to the shelf or furniture. A test stain is needed here: different wood species perceive the same shade differently.

Contrasting natural finish. Pine remains an independent material. Then the difference from oak or beech is made deliberate.

You should not write "we tone KR-071 to oak, and it will become oak-like." The color can be approximated, but the texture and wood species remain different.

Why it is better to order four or six KR-071 in one batch

If the calculation confirms several identical brackets, they form a visually unified row.

For pine, natural differences in grain and shade are possible. If the finish is transparent or semi-transparent, it is advisable to evaluate them together before applying the final coat.

Ordering a batch at the same time also simplifies:

• identical preparation;

• marking;

• test coating;

• distribution by location;

• schedule control;

• installation timeline.

If one bracket needs to be purchased later, its wood may differ more noticeably. This is not a defect of the natural material, but a reason to plan the set in advance.

How to mark KR-071 before finishing and installation

For a long shelf, assign each bracket a position: K1, K2, K3, and so on.

On the wall layout, the same markings are placed at the axes.

After a test finish, you can distribute the items by pattern: calmer ones in the center, contrasting ones at the edges, or vice versa, depending on the composition.

Marking is applied to a hidden area or temporary tape. It must not damage the visible surface.

This way, the craftsman will not swap elements after individual fitting.

What to check on the shelf itself before buying brackets

The designer needs not only length and depth.

Write down:

• material;

• thickness;

• weight of the empty shelf;

• length;

• depth;

• location of joints, if the shelf is composite;

• direction of grain for solid wood;

• presence of metal reinforcement;

• shape of the front edge;

• method of attachment to the bracket;

• allowable deflection per the project.

If the shelf is made of multiple materials, the structure is described in full.

Do not assume that a "thick board will definitely not sag." Stiffness must be confirmed for the chosen span between supports.

How to check the real weight of books without complex equipment

If the future library already partially exists, the initial value can be obtained using household methods.

Select a section of an existing bookshelf that is similar in book type to the future one. Measure out 500 or 1000 mm. Remove the books from this section and weigh them in several batches on household scales. Add up the values.

If the new shelf is intended to have two rows, measure two rows. If there will be large albums, archive folders, or boxes, make a separate group.

This result is not a "standard for all books." It represents the actual scenario of a specific owner. It is this that is convenient to pass on to the designer along with the dimensions of the future shelf.

If the library will be expanded, a reasonable maximum fill level needs to be agreed upon. A shelf designed only for today's ten books may be used differently within a year.

Why a bookshelf cannot be tested by a person

After installation, it is sometimes suggested to "check the strength" by pressing with full weight on the shelf or hanging from it. For finished furniture, this is a poor improvised test.

Human load can differ significantly from the design load and be applied at an unfavorable point. A jerk creates dynamic impact. Even if the structure withstands it once, such a test does not prove the correctness of the calculation.

Acceptance must be carried out according to a pre-defined methodology agreed with the designer or installer. If a load test is needed, its parameters are set by a specialist.

What to do if the calculation requires more KR-071 than the designer likes

Such a conflict should be resolved before ordering.

The designer considers the options:

• increase the rigidity of the shelf itself;

• change the material or thickness of the shelf;

• add hidden reinforcement;

• apply a separate load-bearing system;

• leave KR-071 only as a visible decorative-structural layer;

• change the wall composition;

• choose a different bracket.

You cannot simply remove one or two confirmed supports for a rarer rhythm.

Sometimes it is the hidden metal system that allows visually fewer wooden brackets, but such a solution must be designed, not added after installation.

What to do if the calculation allows fewer KR-071 units than the designer wants

The reverse situation also requires verification.

Additional brackets may be used for decorative rhythm, but new attachment points mean additional holes in the wall and additional local loads. It is necessary to ensure that they do not conflict with utilities and can be correctly secured.

If three are structurally permissible, but the designer wants five, the five-bracket scheme is checked. After confirmation, it can be used as an architectural solution.

That is, aesthetics can increase the number of supports, but should not reduce what is calculationally necessary.

When KR-071 should be ordered as a decorative-structural element

KR-071 fits the project well when two groups of tasks are addressed simultaneously.

Structural:

• the load is defined;

• the number of supports is calculated;

• wall material is known;

• fasteners selected;

• the shelf has been checked for rigidity;

• the method of attaching the shelf has been determined.

Architectural:

• the size 514×77×330 mm suits the scale;

• pine matches the finish;

• the large rhythm of the brackets is appropriate;

• decorative caps suit the design;

• the supports do not conflict with furniture and utilities.

Then KR-071 is used exactly as the card describes: a functional wooden element with pronounced decorative presence.

When it is better not to buy KR-071

The order should be postponed if at least one critical question remains open.

Do not buy yet if:

• guaranteed load is needed, but no one has confirmed it;

• the wall material is unknown;

• the partition does not have a suitable base or embedded elements;

• the quantity is chosen only for symmetry;

• the shelf is too thin or its rigidity has not been verified;

• the 330 mm overhang does not fit the depth;

• the 514 mm height conflicts with the furniture;

• a fully concealed system is required without visible wooden supports;

• the pine does not match the finishing concept;

• fasteners are chosen "whatever fits the hole";

• the street or canopy is designed without a protective system;

• snow or wind load is expected without an engineering calculation.

Rejection at this stage saves the cost of the batch, finishing, and wall rework.

Wooden bracket in the exterior: why the card sets a condition

Card KR-071 allows use in the exterior for facade decoration with appropriate protective treatment.

The key word is "subject to conditions."

This cannot be interpreted as "the product is ready for outdoor use right after unpacking." For exterior application, a wood protection system, adhesive joint, ends, and fasteners must be separately defined for the specific climatic situation.

The manufacturer itself states in the FAQ that the external environment is considered aggressive, and special production and warranty conditions apply to some outdoor solutions. Therefore, before placing a facade order, you need to obtain the current conditions specifically for KR-071 and the project batch.

Can KR-071 be used under a canopy?

It can be considered, but the word "canopy" changes the class of the task.

If KR-071 is used only as a decorative facade element under an already self-supporting canopy structure, that's one solution.

If part of the canopy's weight, wind, or snow loads are transferred to it, that's another. Then the entire external assembly needs to be calculated.

You cannot transfer a conclusion from a bookshelf to a facade. An outdoor structure operates under different humidity, temperature, and load conditions.

Before ordering, you need to inform the manufacturer:

• whether KR-071 is load-bearing or decorative;

• canopy dimensions;

• construction;

• wall material;

• intended fasteners;

• exposure to precipitation conditions;

• selected protective finish;

• Operation region.

Why snow load is not a characteristic of the bracket card

The card does not publish the snow load KR-071.

Therefore, one cannot write:

"one KR-071 supports such-and-such snow region."

Snow load refers to a specific building structure and regional conditions. Wind effects are also not derived from the size of the wooden bracket.

If KR-071 becomes part of a canopy or other exterior element, the project moves into the engineering domain. Appropriate input data and calculations are required.

How to finish KR-071 for interior use

The STAVROS FAQ card describes the basic sequence for finishing wooden products:

1. dust removal after sanding;

2. Priming;

3. matting after the primer has dried;

4. application of the top coat with intermediate drying between layers.

For KR-071, the specific material system is selected based on pine and the desired appearance.

Before finishing, especially check areas near plugs and mounting holes. If the product is painted before installation, the installation must not damage the finish without subsequent restoration.

For a transparent coating, make a sample on a compatible pine blank or in an inconspicuous area.

Order KR-071 for a bookshelf: what to tell the seller

How to submit a commercial request

Phrase:

"Need two large wooden brackets for books"

does not provide the seller with initial data.

A useful request looks like this:

Product: KR-071
Size: 514×77×330 mm
Material: pine
Quality: "Prestige"
Purpose: bookshelf in the office
Shelf length: ___ mm
Depth: ___ mm
Thickness: ___ mm
Shelf material: ___
Weight of empty shelf: ___ kg
Planned weight of contents: ___ kg
Wall material: ___
Preliminary quantity of KR-071: ___ pcs.
Preliminary axes: attached diagram
Finish: ___

After that, the question is asked: does the manufacturer have data or recommendations on the use of KR-071 in such a configuration, and what needs to be confirmed before ordering.

What to ask STAVROS before purchasing KR-071 for a loaded shelf

It is better to send the list of questions in writing.

1. Are there any data on permissible load or tests for KR-071 for a specific mounting scheme?

2. What initial data are needed to assess the application?

3. Is there a drawing with the exact location of the two mounting holes?

4. What mounting scheme for attaching the shelf to the top part of the bracket is provided?

5. Which of the proposed structural screws are compatible with the specific scheme, and what is additionally required for the wall material?

6. Can the selected number of brackets be used with the specified shelf length and depth?

7. Are there any restrictions on the distance between supports?

8. Are there any restrictions on the offset of the outermost supports from the shelf ends?

9. Is additional reinforcement of the shelf required?

10. What finish is recommended for pine in an interior setting?

11. If the project is outdoor, what production and protective treatment conditions apply?

12. What is the current production time for the entire batch?

13. What is the price of the batch on the day of payment?

14. Do both decorative caps come with each KR-071?

15. How is a large batch packaged?

If there is no ready answer to the question about permissible load, this does not mean that you can assign a number yourself. Then the calculation is performed by a competent specialist.

What to send to the manager along with the request

Text without an attachment can easily be understood in different ways. Therefore, it is useful to attach one PDF or an image with a layout.

It shows:

• a wall;

• sizes;

• a shelf;

• thickness;

• four sides of the shelf;

• axes of the proposed KR-071;

• distances;

• nearest power outlets;

• furniture;

• base material;

• embedded parts;

• heavy sections of books;

• photo of the existing wall.

If the wall is still being built, attaching a structural drawing of the partition is better than a photo of an empty frame.

What to check in the seller's response before payment

The commercial proposal must match the specification.

Verify:

• KR-071;

• 514×77×330 mm;

• pine;

• "Prestige";

• quantity;

• price;

• deadline;

• completeness;

• delivery;

• application comments;

• associated fasteners, if included separately

  Error 3. Dividing the mass of books equally by the number of KR-071

  Why it occurs: simple arithmetic seems like a calculation.

  Consequence: uneven reactions and bending moment are ignored.

  How to prevent: use a calculation scheme.

  Error 4. Choosing fasteners based on the associated product

  Why it occurs: the self-tapping screw is displayed next to the card.

  Consequence: the fastener may not match the wall.

  How to prevent: first determine the base.

  Error 5. Not checking the shelf's rigidity

  Why it occurs: all attention goes to the large brackets.

  Consequence: the shelf sags between the intact supports.

  How to prevent: calculate the shelf itself.

  Error 6. Making symmetry more important than the wall

  Why it occurs: the interior composition requires an even rhythm.

  Consequence: some supports fall into a weak base.

  How to prevent: first a constructive grid, then aesthetics.

  Mistake 7. Not making the layout 514×330 mm

  Why it occurs: on the card, a large object looks more compact.

  Consequence: after delivery, KR-071 overwhelms the furniture.

  How to prevent: full-size template.

  Mistake 8. Tinting pine without a sample

  Why it occurs: expecting a match with oak furniture by color name.

  Consequence: the shade and texture diverge.

  How to prevent: test stain.

  Mistake 9. Considering the product ready for outdoor use

  Why it occurs: the card allows exterior use.

  Consequence: exterior wood works without the required protection.

  How to prevent: coordinate the exterior system.

  Error 10. Use KR-071 under the canopy without snow and wind calculation

  Why it occurs: a large wooden support looks powerful.

  Consequence: a decorative product is turned into a structural element without confirmation.

  How to prevent: engineering calculation of the exterior structure.

  Error 11. Buy the entire batch before approving the joint

  Why it occurs: the desire to get identical products in one batch.

  Consequence: the error repeats on 6–10 positions.

  How to prevent: first confirm the typical node.

  Error 12. Test the finished shelf with a person's weight

  Why it occurs: wanting to "make sure it holds."

  Consequence: unintended dynamic load.

  How to prevent: use an agreed acceptance method.

  When a more compact bracket may be better than KR-071

  If the functional task allows another product, it is useful to start the comparison with scale.

  KR-071: 514×77×330 mm.

  Minimum version KR-024: 217×60×50×48 mm.

  These are not structural analogs or interchangeable models. The difference shows the range: the category includes both large structural elements and significantly more compact carved brackets.

  If KR-071 is too deep for a 180–200 mm shelf or too tall next to furniture, you need to return to the catalog rather than cut the product or adjust the composition at any cost.

  The manufacturer separately states that the service of filing/cutting the finished product to size is not provided.

  Why you cannot drill additional holes in KR-071 yourself

  The card confirms two provided mounting holes. If the designer believes a third fastener is needed, you cannot silently add a hole to the wooden structure.

  A new hole changes the local geometry and may fall into the joint area of parts. Any design change must be coordinated with the manufacturer or a specialist.

  If the standard scheme is insufficient for the project, this is a signal to reconsider the assembly, not to modify the product without calculation.

  What to do if the wall is not yet built

  This is the best time for design.

  If the cabinet is being built with a framed partition, you can pre-install reinforcement at the KR-071 locations. Then the design grid and structural grid are aligned before finishing.

  Sequence:

  1. approve the length and height of the shelf;

  2. calculate the number of supports;

  3. assign axes;

  4. design embedded parts;

  5. run communications around the fasteners;

  6. close the wall;

  7. save the as-built diagram.

  Later, the installer will not look for studs through the finished finish.

  What to do if the wall is already finished

  It is necessary to install the base structure according to the project, as-built documentation, or survey.

  Do not define a wall by the sound of tapping as the only method.

  Before drilling, check for utilities. If the mounting point conflicts with a cable, the solution is re-approved.

  The finish is protected from damage, and holes are marked using template KR-071.

  Operation after installation: what to preserve and what to control

  How to maintain a bookshelf passport

  For a long, loaded shelf, it is useful to keep a short node passport.

  It specifies:

  • article KR-071;

  • quantity;

  • axes;

  • wall type;

  • applied fasteners;

  • material and dimensions of the shelf;

  • design load;

  • the installation date;

  • master;

  • finishing code.

  If in a few years the shelf is to be filled with a second row of heavy books or equipment is added, the owner will be able to check whether the new use goes beyond the original design.

  The passport also helps during repairs: there is no need to open up the finish to remember where the embedded elements were.

  How to order KR-071 finishing as part of an interior project

  If STAVROS performs painting only under certain order amount conditions, the current conditions need to be clarified separately. For a small batch, finishing can be done by a third-party joinery or painting workshop.

  The technical specification fixes:

  • finish type;

  • color;

  • gloss level;

  • sample;

  • the need to paint the plugs;

  • treatment of installation areas;

  • the sequence "painting — installation — touch-up".

  So the plugs won't turn out to be a different shade than the bracket itself.

  How to check the future library for load changes

  The cabinet evolves. Today the shelf holds books in a single row; in two years, the owner may add a second row, archival folders, or collectible items.

  Before calculation, it's useful to choose an operational scenario not based on "today" but on "maximum reasonable filling."

  This doesn't mean an infinite reserve. It's necessary to agree in advance on what constitutes normal use. Then the designer can provide clear limitations.

  If the shelf's purpose changes radically after installation, the load is reviewed before filling.

  What to check after installation before loading with books

  After installation, don't immediately fill the shelf with the entire library. First, accept the geometry and quality of the joint.

  Check that all KR-071 units are in the same design plane, the shelf has no noticeable skew, mounting points are covered with plugs only after actual installation verification, and the shelf itself is secured in the manner specified by the project. Align the axes with the working layout: any accidental shift of one support to bypass utilities must be reflected in the as-built diagram.

  Separately inspect the wall around the fasteners. There should be no cracks in the finish layer, local destruction of the base, or signs that the fastener was tightened with deformation of the wooden part. After acceptance, it's useful to photograph each position K1, K2, K3 and save the images along with the specification.

  Only then is the shelf put into operation within the scenario for which it was designed. If the designer set a content restriction, it should be kept in the shelf's passport rather than relying on the owner's memory.

  Why the same KR-071 on different floors of one building still requires re-verification

  Even within a single facility, you cannot automatically copy a mounting scheme between rooms. One wall may be concrete, another brick, and a third framed after redevelopment. These differences are not visible behind identical finishes.

  Therefore, a typical assembly can only be replicated where the same base, the same shelf, and a comparable load are confirmed. If at least one of these parameters changes, the check is repeated.

  This is especially important for a large order. Ten identical KR-071s are commercially one batch, but structurally they may be part of several different mounting assemblies. In the specification, it is useful to divide them by zones: for example, K1–K4 — concrete wall of the office, K5–K8 — partition with an embedded element, K9–K10 — decorative use without book load.

  Where to buy KR-071 and view other wooden brackets

  Specific product: buy a wooden bracket KR-071.

  If a different size is required after the mock-up or calculation, you can buy wooden shelf brackets through the category and compare dimensions.

  For a broader decorative composition — to buy carved wooden decor.

  These routes solve different tasks: the card is a specific SKU, the category is the choice of bracket, the carved decor section is the selection of the entire architectural composition.

  Control matrix before payment KR-071

  Check	Yes	No	What to do if "no"
  Does the size 514×77×330 mm look suitable visually?			create a mockup or choose another bracket
  Is the shelf material determined?			get the specification
  Is the weight of the empty shelf known?			weigh/calculate based on confirmed data
  Is the real weight of the books estimated?			weigh a typical section of the library
  Is the quantity of KR-071 confirmed by calculation?			do not process the batch
  Are the installation axes approved?			prepare a development
  Is the wall material known?			inspect the foundation
  Are the embedded parts/stands known?			obtain the as-built diagram
  Is the fastener selected for the foundation?			coordinate the fasteners
  Is the shelf checked for rigidity?			calculate spans
  Is the method of fixing the shelf to KR-071 determined?			develop a node
  Is the pine finish selected?			Make a sample
  Is the batch price checked?			Open the card before payment
  Is the deadline for the entire batch confirmed?			get the date from the seller
  Is the protective system for the exterior approved?			do not install outside

  If critical lines remain empty, the order is not ready yet.

  Summary: can KR-071 be ordered for a long bookshelf if the load is not specified

  KR-071 can be considered and the order prepared, but the selection cannot be considered technically confirmed based solely on the product card.

  The product card provides important grounds: KR-071 is described as a structural wooden bracket, can serve as a load-bearing structure and be used as a support for wall-mounted shelves. Its dimensions are 514×77×330 mm, material is pine, sanding quality is "Prestige". The parts are joined with a tongue-and-groove and glued. Two countersunk holes are provided for wall mounting, and two decorative caps are included in the set.

  As of 31.08.2026, the price was 4780 RUB, and the item was available by order. However, the permissible load in kilograms is not published on the product card.

  Therefore, the correct sequence is as follows:

  weigh or calculate the shelf and its contents → determine the wall → calculate the shelf rigidity → determine the number of KR-071 units → assign axes → select fasteners → determine shelf fixation → agree on the finish → request confirmation from STAVROS/specialist → only then order the required quantity.

  If this chain is closed, KR-071 becomes a justified decorative-structural element of the cabinet. If not, the large size and the word "structural" should not substitute for the missing calculation.

  FAQ

  What is the size of KR-071?

  The dimensions of KR-071 are 514×77×330 mm. These dimensions need to be checked not only against the drawing but also with a full-size mock-up on the specific wall, because the bracket is visually large.

  What wood is KR-071 made of?

  The product card indicates pine. If the shelf or furniture is made of oak, beech, or another wood species, the finish of KR-071 needs to be agreed upon separately.

  What grinding quality is specified?

  "Prestige". STAVROS describes this option as detailed manual sanding.

  How much does KR-071 cost?

  As of 31.08.2026, the product card showed 4780 RUB per piece. Before ordering, the price needs to be re-checked, as it may change.

  Is KR-071 in stock?

  As of the check date, the item was on order. The average manufacturing time for the unavailable item is stated as 5–10 business days, but the specific batch date needs to be confirmed before payment.

  Is KR-071 load-bearing?

  The product card calls it a structural wooden bracket and indicates that it can serve as a load-bearing structure. This confirms its functional purpose, but does not provide a specific allowable load in kilograms.

  What load does one KR-071 support?

  Based on the published product card, a specific value cannot be stated. The allowable load in kilograms is not published, so a check of the entire system "wall — fastener — bracket — shelf — contents" is needed.

  Why can't the load be determined from the dimensions 514×77×330 mm?

  Because the bracket geometry is only one of the parameters. The final load-bearing capacity is affected by the wall, fasteners, shelf rigidity, the number and placement of supports, shelf depth, and the actual operational load.

  How many KR-071 units are needed for a long bookshelf?

  There is no universal number. The quantity is determined after calculating the shelf and the mounting. The rule "one support per meter" cannot be used without initial data.

  Can the total weight of the books be divided by the number of brackets?

  Such arithmetic does not confirm the load on a single bracket. Support reactions can be uneven, and the shelf itself works in bending between supports.

  What mounting holes does the KR-071 have?

  The card confirms two countersunk mounting holes for mechanical attachment to the wall.

  Are decorative caps included in the set?

  Yes, the card indicates two decorative caps that cover the mounting holes.

  Are structural self-tapping screws included in the set?

  Self-tapping screws and the TORX T-25 key are shown as additional items. They cannot be automatically considered part of the set without a separate order line.

  Can the KR-071 be mounted on a brick wall?

  Such a node can be designed, but first you need to clarify the type of brick, the condition of the base, and select fasteners for the calculated load.

  Can KR-071 be used on a drywall partition?

  One sheet of drywall cannot be considered a sufficient base for a loaded bookshelf. Fastening must be designed to studs, embedded elements, or another calculated base.

  Can KR-071 be used outdoors?

  The product card allows outdoor use with appropriate protective treatment. Specific production, finishing, and warranty conditions for an outdoor project must be clarified separately.

  Can KR-071 be installed under a canopy?

  It can be considered, but if KR-071 is involved in supporting the canopy, a calculation of the outdoor structure is required, taking into account all design loads. Conclusions from an interior shelf cannot be transferred to a facade.

  Can KR-071 be shortened?

  STAVROS states that the service of cutting or sawing a finished product to size is not provided. Independent modification of a structural element without approval is undesirable.

  Can a third mounting hole be drilled?

  This should not be done without approval. The standard design provides for two holes, and a new one may change the part's operation or fall into the connection area.

  How to tell if the KR-071 is too large for a cabinet?

  Make a mock-up of the side silhouette 514×330 mm and front width 77 mm. Try it together with the actual shelf thickness and adjacent furniture.

  Where can I see more compact models?

  In the STAVROS wooden bracket category. For example, KR-024 has significantly smaller versions, but the replacement must be selected anew based on purpose, geometry, and load.

  Where can I buy the KR-071?

  In the specific product card after the shelf scheme, number of supports, wall base, and fasteners have been confirmed.
