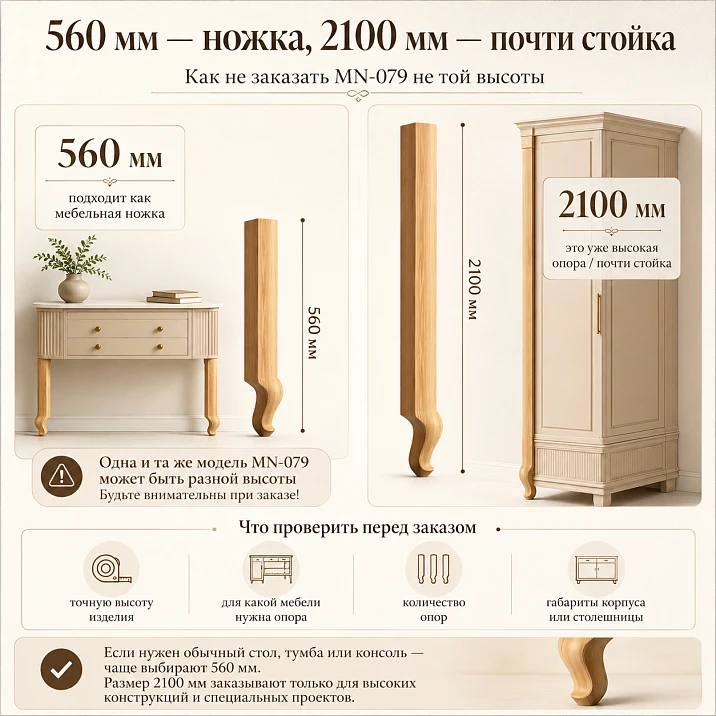

560 mm — a leg, 2100 mm — almost a stand: how not to order MN-079 of the wrong height

In the MN-079 card, one SKU combines three versions, between which it is impossible to choose based on the principle of "I'll take the average." Height A can be 560, 900, or 2100 mm. The difference between the first and third options is more than one and a half meters. One version is perceived as a tall furniture support, while another already requires being treated as a long vertical element whose position must be determined by the project. An error here costs more than ordinary size confusion: the wrong MN-079 changes the overall furniture height, the placement of the carved section, the mounting scheme, the number of parts, and even the shipping method.

The buyer often sees the familiar name "furniture leg" and mentally fills in the purpose. It seems that 560 mm would suit a table, 900 mm for a bar counter, and 2100 mm for a tall cabinet. But the card does not give the right to make such conclusions automatically. A specific structure has a body, tabletop, apron, frame, bottom platform, top connection, and a specified final height. Until these values are gathered on one drawing, the figure A remains the length of the selected part, not a ready answer to the question of what piece of furniture will result.

That is why the request to buy MN-079 needs to be shifted from "I like the shape" mode to engineering-commercial selection mode. First, the role of the element is determined, then height A is chosen, parameters E and F are read, material, sanding quality, future finish, quantity, base plate, and top mounting are checked. Only after this buy carved furniture leg MN-079 can you safely get a part that physically fits into the project.

The main practical conclusion sounds harsh but honest: 560, 900, and 2100 mm are not three interchangeable sizes of an ordinary leg. They are three scales of one carved pattern, each of which must receive its own function, fixation points, and place on the drawing.

Carved furniture leg MN-079

from 72.83 $

Go to Catalog

Three versions of MN-079: the same SKU does not mean the same task

For MN-079, three combinations of parameters A, E, and F are confirmed. In an order, you cannot specify only the SKU, because the picker must understand which version is required.

Parameter A is the overall longitudinal dimension of the selected version. E and F are additional dimensions that should be read from the drawing of the specific model. You cannot take 450, 758, or 1958 mm and call them the height of the finished piece of furniture. These values describe the geometry of the part, not the entire structure.

The product card also offers beech and oak, with sanding quality 'Standard' or 'Prestige'. Among the necessary hardware, a round floor glide FUR-021 with a diameter of 19 mm is listed. But even the presence of the floor glide does not turn MN-079 into a fully equipped support: the top mounting assembly depends on the project and must be determined separately.

Watch video ...

Why the range from 560 to 2100 mm cannot be perceived as a regular scale of heights

When one model is produced in several sizes, the buyer expects a slight change in scale: for example, 100, 150, and 200 mm. MN-079 is a different case. The height of 2100 mm is almost four times larger than the 560 mm version. With such an increase, not only the overall length changes, but also how the element is perceived in the furniture.

The 560 mm version can work in the lower part of the structure if the project confirms its height and mounting. The 900 mm version extends into the area of high tables, consoles, racks, and special furniture compositions, but the purpose still cannot be derived from the number alone. The 2100 mm option requires a full vertical scheme: where it starts, where it ends, what holds it, what load it takes, and how it is delivered to the site.

The same ornament ties the three versions stylistically. It does not make them functionally identical.

Our factory also produces:

NPU-193 Molded Decoration

from 60.75 $

Wooden Decor N-423L

from 22.57 $

Pilaster Base BS-004

from 45.75 $

Wooden Decoration N-298L

from 20.49 $

Wooden Molding K-125

from 2.93 $

Wooden Baluster L-099.1

from 55.14 $

Chester Table 002-012

from 1,151.46 $

TR12 Molding Polystyrene HIWOOD 12mm x 12mm x 2.7m.

from 3.66 $

View Full Product Catalog

Why a product photo does not answer the question of scale

Product photography shows the shape, carving, and proportions of the part itself. It does not show your countertop, body thickness, floor height, plinth, ceiling, adjacent elements, or installation path. Without a size reference, the 560-millimeter and 900-millimeter versions can look almost identical on screen.

Therefore, choosing by image is especially dangerous. The buyer remembers the MN-079 pattern, returns to the product page, selects the material, and adds the item to the cart without noticing the changed value of A. The order formally matches the article number but does not match the project.

The name "furniture leg" does not replace the purpose in the project

The catalog name helps find the product group. It is not a structural conclusion and does not assign a load-bearing function to the part. The word "leg" indicates that the model belongs to furniture supports and vertical elements, but the specific application is determined by the design.

To understand the role of MN-079, five questions need to be answered.

1. Does the part stand on the floor or start higher?

2. Does it support the cabinet, countertop, or perform a decorative function?

3. Is the load transferred to it, or is it attached to a ready-made frame?

4. Where is the top fixation point?

5. Is fixation along the length needed, especially for the 2100 mm version?

If there are no answers, it is too early to choose the size.

Load-bearing and decorative roles are not the same thing

Externally, a carved vertical element may look like a support. But in one project it actually transfers the load to the floor, while in another it covers a ready-made frame and works as a decorative facing part. These scenarios have different requirements for the top connection, base, number of fastening points, and their locations.

It is impossible to declare every MN-079 as load-bearing or, conversely, exclusively decorative. This is determined by the furniture project. The buyer needs to provide the designer with the actual part drawing and get confirmation of its role before placing an order.

Why 2100 mm is not a "leg for a tall cabinet" by default

A cabinet about two meters high usually has its own body, bottom, side panels, and stability system. A long carved part may be placed in front of a side panel, be part of a portal, frame a display case, or participate in another composition. But calling it a cabinet leg without project confirmation is incorrect.

The MN-079 version with a length of 2100 mm should be considered as a long vertical element. Its function may vary, but each option requires fixation points, straightness checks, interaction with the body, and safe transportation.

How to read dimensions A, E, and F without risky guesses

The buyer often transfers only the largest number to the estimate. For MN-079, this is not enough. If you write "MN-079, 900 mm," the craftsman will get the overall longitudinal dimension, but will not see the additional parameters that affect the placement of the carved and straight sections.

A — the full longitudinal dimension of the selected part

For three versions, A equals 560, 900, and 2100 mm. This value is primarily compared with the design height of the section where MN-079 should fit.

But A is not automatically equal to the height of the finished table, stand, or cabinet. Structural elements may be added to it or subtracted from it — depending on how MN-079 fits into the assembly. A universal formula without a drawing cannot be provided.

E and F are geometry dimensions, not an alternative product height

For the 560 mm version, E = 56 mm and F = 450 mm. For 900 mm — E = 71 mm and F = 758 mm. For 2100 mm — E = 71 mm and F = 1958 mm.

These parameters should be compared with the current DWG. They help understand where the transitions and working sections are located, but do not replace the full drawing. If the craftsman sees only A, he may position the part correctly by overall length and make a mistake in the height of the carved fragment.

Why F values cannot be added to A

A already describes the overall longitudinal dimension. F is a separate dimension within the geometry. Adding A + F will create a fictional height that the product does not have.

Similarly, you cannot subtract F from A and automatically call the result the size of the top platform. Such a conclusion is only possible after reading the dimension lines of the drawing.

How to transfer parameters to the work sheet

For each item, record:

• article MN-079;

• height A;

• values E and F;

• material;

• sanding quality;

• planned finish;

• quantity;

• node number on the project;

• position of the top and bottom ends;

• required hardware;

• Note on mounting.

Example:

MN-079, A = 900 mm, E = 71 mm, F = 758 mm, beech, "Prestige", for enamel, 2 pcs.; units B-01 and B-02; top mounting — per design drawing; foot FUR-021 — after checking the lower platform.

Such a line is longer than the entry "MN-079 — 2 pcs.", but it eliminates the main assembly error.

First calculate the required unit height, then open the size list.

The choice of MN-079 starts not in the catalog, but on the furniture drawing. You need to determine the distance between two real points: the lower support plane and the upper attachment plane of the part.

For a floor support

The lower point is the finished floor or the top of the foot, if it affects the final size. The upper point is the connection point with the body, frame, rail, or tabletop. The thickness of all intermediate parts is included in the calculation.

For a decorative vertical element

The lower and upper points may not be on the floor or under the tabletop. For example, a part may start from a plinth, podium, or lower belt and end at a cornice. Then height A is compared specifically with this section.

For an element inside a portal

Check the clear opening, thickness of the base, capitals, or other parts, if provided. MN-079 cannot be trimmed "to the residual size" without evaluating the pattern.

Basic calculation principle

If MN-079 is a standalone support between the floor and the lower plane of the cabinet, the total furniture height is determined by the sum:

part height + foot pad and mounting assembly height, if they add to the dimension + cabinet or upper structure height.

But the specific components depend on the project. Sometimes part of the leg fits into the frame, sometimes the mounting does not increase the height, sometimes the cabinet rests on a platform. Therefore, the formula serves as a checklist, not a ready numerical answer.

Why the finished floor must be considered

If the measurement is taken before laying parquet, tiles, or other flooring, the final height will change. For the 560 mm version, a few millimeters may be visually insignificant but can affect the joint with adjacent furniture. For the long 2100 mm version, an error can manifest in the upper connection.

The project must use a single finished floor level mark.

MN-079 with a height of 560 mm: do not call it an ordinary table leg

Version A = 560 mm is the most compact in the line, but the word "compact" is conditional here. Fifty-six centimeters is a significant height. If such a support is placed directly under a tabletop, the resulting item will be taller than the leg itself by the thickness of the upper structure. At the same time, for many standard tables, 560 mm is insufficient, but for some special items, it is quite sufficient. Without a project, the purpose is not determined.

What to check for the 560 mm version

1. The height of the body, frame, or tabletop.

2. The thickness of the upper structure.

3. The required final height of the item.

4. The position of the carved section relative to the floor.

5. The presence of a stretcher or lower frame.

6. The method of top mounting.

7. The lower platform for FUR-021.

8. the number of supports.

9. Free space between the legs.

10. The ability to use the furniture with the selected chair or armchair, if it is a table.

Why 560 mm plus a tabletop does not yield a universal standard

MN-079 with a height of 560 mm cannot be called a ready-made leg for a writing or dining table just because it looks like a tall support. The final height depends on the tabletop, underframe, frame, and connection method.

If a designer is calculating a low console, a special table, a decorative underframe, or another item, the 560 mm version may be suitable. But such a purpose should follow from the calculation, not from the general product name.

When 560 mm may be too tall

For a cabinet, chest of drawers, or upholstered furniture, such a height radically changes proportions. The body rises above the floor, the center of gravity shifts, and the carved support becomes the main part of the silhouette. Placing MN-079 under a finished body instead of short legs without engineering verification is not allowed.

When 560 mm may be too short

If a buyer is assembling a full-fledged work or dining table and expects a standard seating height, one figure A is not enough. The height must be compared with the design of the entire structure. Another model or a different way of incorporating MN-079 may be needed.

Commercial conclusion for the 560 mm version

The 560 mm version is chosen not because it is the "most common," but because the calculated section between the lower and upper points truly corresponds to A = 560 mm and parameters E/F = 56/450 mm. Before purchasing, this dimension must be seen on a scaled furniture drawing.

MN-079 with a height of 900 mm: a tall support or part of a special structure

Nine hundred millimeters can no longer be perceived as a minor version change from 560 mm. The difference is 340 mm. This changes the height of the carved pattern, the overall scale of the object, and stability requirements.

Possible associations are obvious: a tall console, a stand, display furniture, a bar group. But the purpose is confirmed by the project.

Checks for A = 900 mm

• where the lower point of the element begins;

• where the upper connection is located;

• whether the part is a support;

• whether it bears load;

• how many such elements work together;

• whether there are stretchers, crosspieces, or a body;

• where the carved section is located;

• what clearance remains between the supports;

• how the top is fixed;

• whether the foot plate fits;

• what the final height of the entire piece of furniture is.

Why the 900 mm version is not automatically a bar counter leg

The height of the bar counter depends on the tabletop, the underframe, and the seating scenario. If A = 900 mm, the finished structure will be higher due to the top parts. In one project this may be acceptable, in another — not.

If the task is indeed related to bar or tall furniture, it is useful to compare not only the specific MN-079, but also Buy wooden furniture legs through the general catalog, which presents other heights and shapes. A broad category is needed not to avoid the article number, but to check: whether there is a model that more precisely matches the calculated height without complex rework.

Two tall parts and four supports — different structures

A pair of MN-079 can frame the front part of a console, while the rear load is taken by the body or another frame. Four parts can form an independent underframe. One 900 mm version can work as a decorative stand next to a ready-made frame. The quantity cannot be determined from a photo of a single leg.

Why the rigidity of the entire system is especially important

The higher the vertical support, the more noticeable the misalignments and lateral movements become. This does not mean that MN-079 is not strong enough. It means that stability is created by the entire structure: the connections, the frame, the distance between supports, the tabletop, and the method of fastening.

The buyer should not expect that four tall wooden parts by themselves form a ready-made stable table.

MN-079 with a length of 2100 mm: design it as a long vertical element

Version A = 2100 mm is the main feature of MN-079. With a length of more than two meters, the word "leg" ceases to be a sufficient description of the buyer's task. Before ordering, the function of the element must be defined as carefully as for a post, pilaster, or vertical part of a furniture portal, without renaming the product or attributing properties of other categories to it.

Seven questions without which 2100 mm cannot be added to the cart

1. What exactly does MN-079 hold or frame?

2. Is it load-bearing?

3. Where is the lower point of support?

4. Where is the upper fixation performed?

5. Is an intermediate connection to the body needed?

6. Can the length be changed without disrupting the pattern?

7. How will the product be packaged, delivered, and brought to the site?

If at least three answers are replaced with the words "we'll figure it out on site," the project is not yet ready for ordering.

Why can't 2100 mm be automatically trimmed to the required size

The carved element has a calculated composition. Trimming may remove a transition, shift the ornament, or disrupt the proportions of the lower or upper part. Even if a straight section seems long, the place where changes are allowed must be checked against the DWG and approved.

It also cannot be assumed that the 2100 mm option exists specifically for subsequent cutting into different heights. The card shows the finished execution A = 2100 mm.

Intermediate fixation

A long element may require a connection to the body by height, but the specific need and method are not confirmed by the general card. The designer must assess the geometry, load, and position of MN-079.

It is important to distinguish between intermediate fixation and accidental screwing to the nearest panel. Fasteners must not protrude onto the front carving, split the wood, or create tension.

Load-bearing capacity

The confirmed permissible load is not specified in the initial data. If MN-079 must support a heavy structure, a furniture frame calculation is needed. The decorative shape and large length do not allow drawing conclusions about load-bearing capacity on their own.

Top and bottom connection

Both nodes are shown in detail in the project. At the bottom, you need to understand whether the part stands on the floor, plinth, or base. At the top, whether it connects to a cornice, frame, countertop, or other part. Between them, there is dimension A = 2100 mm and internal geometry E/F = 71/1958 mm.

Transportation of long-length item

A part with a length of 2100 mm needs to be checked not only on the furniture drawing but also along the delivery route:

• whether the packaging fits into the elevator;

• whether it passes through the stair flight;

• whether the box can be turned around in the corridor;

• whether there is space for temporary storage;

• how to protect the thread before installation;

• who accepts the long-length item;

• is special approval required for transportation.

Specific packaging and transportation rules are clarified when ordering. You cannot promise a method on your own.

Full-size mockup for the 2100 mm version

A paper strip on the wall or furniture body helps visualize the scale. Mark the total length of 2100 mm, position F = 1958 mm according to the drawing, the top and bottom points. Such a mockup quickly shows whether the carved vertical conflicts with handles, shelves, cornice, or ceiling line.

Comparison of three heights without a made-up purpose

This table does not distribute versions by furniture type. It helps to see the difference in check depth. The longer MN-079, the less acceptable the choice "by eye" is.

Buy wooden furniture legs: when to look not only at MN-079

MN-079 is chosen for a specific carved pattern and an unusual range of heights. But sometimes the project needs not this model, but another wooden support. An honest check of alternatives saves more time than trying to adapt a liked part.

Catalog where you can order unpainted solid wood furniture legs, allows comparing beech and oak, different shapes and heights. If MN-079 does not match the calculated node, it is better to choose another model than to change the body height for the sake of one leg.

When to open the carved models section

If the ornament is important, but the height is not suitable, you can buy carved furniture legs and compare other options. The link leads to a confirmed filter for carved supports.

When a height filter is needed

For a project where the height is set first and the shape is chosen secondarily, it is useful to select tall wooden furniture legs. In the selection with a height of 450 mm and above, you can check whether there is a support that more accurately matches the calculated size.

When MN-079 remains a suitable choice

The model should be saved in the project if the following conditions are met simultaneously:

• the carved pattern matches the furniture;

• the selected height A matches the node;

• E and F are taken into account;

• the top and bottom fastenings are defined;

• the quantity is calculated;

• the material is linked to the finish;

• the transportation is clear;

• trimming is not required or is agreed upon.

Beech for enamel or oak for tinting

The material cannot be selected after the legs have already been manufactured and delivered. The wood species is linked to the future appearance and finishing method.

Beech for opaque painting

It makes sense to consider Beech MN-079 when the wood will be covered with enamel. The opaque color allows you to tie the supports to the body, facades, or countertop. Before launching a batch, a test coating is made and the degree of gloss is approved.

The phrase "under enamel" does not mean ready-made painting. It does not specify the color, primer, number of layers, or painting service.

Oak with visible texture

Oak is chosen when the natural grain should remain part of the composition. Tinting, oil, varnish, or another system is approved based on a sample. On the long version of 2100 mm, the texture becomes especially noticeable, so it is useful to order all vertical elements of one group at the same time.

Why it is impossible to promise a complete match of texture

Wood has a natural pattern. Two oak MN-079 of the same height may differ in the arrangement of fibers. For a symmetrical pair, the acceptable character of the material is agreed upon, rather than expecting printed identity.

Oak under enamel

This option is possible in a project, but you need to understand why oak was chosen if the texture will be covered. If there is no special reason, beech may be more rational. The decision is made before ordering, comparing not only the price of the part but also the entire finishing cycle.

The entire visible group is one batch

If the furniture includes two, four, or several MN-079, it is better to order them in one configuration:

• same height;

• one wood species;

• one sanding quality;

• a unified finishing system;

• a common sample;

• one layout sheet.

A late additional order requires re-checking the shade and texture.

"Standard" or "Prestige": this is the quality of sanding, not strength

Names can be easily misread. A buyer may think that "Prestige" means stronger wood, higher load-bearing capacity, or a different grade of material. Confirmed data indicate the quality of sanding.

What the quality of sanding changes in practice

A carved surface has protrusions, transitions, and recesses. The degree of preparation affects the amount of further manual work before enamel, tinting, or varnish. But the exact finishing cycle is still determined by the craftsman.

Why you cannot mix options in a pair

If two visible MN-079 units are ordered with different sanding quality, preparation may require different operations. After finishing, this increases the risk of surface differences.

What to check before choosing

On the page about production requirements, you can check the quality of sanding and preparation for finishing. Then, in the invoice, one option is recorded for the entire group.

"Prestige" does not mean a ready-made coating

Even carefully prepared wood does not become painted. Color, gloss, primer, and finish are applied separately.

"Standard" does not mean defective

This is an independent quality option, specified in the card. It cannot be described as defective or unsuitable. The choice depends on the project and the scope of further preparation.

How many MN-079 to put in the cart

The quantity is determined not by the product name, but by the furniture scheme. One card does not mean a set of two or four supports.

One MN-079

One element can be used as a central decorative accent or part of an asymmetrical composition. But if it must bear a load, the structure must have calculations and other support points.

Two MN-079

A pair is suitable for a symmetrical facade, front of a console, portal, or other composition where the frame bears the rear or main load. You cannot automatically assume that two parts are sufficient for a stable table.

Four MN-079

Four supports is the usual table scheme, but familiarity does not replace design. You need to check distances, connections, aprons, tabletop, and diagonals.

Repeating vertical elements

The 2100 mm version can be repeated along a large furniture facade or portal. The quantity equals the number of approved vertical axes. Uniform height and marking are especially important here.

Spare part

For a large commercial project, an additional item is sometimes provided. It must have a purpose: a control sample, stock for damage, or future repair. An abstract reserve percentage without a reason is not needed.

Support foot FUR-021: required hardware is not equal to the ready-made mounting kit

The MN-079 card specifies a round foot pad FUR-021 with a diameter of 19 mm. This is a specific confirmed item that must be considered in the order. However, the foot pad addresses the bottom contact and does not determine the top mounting.

What to check before adding FUR-021

• the bottom platform of MN-079;

• position of the foot pad;

• installation method;

• influence on the final height;

• floor material;

• quantity;

• the possibility of even installation on all supports.

How to calculate the quantity

If each MN-079 rests on the floor and the project specifies FUR-021, the number of foot pads is usually related to the number of legs. However, for the 2100 mm version, the bottom assembly may be different. Therefore, the final quantity is confirmed according to the diagram.

The foot pad does not fix misalignment

If the cabinet wobbles, first check the length of the parts, floor flatness, top mountings, and diagonals. The foot pad should not be used to mask a structural error.

Where to select hardware

Foot pads, studs, mounting plates, and other items are collected in a section where you can Buy hardware for furniture legsCompatibility of any additional mounting hardware with MN-079 is checked separately. You cannot transfer a kit from another leg just because it is in the same category.

Top mounting: the main element that cannot be invented from a photo

FUR-021 is specified in the card, and the universal top mounting is not confirmed in the original scheme. Therefore, you cannot assign a stud, plate, screw, or other component without a design check.

What the decision depends on

• from the housing material;

• panel thickness;

• presence of a frame or apron;

• load directions;

• top geometry of MN-079;

• drilling capability;

• need for disassembly;

• height version;

• number of supports.

Why mounting hardware for the 560 mm version cannot be automatically transferred to 2100 mm

The length and role of the element differ. What holds a short furniture support may not be suitable for a long vertical. For 2100 mm, additional connection points may be required, but the specific method is determined by the designer.

Mounting depth control

Any screw or stud must enter the calculated zone and not protrude onto the face thread. Working without a drawing is especially dangerous in areas with reduced cross-section.

Test assembly

For a batch, it is useful to assemble one top and one bottom connection before finishing. This shows whether the wood is damaged and whether the geometry is preserved.

What to buy together with MN-079

Materials can be selected in the category where they are presented materials for finishing wooden legs. The specific composition is chosen as a system, not as a separate can "for wood in general."

Finishing a carved surface: the color must be approved on the actual geometry

A flat wood sample does not show how the coating looks on carving. In recesses, the material appears darker; on protrusions, lighter. For MN-079, especially 900 and 2100 mm, this difference becomes part of the overall pattern.

Test paintout

The best sample is a fragment of the same wood species and preparation. If it is possible to order a control piece, it shows the actual relief. The color test is evaluated after complete drying.

Enamel

An opaque coating must preserve the readability of the ornament. A too heavy system can visually smooth out fine transitions. The specific number of layers is not assigned without a chosen technology.

Staining

On oak, tinting emphasizes the texture and depth of the carving. Uneven application can create stains, so the technology is approved on a sample.

Patina and additional effects

If the project includes patination, gilding, or another effect, its feasibility and technology are agreed upon separately. In the card, such options should not be considered included by default.

Painting the entire group at once

Two or four MN-079 are best finished in one cycle. If long elements are split between different workshops, differences in shade and gloss will be noticeable along the entire height.

How not to confuse MN-079 with a baluster, pilaster, or column

The 2100 mm version may visually resemble an architectural element. But the product remains MN-079 from the furniture leg category. Its purpose cannot be reassigned to a stair baluster, pilaster, or column without confirmation.

Baluster

A baluster belongs to railing and works in a system with handrails and a base. MN-079 does not become a stair baluster because of a similar length.

Pilaster

A pilaster is usually associated with a wall or furniture portal as a flat or semi-volumetric architectural element. MN-079 has its own geometry and card.

Column

A column implies a separate structural and architectural logic. Calling MN-079 a column and calculating it according to column rules is not allowed.

Stand

In conversation, the long version can be called almost stable to emphasize the scale. But in the specification, the exact product name and article number are preserved.

Practical Selection Scenarios

Low furniture composition

The designer determined a 560 mm section between the floor and the bottom frame. The carved pattern fits, the top mounting is calculated. MN-079 A = 560 mm is selected with E/F = 56/450 mm.

High console

The calculation shows that the vertical element should be 900 mm. The final height, apron, and tabletop have been checked. Order A = 900 mm, not the "medium MN-079."

Bar group

First, the required tabletop height is set. Then the thickness of the top structure and components are subtracted. If the remainder matches 900 mm and the project confirms the mounting, MN-079 can be considered. If not, another model is chosen.

Furniture

Error 4. F was called the leg height

The internal parameter and the overall dimension were confused.

Correction: read the dimension lines.

Error 5. Added A and F

Got a non-existent size.

Fix: do not perform arithmetic without a drawing.

Error 6. 560 mm was called a standard table leg

Final height not checked.

Fix: compare with seating and top structure.

Error 7. 900 mm was automatically chosen for the bar

The tabletop turned out to be too high.

Fix: calculate the finished item.

Error 8. 2100 mm was called a leg for a cabinet

Function is not defined.

Fix: design as a long vertical.

Error 9. Scheduled trimming

The carved pattern was disrupted.

Fix: agree on the location of the change.

Error 10. Did not check the top mounting

The part cannot be connected to the body.

Fix: develop the assembly before ordering.

Error 11. FUR-021 was taken as a complete set

Top hardware is missing.

Fix: separate the bottom and top nodes.

Error 12. The foot pad was used to level out the tilt.

The furniture continued to wobble.

Fix: check the geometry.

Error 13. Bought one foot pad for a pair of legs.

The set contents do not match the diagram.

Fix: count by reference points.

Error 14. Did not account for the height increase from the hardware.

The joint did not align.

Fix: check the actual node.

Error 15. Two different sanding qualities ended up in one pair

The finish looks inconsistent.

Fix: one configuration per group.

Error 16. "Prestige" was mistaken for increased durability

Made an unconfirmed conclusion.

Fix: treat it as sanding quality.

Error 17. Beech was ordered for a clear finish without a sample

The expectation did not match the appearance.

Fix: link the wood species and the finish.

Error 18. Oak was covered with enamel without a reason

Texture is not used.

Fix: review the material.

Error 19. The batch was ordered in parts.

A repeated shade matching was required.

Fix: arrange the visible group together.

Error 20. The quantity was determined by the number of tabletop corners.

The frame had a different scheme.

Fix: count the support axes.

Error 21. Two legs were considered sufficient for the table.

Stability was not calculated.

Fix: design the frame.

Error 22. Four legs were mistaken for a finished under-table.

Did not account for crossbars and connections.

Fix: define all system components.

Error 23. The 2100 mm version was not checked against the staircase.

The box did not fit through the site.

Fix: measure the route.

Error 24. Long parts were stored in the passage.

The thread got damaged.

Fix: prepare the space.

Error 25. Did not make a full-size mockup

The drawing turned out to be too large.

Fix: mark A on the furniture.

Error 26. The thread position was not matched with the shelves

The ornament crossed the structure.

Fix: take E and F into account.

Error 27. The installer received only a photo

The orientation was determined on site.

Fix: provide the drawing.

Error 28. The second disputed URL was used in interlinking

Signals split between cards.

Fix: use the card's primary address.

Error 29. Term and availability were invented based on the previous order

Conditions may have changed.

Fix: check before payment.

Error 30. Started with color, not height

Beautiful execution didn't fit the size.

Fix: follow the route: function → A/E/F → material → finish.

Correct specification for three executions

MN-079 560 mm

Carved furniture leg MN-079, A = 560 mm, E = 56 mm, F = 450 mm, beech, sanding quality "Prestige", for enamel, 4 pcs.; units H-01–H-04; color per sample; top mounting per drawing; FUR-021 — 4 pcs. after fit check.

MN-079 900 mm

Carved furniture leg MN-079, A = 900 mm, E = 71 mm, F = 758 mm, oak, "Standard", for tinting, 2 pcs.; positions B-01 and B-02; function and fixation points per project; glides — per lower unit.

MN-079 2100 mm

Carved furniture leg MN-079, A = 2100 mm, E = 71 mm, F = 1958 mm, beech, "Prestige", for enamel, 4 pcs.; long vertical portal elements; top, bottom, and intermediate fixation points per design documentation; length change not allowed without approval; packaging and delivery of long item agreed.

These formulations are not a universal instruction, but show the necessary completeness of data.

What to check in the invoice before payment

• main URL and article MN-079;
• selected height A;
• values E and F;
• beech or oak;
• "Standard" or "Prestige";
• quantity;
• finish or preparation for it;
• FUR-021;
• absence of unconfirmed upper fastening;
• packaging;
• delivery;
• absence of unauthorized trimming;
• design unit number.

If one line contains only "MN-079 — 4 pcs.", the count is not accurate enough.

How to place an order for STAVROS

The commercial route is best followed in strict sequence.

1. Determine the function of MN-079.
2. Find the lower and upper points.
3. Calculate the required length.
4. Compare with A = 560, 900 and 2100 mm.
5. Check E and F against the drawing.
6. Make a full-size mockup.
7. Choose beech or oak.
8. Choose "Standard" or "Prestige".
9. Approve the finish.
10. Calculate the quantity.
11. Add FUR-021.
12. Design the top mounting.
13. Check transportability.
14. Create a specification.
15. Verify the invoice.
16. Accept parts before finishing.
17. Assemble the control unit.
18. Run the entire batch.

For the complex version of 900 or 2100 mm, it is useful to order a furniture design project with carved legsThe design service is needed not for the sake of a visual, but for the precise layout of elevations, quantities, and connections.

After the set is approved, you can to order furniture legs with Contact us to confirm shipping to your destination., separately agreeing on terms for the 2100 mm length version.

Frequently asked questions about MN-079

What heights are available for MN-079?

Confirmed 560, 900, and 2100 mm for parameter A.

What are E and F for the 560 mm version?

E = 56 mm, F = 450 mm.

What are E and F for the 900 mm version?

E = 71 mm, F = 758 mm.

What are E and F for the 2100 mm version?

E = 71 mm, F = 1958 mm.

What does A mean?

Overall longitudinal dimension of the selected configuration.

What do E and F mean?

Additional drawing parameters. Their position and meaning are read from the current DWG.

Can F be considered the height of the finished furniture?

No. F refers to the geometry of MN-079, not to the entire structure.

Can A and F be added together?

No. These are different dimensional parameters of the same product.

Is MN-079 560 mm suitable for a dining table?

It cannot be automatically confirmed. The tabletop, frame, and final height need to be calculated.

Is MN-079 560 mm suitable for a writing desk?

Only if the project confirms the final seating.

Is 560 mm suitable for a console?

The possibility depends on the height of the body and the top structure.

Is MN-079 900 mm a bar counter leg?

Not necessarily. The bar height needs to be calculated as a whole.

Can 900 mm be used for a tall console?

It can be considered if the project confirms the size and mounting.

What is MN-079 2100 mm used for?

The specific function is determined by the project. It is a long vertical element of one item.

Is 2100 mm a support for a cabinet?

Such an assignment is not confirmed automatically. A project is required.

Can 2100 mm be used as a pilaster?

MN-079 remains a furniture leg according to the card. Changing the category requires a separate design decision.

Can it be made into a baluster?

There are no grounds to consider MN-079 a stair baluster without special confirmation.

Can MN-079 be trimmed?

It cannot be assumed. Trimming may disrupt the pattern and geometry.

Where can I check the possibility of changing the length?

According to the current drawing and with the manufacturer before ordering.

Is intermediate fixation needed for 2100 mm?

Possibility and necessity are determined by the constructor.

What load is permissible?

There is no confirmed figure in the source data. A structural calculation is needed.

What type of wood is MN-079 made from?

in beech or oak.

What to choose for enamel?

Beech is a clear option for opaque painting.

What to choose for tinting?

Oak is considered when the texture needs to be preserved.

Can oak be painted with enamel?

Possibly per the project, but it's worth understanding the reason for choosing oak.

What does "Standard" mean?

A sanding quality option.

What does "Prestige" mean?

Another sanding quality option, not a strength designation.

Is "Prestige" ready for final painting?

The finishing technology is still determined by the finisher.

Can you mix "Standard" and "Prestige"?

In one visible group, it's better not to mix without a reason.

How much MN-079 is needed for a table?

The quantity is determined by the frame. Four is not a universal answer.

Can I order two legs?

Yes, if the project includes two positions and other frame elements.

Can I order one?

Yes, if a single project position or a control sample is needed.

Is a reserve needed?

Only with a clear purpose: a sample, a reserve for a batch, or repair.

What floor glide is specified in the card?

Round FUR-021 with a diameter of 19 mm.

Is FUR-021 included in the kit automatically?

The completeness of the kit should be checked in the invoice. Specifying the necessary fittings does not replace a separate line.

How many support pads should be ordered?

According to the number of lower support points confirmed by the project.

Is any fastener suitable for the upper part?

No. The upper node is determined separately.

Can FUR-001 or FUR-012 be used?

Only after compatibility is confirmed. These kits cannot be automatically assigned to MN-079.

Where can I select finishing materials?

In the section on materials for installation and finishing on the website.

Is a test paint-out necessary?

For the visible carved group, it helps to establish color and shine.

How to check the 2100 mm scale?

Make a full-size layout at the installation site.

How to check for drift?

Measure the packaging, doors, elevator, stairs, and route turns.

Can the long MN-079 be stored vertically?

Specific storage conditions should be clarified with the manufacturer. Random positioning is not allowed.

Where can I see other tall legs?

In the confirmed filter of models with a height of 450 mm and above.

Where can I see other carved legs?

In the filter of carved unpainted furniture supports.

Can I choose only by photo?

No. The photo does not show the real scale and the joint.

What to check first: material or height?

First function and height, then material.

What is more important: A or the product name?

Size A and the design joint. The category name does not determine the application.

What should I pass to the furniture maker?

The card, drawing, A/E/F, quantity, material, finish, and mounting scheme.

How to accept the delivery?

Check the height, parameters, wood species, quality, quantity, and thread condition before finishing.

What to do if version 900 arrives instead of 560 mm?

Do not start trimming or installation. Verify the count and contact the supplier.

What to do if 2100 mm does not fit at the site?

Do not modify the product without approval. Check delivery and carrying conditions.

Can different heights be ordered in one composition?

Only if the project intentionally uses different levels. Each item is listed as a separate line.

Why does one article have three heights?

One carved pattern is produced in several scales. The specific purpose of each is selected according to the project.

The height MN-079 should appear on the drawing before it appears in the cart.

MN-079 attracts with its carved pattern, but the purchase does not start with the ornament. First, the role of the part and the distance between its mounting points are determined. Then A = 560, 900, or 2100 mm is selected, E and F are checked, the top and bottom fastenings are verified, the quantity is calculated, beech or oak is chosen, and the quality of sanding is fixed.

For the 560 mm version, a standard table height cannot be automatically promised. For 900 mm, a bar function cannot be assigned without calculation. The 2100 mm execution requires a full approach to the long vertical: design, fixation, a ban on unauthorized trimming, and coordinated transportation.

STAVROS company combines in one catalog the specific card MN-079, the general category of wooden furniture legs, selections of carved and tall supports, hardware, finishing materials, design, and delivery. Such a route helps to order not just a beautiful carved part, but a precise element of specific furniture — of the required height, wood species, preparation, and quantity.
