Buying inset wooden furniture handles: how to choose a model for kitchen, dresser, and cabinet

Buy inset wooden furniture handles usually wanted when an overlay bracket seems too protruding, a knob handle too small, and a metal profile does not support the front material. The recessed NOVA HL-028 solves the problem differently: the main part is placed in a prepared recess, a thin frame remains above the surface, and fingers enter a smoothly formed inner cutout. The furniture maintains a calm geometry, but using the door or drawer remains convenient.

Such hardware requires more serious preparation than a regular overlay handle. You cannot simply attach the product to a finished front and drill two holes. For NOVA, a rectangular mounting space of precise size and depth is needed. Before milling, check the front thickness, hinge placement, guides and internal fasteners, direction of the wood grain, symmetry of all doors, and the possibility of a test installation on a sample.

The current STAVROS catalog features two close variants. NOVA HL-028 is sold without a ready finish: the product page offers beech for enamel and oak for tinting. NOVA HL-028M is made of oak and comes with a ready finish in white, brown, transparent, and black options. The geometry and mounting position of the models are identical, so the choice is primarily based on the finish, furniture project timelines, and who is responsible for color matching.

First, it's useful Buy wooden furniture handles not based on a single photo, but after comparing types. The inset model is not suitable for every facade or every renovation scenario. Below, we'll break down how NOVA differs from a surface-mounted handle, knob, pull, and profile handle, how to check compatibility with a kitchen, dresser, or cabinet, and when to choose the unpainted HL-028 versus the ready HL-028M.

Furniture handle Duet HL-018.1

from 44.16 $

Duet HL-018.1M Furniture Handle

from 72.71 $

Cenote HL-029M Furniture Handle

from 27.08 $

Cenote HL-029 Furniture Handle

from 17.32 $

Furniture Handle Nova HL-028

from 29.52 $

Nova HL-028M Furniture Handle

from 45.50 $

Wooden Christmas balls SUV-002

from 12.32 $

HL-070-1M decorative furniture handle insert

from 36.84 $

Go to Catalog

What is an inset wooden furniture handle

A recessed handle is installed not only on the surface but also inside a pre-selected area of the facade. For NOVA HL-028 and HL-028M, a rectangular recess is required. After installation, the flat front frame remains on the outside, while the main mounting part is hidden within the material of the door or drawer. As a result, the handle protrudes only 9.5 mm above the facade and is less likely to catch on clothing in narrow passages.

The inner concave surface is shaped for finger grip. This is an important difference from a decorative overlay: the handle not only indicates the opening point but must withstand regular force and remain comfortable. The size, depth of the recess, and quality of gluing affect usability as much as the color and type of wood.

Watch video ...

Why an inset model looks like part of the facade

With a surface-mounted pull, there is noticeable space between the door plane and the grip. With a knob, a separate volume protrudes. An inset handle is partially embedded in the facade, so its frame feels like a continuation of the surface. On a smooth kitchen door, this supports minimalism, while on an oak facade, it allows the handle and furniture to be linked by the same material.

But visual integrity only appears with precise installation. Even a misalignment of a few millimeters is noticeable because the rectangular frame creates a clear horizontal line. Uneven recess depth causes one edge to rise higher than the other. Therefore, facade preparation is part of the product selection, not a secondary task after purchase.

Our factory also produces:

Furniture Handle Aero HL-023

from 24.28 $

Solea HL-025M Furniture Handle

from 38.67 $

Furniture Handle Solea HL-025

from 21.96 $

Furniture handle Shell HL-024

from 19.52 $

Parma HL-035 Furniture Handle

from 17.44 $

Shell HL-024M Furniture Handle

from 30.25 $

Parma HL-035M Furniture Handle

from 28.06 $

Furniture handle Halo HL-069M

from 163.22 $

View Full Product Catalog

Why you can't choose only by center distance

For a regular bracket, it is often enough to know the distance between two mounting holes. For NOVA, the entire geometry is important: the outer dimension, the size of the seating part, the depth of the recess, the thickness of the facade, and the position of the handle. Even if the handle matches the door in length, a hinge, drawer side, or guide fastener may pass through the inside.

Before ordering, a model drawing and a facade diagram are needed. If the furniture is already manufactured, the craftsman checks the product from the back side. For a new kitchen, it is better to include the seating area in the production documentation before cutting and painting.

Confirmed specifications of NOVA HL-028 and HL-028M

The dimensions of the two models match. This allows using one routing template if the project permits both finishing options. However, replacing one model with another after the entire batch is produced without checking is not allowed: the finished coating adds requirements for installation precision, while the unpainted handle is easier to adjust and finish together with the facade.

NOVA HL-028 without coating: when individual finishing is needed

The unpainted model is suitable for furniture manufacturers, restorers, and furniture owners who need an exact match with the facade. Beech under enamel can be painted to match the color of a kitchen, chest of drawers, or cabinet. Oak under tinting retains its natural grain and allows matching the handle with oak veneer, solid wood, countertop, or legs.

In this section you can buy unpainted wooden handles for furniture and compare NOVA with other shapes. Unpainted delivery provides freedom but simultaneously transfers responsibility for the finish to the buyer or workshop. The surface needs to be protected before permanent use, especially in the kitchen, where the handle regularly comes into contact with wet and dirty hands.

Beech for enamel

Beech is convenient for opaque painting. The calm texture does not conflict with the color, and the frame and inner cutout maintain a clear shape. The handle can be made white, graphite, green, or exactly match the shade of the facade if the chosen enamel system is suitable for the wood and operating conditions.

The exact color is checked on a sample. The same code may look different on MDF and beech due to the base, primer, and gloss. For a series of kitchen facades, it is better to paint handles and doors in the same production cycle or pre-approve a color swatch.

Oak for tinting

Oak is chosen when the wood grain should remain visible. Tinting allows the handle to be brought closer to the solid wood or veneer facade. But the direction and character of the fibers on a small part will not completely replicate the door. The goal is a coordinated shade and material, not an artificial uniformity of each pattern.

The inner concave part is finished as carefully as the outer frame. It is the part that fingers touch most often. An uncovered or rough area gets dirty faster and changes color.

NOVA HL-028M with coating: when installation readiness matters

HL-028M retains the same geometry but is offered in oak with a ready-made coating. In the current product card, white, brown, transparent, and black options are available. This handle is suitable for projects where basic colors are already coordinated and there is no need to match a non-standard facade shade.

For the ready-made option, you can buy the wooden handle NOVA HL-028M with coating. The buyer saves the stage of self-finishing but must be especially careful when preparing the mounting hole: a chip or scratch on the painted handle is more noticeable, and adjusting the finished product with abrasive is not allowed without damaging the coating.

Other ready-made models can be compared if you look at wooden furniture handles with coating. This is useful when NOVA fits the installation type, but the shape or available colors do not match the project.

HL-028 or HL-028M: which to choose

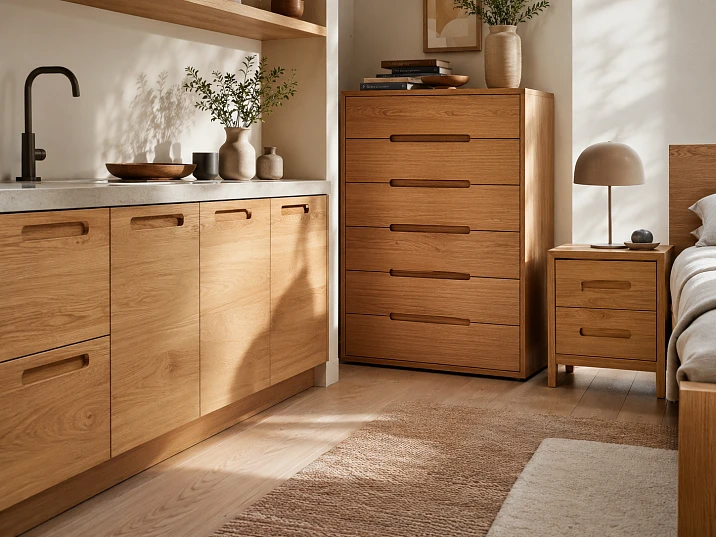

Which furniture is the NOVA inset handle suitable for

Kitchen facades

In the NOVA kitchen, it is especially appropriate on smooth hinged fronts and pull-out drawers. The handle protrudes only 9.5 mm, so it catches less on clothing and does not create a row of highly protruding brackets. The rectangular shape supports modern geometry, while the wood softens plain MDF, veneer, and painted solid wood.

But the kitchen is the most demanding scenario. The handle is often grasped with wet hands, the surface comes into contact with grease and household dirt. Unpainted HL-028 cannot be left without protective finishing. For a finished kitchen, it is important to check that the mounting location does not fall on the hinge cup, inner drawer, or metal profile of the front.

Chests of drawers

On a chest of drawers, the handle is usually installed horizontally in the center of the drawer. The 158 mm length reads well on a wide front and provides a comfortable grip area. On a narrow drawer, the handle may take up too large a share of the width, so the proportion is checked with a mockup. If the drawers differ in height, the offset from the top edge is kept the same, or a separate system is set for each row.

For a heavy drawer with linen or dishes, not only the handle material is important, but also the condition of the guides. The inset model should not compensate for a tight movement. If the drawer opens with excessive force, the furniture is adjusted first, otherwise the load on the adhesive joint will be higher than calculated.

Bedside and living room cabinets

On a small cabinet, NOVA can become the main decorative element. The frame looks larger than a knob but barely protrudes. The transparent oak option suits furniture with natural texture, black suits a contrasting modern cabinet, and unpainted beech can be coated to match the front color.

Before milling, check the door thickness and the distance to the shelf. The installation depth of 11.5 mm leaves a small amount of material on the 16 mm thick front. This design requires precise tools and the absence of hidden grooves or cutouts on the back side.

Consoles and Vanity Tables

On a console, a recessed handle maintains a slim silhouette and does not obstruct passage. It looks good on a long horizontal drawer. For a vanity table, it is important to check whether it is convenient to insert fingers from below, especially if the tabletop overhangs the front significantly.

Cabinets and tall doors

On a vertical facade, the handle can be installed horizontally or vertically. Horizontal orientation provides a familiar grip and emphasizes the door width. Vertical orientation supports the cabinet height but requires checking whether it is convenient to open the door with the right and left hand. On paired doors, the handles should mirror each other in height and offset from the central gap.

Furniture in commercial interiors

In a hotel, salon, restaurant, or showroom, NOVA is suitable for stands, cabinets, and drawers with frequent use. Here, a ready protective coating, stable milling, and the ability to order spare parts of the same model are especially important. If the furniture is used by dozens of people daily, it is better to test the handle sample before launching the entire batch.

How to Check Compatibility with a Furniture Front

The phrase "front thickness from 16 mm" is only the first check. A recessed handle occupies volume inside the door, so it is necessary to evaluate the material, structure, arrangement of internal parts, and edge quality. You cannot transfer the installation pattern from one front to another just because the thickness matches.

Front thickness

For NOVA, installation on fronts and drawers with a thickness of 16 mm or more is confirmed. The mounting depth is 11.5 mm. At the minimum thickness, a limited layer of material remains on the reverse side, so the routing must be precise. A thicker front provides a larger margin but does not eliminate the need to check internal parts.

MDF facade

MDF is convenient for precise routing and painting. However, after routing, the internal structure of the board is exposed. The mounting area must be clean, without torn edges, and the gluing technology must be compatible with MDF and the finish. If the facade is already painted, the tool must not damage the front layer around the frame.

Solid wood facade

Solid wood requires consideration of grain direction and possible changes in wood dimensions. The routing is positioned so that the weakening does not fall on a narrow panel frame or an area near a joint. For an oak facade, an oak handle creates a uniform material, but the shade and pattern are still selected according to a sample.

Veneered facade

Veneer is easily damaged at the edge of the mounting area. Before routing, check the thickness of the face layer and test on a sample. The handle frame must neatly cover the edge of the routing, but you cannot rely on it to hide a chip or size error.

Frame facade

In a frame facade, the central panel may be thinner than the outer frame. Installing NOVA in the panel without checking is not allowed. Sometimes the handle is placed on a wide frame, but the external dimensions of 158 × 62 mm must fit completely without crossing the profile, chamfer, or joint.

Glass facade

If there is glass inside the door, the mounting location may conflict with the groove, glazing bead, or fastener. A mortise handle is only suitable after designing a safe wooden or panel area. Milling near glass on a finished door is risky.

Facade with integrated aluminum profile

A metal end profile, reinforcement, or frame inside the facade may be directly under the handle. This is not visible from the outside. Before routing, study the drawing or disassemble a sample. Do not damage the reinforcement for the sake of installing decorative hardware.

Hinges and internal drawers

On a hinged door, the mounting location must not intersect with the hinge cup and mounting plate. On a kitchen drawer, check the front wall of the inner box. Sometimes a designer places the handle beautifully in the center, but on the reverse side, a metal crossbar runs through.

How to use the NOVA drawing before routing

The drawing is needed not only by the machinist. It helps the buyer understand the actual size of the handle, the outer frame, and the recess dimensions. The outer dimension is 158 × 62 mm, and the mounting part is 150 × 54 mm. The difference creates a frame that covers the edge of the routing. An error of a few millimeters can leave a visible gap or prevent the product from being inserted.

Paper template

Print the outer rectangle and hold it against the facade. In the kitchen, evaluate the entire line of handles, not just one door. On the dresser, check if the model looks too long for the top narrow drawer. The paper mockup does not show depth, but helps with positioning.

Test sample

Before the series, a test is done on material of the same thickness and structure. Insert the actual handle into the test spot, check the depth, frame fit, and grip comfort. For HL-028M, the test is especially important: the finished coating cannot be used as a tool to check a too tight sample.

Template for a series of facades

If there are many handles, the craftsman makes a precise template or uses programmable equipment. Marking each facade with a tape measure increases the risk of error accumulation. In a kitchen, a misalignment of one handle is noticeable along the overall line.

Depth control

The seating depth of 11.5 mm must be uniform across the entire area. If the bottom of the recess is slanted, the frame will sit at an angle. You also cannot cut deeper 'just in case': the handle will sink in, and the adhesive layer will become unpredictable.

After checking the drawing and test installation, you can buy the NOVA HL-028 inset wooden handle in the required quantity and selected material. It is better to order the main batch before final milling, so the craftsman works with a real sample, not just an image.

How to prepare the seating area

Preparing the recess requires precision and clean tools. This is not a dry instruction for a home router, but part of furniture production. If you lack experience, it is safer to delegate the work to a workshop. A mistake can ruin a facade, the cost of which is significantly higher than the handle.

Marking

First, mark the facade axis and the position of the outer frame. Then transfer the mounting rectangle. On paired doors, the marking is done mirror-wise. On drawers, maintain the same indent from the top edge, even if the facade heights differ.

Protection of the front surface

Painted, lacquered, or veneered facades are protected from scratches by the tool sole and chips. However, the protective film must not change the actual depth setting. After milling, the edge is cleaned without damaging the coating.

Cleanliness of corners

The handle has a rectangular shape, while the cutter leaves radii. The specific geometry of the corners must match the drawing and the actual mounting part. Do not forcefully press a wooden product into a too narrow recess: cracks, chips, or coating damage may occur.

Dry fitting

Before gluing, carefully install the handle into the recess. It should fit without impact or excessive pressure, and the frame should fit around the perimeter. Remove the product in a way that does not damage the edge or front surface.

Gluing

The model card provides for applying assembly glue to the back surface and gluing it into the mounting recess. The composition and its quantity are chosen according to the manufacturer's recommendation and the facade material. Excess must not come out on the front part or remain in the grip area.

Fixation during polymerization

The handle must maintain its position until the strength is set. The temporary fixing method should not leave marks on the wood or finished coating. The door is not loaded until the process is complete.

Horizontal or vertical installation

Horizontally on a drawer

This is the most natural scenario for NOVA. The handle follows the direction of the facade and provides a wide grip. It is placed in the center or closer to the top edge. On a heavy wide drawer, it is important to check whether it is convenient to open it with one hand without skewing the guides.

Horizontally on a hinged door

The handle is placed closer to the free edge, but a sufficient indentation from the end is left. On paired facades, two NOVA form a symmetrical line. If they are located too close to the central gap, fingers may touch the adjacent door.

Vertically on a tall door

Vertical installation supports the height of the cabinet and suits modern design. But the internal groove must remain comfortable for gripping. Before serial milling, the sample is tested by users of different heights.

Same orientation throughout the kitchen

It is not necessary to place all handles the same way. On drawers they are usually horizontal, on tall doors they can be vertical. The system looks cohesive if the indents, heights, and placement logic match. Random changes in orientation create a feeling of error.

Can NOVA be installed on ready-made furniture

Installation on a ready-made facade is possible but requires more caution than installation in new furniture. The coating is already applied, internal parts are installed, and a milling error can render the door unusable. First, remove the facade, study its construction, and perform a test on a separate sample of the same material.

Ready-made MDF facade

The main risk is chipping of the enamel or film around the cutout. If the facade is covered with film, you need to check whether it will peel off after removing the inner layer. For painted MDF, a clean edge and protection of the front surface are important. The NOVA frame covers a small area but should not be used to mask a large defect.

Ready-made solid wood facade

The craftsman evaluates the grain direction, moisture content, and presence of internal joints. In old furniture, the wood may have changed geometry. Milling is done only after checking that the handle will fit without stress and will not weaken the door frame.

Finished veneered facade

Veneer requires particularly clean processing. On old furniture, the glue may be weakened, and the surface may be overdried or damaged. Before milling, an inconspicuous area and the condition of the edge are checked.

How to replace a surface-mounted handle with a recessed one

Replacement seems like a simple update, but the old holes almost never match the mounting geometry of NOVA. They may end up inside the future recess, under the outer frame, or next to it. Each option requires a separate solution.

Old holes inside the mounting seat

If both holes are completely removed during recessing and do not weaken the remaining material, the transition may be convenient. But first, the master compares the coordinates and depth. A hole passing through a thin remaining part of the facade can create a crack.

Old holes under the frame

The outer part of NOVA may visually cover the old holes, but that does not mean they can be ignored. The edge of the hole may fall into the gluing area and reduce the contact surface. Sometimes it is repaired before installation.

Old holes outside the new handle

In this case, separate restoration of the facade will be required. On painted MDF, the holes are filled and repainted; on veneer, a more complex repair is performed; on solid wood, material and tinting are selected. If traces cannot be hidden, it is better to choose a surface-mounted model with a suitable size or replace the facade.

Why you cannot mill without removing the old hardware and facade

Working on an installed door makes fixation and depth control difficult. Chips get inside the furniture, the tool may hit the body, and hinges create vibration. The facade is removed, placed on a flat support, and only after marking does processing begin.

How to choose a finish for HL-028

Oil

Oil is suitable for an oak handle if you need to preserve tactility and natural texture. It must be compatible with kitchen use and regular contact. The inner grip area is treated especially carefully. Coating renewal is performed according to the recommendations of the chosen system.

Clear varnish

Varnish creates a protective film and highlights the oak grain. The gloss level is coordinated with the facade. A glossy handle on matte furniture may look out of place, even if the shade matches. A too thick layer in the recess changes the tactility.

Staining

Toning helps bring the oak closer to furniture in walnut, gray, smoky, or warm brown shades. The composition is first applied to a sample. Inner radii may appear darker due to material buildup, so uniformity is checked under side lighting.

Opaque enamel

For painting in the color of the facade, beech under enamel is logical. Primer and finish must be suitable for wood and frequent contact. Handles are painted in one batch, otherwise a slight difference in shade will be noticeable on the overall kitchen line.

Contrast color

It is not necessary to dissolve NOVA into the facade. A black or dark handle on a light kitchen emphasizes geometry, while a white one on oak creates a light graphic contrast. In this case, it is better to consider the ready-made HL-028M and see a sample next to the furniture material in advance.

How to choose a handle for furniture style

Minimalism

NOVA suits minimalism due to its small protrusion and rectangular shape. The handle can be painted to match the facade color, leaving only a thin shadow and an inner groove. On a kitchen without upper protruding elements, this helps maintain a calm surface.

Scandinavian interior

Transparently finished oak adds warmth to white, gray, and pastel facades. The handle looks natural but does not turn into a massive classic bracket. For a small chest of drawers or cabinet, the proportion of 158 mm length is important.

Japandi

Simple geometry and visible wood support the combination of Japanese restraint and Scandinavian naturalness. The oak HL-028 is tinted in a calm shade or the transparent HL-028M is chosen. Handles are placed strictly and sparingly, without unnecessary decoration.

Modern Classic

The recessed model can also be used in modern classics if the facade is not overloaded with panels. On smooth framed furniture, it creates a more restrained character than a decorative bracket. On a deeply profiled door, there may not be enough space for the mounting frame.

Loft and modern industrial style

The black HL-028M suits graphite, wood, and concrete surfaces. Wood softens the industrial palette, while the rectangular shape supports metal and strict lines. The handle should match other hardware in color and gloss.

Practical selection for different tasks

Need a handle in the color of the kitchen facade

Choose HL-028 made of beech for enamel and include the handles in the same painting process as the facades. Be sure to do a test paint on wood. Do not rely only on the color number.

Need a natural handle for oak furniture

The oak HL-028 for tinting or the transparent HL-028M will work. The first option allows for more precise color matching, the second reduces finishing work. Evaluate the sample next to the facade in daylight and evening light.

Need a ready-made black option

HL-028M is convenient if the basic black color suits the project. The fit is first checked on a test sample to avoid damaging the coating during adjustment.

Need to update an old dresser

Remove the old handle, measure the holes, and examine the thickness of the facade. If previous damage is not covered by the new frame or interferes with gluing, repair may be more difficult than replacing with an overlay model.

Need a handle for a heavy kitchen drawer

Check the smoothness of the guides and ease of grip. NOVA has a wide inner area, but the adhesive joint should not constantly overcome a faulty mechanism. First, adjust the drawer.

Need a vertical handle for a cabinet

Make a template and test the grip with different hands. Ensure the mounting location does not intersect with the hinge. On paired doors, marking is done mirror-wise.

Need a handle for a children's nightstand

A small protrusion reduces the risk of accidental snagging, but the corners, coating, and installation strength are still checked. The handle should be accessible to the child and not require much force to open.

Need a set for commercial furniture

Order a sample, test it on a real facade, and keep one spare handle. For the series, a single batch of coating and identical milling are important. The finished HL-028M reduces finishing, while HL-028 is convenient for a custom color.

How to calculate the number of handles before ordering

The quantity is calculated for each opening facade and drawer, not by the number of furniture modules. One cabinet may have two doors and three drawers, meaning five handles are needed if the project does not use paired elements or a different opening type.

Kitchen set

Make a list of upper doors, lower facades, internal drawers, tall cabinets, and pull-out sections. Check if profile handles or a system without fittings are used on some furniture. After that, record the NOVA orientation for each group.

Chest of drawers

Usually, each drawer needs one handle. On a very wide facade, a designer may consider two, but this changes the load and appearance. The decision is made before milling, not after purchase.

Cabinet

Count doors and drawers separately. If a cabinet has two hinged doors, two handles are usually installed. On one wide drop-down panel, a single central handle may be used.

Spare handle

For a large kitchen or commercial project, it is wise to order a spare from the same batch. The natural pattern and coating may differ in the future. A spare is especially useful if the color is non-standard and the handles are painted together with the furniture.

Sample piece

Before the full batch, you can order one handle for the layout and milling. After approving the sample, the number of remaining items is adjusted. The sample piece is then used in the furniture if it is not damaged.

What to buy together with recessed handles

The main purchase is the handles themselves in the quantity matching the fronts. But the final result depends on the installation template, suitable mounting compound, finishing materials, and a sample front. These items should not be considered part of NOVA's automatic configuration: they are selected separately for the specific furniture.

How not to confuse NOVA with similar handle types

Mortise and surface-mounted handle

The surface-mounted model is installed on top of the facade and is usually fastened through holes. NOVA requires a rectangular recess and gluing. It protrudes less but is more complex to install and replace.

Mortise handle and button

The button is attached at one point and is suitable for small facades. NOVA has a length of 158 mm, a wide grip area, and requires a significantly larger mounting space. On a small nightstand, the button may be more proportionate.

Recessed handle and bracket

The bracket protrudes further and provides an open grip. It is easier to replace if the center distance matches. NOVA looks integrated and snags less, but requires precise preparation of the facade.

Recessed handle and profile handle

The profile is usually installed on the end or runs along the facade. It suits long kitchen lines and creates a different grip method. NOVA is a separate rectangular element on the front plane.

HL-028 and HL-028M

These are not different shapes, but two versions of the same geometry. HL-028 is intended for subsequent finishing, HL-028M comes with a ready-made coating. The mounting seat is the same.

Mistakes when choosing and installing a recessed handle

Purchasing without checking the facade thickness

The buyer sees a suitable design and orders handles without measuring the door. NOVA requires a facade thickness of at least 16 mm, and the recess has a depth of 11.5 mm. If the facade is thinner or already has a cutout inside, installation may weaken the structure. Thickness is measured not from the furniture description, but from an actual sample or drawing.

Orientation based solely on beautiful visualization

A vertical NOVA may look impressive on a tall cabinet but be inconvenient for daily grasping. A horizontal one on a narrow door can take up almost the entire width. The layout is tested by hand, not just by eyes.

Milling before receiving the actual handle

Even with a drawing, it is safer to have a sample. Production tolerances, radii, and the fitting method are checked on the actual product. If the entire kitchen has already been milled, correcting a mismatch will be difficult.

Attempting to insert the handle with blows

A wooden handle cannot be hammered into a tight recess. The pressure damages the edge of the facade, the frame, and the finished coating. The mounting part must fit after precise machining, without impact fitting.

Too deep a recess

Sometimes the craftsman increases the depth to ensure the handle does not protrude. As a result, the frame may sink, and the adhesive layer becomes too thick. The confirmed depth of the recess is 11.5 mm; any change requires a separate calculation.

Milling near the hinge cup

On the outside, the space seems free, but on the reverse side, there is a hinge. Overlapping recesses weaken the facade and hinder installation. The inner side is checked before marking.

Unpainted handle in the kitchen without protection

Sanded wood looks ready but quickly absorbs moisture and dirt. HL-028 requires a finish. Protect the inner concave surface especially carefully.

Choosing a ready color without a sample

The words "white", "brown", and "black" do not guarantee a match with furniture. Different gloss and shade temperature are noticeable side by side. HL-028M should be applied to a facade sample before ordering a large batch.

Using a handle to fix a tight drawer

If the guides work poorly, the user pulls the handle harder. The adhesive joint receives extra load. First adjust the mechanism, then install the hardware.

Saving on a trial installation

One damaged facade can cost more than a sample and the craftsman's work. A trial cut on the same material checks size, depth, glue, and finish before serial installation.

Ordering an exact quantity without a reserve

Damage to one handle after a few years may require a new batch that differs in shade. For a large kitchen or commercial furniture, a spare part is more reasonable than repeated complex matching.

Mixing HL-028 and HL-028M without an overall plan

Geometry matches, but finish may differ. Unpainted handles coated in the workshop do not always look the same as factory HL-028M. It is better to use a single system in one visible line.

When NOVA really fits

NOVA is suitable for smooth modern facades where a small protrusion and natural material are needed. It fits a kitchen, dresser, nightstand, console, cabinet, and drawer with a thickness of 16 mm or more and the ability to prepare a rectangular recess.

The model is especially useful for new custom furniture. The manufacturer can include the recess in the program in advance, paint HL-028 together with the facades, or select a ready HL-028M. The buyer gets a single line of handles without random holes and protruding brackets.

It is also suitable for neat restoration if the old holes do not interfere with the new mounting location. In this case, the recessed handle changes the character of the furniture more than a regular replacement of fittings: the facade becomes visually calmer.

When it is better to choose a different handle

If the facade is thinner than 16 mm, has a glass insert, complex paneling, or an internal metal profile, NOVA may not fit. An overlay handle is simpler and safer when material cannot be selected to a depth of 11.5 mm.

For temporary repairs, rental furniture, or a project without milling equipment, a recessed model is excessive. A knob or bracket handle installs faster and is easier to replace. On a very small facade, the 158 mm length may disrupt proportions.

If the kitchen is already fully assembled, covered with expensive veneer, and has no test facade, the risk of milling should be honestly assessed. Sometimes preserving the furniture is more important than switching to a recessed type.

Care of a wooden inset handle

Regular cleaning

Wipe the handle with a soft, slightly damp cloth, then remove residual moisture. The inner recess collects more dirt than the flat frame. Harsh abrasives and stiff sponges can alter the finish's sheen.

Kitchen soiling

Remove grease and staining products before they dry using a cleaner compatible with the finish. Do not leave liquid inside the recess. For the unfinished HL-028, the quality of the finish determines ease of maintenance.

Inspection of the adhesive joint

If the frame starts to come off, a gap appears, or the handle moves, do not use the facade with force. The cause is checked by a technician. Adding glue from the outside usually spoils the appearance and does not restore the correct contact area.

Surface Restoration

Oil, varnish, and enamel are maintained differently. Keep the system name and a test sample. Local renewal of the inner area must match the frame in color and gloss.

How to store handles before installation

Unpainted products are stored in a dry room, protected from moisture and dirt. Finished HL-028M are laid out so that the frames do not rub against each other. It is better to keep each handle in protective packaging until installation.

For the kitchen, handles are sorted by facade groups and the quantity is checked before milling begins. If the natural oak pattern varies, the technician distributes the parts across visible areas. On paired doors, specimens close in tone can be selected.

How to check the finished installation

The frame should fit evenly around the entire perimeter. Gaps, misalignment, traces of glue, and chips on the facade are not allowed. All handles in one line are positioned at the same height and with the same offset.

The drawer or door opens without a jerk. Fingers should fit freely into the inner part. If the edge of the facade interferes with the grip, the position is poorly chosen. On paired doors, handles should not collide with each other when used simultaneously.

How to prepare a task for furniture production

In the specification, indicate the model, quantity, material, and finish. For HL-028, birch under enamel or oak under tinting are recorded separately. For HL-028M, the selected ready color is specified. You cannot limit yourself to the entry "NOVA handle" because the finish technology differs.

On the facade drawing, show the outer dimension 158 × 62 mm, the mounting seat 150 × 54 mm, and the depth 11.5 mm. Indicate the orientation, distance from edges, and reference to the center. For a series of facades, add a unified template.

In the task, note the need for a test cut and dry fitting. If handles are painted together with the furniture, specify the color, gloss, primer, and protection of the inner surface. For ready-made HL-028M, indicate measures to protect the coating during installation.

How to calculate the project budget

The total consists of the cost of handles, routing, test facade, finishing, and installation. Unpainted HL-028 may have a more affordable base price but requires additional work. HL-028M should be evaluated as a ready finished part.

Number of products

The price is multiplied by the number of doors and drawers, then a reasonable reserve is added. For a kitchen with twenty facades, even a small difference between options affects the budget, but saving by refusing a sample is risky.

Milling

Serial template-based processing is usually more rational than single manual marking. Work on finished painted furniture is more complex and expensive due to the risk of damage.

Finishing

For HL-028, materials, test painting, and work for each handle are considered. If the color matches the facade, joint painting can simplify the process. For oak requiring tinting, a sample is needed.

Repair of old holes

When replacing surface-mounted handles, the budget may include restoration, sanding, and repainting of facades. Sometimes this stage is more expensive than new hardware. The decision is made after assessing the old holes.

How to buy recessed wooden handles on the STAVROS website

It is better to start the purchase not with color, but with checking the facade. Record the thickness, material, door or drawer size, hinge position, and internal hardware. Then choose who will prepare the mounting spot and perform the finishing. Only after that compare HL-028 and HL-028M.

For new custom-made furniture, provide the manufacturer with a link to the product card, exact dimensions, and an actual handle sample. For ready-made furniture, first get a master's opinion on the possibility of milling. If the facade is thin, framed, or veneered, DIY installation without experience can lead to irreversible damage.

In the general category, it is convenient once more select wooden furniture handles and make sure that the inset type is indeed better than the overlay, button, or bracket type. For a custom color, open wooden handles for oil or paint. For a ready-made solution, compare Handles with Finish, and then proceed to the specific NOVA.

Before payment, check the article number, material, color, quantity, size 158 × 62 × 21 mm, mounting recess 150 × 54 × 11.5 mm, and minimum facade thickness 16 mm. The current price, availability, and delivery times should be viewed in the card of the selected version. For a large batch, it is useful to discuss the uniformity of the finish and the possibility of ordering a sample in advance.

What to Check Before Ordering

• whether the inset type is suitable for your facade;
• facade thickness at least 16 mm;
• availability of free volume for a 11.5 mm deep recess;
• absence of a hinge, guide, metal frame, and glass in the installation area;
• handle outer size 158 × 62 mm;
• mounting hole size 150 × 54 mm;
• horizontal or vertical orientation;
• uniform indentation on all fronts;
• HL-028 without coating or HL-028M with finished finish;
• beech for enamel or oak for tinting for HL-028;
• white, brown, transparent or black version of HL-028M;
• number of doors and drawers;
• need for a test handle and a spare copy;
• method of repairing old holes;
• mounting composition and its curing time;
• availability of a facade sample for color verification;
• ability to remove the facade for safe milling;
• care conditions for the selected coating.

Additional scenarios that are often overlooked

Handle on a facade with a strong countertop overhang

If the countertop protrudes above the drawer, fingers may lack space. The mockup is placed directly on the furniture to test the actual grip. A visually pleasing central position may sometimes need to be shifted lower.

Handle on a lower kitchen facade

The user bends down and pulls the handle at a different angle than on the upper cabinet. A position that is too low is uncomfortable, while one that is too high may conflict with the countertop. A consistent level is needed for the entire lower line.

Handle on the dishwasher facade

Such a facade is associated with appliances and experiences special stress. The thickness, attachment of the decorative panel, and internal elements must be checked by the furniture and appliance manufacturer. The design of a regular drawer cannot be transferred without calculation.

Handle on a flap door

The opening angle and direction of force differ from a hinged door. The NOVA position should remain comfortable in both closed and open states. The internal mechanism must not fall into the cutout.

Handle on furniture with a milled pattern

If the facade already has grooves, paneling, or relief, the outer NOVA frame must lie on a flat surface. Intersection with decorative milling creates gaps and impairs adhesion.

Handle on a pair of drawers of different widths

The same NOVA can look different on a narrow and wide facade. If the difference is too noticeable, it is better to reconsider the model for the smallest drawers or change the placement system. Mixing types must be deliberate.

How to check grip comfort before serial order

Dimensions and drawings show whether the handle will fit on the facade, but do not answer how comfortable it is for a specific person to use. For a kitchen, dresser, or cabinet, it is worth installing one NOVA on a test facade and evaluating the actual hand movement. The inner concave surface should allow confident finger placement without touching the door edge or adjacent facade.

Different users

The handle should be tested by people of different heights and with different hand sizes. A height that is comfortable for one person may be too high or too low for another. In a family kitchen, it is especially important that the upper and lower fronts open without straining the wrist.

Frequency of use

A handle on a rarely opened cabinet and on a kitchen drawer with utensils works in different modes. For frequently used facades, smooth guides, absence of sharp transitions, and durable coating of the inner area are important. A trial installation helps to notice discomfort before ordering dozens of items.

Gloves and wet hands

In a hallway, workshop, or commercial space, the handle may be used with gloves. In the kitchen, fingers can be wet. The recessed shape should remain accessible, and the coating should not become slippery. These features are evaluated on real furniture, not from a catalog image.

How to maintain consistent results across the entire batch

For a kitchen with a large number of facades, not only the same model but also a uniform technology is important. All mounting points are made using one template, depth is checked with a measuring tool, and handles are sorted before installation. If oak products with a transparent coating are used, natural texture differences are distributed across facades deliberately.

Uniform batch finish

Unpainted HL-028 are painted or tinted simultaneously. Different batches of enamel and different drying conditions can cause a slight discrepancy in shade and gloss. On one cabinet, it is almost imperceptible, but in a long kitchen line, it becomes immediately apparent.

Marking of fronts

After trial assembly, the fronts and handles are marked. This is especially useful for natural oak, when the craftsman selects parts with similar patterns for paired doors. The marking is placed on the hidden side and must not damage the coating.

Inspection before gluing

Before final fixation, the entire line is assembled dry. The height, orientation, and appearance are checked. If one handle differs in shade or the front is misaligned, the issue is corrected before applying glue.

How to save data for future repairs

After installation, it is worth saving the article number, material, color, mounting hole dimensions, a photo of the drawing, and the name of the finishing system. For HL-028, a small color sample is useful; for HL-028M, the packaging or a note of the exact color variant. This data will help replace a damaged handle without re-examining the entire piece of furniture.

Photos of the hidden side of the facade and the hinge placement will also be useful. During repairs, the master will see how the assembly is structured and where the routing is located. The spare handle is stored in a dry place, separate from metal tools and objects that could scratch the frame.

How to Evaluate the Handle After a Week of Use

After a few days of use, it is useful to re-check the fit of the frame, the ease of grip, and the operation of the front. The handle should not shift, and no gaps or cracks should appear around the mounting area. If the drawer becomes harder to open, the cause may be in the guides, not the handle itself.

In the kitchen, additionally evaluate how easily the inner surface is cleaned and whether the coating color changes in the area of constant contact. Such monitoring helps to notice an installation error or insufficient wood protection in time, before major repairs are needed.

Frequently asked questions

How is a recessed handle different from a surface-mounted one?

For a recessed model, a recess is prepared in the front. A surface-mounted handle is installed on the surface through mounting holes. The recessed one protrudes less but requires more precise machining.

Can HL-028 be installed on an already finished front?

Only after checking the thickness, material, coating, and internal parts. It is better to remove the front and first perform the cutout on a sample.

What thickness should the front be?

The NOVA card specifies installation on fronts and drawers with a thickness of at least 16 mm. At minimum thickness, precision of depth is especially important.

What size of mounting recess is needed?

A rectangular recess of 150 × 54 mm with a depth of 11.5 mm is required. Work must be done according to the drawing and the actual handle.

How far does the handle protrude from the facade?

The visible part rises approximately 9.5 mm. This is less than many surface-mounted brackets, but the protrusion is still considered in narrow passages.

Which to choose: HL-028 or HL-028M?

HL-028 is chosen for custom enamel or tinting. HL-028M is suitable when a ready-made white, brown, transparent, or black finish is acceptable.

What wood is HL-028 made from?

The current product card features beech for enamel and oak for tinting. The specific version must be selected before ordering.

Can the handle be painted to match the facade color?

Yes, the unpainted HL-028 made of beech for enamel is suitable for this. The color and gloss are first tested on a sample.

Can the oak handle be tinted?

Yes, the oak HL-028 is intended for tinting. The inner grip area should be coated as thoroughly as the front frame.

How is NOVA installed?

The handle is glued with its back surface into a prepared mounting recess. The adhesive and technique are chosen based on the card and facade material.

Can I replace an old bracket with a recessed handle?

Yes, if the previous holes do not weaken the new mounting location. Sometimes the facade has to be repaired and repainted.

Should NOVA be installed horizontally or vertically?

Horizontal orientation is more often used on drawers. Vertical orientation is possible on tall doors. Convenience is checked with a mockup and a test facade.

Is NOVA suitable for kitchen facades?

Yes, with compatible thickness and construction. For the kitchen, protective coating, clean installation, and working guides are especially important.

Is the handle suitable for a chest of drawers?

Yes. The 158 mm size needs to be matched with the width of the drawers. On a narrow facade, the model may look too large.

Is NOVA suitable for a cabinet?

Yes, if the facade is at least 16 mm thick and there is enough space above the handle for gripping. Check the overhang of the countertop and the position of the shelf.

Do I need to order a spare handle?

For a large kitchen, non-standard color, or commercial furniture, a spare is useful. It simplifies future replacement without matching a new batch.

Can I install the handle myself?

Theoretically possible with experience, precise tools, and a test facade. Without skill, it's better to contact a furniture workshop: a milling error ruins the door.

Where to buy recessed wooden handles?

NOVA HL-028 and HL-028M are presented in the STAVROS catalog. Before ordering, check the material, finish, quantity, and compatibility with the door.

Conclusion: a recessed handle starts with a precise door

NOVA HL-028 and HL-028M help make the handle part of the furniture surface. The rectangular wooden frame protrudes only 9.5 mm, and the inner cutout provides a comfortable grip. This geometry suits a kitchen, chest of drawers, cabinet, wardrobe, and drawer, provided the facade is at least 16 mm thick and allows a recess of 150 × 54 × 11.5 mm.

HL-028 should be chosen for custom finishing: beech can be painted with enamel, oak can be tinted while preserving the texture. HL-028M is convenient when a ready-made white, brown, transparent, or black option is needed. The geometry is the same, but the production route differs.

Before purchasing, you need to check not only the design but also the internal structure of the door, orientation, old holes, milling technology, and the number of handles. STAVROS provides an accurate product card and a choice between a ready-made coating and self-finishing. This allows you to move from a general idea to a calculated order without random fittings and dangerous adjustments on already finished furniture.
