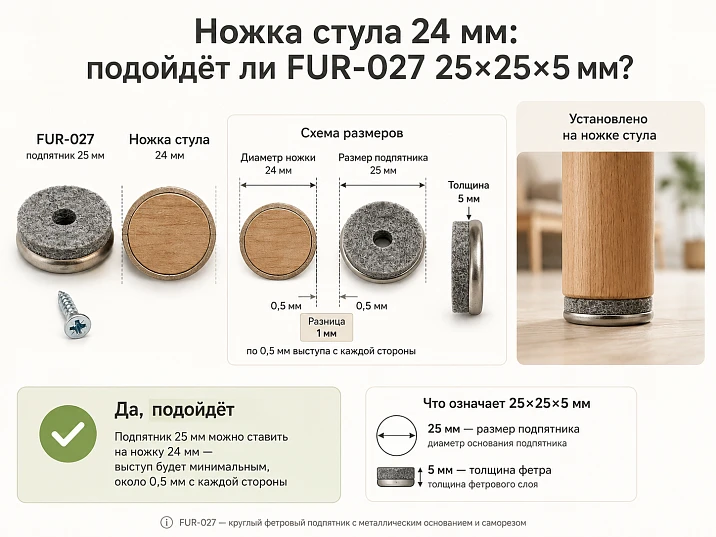

Chair leg 24 mm: will the felt furniture pad FUR-027 fit if the table specifies 25 × 25 × 5 mm

The bottom end of the chair leg shows exactly 24 mm. The card name FUR-027 also states d=24 mm. It seems a match is found: you can add four glides to the cart and proceed to checkout. But below, a table opens with a different designation — 25 × 25 × 5 mm. The difference is just one millimeter, yet it is this millimeter that decides whether the glide stays within the wooden end or the metal base protrudes over the edge.

The direct answer is this: buying FUR-027 for a leg with a diameter of 24 mm based only on the match with the phrase d=24 mm in the name is risky. Before ordering, you need to determine which part of the product the 24 mm refers to, what parameters A, B, and C in the table mean, what the outer dimension of the mounting base is, and which part actually contacts the floor. Based on the available card text, two dimensional records are reliably confirmed — d=24 mm and 25 × 25 × 5 mm — but their relationship is not disclosed.

This does not mean the product is unsuitable. Perhaps the 24 mm refers to the felt working part, and the 25 mm to the base. Perhaps the name is rounded, the table uses the dimension along two axes, or one of the records needs correction. Any of these versions sounds plausible, but the buyer needs not a plausible version, but a drawing and a confirmed minimum size of the leg end.

If after checking it turns out that the base does not protrude, the 3.5 × 20 mm screw is safely placed in the solid wood, and the glide is installed centered, you can buy felt glide FUR-027 in a quantity equal to the number of legs. If at least one parameter remains unknown, first order one piece for a trial fit or obtain written confirmation of the dimensions.

Both names are found in search queries — "felt glide for furniture" and "wool felt glide for furniture". The STAVROS card calls FUR-027 wool felt. In the article, both formulations are used as word forms understandable to the buyer, but when placing an order, the exact name and article FUR-027 are preserved.

Felt thrust washer d=24 mm, FUR-027

from 0.66 $

Go to Catalog

One millimeter cannot be considered a trifle while the glide's construction is unknown

The difference between 24 and 25 mm appears smaller than the error of a household tape measure. For a soft pad on a wide end, it may indeed not create a problem. But a leg with a diameter of 24 mm is already a boundary: a base width of 25 mm would theoretically protrude 0.5 mm on each side, if both dimensions refer to round coaxial parts. If the 25 × 25 mm size describes a square platform, its corners will extend beyond the contour of the round leg more noticeably.

Such a calculation shows a risk but does not prove the shape of FUR-027. The card does not contain sufficient explanation to confidently call the platform round or square based only on the entry 25 × 25 × 5 mm. Therefore, the buyer needs four values:

1. outer diameter or width of the working felt part;

2. outer dimension of the metal or mounting base;

3. total height of the product;

4. size and position of the hole for the self-tapping screw.

Until these data are confirmed, the number 24 cannot automatically be considered the required leg diameter.

Watch video ...

What the FUR-027 card definitely reports

The table provides enough information to formulate a correct request to the seller, but not enough for an unconditional conclusion that "a 24 mm end grain fits."

Our factory also produces:

Turned Furniture Leg MN-145

from 6.52 $

Carved Furniture Leg MN-144

from 37.90 $

Decorative leg MN-149

from 17.74 $

Geometric Furniture Leg MN-137

from 299.33 $

Geometric furniture leg MN-140

from 219.55 $

Carved Furniture Leg MN-002

from 106.70 $

MN-147 Carved Furniture Leg

from 28.36 $

Turned Furniture Leg MN-195

from 72.78 $

View Full Product Catalog

What is not yet known

Not established:

• the values of letters A, B, and C on the drawing;

• the shape of the base;

• the exact outer diameter of the felt;

• the ratio of the felt part to the metal plate;

• the minimum recommended size of the wooden end grain;

• the depth to which the included screw goes specifically into the leg;

• Is a factory guide or pilot hole required;

• Is mounting on a chamfered end face permissible;

• Can FUR-027 be used on an angled leg without changing floor contact.

Missing data cannot be replaced with a general phrase like "fits various furniture types." Compatibility is determined by the specific leg geometry.

Why is it 24 mm in the name, but 25 × 25 × 5 mm in the table

The buyer sees two sizes and naturally wants to choose one correct one. But they may describe different parts of the same component. Until the drawing is received, it is reasonable to consider several possible explanations—precisely as versions, not as product characteristics.

The version "felt 24 mm, base 25 mm" looks logical, but the article does not turn it into a fact. The same caution is needed for the rounding version. Even if the difference is caused by the recording method, the buyer should know the actual outer contour of the part.

Can the table show a square dimension for a round product

Yes, catalog tables often record maximum dimensions along two mutually perpendicular axes. A circle with a diameter of 25 mm in this format can be displayed as 25 × 25 mm. However, this is a general logic for presenting dimensions, not a confirmation of the shape of FUR-027. The shape is verified by the image, drawing, or manager's response.

Can 24 mm be the nominal size

Theoretically, the name may use the series nominal, and the table may show the actual maximum dimension. But without production clarification, it is unknown which size applies to the leg. For selection, the mounting parameter is needed: the minimum end face on which the base is placed without unwanted protrusion.

Can one of the entries be erroneous

Yes, such a possibility cannot be excluded. An additional sign for verification is the neighboring FUR-028: the name indicates d=28 mm, while the table also shows 25 × 25 × 5 mm. This does not prove an error in a specific row, but it strengthens the need to request drawings of both models rather than choosing between them based on one table.

How to measure the lower end face of the leg, not its nominal size

On a furniture drawing, a leg may be labeled as "24 mm", although it tapers to 22 mm at the bottom, has a chamfer, or ends with a rounding. For a floor protector, the area at the installation point is important. You need to measure the bottom end after final processing.

Round leg

The diameter is measured in at least two mutually perpendicular directions. If the values differ, the end is not perfectly round or the wood is processed unevenly. For fitting, take the smaller value, because it is on the narrow side that the base risks protruding.

Measurement procedure:

1. place the chair upside down on a soft surface;

2. clean the end from felt, glue, and dirt;

3. measure the diameter along one axis;

4. rotate the tool 90 degrees;

5. repeat the measurement;

6. check the size 2–3 mm above the end if the leg tapers;

7. Inspect the edge for chamfer and chips.

A caliper is more convenient than a tape measure, especially when the difference is one millimeter. A regular ruler is suitable for a preliminary estimate, but not for a final decision at the 24–25 mm boundary.

Square foot

Both sides of the end face are measured separately. Even a foot specified as 25 × 25 mm may have a slight difference in sides or rounded corners after sanding. For a round base, the diameter of the inscribed area is important; for a square one, the matching of sides and corners is important.

Check:

• width along the first side;

• width along the second side;

• corner rounding radius;

• chamfer;

• center position;

• absence of a crack at the location of the future screw.

If the end face is square 25 × 25 mm, a logical alternative could be square base FUR-023but it belongs to a different construction and series. It is chosen not only by matching the number, but by purpose, sliding method, and permissible installation.

Conical leg

The cone needs to be measured at the lowest point and slightly higher. If the end is 24 mm, and after 3 mm the leg is already 27 mm, the base may visually align with the expanding contour. If, on the contrary, the edge is rounded inward, the support area will be smaller than the nominal diameter.

For a conical leg, not only the width matters. You need to ensure that the bottom plane is perpendicular to the installation axis. On slanted furniture, the glider may touch the floor with its edge, and the felt will wear unevenly.

Carved or shaped leg

On a decorative support, the end sometimes has a complex profile, but the glider still requires a flat area. If the central part protrudes and the edge is rounded, the base may wobble. Before purchasing, check flatness and the possibility of placing the screw in the center of the wood.

Paper template 25 mm: a simple check before purchase

When the card shows 25 × 25 mm, it is useful to make a full-size template. It does not replace a drawing, but shows how the possible maximum dimension will behave on a specific leg.

Prepare three shapes:

• circle with a diameter of 24 mm;

• circle with a diameter of 25 mm;

• square 25 × 25 mm.

Print them without scaling or draw them with a caliper and compass. Cut them out, apply to the end face, and photograph strictly from below.

What a 24 mm circle will show

It models the size from the name. If even a 24 mm circle protrudes, the actual end face is smaller than stated or has a chamfer. FUR-027 cannot be purchased without an additional solution.

What a 25 mm circle will show

It models a possible round dimension from the table. On a 24 mm end face, a protrusion of about 0.5 mm in radius will appear with ideal centering. The buyer decides whether such a look is acceptable, but first confirms whether the base is actually round and has 25 mm.

What a 25 × 25 mm square will show

The corners of the square significantly extend beyond a circle with a diameter of 24 mm. If the actual base is square, the model may look larger than the end face and catch on the edges. However, this template cannot be used as proof of shape — it is a check of the worst geometric scenario.

Why the photo needs to be taken from below

In a side view, perspective hides the protrusion. A frame along the leg axis shows the ratio of contours. You can place a ruler nearby and label the actual diameter.

It is convenient to send such a photo to the manager along with a question:

The bottom end of the round wooden leg was measured in two directions: 24.0 and 24.1 mm. Please confirm the outer dimension of the FUR-027 base, the diameter of the felt part, and the possibility of installation without protruding beyond the edge.

Will FUR-027 fit a leg with a diameter of 24 mm: decision based on four checks

The coincidence of the number 24 is only the first check. Three more are needed for the order.

Check 1. The base should not create an unwanted protrusion

The outer contour of the glider is compared with the minimum contour of the end. The protrusion has not only an aesthetic side. The edge can catch on uneven surfaces, collect dirt, or take a side impact when moving the chair. If the protrusion is structurally provided and confirmed by the manufacturer, that is one situation. If it appears due to an erroneous selection, it is better to choose a different model.

Check 2. The center of the screw should fall into a sufficient mass of wood

The hole is placed in the center of the end. On a 24 mm leg, the distance from the axis to the edge is about 12 mm. A screw with a diameter of 3.5 mm occupies part of this width, but arithmetic alone is not enough. Strength is affected by the direction of the fibers, cracks, knots, old holes, and the method of pre-drilling.

If there was already a nail or screw in the end, new fasteners cannot be installed randomly nearby. The old hole can weaken the wood and shift the glider. The furniture maker must assess the possibility of reinstallation.

Check 3. The 20 mm length must correspond to the actual depth of the leg

The card reports a complete screw 3.5 × 20 mm. But this does not mean that all 20 mm will go into the wood: part of the length may pass through the base of the foot, and the exact fit depends on the head design and the mounting hole. Without a drawing, the depth cannot be calculated from a single number.

Check:

• the thickness of the solid wood along the screw axis;

• presence of a cavity;

• distance to the side surface at the bend of the leg;

• old holes;

• a metal pin or other fastener inside;

• direction of fibers;

• allowable depth of the pilot hole.

Be especially careful with thin shaped legs. The outer diameter of the end of 24 mm does not guarantee that above it there is a solid wooden volume 20 mm long.

Check 4. The working part must fully contact the floor

The foot is installed on a flat end. If the leg is at an angle, the bottom plane must be machined to match that angle so that after assembly the foot lies on the floor with its entire surface. Contact with only one edge accelerates wear and may leave a mark.

Final answer: FUR-027 can be ordered for a 24 mm leg only after confirming the outer dimension, base shape, mounting depth, and contact surface. If this information cannot be obtained, it is wiser to buy one piece for a trial fit rather than a full set for dozens of chairs.

Self-tapping screw 3.5 × 20 mm: is it included in the set and is it safe for your leg

According to the description, FUR-027 comes with a universal self-tapping screw 3.5 × 20 mm. When ordering, you need to confirm in writing that one screw is included in each product unit. For sixteen glides, sixteen screws are expected, unless the configuration is changed.

Why an included screw does not equal universal compatibility

The word "universal" refers to the type of fastener, but does not eliminate the need to check the wood. The screw may fit the glide design and still be undesirable for a specific thin, hollow, or damaged leg.

It is necessary to know:

• leg material;

• actual end diameter;

• internal structure;

• the condition of the wood;

• presence of coating;

• position of the central hole;

• possibility of pre-drilling;

• depth of safe entry.

For a metal hollow leg, the included wood screw should not be used automatically. A plastic support also requires a different scheme. FUR-027 is logically considered primarily for a wooden end, whose compatibility is confirmed.

Can the screw come out from the side

The risk appears on a curved, strongly tapering, or hollow leg. Externally, the end may be 24 mm, but the wood axis goes higher to the side. A straight screw 20 mm long then approaches the side surface.

Before drilling, it is useful to draw an imaginary axis along the leg, and if the structure is complex, use a drawing. One cannot judge the internal direction only by the lower circle.

Is a pilot hole needed

The answer depends on the wood species, condition of the wood, and manufacturer's recommendations. A pre-drilled hole helps guide the screw to the center and reduces the risk of splitting, but its diameter and depth cannot be set with one universal number. A hole that is too large will weaken the hold, while one that is too small will not relieve stress.

The correct wording for a craftsman:

Confirm the need and parameters for a pilot hole for a complete screw 3.5 × 20 mm, considering the wood species and the end diameter of 24 mm.

What to do with a lacquered leg

The end is cleaned of loose layers, dirt, and remnants of the old glider. If the coating is thick and brittle, it may chip at the edge during screwing. First, a trial fit is done on an inconspicuous or spare part, or a limiter and suitable tool are used as recommended by the craftsman.

FUR-027 and parquet protection: felt works only in clean contact

The buyer is looking for a glider for parquet because the chair moves dozens of times a day. The soft working part separates the wood or metal of the leg from the floor and reduces the risk of direct scratches. But the glider does not provide absolute protection.

A grain of sand can get between the felt and the parquet. With each movement, it acts as an abrasive. The softer and more expensive the flooring, the more important regular cleaning is.

What to check before installation

• the floor must be clean;

• the end of the leg must be dry;

• the felt must be free of metal shavings and sand;

• all glides are of the same height;

• the furniture is stable;

• the edge of the base is free of burrs;

• the screw is fully recessed into the designated place.

If the fastener head protrudes below the working part, it may touch the floor after the felt compresses. Therefore, installation is checked not only from above, but also from below.

How often to inspect the felt part

There is no single replacement period. In a single person's dining room and in a cafe with constant chair movement, wear differs many times over. Inspection is carried out based on actual signs:

• the felt has become thin;

• the surface is clogged with dust;

• the edge has peeled off;

• a skew appeared;

• the metal base approached the floor;

• the chair started moving louder;

• traces appeared on the coating.

For a set of chairs, it is useful to inspect all legs at the same time. Replacing only one part can create a difference in height.

The floor protector does not fix the rocking of the chair

FUR-027 is not an adjustable support. If one leg is shorter, the felt layer should not be used as a random shim. For uneven floors or the need for adjustment, consider a different design, for example Adjustable foot FUR-019, after first checking its size, the M6 insert, and compatibility with the furniture support.

How many FUR-027 to put in the cart

The price of the card refers to one piece. Floor protectors are counted not by the number of chairs, but by the number of legs.

Formula:

Q = N × L + R

Where:

• Q — total quantity;

• N — number of furniture items;

• L — number of legs per item;

• R — agreed reserve.

Basic calculations

Before payment, recount the actual legs. Some tables have a central support, an armchair has five spokes, a stool has three legs. The furniture name does not replace the count.

How many to keep in reserve

There is no universal percentage. For four home chairs, you can order a few spare parts if FUR-027 fits exactly after trial. For a cafe or hotel, the reserve is calculated based on usage intensity, availability of repeat supply, and maintenance schedule.

The reserve is recorded separately:

FUR-027 working set — 24 pcs.; spare for replacement — 4 pcs.

This shows how many parts are needed for the furniture now and how many remain in storage.

Why the spare must be the same model

Mixing FUR-027, FUR-028, and self-adhesive pads on the same chair creates different heights, friction, and appearance. The spare is labeled with the article number and stored separately from other glides.

Do I need to buy new screws when replacing felt

If the entire product unit FUR-027 is replaced, the inclusion of the screw is confirmed in the product card. Reusing old fasteners without assessing their condition is not recommended. The hole in the wood should also be checked: if it is damaged, simply installing a new screw of the same type may not provide reliable fixation.

Where FUR-027 is appropriate, and where it cannot be recommended automatically

Dining chairs

This is the main clear scenario. The chair is regularly moved across parquet, laminate, or other sensitive flooring. The glide reduces direct contact of the leg with the floor and noise, if the dimensions match and the felt is clean.

For four chairs, sixteen pieces are needed. Before placing a full order, it is reasonable to test one on an actual leg end.

Stools

FUR-027 may fit a wooden stool with a round leg of similar size. However, stools can be three- or four-legged, straight or angled. For an angled leg, the flatness of the bottom end is especially important.

Light chairs

Use is possible after checking the weight, leg geometry, and movement pattern. If the chair is heavy and is regularly dragged across the floor, felt wear will be higher. Not intended for the roller chair FUR-027.

Small tables

A side or coffee table is moved less often than a chair. A felt floor protector can protect the floor if the end is compatible. For a heavy stone tabletop, you cannot choose a model based only on the leg diameter: the load and compression of the working part require separate assessment.

Ottomans

For a light ottoman, FUR-027 is considered using the same scheme: bottom end, weight, number of supports, fasteners. If the ottoman is used by several people at once, the furniture maker must confirm the design.

Heavy case furniture

A wardrobe, kitchen module, or massive dresser is usually not moved like a chair. Here, stability, load distribution, and adjustment are more important. Felt FUR-027 cannot be automatically recommended just to protect parquet. A rigid or adjustable floor protector may be required.

Furniture on uneven floors

Felt does not compensate for height differences in a controlled manner. If the task is to level the furniture, choose an adjustable system compatible with the leg.

Metal and plastic supports

The complete screw 3.5 × 20 mm is not designed for any cavity. For metal, plastic, or thin-walled pipe, a separate fixing method is needed. If drilling is not possible, self-adhesive models are considered, provided the area is suitable and the surface is clean.

FUR-027 or another glide foot: a solution based on the task, not on the neighboring number

The table does not assign a product automatically. It shows the direction of choice. Each alternative has its own dimensions and mounting system.

Self-adhesive option when the leg cannot be drilled

Sometimes the chair is antique, the end is very thin, there is fastening inside, or the owner does not want to make a hole. Then you can buy self-adhesive furniture glides and compare FUR-042 with a diameter of 25 mm with FUR-041 with a diameter of 35 mm and square FUR-043 20 × 20 mm.

The self-adhesive method is simpler, but not always more durable. Adhesion depends on:

• the area of the end;

• evenness;

• cleanliness;

• material;

• old coating;

• humidity;

• temperature;

• lateral forces;

• frequency of movement.

On a round end of 24 mm, a pad with a diameter of 25 mm may also protrude. The absence of a self-tapping screw does not cancel the geometry.

FUR-041 for a wider round leg

Self-adhesive floor protector FUR-041 d=35 mm is suitable only if the end area is sufficient. On a 24 mm leg, it will be noticeably wider and will not get a full bonding surface.

FUR-042 as a close size

Self-adhesive foot cap FUR-042 d=25 mm close to the disputed tabular size FUR-027. It does not require drilling, but the buyer compares 25 mm with the actual minimum diameter and evaluates the protrusion.

FUR-043 for square end

Self-adhesive square FUR-043 20 × 20 mm suitable for a flat square area of sufficient size. If the leg is 25 × 25 mm, there is a margin at the edges, but the shape and condition of the end are still checked.

What to order together with FUR-027

A foot cap is rarely the only hardware in a furniture project. If old chairs are being updated, leg fasteners may be needed. If furniture is being made from scratch, supports are chosen first, then bottom protection. The commercial cart is assembled based on the actual design, not on the principle of "add everything shown nearby".

If the furniture is new, it is better to coordinate the bottom end of the leg with the glider on the drawing. Then the furniture maker can leave a sufficient platform, not bring the inner stud into the screw area, and prepare the center.

How to assemble an order for four, six, or twenty chairs

Four home chairs

Minimum — 16 FUR-027. But before purchasing the full quantity, check one leg of each chair. Even items that look identical may have different ends after repair.

Procedure:

1. measure 16 legs or at least each furniture unit;

2. ensure that there are no replaced supports;

3. request drawing FUR-027;

4. order one sample;

5. conduct a dry fit;

6. after confirmation, order the remaining quantity and reserve.

If all chairs are made in one batch and have not been repaired, the probability of matching is higher, but control is still needed.

Six chairs for the dining group

Base quantity is 24 pcs. It is useful to additionally order a reserve, because one worn glider disrupts the uniform contact of the entire group. The reserve is stored near the furniture documentation.

Table and four chairs

The chairs require 16 parts, the table requires 4 more if its legs have a compatible end. You cannot automatically install FUR-027 on the entire set: table legs are often wider and bear a greater load. For the table, FUR-028, FUR-022, or another model may be suitable.

Cafe for twenty chairs

Base calculation — 80 glides. Here, a trial installation on at least one chair is mandatory, followed by a test in real conditions:

• movement on the actual floor;

• noise check;

• no protrusion;

• stability;

• condition of the felt after several days;

• screw control.

After the test, the main batch and operational reserve are issued. For a commercial space, it is cheaper to test a sample than to refit eighty legs.

Ready request to the manager before payment

Please confirm the parameters of the felt glide FUR-027.

The card title states d=24 mm, while the table shows A × B × C = 25 × 25 × 5 mm. The bottom end of my wooden leg is round, with an actual diameter in two directions of ___ and ___ mm.

Please inform:

1. What do parameters A, B, and C mean?

2. What is the outer diameter of the felt working part?

3. What is the maximum outer dimension of the base?

4. What shape is the base — round or square?

5. What minimum size of the leg end is recommended?

6. Does each FUR-027 unit include a 3.5 × 20 mm self-tapping screw?

7. What is the actual depth of screw entry into the wood after installation?

8. Is a pilot hole required?

9. Is FUR-027 suitable for a 24 mm diameter end without protrusion?

10. Can I order one piece for fitting?

Required quantity after inspection — ___ pcs.

Attach a photo of the bottom edge with a ruler and a paper template to the message. This is faster than describing the bevel in words.

Order acceptance: what to check before installation

Each product unit must match the agreed configuration. For a batch of several chairs, it is convenient to lay out the parts in rows.

Check:

• number of floor protectors;

• number of self-tapping screws;

• same external size;

• no deformation of the base;

• uniformity of the felt part;

• absence of contaminants;

• condition of the hole for fastening;

• matching one control part to the received drawing.

If the batch contains different sizes, installation is stopped. You cannot distribute larger glides to the rear legs, hoping the difference will go unnoticed: the contact and height will change.

Trial fitting before drilling: what you can learn without damaging the leg

Place FUR-027 against the end without the screw. The centers must align. Look from below, from the side, and diagonally.

The trial fitting answers the questions:

• whether the base protrudes;

• does the felt cover the entire end;

• does the chamfer interfere;

• can the screw be driven along the axis;

• does the glide sit tightly;

• does the metal part remain visible;

• doesn't the angle of contact between the leg and the floor change?

If the fitting is uncertain, do not make a hole "for testing." First compare another model or request a consultation.

Installation without skew: center matters more than speed

A shift of a few millimeters at the 24 mm end is noticeable. One side of the base will protrude, the other will go inward. The felt will start to work unevenly.

For marking, the center is found using two diameters or diagonals. If the end has an old hole that is off-center, the furniture maker decides whether it can be restored. Screwing in a new self-tapping screw nearby on your own is risky.

The tool is held along the axis of the leg. Excessive tightening can deform the base, sink it into soft wood, or strip the hole. Insufficient tightening will leave play. The force is determined by the design and material, so the article does not specify a tightening torque.

After installation: testing with four movements

Place the chair on a clean floor and check:

1. vertical load without movement;

2. slight forward shift;

3. slight backward shift;

4. turn in place without lifting.

After the test, the glides are inspected again. They must not shift, rotate, come away from the end, or leave metallic

Who FUR-027 is suitable for

Consider this model when:

• the end is wooden and close to the confirmed mounting dimension;

• furniture is moved regularly;

• the floor is sensitive to direct contact;

• fastening with a self-tapping screw is required;

• the leg has sufficient solid wood;

• the glide can be positioned in the center;

• the felt part will be regularly inspected;

• one trial part passed the inspection.

When it's better to choose a different model

Another option is needed if:

• the outer contour FUR-027 protrudes;

• the end face is noticeably wider and a larger working part is needed;

• the leg is square;

• drilling is not allowed;

• adjustment is required;

• the furniture is heavy;

• a metal fastener runs inside the leg;

• the end face is tilted and does not provide full contact;

• the wood cracked;

• the mounting size could not be confirmed.

Refusing FUR-027 under such conditions is not a loss. In the section you can order felt furniture glides after trying them on, or choose an alternative based on the actual task.

How to place an order for STAVROS without arguing about a millimeter

Open the FUR-027 product card

Check the article number, name d=24 mm, table 25 × 25 × 5 mm, and the screw description. Do not transfer just the word "glide" to the order: there are several models with similar sizes nearby.

Measure all types of legs

One furniture set may have different ends. The table and chairs are checked separately. A repaired chair is also grouped separately.

Request the decoding of A, B, and C

The answer must include the shape, outer dimensions, and recommended end size. The phrase "should fit" does not replace numerical parameters.

Order one piece for fitting

For borderline 24 mm, this is the most illustrative method. The fitting is done without drilling, then the fastener is assessed by a specialist.

Calculate the full batch

The quantity equals the number of legs plus a separate reserve. Do not forget to confirm the completeness with screws.

Check the delivery conditions

Before payment, you can order furniture fittings with delivery after verifying current methods of ordering, payment, and receiving the order. In the request, specify the article number, quantity, city, and a request not to replace the model without approval.

FAQ: answers before purchasing FUR-027

Does FUR-027 fit a round leg exactly 24 mm?

Only after confirming the external size of the base. Matching the d=24 mm in the name is not enough, because the table shows 25 × 25 × 5 mm.

Why does the product card show both 24 and 25 mm?

The available text does not explain the difference. These numbers may refer to different parts of the product, be nominal and actual dimensions, or contain an error.

Can 24 mm be considered the diameter of the felt?

This can be considered a possible version, but not a confirmed fact. A drawing or a response from the manufacturer is needed.

What does the 5 mm dimension mean?

It is likely one of the height dimensions, but the exact value of parameter C needs to be confirmed from the drawing.

Will the 25 mm platform protrude on a 24 mm leg?

If this is a round external dimension of 25 mm and the centers coincide, the geometric protrusion will be about 0.5 mm along the radius. But first, the shape and actual size of the base need to be confirmed.

How to accurately measure the leg?

Using a caliper at the bottom end in two mutually perpendicular directions. Additionally, check the chamfer, ovality, and taper above the end.

Can I use a regular ruler?

For a preliminary estimate — yes. To decide between 24 and 25 mm, it is better to use a caliper.

Do I need to measure all legs of one chair?

Yes. After manufacturing, repair, and wear, the ends may differ.

What to do if one leg is 23.5 mm and the others are 24 mm?

Do not order a full set without trying it on. The narrowest leg determines the risk of protrusion, and for one support, a different solution or end repair may be needed.

Is the self-tapping screw included in FUR-027?

The card indicates delivery with a universal self-tapping screw 3.5 × 20 mm. Before a large order, confirm one screw per unit.

Does the full 20 mm length go into the wood?

Not necessarily. Part of the fastener passes through the base of the foot cap. The actual depth of entry needs to be determined based on the design.

Can the self-tapping screw split a 24 mm leg?

The risk depends on the wood species, the hole, cracks, grain direction, and installation method. An assessment by a craftsman and confirmed hole preparation are needed.

Is it necessary to pre-drill the leg?

This depends on the wood and the manufacturer's recommendations. The hole diameter and depth cannot be specified without data.

Will FUR-027 fit a metal leg?

The included self-tapping screw cannot be automatically used in a hollow metal support. A separate compatible system is required.

Will the foot cap fit a plastic leg?

Only after checking the material and the fastening method. The screw may not hold or may damage the plastic.

Can FUR-027 be glued instead of using a self-tapping screw?

The card describes mounting with the included self-tapping screw. Changing the installation method without confirmation is not recommended; if drilling is prohibited, consider a self-adhesive model.

Which floor protector should I choose if the end is 28 mm?

You can check FUR-028, but its name and tabulated dimensions also need to be matched against the drawing. A d=28 mm alone is not sufficient.

How is FUR-027 different from FUR-022?

FUR-027 is stated as felt, while FUR-022 is a rigid round floor protector from the SUPER GLIDE D30 series for a self-tapping screw. They address different floor contact needs.

How is FUR-027 different from FUR-019?

FUR-027 is fixed and felt. FUR-019 is adjustable, has a ball joint, and comes with an M6 insert nut.

What should I choose for a square leg 25 × 25 mm?

Check the square FUR-023 or the self-adhesive FUR-043 if its size and installation method match the task. The shape should be considered along with the load and the floor.

Can FUR-027 be installed on parquet?

It can be considered after checking the size and installation. The felt must remain clean, otherwise trapped sand can scratch the surface.

Will it work for laminate?

The principle is the same: clean felt contact reduces the risk of marks, but does not eliminate inspection and timely replacement.

Can FUR-027 be used on tiles?

The technical feasibility depends on the furniture and sliding. Felt can reduce noise, but on a dirty or wet surface its condition needs to be monitored.

Is FUR-027 suitable for a heavy cabinet?

It cannot be recommended automatically. For heavy case furniture, a rigid support or adjustment designed for the load is often more important.

How many glides are needed for one chair?

According to the number of legs. For a standard four-legged chair — 4 pcs.

How many are needed for four chairs?

Sixteen without reserve.

How many should be ordered for six chairs?

Twenty-four working glides plus a separately agreed spare set.

Do I need to take a reserve?

For a set of chairs, a reserve is useful because felt wears out. The quantity depends on the intensity of use and the possibility of reordering.

Can only one worn glide be replaced?

Yes, if the others have comparable thickness and condition. With noticeable wear, it is better to replace the set on one piece of furniture.

How to know when FUR-027 needs to be replaced?

The felt has thinned, become dirty, peeled off at the edge, the glide has tilted, movement has become louder, or the metal base has gotten closer to the floor.

Is it necessary to completely remove the old glide?

Yes. The end face is cleaned of old fasteners, glue, and dirt, then the hole and wood are checked.

Can a new screw be installed into an old hole?

Only if the technician confirmed the condition and holding. A damaged hole does not provide reliable fixation.

How to check the center on a round leg?

Draw two diameters through the end face; their intersection gives the geometric center. On an oval end face, more precise marking is required.

Can protruding felt be trimmed?

Unauthorized trimming changes the working part and does not fix the protrusion of the metal base. It is better to choose the appropriate size.

Can the metal plate be ground down to 24 mm?

No, such a modification should not be done without the manufacturer's permission: the fastening and coating could be damaged.

What to do if there is no drawing?

Order one part for fitting and receive written confirmation of the minimum end face. For a large batch, one phrase from the name is not enough.

How to submit a production request?

Specify the actual leg dimensions, attach a photo from below, and ask questions about A, B, C, the base, felt, and screw depth.

Where can I see other models?

In this section, you can select glides, fasteners, and mounting plates by size, shape, and installation method.

Do I need to purchase glides in one batch?

For a furniture set, this is convenient: the parts have the same height and appearance. Inspection is still carried out upon receipt.

Can I order just one piece?

The card shows the price per unit, so a trial order makes sense. Actual order availability is checked in the cart.

Is the price in the article current?

The article does not fix the price. Cost and availability are checked in the FUR-027 card before payment.

What is the main parameter that needs to be confirmed?

The minimum size of the leg end face on which FUR-027 is fully placed and secured with the included screw without risk to the wood.

One sample before the series: control card for furniture production

For a single home chair, careful fitting may suffice. A manufacturer, restoration workshop, restaurant, or hotel needs a repeatable result. Here, FUR-027 is considered not as a minor consumable but as part of the furniture specification.

The control sample must contain:

• the exact leg model;

• the actual size of the lower end face;

• a photo of the installed glider;

• a confirmed drawing of FUR-027;

• the method for marking the center;

• parameters of the pilot hole, if required;

• designation of the complete screw;

• final height of the furniture;

• type of floor covering;

• date of inspection after trial operation.

After assembly, the sample is placed on a real floor and used in normal mode. For a chair, this includes sitting, standing up, and moving forward and backward. For a small table, it involves static load and occasional repositioning. The inspection should demonstrate not only the absence of scratches on the first day, but also the stability of the fastening.

Why the end size should be included in the leg drawing

If furniture is produced in series, the floor glide cannot be selected after manufacturing the entire batch. The bottom platform is built into the model in advance. The drawing specifies the minimum size of the finished end after sanding and finishing, not the size of the raw workpiece.

This is especially important for turned legs. A slight change in the cutter path or additional sanding can reduce the bottom. If the technical documentation says "24 mm nominal" but the finished parts come out at 23.4–24.2 mm, part of the batch will be on the edge of compatibility.

How to accept a large batch of FUR-027

It is not necessary to measure every part with complex equipment, but sampling inspection should cover different packages. The external size, overall height, felt, and completeness with screws are checked. If a discrepancy is found, the sample is expanded and installation is suspended.

For 80 thrust pads in a cafe, it is useful to compile a list:

Maintenance log for cafes and hotels

In public spaces, the floor glides are inspected by a responsible employee, not by every visitor. The log records the date, zone number, number of replaced parts, and the reason: wear, dirt, loose fasteners, or leg damage.

This procedure helps identify patterns. If FUR-027 wears out quickly only on chairs near the exit, the issue may be sand from shoes. If fasteners loosen on one model, the end and installation need to be checked, rather than endlessly replacing the felt.

Solution for a 24 mm leg: first the contour, then the screw, then the quantity

The question "will FUR-027 fit a 24 mm leg?" cannot be honestly answered with a single word based on the current card. The name suggests d=24 mm, the table shows 25 × 25 × 5 mm, but it does not explain which parts these values refer to. The buyer's mistake is to pick a convenient number and ignore the second one.

Before payment, three things need to be done. First, measure the bottom end in two directions and check the chamfer. Then, obtain a drawing or apply 24 and 25 mm templates to one test piece. After that, evaluate the included screw 3.5 × 20 mm: whether there is enough material, whether there is a cavity, and whether the fastener can be driven through the center.

Only after fitting is the quantity calculated: four glides for a four-legged chair, sixteen for four chairs, twenty-four for six. The reserve is added as a separate line, not instead of an accurate count.

In the STAVROS catalog, FUR-027 can be compared with felt FUR-028, rigid round FUR-022, adjustable FUR-019, square FUR-023, and self-adhesive models. This choice is more useful than a random purchase based on the word "24 mm": the buyer gets not just a felt furniture glide, but a part that matches the end, fastening method, and floor conditions. For a leg on the border of sizes, the correct next step is not a full order, but a confirmed drawing or a single test fitting.
