Mounting plate FUR-020 for two furniture legs: how to choose the size and buy a complete mounting kit

To buy mounting plate FUR-020 for two furniture legs Without a mistake, it is not enough to choose an option that is simply shorter than the tabletop. FUR-020 combines two supports on one wooden base, so its length sets the geometry for a pair of legs at once. Before ordering, you need to check the dimensions of the base, the position of the two threaded inserts, the compatibility of the legs with the M8 stud, space for mounting holes, and the number of plates for the entire furniture structure.

The main commercial benefit of FUR-020 is the ability to order a ready-made base for paired mounting, rather than marking four furniture legs as four independent points. One plate connects two supports, two identical plates help build a symmetrical support contour for a table, bench, console, or cabinet. Thus, the buyer gets not only hardware but also a clearer assembly system: plate length, two M8 threaded inserts, selected legs, studs, and fasteners to the base.

The line offers seven lengths — from 305 to 915 mm. The width of all versions is 70 mm, thickness — 24 mm. Options in beech and oak with 'Prestige' sanding quality are available. The plate comes with two installed metal M8 threaded inserts, but fasteners for fixing the wooden base to the tabletop or furniture body are not included. They are selected based on the material and thickness of the base.

The article is structured as a route to purchase: which FUR-020 to order, how many plates are needed, which legs to choose, what to add to the cart, and what to check before drilling. At the same time, parameter D and the direction of leg placement cannot be interpreted only from the table or photo. Their geometric meaning is confirmed by the current drawing of the specific version.

Mounting plate, wood, FUR-020

from 7.36 $

Go to Catalog

Why FUR-020 is more cost-effective than four separate markings

With the usual installation of four legs, the craftsman marks each point separately. Even a small difference in offsets becomes noticeable: one leg ends up closer to the edge, the front and rear pairs do not align along the axis, and the diagonals of the support contour differ. The tabletop may be made perfectly level, but the finished furniture visually appears skewed.

FUR-020 reduces the number of independent decisions. The position of two mounting plates is already linked by one wooden part. The buyer selects the base length, positions it along the axis, and gets a consistent pair. For four legs, two identical plates are typically considered, placed parallel with equal offsets. The specific layout depends on the design, but the principle of paired mounting remains the main advantage of the product.

This does not mean that the plate automatically fixes any project. It reduces the number of marking operations, but does not cancel the check of diagonals, tabletop thickness, leg cross-section, and placement of internal mechanisms. FUR-020 should be purchased as part of a calculated fastening assembly.

Watch video ...

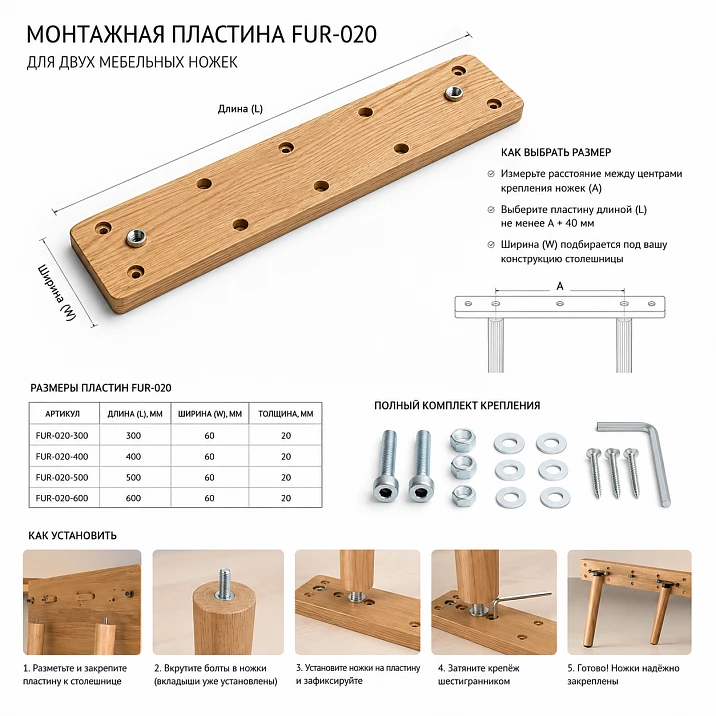

What is the FUR-020 mounting plate

FUR-020 is a long wooden mounting plate for fixing two furniture legs. Two metal M8 threaded inserts are installed in the product. The legs are attached via metric studs of the corresponding thread. The plate itself has mounting holes for attachment to the furniture base.

The buyer receives a ready-made wooden base of a certain size, but not the entire assembly unit. The order separately includes the selected legs and, if necessary, studs. Self-tapping screws or other fasteners for the tabletop are not supplied with the plate. Therefore, it is more advantageous to immediately compose a complete order set rather than discover missing items during assembly.

Our factory also produces:

Wooden Decor N-428R

from 10.98 $

Carved Door IKN-010

from 694.38 $

Wooden decor N-427L

from 34.28 $

NPU-433R Molded Decoration

from 7.85 $

Geometric Furniture Leg MN-109

from 52.87 $

Wooden molding K-032

from 6.76 $

Norton 002-008 Table

from 724.56 $

Bar Stool TBR-004

from 249.37 $

View Full Product Catalog

Seven sizes FUR-020: what length can be ordered

Constant parameters B = 70 mm and C = 24 mm are no less important than the total length. The width determines whether the wooden base fits between the edges of the tabletop, aprons, drawers, and cable channels. The thickness affects the height of the fastening assembly under the furniture and the total length of the threaded connection.

After comparing the options, you can check the dimensions and price of FUR-020 in the product card. The actual cost depends on the length and material, so the article does not fix changing prices. In the card, you should also check the availability of the required version and ordering conditions.

Why you cannot choose the length only based on the tabletop width

The phrase "a tabletop 800 mm wide means you need a 710 mm plate" oversimplifies the task. There must be gaps between the total length of the furniture and the length of FUR-020, but their size depends on the leg cross-section, edge positions, apron design, allowable holes, and the overall support contour.

A long plate spreads the legs wider, but too wide a placement can push the supports beyond a convenient footprint, interfere with adjacent furniture, or reduce free space for passage. A short base makes the pair more compact, but may narrow the support contour. Therefore, the buyer first sets the leg coordinates, and then chooses the plate length that matches those coordinates.

• match length A with the available zone under the tabletop;
• check the position of both futorok (inserts) according to the drawing;
• add the actual contours of the upper part of the legs;
• leave space for mounting holes;
• take into account the tsargs, drawers, mechanisms, and cable channels;
• check the extreme points of the legs relative to the furniture dimensions.

How to read parameters A, B, C, and D before purchasing

Parameter A — total plate length

A helps verify whether the product fits under the tabletop or cabinet. However, this length does not automatically equal the distance between the legs. At the ends of the plate, there are wood sections remaining, and the position of the futoroks should be checked on the drawing.

Parameter B — width 70 mm

The width limits the placement of FUR-020 in narrow furniture. Under the plate, there must be a sturdy base area and sufficient space for mounting points. If a groove, material joint, or mechanism runs nearby, checking only the length is insufficient.

Parameter C — thickness 24 mm

The thickness contributes to the overall height of the lower assembly. It is considered when selecting the stud, insertion depth, and clearance under the furniture. It also affects the appearance if the underside of the tabletop remains exposed.

Parameter D — only according to the current drawing

The table shows D values from 198 to 808 mm, but the article does not call this parameter the center distance without confirmation from the dimension arrow. Before ordering, open the technical drawing of the required version, find the centers of the bushings, and determine to which points dimension D refers.

Drawing FUR-020 is a mandatory part of commercial selection

Before buy FUR-020 of the required length, you need to look not only at the photo, but also at the technical drawing. It links the plate size to the actual position of mounting holes, bushings, and mounting surfaces.

Checking the installation direction of the legs is especially important. On STAVROS pages, there are differing descriptions of FUR-020 geometry, so a safe purchasing approach is to record the current drawing of the specific card and confirm the mounting direction before payment and drilling. The article does not assign either a straight or angled version without such verification.

1. Open the card of the required size.
2. Download or request the current drawing.
3. Find dimensions A, B, C, and D.
4. Determine the position of the two M8 bushings.
5. Check the direction of the mounting axes.
6. Match the drawing with legs and furniture base.
7. Save the file version along with the order specification.

One FUR-020 for two legs and two plates for four supports

For a structure with four legs, it is logical to consider two identical FUR-020: one connects the first pair, the second connects the opposite one. The buyer receives two ready-made bases and can mark them as large elements instead of four separate threaded points.

However, the quantity depends on the project. A bench or console may have a different number of supports; a furniture body may have several pairs; a long tabletop may require additional reinforcement not related to FUR-020. You cannot automatically buy two plates for any product. Add as many bases to the cart as there are pairs of legs provided in the working scheme.

How to position two plates symmetrically

Two FUR-020 must form a consistent support contour. To do this, draw longitudinal and transverse axes on the underside of the tabletop, set identical offsets, and check distances between control points. Do not copy the position of one plate by eye.

After temporary layout, measure two diagonals between the extreme points of the future legs. If they differ, the cause may be plate displacement, incorrect orientation, or an inaccurate template. Drilling begins only after the geometry matches.

1. Make a full-size contour of the tabletop or flip the finished part over.
2. Draw the central axes.
3. Place paper templates of two FUR-020.
4. Set equal offsets from the corresponding edges.
5. Add contours of the upper part of the legs.
6. Check the internal space and extreme points.
7. Measure the diagonals of the support contour.
8. Secure the final layout before drilling.

A full-size paper template protects the expensive tabletop

The template allows you to check the fit without the risk of damaging the base. For each selected size, a rectangle A × 70 mm is cut out, the position of mounting holes and bushings is transferred from the drawing, then it is applied to the underside of the furniture.

The template also shows the contours of the legs. This helps to see whether the supports extend beyond the edge, overlap the space for a seated person, or conflict with a cabinet, drawer, or cable tray. Such a mockup is especially useful before ordering two long plates: a size error can be detected before purchase.

FUR-020 for a desk

In a desk, it is not enough to ensure stability. The buyer must preserve space for a chair, knees, and user movement. Legs placed too close together narrow the seating area; too wide — they may interfere with a cabinet, wall, or adjacent furniture.

When choosing the length of FUR-020, mark on the plan the internal distance between the legs, the position of the drawer, cable channel, and system unit. If two plates are intended, check the distance between the front and rear pairs. Commercially advantageous is not the longest option, but the one that allows assembling a convenient table without rework.

FUR-020 for a dining table

For a dining table, space for chairs and the legs of seated people is important. The supports should not fall into the comfortable seating area, especially if chairs are placed not only along the long sides but also at the ends. The length of the plate is linked to the actual seating arrangement.

A massive tabletop requires a separate load assessment. The FUR-020 card does not contain a universal numerical value for the load capacity of the finished assembly. Therefore, for heavy solid wood, a slab, or commercial use, one cannot limit oneself to choosing a long wooden base. A different reinforced fastening may be required.

FUR-020 for a coffee table

A small table does not always require the shortest plate. The shape of the tabletop, the visual offset of the legs, the height of the supports, and stability under lateral impact are important. On a round or oval contour, the extreme points of the legs are checked especially carefully.

A plate 70 mm wide must be fully located on the solid part of the base. If the tabletop has a complex routed edge or a thin field around the perimeter, mounting holes cannot be placed in the weakened area.

FUR-020 for console

A console is usually narrower than a table and more sensitive to the position of the center of gravity. FUR-020 cannot be selected only based on the condition that the plate fits in length. You need to check the depth of the body, the distance of the legs from the front and rear edges, the possibility of tipping over, and the presence of wall mounting if it is provided by the project.

For a narrow base, a width of 70 mm becomes a critical parameter. Drawer guides or back wall fasteners may run nearby. Before purchasing, it is useful to make a cross-section of the body and show all internal elements.

FUR-020 for bench

On a bench, the load changes when one or more people sit down and when shifting toward the edge. Therefore, paired leg mounting is convenient for marking purposes, but it is not an automatic guarantee of rigidity. The entire system is evaluated: seat, two bases, legs, threaded connections, and plate mounting.

The length is selected taking into account the width of the seating area and the offsets from the ends. The legs should not interfere with feet or protrude beyond the safe dimension.

FUR-020 for cabinet, dresser, and furniture body

In cabinet furniture, drawers, guides, partitions, plinth elements, and side fasteners are often located under the base. A long wooden plate may cross one of these areas. Therefore, its placement is checked against the bottom plan of the body.

If the base is made of MDF, plywood, solid wood, or another material, screws are selected specifically for it. Fasteners from a solid wood tabletop cannot be transferred to a thin panel part without checking depth and strength.

FUR-020 in furniture without a traditional apron

A wooden plate can create a clear mounting base for a pair of legs in a project without a frame apron. However, FUR-020 cannot automatically be considered a full replacement for a structural underframe. It solves the task of attaching supports, while the rigidity of the entire piece of furniture is determined separately.

• check the deflection of the tabletop between supports;
• assess lateral loads and rocking;
• consider the length and mass of the furniture;
• check the need for cross braces;
• do not promise load capacity without calculating the joint;
• for heavy projects, compare reinforced fastening systems.

Removable legs and transport convenience

The M8 threaded connection allows for a demountable design: legs can be removed for transport if the chosen model and working scheme permit it. For large tables, this feature helps to pass through doorways, elevators, and staircases.

The buyer needs to check in advance access to the studs after assembly, the permissible number of repeated cycles, and thread protection during transportation. Disassembly should not turn into frequent retightening of the connection without control.

Compatibility of FUR-020 with M8 furniture legs

In the section Wooden furniture legs You can choose the shape, height, and material of the supports, but the presence of a wooden leg does not automatically mean compatibility with FUR-020. The top end must have a suitable M8 stud or the ability to install an agreed threaded element.

• check the leg thread;
• clarify the length and type of the stud;
• compare the insertion depth;
• make sure the stud does not hit a closed cavity;
• check the top section of the leg against the plate;
• align the seating direction according to the drawing.

If the supports have not been selected yet, it is commercially reasonable select legs for M8 mounting together with the plate. This way, the manager and the customer will check the entire system, rather than connecting parts of different standards after delivery.

M8 × 60 stud FUR-001-1 included in the mounting kit

M8 × 60 stud for furniture leg sold as a separate item. It can be used in an assembly with FUR-020, but compatibility with a specific leg is confirmed separately. The 60 mm length does not mean that the stud fits any support or any insertion depth.

When selecting, check which part of the thread goes into the leg, which into the plate insert, whether there is a depth limit, and whether tight fastening without bottoming out remains possible. It is better to buy studs in the same order after verifying the drawings.

Screws for the tabletop are not included in the set

The card directly states that the plate fastening to the furniture structure is not supplied. This is essential commercial information: one FUR-020 order is not enough for complete assembly.

You cannot recommend a universal screw length without the tabletop thickness and the geometry of the mounting holes. Too long fasteners may come out on the front side, too short ones may not provide the required fixation. The base material, head shape, and allowable pre-drilling depth are also taken into account.

• measure the actual thickness of the base;
• check the diameter and shape of the plate holes;
• avoid hitting a joint or weak zone;
• set the drilling depth with a depth stop;
• use fasteners compatible with the material;
• make a test on a technological sample if necessary.

What to buy together with FUR-020

To avoid stopping assembly, open the section Furniture leg hardware and gather a complete kit in advance. It may include plates, studs, base plates, and other items specified by the specific design.

How to assemble the complete fastener set before placing an order

1. Select the legs and check their top mounting.
2. Determine the number of support pairs.
3. Select the FUR-020 length according to the full-size layout.
4. Choose beech or oak.
5. Calculate the number of plates.
6. Check the M8 studs for each leg.
7. Select the fasteners for the base after checking the thickness.
8. Add glides if they are provided.
9. Save the drawings and specification.
10. Only after this, place the overall order.

General guide on how what does a complete fastening unit of a furniture leg consist of, will help check the system more broadly. In the new article, FUR-020 remains the main product, while other items are considered as mandatory or possible add-on sale elements.

Beech or oak: which material FUR-020 to buy

Beech mounting plate

Beech is appropriate when the tabletop, body, or legs are made of beech, or when the entire lower part is painted with an opaque system. A uniform surface helps achieve a single color. Even a hidden part should be matched with the rest of the furniture if it is visible from below.

Oak mounting plate

Oak is chosen for oak legs and tabletops, especially with transparent or tinted finishes. Material uniformity is important when the underside of the furniture is open and the texture remains part of the design.

In the card, you can choose FUR-020 from beech or oak and compare the current price of different versions. The material does not change the need to check the fastening, but it affects visual compatibility and the finishing system.

Prestige sanding quality and preparation for finishing

For FUR-020, the quality of the "Prestige" sanding has been confirmed. This is important for a customer who leaves the plate visible or covers it together with the legs and tabletop. However, the quality of preparation does not mean a ready-made finish coating.

Before finishing, a test of the selected system is performed on a compatible material. For oak, the manifestation of texture is evaluated; for beech under an opaque color, the uniformity of the surface. Holes and threaded elements are protected from being filled with the coating.

FUR-020 and the price of the finished assembly

The query "FUR-020 price" refers not only to the cost of one plate. The final budget consists of the number of bases, material, pins, legs, base fasteners, glides, finishing, and assembly work. For a four-legged table, a customer usually compares the cost of two plates, not one.

Current price of FUR-020 of required length should be checked immediately before ordering. The article does not fix cost and stock, because they change.

Load is estimated for the entire system, not a single plate

The card does not have a confirmed universal load capacity of the finished assembly. It cannot be promised that any size of FUR-020 will support any tabletop. The load passes through the tabletop, plate fasteners, wooden base, threaded inserts, studs, legs, and floor glides.

For heavy solid wood, slab, long table, or commercial use, a reinforced metal system may be required. The decision is made by the designer or responsible manufacturer considering static and lateral loads.

• tabletop weight;
• base length and rigidity;
• number of supports;
• leg cross-section;
• material and number of mounting points;
• lateral loads during movement;
• intensity of use;
• need for an additional underframe.

When FUR-020 is especially suitable

• need to combine two legs with one wooden base;
• the project involves an M8 threaded connection;
• one of seven suitable lengths is available;
• there is enough space under the tabletop for a plate 70 mm wide;
• the base allows safe placement of mounting hardware;
• disassemblable furniture is required for transportation;
• beech or oak matches the material of the supports;
• two pairs of legs must have the same geometry.

In such scenarios, FUR-020 turns marking into a more manageable operation and allows you to buy a ready-made part instead of making a wooden rail with two threaded joints yourself.

When it is better to choose a different mounting plate

• only one separate leg needs to be secured;
• an arbitrary distance between supports is required;
• a plate 70 mm wide does not fit;
• The base is too thin for the selected fastener;
• There is a drawer or mechanism in the mounting area;
• The project requires a reinforced metal system;
• The legs are not compatible with M8;
• A different installation angle is required;
• Two supports must be located at different independent coordinates.

In this case, open the section and select a different mounting plate. Purchasing an unsuitable FUR-020 for the sake of the paired mounting idea will lead to reworking the base or abandoning the selected legs.

How FUR-020 differs from a single plate

Confusion arises when the buyer only looks at the presence of the M8 insert. The same thread standard does not make the plates interchangeable. FUR-020 is designed for a paired set and requires space for the full length.

Straight or angled installation: what to check before ordering

Material about how straight leg installation differs from angled, useful for choosing a scheme, but with regard to FUR-020, the direction cannot be assigned based on someone else's table or general description. Before purchasing, confirm the current geometry of the specific card and drawing.

If the project requires a specified angle, it is fixed numerically and compared with the mounting surfaces. You cannot buy FUR-020 expecting to change the angle with shims, asymmetric tightening, or trimming.

Mounting layout without drilling by eye

Not only the outer contour of the plate is transferred to the bottom surface, but also each mounting hole. The marking is checked relative to the furniture axes, not just the edge, which may have a slight manufacturing tolerance.

Before drilling, it is useful to attach both legs to one FUR-020 without final tightening and see the actual overall size of the pair. If the legs interfere with the apron or extend beyond the edge, change the length or position of the base before damaging the tabletop.

Pre-drilling and depth limitation

The specific drill diameter is determined by the chosen fastener and the base material. But regardless of the system, the depth is controlled by a stop. Work with a thin tabletop is especially dangerous, where an error of a few millimeters brings the drill or screw out to the front side.

The plate is temporarily fixed against displacement, but the temporary fixation method must not damage the prepared surface. After a test hole, the fit of the head is checked, and only then the operation is repeated for the remaining points.

Assembling the M8 threaded connection

The stud must enter the leg and the insert along the working length, not bottom out prematurely, and not create misalignment. The thread is started by hand. If the connection is tight from the first turns, it is not tightened with a tool until the cause is determined.

After installing the pair, check that both legs are oriented identically. For turned profiles, this is especially noticeable if the upper part has edges or a decorative pattern.

Checking two plates after assembly

After installing both FUR-020 units, place the furniture on a level surface and check the position of the supports. If one pair is visually misaligned, do not immediately compensate with a leveling foot. First, verify the markings, tightening, and actual diagonals.

• parallelism of the plates;
• alignment of the offsets;
• same direction of the legs;
• uniform contact with the floor;
• no play in the M8;
• preservation of the tabletop near the fasteners.

What does not need to be made from scratch

If FUR-020 is available, the buyer does not need to make a long wooden rail themselves, calculate and install two metal threaded bushings, maintain their position, and repeat this geometry on the second base. The finished product reduces labor intensity and simplifies repeatability.

The design part remains independent: choosing the length, placement, checking the legs, and fastening to the base. The finished plate does not eliminate the calculation but saves you from making a precise threaded assembly from scratch.

Commercial checklist before adding FUR-020 to cart

Such a checklist is useful both for a private buyer and for furniture manufacturing. It turns the request "mounting plate FUR-020 buy" into a specific specification, rather than a random purchase of a single part. If the answers are not collected, it is better to postpone adding the item to the cart until checking the drawing and the legs.

How to order FUR-020 for furniture manufacturing

For a single piece of furniture, it is enough to attach a drawing of the tabletop and specify the legs. For a series of products, it is better to prepare a specification that records the length of FUR-020, material, quantity per product, stud, base fastening, and the version of the working template.

A serial order begins with a control assembly. One pair of plates undergoes fitting, finishing, and load testing as part of the finished furniture. Only after the unit is approved is the batch purchased. This approach reduces the risk of repeating the same mistake on dozens of tables or cabinets.

How to accept FUR-020 upon delivery

Acceptance begins with checking the length, material, and quantity. If two plates are ordered for one table, they must match in finish. Also check for the presence of two M8 threaded inserts in each part and the condition of the mounting holes.

• article FUR-020;
• total length A;
• width 70 mm and thickness 24 mm;
• material — beech or oak;
• "Prestige" quality;
• two M8 threaded inserts;
• absence of damage;
• compliance of quantity with the order.

Defects are recorded before finishing and installation. It is not allowed to trim or drill the received plate if a discrepancy is found. For serial purchases, each batch is assigned an internal number and linked to a reference sample.

Storage of wooden mounting plates

Before assembly, FUR-020 is stored on a flat surface, protected from contamination and mechanical damage. Pairs for one product are best marked together to avoid mixing sizes or materials from different orders.

Bushings are protected from paint, dust, and abrasive. If the plate is being finished, threaded holes are kept clean. Long parts should not be placed on an uneven support or pressed down with heavy objects.

FUR-020 for custom new furniture

In a new project, the mounting plate is planned before manufacturing the tabletop and cabinet. This allows for leaving a sturdy zone for fasteners in advance, routing drawers and cable channels, selecting the appropriate leg cross-section, and checking the entire lower assembly in a 3D model or on a full-size template.

The commercial advantage of early selection is that FUR-020, legs, and studs are ordered in one

How to choose the length 505 or 610 mm

Medium versions are often considered for writing, coffee, and small dining tables, but this is not a typical range that is guaranteed to suit any tabletop. The decision depends on its actual dimensions and the position of the supports.

When comparing 505 and 610 mm, it is important to evaluate not only the distance between the legs but also the internal space under the table. A longer base can improve the support contour but reduce freedom at the ends or bring the legs closer to a seated person.

How to choose the length 710, 810, or 915 mm

Long FUR-020 brackets are intended for projects where a pair of legs must be spread over a significant distance and there is a continuous mounting zone under the base. These can be wide tabletops, long benches, or large furniture carcasses.

The longer the base, the more important it is to check for deflection, base flatness, and internal obstructions. You cannot assume that a long wooden plate itself reinforces the entire tabletop like a stretcher. It remains a mounting element for two supports.

How to compare two adjacent lengths without overpaying

It is useful for the buyer to print two templates and apply them to the same base. This makes it visible how the leg coordinates, free space, and mounting fields change. The price difference is assessed after geometry, not instead of it.

A more expensive long version is not automatically better. The commercially correct choice is the minimally sufficient length that matches the project, creates no conflicts, and provides the required leg placement.

How to check space for a seated person

For a table, the layout of the lower assembly must account not only for the frame but also for the user's body. The plan shows the chair width, knee position, possible chair movement, and the foot zone at the end.

If the legs after installation with FUR-020 fall into this zone, the length or orientation of the pairs should be changed. The buyer saves not on millimeters of the plate, but on the absence of uncomfortable furniture that would have to be redone.

How to account for a drawer and cable channel

For desks, the plate may cross drawer slides, the drawer bottom, a wire tray, or cabinet attachment points. These elements are placed on the lower plan before FUR-020. After that, a free strip is selected with a width of at least the actual plate width plus room for mounting heads.

If a conflict is detected, you cannot simply shift one plate independently of the other. The change must preserve the symmetry of the reference contour or be justified by the design.

How to account for the decorative shape of a furniture leg

A turned or carved leg may have an upper part wider than the threaded axis. Therefore, not only the center of the stud is checked, but also the full contour of the support. Two legs may technically screw in, but visually end up too close to each other or to the edge.

For massive decorative legs, a physical sample is useful. It is applied to the FUR-020 template and the fit is assessed from the bottom and side. This is especially important with transparent finishes, when the plate and leg remain visible.

How to choose material for opaque painting

If the lower assembly is painted white, black, or another opaque color, beech is often convenient as a base with a uniform visual character. But the final decision is tied to the legs and tabletop, not to a single plate.

Before ordering, it is clarified whether FUR-020 will be painted together with the furniture or will arrive at production separately. A unified technological system helps avoid differences in shade and gloss.

How to choose material for transparent finishing

For oak furniture, the buyer usually strives to preserve the wood texture and chooses an oak FUR-020. Then it is important to order plates, legs, and other visible elements consistently, so that the lower part does not look assembled from random materials.

Transparent finishing makes end grains, fiber direction, and natural differences between parts noticeable. Therefore, it is useful to inspect pairs together before coating.

Buy furniture fittings: why one coordinated order is more profitable

Request Buy furniture fittings should lead not to a set of random items, but to a complete system. If FUR-020, studs, glides, and legs are selected simultaneously, it is easier to check threads, quantities, and materials.

One coordinated order reduces the risk of repeated delivery and workshop downtime. The buyer immediately sees which parts are included in the plate, which are sold separately, and which fasteners are selected on site.

Selecting FUR-020 for a private craftsman

A private craftsman often buys fittings after the tabletop and legs are already in the workshop. In this case, the advantage is the ability to do a real fitting. The disadvantage is the risk of discovering that the chosen length does not fit between the aprons or that the holes fall into a weak zone.

The commercial route is simple: first measure the actual parts, then print the template, and only then select FUR-020, studs, and fasteners. You should not place an order based only on approximate dimensions from a sketch.

Selecting FUR-020 for a designer

The designer is responsible for proportions and the visual position of the supports, but the technical parameters of the mounting must be confirmed by the manufacturer. The project shows the axes of the legs, material, visibility of the plate, and desired disassembly.

If FUR-020 is partially visible, its material and finish are included in the interior specification. If hidden, the size and color are still recorded so that production does not replace oak with beech or vice versa without approval.

Selection of FUR-020 for furniture production

For production, repeatability and assembly speed are important. FUR-020 can become a ready-made module for a pair of legs, but only after approval of a reference sample. For each product size, a separate template is created, and coordinates are not transferred from another tabletop.

The operation card specifies the direction of the plate, numbers of mounting holes, drilling depth limit, diagonal control point, and M8 components. Such documentation turns a commercial purchase into a stable production process.

Selection of FUR-020 for a restoration workshop

During restoration, it is important to preserve the existing body and not weaken the old wood. The base is inspected for cracks, previous holes, and repair marks. New points must not fall into damaged areas.

If FUR-020 is used to modernize old furniture, a reversible mock-up is first made and the change in appearance is assessed. In a historical or collectible item, a modern threaded assembly may be inappropriate.

Selection of FUR-020 for commercial interior

In a restaurant, office, salon, or showroom, furniture experiences frequent lateral loads and regular movement. Ordinary household selection logic is insufficient. A responsible designer checks the entire assembly, not just the length of the wooden plate.

FUR-020 can be used if calculations confirm its suitability. If an increased margin is needed, a reinforced system is chosen. Saving on fasteners in commercial furniture leads to downtime, repairs, and risk to visitors.

Why it is better to order two identical plates in one batch

A pair of FUR-020 on one product must match in length, material, and preparation. Ordering from a single batch simplifies finishing and visual matching. This is especially important for oak under a clear coating.

If the second plate has to be purchased later, the request must specify the exact size, material, quality, and data of the first purchase. Before installation, the parts are compared, not assumed to be identical just by the article name.

How to place an order for several tables

For a series of tables, the number of plates is calculated using the project formula: the number of products is multiplied by the number of FUR-020 in one table, and only a justified reserve is added. The article does not assign a universal percentage without production statistics.

In the specification, main parts, a control sample, and reserve are separated. Each line contains the size. FUR-020 710 and 810 cannot be combined into one item "long plate."

How to check an order before payment

• the card has the correct size A × 70 × 24 × D selected;
• beech or oak is specified;
• the quantity matches the number of leg pairs;
• studs are added separately;
• the legs have compatible M8 mounting;
• Base fastening is provided in the estimate;
• The drawing has been saved;
• The installation direction has been confirmed;
• The price has been checked in the current card;
• The delivery conditions fit the assembly schedule.

Checking before payment takes less time than returning an unsuitable length. For a complex project, the list can be sent to the manager along with the furniture drawing and leg article numbers.

How to avoid over-spamming commercial keywords and maintain usefulness

The buyer should see natural phrases: "buy FUR-020 of the required length", "check the price", "select M8 legs", "assemble a complete fastening kit". They are embedded in real actions and lead to the relevant pages.

An unnatural line like "mounting plate buy price M8 legs" helps neither the user nor sales. Commercial queries work when each is tied to selecting, checking, or purchasing a specific product.

Main mistakes when buying FUR-020

Order a plate without a drawing

The buyer sees only the overall length and does not understand the position of the threaded inserts, holes, and mounting geometry. As a result, the legs end up not where expected. The solution is to keep the current drawing and check it against a full-size template.

Assume D is the center distance without checking

The number looks logical, but the purpose of the dimension arrow is confirmed only by the technical file. The error affects the entire geometry of the pair and can make the purchased legs incompatible with the base.

Buy one FUR-020 for four legs

One plate is designed for two supports. For four legs, the quantity is determined by the layout, often requiring two identical bases. In the cart, you need to check not the number of tables, but the number of pairs of supports.

Choose the length based on one tabletop dimension

The contours of the legs, space for a seated person, aprons, and fastening zones are not taken into account. The furniture size serves as initial information, but not as a ready answer.

Do not check M8

The stud and threaded insert may not match the top mounting of the selected leg. Before ordering, check the thread of all components and the seating depth.

Count studs as part of the kit

The plate has threaded inserts installed, but studs are selected separately. The absence of studs is only discovered during assembly and halts work.

Count self-tapping screws as part of the kit

Base fasteners are not supplied. Without them, installation cannot be completed. The type and length cannot be assigned without the base.

Assign a universal self-tapping screw

The thickness and material of the base vary. An incorrect length damages the tabletop or weakens the joint. For serial production, fasteners are approved on a sample.

Fail to check two diagonals

Even identical plates may be placed with different offsets. Checking diagonals reveals the error before final assembly.

Promise unconfirmed load capacity

Load capacity depends on the entire assembly, not just the wooden base. The buyer cannot be sold FUR-020 as a universal mount for a heavy tabletop.

Move corner from another model

Parameters for straight and inclined installation cannot be mixed. Geometry FUR-020 is confirmed separately according to the current drawing.

Mixing beech and oak without a project.

If the bottom side is visible, material difference disrupts the integrity of the set. Even in a hidden joint, material affects finishing and specification.

Do not account for drawer or mechanism

A long plate may overlap internal hardware of the cabinet. Checking only from outside does not reveal the conflict.

Drill without depth limit

Risk of drill bit or screw exiting to the front side is especially high on thin bases. A limiter and test hole are mandatory for safe operation.

Order two different lengths for one pair of sides

If the project does not provide for asymmetry, different plates create different leg positions. Dimensions are checked before payment and upon acceptance.

Start finishing before control fitting

After painting, it is more difficult to correct holes, trimming, and marking. First, the joint is checked dry, then finished.

Who should buy FUR-020

The plate is suitable for furniture manufacturers, private craftsmen, and customers who assemble a table, bench, console, or cabinet with paired leg placement. It is especially useful when repeatability, disassembly, and a single material for the wooden joint are important.

FUR-020 is also interesting for furniture series: one approved base helps repeat the distance between two legs on multiple products. Each size is checked against the drawing and template.

Who FUR-020 may not suit

The product should not be purchased for a single leg, arbitrary geometry, or a heavy structure without calculation. If the mounting area is already occupied by a mechanism, the base is too thin, or the legs do not use M8, a different system is needed.

Instead of a compromise installation, it is better Assemble the complete fastener set from compatible parts or choose another plate.

How to buy FUR-020 on STAVROS: a ready route

1. Open the product card mounting plate FUR-020 for two legs.
2. Compare seven lengths and select a preliminary option.
3. Download the current drawing.
4. Check parameter D and the installation direction.
5. Select solid wood legs and supports with compatible M8.
6. Add M8 threaded fastening, if required.
7. Open the section STAVROS studs, plates, and thrust pads.
8. Select fasteners for the base according to its thickness.
9. Calculate the number of plates based on the number of pairs.
10. Check the current price and ordering conditions.

To understand the entire lower assembly, it is useful to read, when to use a stud, plate, and floor glide. Thus, FUR-020 is not purchased in isolation, but as part of a coordinated system.

Frequently asked questions about the FUR-020 mounting plate

For how many legs is one FUR-020 intended?

One plate serves as a common wooden base for two furniture legs. This is the main difference from compact single plates. The number of physical supports is always checked against the furniture design.

How many FUR-020 plates are needed for a table with four legs?

The quantity is determined by the working scheme. For two pairs, two identical plates are usually considered, but their orientation, length, and distance between pairs need to be confirmed on the tabletop drawing.

What lengths can be ordered?

The card shows versions A = 305, 405, 505, 610, 710, 810, and 915 mm. For each option, the width of 70 mm and thickness of 24 mm are maintained.

What is the width of FUR-020?

In all seven versions, width B is 70 mm. This parameter is checked against the edges of the tabletop, aprons, drawers, and mounting zones.

What is the thickness of the wooden plate?

The confirmed thickness C is 24 mm. It contributes to the overall height of the assembly and must be considered when selecting the stud and available space.

What does dimension D mean?

Its geometric purpose should be read from the current technical drawing. Based on a single table, it cannot automatically be called the distance between leg axes.

What materials are available?

Beech and oak are confirmed. The material is chosen together with the legs, tabletop, and future finish, especially if the lower part of the furniture remains visible.

What sanding quality is specified for FUR-020?

The card indicates the quality "Prestige". This is surface preparation, not a finished topcoat.

Are the bushings included in the set?

Yes. Two metal M8 bushings are installed in the wooden plate, designed for threaded connection with the legs.

Are M8 studs included?

The studs should be checked and ordered separately for specific legs. Their length and fit must match both parts of the assembly.

Is the fastener included with the tabletop?

No. Screws or other base fasteners are selected separately based on the material, thickness, and geometry of the mounting holes.

Is the FUR-001-1 M8 × 60 stud suitable?

It can be used in the assembly, but compatibility of the length with the chosen leg and the depth of the bushing must be confirmed before ordering.

Can FUR-020 be installed on MDF?

The possibility depends on the thickness, construction, load, fastening zones, and the chosen screws. There is no universal answer without checking the base.

Can FUR-020 be used for an oak tabletop?

Yes, the line includes an oak version. But the suitability of the entire assembly is determined not only by the wood species, but also by the base thickness, legs, and load.

Can the legs be installed at an angle?

The mounting direction of FUR-020 must be confirmed against the current drawing. The angle should not be assigned based on a photo or specifications of another model.

Will FUR-020 be suitable for a heavy tabletop?

A calculation of the entire assembly is required. For heavy structures, slabs, and commercial furniture, a reinforced metal system may be needed.

What length should be chosen for a writing desk?

The one that provides the required leg coordinates and leaves space for a chair, drawer, cabinet, and cable channel. The choice is made on a full-size template.

What length should be chosen for a bench?

The length depends on the seat width, center of gravity position, edge offsets, and design load. The size cannot be assigned based only on the bench length.

Can the plate be shortened?

Self-modification of the product may disrupt mounting holes, threaded inserts, and overall geometry. The required size is selected from seven ready-made versions.

Is it necessary to make a template?

Yes. A full-size fitting helps check the fit, space, leg contours, and holes before purchasing and drilling an expensive base.

How to check the symmetry of two plates?

Compare identical offsets, parallelism, position relative to central axes, and the two diagonals of the future support contour.

Can one length be used for tables of different sizes?

Only if the drawing of each table confirms suitable geometry. The approved FUR-020 cannot be transferred to another tabletop without re-verification.

What to do if the leg has a thread other than M8?

Do not try to screw in an incompatible stud. You should select another leg, an agreed adapter assembly, or another mounting plate.

Can FUR-020 be painted together with the legs?

Yes, if the chosen finishing system suits the material and the threaded elements are protected. First, perform a test assembly and a trial paint application.

Where can I see the current price for FUR-020?

В on the FUR-020 card with dimensions and price. The cost depends on the selected length and material.

Where can I find the remaining parts?

In the section Buy furniture fittings, where plates, studs, and foot pads are presented, as well as in the furniture legs catalog.

Final specification of the FUR-020 order

This table is more useful than a short line "FUR-020 — 2 pcs.". It shows the complete purchase set and reduces the risk that a missing stud, wrong material, or unsuitable fastener will be discovered only during assembly.

Conclusion: buy FUR-020 as a ready-made system for a pair of legs

FUR-020 solves a clear commercial task: it combines two furniture legs on a single wooden base and reduces the number of independent markings. Seven lengths allow you to choose fastening for different tabletops and cabinets, and options in beech and oak help match the hidden component with the furniture material.

The right purchase starts with a drawing. Determine the actual position of the threaded inserts, check parameter D, the seating direction, leg dimensions, and base thickness. Then choose the number of plates, M8 studs, furniture supports, and fasteners for the tabletop.

After checking the project, you can order FUR-020 of the required size in beech or oakand in the section buy furniture fittings — add the missing node elements. This way, the buyer receives not a single random part, but a complete fastening kit for symmetrical and dismountable installation of furniture legs.

Fastening node passport after assembly

After successful installation, it is useful to save a small node passport. It specifies the exact size of FUR-020, material, article numbers of legs and studs, type of base fastening, assembly date, and photos of the underside of the furniture. Such a document is especially valuable for serial production, commercial interiors, and furniture that is periodically disassembled.

The passport helps to reorder parts without new measurements, correctly assemble legs after transportation, and find the cause of play. If one plate or leg is damaged, the craftsman sees not only the product name, but also the entire compatible system.

Reordering FUR-020 after several months

Before repurchasing, you should not rely only on the old invoice. The card, price, availability, and technical description may have changed. You need to open the current page, re-check the dimensions, and ensure that the working URL and drawing match the saved version of the project.

In the request, indicate that a repeat of the previously approved node is required, attach the specification and photos. For oak, additionally warn about the need to visually match the new part with the existing furniture after finishing.

Acceptance of finished furniture with FUR-020

The customer checks not only the appearance of the table or cabinet. The furniture is placed on a flat surface, they make sure there is no wobbling, inspect the position of both pairs of legs, and check that the fasteners do not protrude to the front side. Then they apply a gentle lateral force within the scope of a normal inspection to detect any play.

• the legs are positioned symmetrically according to the approved scheme;
• two FUR-020 match in size and material;
• the threaded connections are tightened without misalignment;
• the plates fit tightly against the base;
• the fastener heads are installed correctly;
• the glides touch the floor evenly;
• the drawers and mechanisms operate without conflict;
• the bottom trim is not damaged.

If the furniture wobbles, an uneven floor cannot automatically be assumed to be the cause. First, the geometry and the fastening assembly are checked, then the adjusting elements, if they are provided.

Why a human commercial name is better than a technical slogan

The buyer is not looking for an abstract "one base without shifting axles," but for a specific product and solution: the mounting plate FUR-020, dimensions, length, attachment of two legs, and a complete set. Therefore, the article title immediately communicates what can be selected and purchased.

Such a headline naturally supports commercial queries. It does not promise the impossible, does not turn the article into an instruction for a technologist, and leads to the product card, the leg catalog, the M8 stud, and the furniture fittings section.

Final check before drilling

Even after purchase, it is worth assembling the unit once more without final fixation. Place both FUR-020 plates on the marked base, screw the legs in manually for a few turns, and check the actual contours. Compare them with the furniture edges, the user's space, drawers, and cable channels. Only after this check, transfer the mounting holes.

If the actual leg differs from the model in the drawing, the actual fitting takes priority along with the technical documentation. The mismatch cannot be compensated by randomly shifting one plate: the change must be symmetrical and coordinated.

When all parameters are confirmed, reopen the product card, review the seven dimensions of FUR-020 and make sure the verified option is selected in the order. This simple operation protects against an error in the dropdown list of sizes and material.

Purchase without unnecessary returns and redelivery

The most expensive mistake when ordering fittings is not the price difference between two adjacent sizes, but halted assembly. An unsuitable length, forgotten pins, or incompatible legs lead to repeated delivery, schedule delays, and redoing the layout. Therefore, a commercially strong choice of FUR-020 always includes checking the entire assembly before payment. The buyer understands in advance how many plates are needed, which parts are sold separately, and which size actually matches the design.
