CPU-3-2 Japandi Narrow Arched Wall Molding with Curved Corners

Both component families named for this set are polyurethane: MLDPU-027U-1 provides the shaped curved detail, and MLDPU-027 provides the straight linear runs. The selected straight profile measures 20 x 12 x 2600 mm. This exact cross-section matters: another product option with the MLDPU-027 name measures 14 x 9 mm and must not be substituted without checking how it meets the curved component. CPU-3-2 is decorative molding for a wall surface, not a solid prefabricated panel, an arched doorway, or a structural arch.

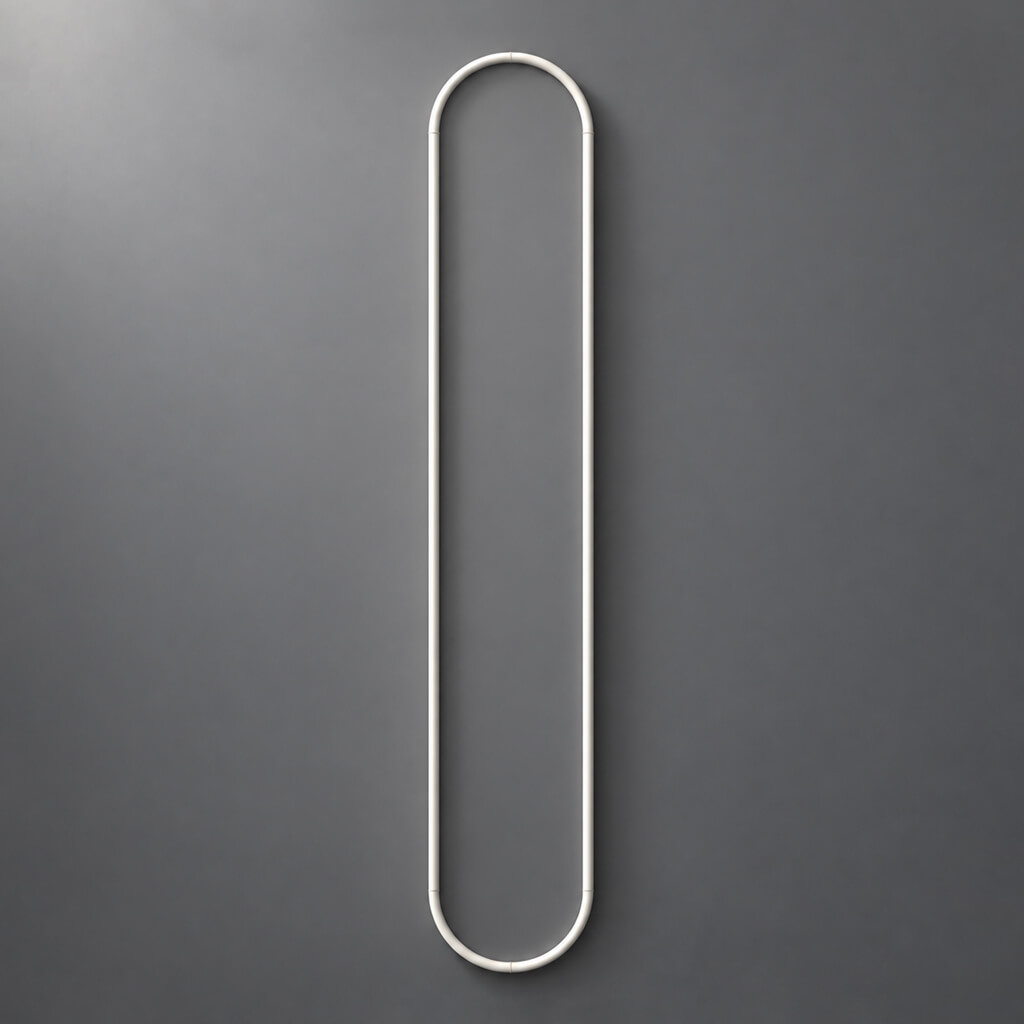

CPU-3-2 Specifications: One Narrow Japandi Arch, Two Polyurethane Components

Begin with the actual parts rather than broad descriptions of Japandi decor. The published product information distinguishes the overall assembled reference from the individual curved piece and from the uncut straight molding length. These measurements answer different questions during purchase, layout, and installation.

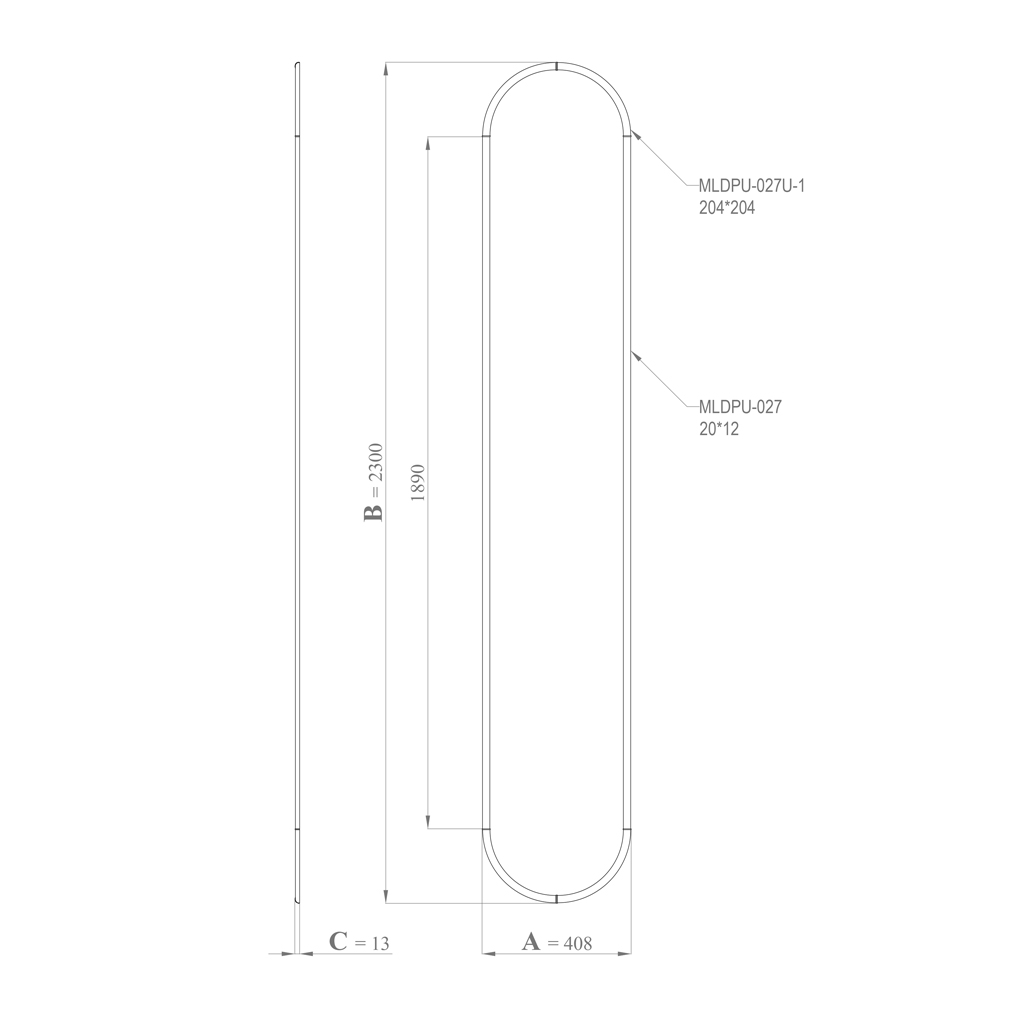

For the curved piece, the manufacturer uses separate drawing labels C and D. They must be read from its drawing rather than treated as interchangeable measurements of the assembled frame's maximum projection. Likewise, a 2600 mm stock molding is not an assertion that the finished arched composition is 2600 mm tall. The frame's published height is 2300 mm.

Why 408 mm of width changes the design

A frame slightly more than sixteen inches wide does not fill a sofa-length wall section in the same way as a large rectangular panel. It acts more like a vertical architectural mark. The wall area outside the molding becomes part of the composition. In a hallway, that can create a quiet rhythm between openings. On a wider wall, two or more carefully spaced vertical accents may define a sequence without covering the surface with extensive paneling.

The narrow format also changes how the top curve is perceived. Because the horizontal span is limited, the transition reads as a distinctive feature of the outline rather than a small corner detail lost in a broad frame. Do not estimate the radius from an illustration: use the published component drawing when a design must align with other curved elements.

One reference composition is not a universal package quantity

The component table names the two polyurethane items and their selected dimensions, but its text-only representation does not reliably reveal every piece count in the order. A much longer promotional description mentions numerous stock pieces; that statement should not be treated as a verified bill of materials for one 408 mm-wide frame. Before ordering, confirm the current itemized quantities and check whether any additional material is needed for a revised layout or repeated arches.

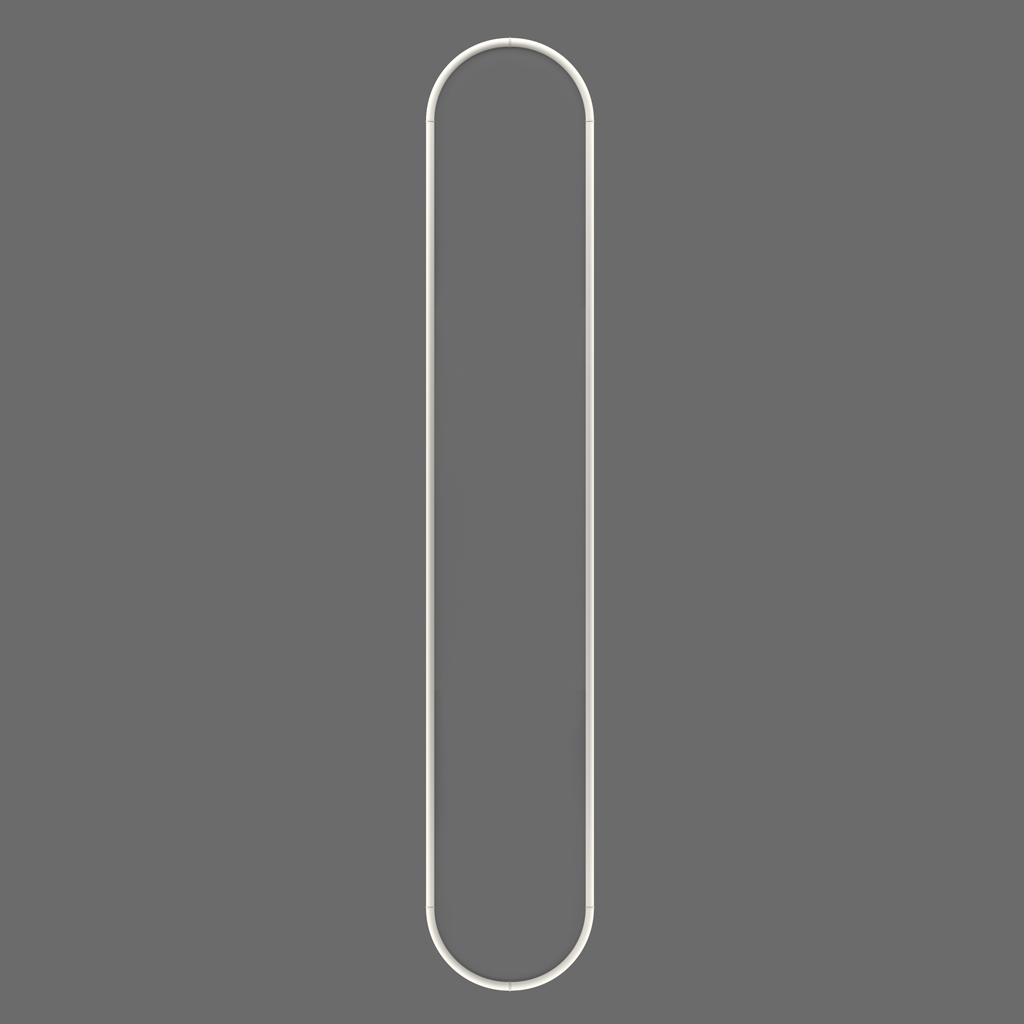

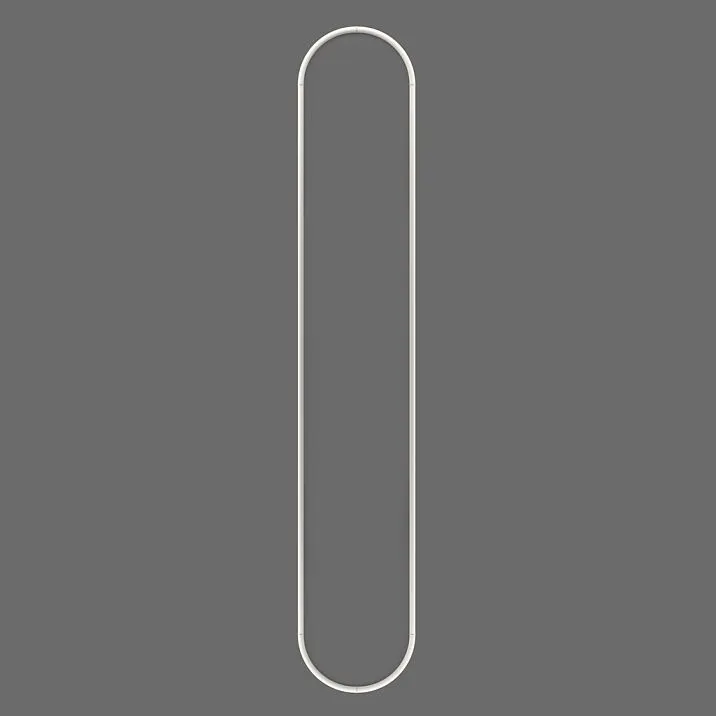

Understanding the Japandi Arch: Vertical Geometry With a Soft Top

CPU-3-2 is distinguished less by decorative carving than by proportion. Its tall sides establish an uninterrupted vertical direction, while the curved transition at the upper part softens an otherwise strict outline. This makes the composition useful in rooms where a plain rectangular picture frame molding arrangement would feel too formal or repetitive.

A raised line rather than a filled wall panel

The molded outline sits on the existing wall and leaves the space inside it visible. That distinction matters when comparing products marketed as wall panels, arched wall art, and decorative trim. A solid panel changes the full surface within its borders; CPU-3-2 uses the existing painted or otherwise finished wall as the background. Its effect comes from the shadow cast by the raised profile, not from a new sheet of wall material.

This feature also encourages restrained color choices. A white arch on a contrasting wall is immediately graphic, whereas a frame painted to match the background can remain subtle until the light crosses its rounded profile. Either approach is possible with an appropriate finishing system, but the chosen effect should suit the furniture and the amount of other decoration nearby.

Curvature as an alternative to classical ornament

Traditional wall-frame designs may rely on floral corners, rosettes, or several stepped molding profiles. The Japandi approach uses a simple line and measured curves instead. The curved component does not need an additional carved motif to be visually meaningful. Its job is to change direction smoothly and give the top of the accent a lighter character.

For a space dominated by straight furniture, cabinetry, and architectural openings, a small curved intervention can create welcome contrast. It should still be positioned deliberately. Adding multiple arched frames without consistent spacing may turn a calm feature into visual clutter.

Where a 16-Inch-Wide Wall Molding Accent Works Best

The modest reference width of CPU-3-2 gives it an advantage on wall areas too narrow for a broad decorative frame. Think in terms of a clear vertical opening in the wall elevation, not simply the square footage of a room. Even a large room can contain a small, valuable accent zone between windows or beside cabinetry.

Between doors or windows

A wall pier between two door casings may benefit from a single narrow arched frame. Measure the actual clear width after accounting for trim and any wall-mounted controls. The 16.06-inch reference width needs intentional margins on both sides, and the 90.55-inch height must be evaluated against the baseboard and ceiling conditions. A composition that fits mathematically may still feel crowded if it almost touches neighboring casing.

If two piers have unequal widths, do not assume identical placement will look balanced from the hallway. Establish a consistent visual rule, such as centering within each clear field or aligning to an architectural axis, and test the placement before cutting material.

Entryway or stair landing

An entryway often has limited uninterrupted wall space. A tall polyurethane accent can add architectural identity without requiring a bulky console, a full decorative panel, or an additional wall covering. The rounded top can pair visually with a softly shaped mirror elsewhere in the entry, but it should not be mistaken for a structural support or a protective trim piece.

On a stair landing, measure from the actual finished floor and check sightlines from both directions of travel. The relationship between the narrow arch and any sloping stair stringer or handrail may affect whether the design appears level and considered. Do not locate the molding where it interferes with safety features or necessary clearances.

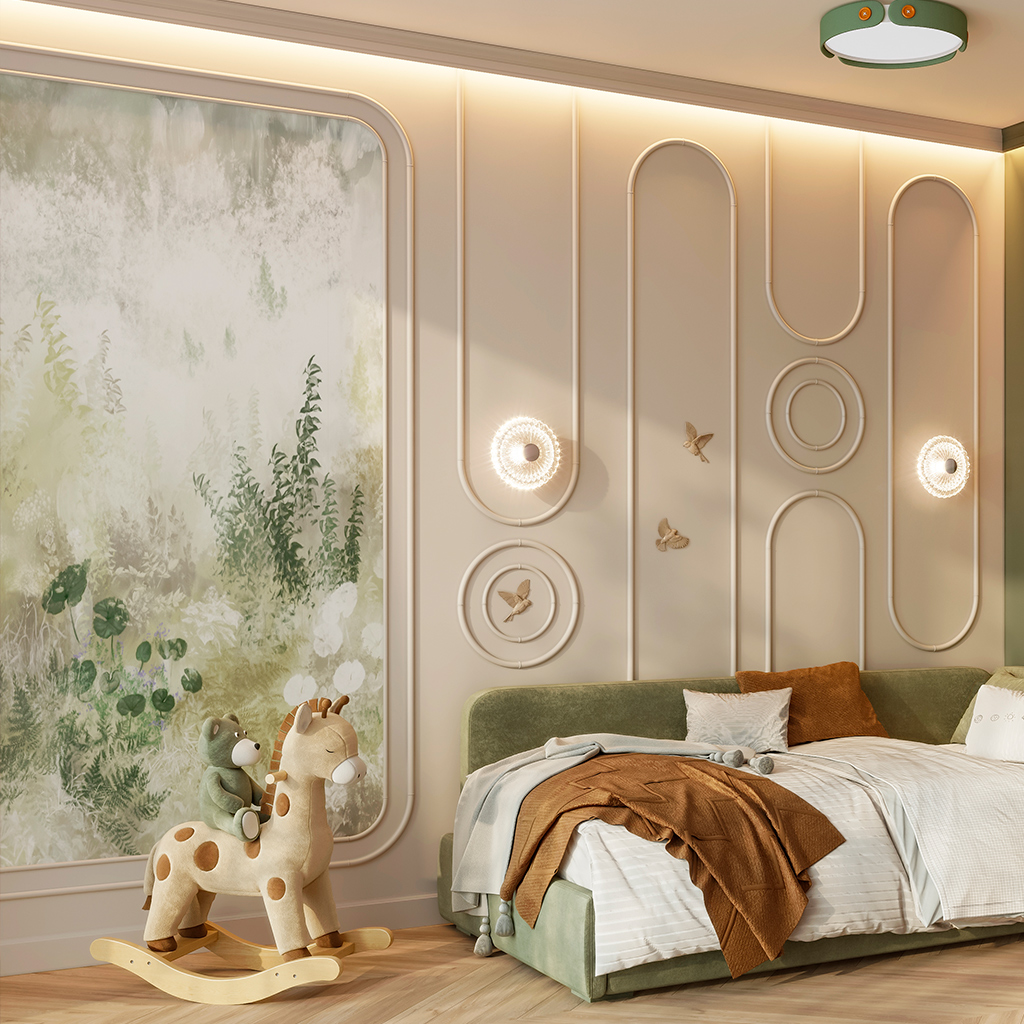

Beside a bed or upholstered seating

CPU-3-2 can work as a secondary wall accent beside a bed or a reading chair rather than as a complete headboard-width frame. Its narrow format suits a composition with two vertical features flanking wider furniture, provided the available wall allows balanced margins. The pair should share an intentional vertical datum, not merely a convenient distance from the nearest outlet.

For a Japandi bedroom, warm off-white or mushroom-colored paint can keep the accents understated. Consider the scale of bedside lamps and wall sconces before deciding on exact placement. A wall-frame line that runs behind a fixture plate or disappears awkwardly under a piece of furniture will weaken the design.

Home office, reading niche, or dining space

In a home office, an arched trim accent can mark the zone around a reading chair or quiet display shelf. In a dining area, the same element may establish repeated vertical rhythm beside a sideboard or in a sequence along an uninterrupted wall. One frame will seldom organize an entire wide dining wall by itself; composition and repetition are design decisions rather than included functions of the individual set.

The frame does not have to surround art. Its interior can remain an empty, painted field. That negative space is one of the reasons this modest profile feels appropriate for restrained interiors.

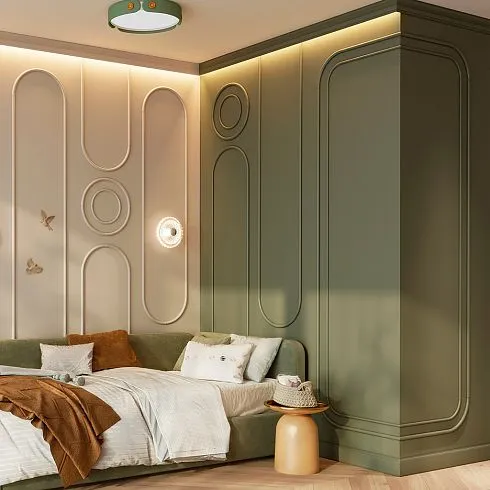

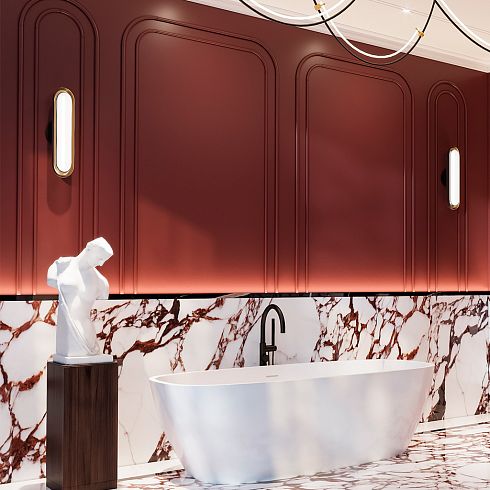

How CPU-3-2 Differs From CPU-3-1 and Other Japandi Sets

Two products in the same collection can use similar molding components yet solve different layout problems. The most important difference between CPU-3-2 and CPU-3-1 Japandi rounded-corner molding is the published reference width. CPU-3-1 measures 1073 mm (42.24 inches), while CPU-3-2 measures 408 mm (16.06 inches); both list a reference height of 2300 mm and a 13 mm depth field.

That is not a minor size variation. A frame more than forty-two inches wide can establish a broad decorative area, whereas the sixteen-inch composition is naturally suited to a narrow vertical accent. The choice should come from the wall elevation, not simply the shared product family or a similar illustration.

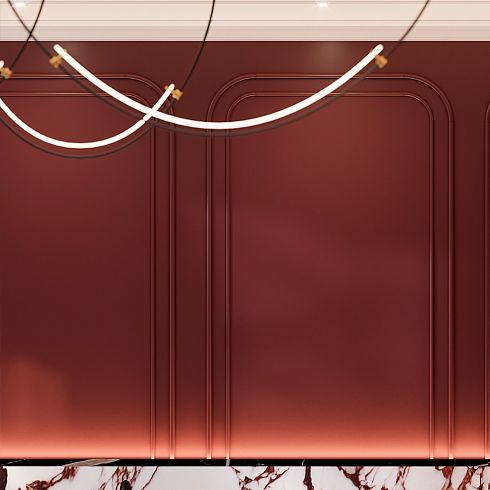

CPU-3-2 versus CPU-3-3

CPU-3-3 is another framed design in the Japandi collection, with a published width of 1003 mm (39.49 inches). Its component list includes both MLDPU-027U-1 and the smaller MLDPU-027U-2 as well as differently sized straight profiles. Do not borrow that combination for CPU-3-2. The 408 mm CPU-3-2 product card specifies the 204 mm MLDPU-027U-1 corner size and MLDPU-027 in the 20 x 12 mm cross-section.

When reviewing the collection, use the complete SKU to keep these configurations separate. Similar names and shared molding families do not establish that the items contain the same component counts or geometry.

When the narrow arch is the better starting point

Choose CPU-3-2 as a reference when the wall calls for a small, self-contained feature, repeated slender accents, or a carefully placed decorative arch on a narrow field. Choose a broader design when the goal is to frame a significant area around furniture or art. Neither is automatically more luxurious or more appropriate to Japandi; the difference is how each proportion works with the room.

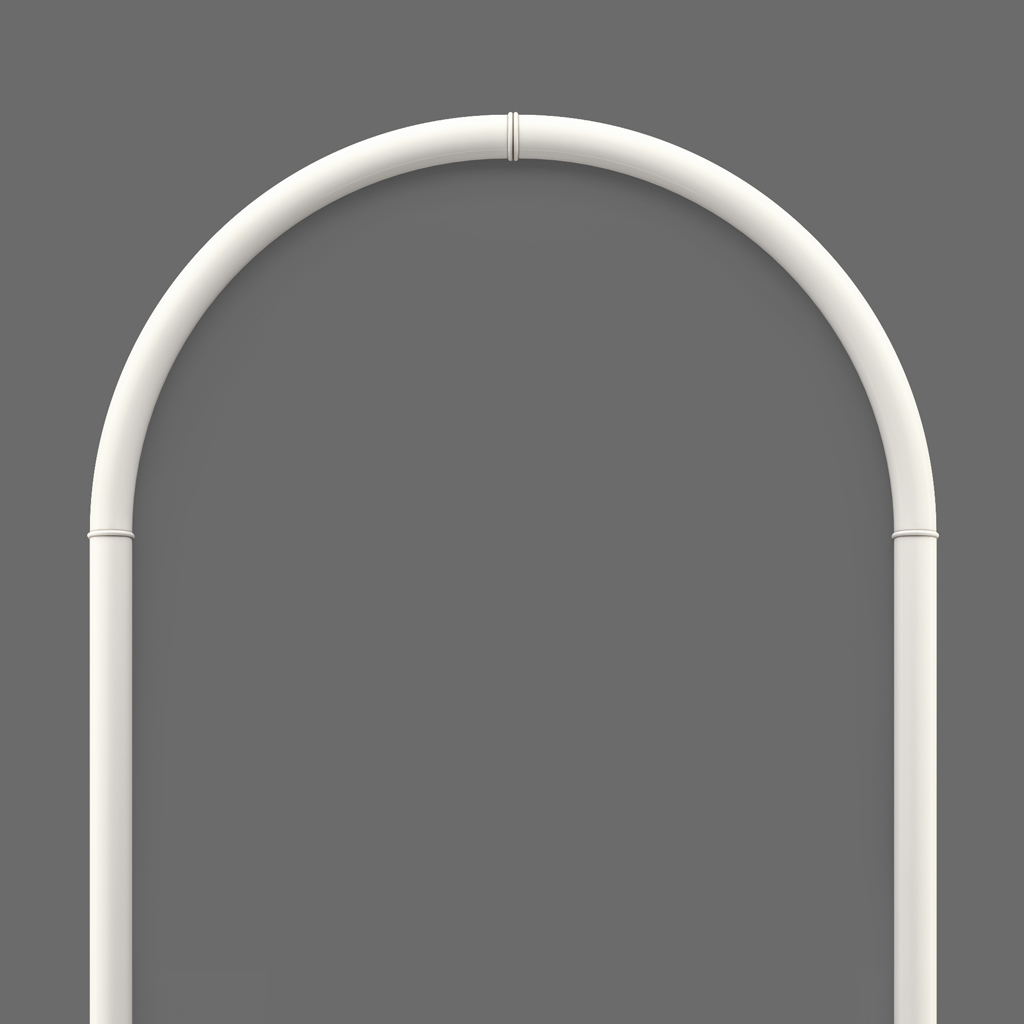

MLDPU-027U-1: The Exact Curved Corner Component

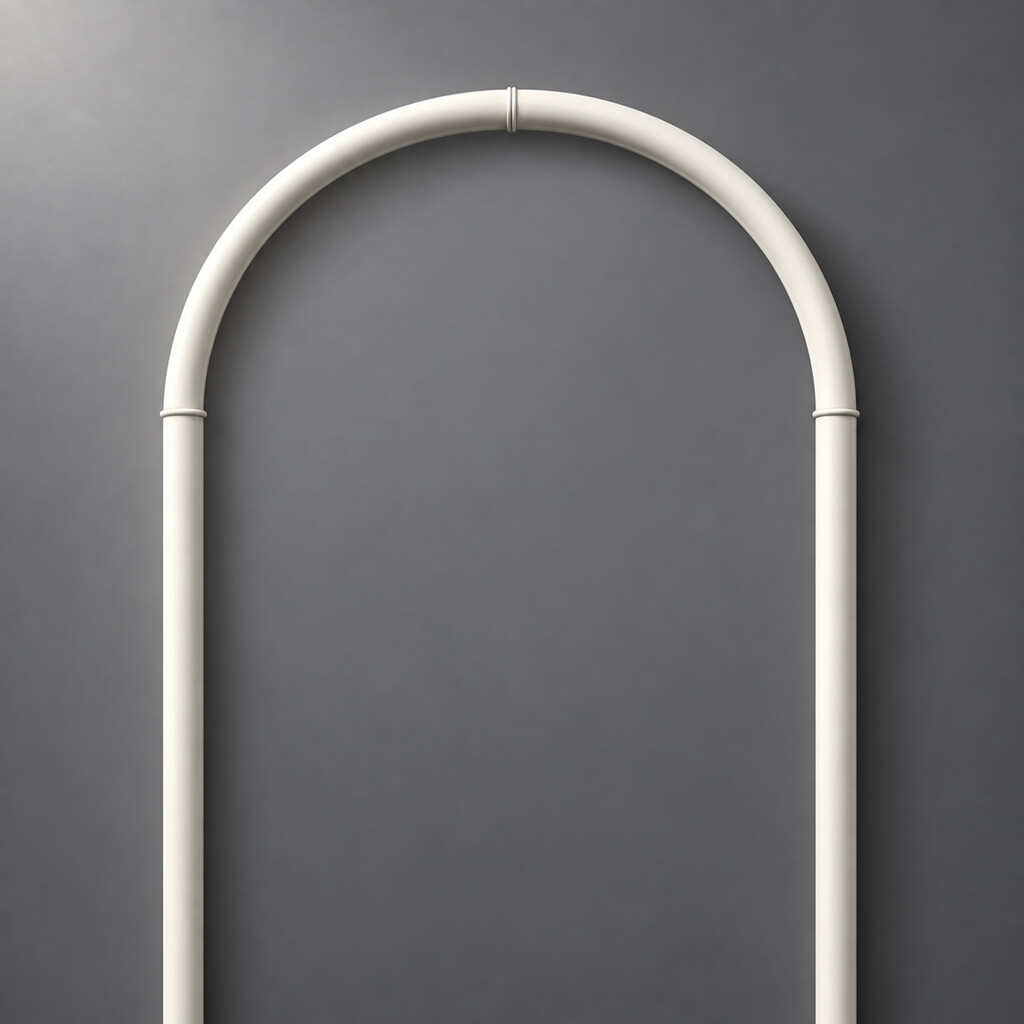

The sculpted transition is the component that gives CPU-3-2 its soft arched character. The specified version is MLDPU-027U-1 with A = 204 mm, B = 204 mm, C = 13 mm, D = 23 mm, and L = 287 mm. The corner family has smaller variants, so the full set of dimensions matters if replacement pieces are being ordered independently.

Do not treat A, B, C, D, and L as interchangeable

Manufacturer drawings may label a part in a different way from how consumers casually describe its width or depth. On this corner, the A and B values describe the selected footprint, while C, D, and L are separate drawing parameters. They are not permission to state that the entire completed wall frame projects 23 mm from the wall, or that a straight molding should automatically be cut to 287 mm. When clearance or join geometry is critical, rely on the actual drawing rather than prose approximations.

The MLDPU-027U-1 component page identifies the size family. Select the 204 x 204 mm option for this published CPU-3-2 composition. A smaller option may work in a separately designed project, but it will not reproduce the same upper outline without a revised layout.

Curved transition versus a cut miter

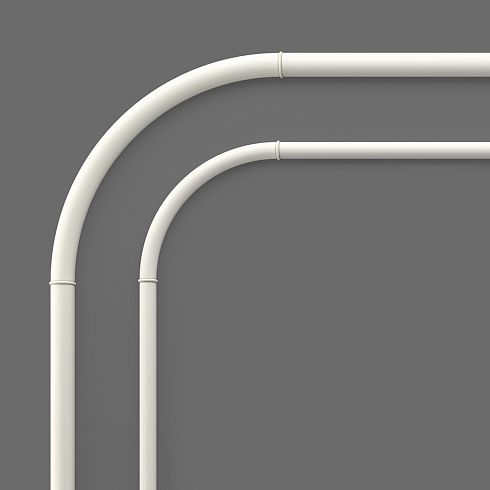

On a plain rectangular wall frame, two straight lengths can meet at a miter. A shaped curved component provides a different visual transition and requires the straight run to meet its defined ends. Cutting a standard sharp corner and adding filler will not recreate the intended molding curve. Plan the location of the curved components before measuring the uninterrupted vertical section.

MLDPU-027: Matching the Right Half-Round Straight Molding

The second listed component is MLDPU-027, a smooth, half-round polyurethane profile. For CPU-3-2, the itemized product composition specifies 20 x 12 x 2600 mm (0.79 x 0.47 x 102.36 inches). The face is a simple convex line rather than a stepped classical molding. That simplicity supports the narrow vertical arrangement because the profile can be present without carrying heavy ornament along its full length.

Why 14 x 9 mm is not the selected size

The MLDPU-027 product page also lists a finer 14 x 9 mm option. Both share the same SKU family but have different physical cross-sections. The CPU-3-2 reference specifies the larger 20 x 12 mm selection; matching a shaped corner by nominal family name alone may leave an obvious step at the transition.

The STAVROS compatibility explanation for MLDPU-027U-1 explicitly identifies the 20 x 12 mm straight profile as the appropriate junction for that corner family. Check this relationship before buying extra stock or reusing spare lengths from a different project.

The stock length is not the finished arch height

Each straight molding length is published as 2600 mm, approximately 102.36 inches. The complete CPU-3-2 reference height is 2300 mm, approximately 90.55 inches. Those are two different figures: one describes a stock component, and the other describes the assembled decorative layout. Any straight section between curved elements must be calculated from the actual meeting points in the drawing. Cutting each stock piece to 2300 mm by default can waste material or leave gaps.

Planning the Narrow Arch on a Real Wall

The most useful early step is to draw the entire wall elevation, including baseboards, casing, existing crown molding, outlet positions, and visible furniture. Then place a 408 mm-wide outline within that plan. Measuring the existing wall rather than only the molding helps determine whether the tall frame will look balanced once the room is furnished.

Decide where the 90.55-inch height begins

The manufacturer supplies a reference height, not a universal distance above the finished floor. In a room with low ceiling clearance or substantial baseboard trim, the margins above and below the frame can become very tight. Mark both edges and check the remaining space before selecting adhesive or cutting. The position should be based on the architectural relationship to the room, not on a fixed rule borrowed from another installation.

Center it within the available wall field

A narrow pier may look best when the frame is centered within the area between casings. If furniture extends partway into that field, the most visually balanced position may differ from the mathematical center. Use painter's tape or another temporary layout guide to study the outline from the doorway and from normal seating positions. Check the curved top as well as the vertical sides.

Check electrical devices before finalizing the curve

Electrical outlets, switches, alarms, and wall fixtures must remain accessible and meet the requirements of the installation environment. A raised trim profile is not designed to hide active electrical cables or bypass service access. Mark the footprint of the 204 mm curved component, not merely the center of the narrow 20 mm straight line. The molded top can occupy more wall area than an outline drawn with a single thin marker suggests.

Working Out Cuts and Required Profile Lengths

Every frame needs a takeoff, meaning a plan of the individual parts and lengths required. For a curved arched outline, a simple rectangular perimeter formula does not provide an exact material cut list, because shaped corners replace part of the top and side lengths. The 408 mm reference width is a critical outside dimension, but it is not automatically the length of an unbroken straight top molding.

Set the curves first, then measure the straight runs

Start with the selected 204 mm curved component positioned at its intended location. Identify the ends where the straight profile will meet it. Only then measure the straight section between the end points. Keep the line orientation consistent so the half-round face flows into the curved corner without twisting or appearing offset. A paper template or full-size dry layout is especially helpful when the walls are not perfectly square.

Account for waste without inventing package contents

Cutting allowance varies with the layout, blade kerf, joint design, and any rejected cuts. Confirm the actual quantity and stock lengths in the current order rather than relying on a broad catalog statement that mentions sixteen long molding pieces. An individual 408 mm-wide reference frame does not by itself establish that a given number of 2600 mm sticks is supplied. For multiple arches, make a separate takeoff for each wall and combine the totals only after checking all clearances.

Dry-fit every meeting point

Before attachment, align each straight piece with the shaped component on a flat reference surface or against the marked wall. Check for a consistent profile face and a clean junction. Any discrepancy between the chosen cross-section and the corner will be more visible in a simple Japandi design than it might be behind an ornate decorative element. Resolve that mismatch before applying installation materials.

Paint and Finish Options for the CPU-3-2 Arch

A restrained arched detail benefits from a finish that respects the shape rather than distracting from it. Japandi interiors often use warm white, stone, oatmeal, light greige, clay, and muted gray-green. Those are design choices, not predetermined product colors. The manufacturer identifies the components as polyurethane; actual coating and preparation should follow the product instructions and the finishing system selected for the room.

Tone-on-tone paint for subtle shadow

Matching the molding to the surrounding wall produces a quiet architectural relief. The curved top becomes most visible where light falls across the convex surface. This is often effective on a narrow wall field where a sharply contrasting frame could feel too assertive. Test the color under daytime and evening lighting because low-sheen surfaces can appear substantially different when a nearby lamp emphasizes the raised line.

Gentle contrast for a defined focal point

If the arch should be more noticeable, use a slightly lighter or darker shade than the wall. Keeping both within one color family can preserve the softness associated with Japandi. A very dark frame on a pale wall creates a stronger outline, but it will also make cut alignment and junction quality more apparent. Consider whether the extra contrast supports the other features of the room.

Finishing around the curved junctions

Curved-to-straight connections may require careful surface preparation and an approved joint treatment so the paint reads as one continuous line. Follow the manufacturer's recommendations for compatible fillers, primers, adhesives, and coatings. Do not assume every household paint or general-purpose construction adhesive is suitable for the specific polyurethane product and substrate.

Installation Considerations: Surface, Alignment, and Compatibility

CPU-3-2 is a decorative wall treatment and should be installed using methods suitable for polyurethane components and the particular wall surface. Verify the manufacturer's instructions for preparation, adhesive selection, temporary support, joint finishing, and coating. No exact curing time, fastener schedule, or hardware package is confirmed by the public itemized product details.

Check the base surface

Painted drywall, plaster, and other finished substrates may have different requirements. The surface should be sound, clean, and suitable for the selected attachment method. Loose paint, moisture damage, or major unevenness must be addressed in accordance with the wall's construction and the chosen installation system. Do not use the molding as a substitute for repairing a failed substrate.

Use a reliable vertical reference

A level or laser line can establish a true vertical before the first piece is placed. Check the frame's position against its intended centerline and the neighboring architectural elements. In a small wall field, a slight lean or uneven left/right margin can be conspicuous. Mark the entire arch and inspect it from normal viewing distance before final attachment.

Choose methods for this specific material

Both listed component types are polyurethane, so do not reuse instructions written for plaster ornament, nailed timber trim, or primed MDF without checking applicability. The appropriate mounting compound must suit the product, existing coating, and underlying wall. If a project involves high humidity, unusual temperatures, or proximity to a heat source, seek the manufacturer's product-specific guidance rather than assuming the trim has a universal environmental rating.

Common Selection Mistakes to Avoid

Buying a wide frame when the wall needs a narrow one

CPU-3-2 is 408 mm wide. CPU-3-1 is 1073 mm wide. Both are tall Japandi compositions, but they are not interchangeable in a narrow passage or beside a door. Confirm the actual clear wall field and view the complete arrangement at scale. A larger SKU is not automatically the better value for a space that cannot accommodate it gracefully.

Substituting the smaller 14 x 9 mm profile

The shared MLDPU-027 designation does not erase the difference between cross-sections. CPU-3-2 uses the 20 x 12 mm version, matched to the specified MLDPU-027U-1 variant. Record both part numbers and dimensions on the order and on the cut plan, especially if several Japandi sets are being installed together.

Assuming the arch is a solid panel or doorway trim

This set creates a decorative raised outline on a wall. It does not form a structural opening, does not provide a solid panel surface, and is not a replacement for door casing. For a niche or built-in, treat any related design as a separate custom application requiring its own measurement and component plan.

Trusting general promises instead of product data

Broad claims about waterproofness, zero emissions, heat resistance, U.S. delivery, stock availability, or universal adhesive compatibility are not substitutes for documentation. The reliable information for this SKU is its reference geometry and the specified polyurethane components. Where performance ratings, exact piece counts, or commercial terms matter, confirm them before placing an order.

Frequently Asked Questions About CPU-3-2

What is CPU-3-2?

It is a STAVROS Japandi decorative polyurethane wall molding set for a narrow arched reference composition. The finished reference is 408 x 2300 x 13 mm (16.06 x 90.55 x 0.51 inches). Its purpose is to add a softly curved architectural accent to an existing interior wall.

Is CPU-3-2 made from MDF or polyurethane?

Both named components in this SKU are polyurethane: curved MLDPU-027U-1 and straight MLDPU-027. It should not be confused with mixed polyurethane-and-primed-MDF wall sets from the STAVROS Neoclassic collections.

Does the set include the 14 x 9 mm MLDPU-027 molding?

The specified straight component for CPU-3-2 is 20 x 12 x 2600 mm. Although the MLDPU-027 family has a 14 x 9 mm option, the published composition and compatibility guidance identify 20 x 12 mm for the 204 mm MLDPU-027U-1 corner used here.

Can it be used as a wall panel?

It creates a raised border that frames the existing wall surface; it is not a solid manufactured panel. The area inside the arch can remain painted or receive a separately specified wall finish, provided the chosen materials and attachment system are compatible.

How many pieces are included?

The public text listing identifies the component types and sizes but does not provide a reliably readable, itemized quantity for every component. Confirm the bill of materials and any additional straight profile lengths needed for your specific arrangement with the seller.

Can the reference dimensions be changed?

A custom layout may be possible using individually selected components, but it requires new measurements and a revised cutting plan. The published CPU-3-2 dimensions describe the reference composition, not a manufacturer guarantee that any height or width can be achieved with the same package contents.

Will this molding work in a minimalist room that is not strictly Japandi?

Yes as a design consideration. The smooth half-round profile and arched outline can complement contemporary, transitional, or restrained modern interiors. Choose the finish and placement according to the existing room rather than relying on a style label alone.

Choose CPU-3-2 for a Narrow, Calm Architectural Accent

CPU-3-2 is most compelling when the wall needs a slender vertical feature instead of a large ornamental frame. Its 16.06-inch width, tall 90.55-inch reference height, and smooth curved transition give a small area a deliberate architectural character. The polyurethane MLDPU-027U-1 corner and 20 x 12 mm MLDPU-027 straight molding make the product specification more precise than a generic listing for decorative wall trim.

Before ordering, compare the available wall field with the published reference, verify the exact selected profile sizes and itemized piece quantities, and plan the junctions shown in the manufacturer drawing. Explore the broader STAVROS Japandi wall molding collection if a different width or a more elaborate arrangement suits the room. For a narrow architectural accent built around quiet geometry rather than ornate carving, CPU-3-2 is a distinctive place to begin.
