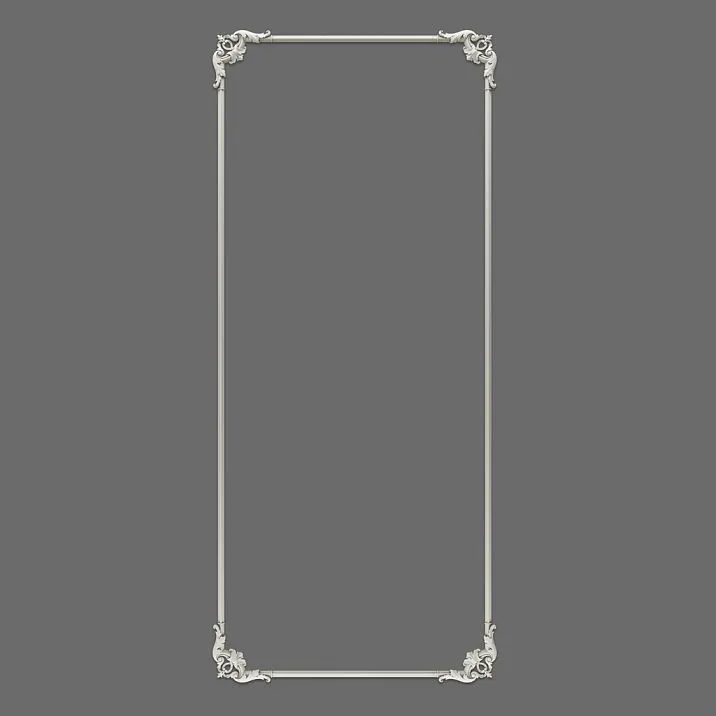

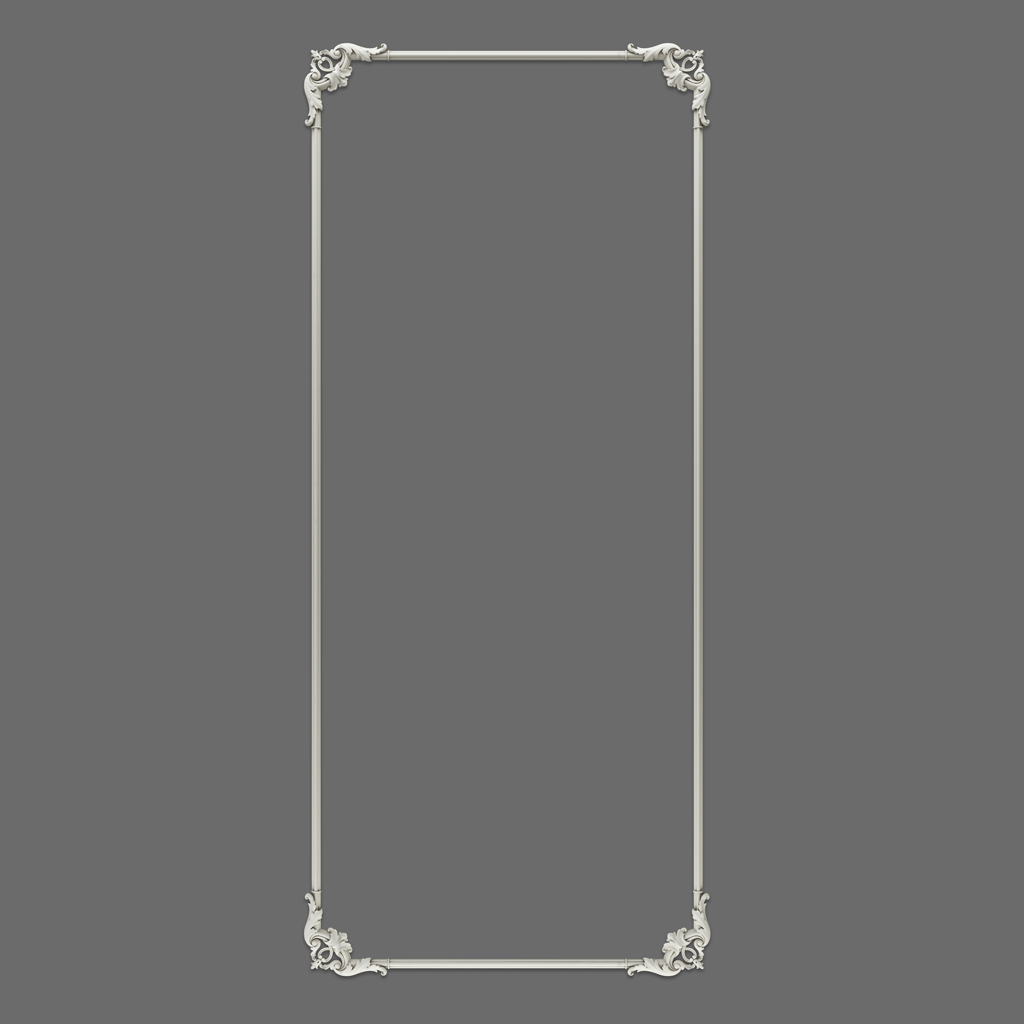

CPU-2-3 Four-Corner Decorative Wall Molding Frame

CPU-2-3 makes sense when a room needs repetition, orderly proportions, and a touch of traditional ornament without a dense classical pattern. The four matching corners are the defining feature. They establish a consistent visual border around the frame, while the center remains the existing wall surface. This distinction matters for homeowners planning picture frame molding on walls and for designers choosing among the five different CPU-2 compositions.

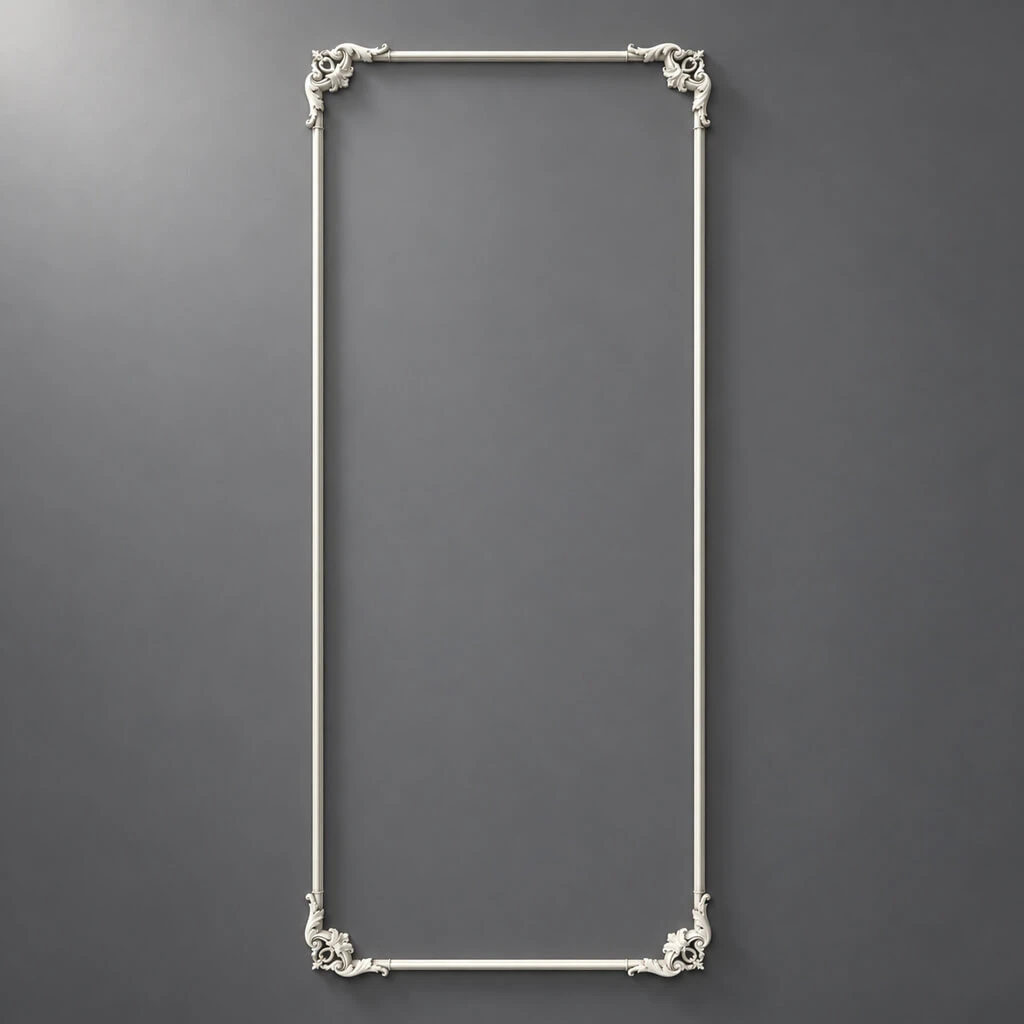

Four Matching Corners: The Design Principle Behind CPU-2-3

A repeated accent rather than four unrelated decorative pieces

The MLDPU-2U-1.1 ornament is repeated at every corner of the reference frame. A repeated element gives the rectangle a unified appearance: the eye recognizes the same sculpted detail at the top left, top right, bottom left, and bottom right. By contrast, a frame built from multiple types of ornament can suggest a stronger direction or a distinct top and bottom. Neither approach is universally preferable, but they create different architectural effects.

For CPU-2-3, the intention is a balanced visual outline. The ornamental corners punctuate the frame; the straight molding carries the longer horizontal and vertical lines between them. Because the ornament repeats, the frame can be considered as one decorative unit when creating a wall elevation, even though it is assembled from separate components.

Why an open center matters

Picture-frame wall molding typically leaves the original wall visible inside the frame. The central field can be painted to match the surrounding surface, finished in a related tone, or used as a planned backdrop for furniture. It is not necessary to cover the middle with a separate sheet to obtain the framed effect. In a restrained interior, leaving the area open can be more effective than filling it with additional trim or artwork.

The interior design decision therefore concerns both the applied molding and the amount of plain wall that remains visible. An oversized frame on a crowded wall can feel compressed; a small frame on a wide, empty wall can look disconnected. Start with the entire wall, not merely the decorative border.

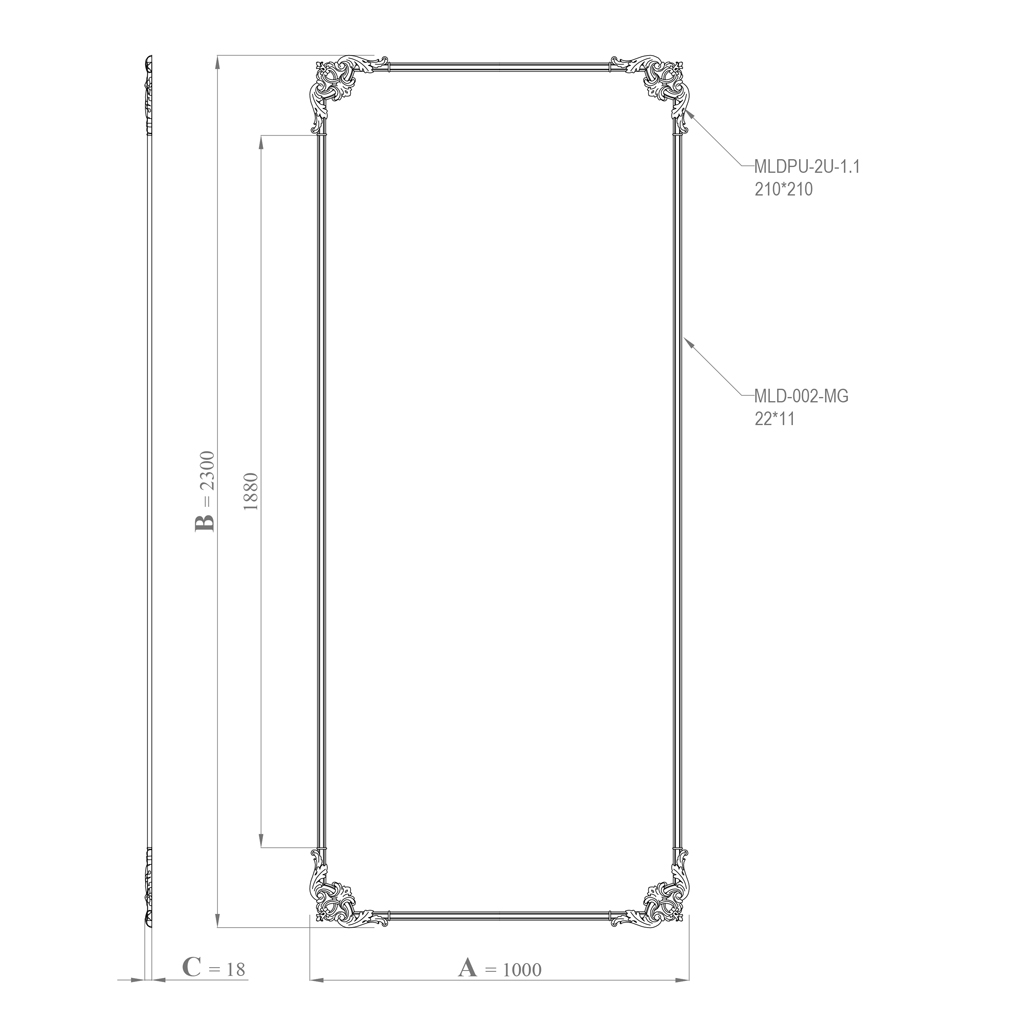

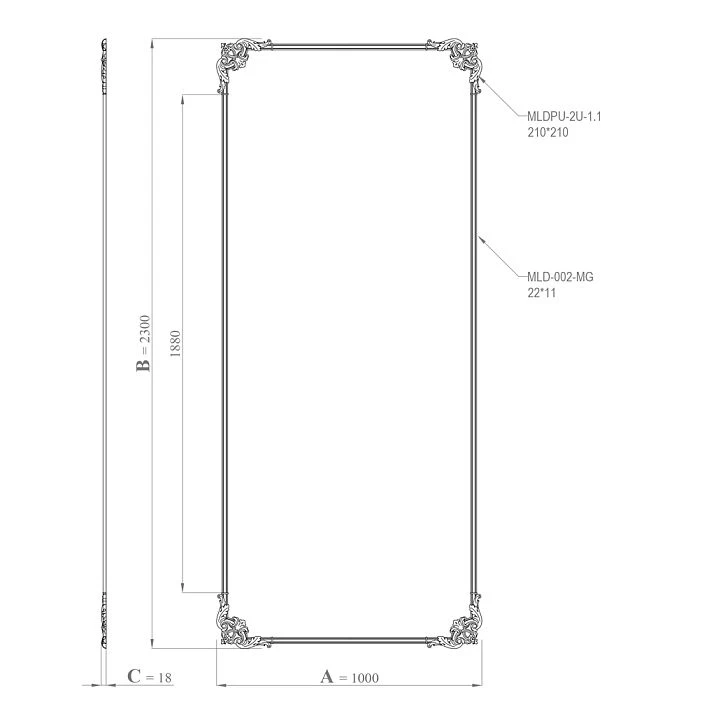

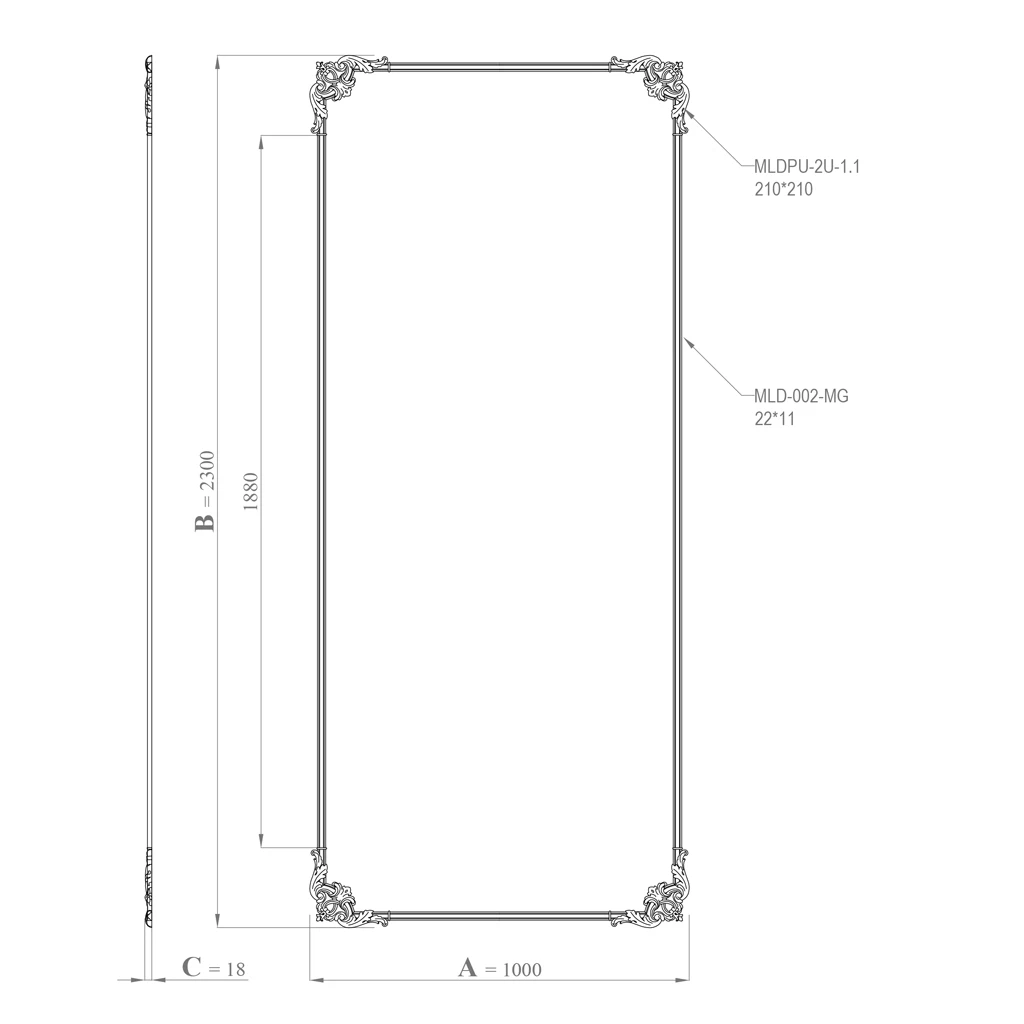

CPU-2-3 Specifications and Component Identification

Use the manufacturer part numbers when checking a specification or preparing an order. The finished reference dimensions describe an arrangement; the measurements of the separate ornaments and stock molding describe the components used to create it.

Reference dimensions are not a complete cut list

The 2300 mm figure is the overall height of the proposed wall arrangement, not a claim that each straight piece must be cut to 2300 mm. Likewise, 2600 mm is the stock length of an individual primed MDF molding, not the finished panel height. The polyurethane corner ornaments occupy space in the corners and affect where the straight runs begin and end.

The manufacturer's descriptive specification identifies two stock MLD-002-MG molding pieces in its illustrated configuration. However, a custom installation may require a different arrangement of joints or more material. Confirm the supplied quantities in the live purchase configuration and prepare an actual cutting diagram before relying on a quantity estimate.

Do not substitute similar-looking part numbers

MLDPU-2U-1.1 is the specific corner ornament for this CPU-2-3 design. It should not be confused with MLDPU-2U-2.1L or MLDPU-2U-2.1R, which are differently shaped left- and right-hand parts used in CPU-2-4. Nor is MLD-002-MG the same product as the polyurethane profile MLDPU-002. The similar numbering identifies related design families, not identical materials or interchangeable stock items.

The Role of Polyurethane Corners in a Wall Molding Frame

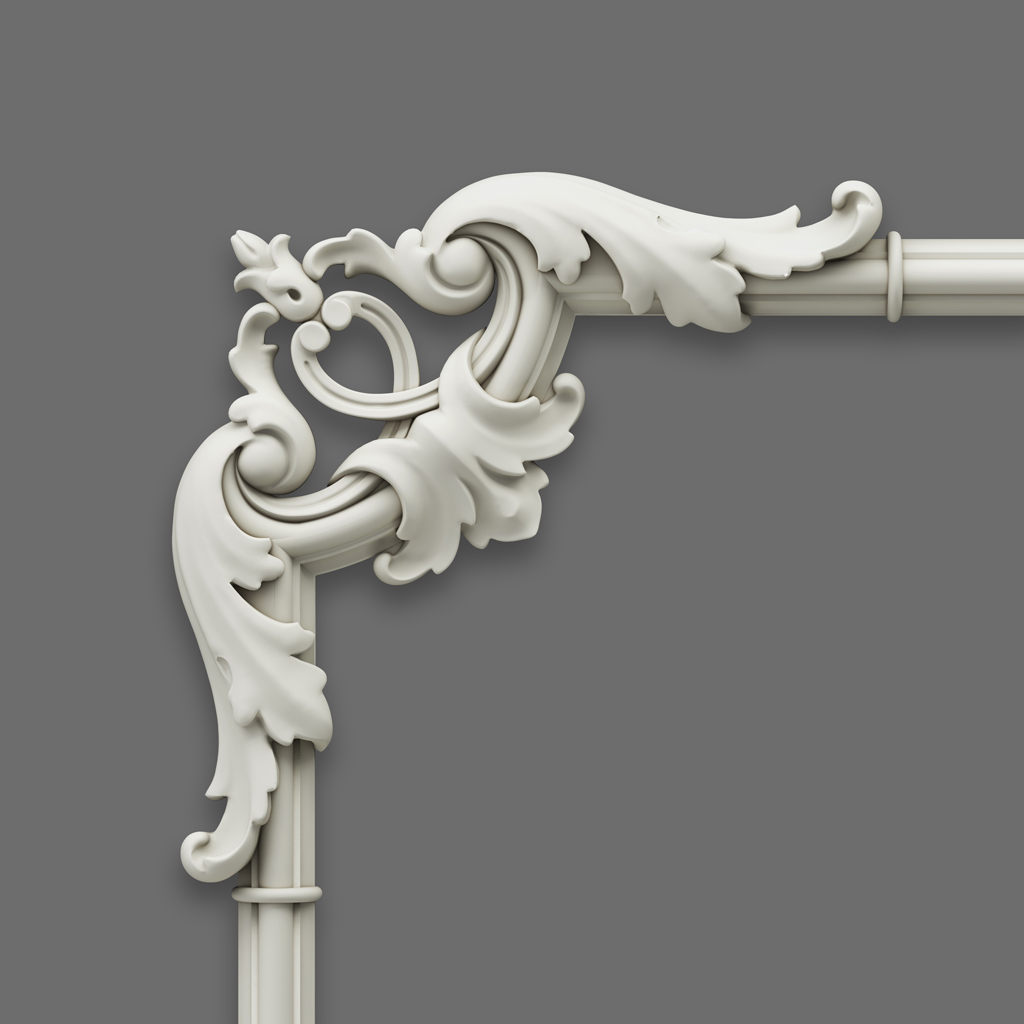

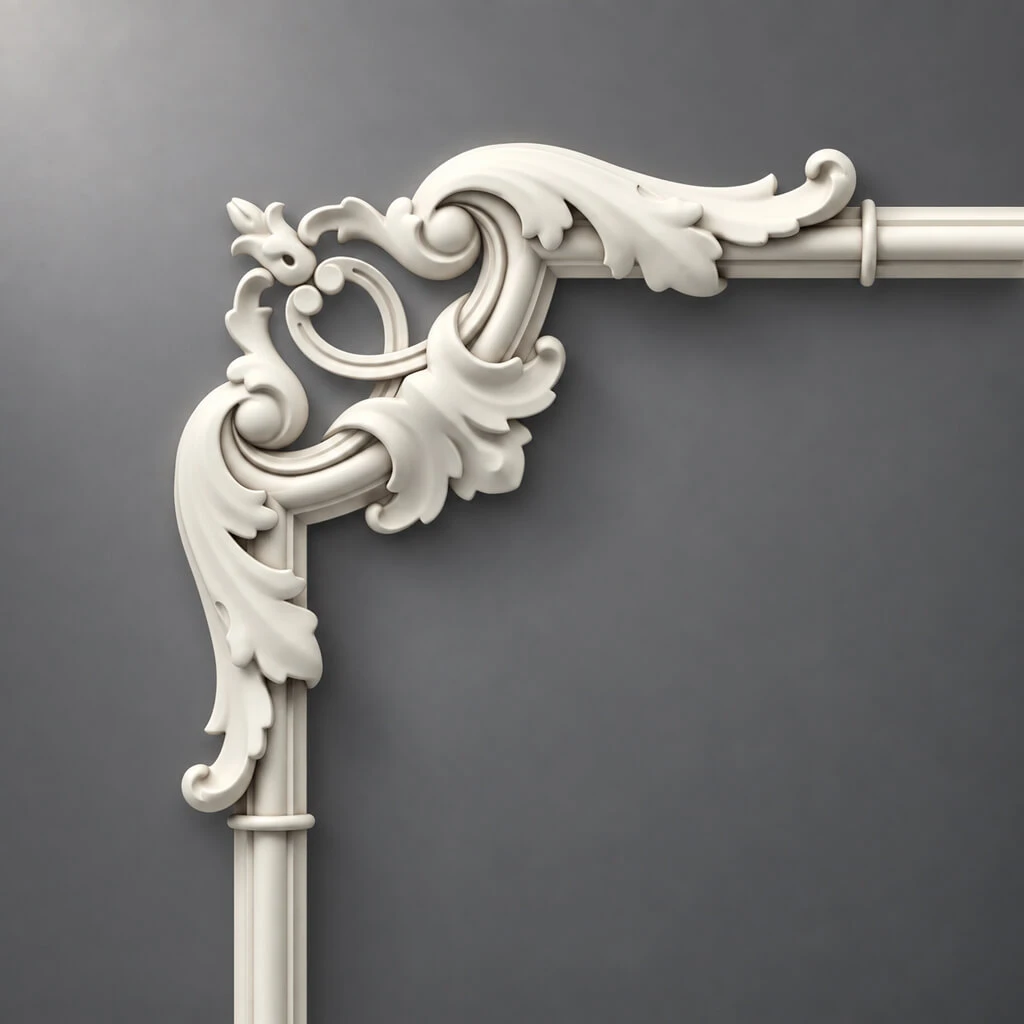

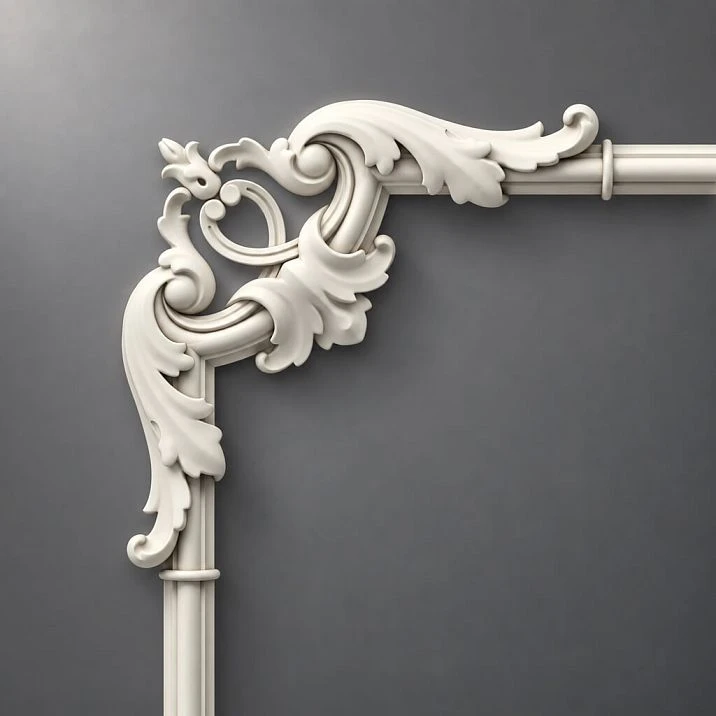

What the 210 mm ornament contributes

Each MLDPU-2U-1.1 ornament measures 210 x 210 mm across its two visible axes, with an 18 mm listed depth. It is large enough to be read as a separate detail rather than a tiny joint cover. At the same time, the surrounding straight molding remains relatively narrow, so the corner detail becomes the point of emphasis. This relationship gives CPU-2-3 its recognizable appearance.

For repeated frames, the consistent corner size helps establish a rhythm. At normal viewing distance, the four relief accents can be understood as a pattern while the long frame lines remain simple. A tone-on-tone paint scheme makes the design read through light and shadow; a contrast finish makes the corners more prominent. Neither approach requires additional ornament at the center.

Allow the ornament room around adjacent features

When the composition is close to a door casing, wall sconce, electrical plate, or edge of built-in cabinetry, the 210 mm corner footprint matters. The border may appear to fit on the wall, yet the ornament can approach a neighboring element too closely. Mark the entire ornament footprint at each corner rather than just the line where the MDF molding will run. Check both the visible margin and the clearance needed for fitting and finishing the pieces.

Before installation, check the orientation and alignment of each relief component against the manufacturer's drawing. The four pieces are the same SKU, but they still need to be positioned consistently to create the intended four-corner composition.

How the Primed MDF Molding Defines the Frame

MLD-002-MG gives the composition its straight architectural lines

The linear portion of the CPU-2-3 set uses MLD-002-MG primed MDF molding. With a 22 mm visible face and an 11 mm listed profile depth, this molding is substantial enough to define a wall border but more restrained than a broad, heavy classical trim. It connects the four relief corners into one readable rectangle.

Primed MDF and polyurethane have different jobs here. The MDF is a straight architectural profile. Polyurethane is used for the shaped relief at the corners. This is why the set should be described as a mixed-material decorative molding composition, not as a fully polyurethane panel. The correct material distinction is also important for cutting, edge preparation, finishing, and decisions about the room's environment.

Plan the painted finish across both materials

Factory primer on the MDF provides a prepared basis for an appropriate finishing process, but cut edges and filled joints may need additional preparation. Polyurethane ornaments have their own surface and coating requirements. The goal is a visually consistent painted composition, not the assumption that one coating method automatically suits every substrate. Follow the finishing products' instructions and test the chosen system on a sample when appearance is critical.

Because the linear component is MDF, CPU-2-3 should not be described as a universally waterproof product. For consistently wet or high-humidity locations, evaluate a system specifically approved for those conditions rather than assuming the presence of polyurethane corners makes the entire assembly moisture resistant.

Where a Four-Corner Frame Fits in American Interior Design

Dining room: create a measured wall rhythm

A dining room is a natural setting for decorative wall molding, especially when the furniture has a clear central position. One CPU-2-3 frame can define the wall behind a sideboard or mirror, while a repeated sequence can organize a longer room. The four matching corner ornaments create a decorative beat that remains consistent from one frame to the next.

Consider the relationship to existing chair rail, baseboard, and any crown molding. The framed area should not appear to collide with these horizontal architectural lines. Keep the bottom and top margins deliberate, and use consistent spacing when a wall includes multiple frames.

Living room: complement rather than compete with the sofa

In a living room, a 39.37-inch-wide reference frame can stand alone or participate in a larger arrangement. Before choosing a layout, measure the sofa, wall-mounted equipment, side tables, artwork, and available blank wall. A single 39.37-inch frame is considerably narrower than many sofas, so centering it behind large furniture may not deliver the intended balance. Several frames or a differently sized arrangement may be more appropriate.

For a contemporary look, paint the frame to match the wall. The four sculpted corners will become more visible as daylight and artificial light move across the surface. For a more traditional room, a modest contrast between trim and the surrounding color can strengthen the geometric outline without using stronger ornament.

Bedroom: treat the wall as an architectural background

Behind a bed, a tall decorative wall frame can be used as one part of a larger symmetrical arrangement. Plan it against the full headboard width and the locations of bedside lighting. The rectangular format is particularly useful where the design calls for a vertical emphasis, but the frame should not be forced into a position where the headboard conceals most of the corner ornaments.

Soft whites, greiges, muted greens, or warm gray finishes can keep the design quiet. A bold contrast is possible, but the four repeated corners already create visual interest, so additional decorative layers are not always needed.

Hallways and entryways: verify the true usable wall section

An entryway often contains doors, switches, furniture, and uneven stretches of wall. The 1000 mm reference width may seem suitable for a narrow wall, but the layout also needs margins outside the ornament footprints. A frame that technically fits from edge to edge can still look crowded. Check the view from the entrance and from the direction of travel; a decorative treatment should feel naturally placed from more than one position.

Build a Wall Elevation Before Ordering

Start with clear wall measurements

Measure the width and height of the usable wall surface. Note the upper edge of the baseboard, the underside of crown molding if present, door and window casings, outlets, switches, and any permanent furniture or cabinetry. Create a simple front-view drawing with these items marked. This drawing is your wall elevation: the plan that determines where the decorative frame can actually be placed.

For CPU-2-3, draw the 1000 x 2300 mm reference rectangle at scale and add the corner ornament footprint. Do not use the reference overall height as an instruction to place the lower edge at the floor or the top edge against the ceiling. The distance to existing trim needs to be decided in the context of the room.

Calculate margins rather than guessing at equal spacing

For one frame centered on a clear wall area, the remaining horizontal space can be divided into equal side margins. If the usable wall width is W and the outside reference frame width is 1000 mm, each centered side margin is (W - 1000) / 2, provided W is at least 1000 mm and no other obstructions interfere. This is a layout calculation, not a universal recommended gap.

For multiple frames, choose the number of frames, the gap between adjacent frames, and the desired outside margins as part of one composition. A frame count that looks convenient in a catalog can produce awkward slivers beside a door or window. Mock up the main lines and the larger corner ornaments before deciding that a particular count is correct.

Consider the frame's proportions in context

CPU-2-3 is approximately 2.3 times as tall as it is wide. The elongated proportion tends to emphasize wall height. It can work well in a room with a distinct vertical rhythm, but a series of tall frames does not automatically suit every ceiling height. In rooms with low ceilings, use a full-size taped mockup to evaluate the top and bottom breathing space. In taller rooms, assess whether the composition requires a larger surrounding design or a repetition of frames to feel complete.

Cutting Strategy: Why the Corner Pieces Affect Takeoff

The apparent rectangle is not four uninterrupted straight strips

A common first calculation is to add two full 2300 mm vertical sides and two full 1000 mm horizontal sides, giving 6600 mm of straight line. However, CPU-2-3 is not an uninterrupted molding rectangle: each 210 mm corner ornament occupies part of the ends of the runs. The exact straight-run lengths depend on the geometry where the MDF meets the polyurethane components.

This is why a cut list should be based on the product's dimensional drawing, not simply the outside perimeter. It is possible to over-order material by treating all four sides as fully continuous; it is also possible to under-order if the corner transitions, joint positions, and cutting waste are ignored.

Check the stock length and the supplied pieces

MLD-002-MG is supplied as a 2600 mm stock length. The manufacturer describes a two-length arrangement for the reference kit, but that description should not be treated as a guarantee for a modified layout. Before cutting, calculate the actual clear runs between decorative corners. Include any planned miter or straight joints, blade kerf, damaged ends, and test cuts. A cut optimizer or annotated paper schedule can make this much easier.

Where a long piece must be taken from one stock length, reserve it first. Then see whether the remaining stock can provide the necessary shorter pieces. Do not rely on a simplistic instruction to cut a complete 2300 mm side and a complete 1000 mm side from the same 2600 mm strip; that arithmetic is not possible. The corner components change the geometry, and the project's actual drawing controls the material takeoff.

Dry-fit each corner before committing to the last cut

The junction between ornament and straight molding is where small mistakes are most visible. Place the first corner piece in its intended orientation and check the profile's alignment with the molded return. Verify the connection at the other end before cutting the next run. Where the manufacturer's design calls for a particular joint treatment, follow it rather than assuming that every connection must be a standard 45-degree miter.

The purpose of dry fitting is to confirm the geometry without depending on adhesive or filler to conceal significant differences. Good alignment at this stage makes the final painted appearance cleaner.

Finishing the Frame Without Losing the Ornamental Detail

Monochrome color creates depth through shadow

A monochrome finish can give CPU-2-3 a modern classic character. When the wall and applied decoration share a color, the raised shapes remain visible through their shadows. That allows four substantial corner accents to read as subtle architectural information rather than strong applied decoration. This may be appropriate for quiet living rooms, bedrooms, and contemporary dining spaces.

Consider testing the color in both natural daylight and artificial lighting. A profile that appears almost flat under diffuse light can look more prominent when light arrives from the side. The corners will often show deeper shadow than the straight 11 mm MDF section because the ornamental relief reaches 18 mm.

Contrasting trim emphasizes the perimeter

White molding against a colored wall is a familiar traditional treatment, but it is not the only option. Warm white or pale taupe molding against a deeper wall may highlight the frame while keeping the corners refined. A stronger dark contrast can create a more graphic effect. Choose the palette according to the furniture and the room's architecture, rather than selecting it simply because the molding has a neoclassical origin.

Protect the finish through correct surface preparation

Check the condition of the wall, the MDF primer, the cut edges, and the polyurethane surfaces. Clean dust, address exposed cut edges, and prepare joints using materials compatible with the substrates and final coating system. Follow the adhesive and finish manufacturers' requirements regarding surface preparation, curing, and paint compatibility. Exact waiting times vary with the products and conditions; the CPU-2-3 reference dimensions do not determine adhesive cure time.

Installation Planning: A Useful Sequence

Mark the composition and inspect the substrate

Begin with the wall elevation and the chosen reference position. Check that the wall is structurally sound for an applied decorative system, dry enough for the intended products, and sufficiently even for accurate alignment. Mark the frame's outside edges and the centerlines of the straight molding. Use a level and cross-check measurements rather than assuming the floor or ceiling is perfectly horizontal.

Position all four ornaments as a coordinated group

Before final attachment, place each MLDPU-2U-1.1 piece at its intended corner and verify the overall balance. Two pieces should define the upper corners and two the lower corners. Check how the profile meets the decoration, the apparent outside rectangle, and whether the resulting geometry agrees with the reference drawing. This stage helps catch alignment problems that might be harder to correct once the linear sections are attached.

Attach and finish according to the specified system

Use mounting materials that are approved for both the primed MDF and polyurethane ornaments as well as the wall substrate. Some wall finishes require special preparation or a different method of attachment. Work in the sequence recommended by the manufacturer, protect the relief details during fitting, and follow the actual product instructions for temporary support and full cure. Once the assembly is secure, prepare any joints for the finish coat.

CPU-2-3 is not described here as a no-tools installation or a universal peel-and-stick kit. The quality of the result depends on measuring, matching the parts, making accurate cuts, choosing suitable materials, and checking the appearance before the finishing stage.

CPU-2-3 Compared With Other Neoclassic Light Sets

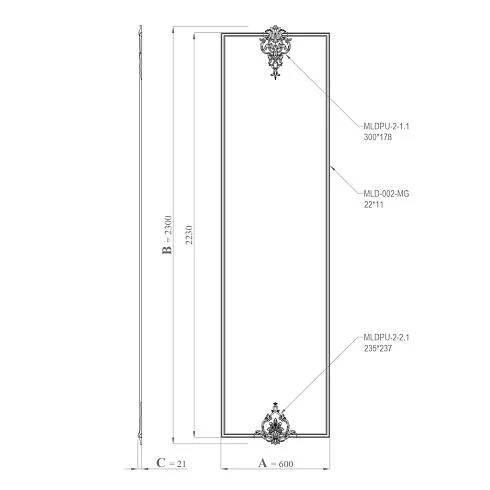

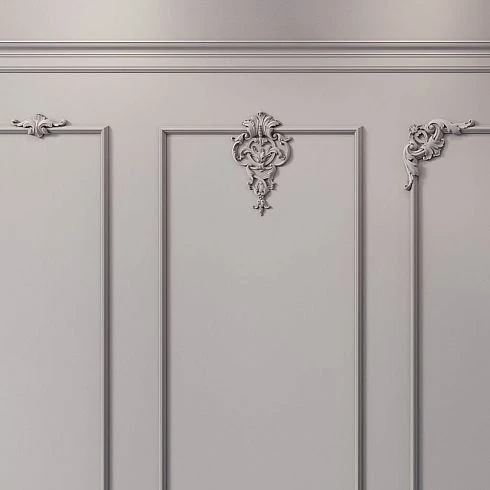

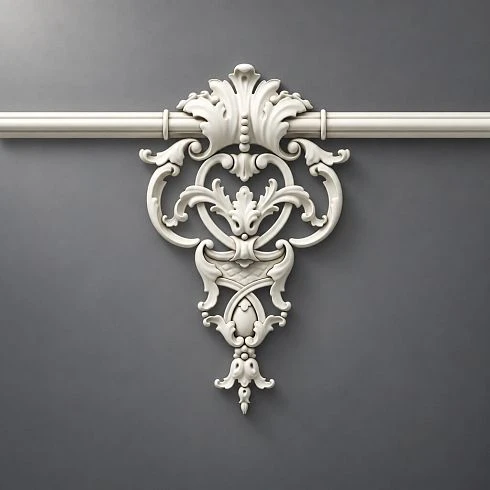

CPU-2-2 focuses on two different relief details

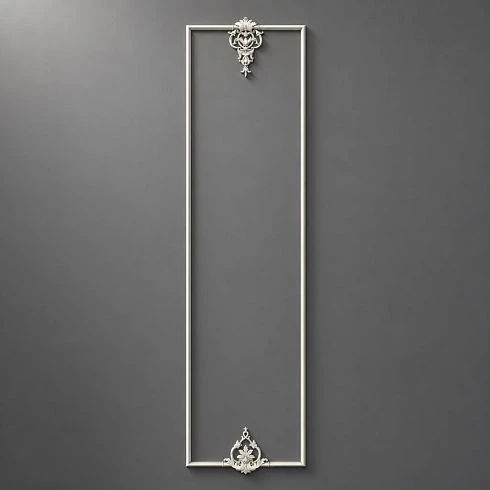

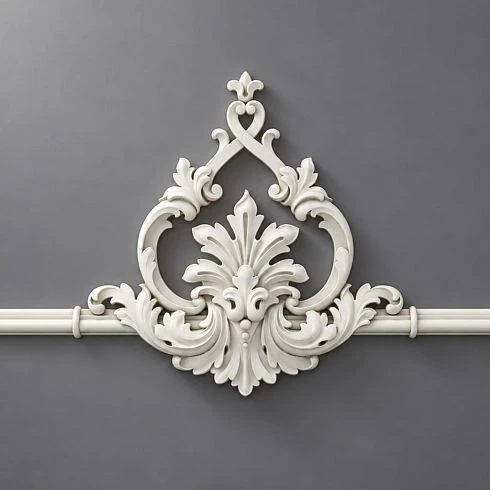

The CPU-2-2 decorative molding set is narrower at 600 mm and uses distinct upper and lower polyurethane ornaments. Its composition is therefore more directional than the repeated-four-corner arrangement of CPU-2-3. Choose between them according to whether the design calls for a vertical feature with changing relief or a more conventional symmetrical rectangular frame.

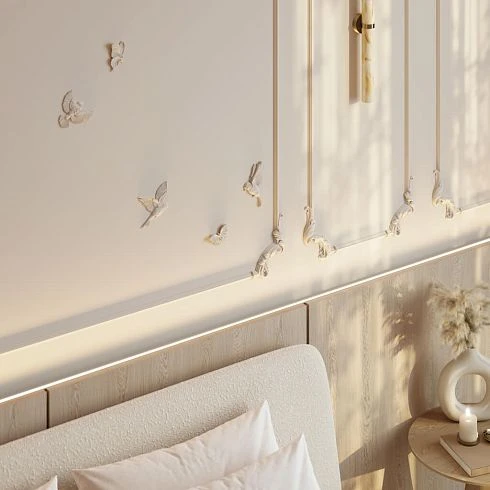

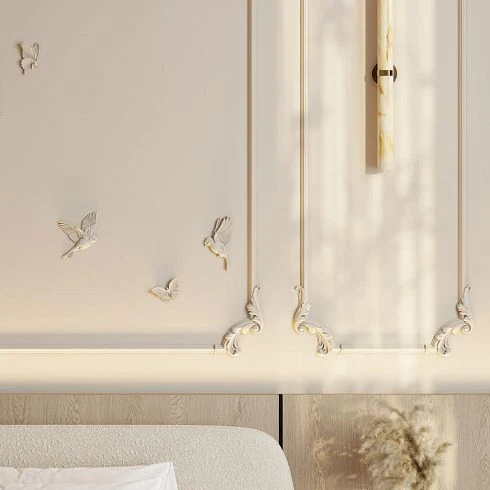

CPU-2-4 uses mirrored left and right components

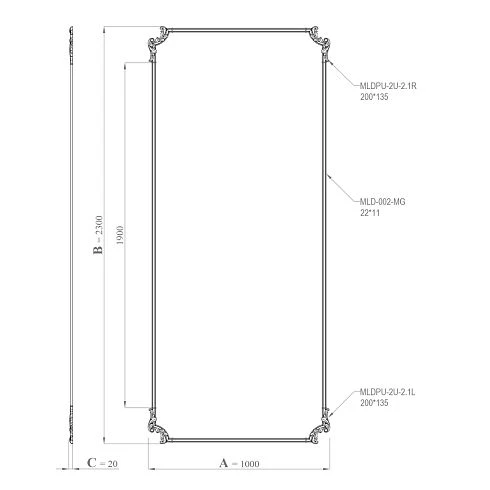

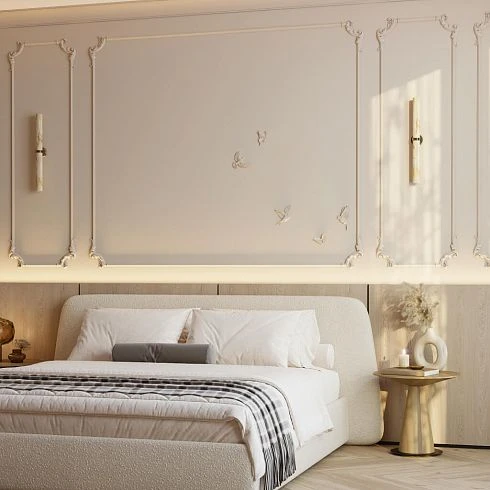

The CPU-2-4 mirrored-corner frame shares a 1000 mm reference width but uses left- and right-hand ornamental parts instead of four copies of MLDPU-2U-1.1. That difference affects the character of each corner and the intended orientation of the decorative elements. Do not substitute parts between these sets without checking their individual dimensions and fitting details.

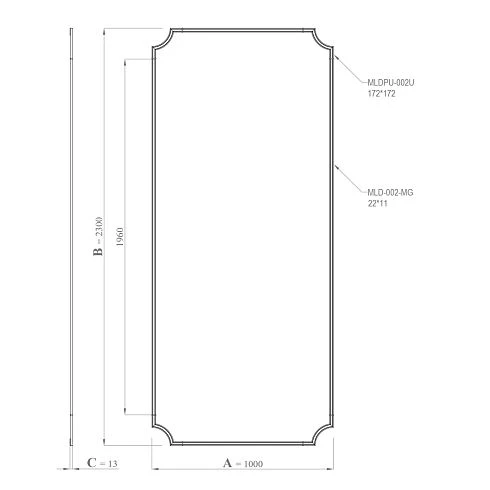

CPU-2-5 emphasizes one relief accent

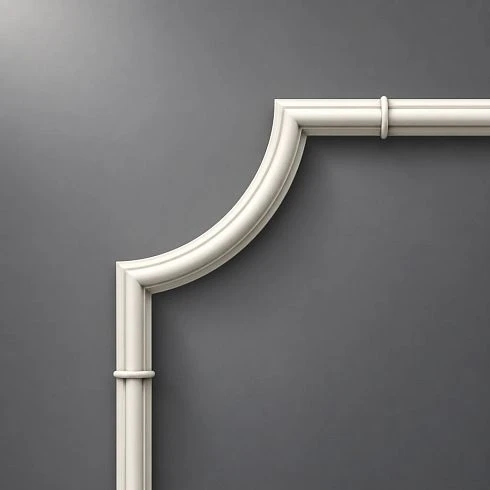

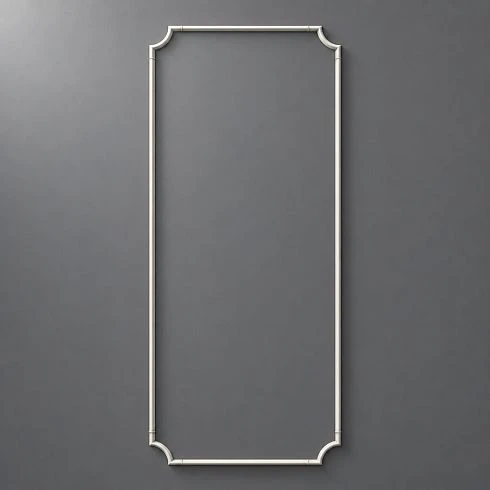

The CPU-2-5 molding decor set uses MLDPU-002U ornamentation and a 13 mm reference relief depth, offering a different approach to a framed wall treatment. CPU-2-3 is the clearer choice when four equally emphasized corners are essential to the visual concept; CPU-2-5 is worth reviewing when the decorative focal point should be more concentrated.

For all five layouts and the collection's narrower alternatives, browse the STAVROS Neoclassic Light collection. Comparing exact part numbers and reference dimensions is more reliable than assuming designs with similar names use the same components.

Specification Mistakes That Can Affect a Wall Molding Project

• Calling the set all polyurethane. Only the relief corners are polyurethane; the straight MLD-002-MG sections are primed MDF.
• Ordering by the outside dimensions alone. The 1000 x 2300 mm reference does not reveal every straight-run cut or the quantities needed for a modified frame.
• Assuming any ornamental corner will fit. MLDPU-2U-1.1 is the specified CPU-2-3 corner; similarly numbered left/right pieces have different designs.
• Ignoring the 210 mm corner footprint. The straight profile may fit, yet an ornament might collide visually with a casing, sconce, or furniture edge.
• Using unverified moisture or installation claims. Primed MDF has its own environmental limitations and the adhesive method must suit the substrate.
• Repeating frames without a full elevation. Equal decorative units only look balanced when gaps, outside margins, and neighboring architectural details have also been planned.

Frequently Asked Questions About CPU-2-3 Wall Molding

Is CPU-2-3 a complete solid wall panel?

No. CPU-2-3 is a decorative wall molding composition applied to an existing wall. The frame is formed by straight molding and four ornamental corner pieces; the surface inside the border normally remains the original wall. If a project calls for a separate panel insert, treat that as an additional specification rather than assuming it is part of this set.

Are the four corners the same item?

Yes. The published reference composition uses four matching MLDPU-2U-1.1 polyurethane elements. Their individual dimensions are 210 x 210 x 18 mm. Check orientation against the manufacturer's drawing when arranging them, and verify the actual quantity in the purchasing configuration before finalizing an order.

What size is the reference frame in inches?

The listed overall frame measures approximately 39.37 inches wide, 90.55 inches high, and 0.71 inches deep. These are conversions of the manufacturer's 1000 x 2300 x 18 mm reference dimensions. They describe the designed composition, not a requirement that the user must install it at an identical distance from the floor or ceiling.

What is the straight molding made from?

MLD-002-MG is a primed MDF profile measuring 22 x 11 mm and supplied in 2600 mm lengths. The name identifies the actual stock component, which is different from similarly named polyurethane molding products. Its straight lines visually connect the corner ornaments and establish the frame perimeter.

Will two 2600 mm molding lengths fit my custom frame?

Not necessarily. The manufacturer describes a two-length arrangement for the pictured reference design, but material requirements depend on the corner geometry, joint locations, cut lengths, cutting waste, and any changes to the proportions. Prepare a cut list using the actual drawing rather than assuming that a pair of stock pieces is sufficient for every installation.

Can CPU-2-3 be used more than once on the same wall?

Yes, repeated decorative frames can create a coherent wall rhythm. The design challenge is to allocate equal or deliberately varied spacing without creating awkward small gaps near openings. Measure the total usable area, position the complete frame footprints including corners, and review the elevation at scale before ordering multiple sets.

Is the composition suitable for a modern living room?

It can be. Its 22 mm straight molding and repeated corner details can be painted in a tone-on-tone finish for a restrained effect. The frame can also complement more traditional interiors with a contrasting paint color. Whether it suits a specific room depends on furniture scale, wall width, ceiling height, and the amount of existing ornamentation.

Is this an adhesive-backed DIY product?

The reference product does not establish that the components are self-adhesive. Treat it as a decorative molding installation that requires a compatible attachment system, accurate layout, suitable cutting tools, and appropriate finishing materials. Confirm the exact supplied items and approved installation method before starting work.

Can I use it in a bathroom or on an exterior wall?

Do not assume so. The set includes primed MDF, and no verified exterior or continuous-wet-area rating is established for the complete composition. For unusual humidity, temperature, or exposure conditions, specify a system expressly approved for those conditions.

Which related STAVROS components should I compare?

Compare the actual MLD-002-MG profile, the other CPU-2 frame configurations, and the intended decorative corner numbers. The broader STAVROS wall decor catalog can help establish whether a four-corner frame, a mirrored-corner arrangement, or a narrower vertical accent is the better design direction.

Choose CPU-2-3 for Consistent Four-Corner Architecture

CPU-2-3 is designed for interiors that benefit from a repeated ornamental detail and a clear, tall wall-frame outline. The four matching MLDPU-2U-1.1 corners give the composition a consistent character, while primed MDF MLD-002-MG connects them with narrower architectural lines. The reference arrangement is 39.37 x 90.55 in, but successful installation still depends on measured wall space, real component geometry, and a suitable cut and finish plan.

When reviewing decorative wall molding or a wall molding kit for a U.S. interior project, compare the true materials, the four ornament footprints, the proposed margins, and the design of adjacent surfaces. That practical assessment will help determine whether CPU-2-3 is the right frame for the wall rather than merely an attractive picture in a catalog.
