For three wall frames, it is not enough to add up all the perimeters and buy the same number of linear meters of molding. Such a calculation shows the net length of the parts, but says nothing about whether the individual sides of the frames fit into specific strips, how much material the cutting will consume, and whether it will be possible to bypass a defective section without buying another plank. This is why two orders with the same total footage may require different amounts of molding.

MLD-014 has a cross-section of 25 × 20 mm, but the length depends on the material: MDF is supplied in strips of 2600 mm, beech — 2400 mm, oak in the card is also presented with a length of 2400 mm. The sanding quality is "Prestige", the selected finish is for enamel. The product can be purchased individually. Ready-made cutting of frame parts to the customer's dimensions should not be included in the order: cutting and 45° miter cuts need to be organized on site or in a carpentry workshop.

If you need buy wooden moldings specifically for wall frames, the correct sequence is this: first approve the external or internal size of each frame, then obtain a list of all straight parts, then lay them out across strips of 2400 or 2600 mm, and only at the end choose the quantity and material. Color and wood species are important, but they do not replace the cutting map.

Using the example of three frames — one 1200 × 780 mm and two 880 × 680 mm — the net length of the parts is 10.2 m. Four MDF strips of 2600 mm each give 10.4 m. Formally, the margin is 200 mm. Still, the decision "four will definitely be enough" cannot be made based on this arithmetic: it is necessary to prove by layout that each side fits into a specific strip, and the remaining reserve is enough for actual cuts, test miter cuts, and corner fitting. For 2400-mm beech or oak, the situation is different: four strips are not enough even mathematically, because 4 × 2400 = 9600 mm is less than the net 10,200 mm. The minimum starts with five strips.

Go to Catalog

Wooden molding MLD-014: what needs to be checked before calculating frames

MLD-014 is a profile with a cross-section of 25 × 20 mm. The card presents three materials: MDF with a length of 2600 mm, beech with a length of 2400 mm, and oak with a length of 2400 mm. Surface quality is "Prestige". For the selected configuration, the glue joint grade "for enamel" is specified.

These characteristics affect the estimate differently. The cross-section of 25 × 20 mm determines the visual scale of the frame and the mounting geometry. The material affects the finish. The length of 2400 or 2600 mm directly affects the cutting map and the number of strips to purchase.

MLD-014 parameter Confirmed value How it affects the frame project
Cross-section 25 × 20 mm Determines the profile scale, depth, and corner work
MDF 2600 мм A longer whip can provide a denser cut
Beech 2400 мм For the same footage, more whips may be required
Oak 2400 мм Same length logistics as beech
Sanding Prestige The surface is prepared more thoroughly before finishing
Re-gluing For enamel Intended primarily for opaque coating

After checking the parameters, you can buy wooden molding MLD-014, but the quantity must already be calculated. If you put five or six planks "with a reserve" in the cart without understanding the cutting, the estimate loses its meaning. If you order exactly the total perimeter without a reserve for whips, you can get the opposite problem — the footage is formally sufficient, but one long side of the frame does not fit anywhere.

Why a linear meter and a rod are different units of calculation

A linear meter is useful for estimating the total volume. A rod is the actual unit of purchase and cutting. If two parts of 1200 mm are required, they fit perfectly into 2400 mm only without considering the saw kerf and end preparation. In practice, two finished parts of 1200 + 1200 mm cannot automatically be considered a safe cut from one 2400-mm rod: the saw removes some material, and the end may require preliminary alignment.

Therefore, the cutting plan should contain not only sums, but also the actual sequence of parts in each rod.

Our factory also produces:

View Full Product Catalog

First, determine: are the frame dimensions external or internal

Before the perimeter formula, you need to agree on what exactly the notation "1200 × 780 mm" means. For a frame assembled with 45° miter joints, this is fundamental.

If 1200 × 780 mm is the external dimension of the finished frame, the long points of the miter joints are usually tied to the outer contour. Then, for a preliminary cutting plan, two long parts can be considered as 1200 mm each, and two short parts as 780 mm each.

If 1200 × 780 mm is the internal clear opening of the frame, the length of the blanks will be different and depends on the profile geometry, the orientation of the 25 × 20 mm cross-section, and the line along which the internal dimension is specified. You cannot automatically add "25 mm on each side" without looking at the profile drawing and the actual fit on the wall.

Therefore, in the estimate, next to each frame, it is useful to write:

  • "external dimension of the finished frame";
  • or "internal clear dimension";
  • and separately — "part size at the long points of the cut."

It is the third set of numbers that goes into the cutting map. If the workshop calculates dimensions differently, the estimate must be adjusted to its system before ordering the molding.

Get Consultation

How to calculate wooden molding for three wall frames

For a rectangular frame, the basic perimeter formula is simple:

length of one frame = (width × 2) + (height × 2).

But this is only the net sum of finished parts. In the purchase estimate, real production losses are added to it: the width of the cut, possible trimming of the factory end, a test cut to set the angle, allowance for precise fitting, and bypassing a section that the craftsman decided not to use.

Frame 1: 1200 × 780 mm

If the dimensions are given by the outer contour and correspond to the long points of the parts:

1200 × 2 + 780 × 2 = 3960 mm.

Set of parts: 1200, 1200, 780, 780 mm.

Frame 2: 880 × 680 mm

880 × 2 + 680 × 2 = 3120 mm.

Set of parts: 880, 880, 680, 680 mm.

Frame 3: another 880 × 680 mm

The set repeats: another 3120 mm.

Final net length:

3960 + 3120 + 3120 = 10,200 mm, or 10.2 m.

Frame Size Parts Net length
№1 1200 × 780 2 × 1200 + 2 × 780 3960 мм
№2 880 × 680 2 × 880 + 2 × 680 3120 мм
№3 880 × 680 2 × 880 + 2 × 680 3120 мм
Total 10,200 mm

From this point, you cannot simply divide 10,200 by 2600 or 2400 and round up. The next step is to distribute all twelve parts across specific rods.

Why four MLD-014 rods may not be enough, even if the total length matches

Four MDF strips of 2600 mm each give 10,400 mm. Against the net 10,200 mm, only 200 mm of theoretical reserve remains. This is about 1.96% of the net length of the parts. For interior cutting, this is a very tight estimate.

At the same time, a nominal layout for four rods can be constructed:

Rod 2600 mm Parts Sum of parts Reserve before accounting for the cut
№1 1200 + 680 + 680 2560 мм 40 мм
№2 1200 + 680 + 680 2560 мм 40 мм
№3 880 + 880 + 780 2540 мм 60 мм
№4 880 + 880 + 780 2540 мм 60 мм

From the perspective of net lengths, the layout works. But two rods have only 40 mm of reserve each, and two have 60 mm each. All real technological losses of a specific rod must fit into these millimeters: cuts, possible end trimming, miter adjustments, corner fitting, and any section that cannot be used.

Therefore, four MDF rods are a possible but unconfirmed option. For a workshop with a precise saw, known cut width, careful cutting sequence, and good material, it may be sufficient. For a site where the craftsman first makes a test cut and leaves allowance for fitting each corner, the same four strips may become too risky.

Why a "standard 3 mm kerf" cannot be assigned in advance

The kerf width depends on the specific blade and equipment. In one workshop, it may be one value, in another, a different one. Therefore, the actual value of the saw that will cut MLD‑014 must be substituted into the working cutting map.

If the width of one kerf is denoted as k, the reserve of each strip must cover the sum of all necessary kerfs on that strip plus technological trims. The formula is better than a made-up universal number.

A test cut is also a material expense

The 45° angle on a miter saw needs to be checked before serial cutting. If the craftsman cuts a test piece from a working log, the length of that piece and the cut must be included in the estimate. Otherwise, the nominal 40 mm reserve disappears before the first main part.

The cutting map is more important than the total length: how to create it

It is most convenient to list parts in descending order of length: 1200, 1200, four parts of 880, two of 780, and four of 680 mm. Then place them one by one into logs, not forgetting the technological reserve.

There are several rules:

  1. First, place the longest parts. Short leftovers are easier to fill with parts of 680–780 mm than to try to find a place for 1200 mm later.
  2. Do not rely only on the total remainder. The remainder of each individual log matters.
  3. Write down which frame a part came from if the craftsman will cut and assemble the set in stages.
  4. Separately mark the long point of each cut so as not to confuse the size after rotating the profile.
  5. Do not use the last millimeter of the rod in calculations if the workshop requires end trimming.

For complex projects, it is convenient to supplement the table with a graphic strip of each rod. Even a simple scale drawing allows you to see where short offcuts remain and whether parts can be rearranged.

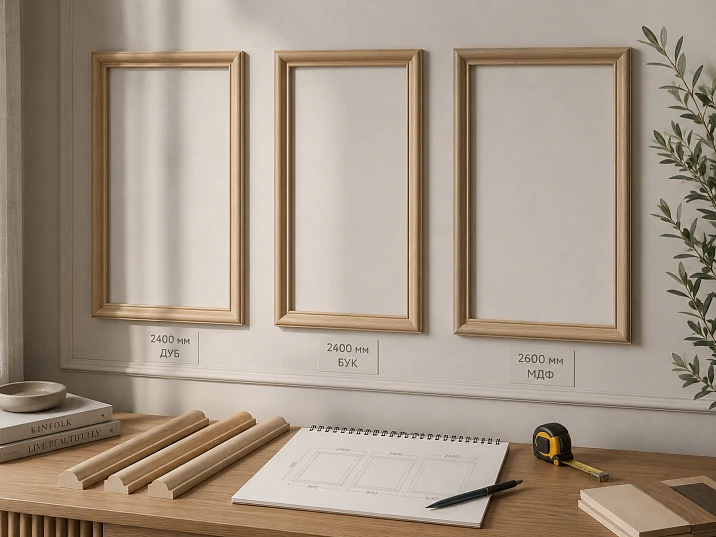

MLD‑014 with a length of 2400 or 2600 mm: which option is more profitable to order

In our example, the comparison is especially clear. Four 2400-millimeter rods give only 9600 mm — less than the net 10,200 mm. Consequently, for beech or oak, the minimum is five planks even before accounting for the cut.

Five rods of 2400 mm give 12,000 mm. The theoretical reserve relative to net parts is 1800 mm, that is, about 17.65% of the net footage. This is much more spacious than the 200 mm of four MDF rods.

For 2400 mm, you can build a layout with a fairly comfortable reserve:

Rod 2400 mm Parts Total Reserve before cutting
№1 1200 + 780 1980 мм 420 мм
№2 1200 + 780 1980 мм 420 мм
№3 880 + 680 + 680 2240 мм 160 мм
№4 880 + 680 + 680 2240 мм 160 мм
№5 880 + 880 1760 мм 640 мм

In this map, even the densest rods have 160 mm of reserve before cuts. This means that five 2400-millimeter planks in the example under consideration are easier to provide with a technological allowance than four 2600-millimeter ones. But material efficiency is different: 12 m of profile is purchased versus 10.4 m.

Hence the practical conclusion: MDF 2600 mm may allow you to buy one fewer rod, but requires significantly more precise cutting. Beech or oak 2400 mm in this example require a minimum of five rods, but leave a larger technological reserve.

The choice cannot be reduced to just the number of slats. If the project requires natural wood and a transparent finish, MDF does not become the best solution just because the cutting is denser. The material and finish remain an independent condition.

Oak, beech, or MDF molding: choosing based on the finishing method

The length of the slat affects the cutting, but the material cannot be chosen solely to save one slat. For wall frames, you first need to understand which finish should remain visible after installation.

MDF 2600 mm

MLD‑014 made of MDF has a length of 2600 mm and is presented in the card in an enamel-ready version. This is a logical option for a project where all frames will be painted with opaque paint in the wall color, a contrasting shade, or another covering color. MDF provides a longer slat, meaning in this specific example of three frames, it becomes possible to fit into four slats with a confirmed cutting map.

But MDF is not chosen if the goal is to show the natural wood texture. Even a perfectly painted profile does not replace oak or beech in a project with a transparent finish.

Beech 2400 mm

Beech is also available in a length of 2400 mm. In a painted project, it is appropriate if the client wants to use a natural wood base rather than MDF. For our cutting map, at least five slats are required, because four provide only 9600 mm.

If a transparent or semi-transparent finish is planned, you cannot automatically use the selected "enamel-ready" option. You need to separately check whether the required re-lamination for tinting is available and whether it matches the task. The "enamel-ready" option allows for contrast of lamellas, which may remain noticeable after a clear varnish.

Oak 2400 mm

Oak has a pronounced texture and is often chosen precisely when the wood grain pattern needs to work in the interior. But the same rule applies here: for a transparent finish, you need to order a configuration intended for it, rather than assuming any oak product is automatically ready for varnish.

If all three wall frames are to be painted with an opaque enamel in the same color as the wall, the decision between MDF and beech/oak can be made based on a combination of factors: desired base, budget, cutting plan, transportation, and installation technology. If the texture must remain visible, MDF is no longer an equivalent alternative.

"Under enamel" execution: what it means for the estimate and finish

In the MLD‑014 card, the "under enamel" gluing grade is selected. For solid wood products, this means that lamellas may not be matched by color and texture, because an opaque coating is assumed. This indirectly affects the final estimate: you cannot build a transparent finish project without checking the required product variant before ordering.

If the designer changes the decision from enamel to transparent varnish late, the already purchased material may not meet the visual requirement. Therefore, the finish is fixed before calculating the final number of strips.

It is useful in advance check the quality of sanding and the material of the products, to understand the difference between "under enamel" and "under tinting" and not to mix different technological groups in one composition.

When the wooden molding MLD-014 25 × 20 mm will be too large

The 25 × 20 mm cross-section is quite expressive for a wall frame. On a large wall with wide margins, this profile looks proportional. But on a small frame, a narrow wall section, or a composition of many small rectangles, 25 mm can visually take up too large a share of the area.

It is better to assess the scale on the wall at full size. Draw the future frame with painter's tape about 25 mm wide or attach a real profile sample. If the inner field looks too small after this, it is better to switch to a thinner molding rather than reduce the frame even more.

MLD-019 17 × 12 mm

Thin wooden molding MLD-019 17 × 12 mm — a separate profile that can be considered for a more delicate frame grid. It is not a "reduced version of MLD‑014" in the technical sense, so its shape and drawing need to be evaluated separately.

MLD‑004 15 × 8 mm

Wooden molding MLD‑004 15 × 8 mm even more compact and suitable for projects where the frame should act as a thin graphic line.

The choice between 25 × 20, 17 × 12, and 15 × 8 cannot be made based on numbers alone. Different profiles have different shapes, volume, and shadow character on the wall. Before a large order, it is useful to order a set of molding samples OMLD‑005 and compare the profiles under real lighting.

How to account for a 45° miter cut in the cutting layout

For a rectangular wall frame, the most common joint is a miter: the ends of each piece are cut at 45°. But the angle itself does not add a "fixed number of millimeters" to all pieces. What matters is the point by which the finished length is measured.

If the frame size is specified by the outer contour, the long point of the miter must fall on the outer dimension line. If the size is specified by the inner field, the inner point becomes the reference. You cannot first calculate straight pieces of 1200 and 780 mm, and then arbitrarily add a "45° allowance" to each without understanding the reference geometry.

On the cutting plan, it is convenient to write, for example:

  • 1200 mm — size by long points, 2 pcs.;
  • 780 mm — size by long points, 2 pcs.;
  • 880 mm — by long points, 4 pcs.;
  • 680 mm — at long points, 4 pcs.

This way the craftsman understands that these numbers are the finished dimensional base, not the length of the rectangular workpiece before forming the miters.

Can one cut be combined for two parts

Sometimes during sequential cutting, two adjacent miter cuts can be organized more economically, but this depends on the profile orientation, the 45° direction, the chosen reference point, and the equipment. The purchase estimate cannot be based on the assumption that each cut will necessarily be "shared" for two parts. It is more reliable to calculate according to the actual technological process of the workshop.

Why is a test angle needed before serial cutting?

Even a well-adjusted miter saw must be checked on the specific profile. Two short test pieces are joined at an angle to assess the tightness of the joint. If the angle diverges, the setting is adjusted before the main 1200- and 880-millimeter elements are cut.

That is why the dense cutting layout of four 2600 mm logs must be coordinated with the foreman in advance: a test cut must not unexpectedly "eat up" the only technological reserve.

How to account for kerf width without a made-up standard

The kerf width is the actual thickness of material removed by the saw blade. It depends on the specific blade, so the article cannot assign universal 2, 3, or 4 mm as a mandatory value.

For the calculation, a variable k is introduced. If three independent cuts are required on one stick, the minimum loss only on kerfs will be a multiple of the actual k. If trimming the start or a trial cut is added, the number of operations increases.

In practice, the map is formatted as follows:

Stick Sum of clean parts Number of actual cuts Cut width Remainder after technology
2600 №1 2560 мм based on workshop actual number of cuts × k 40 mm minus technological losses
2600 №2 2560 мм based on workshop actual number of cuts × k 40 mm minus technological losses
2600 №3 2540 мм based on workshop actual number of cuts × k 60 mm minus technological losses
2600 №4 2540 мм based on workshop actual number of cuts × k 60 mm minus technological losses

If the craftsman, after substituting their own cut width and technological trims, gets a negative or too small remainder, four boards are excluded from the estimate and a fifth is added. This is more correct than trying to "win" a few millimeters already on site.

How to account for possible rejection of a section

Wood is a natural material, and during cutting the craftsman may decide not to use a particular section for visual or technological reasons. Even MDF ends or edges can be damaged during transport. Therefore, in tight cutting, it is important to understand whether parts can be rearranged.

The 4 × 2600 mm scheme has very little margin. If on one strip it is necessary to exclude a section 70–100 mm long, the initial layout stops working. Five 2400-mm strips have a larger total reserve, and it is easier to redistribute.

But it does not follow that you should always buy an extra board "just in case." If the material is inspected before cutting, the equipment is known, and the craftsman has made a precise map, you can work with the minimal estimate. If the order is sent to another city and buying one more plank quickly would be difficult, the reserve may be more economically justified than repeated delivery.

Four MDF strips or five of solid wood: how to compare not only quantity

For the example under consideration, the purchasing picture looks like this:

Material/length Minimum number per map Purchased length Net requirement Theoretical reserve
MDF 2600 4 10,400 mm 10,200 mm 200 мм
Beech 2400 5 12,000 mm 10,200 mm 1800 мм
Oak 2400 5 12,000 mm 10,200 mm 1800 мм

MDF wins in the number of strips and total purchased length. Solid wood provides more technological reserve. But the final choice is determined not only by waste: if the project must have a natural oak texture, comparison with MDF in cutting becomes secondary.

Therefore, it is useful to make two tables: a technical estimate and a finishing specification. The first contains details, strips, saw cuts, and leftovers. The second contains material, veneer grade, finish, and color. The order is considered complete only when both tables are agreed upon.

How to calculate three frames if their sizes may still change

Do not buy molding until the composition is finally approved if the frame dimensions are still "floating" by 20–50 mm. For a dense MDF map, even a slight increase in sides can ruin the layout.

For example, if both frames 880 × 680 mm are increased to 900 × 700 mm after fitting, the net length will grow. But more importantly: the combinations 880 + 880 + 780 and 1200 + 680 + 680 no longer exist. The map will have to be reassembled from scratch.

The order should be as follows:

  1. Mark the frames on the wall.
  2. Check sockets, sconces, switches, furniture, and trim.
  3. Record the final external or internal dimensions.
  4. Convert them into part lengths.
  5. Create a cutting map.
  6. Only then order the rods.

Distances between frames also indirectly affect the estimate

Inter-frame distances do not directly enter the molding length, but the dimensions of the rectangles themselves depend on them. If a wall has a fixed width and the designer decides to increase the gap between three frames, the width of each frame will decrease. This may unexpectedly improve the cutting layout — or, conversely, make part combinations less convenient for 2400/2600 mm.

Therefore, before purchasing, it is worth recording not only the frame dimensions, but also:

  • indent from the floor or baseboard;
  • offset from the ceiling cornice;
  • distance between adjacent frames;
  • indents from wall corners;
  • coordinates of sockets and switches;
  • position of furniture.

This is not "extra designer information." Any change in composition changes the length of parts, and therefore may change the number of strips.

Why you cannot rely on factory cutting of frames at 45°

The MLD-014 card describes the profile itself, available lengths, and additional quarter sampling per technical specification for a large order, but a ready-made set of wall frame parts, cut to individual sizes and mitered at 45°, should not be considered part of the standard supply.

Therefore, the estimate must include a separate "cutting and installation" block. The buyer receives rods of 2400 or 2600 mm and then hands them to a carpentry workshop or cuts them on site with suitable equipment.

This affects logistics: the long piece must first be safely transported intact. The card separately specifies rigid transport packaging. Transportation cannot be planned assuming that rods will be pre-cut into parts of 680–1200 mm.

Quarter rebate for MLD‑014: when it does not apply to a standard estimate for three frames

For MLD‑014, an additional quarter cut-out is offered per the technical specification, but the service is tied to an order of 100 pieces or more. For a project of four or five wall frame strips, this is not a standard option to count on.

If the frame composition truly requires special rabbet sampling, the technology and scope must be separately agreed upon. It should not be included in a standard estimate just because the option is mentioned in the card.

How to prepare the wall surface before cutting the molding

Accurate cutting only makes sense with a finally prepared wall geometry. If a thick leveling layer, decorative panel, or outlet relocation is planned after ordering, the actual position of the frames may change.

Before final marking, the flatness, wall angles, and base condition are checked. For installation and finishing, it is useful to study installation and finishing recommendations, and choose the specific adhesive, primer, and paint according to their technical instructions.

If the frames will be painted together with the wall, installation is usually done before the final finish layer to neatly treat the joints. If the molding is to have a separate color or a clear wood finish, the technology may differ. This sequence needs to be decided before purchasing materials.

Mistakes when ordering wooden wall molding

Mistake 1. Counting only the total length

10.2 m of net requirement is divided by the length of a stick and rounded up. This approach does not show whether individual 1200-, 880-, 780-, and 680-millimeter pieces fit into actual planks. Prevention — a cutting map for each stick.

Mistake 2. Not accounting that four sticks of 2600 mm give only 200 mm of total reserve

The number 10.4 m looks larger than 10.2 m, so the order seems safe. But the reserve is distributed across four sticks as only 40, 40, 60, and 60 mm in our tight scheme. Cuts and test cuts must fit exactly into these local remnants.

Mistake 3. Ignoring the length of each individual side

Even a large total leftover is useless if it is split into short fragments, and one 1200 mm piece remains. Therefore, cutting is planned from long pieces to short ones.

Error 4. Not specifying whether the frame dimensions are external or internal.

Because of this, the craftsman cuts the parts according to a different control point of the miter joint. The error repeats on all four sides of each frame.

Mistake 5. Buying the profile before approving rosettes and furniture

After installing a dresser or sconce, the frame has to be reduced, and the already calculated cutting layout becomes irrelevant. First, final wall marking, then ordering.

Mistake 6. Not accounting for the 25 × 20 mm cross-section

On a small wall frame, the profile appears visually heavy, and the inner field shrinks. A thinner MLD‑019 or MLD‑004 could solve the task better.

Mistake 7. Mixing different materials in one frame composition without a reason

For example, making two frames from MDF, the third from oak, and then covering everything with one semi-transparent system. The behavior and texture will be different. If the composition should read as a single unit, the material and finish are agreed upon in advance.

Mistake 8. Relying on ready-made factory cutting

The strips need to be cut independently or handed over to a workshop. If this is not included in the estimate, installation stops after material delivery.

Mistake 9. Choosing a transparent finish for the "enamel" option without checking

Under opaque paint, the difference in lamellas does not play the same role as under varnish. For a semi-transparent finish, the configuration needs to be checked for tinting.

Mistake 10. Not accounting for the transportation of long-length materials

Planks of 2400 and 2600 mm require space for delivery and storage. They cannot be folded into a regular trunk like short parts if cutting will only be done on site.

How to decide whether to take four or five MDF strips of 2600 mm

For our example, four slats are the mathematically possible minimum, confirmed by a clean layout. The fifth slat becomes a safety reserve, not mandatory by geometry.

To make a decision, answer four questions.

  1. Is the actual cutting width known? If the workshop has already been chosen, the value can be entered into the map.
  2. Is trimming of factory ends needed? If yes, its length is subtracted from the available strip.
  3. Where will the test cut be made? It is better to provide a separate offcut or additional material.
  4. How difficult is it to quickly buy one more strip? With delivery to another region, the risk of repeated logistics may be more expensive than a spare plank.

If all four answers are under control and technological losses fit within the 40–60 mm reserve of each whip, four planks can be a justified order. If at least one parameter is unknown, a fifth whip reduces the risk of work stoppage.

This is not a universal recommendation to "always take +1". In another cutting layout, one extra whip may be redundant. The decision is made based on the specific estimate.

How to calculate the reserve if the frames will be assembled not on the same day

If the first frame is assembled in the workshop and the other two later on site, the material cannot be distributed "by frames" without checking. The most economical layout often mixes parts of different frames in one whip. For example, in our 2600 mm scheme, one plank contains 1200 + 680 + 680 mm — that is, the long side of a large frame and the short sides of two small ones.

If the craftsman pre-cuts only the parts of the first frame, he may ruin the optimal layout for the rest. Therefore, the entire project should be cut according to a single layout, or at least mark which parts of each whip are intended for the next frames.

On each segment, you can write the frame number and position with a pencil: R1‑1200, R2‑680, etc. After cutting, the marking is transferred to the back side of the part. This reduces the risk of confusing similar short elements.

Can short offcuts be used in the project?

A leftover is not always waste. A long free fragment can be used for trial saw adjustment, testing primer and enamel, checking color, or making a small sample of a corner joint.

A 300–600 mm reserve on five 2400-mm sticks is especially useful. You can check the 45° angle, practice coating application, and keep a sample for future repairs.

But in the procurement estimate, the remainder cannot be considered a "useful part" in advance if there is no specific purpose for it. First, it is considered a reserve, then after cutting it gets a secondary use.

How to store MLD‑014 before cutting

Long planks should be stored so that they do not receive mechanical damage before installation. Do not place the strips in a passageway where they can be stepped on or hit by furniture. Before cutting, it is useful to inspect each plank and mark the area that the craftsman does not want to include in the face parts of the frames.

If the order arrives in a rigid transport frame, it is reasonable to open the packaging in an area where the long item can be fully removed and inspected. Do not cut the packaging in a narrow corridor where the 2600-millimeter profile has to be immediately bent or turned around a corner.

What to prepare before placing an order for MLD-014

Before adding the item to the cart, gather one project sheet. It should contain both design and carpentry data.

What to fix Example entry
Wall width, height, outlets, furniture
Frame No. 1 1200 × 780 mm, outer dimension
Frame No. 2 880 × 680 mm, external dimension
Frame No. 3 880 × 680 mm, external dimension
Parts list 2×1200, 4×880, 2×780, 4×680
Net length 10,200 mm
Material MDF / beech / oak
Whip length 2600 or 2400 mm
Quantity per confirmed map
Cut actual equipment value
Test cut where material comes from
Finishing enamel / confirmed other system
Layout workshop or object
Transportation long length 2400/2600 mm

If at least the frame sizes or the finishing system have not yet been approved, it is too early to order the final quantity. If necessary, you can first choose wooden moldings and samples, and place the main volume after final marking.

Where to buy wooden molding MLD-014 for wall frames

For the three frames in the example, the main choice comes down to two different strategies. MDF with a length of 2600 mm allows building a nominal cutting layout from four strips, but with a very small technological reserve — only 200 mm for the entire project. Beech or oak with a length of 2400 mm require at least five strips, but the purchased length of 12 m gives 1.8 m of total theoretical reserve.

If the task is opaque painting and MDF material suits the project, the 2600-mm version may be more economical in terms of the number of planks. If a natural wood base is important, the choice of beech or oak cannot be canceled for the sake of saving one strip. In this case, the estimate is based on five 2400-mm planks and is checked taking into account the actual cutting technology.

Before placing an order, check availability, packaging method, and payment and delivery terms for wooden decor. Long-length products require special attention to transportation, especially if the order is going to another city.

How to compare the efficiency of 2400 and 2600 mm without tying to the current price

The material price can change, so for a stable calculation it is useful to separately estimate the utilization rate of the purchased length. It shows what share of the purchased material turns into clean parts before accounting for the saw kerf.

Formula:

Utilization rate = clean length of parts ÷ purchased length × 100%.

For four MDF boards:

10 200 ÷ 10 400 × 100% ≈ 98,1%.

This is a very high theoretical load. In practice, it means not "ideal savings" but a very small production margin.

For five 2400-millimeter boards:

10 200 ÷ 12 000 × 100% = 85%.

The clean material efficiency is lower, but there is more free material. This margin can be used for a test corner, replacing a part after a wrong cut, or checking the finish.

If a fifth MDF board is added to the four, the purchased length becomes 13,000 mm, and the theoretical utilization rate drops to about 78.5%. Therefore, "buying one more for peace of mind" is a noticeable change to the estimate, not a minor adjustment. It is better to make the decision after talking with the workshop.

Scenario Purchased length Clean parts Theoretical utilization Stock character
4 × 2600 MDF 10,400 mm 10,200 mm ≈ 98,1% Very dense cutting
5 × 2400 beech/oak 12,000 mm 10,200 mm 85% Moderate technological reserve
5 × 2600 MDF 13,000 mm 10,200 mm ≈ 78,5% Large reserve

Non-response coefficient

How to check outer and inner dimensions after selecting MLD-014

The profile cross-section of 25 × 20 mm affects not only the appearance but also the inner field of the frame. When a designer says "frame 880 × 680," it is necessary to understand what area they want to achieve in the end.

If the dimensions are specified by the outer contour, the inner field will be smaller by the profile width on both sides. However, using exactly 25 mm in the formula is only possible after confirming from the drawing that the 25 mm parameter indeed lies in the plane of the wall across the frame in the chosen orientation. If the profile is installed differently, the geometry changes.

Working formula after confirming the face width of the profile w:

inner width = outer width − 2w;
inner height = outer height − 2w.

If the designer specifies the inner field, the outer dimension increases by two profile widths. This check is especially important near an outlet, painting, sconce, or furniture: the molding takes up real wall space, not just a thin line on the drawing.

Before purchasing, it is useful to stick strips of painter's tape of the same visible width as the profile to the wall. Such a mock-up quickly shows whether the inner field has become too cramped.

How to convey a cutting map to a carpentry workshop

A good map should eliminate the need for the craftsman to guess where the numbers came from. For each part, specify the finished length, type of control point, and quantity.

Example of a statement:

Marking Frame Finished length Quantity How it is measured
R1-H 1200 × 780 1200 мм 2 by the long points of the whiskers
R1-V 1200 × 780 780 мм 2 by the long points of the whiskers
R2/3-H 880 × 680 880 мм 4 by the long points of the whiskers
R2/3-V 880 × 680 680 мм 4 by the long points of the whiskers

Next, the map of the laths is applied. If the 2600 mm scheme is selected, the master sees that parts of different frames are mixed in one lath. This eliminates the error when the first lath is completely used for one frame, although the optimal layout suggested otherwise.

You also need to record:

  • the actual width of the cut;
  • whether preliminary end trimming is needed;
  • where the material for the test angle is taken;
  • which side of the profile is considered the front side;
  • in which direction the wood grain is oriented, if it remains visible;
  • which short remnants to keep.

For oak with a transparent finish, visual matching of the texture of parts within one frame may also be important. Then the most mathematically dense cutting layout sometimes gives way to a layout that allows assembling four sides with a more consistent grain pattern. This is another example of why optimizing only by millimeters does not always yield the best result.

When oak or beech require changing the mathematically ideal cutting map

For MDF, the direction of the texture is not a concern as it is for natural solid wood. For oak and beech with a transparent or semi-transparent finish, the wood grain pattern can be noticeable on all four sides of the frame.

Imagine that a dense cutting map suggests cutting two sides of one frame from the first board, the third from the third board, and the fourth from the fifth board. In terms of length, this is ideal. But the three strips noticeably differ in tone. On the wall, the frame looks assembled from different materials.

In such a case, the craftsman may deliberately sacrifice part of the material utilization rate and group visible sides by shade. This is not a "bad cutting layout," but a priority for the finish.

That is why, for a project with a transparent coating, you first need to confirm proper edge gluing and the visual class of the material, and only then finalize the cutting map. For an opaque enamel, this factor has significantly less impact on the layout.

How to check three frames on the wall before purchasing boards

Full-scale wall marking helps catch errors that no table can see. Use painter's tape to outline the outer contours of all three frames and view the composition from several points in the room.

Symmetry check

If two frames measuring 880 × 680 stand on either side of a large 1200 × 780 one, compare the distances between them and the overall axis of the composition. The slightest change in one gap may require changing the width of the frames.

Furniture check

A dresser, sofa, or console should stand in their actual places. Do not mark frames on an empty wall if furniture of a different width will appear under them in a week.

Electrical check

The frame should not accidentally pass through an outlet, switch, sconce outlet, or thermostat, unless this is intended by the design. Moving one vertical element by 30 mm changes two frame parts and the entire cutting map.

Check of baseboard and cornice

Vertical margins to the floor and ceiling are evaluated together with actual baseboards and ceiling elements. The wide MLD‑014 profile itself adds visual mass, so too small an offset may look cramped.

After final marking, the dimensions from the tape are transferred to the table. Only this version is considered the source for the order.

What cutting order reduces the risk of losing a long piece

Even a good cutting map can be ruined by the wrong sequence. The most dangerous mistake is to first cut short 680-millimeter pieces from a whole strip, and then discover that only two short remnants remain for a 1200 mm piece.

Therefore, in each strip, the longest piece is reserved first. For the scheme 1200 + 680 + 680, first mark a 1200 mm section on the bar, accounting for technological cuts, then two short ones. For the scheme 880 + 880 + 780, first fix the position of both 880-millimeter pieces. This order does not necessarily mean that the craftsman must physically cut them first, but their length must be protected from accidental consumption.

After each finished piece, it is useful to label it immediately. For three frames, the short pieces of 680 and 780 mm look visually similar, especially after a miter cut. Marking "R1‑780" and "R2‑680" on the back side reduces the risk of assembling one frame from pieces of different sizes and discovering the error only on the wall.

If one cut turns out to be wrong, do not immediately try to reduce all other frames "so that the material is not wasted." First, recalculate the entire cutting map. Perhaps the erroneous piece can be used as a shorter 680 mm part, and the needed 780 or 880 mm can be moved to another stick. This is the advantage of a cutting map: it allows you to manage leftovers rather than react to each offcut individually.

What counts as a completed estimate for MLD-014

An estimate is considered complete not when you get a number like "4 sticks" or "5 sticks." A finished document must link together frame sizes, the parts list, material, standard profile length, cutting map, technological allowance, and finishing method.

For our example, the result can be written in two variants. Variant A: MLD-014 MDF 2600 mm — four sticks, provided the workshop confirms the kerf width and fits within the local allowance of 40–60 mm per strip. Variant B: MLD-014 beech or oak 2400 mm — five sticks, because four physically yield less than the net requirement of 10.2 m.

If after this record the question "will it be exactly enough?" remains, it means the technological part of the estimate is not yet filled in: actual kerf, end trimming, test corner, or allowance for rejects. After substituting these, the decision becomes verifiable.

FAQ on calculating MLD-014 for wall frames

How much MLD-014 is needed for a 1200 × 780 mm frame?

The net perimeter is 3960 mm, if 1200 × 780 mm are exactly the finished side dimensions used for calculating parts. This number is not enough for purchasing: you need to include the frame in the overall cutting map.

How much molding is needed for two 880 × 680 mm frames?

One frame requires 3120 mm of net length, two require 6240 mm.

What is the total length of the three frames from the example?

10,200 mm, or 10.2 m of clean parts.

Will four MDF strips of 2600 mm be enough?

According to the clean layout — yes, there is a layout for four strips. But the reserve is only 200 mm, so the final decision depends on the actual cut, trimming, test cuts, and material condition.

How to arrange the parts across four strips?

Two strips: 1200 + 680 + 680 = 2560 mm. Another two: 880 + 880 + 780 = 2540 mm.

Will four beech or oak strips of 2400 mm be enough?

Not even theoretically: 4 × 2400 = 9600 mm, while the clean requirement is 10,200 mm.

What is the minimum number of 2400-mm strips needed?

Five. They provide a total of 12,000 mm and allow building a working layout with larger remnants.

Why can't you just buy 10.2 linear meters?

Because MLD-014 is sold in fixed-length rods, and the parts must physically fit within these rods.

Do I need to add a margin percentage?

A fixed percentage does not replace a cutting plan. First, distribute the parts among the rods, then assess specific cuts, trims, and risks.

How to account for the saw blade width?

Use the actual cutting width of the equipment. A universal value is not assigned in the article.

What to do if frame dimensions are specified by the internal opening?

First, convert them to actual part lengths according to the profile drawing and the workshop's measurement system. Only then calculate the rods.

Can MLD-014 be ordered pre-cut at 45°?

Standard purchase should be planned as delivery of whole rods. Cutting of frames is organized separately in the workshop or on site.

Can I order a quarter sample for four to five rods?

The card links this additional service to an order of 100 pieces, so for a small project you should not count on it as a standard option.

Which material is better for enamel?

MDF and beech can be considered for a painted project depending on the required base. The selected card MLD‑014 shows an enamel finish. The final choice depends on the design and finishing technology.

Can oak be coated with a clear varnish?

Oak as a material is suitable for showing texture, but before a translucent finish you need to check that the appropriate lamination for tinting is ordered, not just the enamel option.

What to choose for small frames instead of MLD‑014?

You can compare thinner profiles MLD‑019 17 × 12 mm and MLD‑004 15 × 8 mm on a real sample.

Is a set of samples needed?

If the scale of the profile, shape, or future finish raises doubts, samples are more useful than choosing by photo: the profile can be applied directly to the wall.

How to transport MLD-014?

Before cutting, this is a long piece of 2400 or 2600 mm. You need to check the transport and unloading area in advance; the card includes rigid transport packaging.

Summary: first the cutting map, then the number of strips

For three frames of 1200 × 780 mm and 880 × 680 mm in quantities of two pieces, the net requirement is 10.2 m of MLD-014. But this figure is not yet an order.

For MDF 2600 mm, four strips give 10.4 m. The parts nominally fit into four planks: two according to the scheme 1200 + 680 + 680 and two according to the scheme 880 + 880 + 780. The total reserve is only 200 mm. Therefore, before purchasing, you need to confirm the actual cutting width, trimming, and test cuts.

For beech and oak, the strip length is 2400 mm. Four planks are not enough even by net footage. Five give 12 m and a more flexible map: for example, 1200 + 780 twice, 880 + 680 + 680 twice, and 880 + 880 in the fifth strip.

This is exactly how it is determined which MLD-014 is more profitable for a specific project. Not "MDF is always more economical" and not "solid wood is always better," but material + strip length + finish + cutting map. After such a check, the order contains exactly the quantity that can be explained by the scheme, not by an approximate percentage of reserve.
