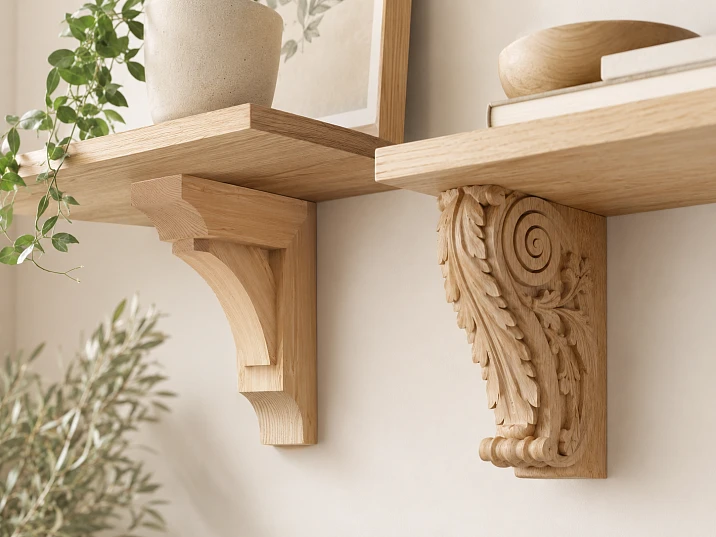

Why KR-070 and KR-022 cannot be chosen as identical brackets

These models solve a similar task but are designed for different scales. KR-070 is a large triangular support made of pine, measuring 200 × 44 × 200 mm, with two steel hanging plates. KR-022 is a carved bracket made of beech or oak in five sizes: from 104 × 50 × 38 × 15 × 40 mm to 208 × 100 × 75 × 30 × 81 mm. The first is logical under a deep shelf and a large wall composition, the second under a narrow shelf, furniture, fireplace area, or decorative beam.

KR-070 — projection 200 mm The large pine model suits a shelf of noticeable depth and looks like an independent architectural support.

KR-022 — five sizes The size range helps to choose a carved bracket for a small shelf, furniture, portal or decorative area.

Pine, beech or oak Pine and beech are convenient to prepare for opaque painting, oak is chosen for tinting while preserving the texture.

Design and decor KR-070 is built as a rigid triangular console; KR-022 works more as a carved interior element.

The load depends on the entire assembly Wall material, anchors, shelf depth, distance between supports, and mounting method are more important than promises of a single number.

Short answer: For a deep shelf and a large wall composition, choose KR-070 made of pine, size 200 × 44 × 200 mm. If a compact carved support for a narrow shelf, furniture, or fireplace area is needed, KR-022 made of beech or oak is better suited — the model is available in five sizes. Before ordering, check the shelf depth, wall material, number of brackets, finish, and fasteners.

Buy KR-070 Buy KR-022 View all brackets

Buy wooden shelf bracket It's easier when the choice starts with the shelf depth and wall material, not the ornament. The large KR-070 and carved KR-022 may be in the same category, but they offer different support geometry, different scale, and a different way of integrating into the interior. A mistake in selection leads not only to visual imbalance: too short a projection leaves a large front overhang, too large a part overloads a narrow shelf, and incorrectly chosen anchors fail to transfer the load to the load-bearing base.

KR-070 has a height and reach of 200 mm each, a thickness of 44 mm, and is made of solid pine. The parts are joined with a tongue and groove and additionally glued. The card confirms two steel mounting brackets for wall attachment. This model reads as a standalone wooden console and requires a sufficiently deep shelf, a free wall, and a finish that protects the pine and ties it to the interior.

KR-022 is arranged differently. It is available in five size options, in beech or oak, with a sanding quality of "Standard" or "Prestige." Beech is offered for enamel, oak for tinting. The maximum size reaches 208 mm in height, but the horizontal depth B is 100 mm. Therefore, the large version of KR-022 does not become an analogue of KR-070: it remains a more compact carved support with a different height-to-reach ratio.

None of the cards provide a single table of permissible load for all walls and shelves. This is a fundamental limitation. The final reliability depends on concrete, brick, aerated concrete, a wooden wall, or an embedded element behind drywall; on the diameter and length of anchors; on the shelf material; on the number of supports; on the distance between them; on how the shelf itself is connected to the bracket. The article helps to compile the correct specification but does not replace the calculation of a responsible hanging structure.

Watch video ...

Confirmed specifications of KR-070 and KR-022

Our factory also produces:

Wooden decor N-463.2

from 16.89 $

Wooden Decor N-441R

from 116.47 $

Wooden Decor N-249

from 59.85 $

Wooden Decor N-272L

from 136.83 $

146.57 $

from 146.14 $

Wooden plate KU-004

from 17.51 $

Polyurethane Molding MLDPU-4U-1.1

from 22.23 $

View Full Product Catalog

KR-070 and KR-022: main differences

After such a comparison, it's useful Choose wooden shelf brackets in the general category, if the confirmed dimensions of two models do not match the project. The catalog allows you to switch to other shapes and sizes without trying to force KR-070 or KR-022 to perform an unsuitable task.

When to buy KR-070 made of pine

For a deep wall shelf

KR-070 has a projection of 200 mm, so it logically works with shelves of noticeable depth. In the card description, the model is associated with shelves up to 250–300 mm deep, but this should not be understood as a universal guarantee. The farther the front edge of the shelf is from the wall, the greater the bending moment created by the load. You need to consider the thickness of the shelf, its material, the number of supports, and the distance between them.

For a decorative shelf 250 mm deep, the overhang relative to the bracket is about 50 mm. For a depth of 300 mm, it is about 100 mm. Such an overhang may be visually acceptable if the shelf is rigid and the load is distributed, but it should be checked by a designer. KR-022 with a maximum depth B of 100 mm under the same shelf would look significantly shorter and would require a separate hidden support system.

For a shelf made of pine or painted solid wood

A pine support naturally pairs with a pine shelf. The grain and shade do not have to match perfectly, but after joint tinting or painting, the set feels cohesive. If the shelf is made of a different wood species, KR-070 can be coated with opaque enamel and tied to the color of the wall, furniture, or trim.

For furniture and wall panel

A large bracket can work not only under a separate shelf. It is used as a visible console under a protruding part of furniture, under a cornice area, countertop, or wall panel. In such a project, the part is repeated at equal intervals and creates an architectural belt. It is important that each bracket has a real support connection to the frame and is not just glued on as decoration.

For country and architectural interiors

The size of 200 × 200 mm makes KR-070 noticeable. It suits a home with wooden beams, massive architraves, open shelves, and large trim. In a small kitchen with a thin shelf, such a support can take up too much wall space. The scale should be checked with a full-size paper template.

For painting to match the interior color

Pine accepts various finishing systems well, but resinous areas and uneven absorption require proper preparation. If a smooth white, gray, or colored bracket is needed, the surface is primed with a compound compatible with pine and enamel. If visible texture is desired, a test tinting should be done on similar material.

When the bracket should look massive

KR-070 is appropriate under a thick shelf, large cornice, or long countertop, where a small carved detail would look insufficient. Visual massiveness does not replace engineering calculation, but helps make the support plausible. The shelf and bracket should be perceived as one structure, not as a heavy board on random decorations.

For a large wall, you can buy a wooden bracket KR-070, after checking the 200 mm projection, installation step and anchoring method.

When to buy a carved KR-022

For a narrow decorative shelf

Sizes B from 50 to 100 mm make KR-022 suitable for shallow shelves and decorative ledges. Small variants work in niches, on furniture facades, and under small shelves for frames, clocks, or light decor. For books, dishes, and heavy items, you cannot rely solely on appearance: a separate calculation of fastening and number of supports is required.

For a fireplace area

The carved shape suits a classic portal, fireplace shelf and side decorative elements. KR-022 can connect a horizontal shelf with vertical pilasters or panels. If the fireplace is functional, materials, distances to the heat source and finishing are coordinated with the designer. Wooden decor cannot be placed in the zone of unacceptable heating.

For classic furniture

KR-022 is used under a protruding countertop, cabinet shelf, buffet cornice, or bar counter. It helps to repeat the carved motif at several points on the furniture. The size is chosen based on the thickness and overhang of the part, not just the overall height of the body.

For a decorative beam

The bracket can finish the junction of the beam to the wall or create a classic transition under the ceiling. In this case, it may work primarily as decor. The load-bearing function of the beam is provided by a separate structure. The buyer must understand in advance where KR-022 participates in the load and where it only covers the joint.

When you need to choose the exact size

Five sizes allow you to adjust the proportion. The small option 104 × 50 mm is suitable for small furniture and narrow shelves. The medium ones 125 × 60, 152 × 73, and 167 × 80 mm provide a gradual increase. The maximum 208 × 100 mm creates a tall carved element, but its overhang remains half that of KR-070.

When wood texture matters

Oak for tinting is chosen if the bracket should show a porous pattern and match the oak shelf, furniture, or doors. Beech for enamel is suitable for a covering color. On a carved surface, dark tinting emphasizes the recesses, while light enamel makes the ornament calmer.

For furniture and a classic shelf, you can buy a carved bracket KR-022 in the appropriate size, wood species, and sanding quality.

How to choose the size of KR-022

Evaluate not only height A

Buyers often look at the first number and consider the tallest KR-022 an analogue of KR-070. This is a mistake. For a shelf, depth B is important: for the maximum KR-022 it is 100 mm, for KR-070 it is 200 mm. A tall carved bracket can fill the wall well, but does not support a deep shelf of the same length.

Match width C with shelf thickness

The width of the part affects the visual weight and contact area. A thick massive shelf next to a bracket 38 mm wide may look heavy. Sizes 75 mm and 100 mm provide more noticeable support, but require a free wall surface and careful repetition.

Make a paper template

Print the outline to scale or cut out a rectangle according to the dimensions. Place it under the future shelf and take a photo from a distance. This way you can see if the thread is lost or if the bracket covers the adjacent trim.

Look at repeatability

One large KR-022 is perceived differently than four identical ones. Rhythm enhances the ornament. For a long shelf, it is better to first mark all the axes and then choose the size. A large model with a frequent step may overload the wall.

How to choose a bracket based on shelf depth

Shelf depth is the distance from the wall to the front edge. Bracket reach is the horizontal part that supports the shelf. The closer these dimensions are, the smaller the unsupported front overhang. But the exact ratio depends on the shelf material, load, and design.

Shelf depth 80–120 mm

For a very narrow decorative shelf, small KR-022 sizes are suitable. The bracket should not protrude beyond the front edge. If the shelf is used only for light decor, the design can be compact, but anchors are still chosen based on the wall.

Shelf depth 150–200 mm

A medium or large KR-022 can be proportional if the overhang is chosen close to the depth. At 200 mm, the maximum KR-022 leaves about half the shelf without direct support, so a hidden metal bracket may be required. KR-070, on the contrary, matches the depth and looks structurally more convincing.

Shelf depth 250–300 mm

Here, KR-070 is more logical in terms of geometry. A 200 mm overhang supports most of the depth. The remaining overhang and allowable load are calculated. KR-022 in such a project can be used as decor only together with a separate load-bearing system.

Shelf deeper than 300 mm

You cannot automatically increase the overhang of KR-070. A deep countertop or work surface creates a significant moment. A different model, metal frame, or floor support may be required. A wooden decorative bracket should not be used outside a confirmed scheme.

For a general proportion calculation, you can open the material about how to correlate the bracket overhang and shelf depth, and then return to the specific choice of KR-070 or KR-022.

Pine, beech, or oak: what to choose for a bracket

Pine for a large architectural detail

KR-070 is made of pine. This wood is suitable for a large bracket because it is easy to work with, has a noticeable grain pattern, and is compatible with various finishing systems. The pine support can be made light, tinted warmer, varnished, or painted with opaque enamel after proper preparation.

Pine has areas with different absorbency and natural resins. If stain is applied without a test sample, the color may be uneven. For white or colored enamel, a primer is needed to isolate problem areas and be compatible with the topcoat.

Beech for enamel

Beech KR-022 is offered for enamel. This is a rational choice when the carved bracket should be white, black, gray, colored, or match a furniture facade. The opaque coating makes the ornament readable through light and shadow, rather than through the wood grain.

Beech may be glued from lamellas with natural shade differences. This will be noticeable under a transparent coating. Preparation for enamel is designed to cover the unevenness with color and unify the entire surface.

Oak for tinting

Oak KR-022 is chosen when texture matters. The porous pattern emphasizes the carving and matches an oak shelf, doors, furniture, or panels. Tinting should be tested on a sample: the recesses of the carving absorb the compound differently than the protruding surfaces.

Dark oak makes the bracket more noticeable and graphic. A light shade preserves airiness. If the shelf is from a different batch of wood, a perfect color match is not guaranteed, so it is better to coordinate the combination rather than try to achieve identity from a photo.

What to choose for a white shelf

For a large shelf, you can paint KR-070 made of pine. For a more carved and compact composition, beech KR-022 under enamel is suitable. The choice is made based on size and style, not just the possibility of painting.

What to choose for a natural oak shelf

KR-022 made of oak provides the most obvious connection by wood species, but may be too short for a deep shelf. In this case, KR-070 is painted in a contrasting color, or a separate support system is used with oak KR-022 as a decorative element.

Before finishing, you can select oil, varnish, or paint for wood in the allowed category and check the compatibility of the system with pine, beech, or oak.

How to attach a wooden bracket to a wall

The bracket is chosen not by the name "shelf bracket", but by the base. The same KR-070 can be reliably installed on concrete and incorrectly on thin drywall without a backing. KR-022 can work as furniture decor on a wooden frame and not be suitable for a heavy shelf on a hollow partition.

Concrete

For concrete, anchors or dowel systems designed for the specific load and base depth are used. Before drilling, check for hidden wiring and reinforcement. Holes are cleaned of dust, and the fastener is tightened evenly without splitting the wooden part.

Two steel hanging strips KR-070 simplify placement but do not determine the type of anchor. The strip transfers force to the fastener, and the fastener to the concrete. All three parts of the assembly must be compatible.

Solid brick

Fasteners are placed in the body of the brick, not in the weak joint. The diameter and length are chosen according to the project. If the wall is old and the brick is crumbling, first conduct a test and assess the condition of the masonry.

Hollow brick

A regular expansion dowel may not work in voids. A system designed for such a base is required. Sometimes a chemical anchor with a mesh sleeve is used, but the solution must be confirmed by a specialist. The scheme from solid brick cannot be transferred without verification.

Aerated concrete

Aerated concrete has lower density, therefore it requires special fasteners and an increased load transfer zone. A deep shelf with KR-070 creates significant leverage. For heavy filling, it is better to provide an embedded part or another structure during the renovation stage.

Drywall

A wooden bracket under load cannot be attached only to a sheet unless a special system is confirmed by the design. A reliable way is to hit a wooden or metal embedded part, a frame post, or pre-install reinforcement. The location of the brackets is determined before the wall is sheathed.

Wooden wall

The fastener must enter load-bearing wood of sufficient thickness. Thin paneling or a decorative panel does not replace a wall. If there is a beam behind the cladding, the bracket axes are tied to it.

Furniture body

KR-022 on furniture is attached to the frame, a massive apron, or an embedded part, not to the thin back wall. If the bracket supports an overhanging countertop, the load must be transferred to the frame. A decorative overlay without connection to the load-bearing part is not considered a support.

Attaching a shelf to a bracket

The shelf should not simply lie on top if shifting or tipping is possible. The method of fixation depends on the material, thickness, and visibility of the fasteners. Holes are placed so as not to split the edge or reach the front surface.

How many brackets to buy for one shelf

There is no universal number. Two brackets may be sufficient for a short decorative shelf and insufficient for a long book shelf. The calculation starts with length, depth, material, and planned contents.

Short shelf

For a small shelf, a pair of supports is usually considered. The outer brackets are placed symmetrically and set back from the ends. If the shelf is heavy or made of a soft material, a central support may be needed even for a short length.

Long shelf

As the length increases, deflection grows. An additional bracket reduces the free span. For KR-022, a frequent rhythm can be decoratively expressive, but a large KR-070 with too small a spacing will overload the wall. A balance between structure and appearance must be found.

Book shelf

Books create a constant distributed load. The shelf must be sufficiently rigid, and the brackets properly secured. Do not rely on decorative appearance or a single general figure from the description. The designer evaluates the complete assembly.

Kitchen shelf

Dishes add significant weight, and items are often placed closer to the front edge. This increases the moment. KR-070 is geometrically better for a deep shelf, but the anchors and spacing must match the wall and contents.

Mantel shelf

If the shelf is primarily decorative, KR-022 can be chosen based on the portal size and ornament. If it supports heavy stone or a massive beam, wooden brackets cannot be considered the sole support without calculation.

Bar counter

A person can lean on the edge, creating a large local load. For such a scenario, a furniture frame or hidden support system is needed. KR-022 can support the style, but should not receive unconfirmed load just because of external strength.

How to mark axes

First, mark the outermost brackets, then divide the remaining span into equal parts. The axes must align with embedded elements or reliable sections of the wall. If the wall architecture does not allow equal spacing, the structure is redesigned, rather than attaching one element into a void.

Where KR-070 and KR-022 work in the interior

Living room

KR-070 is suitable for a large shelf above a sofa, a library area, or a wooden panel. It sets the scale and supports a massive board. KR-022 looks better in a niche, under a fireplace mantel, or in a furniture composition with carved elements.

Kitchen

A large pine model is appropriate under open shelves in a country kitchen. It can be painted to match the facades. KR-022 is suitable for a classic sideboard, small decorative shelves, and side elements of a range hood portal. For dishes, the load and fasteners must be checked.

Bedroom

A small KR-022 helps design a shelf above a dresser, a decorative niche, or a cabinet cornice. KR-070 may be too massive for a bedside area, but is suitable for a wooden panel or large shelf in a spacious bedroom.

Hallway

KR-070 works under a deep shelf for hats if the passage allows. The front edge should not obstruct movement. KR-022 is suitable for a narrow shelf for keys or a decorative panel, but for storing heavy items, a separate calculation is needed.

Study and library

Bookshelves require a rigid structure. KR-070 can be part of a visible support system, especially in a wooden study. KR-022 creates a classic rhythm, but for heavy books may require hidden metal reinforcements.

Children's room

Protruding carved details should be outside the active movement zone. The shelf is mounted with a margin and is not placed above the bed without professional calculation. For toys, securing the shelf itself to the brackets is important.

Cafe, restaurant and hotel

In commercial spaces, the load and contact frequency are higher. First, assemble a test node, check anchors, finish, and access for maintenance. KR-070 suits architectural shelves and panels, KR-022 suits portals, stands, and decorative furniture.

Showroom

Brackets can support material samples and catalogs. The display weight changes, so the shelf is calculated for the maximum scenario. Visually, the large KR-070 emphasizes the structure, while KR-022 helps create a classic presentation.

What to buy together with wooden brackets

A pair of brackets is only part of the wall system. The shelf, anchors, shelf-to-support fastening, and finish must be selected simultaneously. If one element is selected after the others are delivered, the risk of mismatch in depth, color, or mounting holes increases.

Shelf of suitable depth

For KR-070, first determine a shelf with a depth justified by the 200 mm overhang. For KR-022, focus on the specific size B from 50 to 100 mm. The shelf thickness must match the scale of the support and maintain rigidity between brackets.

Fasteners for wall material

An anchor for concrete, a system for hollow brick, and a embedded part behind drywall are different solutions. Fasteners cannot be bought as a universal set just because the name says "for shelf." The installer must know the base, finish thickness, and calculated load.

Attaching a shelf to a bracket

Self-tapping screws, bolts, or a hidden furniture joint are chosen based on shelf thickness and bottom access. The fastener must not protrude to the front side, split the end, or remain too short.

Materials for finishing

For pine and beech, compatible primer and enamel are needed under the covering color. For oak, a test tint and protective finish are required. In the section you can buy materials for finishing wooden brackets, but the specific system is checked according to the wood species and room conditions.

Identical brackets from the same batch

For one shelf, it is better to order all supports at once. Natural wood differs in shade and grain, and a repeat batch after tinting may look different. For a long series, a spare element is useful.

Decorative moldings and trims

If the brackets are part of a furniture cornice, wall panel, or fireplace area, adjacent profiles need to be coordinated in scale. Large KR-070 requires more massive framing, carved KR-022 requires careful repetition of the ornament without overload.

How not to confuse these brackets with similar products

Bracket and regular metal angle

A metal corner bracket is often chosen for its hidden strength and minimal size. A wooden bracket remains visible and becomes part of the interior. If only a load-bearing function is needed without decoration, a hidden metal system may be more rational. If a visible wooden support is important, KR-070 or KR-022 provide a finished appearance.

Structural and decorative bracket

KR-070 is stated as a decorative element capable of performing the function of a load-bearing structure and has a tenon joint with hanging strips. KR-022 is used for shelves and furniture, but its specific role depends on the size and mounting assembly. Not every carved element can be automatically considered structural for any load.

Bracket and console table

A pair of brackets under a narrow tabletop can create a wall console, but a person can lean on the front edge. This scenario requires calculation stronger than a regular decorative shelf. KR-022 should not be used as the sole support for a tabletop without a confirmed scheme.

Bracket and furniture overlay

The overlay is glued to the facade and does not transfer load. The bracket has a supporting geometry and is attached to the wall or frame. The carved appearance of KR-022 does not turn it into flat decor.

Large KR-022 and KR-070

The maximum height of KR-022 is 208 mm, almost the same as KR-070. But the horizontal size is 100 mm versus 200 mm. Comparing models only by height is incorrect. For a shelf, the projection may be decisive.

Bracket and capital

A capital completes a column or pilaster and works in a different composition. Sometimes the shapes are similar, but the mounting surfaces and purpose differ. In the card, you need to check the product type and drawing.

Practical

Need an open shelf in the kitchen

For a deep board and architectural interior, KR-070 is suitable. For a narrow decorative shelf, KR-022. Dishes create a serious load, so the anchors and spacing are determined by the craftsman.

Need to support the protruding part of the furniture

KR-022 is easier to integrate into the cornice of a cabinet, sideboard, or bar counter. Choose the size based on the overhang and height of the furniture zone. For a large countertop, KR-070 or a separate frame may be required.

You need to repeat the brackets under a long panel

KR-070 creates a large architectural rhythm. First, determine the quantity and spacing, then estimate the total weight. KR-022 provides a more frequent and delicate ornament, suitable for classic furniture and small panels.

Need a white support

Pine KR-070 or beech KR-022 can be prepared for opaque finishing. The choice depends on the shelf size. Do not choose small beech just for the sake of enamel if the structure requires a 200 mm overhang.

Oak texture needed

Choose KR-022 in oak if its size matches the shelf. For a deep oak shelf, you can use KR-070 in a contrasting color or look for another oak bracket with a larger overhang in the category.

Need to secure the shelf to drywall

Find studs or a backing board. If they are not present, do not choose a bracket until the wall issue is resolved. First, design the reinforcement, then the axes and number of supports. Decorative beauty does not compensate for a weak base.

Need a shelf for books

Calculate the maximum weight, choose a rigid board and determine the spacing. KR-070 fits the geometry of a deep bookshelf, KR-022 is for a narrower one, but both require professional mounting.

Mistakes when buying a wooden bracket

Choose by overall height

KR-070 and the largest KR-022 are almost the same height but differ in overhang by a factor of two. The shelf may look unsupported if you only look at the first number.

Buying one support for a long shelf

One bracket does not prevent the shelf from twisting and sagging. Usually a pair or more is needed, and the quantity is determined by the length and load.

Not accounting for the weight of the shelf itself

A thick oak board creates a load even before placing books or dishes. The weight of the shelf is included in the overall calculation.

Mounting to the finish, not to the wall

Plaster, paneling, panel, or drywall sheet may only be cladding. The anchor must work in the load-bearing base or embedded element.

Use a universal dowel for any wall

Hollow brick, aerated concrete, and concrete require different systems. Unsuitable fasteners may hold during installation and loosen under load.

Expect a confirmed load in kilograms

Without a single test table for a specific wall, fastener, spacing, and shelf, a number cannot be promised. Any load refers to the entire assembly, not to a single wooden part.

Do not fix the shelf from above

A shelf that simply rests can shift when the front edge is touched. The fixing method is designed together with the bracket.

Buy beech for transparent finish without considering lamellas

The beech in card KR-022 is prepared for enamel. For visible texture, oak for tinting is provided.

Tint pine without a test

Different absorption creates stains. A test coat shows the real result before processing all brackets.

Installing KR-070 on a shelf that is too narrow

A 200 mm overhang may protrude beyond the front edge and create a dangerous or sloppy assembly. The shelf must be proportionate.

Using KR-022 as decoration under a heavy shelf without hidden support

A beautiful carved element does not eliminate calculation. If its overhang is insufficient, add a support system or choose another model.

Not checking access to the mounting brackets

KR-070 comes with two steel brackets. The wall, markings, and finish must allow both points to be hung accurately. Misalignment will be noticeable on the shelf.

Painting after installation

This makes it harder to treat the back, protect the wall, and achieve an even coat. A test assembly is done in advance, and the final coat is usually applied separately.

Who is KR-070 suitable for

The model suits the owner of a country house, kitchen, study, or living room with a deep shelf and large wooden details. It is useful for furniture production and designers who need a visible triangular bracket with a 200 mm reach and ready-made mounting brackets.

KR-070 is especially suitable when the pine is planned to be painted or combined with other architectural elements. It is not suitable for a tight niche, a very narrow shelf, or a project where the wooden bracket should be almost invisible.

Who KR-022 is for

The carved model is suitable for classic furniture, fireplace area, portal, small shelf, and decorative beam. Five sizes help to match the scale more precisely, and the choice of beech and oak allows coordinating enamel or tinting.

KR-022 is not suitable for a deep shelf if its projection leaves a large unsupported overhang and there is no hidden reinforcement. It may also be unnecessary in a strict minimalist interior without other carved details.

When it's better to choose a different bracket

A different model is chosen if a projection between 100 and 200 mm is needed, a different wood species, modern geometry, metal support, or hidden fastening. There is no need to cut KR-070 to a random size or extend KR-022. In the catalog of wooden brackets you can find a shape that initially matches the project.

How to prepare brackets for finishing

Test assembly before painting

First, attach the brackets to the wall and shelf without final load. Check the axes, overhang, symmetry, and access to fasteners. After final finishing, redoing holes is more difficult, and an accidental chip will be noticeable.

Wood inspection

The surface is checked under side lighting. On KR-070, pay special attention to tenon joints and contact surfaces. On KR-022, check the thread recesses where dust may remain. The quality of sanding does not eliminate the final inspection before priming.

Dust removal

Dust interferes with adhesion and remains as dots under enamel or varnish. Use a method compatible with the chosen system. Do not soak the wood with water before finishing.

Test paintout

For pine, the sample shows resinous areas and uneven absorption. For beech, the coverage of enamel. For oak, the depth of tone and pore visibility. The sample is evaluated next to the shelf and wall.

Protection of mounting areas

A thick layer on the back plane may disrupt contact. Steel hanging plates KR-070 protect from paint if coating is not intended by the project. Holes and contact areas are left clean.

Uniform treatment of the set

All brackets are primed, tinted, and coated with the same number of layers. Paired elements are especially sensitive to gloss differences. For a long shelf, it is useful to label positions to preserve the selected pattern.

How to accept brackets after delivery

Check the model and size

KR-070 has one size 200 × 44 × 200 mm. For KR-022, you need to check all five parameters of the selected configuration, the wood species, and the quality of the grinding. The error is detected before painting and installation.

Inspect the completeness of KR-070

Check for the presence of two steel hanging brackets and the condition of their installation points. A bent or missing bracket changes the mounting assembly and requires contacting the seller.

Compare paired parts

Place the brackets next to each other. The natural wood grain may vary, but the dimensions and mounting planes must match the order. The carved elements KR-022 must form a consistent pair.

Do not start drilling immediately

First, hold the shelf up, check the overhang and the wall. After drilling or painting, it is more difficult to correct a wrong configuration.

How to care for wooden brackets

Dust removal

KR-070 is wiped with a soft cloth, KR-022 is additionally cleaned with a soft brush in the recesses. Abrasives are not used to avoid changing the finish sheen.

Moisture control

Spilled water is removed from the shelf and supports immediately. In the kitchen and hallway, protecting the end grains is especially important. In rooms with high humidity, the finish system is agreed upon in advance.

Checking fasteners

After the first few weeks and then periodically, inspect the anchors, brackets, and shelf fixation. If wobbling occurs, unload the shelf until the cause is determined.

Load change

A shelf designed for decor does not automatically become a bookshelf. If the purpose changes, the entire assembly is rechecked. Adding heavy equipment or dishes requires a review.

How to buy KR-070 or KR-022 on STAVROS

Start with a shelf drawing: length, depth, thickness, material, and intended contents. Then determine the wall and anchoring method. Only after that, choose a model based on projection and style.

For a deep shelf, open the KR-070 card, check the size 200 × 44 × 200 mm, pine, "Prestige" quality, and completeness with two strips. For a compact carved project, open KR-022 and choose one of five sizes, beech or oak, "Standard" or "Prestige".

Immediately calculate the number of identical parts and add finishing materials. If no model fits the projection, do not try to modify the finished geometry: go to the category and choose another bracket.

After checking, you can buy a large shelf bracket KR-070 or buy a decorative shelf bracket KR-022. Current prices, availability and delivery times are checked in the product card before ordering.

What to Check Before Ordering

• depth, length, and thickness of the shelf;
• weight of the shelf itself;
• maximum expected weight of items;
• wall material and cladding thickness;
• presence of a backing behind drywall;
• type and size of anchors;
• distance between brackets;
• remaining front overhang of the shelf;
• overhang 200 mm for KR-070;
• size B from 50 to 100 mm for KR-022;
• pine, beech or oak;
• enamel, tinting or clear finish;
• grinding quality KR-022;
• completeness KR-070 with two bars;
• method of fixing the shelf to the brackets;
• absence of hidden wiring in drilling areas;
• safety of protruding parts in the passage;
• temperature conditions of the fireplace area;
• quantity and one batch of products;
• current order conditions at STAVROS.

How to check proportions before buying

Full-size template

The photo of the card shows the shape but does not convey the scale on the wall. Cut out a 200 × 200 mm rectangle from cardboard for KR-070 and a separate template for the selected KR-022. Place them under the shelf and step back to the room entrance. This test shows whether KR-070 seems too massive and whether the small KR-022 gets lost under the long board.

Markup of the entire pair

A single template does not show the final composition. Place two or three contours with the intended spacing. On a long shelf, it is repetition that determines perception. Frequent large KR-070 can turn a light shelf into a heavy architectural belt. Small KR-022 with too much distance between them look disjointed and unconvincing as supports.

Checking the front overhang

Apply the shelf depth and bracket projection to the side template. For KR-070, the support line ends at 200 mm from the wall. For KR-022, it ends at 50, 60, 73, 80, or 100 mm depending on the size. The visible remainder of the front overhang immediately becomes clearer. If it looks excessive, you need to change the shelf, choose a different bracket, or add hidden reinforcement.

Checking the height above furniture

The shelf should not interfere with opening cabinet doors, range hoods, windows, or tall appliances. A large KR-070 occupies 200 mm of wall downward from the shelf, the maximum KR-022 occupies 208 mm. Therefore, a tall carved bracket can intersect the top line of furniture even with a small projection.

Checking the passage

In hallways, kitchens, and narrow corridors, consider not only the shelf but also the bracket protrusion. KR-070 extends 200 mm from the wall. The lower diagonal can be at shoulder or head level if the shelf is installed low. Mark the entire contour and walk past it in regular clothing.

How to coordinate the project with the craftsman

Before ordering, provide the craftsman with the selected model card, shelf drawing, and wall photo. The specification must include the length, depth, and thickness of the shelf, intended contents, wall material, number of brackets, and finish. For drywall, add the location of embedded elements; for brick, the type of masonry; for furniture, the internal frame construction.

What the installer must confirm

The installer checks the base, selects anchors, determines the drilling depth and method of attaching the shelf. He must also ensure that the KR-070 steel strips are available and positioned identically. If the project includes KR-022 as a decorative element over hidden metal, both systems must be coordinated on site.

What the finisher must confirm

The finisher selects the primer, enamel, tint, and protective layer. He must know the wood species: pine, beech, or oak. One composition cannot be automatically applied to all three materials. In KR-022 carving, the depth of relief must be preserved, and on large KR-070 surfaces, stains and drips must be avoided.

What to save after installation

Save the article number, size, wood species, sanding quality, finishing system, anchor type, and distance between supports. Add photos of the hidden fastening before installing the shelf. This data will help with repairs, reordering, and expanding the composition.

How to check the finished shelf after installation

Geometry check

The shelf should be horizontal, and paired brackets should be at the same height. Check the fit against the wall and the absence of gaps. A slight misalignment on a long shelf becomes noticeable along the line of objects and can change the load distribution.

Gradual filling

Do not place the entire planned weight at once. First, place light objects, then gradually increase the load, observing the shelf, fasteners, and wall. If creaking, shifting, or a gap opening occurs, unload the shelf and inspect it.

Load at the front edge

An object placed closer to the front edge creates a greater moment than the same weight near the wall. Therefore, heavy books, dishes, and equipment are placed with this calculation in mind. The decorative overhang should not encourage the user to lean on the shelf.

Re-inspection

After a few days and the first full load, check the anchors and shelf fixation. For commercial spaces, a regular inspection log is useful. Changing the shelf's purpose requires a new calculation, even if the brackets visually remain unchanged.

How to arrange a series of identical shelves

If brackets are used not under a single shelf but in a row, design the entire wall as a whole. First, set a uniform shelf height, then the same offset for the end supports and a repeating step. A difference of a few millimeters between adjacent rows is especially noticeable on the large KR-070 because its vertical and horizontal parts form a clear grid.

For KR-022, the orientation of the threads and uniform finish are important. Before installation, lay out the parts on the floor in the order they will be installed. This allows you to distribute the natural differences in the oak pattern and avoid a situation where the two most contrasting elements end up next to each other.

A series of shelves must have a single load scenario. You cannot calculate the top row only for decor and then fill it with books. If the purpose of the shelves can change, the structure is immediately checked against the heavier scenario. In a commercial interior, it is useful to limit the maximum fill and maintain the anchoring scheme.

When painting an entire series, use one set of materials and the same technology. Different batches of white enamel or tinting may differ in shade and gloss. Mark the brackets on the back side so that after finishing, each element can be returned to its axis without altering the already verified geometry.

For a repeat order, save not only the article number but also the full size, wood species, sanding, finishing system, and position on the wall. Such a project card helps, after several months, to order a compatible pair, restore a damaged shelf, or continue a row without accidental discrepancies in scale and color.

Before final installation, it is useful to photograph the markings, embedded parts, and selected fasteners. These photos will help with shelf maintenance, reordering brackets, and checking the structure after a load change.

Frequently asked questions

Which wooden bracket to choose for a deep shelf?

For a shelf with a depth of 250–300 mm, geometrically KR-070 with a 200 mm overhang is closer. The remaining overhang, load, spacing, and anchors need to be calculated.

Which bracket to choose for a narrow shelf?

KR-022 offers a depth B from 50 to 100 mm and is better suited for compact decorative shelves. The size is chosen based on the actual depth and thickness.

How does KR-070 differ from KR-022?

KR-070 is a large pine triangular console 200 × 44 × 200 mm. KR-022 is a carved bracket made of beech or oak in five sizes with an overhang of up to 100 mm.

Can KR-022 be used under a shelf with a depth of 250 mm?

As the only visible support — only after calculation. The maximum overhang of 100 mm leaves a large protrusion. Concealed metal fasteners may be required.

Will KR-070 fit a shelf 200 mm deep?

The dimensions match in terms of overhang. Check the shelf thickness, bracket width, number of supports, and whether the wood protrudes beyond the front edge.

What is KR-070 made of?

The model is made of solid pine, has a tenon and glue joint, and comes with two steel hanging brackets.

What is KR-022 made of?

The bracket is available in beech and oak. Beech is prepared for enamel, oak for tinting.

What sizes are available for KR-022?

Five height options: 104, 125, 152, 167, and 208 mm. Full dimensions should be selected in the product card, as depth, width, and other parameters also change.

Can KR-070 be painted?

Yes, after proper preparation of the pine. For opaque colors, use compatible primer and enamel; for transparent finishes, first do a test coat.

Can the beech KR-022 be painted?

Yes. The beech in the product card is offered for enamel. Prime the threads with thin, even layers without filling the recesses.

Can the oak KR-022 be tinted?

Yes. Oak is offered for staining. Test on a similar material because protrusions and recesses absorb the compound differently.

How many brackets are needed for one shelf?

The quantity depends on length, rigidity, depth, weight, and wall. A short shelf usually needs at least a pair, a long one needs additional supports.

Can the permissible load be specified in kilograms?

Without a confirmed system of wall, anchors, shelf, and spacing, a single number would be unreliable. The load applies to the entire mounting assembly.

How to secure the KR-070 to a concrete wall?

Two mounting brackets are connected to anchors selected for concrete and the calculated load. The diameter, length, and placement are confirmed by a master.

Can the bracket be mounted on drywall?

Under load, a load-bearing frame or embedded element is required. A single sheet of drywall should not be considered a sufficient base without special calculation.

How to attach a bracket to hollow brick?

A system designed for a hollow base is used. A standard expansion anchor cannot be automatically transferred from solid brick.

Do I need to attach the shelf to the brackets?

Yes, if shifting, tipping, or vibration is possible. The fixing method is chosen based on the material and thickness of the shelf.

Which bracket is suitable for a fireplace shelf?

KR-022 is suitable due to its carved design and size range. For a heavy shelf and an active fireplace, the load-bearing scheme and temperature limitations are checked separately.

Is KR-022 suitable for furniture?

Yes, the card links the model to furniture, bar and fireplace shelves, and decorative beams. It must be attached to the load-bearing frame or embedded part.

Is KR-070 suitable for furniture?

Yes, if the scale and overhang match the protruding part. The large model is especially appropriate under a panel, cornice, or deep countertop.

What to choose for white enamel?

You can use pine KR-070 or beech KR-022. The model is chosen based on the shelf size, not just the future color.

What to choose for visible oak texture?

Oak KR-022 for tinting. If a 200 mm overhang is needed, consider another large model or use a contrast-painted KR-070.

Which bracket looks more massive?

KR-070 due to its 200 × 200 mm dimensions and triangular shape. Even at its maximum size, KR-022 remains narrower in overhang and emphasizes the carving more.

Do I need to buy brackets in one batch?

Yes, especially for tinting and clear finish. This makes it easier to match the wood, size, and shade of all supports.

Where to buy KR-070 and KR-022?

Both models are presented in separate STAVROS cards. Before ordering, select the size, wood species, sanding quality, quantity, and finishing system.

Result: KR-070 for depth and scale, KR-022 for threading and precise size

KR-070 and KR-022 cannot be reduced to a choice of 'which is prettier.' The pine KR-070 has a 200 mm projection, large triangular shape, tenon joint, and two mounting plates. It suits a deep shelf and architectural composition. KR-022 offers five sizes, beech for enamel and oak for tinting, so it works better in furniture, niches, fireplace areas, and under a small shelf.

Before purchasing, you need to check the entire system: the wall, anchors, depth and weight of the shelf, support spacing, top mounting, and future finishing. Without this data, you cannot honestly promise the allowable load in kilograms.

STAVROS allows you to select a ready-made wooden part with confirmed size and material, rather than cutting a random support on site. For a deep shelf, you can choose a bracket for a shelf up to 300 mm deep after calculation, for a compact classic project — choose the size of the KR-022 bracket. If the parameters do not match, it is better view all bracket sizes and order a model that initially fits the task.
