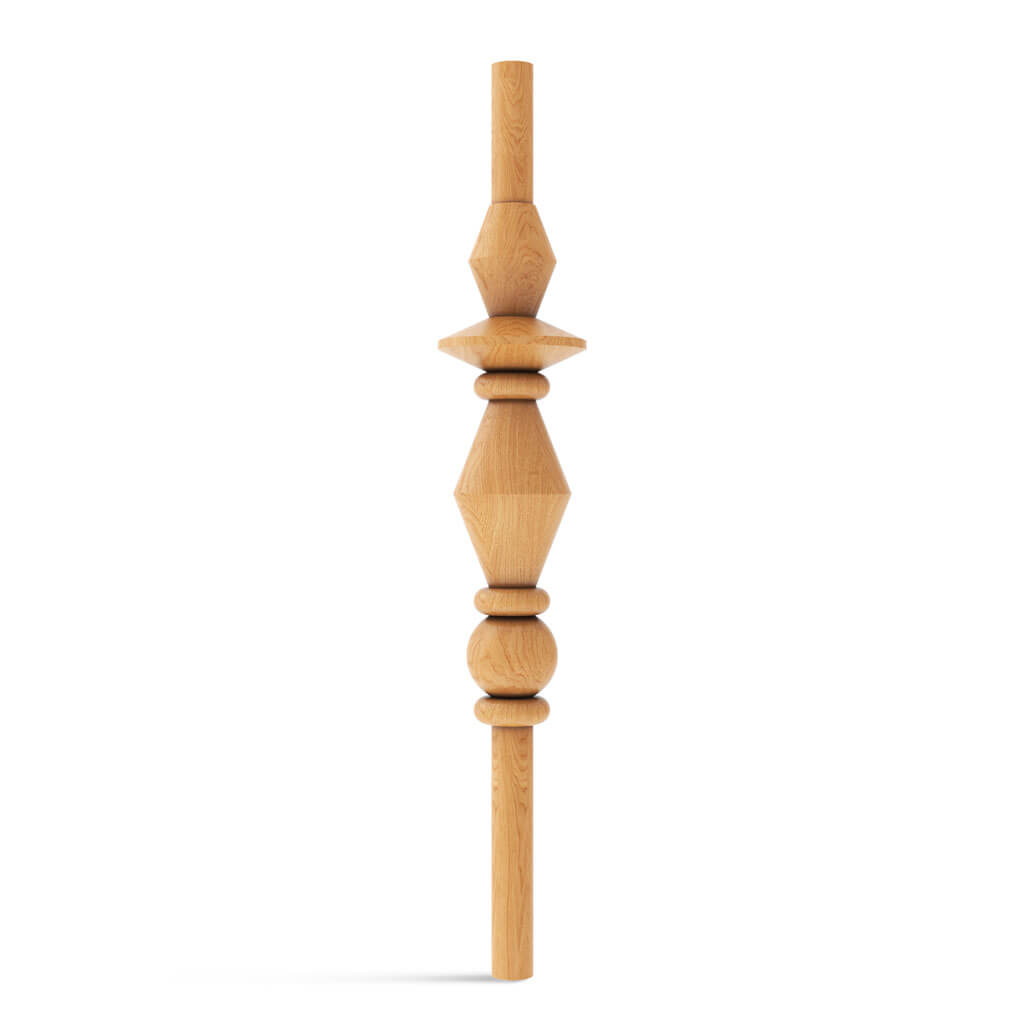

Furniture leg set KON-010

Furniture leg set KON-010 — a ready-made modular composition of natural wood for making one tall decorative support. The set includes a wooden axle MLD-060 and geometric shapes from the KN series, selected by shape, size, and mounting diameter.

The assembled furniture leg has a height of 730 mm, a maximum width of 120 mm, and a central axle diameter of 34 mm. These parameters allow the use of KON-010 in the production of consoles, vanity and writing desks, decorative table bases, furniture cabinets, and other interior items.

The design of the set is based on a combination of multifaceted, rounded, and disc-shaped parts. The geometric elements form a complex vertical rhythm, making the leg a noticeable part of the furniture and helping to create a unique interior item without manually selecting individual components.

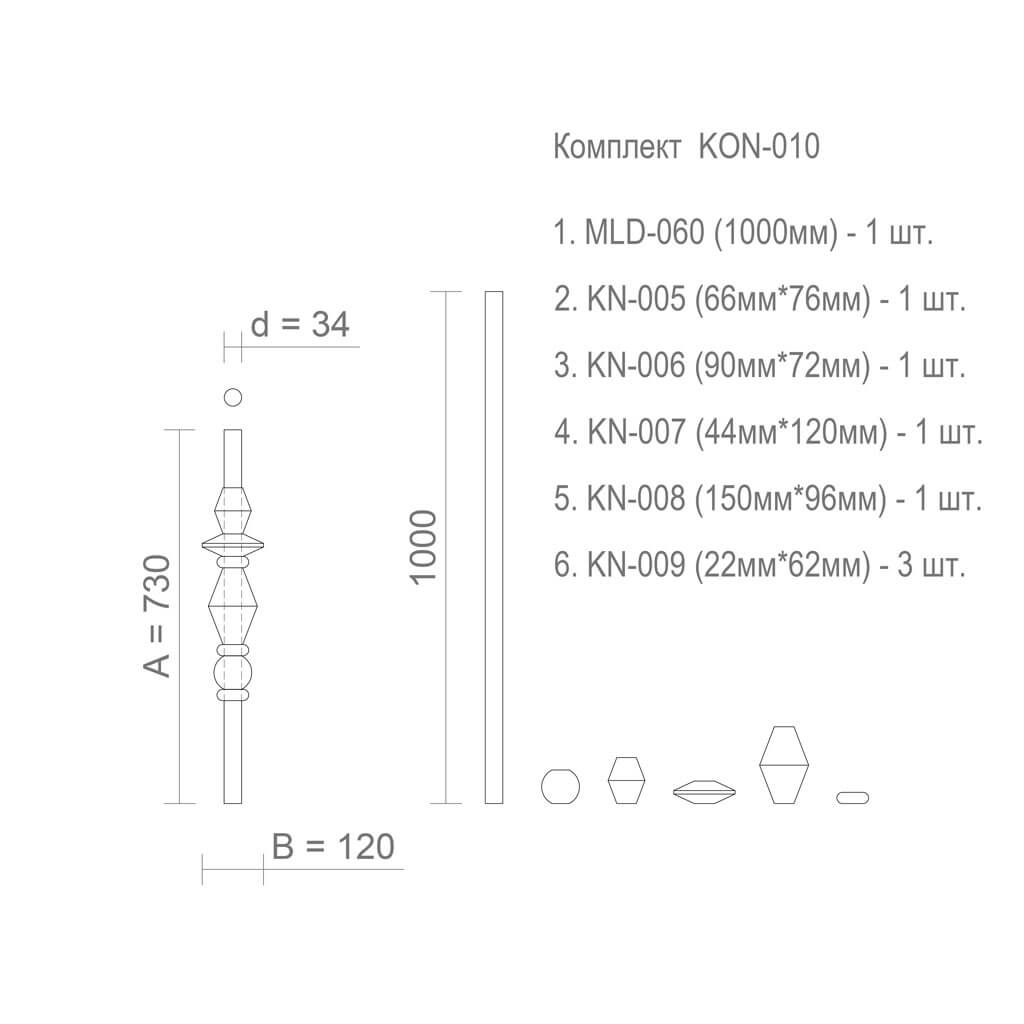

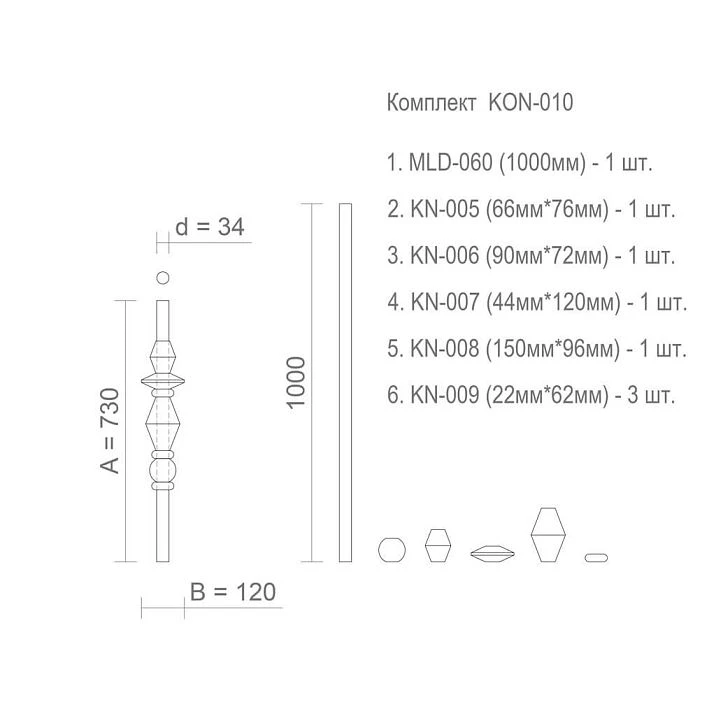

Dimensions and characteristics of KON-010

• total height A — 730 mm;
• maximum width B — 120 mm;
• diameter of the central axis D — 34 mm;
• material — solid beech or oak;
• grinding quality — «Prestige»;
• surface preparation option — for enamel;
• delivery — disassembled;
• manufacturing — made to order.

The height of 730 mm is suitable for making standard furniture supports for tabletops and cabinet elements. When calculating the total height of the finished product, it is necessary to additionally consider the thickness of the tabletop, cabinet, apron, or mounting plate.

The maximum width of 120 mm is determined by the geometric shape KN-007. Before ordering, it is necessary to check whether there is enough space under the furniture body and whether the decorative elements will come into contact with facades, drawers, guides, aprons, or adjacent legs.

Composition of the KON-010 furniture leg kit

All elements of the kit have a mounting hole with a diameter of 34 mm and are installed on the wooden axle MLD-060.

• wooden molding MLD-060 size 34 × 34 × 1000 mm — 1 pc.;
• geometric figure KN-005 size 66 × 76 × 76 mm, hole 34 mm — 1 pc.;
• geometric figure KN-006 size 90 × 72 × 72 mm, hole 34 mm — 1 pc.;
• geometric figure KN-007 size 44 × 120 × 120 mm, hole 34 mm — 1 pc.;
• geometric figure KN-008 size 150 × 96 × 96 mm, hole 34 mm — 1 pc.;
• geometric figure KN-009 size 22 × 62 × 62 mm, hole 34 mm — 3 pcs.

The MLD-060 molding serves as the central wooden axle. It is trimmed to the design length considering the total leg height, arrangement of figures, and method of attachment to the furniture.

KN-008 forms a large elongated multifaceted element in the central part of the composition. KN-007 creates a wide horizontal transition. KN-006 continues the geometric pattern with a more compact faceted shape, while KN-005 adds a rounded element. Three KN-009 figures are used as thin decorative separators between the main modules.

The combination of parts of different heights and widths allows for an expressive furniture leg with a symmetrical and well-defined silhouette.

What furniture is the KON-010 kit suitable for

The kit is designed for furniture where supports must serve not only a structural but also a decorative function. KON-010 looks most expressive when combined with minimalist tabletops and cases of simple geometric shape.

The KON-010 furniture leg can be used for making:

• wooden legs for a console;
• supports for a vanity table;
• legs for a writing or work desk;
• a decorative under-table;
• supports for a furniture cabinet;
• legs for a narrow wall table;
• interior stands and racks;
• custom furniture for home, salon, or showroom.

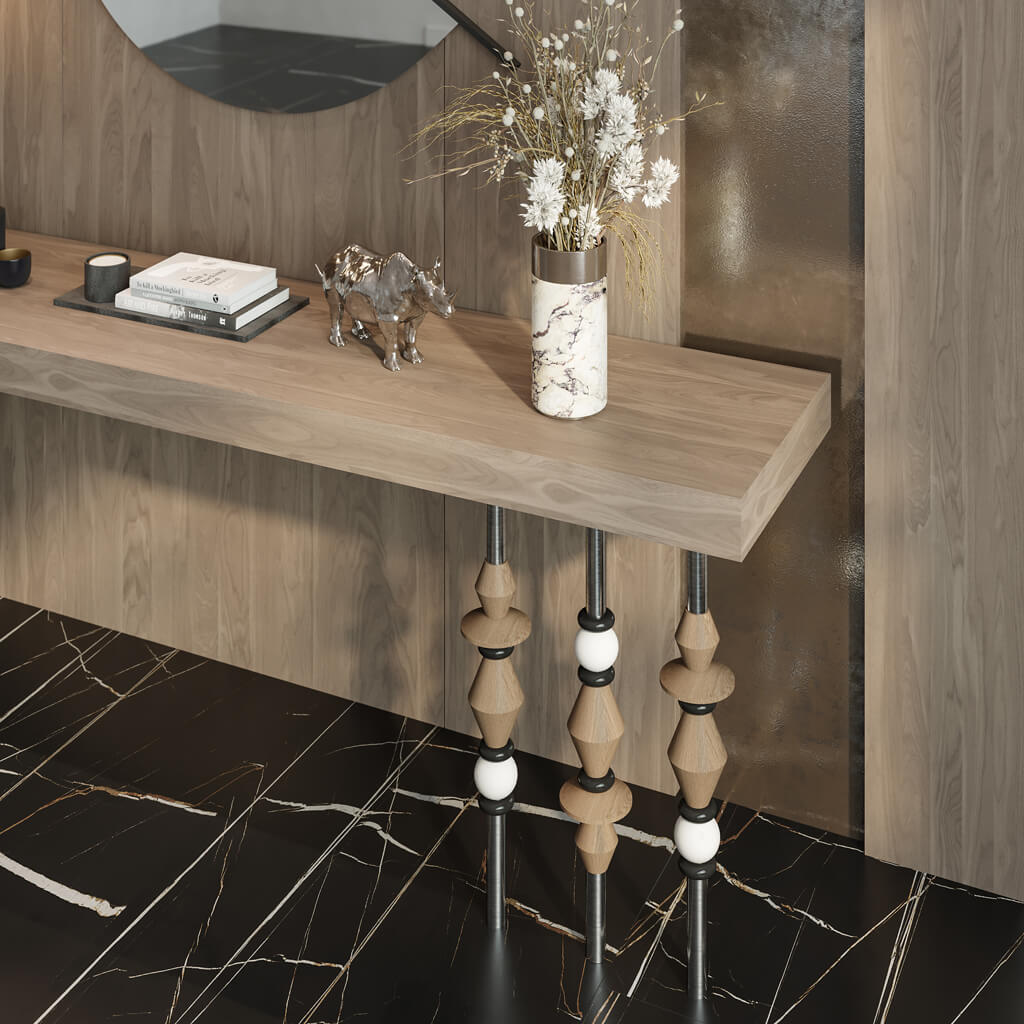

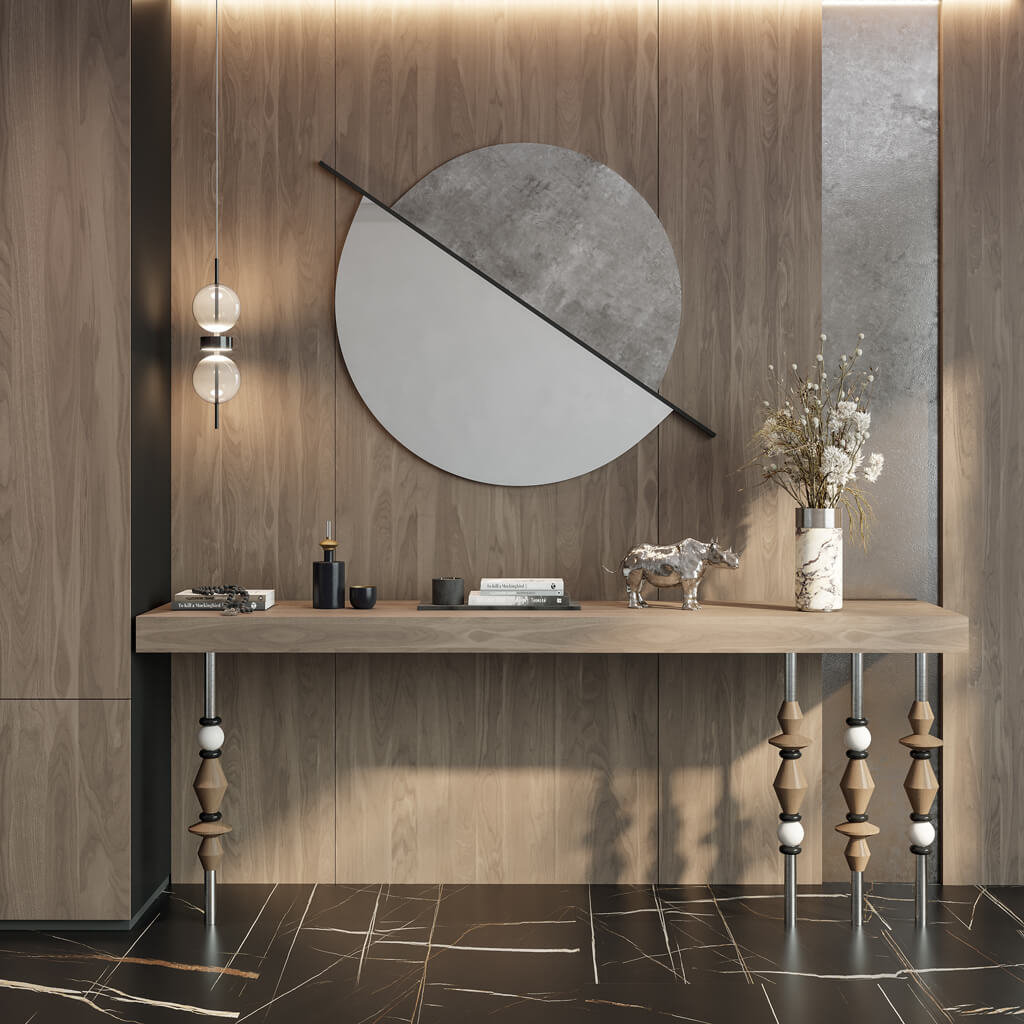

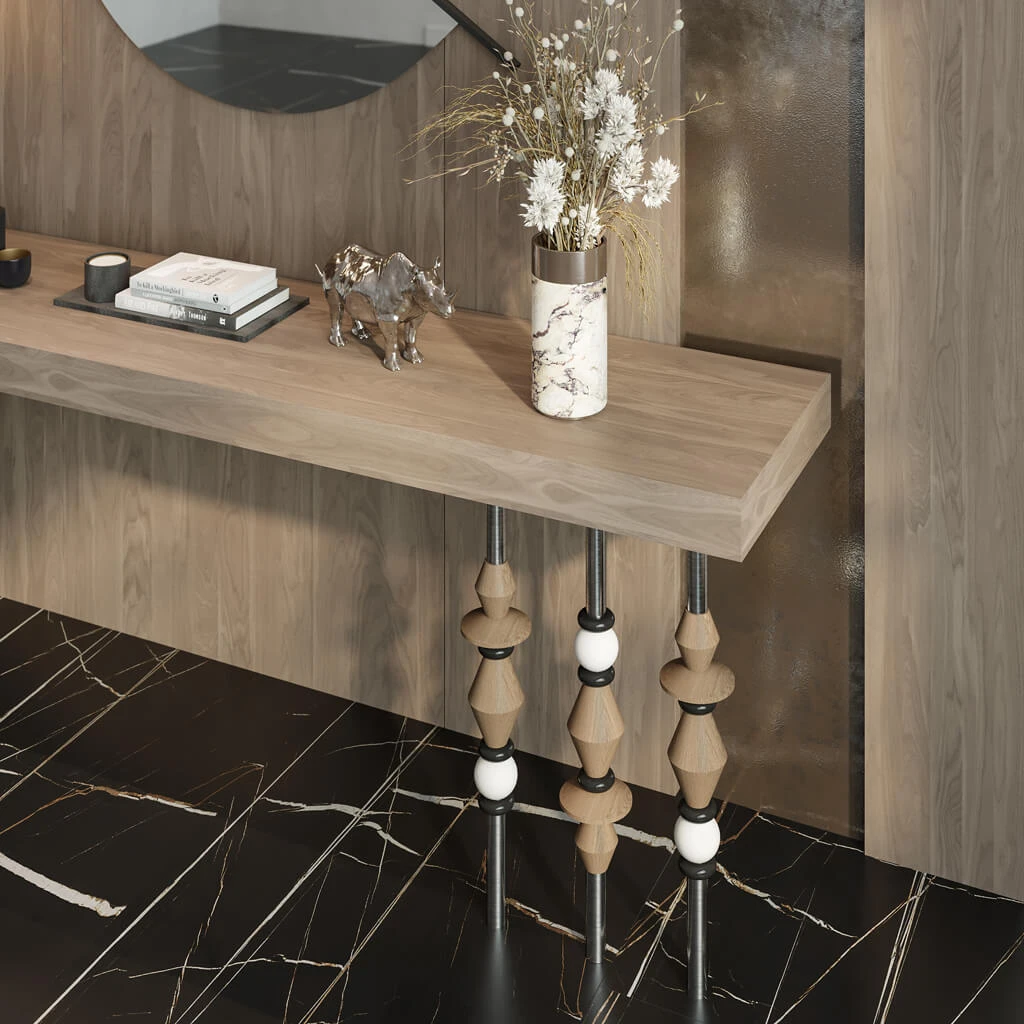

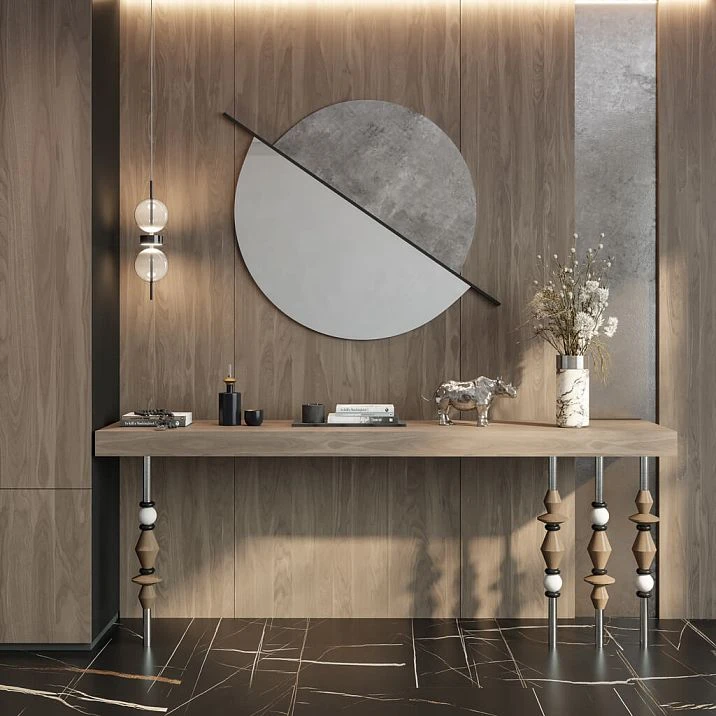

In a long console, you can use several identical KON-010 kits, placing them symmetrically along the entire length of the tabletop. This solution helps distribute visual rhythm and make a large piece of furniture more expressive.

For a compact console or vanity table, two or four supports are usually considered. The exact number depends on the length of the body, the expected load, the presence of wall mounting, and the design of the furniture frame.

Furniture leg made of solid beech

Beech is suitable for furniture that is planned to be painted with opaque enamel. The wood has a fairly calm texture and, after proper preparation, allows for a smooth decorative coating.

Beech elements KON-010 can be painted white, black, gray, beige, green, blue, burgundy, or another color. The set is suitable for both monochrome finishing and combining several shades.

With combined painting, large geometric shapes can be left in the natural wood shade, while the axis and thin dividing elements can be made contrasting. Another option is to paint the entire set in one color, preserving the expressiveness of the form through volume, light, and shadow.

Solid oak furniture leg

Oak is recommended for projects where it is important to preserve the natural wood grain. After treatment with oil, stain, or clear varnish, the texture of the solid wood remains visible on rounded and multifaceted surfaces.

The oak set KON-010 can be combined with solid wood tabletops, veneered facades, wooden wall panels, mirror frames, doors, and other interior elements made of oak.

Toning allows you to change the shade of the wood without completely hiding the texture. Light finishing is suitable for calm modern interiors, while dark finishing is suitable for studies, halls, art deco interiors, and expressive designer furniture.

Finishing options for KON-010

The kit comes with a "Prestige" quality sanding finish. The surface is prepared for subsequent decorative treatment, but it is recommended to perform a test assembly before applying the final coating.

For finishing, you can use:

• wood oil;
• covering furniture enamel;
• stain or other tinting compound;
• clear or tinted varnish;
• patina;
• a combination of several shades;
• a mix of natural wood and painted elements.

Oil highlights the texture of beech or oak and preserves the natural look of the solid wood. Enamel allows for a smooth coating in almost any color. Stain changes the shade of the wood without hiding its natural grain. Patination can be used to further emphasize edges and transitions between geometric shapes.

Thin shapes KN-009 are convenient to use as color separators. They can be painted black, white, metallic, or another contrasting shade to emphasize the structure of the assembled leg.

How to assemble the furniture leg kit

KON-010 is supplied disassembled. Before final fixation, perform a dry assembly without glue and check the sequence of elements, overall height, symmetry, and the position of shapes on the axis.

Recommended sequence of work:

1. Determine the design height of the finished furniture support.
2. Cut the wooden rod MLD-060 to the required length.
3. Clean parts from dust after processing and fitting.
4. Sequentially install the geometric shapes onto the axis.
5. Check the position of large and small elements.
6. Mark the installation locations of each shape.
7. Apply wood glue to the surfaces to be joined.
8. Install elements according to the markings and check alignment.
9. Secure the composition until the glue is fully polymerized.
10. After drying, remove any glue residue and perform final finishing.

For assembly, it is recommended to use PVA glue class D3 or another composition suitable for joining wooden parts. During drying, elements can be secured with masking tape. If necessary, additional fastening with micro pins is allowed, if provided by the product manufacturing technology.

Large geometric shapes can be used as connecting nodes. It is allowed to glue two axis segments from opposite sides into such a part if an elongated decorative structure needs to be assembled.

Why finishing is recommended after assembly

Painting, tinting, or varnishing is best done after final fitting and assembly of the set. The paint coating inside the mounting hole may reduce its working diameter and make it difficult to install the shape on the MLD-060 axis.

If individual modules need to be painted before assembly, the 34 mm diameter mounting channel should be pre-covered with masking tape, a plug, or other protective material.

After the coating has dried, check the free fit of all elements. Do not install figures with excessive force, as this may damage the coating or the wooden part itself.

Can the composition of KON-010 be changed?

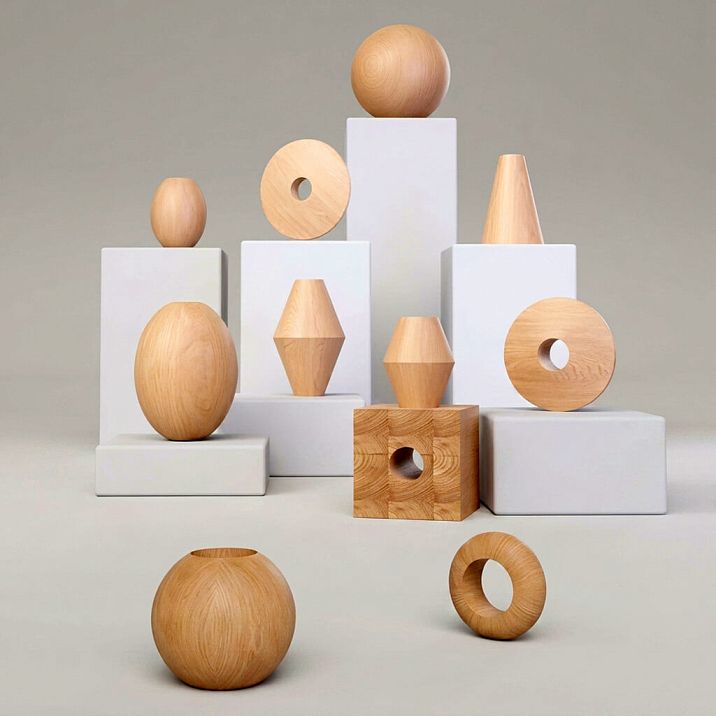

The set belongs to the STAVROS wooden construction system. The standard composition can be adapted to a specific furniture project: change the sequence of figures, remove individual elements, or add other modules with a 34 mm diameter mounting hole to the leg.

When changing the composition, the following must be redefined:

• total height of the furniture leg;
• length of straight sections of the axle;
• position of large geometric elements;
• maximum width of the composition;
• distance to the body and adjacent supports;
• location of connection points;
• method of attaching the leg to furniture.

When making several identical legs, it is recommended to first assemble one control sample. After checking the dimensions, the layout of the shapes is transferred to the remaining axes using a single template.

Attaching the leg to the furniture body

The KON-010 kit is designed for assembling a decorative support. The specific method of attachment to the tabletop, cabinet, or other furniture body is selected separately, taking into account the product design.

For installation, mounting pads, metal plates, threaded rods, joinery connections, or an additional internal frame can be used. The choice depends on the weight of the furniture, the number of supports, the body material, and the expected load.

If the console is mounted to the wall, decorative legs can be used as front supports. In this case, it is necessary to precisely match the height of the legs with the level of the wall mount. For a freestanding table, sufficient spatial rigidity of the entire frame must be ensured.

Before serial production of furniture, it is recommended to perform a trial assembly and check the stability of the finished product under the design load.

Advantages of the KON-010 kit

• a ready-made composition of compatible wooden elements;
• height 730 mm for consoles, tables, and furniture cabinets;
• expressive combination of rounded, disc-shaped, and faceted forms;
• solid beech or oak array;
• All parts have a uniform mounting diameter of 34 mm.
• "Prestige" sanding quality;
• Surface preparation for subsequent finishing;
• Possibility of solid or combined painting;
• Ability to change the sequence and number of figures;
• Suitable for custom and serial furniture production.

The main advantage of KON-010 is the compatibility of all elements. The customer does not need to separately select the axle and check the hole diameter of each geometric shape. The components are already combined into a ready-made composition and designed for installation on the MLD-060 molding.

Ordering and delivery of KON-010

The KON-010 furniture leg set is made to order from solid beech or oak. The average production time is 5–10 days. If the product is in stock, shipment from the warehouse is carried out within three working days.

Delivery is carried out throughout Russia by the transport company CDEK. The set is supplied disassembled, which simplifies packaging, transportation, test assembly, and subsequent individual finishing.

Before placing an order, it is recommended to determine:

• the required number of furniture legs;
• material — beech or oak;
• planned color or finishing method;
• type of furniture and body dimensions;
• the standard or modified composition of the set;
• intended method of support attachment.

The KON-010 kit is suitable for furniture manufacturers, carpentry workshops, interior designers, and private clients who need unusual wooden legs for a console, table, cabinet, or other custom furniture piece.

KON-010 combines solid natural wood, precise part compatibility, and the freedom of a modular system. The thoughtful combination of geometric shapes allows for the creation of an expressive furniture support that can be adapted in composition, material, and decorative finish.
