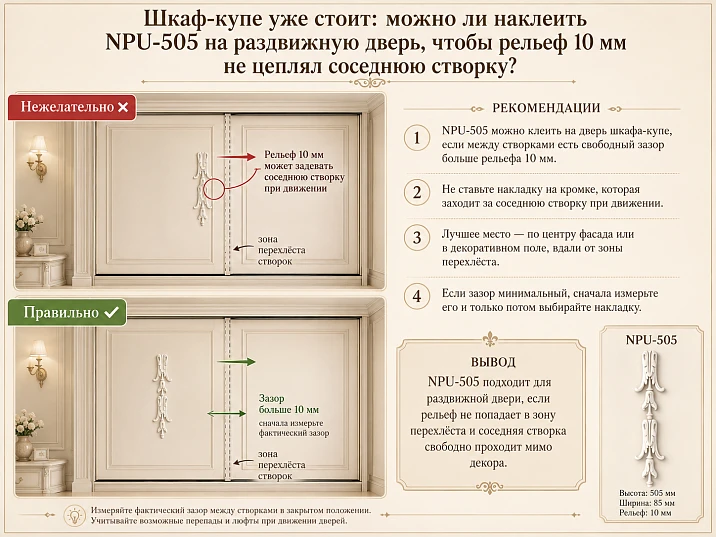

The wardrobe is already in place: can NPU-505 be glued onto a sliding door so that the 10 mm relief doesn't catch the adjacent panel?

The sliding wardrobe is already assembled and works fine. The doors slide easily along the tracks, I don't want to change the fronts, but the smooth surface looks too plain. In the catalog, I liked a specific vertical decorative overlay made of polyurethane, NPU-505, sized 50 × 228 × 10 mm. It's compact, elongated, fits the character of the furniture, and costs 890 ₽. It seems enough to choose a spot on the door, order the needed quantity, and glue it on.

But a sliding wardrobe has a fundamental difference from regular hinged furniture: the two panels move not outward, but in parallel planes and pass one in front of the other. Therefore, the 10 mm size here becomes not just a relief characteristic. It's a potential 10 mm of additional volume on the front side of the door that must pass through the existing mechanics of the wardrobe without hitting the adjacent panel, profile, handle, side, or another element.

That's why the question before buying is not:

"Is NPU-505 suitable for the wardrobe?"

But much more specifically:

"Is there actual space in my wardrobe for the 10 mm relief exactly where I want to place NPU-505, and will the overlay pass through the entire cycle of door movement?"

There is no universal answer "10 mm is fine" here.

In one cabinet, there is enough space between adjacent doors.

In another, the door panels pass almost flush against each other.

In one design, the outer door provides a good spot for decor, while on the rear, the same 10 mm immediately falls into the path of the second door.

In a three-door cabinet, the situation may differ for each of the three tracks.

Therefore, NPU-505 is a good product for this task precisely because its size is known in advance. There is no need to buy the overlay blindly. You can make an exact template of 50 × 228 mm with a 10 mm protrusion, install it in the intended location, and literally test the cabinet by hand.

If the template completes the full travel along with the door and does not touch adjacent parts anywhere, after a dry fit of the actual NPU-505, you can proceed to installation.

If the relief catches the adjacent door, there is no need to file the overlay blindly or force the mechanism to work with friction. It is wiser to change the placement, decorate only the other door, or switch to a catalog of flatter vertical overlays.

Therefore, the entire article is built around a simple sequence:

determine the door positions along the tracks → find the dynamic overlap zone → measure the actual clearance → make an NPU-505 template of 50 × 228 × 10 mm → run it along the full door travel → check handles and edges → only then count the quantity and place the order.

Go to Catalog

What exactly we are buying: NPU-505 — a vertical decorative overlay made of polyurethane.

First, let's fix the actual product, because for the cabinet mechanism, every millimeter matters more than the general description of "stucco decor."

NPU-505 is a vertical decorative overlay made of polyurethane.

Confirmed size:

50 × 228 × 10 mm.

Current price:

890 ₽ per trim.

Parameter	NPU-505	What it means for a sliding wardrobe
Type	Vertical decorative trim	Can be used as a separate vertical accent
Material	Polyurethane	Requires a suitable mounting method for the specific facade
Width	50 мм	Need to check the free decorative field
Height	228 мм	Need to determine the position on the door and the movement zone
Maximum depth dimension	10 мм	Critical parameter for passing the adjacent panel
Current price	890 ₽/pcs.	Quantity is calculated after checking each group of doors
Ornament	Acanthus	Allows linking the overlay to a classic/neoclassical furniture composition
Main risk	Contact with the adjacent panel	Verified by actual door movement before purchase

It is the 10 mm depth that makes NPU-505 interesting for a separate review.

For a regular hinged door, this parameter primarily affects the expressiveness of the relief.

For a sliding wardrobe, it simultaneously becomes a geometric constraint of the mechanism.

If the check is passed, you can buy a decorative overlay NPU-505 already for a specific door and a specific layout.

Why can't you say: "10 mm is not much, so it will definitely fit"

Ten millimeters really seems like a small amount.

Just one centimeter.

But the question is not whether it's a lot or a little in general.

You need to compare 10 mm with the specific free distance between the moving planes of your cabinet.

Let's imagine two cabinets.

In the first one, there is enough space between the front surface of the back door and the nearest rear part of the front panel. A 10 mm thick overlay passes freely.

In the second one, this space is smaller. Regular smooth doors do not touch, so the owner never noticed the problem. After the appearance of the NPU-505, the new part begins to catch the adjacent door.

Both cabinets are called "sliding-door wardrobes."

Both are functional.

The result is different.

Therefore, the rule "up to 10 mm is acceptable" cannot be used as permission to purchase without measuring.

Our factory also produces:

View Full Product Catalog

What does the 10 mm size of the NPU-505 mean?

The product card specifies the dimension:

50 × 228 × 10 mm.

For our task, 10 mm should be used as the calculated maximum size of the product in depth.

The relief itself has a complex shape: the decorative surface is not a solid rectangular block of uniform thickness.

But for checking the passage, this is even good.

We are interested not in the average depth of the pattern, but in the maximum space that must be left for the product.

Therefore, it is better to build the layout based on 10 mm, rather than trying to visually guess the "average protrusion" of the ornament.

The main mistake is measuring the distance between doors only when the wardrobe is closed.

A sliding wardrobe constantly changes the relative position of its doors.

When the doors are closed, one part of the facade may be far from the adjacent one.

After movement, this same area passes directly behind or in front of another door.

This means that a static photograph of a closed wardrobe is insufficient.

You need to understand the trajectory.

In this article, it is convenient to use the term:

dynamic overlap zone.

This is the section of the door that, during its movement, passes behind or in front of the adjacent panel.

It is there that the decorative trim must have enough space.

What is the dynamic overlap zone in simple terms

Close the cabinet.

Look at where one door overlaps the other.

Now slide the panel to the opposite position.

The overlap area has moved.

Therefore, the issue is not limited to where the doors overlap when closed.

You need to trace the entire path of the NPU-505 from one extreme door position to the other.

If at any point the adjacent panel passes too closely, contact will occur there.

First, determine: which door is the front and which is the back.

In most sliding wardrobes, the door panels move along several parallel tracks.

One panel is closer to the room.

The other is deeper inside the wardrobe.

Let's conditionally call them:

front;

back.

This is crucial for the decorative overlay.

If the NPU-505 is installed on the back door, its relief protrudes forward — exactly where the rear surface of the front panel may pass.

That is, 10 mm directly consumes the inter-door space.

On the front panel, the decorative relief protrudes even further into the room. In the pure geometry of two parallel doors, the risk of collision with the rear panel is often lower because the overlay is directed away from it.

But you cannot turn this observation into a universal rule.

Other restrictions remain on the front door:

side profile of the cabinet;

handle;

edge of the opening;

adjacent furniture;

specifics of the particular guide;

other front panels in a multi-door system.

Therefore, the wording should be as follows:

the front panel often turns out to be a more convenient candidate specifically from the point of view of the inter-door gap, but only a full test of the specific cabinet makes it safe.

The rear leaf is the first place where you need to check 10 mm especially carefully.

Let's imagine a classic two-door scheme.

The front leaf slides in front of the rear one.

You want to install the NPU-505 on the rear one.

In the closed state, everything looks great.

Visually, it's far to the adjacent door.

We start opening.

The rear leaf goes behind the front one.

The NPU-505 enters the space between the doors along with it.

This is exactly where a potential contact point arises.

If the free space is less than required, the overlay will start:

touching the adjacent door;

scratching it;

slowing down the movement;

creating noise;

or will not allow the panel to pass at all.

Therefore, for the rear door, you cannot limit yourself to a paper template of 50 × 228 mm. The thickness of the mock-up is mandatory.

How to measure the actual gap between passing panels

There are two ways.

Method 1. Direct measurement

If the structure allows access to the space between the doors, measure the minimum distance between:

the front plane of the door where the NPU-505 is intended to be installed;

and the nearest surface of the adjacent leaf that passes in front of it.

It is important to find the minimum, not a convenient spot with the maximum gap.

Check the distance in several door positions.

Method 2. Volumetric test mock-up

It is often more illustrative.

Make a temporary mock-up with a thickness of 10 mm.

For example, assemble a block of the required thickness from thick cardboard or another light, safe material.

Its front dimensions:

50 × 228 mm.

Thickness:

10 mm.

Temporarily and very carefully attach it to the facade.

Then slowly move the door through its entire working path.

If contact occurs — the test is finished.

Do not push the door harder to "see if it will pass."

Why you cannot use just a sheet of paper for the test

The sheet will show:

a width of 50 mm;

height 228 mm;

position relative to the handle;

Symmetry.

But it will not show the main mechanical risk.

Paper has almost no thickness.

Therefore, a cabinet with a paper NPU-505 will slide perfectly even when the real overlay does not fit between the doors.

For a sliding wardrobe, a two-stage mockup is needed:

first flat — for design;

then volumetric 10 mm — for mechanics.

First make a flat template 50 × 228 mm

This is the simplest first filter.

Cut out a rectangle.

Attach it to the door.

Check:

is the overlay too large;

does it conflict with the handle;

is it not at the very edge;

does it look good vertically;

is one element needed or a pair;

how to repeat it on adjacent panels.

If at this stage the NPU-505 does not fit compositionally, there is no point in building a full-scale test.

If the flat layout is pleasing, add 10 mm.

Then make a three-dimensional mock-up of 50 × 228 × 10 mm

The mock-up does not have to replicate the acanthus ornament.

Its function is purely geometric.

The resulting rectangular volume is even stricter than the real overlay, because it occupies the entire specified dimension.

Secure it so that the temporary material and tape do not damage the finish.

Then move the door slowly.

Not with a jerk.

Not 'with a running start'.

Do not push after resistance appears.

If the mock-up touches the adjacent leaf, the real NPU-505 in this area should not be purchased for such a layout.

Why the test should be done along the entire travel, not just 20–30 cm

The most dangerous mistake:

the door with the mock-up was moved slightly;

nothing happened;

concluded it "fits."

But the adjacent panel may only come close to the decor in a different position.

Especially if the doors have slight structural deviations vertically, the tracks differ in geometry, or additional profiles are installed at the edges.

Therefore, we check:

from the fully closed position;

through the middle;

to the maximum open position.

Then back.

Only a full cycle provides useful information.

If the gap is exactly 10 mm, it does not automatically mean "allowed".

Suppose you measured the distance and got exactly 10 mm.

The NPU-505 also has a maximum depth dimension of 10 mm.

Mathematically, it seems:

10 = 10.

So, it should fit.

For moving furniture, such a conclusion is risky.

The leaves are not stationary laboratory planes.

During movement, the following may occur:

slight play;

tilt of the panel;

difference in height position;

roller features;

imperceptible deviation of the guide.

Therefore, equality of nominal dimensions cannot be considered a sufficient margin.

In such a situation, a full-size physical mockup and a slow test are needed.

Do not invent a universal additional margin in millimeters

One could write:

"A 10 mm overlay means a 12 mm gap is needed."

Or 15.

Or 20.

But such a number without data from the manufacturer of the specific sliding door system would be a guess.

One mechanism needs only one margin.

Another has more pronounced play.

A third is designed differently.

Therefore, the article does not assign a universal number.

It requires a real free passage without contact across the entire range of motion.

Check the gap at the height of the NPU-505 itself.

The NPU-505 has a height of 228 mm.

If you plan to install it approximately in the center of the door, the gap at that specific section is of interest.

There is no need to measure only near the floor, because it is convenient to bring a ruler there.

The door leaf may have a slight difference in position along the height.

Therefore, it is useful to check the distance:

at the upper part of the intended overlay;

approximately in the center;

at the lower part.

This way, it becomes visible whether the entire future relief passes freely and evenly.

If the NPU-505 is desired to be placed higher, the test is moved there as well.

Suppose there is a handle in the center.

You are lifting the decorative trim.

Now the mechanical check should be performed in the new zone.

You cannot measure a good gap in the center of the door and automatically assume the top is the same.

The same applies to the lower position.

The location of the decorative trim and the measurement location must match.

Mark on the door not the static overlap, but the entire "movement corridor"

A useful practical technique.

Attach a small strip of masking tape along the boundary of the area that, in different positions, goes behind the adjacent panel.

Slide the door.

Mark the new position.

In the end, it will become clear which part of the facade actually passes through the tight space between the doors.

This is the most risky zone for volumetric decor.

Sometimes after such a test, it turns out that the upper part of the facade almost always passes behind the other door.

Sometimes the edge is safer.

Sometimes there is no free zone at all.

Can you simply place the NPU-505 outside the overlap zone?

Sometimes — yes.

If a specific section of the door never passes behind the other panel during full travel and does not collide with the side, it can be significantly more convenient for relief decor.

But this is determined only by the actual kinematics of your cabinet.

You should not look at the closed facade and draw a "safe corner" by eye.

Slide the door all the way.

The front panel often gives more freedom for a single decorative accent.

If the cabinet has two doors and you want to install only one NPU-505, it is reasonable to check the front door first.

Why?

Its front relief usually protrudes outward, toward the room, rather than into the space between the panels.

This often reduces the risk of inter-panel contact.

Then it remains to check:

whether the overlay goes beyond the side wall of the cabinet when opening;

whether it interferes with the handle;

whether it is too close to the edge;

whether it collides with adjacent furniture.

If all checks pass, one decorative accent on the front door can be the simplest way to modernize a finished cabinet.

But one NPU-505 only on the front door can disrupt symmetry.

Functionally, everything is fine.

Visually, a new question arises.

Two identical doors were smooth.

Now one has a classic acanthus ornament.

The other does not.

If the cabinet is initially asymmetrical, this can look natural.

If the facades are identical and form a strict pair, one overlay can seem random.

Then you have to choose between three options:

leave one accent;

find a safe position for NPU-505 on the second door as well;

choose a flatter decor that can be repeated on both leaves.

That is why the mechanism directly affects the quantity of goods.

The rear door does not have to remain without decor — first we look for a safe place

If the central position on the rear leaf does not work due to the gap, you do not have to give up right away.

Check a different height.

A different area.

Full door path.

Perhaps part of the facade does not fit into the tight dynamic overlap.

But if with normal opening almost all the decor passes behind the front panel, the NPU-505 with 10 mm becomes a poor candidate specifically for this door.

Then it's better to go to the section where you can buy vertical polyurethane overlays, and look for a flatter format.

Cabinet with three sliding doors: one check is not enough

Three-panel systems are more complex.

can be:

two rails;

three rails;

different distribution of panels;

central door on a separate track.

Therefore, one conclusion cannot be made:

"If it passed on the first one, then we set three."

For each door, write down:

which guide rail it runs on;

which panels pass in front of it;

which ones are behind;

which zones it enters;

where the overlap is intended.

And only after that test the NPU-505.

A three-door wardrobe can give three different answers

For example:

left front door — NPU-505 passes;

central rear — catches the adjacent one;

right front — passes.

This results in a new decorative challenge.

You can place two overlays on the outer doors and leave the center smooth.

This can even look compositionally stronger than three identical elements.

That is, a technical limitation sometimes turns into a ready-made design technique.

Two outer NPU-505 on a three-door wardrobe

Let's imagine three identical facades.

The central door moves in a tighter zone.

The outer front ones allow a relief of 10 mm.

Place the paper templates on the two outermost doors.

Step back.

This results in frame logic:

overlay — smooth center — overlay.

If the ornament is oriented and positioned symmetrically, this option can be very convincing.

Quantity:

2 NPU-505.

The cost of the overlays themselves at the current price:

2 × 890 = 1 780 ₽.

Three NPU-505 on three doors

If the mechanics allow installing one overlay on each facade:

3 × 890 = 2 670 ₽.

This results in a repeating vertical rhythm.

Before purchasing, be sure to install three flat templates simultaneously.

One NPU-505 can look quite delicate.

Three identical elements are already a noticeable decorative system.

Four overlays on a large wardrobe

If the wardrobe has four sliding panels and one NPU-505 is planned for each:

4 × 890 = 3 560 ₽.

The sum of the elements themselves remains quite clear.

But mechanical verification becomes more labor-intensive: each trajectory must be tested.

Do not buy four pieces based on testing one front door.

Six NPU-505: two per three doors

Sometimes a tall facade is desired to be decorated with a pair of vertical elements.

For example, one higher and one lower.

For three panels, you will need:

6 NPU-505.

The current cost of the overlays themselves:

6 × 890 = 5 340 ₽.

But before moving on to such an order, you need to understand two things.

First — is there too much decor.

Second — do both overlays on each door pass through all movement zones.

The top element may have a good gap, but the bottom one may not.

You cannot transfer the result of the top NPU-505 to the bottom one.

This is especially important for tall doors.

The cabinet may have a slight geometric difference between the top and bottom.

If a 10 mm volumetric template passes at the top, the situation at the bottom may differ.

Therefore, when there are two overlays on one door, both positions are tested.

Not just the facade itself.

The wardrobe handle is a separate work area

Sliding doors often use:

recessed handles;

profiled edges;

end profiles;

integrated grip.

If the NPU-505 is located too close, the decorative relief may interfere with the hand or create the feeling of an extra handle.

Therefore, before ordering, it is useful to open the wardrobe several times with a flat template.

The hand should not constantly catch on it.

Do not turn the NPU-505 into a handle

The vertical shape of 50 × 228 mm may subconsciously provoke the user to grab it.

But the NPU-505 is a decorative overlay.

It does not need to be designed as a working grip for a heavy sliding door.

The cabinet should continue to be opened with its standard handle or profile area.

If all users instinctively pull on the decorative template, the position should be changed.

The closer the NPU-505 is to the edge of the door, the more checks are needed

Shifting toward the edge sometimes helps to move away from the central overlap zone.

But new risks arise.

The overlay may:

to be near the handle;

to approach the aluminum profile;

to pass near the side panel of the body;

to visually appear randomly shifted;

to conflict with the adjacent door in a different position.

Therefore, "shift to the edge" is not an automatic solution.

Central position is the first option for design, but not for mechanics

On a smooth door, the vertical NPU-505 is naturally tried on along the central axis.

Visually, this is the simplest option.

But a sliding wardrobe is first checked functionally.

If the center is in the dynamic overlap zone and the 10 mm relief catches the adjacent door, symmetry does not justify the problem.

Then another position or another product is sought.

The upper part of the door is sometimes more convenient for a single accent.

On the tall NPU-505 door, you can try raising it higher.

This allows:

keep the handle free;

create a vertical decorative accent;

in some designs, avoiding the narrowest part of the inter-door passage.

But the last statement needs to be checked on your specific cabinet. You cannot assume the top is automatically more spacious.

The lower part is not a universally safe place

It seems that adjacent doors slide apart evenly along their entire height.

In ideal geometry, this is the case.

In real furniture, the gap may vary slightly.

Additionally, in the lower zone there are rollers and profiles, and people more often come into contact with the facade with their feet, vacuum cleaner, and household items.

Therefore, the lower position is checked separately, rather than chosen as a "safe by default" option.

If the doors are mirrored

NPU-505 is also designed for decorative use on various interior surfaces, but a mirrored facade is a separate substrate.

Here, two issues need to be resolved.

The first is mechanical: whether the 10 mm relief fits.

The second is installation-related: whether the chosen adhesive is suitable for the specific mirror/glass and its coating.

Do not transfer the method of gluing from painted MDF to a mirror without checking compatibility.

If the mechanics are fine, the mounting solution is chosen separately.

If the facade is made of laminated chipboard or MDF

Again, the main difference here is not related to the NPU-505 article, but to the surface.

Laminated coating.

Enamel.

Film.

Veneer.

Each base has its own adhesion and its own requirements.

Therefore, the article cannot assign one "universal glue for any cabinet".

First, determine the coverage.

Then choose a compatible mounting material.

If the facade is already painted

After installing the trim, you want it to look like part of the door.

This may require matching the color of NPU-505 with the existing finish.

But don't start with painting.

First, geometry.

Then a mechanical test.

Then a dry fit of the actual product.

Only after that, the finish.

Otherwise, you can perfectly prepare an overlay that ultimately doesn't fit between the doors.

Why the NPU-505 with acanthus ornament is especially noticeable on a smooth facade

The size of 50 × 228 mm is relatively compact.

But the acanthus relief creates an expressive vertical line.

If the cabinet was completely smooth and modern, even one NPU-505 will change its character.

Before purchasing, it's useful not only to check the mechanics, but also to decide whether the furniture really needs such a classic motif.

If so, you can look at other polyurethane overlays with acanthus ornament, especially if the NPU-505 doesn't fit in depth or scale.

Don't confuse the NPU-505 with flat film or decorative printing

The ornament has real volume.

That is why it creates chiaroscuro and an architectural effect.

But that is why it has to be checked in the sliding wardrobe mechanism.

The film barely changes the thickness of the facade.

NPU-505 changes it.

This is not a defect of the product.

This is a property that must be taken into account during design.

What to do if the gap is clearly more than 10 mm

Even in this case, do not place an order after a single measurement.

Make a full-scale template.

Take a full turn.

Check the adjacent doors.

Why?

Because the measured clearance may be sufficient at one point and smaller at another.

A physical check takes minutes and gives a much more reliable answer.

What to do if the gap is clearly less than 10 mm

Here the answer is simpler.

If the adjacent leaf passes closer than the maximum dimension of the NPU-505 requires, it cannot be installed in this dynamic zone expecting that the relief will somehow spread out.

Options:

move the overlay;

arrange a different door;

choose a flatter decorative element.

Do not force the panels to rub against each other.

What to do if the layout touches the adjacent door just a little bit

It is still contact.

You cannot consider:

"If it's slight, then it's fine."

Repeated movement of the doors means constant friction.

Even if the cabinet continues to open, the contact can damage the finish of the overlay or the adjacent facade.

The correct test should end with free movement without contact.

Do not file down the back part of the NPU-505 at random

A very tempting idea.

Need 10 mm.

Only the smaller depth fits in the cabinet.

"We'll remove a few millimeters from the back."

The problem is that NPU-505 is a ready-made decorative element with a specified geometry. Arbitrary processing can change:

the contact plane;

strength;

shape;

contour;

fit quality.

If such modification is not provided by the manufacturer, it is wiser to choose a different article.

The catalog of vertical overlays is exactly what this is needed for.

There is no need to grind down the relief itself.

Even worse is reducing the thickness from the front side.

This destroys the pattern for which the NPU-505 was originally purchased.

If 10 mm does not fit, the problem is solved by choosing a different product, not by destroying the ornament.

Do not remove the door adjustment for the sake of decor without necessity.

Sometimes you can try to increase the distance between the panels by adjusting the rollers, guides, or profiles.

But the wardrobe is already working.

Any change to the geometry of the mechanism may affect:

verticality;

smoothness;

abutment;

stops;

position of the facades.

There is no need to rebuild a working system just for one overlay without understanding the construction.

If you still want to change the setting, that is a separate task related to the cabinet mechanics, not a simple installation of a decorative element.

The most reasonable strategy: the decor adapts to the working cabinet, not the other way around

Precisely because the cabinet is already in place.

Its doors:

are adjusted;

they ride;

they close;

match at the edges.

This work has already been done.

Therefore, it is better to choose an NPU-505 or another overlay for the existing mechanics than to first buy the decor and then rebuild the guides for it.

Scenario 1. Two-door cabinet, NPU-505 only on the front door

This is one of the most favorable options.

The overlay is on the front plane of the front door.

10 mm are directed towards the room.

With full travel, the adjacent rear door remains behind it.

The volumetric test passes without contact.

The handle is on the side and does not interfere.

Then one NPU-505 can be installed without mechanical changes.

Cost of the main decor:

890 ₽.

It remains only to decide whether the asymmetry is visually justified.

Scenario 2. The same system, but NPU-505 is needed on both doors

The front one passes.

On the rear, the mock-up catches the back side of the front leaf.

This results in functional asymmetry.

Possible solutions:

leave NPU-505 only on the front;

find another place on the rear;

choose a flatter plate for both doors.

You can't just buy two and hope the second one will 'settle in'.

Scenario 3. The rear door has sufficient clearance

The 10 mm template passes through the full stroke.

Does not touch the adjacent door.

Clearance is maintained at the top, center, and bottom of the future NPU-505.

Then there is no mechanical contraindication for this test.

You can proceed to the actual dry fit.

Scenario 4. The gap is sufficient in the center, but insufficient at the top

The flat template is positioned high.

The volumetric mockup starts touching the front door with its upper section.

The specific reason: the door geometry differs in height.

We move NPU-505 lower or choose a different decor.

One good measurement in the center would not have saved from the error.

Scenario 5. Two extreme front facades of a three-door wardrobe

Both NPU-505 pass freely.

The central rear door does not allow 10 mm.

We place two paper templates only on the extreme doors.

The composition turns out to be symmetrical.

Quantity:

2 pcs.

Cost:

1 780 ₽.

This is a great example where the mechanics themselves suggest a successful layout.

Scenario 6. Three doors on three tracks

Here, the "front/back" distinction is not enough.

Each door can have its own trajectory and pass relative to the other two in different ways.

Create a movement table.

Leaf	Track	Who passes in front of it	Does NPU-505 pass?
Left	1	—	Check
Central	2	Left/right depending on the scheme	Check
Right	3	—	Check

The quantity is determined only after a real test.

Scenario 7. NPU-505 passes but touches the hand at the handle

Door mechanics allow 10 mm.

Ergonomics — no.

We shift the decorative trim higher or closer to the center.

We repeat the mechanical test in the new position.

So one change triggers both checks again.

Scenario 8. Narrow door

The width of NPU-505 is only 50 mm, so it fits easily on the facade.

But the profile handle takes up almost the entire edge.

If you shift the decor toward the center, it falls into the doorway passage zone.

This creates a conflict between two constraints.

In that case, it is better to look at another Polyurethane decor for furniture, rather than forcing the NPU-505 to stand in an inconvenient place.

Scenario 9. Wide tall door

The facade provides a lot of decorative space.

You can try:

one NPU-505;

two vertically;

a symmetrical pair relative to the center.

But for each position, a thorough check is performed.

The more overlays, the more movement areas need to be tested.

Scenario 10. Mirror sliding wardrobe

Mechanically, 10 mm passes.

Now the base becomes the main thing.

It is necessary to choose a mounting method compatible with the specific mirror surface and not damaging it.

Do not automatically transfer recommendations for MDF.

If the mounting system is not confirmed, the adhesion issue is resolved first.

Scenario 11. Facade with aluminum frame

NPU-505 is installed on the filling, not on the profile.

Check:

whether the flat field is sufficient;

does the relief not transition to the aluminum part;

whether it is too close to the vertical grip;

whether it catches the profile of the adjacent sash.

Scenario 12. The cabinet is placed flush against the wall

There is no inter-leaf risk on the front door.

But when it moves to the extreme position, the NPU-505 approaches the side wall.

If the decor is close to the edge, contact may occur exactly here.

Therefore, the full stroke checks not only adjacent leaves, but also the cabinet body.

Scenario 13. Cabinet next to a dresser or other furniture

The NPU-505 protrudes 10 mm outward.

If adjacent furniture almost touches the cabinet doors, the additional volume must also be taken into account.

This is a rare but completely real cause of conflict.

Scenario 14. Decor only on a fixed side element

If sliding doors do not allow relief at all, but the furniture has a decorative fixed panel, consider moving the accent there.

This is a different design scenario, but it keeps the NPU-505 in the project without interfering with the mechanics.

Scenario 15. All panels pass through

Two NPU-505s symmetrically across the width

On a very wide facade, two vertical trims placed side by side can be considered.

But a sliding wardrobe creates another limitation: the closer elements are to the edges, the higher the chance of overlap with handles and adjacent doors.

This layout must be checked with the entire set of mockups simultaneously.

If you want a classic frame plus NPU-505

Then the task becomes significantly more complex.

The molding also has thickness.

So, the following must pass through the overlap zone:

central NPU-505;

plus parts of the frame.

You cannot check only the overlay and consider the entire system safe.

Each protruding element of a furniture facade must fit within the actual passage.

For a sliding wardrobe, minimalism in layout has a practical advantage.

The fewer bulky parts on a moving door, the fewer points of possible contact.

Therefore, one NPU-505 may be much more sensible than a complex system:

frame;

angles;

several overlays;

additional sockets.

This is not a stylistic prohibition.

It's just that every new part requires a separate mechanical check.

How not to confuse a decorative overlay with a molding

NPU-505 is a piece vertical overlay with a fixed size.

50 mm wide.

228 mm high.

10 mm deep.

Molding is a linear profile from which a line is built.

These are different products and different calculation methods.

If you need a single acanthus vertical accent, NPU-505 is more logical.

If you need a frame around the door perimeter, you should look at a different category and separately account for the thickness of each profile.

NPU-505 cannot be used to "increase the handle"

Sometimes, next to a decorative element, there is a desire to use it as an additional grip.

Don't.

The overlay is purchased as an ornament.

The cabinet's opening system remains standard.

This is especially important for heavy, tall doors that a person opens many times a day.

What to buy together with NPU-505

After confirming the mechanics, the cart is simple.

Position	When needed	Purpose
NPU-505	For verified doors	Main decorative accent
Additional NPU-505	If the pattern repeats	Symmetric or rhythmic composition
Mounting material	After determining the facade covering	Fixing the overlay
Finishing materials	If the decor will be matched in color with the facade	Finish
Flatter overlay	If 10 mm does not fit	Alternative solution without changing the mechanism

Suitable Mounting and finishing materials choose after checking the coating of the specific door.

Why you shouldn't buy glue before the mechanical test

Imagine:

overlays are ordered;

mounting compound is purchased;

brushes are prepared;

paint is chosen.

And only then it turns out that the rear door doesn't fit.

The order should be reversed:

mechanics → layout → quantity → base → mounting materials → finishing.

This way, there are significantly fewer unnecessary purchases.

What you don't need to do from scratch if you have a ready-made NPU-505

If a vertical acanthus ornament is needed on a furniture door, you do not need to:

cut it out by hand;

mill the facade;

assemble the plant from several small parts;

make a mold;

achieve repeatability on several doors yourself.

The ready-made NPU-505 already has a size of 50 × 228 × 10 mm.

In a DIY project, the main work shifts from making the ornament to correctly integrating it into the finished cabinet.

For a sliding wardrobe, this is especially important: the mechanics are decided first.

Why you cannot mill a finished door just to "sink" the NPU-505

If the 10 mm relief does not fit, the idea arises to make a recess in the facade and partially sink the overlay.

This is already a serious modification of the door.

Need to consider:

door leaf material;

thickness;

construction;

coating;

frame profile;

strength;

appearance after milling.

This approach cannot be universally recommended for an already finished cabinet.

It is much easier to choose a flatter decorative element.

If 10 mm is too much — don't leave the catalog

This is one of the main commercial conclusions.

NPU-505 may not pass precisely because of the depth.

But the very idea of vertical polyurethane decor remains.

Then it makes sense to open a section that presents decorative polyurethane moldings for furniture, and look for a product with a smaller protrusion.

Now you already have a precise technical specification:

a vertical overlay for a sliding wardrobe with a depth smaller than the actual passage allows.

This is much more useful than choosing anew based only on a photo.

Why a specific measurement is more useful than any list of "fits for wardrobes"

The catalog may indicate furniture as the area of application.

The article can provide a general reference for the relief.

But neither the catalog nor the article knows:

what mechanism is installed in your case;

what is the thickness of the doors;

how many guides;

how the rollers are adjusted;

what profile;

whether there is a mirror;

what is the gap between the doors.

Therefore, the final decision always remains with the actual geometry of the cabinet.

Mistake 1. Seeing 10 mm and deciding that it's definitely too little

The smallness of the size is subjective.

For door movement, a comparative value is needed: the actual clear passage.

Mistake 2. Measuring the gap only when the cabinet is closed

The position of the doors changes.

A full cycle of movement is needed.

Mistake 3. Checking only the front door and buying decor for all

The front and rear doors are in different planes.

They are tested separately.

Mistake 4. Using only a paper template

It has no thickness.

For NPU-505, be sure to simulate 10 mm.

Error 5. Push the door harder if the mockup touches.

Contact already means a problem.

There is no need to check the strength of the mockup.

Error 6. Considering light friction acceptable.

Thousands of openings will turn light contact into constant impact.

The decor must pass freely.

Error 7. Measuring only at one point along the height.

The future NPU-505 occupies 228 mm.

Check her entire zone.

Mistake 8. Assuming the front door is automatically safe

It is often more convenient in terms of the gap between doors, but it can collide with the side panel, wall, handle, or furniture.

Full travel is still mandatory.

Mistake 9. Placing decor on the rear door without checking

This is the most obvious risk of contact between doors.

10 mm directly enters the space between the panels.

Mistake 10. Not determining the dynamic overlap zone

Static position guarantees nothing.

Watch where the decor ends up during movement.

Error 11. Buying one NPU-505 for each door automatically

The quantity is determined by the number of safe decorative positions, not the number of doors.

Error 12. Always considering asymmetry as bad

Two outer overlays on a three-door wardrobe can look great, even if the central door remains smooth.

Error 13. Using NPU-505 as a handle

This is a decorative element.

Keep the standard opening method.

Error 14. Placing the overlay flush against the profile handle

Even if the doors pass, using the wardrobe may become inconvenient.

Error 15. Filing down NPU-505 to thickness without confirmed technology

It's better to choose a ready-made flatter article.

Error 16. Grinding down the front ornament

This eliminates the very reason for the purchase.

Error 17. Rebuilding functional guides for the sake of decor

The decor should adapt to the existing working system if cabinet remodeling is not planned.

Error 18. Not repeating the test with a real overlay

A cardboard mockup shows the dimensions.

The real NPU-505 has a specific contour and back surface.

A dry fitting of the actual product is needed before final fixation.

Error 19. Gluing the test NPU-505 "just in case"

After fixation, the check turns into dismantling.

All tests are performed before gluing.

Error 20. Consider that if NPU-505 does not fit, the cabinet cannot be decorated at all.

Incorrect.

Just a different depth or a different layout is needed.

Who NPU-505 is especially suitable for a ready-made sliding wardrobe

This overlay should be kept in the first row of candidates if:

the cabinet has a sufficiently free inter-door passage;

a compact vertical acanthus ornament is needed;

one or more doors pass the 10 mm test;

there is a free field of 50 × 228 mm on the facade;

the handle does not conflict with the overlay;

the decor can be placed symmetrically or compositionally explainable;

no modification of the mechanism is required.

In this case, NPU-505 allows you to noticeably change the appearance of already installed furniture by adding it locally.

It is better to first check only the front door for some.

If you don't want to thoroughly redo the layout of the entire system and only one accent is needed.

The front leaf has potentially less risk of inter-door contact precisely due to the relief direction outward.

But the full stroke is still checked.

If one NPU-505 looks good compositionally, this is the simplest order.

Who should look for a flatter vertical overlay

if:

rear doors pass too closely;

the 10 mm volumetric layout touches the adjacent door leaf;

all facades must have the same decor;

asymmetry is unacceptable;

NPU-505 would like to be placed exactly in the area that goes behind the adjacent door.

Then it is better to immediately move to the category of vertical overlays.

Who does not need NPU-505 at all

If the cabinet must remain completely smooth.

If the acanthus ornament stylistically does not fit the interior.

If the only possible location is right on the working handle.

If installation requires replacing functional guides.

If the whole idea relies on the hope that "maybe 10 mm will fit."

Doubt is easily resolved with a mockup.

If it shows a problem, that is the answer.

Quick NPU-505 test in one evening

Step 1

Identify the intended door.

Step 2

Understand whether it is front or rear.

Step 3

Cut out the template 50 × 228 mm.

Step 4

Find a beautiful position.

Step 5

Add 10 mm volume to the template.

Step 6

Temporarily secure it.

Step 7

Slowly move the flap along the full path.

Step 8

Check the movement back.

Step 9

Check the handle and side edges.

Step 10

Repeat for each door you want to decorate.

After this, the quantity for the basket is already known.

Decision table before ordering

Inspection result	Solution
The 10-millimeter mockup passes freely	NPU-505 can be left in the project
The front door passes, the rear one catches	Arrange the front one or look for a flatter decor for the pair
The layout catches only in one section of the travel	The current position of NPU-505 is not suitable
The central position does not pass, the upper one passes	Check the upper position visually and mechanically
The relief passes but interferes with the handle	Change the layout
The relief touches the side panel in the extreme position	Move the overlay further from the edge or change the model
It passes on the two outer doors, but not on the central one	Consider a symmetrical pair on the outer facades
All doors have too small a gap	Choose a flatter vertical overlay
The mechanism fits, but the facade is mirrored	Separately check the mounting compound and the base
Everything fits	Dry fit of the real NPU-505 → installation

How to buy NPU-505 without extra parts

Before placing an order, make a simple specification.

For example:

left front door — NPU-505, 1 pc.;

central rear — does not fit by gap;

right front — NPU-505, 1 pc.

Total:

NPU-505 50 × 228 × 10 mm — 2 pcs.

Cost of the overlays themselves:

1 780 ₽.

Such an order is much more accurate than:

"three-door cabinet — put three."

If all three facades passed the test, then the specification will be 3 pcs.

After that, you can order NPU-505 made of polyurethane in an already verified quantity.

What to do after receiving NPU-505, but before the glue

Don't skip the final dry fit.

The cardboard mockup is extremely useful, but the real overlay has actual relief.

Apply it.

If safely possible, temporarily hold it in the intended position without final fixation.

Very slowly move the door.

Look from the side.

Check the adjacent panel.

Check the handle.

After this, the mechanical part of the selection is truly complete.

Can I order one NPU-505 specifically for such a final fitting?

Yes, that is a possible path if the paper test has already shown sufficient clearance and you want to see the actual relief before ordering the entire batch.

But for an initial check, it is not necessary to buy the product: an accurate 10-millimeter mock-up should filter out obviously incompatible mechanics for free.

What to do if the first real NPU-505 passes, but the other doors have not been checked yet

Do not automatically order copies.

Transfer the actual element or a similar mock-up to each future position.

Check the movement.

Only after that multiply the quantity.

Why polyurethane decor for furniture facades requires stricter checking specifically on sliding doors

With a regular hinged door, the outer surface after closing is practically motionless relative to the adjacent one.

With the sliding system, it constantly travels past the other panel.

Therefore, polyurethane decor for furniture facades in a sliding door system becomes part of the moving dimension.

This is the main difference of the theme.

Not the material itself.

Not the ornament.

But the mechanics.

How to use Bukvarix semantics naturally, not spammy.

A person looking for polyurethane decor for furniture may not know the NPU-505 article number at all.

But once in the catalog, they encounter specific dimensions.

The article helps to move to the next level of selection:

not "what is furniture decor";

but "does a specific ten-millimeter relief fit a sliding system."

Therefore, keys like polyurethane decor for furniture, polyurethane decor for furniture facades, polyurethane ornament, polyurethane decor for furniture to buy should naturally be present within the real purchasing task.

Where to look for alternatives within the same ornamental direction

If you like acanthus specifically, but the depth of NPU-505 is not suitable, you don't have to completely change the artistic idea.

Open the section of acanthus overlays.

Compare other models by:

shape;

width;

height;

The main thing for a coupe is the depth.

You already know your maximum actual clearance.

Therefore, the second choice will be much more accurate than the first.

When it makes sense to go up to the general polyurethane catalog

If the problem turned out to be not only in the depth.

For example:

The overlay is too large;

A completely different type of ornament is needed;

Instead of a central element, a thin molding is required;

You want to decorate the cabinet not with individual accents, but with a full frame.

Then you can You can buy ready-made stucco matching the Baroque style. Calculate the quantity: linear meters of cornices and moldings, number of rosettes, pilasters, consoles, corner elements. Add a ten to fifteen percent allowance for trimming. In the general catalog, but the mechanical compatibility filter does not disappear anywhere.

Any new protruding element is also checked against the movement of the doors.

Do not replace one unsuitable trim with a random other one.

If the NPU-505 fails the test, record the reason.

For example:

The maximum allowable relief must be less than 10 mm.

Or:

A width of less than 50 mm is needed due to the handle.

Or:

An element with a height of less than 228 mm is needed.

After this, the catalog becomes a tool.

Without such a technical specification, you are simply choosing by eye again and risk repeating the same mistake.

Commercial block: where to order NPU-505 for a furniture facade

The NPU-505 has a precise confirmed size, so the correct purchase starts not with the cart, but with the layout.

After a positive test, the specification must contain:

NPU-505 — 50 × 228 × 10 mm;

quantity — according to verified facades.

If one is required — one is purchased.

If a symmetrical pair — two.

If three identical doors actually fit the 10-millimeter mockup — three.

On the page you can buy the NPU-505 overlay 50 × 228 mm, and add mounting materials after checking the surface of the specific cabinet.

When to choose decorative polyurethane overlays for furniture of a different depth

The main case is the gap between doors.

But not the only one.

A flatter overlay may be more convenient if:

the door often passes close to a side wall;

the profile handle is nearby;

the cabinet stands in a narrow passage;

you want a less pronounced relief;

there is already a molding on the facade.

In the section you can compare polyurethane decor for furniture — buy suitable overlays already according to the exact dimensions of your cabinet.

FAQ: NPU-505 on a sliding wardrobe door

Can NPU-505 be installed on a sliding wardrobe?

Yes, if the actual geometry of the specific wardrobe allows the NPU-505 profile to pass freely through the entire door travel without contact with the adjacent door, frame, or other parts.

The name "sliding wardrobe" alone is not enough for an answer. Systems differ.

What is the size of NPU-505?

50 × 228 × 10 mm.

For a sliding wardrobe, the last 10 mm are especially important — the maximum product dimension in depth.

How much does NPU-505 cost?

At the time of writing the article, the current price is 890 ₽ per piece.

Before purchasing, the price should be checked on the product page.

What is NPU-505 made of?

made of polyurethane.

What is the ornament on NPU-505?

The model belongs to overlays with acanthus ornament.

Why are 10 mm so important for a sliding wardrobe?

Because sliding doors pass one in front of the other.

Any additional relief increases the facade dimension towards the adjacent panel or the room.

If there is not enough free passage, the parts will touch.

Does a depth of 10 mm mean that NPU-505 is always suitable for sliding wardrobes?

No.

The decision depends on the actual distance between the doors and the entire movement path.

Is there a universal minimum gap for NPU-505?

This article does not specify such a universal gap.

A real free passage is needed, taking into account the mechanics of the specific cabinet.

If there is exactly 10 mm between the doors, can it be installed?

You shouldn't make such a conclusion based only on arithmetic.

The doors are moving parts, so a physical test with a 10 mm mock-up along the entire travel is needed.

How to make an NPU-505 mock-up?

First, cut out a flat rectangle of 50 × 228 mm.

After choosing the position, create a safe, lightweight three-dimensional mock-up of the same size with a thickness of 10 mm.

Why are two templates needed?

The flat one shows the composition.

The three-dimensional one shows the mechanics.

Both are required for a sliding wardrobe.

Can you glue 10 mm cardboard to the door and check?

You can use a temporary lightweight mock-up if the attachment method is safe for the surface.

Move the door slowly and do not apply force upon contact.

Do you need to move the door along the entire track?

Yes.

A small movement is not enough.

Contact may only occur in a different position.

Why can't you just measure the distance with a ruler?

Measurement is useful, but it only shows a specific point.

A volumetric mock-up simultaneously checks the entire trajectory and the real position of the overlay.

Which door is safer to install the NPU-505 on — the front or the rear?

In terms of the geometry of a typical two-rail system, the front leaf often provides more clearance from inter-door contact because the relief protrudes outward.

But this is not a universal solution. The front door is also checked for full travel.

Why is the rear door riskier?

Its decorative relief protrudes forward, into the space where the front leaf may pass.

That is why it is especially important to test the rear door.

Is it possible to find a safe zone on the rear door?

Sometimes yes.

You need to trace the full path of a specific section of the facade. If the chosen zone does not enter a tight overlap and passes freely, the option is possible.

What is an overlap zone?

This is the area where one sliding panel moves relative to another.

For decor, not only the zone when the cabinet is closed matters, but also its entire dynamic range during movement.

Can the NPU-505 be installed only on the front door?

Yes, if such asymmetry looks good and the overlay passes all functional checks.

And what if you want the same decor on both panels?

Both need to be tested separately.

If the rear door does not allow 10 mm, it is more reasonable to look for a flatter overlay for a symmetrical pair.

Can two NPU-505 units be installed on one door?

Such a composition can be considered.

But each position is checked separately along the entire travel.

How much do two NPU-505 cost?

At the current price:

2 × 890 = 1 780 ₽.

How much do three cost?

2 670 ₽.

And four?

3 560 ₽.

Do I need to order one overlay for each cabinet door?

No.

The quantity is determined only after checking the mechanics and composition.

Can NPU-505 be used on a three-door cabinet?

Yes, if the corresponding doors allow a 10 mm relief.

For each guide, the check is performed separately.

What to do if the central door does not allow NPU-505, but the side doors do?

Consider two overlays on the end facades.

Such a layout may look intentionally symmetrical.

Can the NPU-505 interfere with the handle?

Yes, if an unfavorable position is chosen.

The flat template should be checked together with normal cabinet opening.

Can you pull on the NPU-505 as if it were a handle?

Do not design the decorative overlay as a standard grip for the sliding door.

For opening, use the handle or profile provided by the system.

Can the NPU-505 be installed on a mirrored door?

Mechanical compatibility is checked in the same way.

Additionally, it is necessary to select a mounting method compatible specifically with the mirror surface.

Will regular mounting adhesive work for any facade?

It is impossible to give a universal answer without knowing the surface.

MDF, enamel, mirror, laminated materials, and other substrates require compatibility testing of the mounting compound.

Can NPU-505 be filed down to 8 mm if 10 mm does not fit?

The factory geometry should not be arbitrarily changed without a confirmed technology.

It is more reliable to choose a ready-made flatter overlay.

Can the relief be ground off from the front side?

This will destroy the decorative pattern and makes choosing NPU-505 pointless.

Can the distance between doors be increased by adjustment?

The change in mechanics depends on the specific cabinet system.

It is not recommended to rebuild functional guides for the sake of a decorative overlay without understanding the construction.

What to do if the layout rubs slightly?

Consider the selected position unsuitable.

For constant use, a free passage without contact is needed.

And what if it only touches in one extreme position?

This is still part of the normal working travel of the cabinet.

The position needs to be changed, or a different decor should be chosen.

Can the relief catch the side wall of the cabinet rather than another door?

Yes.

Especially if the NPU-505 is located close to the edge of the facade.

Therefore, the full travel to the extreme positions is tested.

How to check the area near the handle?

Install a flat template and open the cabinet several times with a normal hand movement.

If the relief ends up directly in the working grip, change the position.

Do you need to allow extra depth?

The article does not assign a universal number.

You need to achieve real free movement without contact on the specific system.

Can you rely only on the cabinet system's specified clearance?

If you have technical data for the specific mechanism, it is useful.

But the actually assembled cabinet should still be checked with a mockup, since we are interested in the real position of the specific doors.

How to understand that NPU-505 is better placed higher?

If the central zone conflicts with the handle or mechanical passage, the upper position can be checked as an alternative.

After moving, both visual and volumetric checks are performed again.

What to do if 10 mm is too much anywhere?

Switch to flatter vertical polyurethane pads.

This is more correct than modifying the working mechanics of the cabinet.

Where to look for flatter alternatives?

In the STAVROS vertical polyurethane pads category.

You need to search based on the actual limitation of your cabinet.

Is NPU-505 suitable only for cabinets?

No, the model can also be used in other furniture and interior compositions.

But this article specifically examines the most complex mechanical scenario — the sliding door.

Can the NPU-505 be painted to match the color of the wardrobe?

The finishing solution depends on the project and the existing coating.

The main thing is to first complete the mechanical fitting, and only then proceed with finishing.

What to buy together with the NPU-505?

The calculated number of overlays and mounting/finishing materials suitable for the specific base.

Do I need to buy moldings along with it?

No.

The NPU-505 can be used as a standalone vertical accent.

The molding frame is a separate decorative system, which also needs to be checked for thickness for a sliding wardrobe.

How to understand how many overlays I actually need?

For each intended position, answer:

does the 10 mm relief pass;

is the handle comfortable;

does the composition look good.

The number of positive answers is the basis for the order.

What should you check right before payment?

SKU NPU-505.

Size 50 × 228 × 10 mm.

Quantity.

Placement on each door.

Full travel of the volumetric mock-up.

Handles.

Edges.

Base.

Mounting material.

If all this is verified, the risk of a wrong purchase is significantly lower.

NPU-505 is suitable for a sliding wardrobe not by the product name, but by the actual passage of a specific door.

This is the main conclusion.

The vertical decorative overlay NPU-505 has dimensions of 50 × 228 × 10 mm.

The width of 50 mm and height of 228 mm can be easily checked with a regular paper template.

But for a sliding wardrobe, the third digit is more important.

10 mm.

They cannot be considered only as a beautiful relief.

On the moving facade, this is an additional dimension.

If the NPU-505 is installed on the rear door, this dimension may enter the space through which the front leaf passes.

If on the front, the inter-door situation is often simpler, but the side panel, handle, and cabinet edge remain.

In a three-door wardrobe, each trajectory requires its own answer.

Therefore, before ordering, do not ask:

"Is it possible to glue polyurethane decor on a sliding wardrobe at all?"

Ask:

"Does my specific 10-millimeter mockup pass through this specific place of this specific leaf through the entire working stroke?"

The answer is obtained in a few minutes.

Cut out a rectangle of 50 × 228 mm.

Choose a beautiful position.

Add 10 mm of clearance.

Temporarily secure it in a safe manner.

Slowly open the door all the way.

Close it.

Check the adjacent panels.

Look at the handle.

Check the edge of the cabinet.

If the template does not touch anything along the entire path, the NPU-505 remains in the project.

If it touches, do not file down the beautiful acanthus ornament or rebuild the functional cabinet at random. Choose a different position or a flatter overlay.

After that, it makes sense to calculate the basket:

one NPU-505 — 890 ₽;

two — 1,780 ₽;

three — 2,670 ₽;

four — 3,560 ₽ at the current price.

STAVROS company allows you to continue choosing within the same system: if NPU-505 fits — order a specific article; if it's exactly the 10 mm that bother you — switch to vertical polyurethane overlays and choose a smaller relief; if you want to change the entire character of the furniture — ordering polyurethane molding decor already as a full-fledged system.

But you still need to start not with the catalog.

First, open the cabinet.

Look at which door goes in front.

Which one goes behind.

Where they pass by each other.

Make a 10-millimeter mockup.

And run it along the real trajectory.

For a sliding wardrobe, this is much more accurate than any general advice about acceptable decor thickness.
