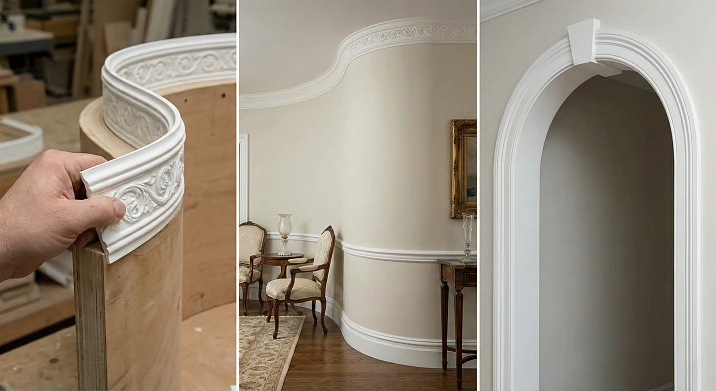

Flexible Polyurethane Molding for Arches, Curved Walls & Columns: Complete Buying Guide

A curved wall can become the most distinctive architectural feature in a room—or the most difficult surface to finish. A graceful arch between the living room and dining room, a rounded bay window, a circular column, or a sweeping staircase brings movement and character to an interior. But when it comes to installing decorative molding, these beautiful curves introduce a practical problem: ordinary trim is designed to remain straight.

A rigid profile can create a clean line across a flat wall. Try to force that same molding around a tight radius, however, and the result may be cracked material, distorted ornamentation, gaps at the mounting surface, or failed adhesive joints.

That is where flexible polyurethane molding becomes particularly valuable.

Manufactured specifically to follow curved architectural surfaces, flexible molding can provide continuous decorative lines without requiring dozens of short, individually fitted segments. Depending on the profile and its rated bending capabilities, it can be used for arched doorways, rounded corners, curved walls, bay windows, columns, and selected ceiling applications.

For American homeowners, interior designers, remodeling contractors, and architectural millwork professionals, the key is understanding which molding will actually work on the intended curve.

Not every polyurethane product is flexible. Not every flexible profile bends in the same direction. And a molding that works around a broad bay window may be unsuitable for a tightly curved arch.

This guide explains how to choose flexible trim molding, calculate the required radius, measure curved surfaces, compare molding materials, and plan an installation that looks professionally executed. It also shows how to coordinate flexible elements with polyurethane molding, ornamental trim, and architectural accents from STAVROS.

Лепнина из полиуретана NPU-417.4

от 99.21 $

Перейти в каталог

What Is Flexible Polyurethane Molding?

Flexible polyurethane molding is an architectural trim product manufactured using a polyurethane formulation designed to bend within specified limits while maintaining its decorative cross-section.

Its purpose is to follow curves that would be difficult or impractical to finish with ordinary straight, rigid molding.

Unlike a conventional profile, a correctly specified flexible molding can conform to the intended curvature while preserving the overall shape of its decorative face.

The precise flexibility depends on the formulation, cross-section, orientation of the bend, and manufacturer's technical specifications.

Flexible molding is not simply a thinner version of ordinary polyurethane trim.

Смотреть видео ...

How Flexible Polyurethane Differs From Rigid Polyurethane

Both rigid and flexible polyurethane products belong to the same broad family of polymers.

However, polyurethane formulations can have widely different mechanical properties.

The behavior of a finished product depends on its molecular structure, hard and soft polymer segments, formulation, manufacturing process, and cross-section.

Rigid architectural polyurethane is typically designed to preserve its shape.

It is appropriate for straight wall frames, decorative panel borders, and ornamental architectural details.

Flexible polyurethane is engineered to allow greater deformation without losing the intended profile.

A rigid decorative strip may tolerate minor handling movement, but this should never be interpreted as approval for a curved installation.

For example, STAVROS offers polyurethane wall molding profiles such as MLDPU-001, MLDPU-002, and MLDPU-003. These products provide decorative options for straight runs and coordinated architectural framing. Their standard product descriptions should not be treated as confirmation that they meet a particular bending radius.

For a curved installation, the buyer needs an explicitly approved flexible version or a separate curved component.

Наша фабрика также производит:

Лепнина из полиуретана NPU-412

от 125.41 $

Лепнина из полиуретана NPU-413

от 155.34 $

Лепнина из полиуретана NPU-416.4

от 110.80 $

Смотреть весь Каталог продукции

Flexible vs. Rigid Molding: Practical Comparison

The correct solution often combines both materials.

Use rigid molding where the architecture is straight and a matching flexible profile only where the geometry actually requires it.

This approach can improve visual consistency while avoiding unnecessary spending.

Why Some Polyurethane Moldings Bend and Others Crack

Polyurethane is not one uniform material.

The word polyurethane describes a family of polymers rather than a single fixed recipe.

Manufacturers can formulate products with different hardness, elasticity, resistance to deformation, and dimensional properties.

Polymer Structure and Elasticity

A flexible polyurethane formulation is designed to allow the material to deform under appropriate loads and return toward its original shape when those loads are removed.

Rigid formulations are designed to resist deformation.

Differences in the underlying polymer chemistry influence these properties, but the behavior cannot be predicted from one number alone.

In particular, density is not a reliable universal measure of flexibility.

A lower-density polyurethane product is not automatically more flexible than a higher-density product.

Likewise, the presence of a particular additive does not establish a safe bending radius.

For architectural applications, the finished profile must be evaluated as a complete manufactured component.

Why Profile Thickness Matters

When molding bends, material on one side of the bend experiences tension while material on the opposite side experiences compression.

A thicker cross-section generally experiences a greater difference in strain across its depth at the same radius.

However, the actual result also depends on the material formulation, the orientation of the molding, and the geometry of its decorative face.

A narrow profile may be easier to accommodate around certain curves than a broad, heavily projecting profile.

This does not mean that every narrow molding is flexible.

The manufacturer's rated bending capability remains the deciding factor.

What Happens When Molding Is Bent Too Tightly?

If the required curve exceeds the product's allowable deformation, several problems may occur.

The decorative face may develop visible distortion.

An ornate pattern may compress unevenly.

The edges may lift away from the mounting surface.

A severe bend may create permanent creases, stress marks, cracks, or local damage.

Even if the molding does not visibly break, excessive springback force may compromise its attachment.

For this reason, the installation should be designed around the molding's documented limitations rather than relying on force to achieve the desired shape.

Minimum Bending Radius: The Most Important Specification

When choosing flexible polyurethane molding, the minimum bending radius is one of the first technical specifications to verify.

The radius describes the distance from the center of a circular curve to the curve itself.

A smaller radius indicates a tighter bend.

A larger radius indicates a gentler curve.

The actual radius of the installation must be equal to or greater than the minimum radius permitted for the molding in the required bending direction.

This comparison is essential.

Example: A Curved Wall With a 36-Inch Radius

Suppose a curved wall has a radius of 36 inches.

You are comparing three hypothetical flexible profiles:

Profile C requires a gentler curve than the installation provides.

It cannot safely be selected for a 36-inch radius simply because the material is described as flexible.

Profiles A and B meet the radius requirement, but their permitted bending orientation, cross-section, and installation details must also be checked.

Inside Curves and Outside Curves

Manufacturers may distinguish between concave and convex bending.

These terms describe the direction in which the molding follows the surface.

A convex bend follows an outward-rounded surface, such as the exterior face of a circular column.

A concave bend follows an inward curve, such as the inside of a rounded architectural recess.

The same profile may have different bending limits for the two orientations.

Some molding designs are suitable only for particular bending directions.

Therefore, a single generic radius number may not be enough.

For professional specifications, request both the applicable minimum radius and the orientation in which the profile may be bent.

Horizontal Bending vs. Vertical Bending

The direction of curvature relative to the cross-section also matters.

A molding following a curved wall in plan experiences a different type of deformation from molding following an arch in elevation.

A flexible profile approved for one may not automatically be suitable for the other.

This distinction is especially important for crown molding and other profiles that contact two surfaces simultaneously.

When selecting a product, describe the actual installation rather than simply requesting flexible molding.

Flexible Molding for Arches: How to Select the Right Profile

Arched doorways are among the most recognizable applications for flexible trim.

An arch creates a curved architectural boundary between rooms.

Decorative molding can emphasize that boundary and make the opening appear intentional rather than unfinished.

The correct solution depends on the shape of the arch.

Semicircular Arches

A semicircular arch forms a half-circle above the springline.

For this geometry, the radius equals half the opening width.

If the opening width is 40 inches:

Radius = 40 ÷ 2 = 20 inches.

The length of the semicircular arc is:

Arc length = π × radius.

Therefore:

Arc length = 3.1416 × 20 = approximately 62.83 inches.

The curved portion of the opening requires approximately 62.83 inches of molding measured along the corresponding arc.

Additional material is needed for trimming, joints, and any planned transition to the vertical casing.

A flexible profile with a minimum permitted bending radius greater than 20 inches would not be appropriate for this arch.

A profile approved for a radius of 20 inches or less may be suitable, provided the bending orientation and installation conditions are also compatible.

Segmental Arches

A segmental arch is a shallow circular arc.

It is common in traditional and transitional interiors where the designer wants a softer opening without a full semicircle.

For a circular segment, the radius can be calculated using the opening's chord width and the rise of the arch.

Let:

• W = chord width

• H = rise, measured from the chord to the highest point

• R = radius

The formula is:

R = W² ÷ (8H) + H ÷ 2

Suppose the opening is 48 inches wide and the arch rises 16 inches.

R = 48² ÷ (8 × 16) + 16 ÷ 2

R = 2,304 ÷ 128 + 8

R = 26 inches

The circular arc length can then be calculated using the central angle:

L = 2R × arcsin(W ÷ 2R)

For this example:

L = 52 × arcsin(48 ÷ 52)

L ≈ 61.15 inches.

This gives the theoretical length of the curved portion.

The final cutting length must still account for the specific installed molding path and any end trimming.

Elliptical Arches

Elliptical arches are more complicated.

Their curvature changes along the arch, so there is no single constant radius.

A flexible profile that works near the crown may not necessarily satisfy the tighter curvature near another portion of the opening.

For an elliptical arch, the full geometry should be reviewed.

A full-size template, CAD drawing, or carefully measured field profile can help identify the tightest portion of the curve.

The selected molding must be compatible with that local curvature.

Do not evaluate an elliptical arch using the radius of a semicircle with the same opening width.

Gothic and Pointed Arches

Pointed arches often consist of two curved sections meeting at a central apex.

Each section may be treated as a separate curve.

The meeting point needs particular attention because the change in direction can create an intentional point rather than a smooth continuous bend.

For such openings, two appropriately fitted lengths may be more suitable than trying to force a single profile through the apex.

A decorative keystone or other accent may be used when it suits the architectural design.

Explore polyurethane decorative onlays and ornamental accents for complementary features used on adjacent straight or purpose-designed mounting areas.

Curved Wall Molding: Decorating Rounded Corners and Bay Windows

Curved walls are increasingly used as architectural features in residential interiors.

A broad rounded corner can soften a hallway transition.

A curved alcove can frame a seating area.

A bay window may create an inward or outward sweeping wall surface.

Flexible wall molding allows an appropriate decorative line to follow the curve without changing its intended visual character.

Curved Wall Panels

Rectangular wall molding is a familiar design technique.

On a straight wall, it is relatively simple to create symmetrical frames from rigid profiles.

A curved wall requires a different strategy.

Horizontal lines following the curvature must use molding that can bend appropriately in plan.

Vertical decorative lines may remain straight, depending on the wall geometry.

This makes it possible to combine standard polyurethane wall moldings on straight sections with verified flexible profiles where the wall curves.

The result should be planned as a continuous architectural composition rather than separate trim fragments.

How to Measure the Radius of a Curved Bay Window

For a circular curved wall, the radius can be calculated from the chord and sagitta.

The chord is the straight-line distance between two points on the curve.

The sagitta is the maximum perpendicular distance between the chord and the arc.

The radius formula is:

R = W² ÷ (8H) + H ÷ 2

Suppose a curved bay measures 120 inches across the chord and projects 32 inches from that chord.

R = 120² ÷ (8 × 32) + 32 ÷ 2

R = 14,400 ÷ 256 + 16

R = 72.25 inches.

The wall therefore follows a circle with a radius of approximately 6.02 feet.

Now consider a flexible molding with a manufacturer-approved minimum radius of 60 inches.

Because 72.25 inches is greater than 60 inches, the curve is gentle enough to satisfy that minimum-radius condition.

By contrast, a molding requiring a minimum radius of 80 inches would not satisfy the requirement.

This comparison prevents one of the most common selection mistakes: rejecting a flexible profile because its minimum radius is smaller than the wall's actual radius.

The smaller minimum radius indicates an ability to accommodate a tighter curve.

How Much Molding Does the Bay Window Need?

For the same circular bay, the theoretical arc length is:

L = 2R × arcsin(W ÷ 2R)

Substituting the measured values:

L = 144.5 × arcsin(120 ÷ 144.5)

L ≈ 141.6 inches, or approximately 11.8 linear feet.

This is the calculated length along the assumed circular arc.

Before purchasing, determine whether the decorative profile follows that exact line.

Molding positioned farther from or closer to the center of curvature may require a slightly different length.

For complicated renovations, direct measurement along the intended trim line is often the simplest final verification.

Rounded Corners

A rounded outside corner may look subtle, but it can create a relatively tight bend.

For example, a quarter-circle corner with a 12-inch radius requires a more flexible profile than a sweeping bay window with a 72-inch radius.

Do not assume that a short curved section is easier merely because it uses less material.

The tightness of the bend—not just the length—determines compatibility.

Flexible Crown Molding for Curved Ceilings and Walls

Crown molding is one of the most visually prominent architectural trim elements.

It establishes the transition between walls and ceilings and can make a room feel more carefully finished.

Installing crown molding on a curved wall introduces a significant geometric challenge.

Unlike a simple flat molding, traditional crown molding has an angled cross-section that normally contacts both the wall and ceiling.

Why Flexible Crown Molding Requires Special Planning

On a curved wall, the crown molding must follow the horizontal curve while maintaining the intended relationship between its two mounting surfaces.

This places additional demands on the profile.

A product that bends successfully as flat wall trim may not behave appropriately as crown molding.

The geometry of the cross-section and approved bend orientation must be considered.

For buyers researching flexible crown molding, the minimum bend radius is only one part of the specification.

The product must also be intended for the wall-to-ceiling transition.

Curved Bay Window Ceilings

A bay window with a rounded wall may have a flat ceiling above it.

In this situation, the crown molding follows the curved wall in plan.

An appropriately designed flexible crown profile may provide a smooth transition around the bay.

The surrounding straight runs can sometimes use matching rigid profiles from the same manufacturer's collection.

This combination may offer the best balance of appearance and cost.

However, compatibility between the rigid and flexible versions must be verified.

Two profiles with similar names are not necessarily identical in cross-section.

Barrel Vaults and Arched Ceilings

A barrel-vaulted ceiling curves in section, creating a different installation geometry.

Decorative molding used to emphasize the vault may follow the curvature of the ceiling itself.

Depending on the design, the appropriate product may be a flexible flat molding, a purpose-made arch profile, or another specialized component.

A conventional flexible crown designed to turn around a curved wall may not be appropriate for bending across a ceiling vault.

Ceiling Domes

Domed ceilings introduce more complex curvature.

Some decorative lines may follow circular paths around the dome, while others extend vertically toward the apex.

These directions create different geometric demands.

For elaborate domes and vaulted ceilings, individually engineered curved components or purpose-made architectural elements may be more appropriate than ordinary flexible molding.

STAVROS offers polyurethane ceiling decoration and ornamental compositions that can be considered for compatible flat or specially designed sections of a larger ceiling scheme.

Any curved component must still be selected separately according to its technical limitations.

Flexible Trim for Round Columns

Round columns provide another useful application for flexible molding.

In traditional architecture, columns may feature horizontal bands, bases, capitals, and other decorative elements.

A flexible profile can potentially follow a circular path around the column.

However, the relationship between column diameter and molding radius must be calculated accurately.

Calculating the Column Radius

The radius of a circular column is half its diameter.

Suppose a column has a diameter of 24 inches.

R = 24 ÷ 2 = 12 inches.

A molding wrapping around the column must be approved for a radius of approximately 12 inches at the applicable reference surface.

This can be a demanding requirement.

Many decorative profiles intended for broad wall curves may not be able to bend this tightly.

Calculating the Circumference

The circumference of a circle is:

C = π × diameter.

For a 24-inch-diameter column:

C = 3.1416 × 24

C ≈ 75.4 inches.

A complete horizontal decorative band therefore requires approximately 75.4 inches along the measured circular path, before considering joints and trimming.

The final length may vary slightly depending on the molding's installed position relative to the measured column surface.

Horizontal Bands vs. Vertical Fluting

It is important to distinguish horizontal decorative rings from vertical fluting.

A horizontal band must bend around the circular column.

Vertical fluting follows the height of the column.

Many vertical decorative details may be created using straight components designed for the column surface, depending on the installation method.

Do not select flexible molding unnecessarily when a straight decorative component will perform the required function.

Decorative Capitals and Bases

Classical column designs often include larger capital and base elements.

These are not necessarily created by bending ordinary molding.

Purpose-made curved or sectional components may be required.

STAVROS provides polyurethane brackets, capitals, and architectural accents for selected decorative compositions.

Check the actual mounting geometry and intended application before incorporating these products into a round-column design.

Curved Staircases and Spiral Architectural Details

Curved and spiral staircases create some of the most technically demanding molding applications.

The challenge is not simply following a circular arc.

A spiral form also changes elevation along its length.

This creates a three-dimensional curve.

Why Ordinary Flexible Molding May Not Work

A profile approved to bend around a flat circular wall is not automatically approved for twisting or simultaneous bending in multiple directions.

A spiral staircase may require both vertical bending and torsion.

The material must accommodate the full geometry.

For this reason, a minimum bending radius alone is insufficient to establish suitability.

Decorative Applications

Flexible trim may be appropriate for certain nonstructural decorative surfaces adjacent to a curved staircase, provided the product is rated for the geometry.

Examples include decorative wall bands, curved wall panels, and selected architectural accents.

However, ordinary decorative polyurethane molding must not be used as a structural handrail or guardrail component.

Handrails, guards, and stair details must comply with the applicable building code and structural requirements.

For a complicated spiral feature, custom-fabricated components may provide a safer and more reliable solution than attempting to force a standard profile into shape.

Choosing the Right Flexible Trim Molding Profile

The shape of the molding is just as important as its material.

Profiles with different widths, depths, and ornamental features may behave differently when bent.

The right choice depends on the architectural surface and the desired appearance.

Simple Flat Profiles

Simple flat or gently rounded profiles are often useful when the objective is to establish a clean decorative line.

They can work well in contemporary interiors or in projects where the curve itself is the main architectural feature.

A restrained profile allows the shape of the wall or opening to remain visually dominant.

Stepped and Classical Profiles

Stepped profiles create stronger shadow lines.

They may suit traditional interiors, decorative wall panels, and classical doorway treatments.

However, deeper and more elaborate cross-sections require careful verification of bending capability.

The presence of several projections and recesses can affect how the profile behaves under deformation.

Beaded Molding

Beaded molding features a repeating series of rounded decorative elements.

It is commonly used in traditional interiors to introduce a fine ornamental rhythm.

When a flexible version is specifically available, the bending must preserve the intended appearance of the beads.

For straight sections, STAVROS offers KPU-105 beaded decorative molding.

This product can provide a reference for coordinating the ornamental style of adjoining straight areas.

A flexible version should not be assumed without explicit confirmation.

Rope Molding

Rope molding creates a twisted or braided ornamental effect.

It can emphasize architectural borders and introduce traditional decorative detail.

A continuous rope pattern is particularly sensitive to distortion and joint placement.

For straight decorative sections, KPU-125 polyurethane rope molding provides a compact braided profile.

When planning a curved application, use only a product specifically approved for the necessary radius and bending direction.

Ornate Molding and Acanthus Leaf Designs

Ornate molding includes more elaborate decorative patterns such as acanthus leaves, floral scrolls, and sculpted reliefs.

These profiles can create striking architectural effects.

However, a highly detailed pattern may present additional challenges when the underlying profile is bent.

Compression on the inside of a curve and tension on the outside can alter the appearance of the ornament.

For this reason, some elaborate designs are better produced as preformed curved elements rather than bent from a straight strip.

The STAVROS collection of ornamental polyurethane molding includes classical patterns that can be coordinated with architectural projects on straight surfaces.

For curved areas, request a technically compatible flexible or purpose-made alternative.

How to Install Flexible Polyurethane Molding

A successful installation begins before the adhesive is opened.

The most important steps are verifying the geometry, checking the product's bending limits, and planning how the profile will be supported.

Flexible molding may look simple to install, but an incorrectly specified adhesive or an unsupported curve can lead to failure even when the molding itself is suitable.

Step 1: Identify the Curve

Determine whether the surface is a semicircular arch, a circular wall, a rounded corner, or a more complicated shape.

Measure the relevant geometry.

For simple circular curves, calculate the radius.

For irregular or changing curves, make a full-size template or accurate field drawing.

If the surface is not a true circular arc, do not assume that one radius describes the complete installation.

Step 2: Confirm the Product's Specifications

Check the manufacturer's technical information for the exact flexible molding.

Verify its minimum bending radius.

Confirm whether the radius applies to concave bending, convex bending, or both.

Determine whether the product is intended to bend horizontally, vertically, or in another specified orientation.

Check the actual profile dimensions and supplied length.

If the manufacturer does not provide adequate information, request confirmation before ordering.

Step 3: Prepare the Installation Surface

The wall or ceiling should be clean, dry, stable, and suitable for the specified adhesive.

Remove loose coatings, dust, and contaminants.

Correct significant surface defects before fitting the molding.

A flexible profile can follow a designed curve, but it should not be expected to compensate for unstable plaster, detached paint, or uneven construction.

Step 4: Condition the Materials

Some manufacturers require molding and adhesives to be stored at appropriate room temperature before installation.

Follow the specific instructions.

A stable working environment can help achieve consistent handling and adhesive performance.

Do not assume that heating is necessary.

Flexible molding approved for installation at normal room temperature may not require any thermal treatment.

Step 5: Create a Dry-Fit

Before applying adhesive, position the molding along the intended curve.

Check how it follows the surface.

Inspect the decorative face for distortion.

Observe whether the edges remain seated against the mounting surface.

For a long arch or curved wall, an assistant may be useful to support the free end.

If excessive force is required or visible damage begins to develop, stop and reassess the product selection.

Step 6: Cut the Profile

Use cutting tools recommended for the specific molding.

A suitable fine-tooth saw or miter saw may be appropriate for many products.

Support the flexible material during cutting to avoid inaccurate edges.

For decorative profiles, consider the position of repeating patterns.

Where two sections will meet, dry-fit the joint before applying adhesive.

Step 7: Select the Adhesive

Choose an adhesive specifically approved for the selected flexible molding and mounting surface.

The adhesive system must accommodate the profile's springback forces, expected movement, and environmental conditions.

Do not assume that every polyurethane adhesive or general-purpose construction adhesive provides suitable performance.

Review the manufacturer's installation instructions for adhesive coverage, working time, initial holding requirements, and full cure.

Large or overhead elements may require additional approved support or mechanical fastening.

Step 8: Position the Molding Gradually

Install the profile according to the manufacturer's recommended sequence.

Controlled positioning helps prevent localized kinks and uneven contact.

For a long arch, it may be practical to work from a consistent reference point and progressively align the profile, while maintaining any required adhesive working conditions.

For a curved wall, ensure that the profile follows the intended layout rather than wandering above or below it.

Do not rely on visual estimation alone when the design requires a precise architectural line.

Step 9: Maintain the Required Support

Flexible molding can exert force as it attempts to return toward its original form.

The adhesive and installation method must resist that force.

Temporary tape, braces, or other approved supports may be used where the manufacturer recommends them.

Do not remove support before the attachment system has reached the required condition.

The correct time depends on the adhesive and environmental conditions.

There is no universal rule that every flexible molding will hold after 30 or 60 seconds of pressure.

Step 10: Finish the Joints

After the profile has been secured, inspect the joints and transitions.

Use the specified joint adhesive or compatible filling material.

Where appropriate, sand and finish the joints to create a consistent surface.

For patterned molding, preserve the ornamental continuity.

Avoid excessive filling that destroys the appearance of small decorative details.

Step 11: Prime and Paint

Some products arrive with factory primer, while others require preparation.

Use a paint system compatible with the exact molding.

Where the profile remains under curvature, the finish must be suitable for the installed condition.

Water-based acrylic or latex coatings may be appropriate for many paintable polyurethane products, subject to manufacturer approval.

Allow the adhesive and joint materials to cure as directed before finishing.

Should You Heat Flexible Polyurethane Molding Before Bending?

Heating is frequently recommended in informal installation guides.

However, it should not be treated as a universal requirement.

Some flexible molding systems are designed for bending at normal room temperature.

Others may have specific conditioning instructions.

Heating a product without manufacturer approval can damage its surface, distort the decorative profile, affect its coating, or create additional safety risks.

Why Heat Guns Require Caution

A heat gun can produce temperatures far above those tolerated by many decorative polymers and surface finishes.

Even when the tool is held away from the molding, local overheating may occur.

There is no reliable universal heat-gun distance or temperature that makes the procedure safe for every polyurethane product.

Do not use an uncontrolled heat source simply because a profile appears difficult to bend.

If the molding cannot follow the required radius under its approved installation conditions, it may be the wrong product.

Better Alternatives to Forcing a Bend

Select a profile rated for a tighter radius.

Use a narrower profile where appropriate and available.

Consider a preformed curved component.

For highly complex geometry, investigate purpose-made millwork or another manufacturer-approved system.

The objective is to achieve a consistent curve without damaging the material or compromising the attachment.

Joining Flexible and Rigid Molding

Many interiors contain both straight and curved surfaces.

Using one flexible profile across the entire project may not be necessary.

A carefully coordinated installation can use rigid molding along straight runs and flexible molding only where the surface curves.

Matching Cross-Sections

Ideally, the rigid and flexible versions should have the same decorative cross-section.

This allows the profile to continue visually across the transition.

However, apparent similarity is not sufficient.

Compare the face width, projection, edge shapes, and relief details.

A small difference in profile depth can create a visible step at a joint.

Planning Joint Locations

Whenever possible, position joints where they can be fitted and finished accurately.

For ornate molding, consider the position of the decorative repeat.

A joint cutting through the middle of a distinctive floral ornament may be more visible than one positioned at a natural pattern transition.

For a circular column, a joint may be placed on a less prominent side.

For an arch, the ideal location depends on the design and installation sequence.

Straight-to-Curved Transitions

A smooth transition requires more than matching the decorative profile.

The two sections must also meet at the intended angle and position.

If the wall surface changes abruptly from straight to curved, the tangent relationship should be considered.

A poor transition can create a noticeable kink even when the individual molding pieces are correctly manufactured.

Flexible Baseboard Molding for Curved Walls

Baseboards are another application where flexible trim can provide a useful architectural solution.

A rounded wall, curved partition, or circular room creates difficulties for conventional rigid baseboard installation.

A suitable flexible baseboard may follow the curvature while providing the expected wall-to-floor finish.

However, a baseboard is exposed to more routine contact than ceiling molding.

Impact and Surface Durability

Foot traffic, cleaning equipment, furniture, and ordinary household activity can affect floor-level trim.

The selected baseboard should be rated for that application.

Not every flexible decorative wall molding is suitable as a baseboard.

A profile designed for an arched opening may have a delicate surface or projection that is inappropriate at floor level.

Coordinating With Straight Baseboards

For a room with mostly straight walls and one rounded section, a matching flexible baseboard may be the most efficient solution.

The decorative profile should continue consistently through the curved area.

If an exact flexible match is not available, consider a separately designed transition rather than forcing a visually incompatible molding into place.

STAVROS offers baseboard profiles for architectural finishing. The listed material and curvature capabilities of each individual product must be checked before selecting one for a curved wall.

How to Paint Flexible Molding on Curved Surfaces

Painting is often the final step that makes an architectural molding installation appear cohesive.

For curved surfaces, consistency is especially important because directional lighting can reveal small irregularities.

Prepare the Surface Carefully

Inspect the molding after installation.

Look for gaps, distorted edges, visible joints, or adhesive residue.

Finish the surface using products approved for the molding.

Avoid aggressive sanding or repair methods that might damage the curved profile.

Choose a Compatible Coating

Many architectural polyurethane products are intended to be painted.

However, the paint must be compatible with the particular formulation and factory finish.

Do not assume that every enamel, solvent-based paint, or spray coating is appropriate.

For flexible products, the coating system should also tolerate the installed geometry and any expected movement.

Follow the manufacturer's preparation and finishing instructions.

Tone-on-Tone Wall Molding

Painting the molding and wall the same color can create a subtle architectural effect.

The molding remains visible through its shadow lines.

This approach works particularly well on broad curved walls.

It allows the shape of the architecture to remain the primary feature.

Contrasting Molding

White molding against a colored wall creates a more traditional effect.

A darker molding on a light wall provides a stronger graphic line.

For curved architectural details, strong contrast makes the quality of the installation especially noticeable.

Any waviness or poor alignment will be emphasized.

For this reason, the more contrasting the finish, the more important precise layout becomes.

Flexible Polyurethane Molding vs. Other Curved Trim Materials

Polyurethane is not the only material used for curved architectural trim.

Alternative systems include flexible composite moldings, purpose-made wood components, and other engineered trim materials.

The best choice depends on the geometry, appearance, durability requirements, and available budget.

Flexible Polyurethane vs. Wood

Wood remains a desirable architectural material, particularly when the natural grain is intended to remain visible.

However, creating curved wood molding requires an appropriate fabrication method.

Steam bending, laminating, machining, or custom shaping may be used depending on the species, profile, and desired radius.

These methods can offer excellent results, but they generally require more specialized planning than selecting a purpose-made flexible synthetic profile.

Flexible Polyurethane vs. Segmented Rigid Molding

A curved surface can sometimes be finished using short rigid sections.

However, the smaller the radius, the more demanding the fitting becomes.

Each joint must be accurately cut, positioned, and finished.

On a long, visible architectural curve, the labor involved may outweigh savings on material cost.

In certain projects, purpose-made rigid curved pieces are preferable to numerous small segments.

Flexible Polyurethane vs. Preformed Curved Elements

Preformed curved elements are manufactured to a specified radius or shape.

They can be useful when the required geometry is known and repeatable.

A custom arch or curved wall may use such components when ordinary flexible molding cannot accommodate the profile, radius, or desired ornamental detail.

The disadvantage is that the component must accurately match the project.

Custom fabrication may also affect cost and ordering time.

Flexible Molding Price: Is It Worth Paying More?

Flexible molding may cost more than an otherwise comparable rigid profile.

The actual difference depends on the manufacturer, material, cross-section, product length, and availability.

A specialized flexible formulation can involve different production requirements from a standard rigid profile.

However, there is no universal price multiplier that applies to all products.

The meaningful comparison is the total installed cost.

Compare Price per Linear Foot

For U.S. projects, calculate the material cost per linear foot.

Divide the price of the strip by its supplied length in feet.

A product measuring 6.56 feet should not be compared directly by piece price with another measuring 8.53 feet.

The difference in length affects the required number of strips and the final budget.

Include Installation Labor

Flexible molding may reduce the number of joints required on a curved surface.

This can save cutting and finishing labor.

However, curved installation may require additional layout, temporary support, adhesive preparation, and technical verification.

Labor costs depend on the complexity of the geometry and the installer.

A broad circular wall is not the same installation challenge as a spiral staircase or a vaulted ceiling.

Include Waste and Joint Placement

Calculate the actual curved length.

Then determine how many stock pieces are needed.

A strip can be long enough in total footage but still unsuitable for the intended layout if a critical joint falls in the wrong location.

For ornate trim, pattern matching may increase waste.

For curved applications, include reasonable allowances for trimming and fitting, but use the actual cutting plan rather than an arbitrary percentage alone.

When Flexible Molding Is Worth the Additional Cost

Flexible molding can provide value when the curved surface is highly visible, the appropriate radius is confirmed, and a continuous line is important to the design.

It may also be economical when the alternative would require extensive custom cutting, fitting, and joint finishing.

For a straight wall, the additional flexibility may offer no practical benefit.

Use rigid molding where rigid molding is appropriate.

Coordinating Curved Molding With Architectural Decor From STAVROS

One of the most important design considerations is visual continuity.

A curved arch may be only one part of a larger room.

The adjacent straight walls, decorative panels, ceiling details, and architectural accents should relate to it.

Even when a flexible profile is purchased as a separate specialized component, the surrounding decorative elements can be coordinated with the STAVROS polyurethane collection.

Polyurethane Molding for Straight Wall Sections

For straight decorative frames, STAVROS provides several polyurethane profiles.

MLDPU-001 polyurethane molding is a narrow semicircular profile measuring approximately 0.39 inches wide, 0.24 inches deep, and 102.36 inches long.

It is suitable for consideration as a fine decorative line on straight surfaces.

MLDPU-002 polyurethane molding provides a broader stepped profile, approximately 0.87 inches wide and 0.43 inches deep.

MLDPU-003 polyurethane molding offers a more substantial profile measuring approximately 1.38 inches wide and 0.47 inches deep.

These products can be considered for coordinating straight architectural sections.

Their listed dimensions do not establish approval for curved installation.

Decorative Trim Molding for Classical Interiors

For more ornamental designs, browse decorative trim molding featuring beads, braids, acanthus leaves, friezes, and other patterns.

Such details can be useful on straight portions of an architectural composition.

A decorative arch, for example, may be surrounded by flat wall panels containing ornamental molding.

The combination creates a coherent interior even when the arch itself requires a different specialized profile.

Decorative Corners and Centerpieces

Corner elements and central accents provide opportunities to coordinate linear molding with ornamental features.

Explore polyurethane molding corner decorations for compatible decorative designs.

These elements should be installed only where their mounting geometry is appropriate.

A rigid corner ornament should not be forced to conform to a curved surface.

Polyurethane Onlays and Classical Ornament

Decorative onlays can introduce sculptural details to adjacent flat wall areas, door surrounds, or other approved locations.

The polyurethane onlays and appliques collection includes floral, classical, and geometric ornaments.

For a traditional curved-wall project, an onlay may serve as a focal point on a nearby straight wall panel.

This makes it possible to connect the decorative language of curved and straight architectural areas without assuming that every ornament must physically bend.

Decorative Wall Kits

STAVROS also offers wall molding kits and polyurethane wall decor for coordinated architectural compositions.

These can provide inspiration for straight wall panels, framed accent walls, and related architectural detailing.

For a room containing curved surfaces, the selected kit should be adapted only through compatible products and an appropriate installation design.

Buying Flexible Polyurethane Molding: A Professional Checklist

Before purchasing, the most important requirement is confirming that the product is actually designed for the intended curved installation.

A description that simply says polyurethane is not sufficient.

Use the following criteria when comparing suppliers.

1. Confirm the flexible version. Look for an explicit flexible designation, a technical specification, or written confirmation from the manufacturer.

2. Verify the minimum bending radius. The rated minimum must be equal to or smaller than the actual radius of the installation.

3. Check bending orientation. The same product may have different limits for convex, concave, horizontal, or vertical bending.

4. Review the cross-section. Confirm that the face width, projection, and mounting surfaces suit the architecture.

5. Check product length. Determine how many stock lengths are needed and where joints can be positioned.

6. Confirm the adhesive system. Curved molding may exert springback forces that require a specific attachment method.

7. Verify paint compatibility. Confirm whether the product is primed and which finish systems are approved.

8. Review environmental requirements. Interior, exterior, humid, high-temperature, and commercial applications may have different restrictions.

9. Request a sample when possible. A sample can help confirm the profile's shape, finish, and practical compatibility with the design.

10. Confirm availability and shipping. For U.S. projects, verify the supplier's actual delivery terms, lead times, and any international shipping arrangements before making purchasing commitments.

These checks are particularly important when a project combines multiple curved sections with different radii.

Common Mistakes When Installing Flexible Molding

Curved architectural trim can fail for reasons unrelated to the appearance of the selected profile.

Avoiding the following mistakes improves the likelihood of a successful installation.

Assuming Every Polyurethane Profile Is Flexible

This is the most important error.

Polyurethane does not automatically mean bendable.

A rigid decorative strip may tolerate minor handling movement but still be unsuitable for architectural curves.

Use a product explicitly approved for the required bending conditions.

Ignoring the Actual Minimum Radius

A molding rated for a minimum radius of 48 inches should not be forced around a 24-inch curve.

Even if it appears possible to create the bend temporarily, the installation may experience excessive stress.

Measure first and select second.

Confusing Profile Width With Bending Radius

There is no reliable universal equation stating that the minimum bending radius equals the molding width.

Two profiles with similar dimensions can have very different bending capabilities.

The manufacturer's rating is essential.

Using Excessive Heat

Uncontrolled heating can damage the polymer, factory finish, or decorative detail.

Do not assume that a heat gun can convert rigid molding into flexible molding.

Follow the manufacturer's approved handling instructions.

Using an Incompatible Adhesive

A curved profile may continuously exert force against the attachment.

An unsuitable adhesive can fail even if it appears to hold initially.

Use a compatible installation system designed for the product and substrate.

Removing Temporary Support Too Early

The initial grip of an adhesive is not the same as full cure.

Follow the published support and curing requirements.

Large or overhead components may require additional approved fastening.

Overlooking Pattern Continuity

Decorative molding has a visual rhythm.

A poorly positioned joint may interrupt an ornate pattern.

Plan the ornament before making cuts.

Failing to Account for Compound Curves

A profile that bends around a flat circular wall may not tolerate the combined bending and twisting required by a spiral or domed surface.

Complex geometry requires more than a simple radius check.

Frequently Asked Questions About Flexible Polyurethane Molding

What Is Flexible Polyurethane Molding?

Flexible polyurethane molding is architectural trim manufactured using a formulation designed to bend within specified limits. It is used on approved curved surfaces such as arches, rounded walls, columns, and selected ceiling features.

Can Regular Polyurethane Molding Be Bent?

Standard rigid polyurethane molding should not be assumed suitable for curved installations. Its behavior depends on the particular formulation and cross-section. Use a manufacturer-approved flexible version or purpose-made curved component when the project requires bending.

What Is the Minimum Radius for Flexible Molding?

There is no universal minimum radius. It varies by product and bending orientation. Check the technical specification for the exact molding and compare it with the actual curve.

How Do You Measure the Radius of an Arch?

For a semicircular arch, divide the opening width by two. For a segmental circular arch, use the chord width and rise to calculate the radius. Elliptical and irregular arches require more detailed geometry because their curvature varies.

Can Flexible Crown Molding Be Used Around a Bay Window?

An appropriately designed flexible crown profile may follow a curved bay window wall. However, the product must be approved for the required radius and mounting orientation. Ordinary flexible wall molding is not necessarily suitable as crown molding.

Can Flexible Molding Be Used on a Round Column?

Yes, if the product is rated for the column's radius and the appropriate bending direction. Tight column curves can require greater flexibility than broad wall curves.

Can Flexible Polyurethane Molding Be Used on Straight Walls?

A flexible product may be suitable for certain straight installations if the manufacturer approves that use. However, rigid molding is often a more economical choice when no curvature is required.

Is Flexible Polyurethane Molding Waterproof?

Moisture performance depends on the product formulation and installation system. Many polyurethane architectural products offer useful moisture resistance, but they should not automatically be considered waterproof or suitable for direct-wet areas.

Can Flexible Polyurethane Molding Be Painted?

Many flexible architectural molding products are paintable. Use compatible primer and paint according to the manufacturer's instructions. The finish should be suitable for the installed profile and its expected conditions.

Should You Heat Flexible Polyurethane Before Installation?

Only when the product manufacturer explicitly recommends an approved conditioning method. Heating is not a universal requirement and can damage certain materials or finishes.

What Is the Best Adhesive for Flexible Molding?

The best adhesive is one approved for the exact molding and substrate, taking into account springback force and installation conditions. There is no single adhesive appropriate for every flexible trim product.

Can Flexible Molding Be Used for Spiral Staircases?

Certain specialized products may be suitable for nonstructural decorative applications, but a spiral staircase involves complex three-dimensional geometry. Standard flexible molding is not automatically approved for twisting or compound bending. It must not be substituted for structural stair or handrail components.

Is Flexible Polyurethane More Expensive Than Rigid Molding?

Flexible profiles may cost more than comparable rigid versions, but the difference depends on the product and manufacturer. Compare total installed cost, including labor and joint finishing, rather than material price alone.

Can Decorative Rope Molding Follow a Curve?

Only if a flexible version of the rope molding is specifically manufactured and rated for the required curve. A standard rigid rope molding should not be forced to bend.

Can Ornate Polyurethane Molding Be Flexible?

Some ornamental profiles can be manufactured in flexible versions, while others may require preformed curved components. Complex relief can impose additional limitations, so confirm the specific design and bend rating.

Can Flexible Molding Be Installed on a Curved Bathroom Wall?

Potentially, if the product and installation system are approved for the expected humidity, moisture exposure, and curvature. The molding, adhesive, finish, and substrate all need to be suitable.

How Can You Hide Joints in Flexible Molding?

Accurate cutting, careful alignment, suitable joint adhesive, compatible filling materials, and correct finishing can make joints less noticeable. Decorative patterns require additional planning to maintain visual continuity.

Does Flexible Molding Stay Curved After Installation?

An appropriately installed flexible profile can remain in the intended position through its specified attachment system. However, the molding may exert springback force, and the adhesive or fasteners must be capable of maintaining the curve.

Where Can I Buy Polyurethane Architectural Molding?

You can explore polyurethane molding profiles and architectural trim at STAVROS and compare compatible ornamental components in the broader STAVROS catalog.

For a flexible installation, obtain explicit confirmation of the product's bending capability and minimum radius before ordering. Standard STAVROS polyurethane profiles should not be assumed to have a flexible version unless this is confirmed.

Conclusion: Architectural Curves Deserve the Right Molding

Curved architecture introduces movement, depth, and visual interest to an interior.

An arch can soften the transition between rooms. A rounded wall can create a more fluid spatial arrangement. A circular column can become an elegant classical feature, while a curved ceiling can introduce a strong architectural focal point.

The challenge is finishing those surfaces without compromising their geometry.

Flexible polyurethane molding can provide a practical solution when the selected product is specifically engineered for the required curve.

The critical considerations are the minimum bending radius, bending direction, profile geometry, attachment system, and compatibility with the intended environment.

A successful result begins with accurate measurement.

Use the correct radius formulas for circular arches and curved walls. Check compound shapes with appropriate templates or drawings. Avoid forcing rigid profiles around curves or relying on uncontrolled heating.

For straight architectural sections, select profiles that complement the decorative language of the curved areas.

STAVROS offers a range of polyurethane moldings, decorative ornamental trim, polyurethane onlays, and molding corner accents that can be used to coordinate appropriate straight-surface elements within a larger architectural design.

Where the project requires true flexible molding, verify the availability of a purpose-made product with documented bending specifications.

Choosing correctly from the beginning can prevent material damage, reduce unnecessary installation work, and create cleaner architectural lines.

The best curved molding installation is not the one that forces a decorative profile into shape. It is the one where the material, geometry, and design work together from the start.
