Furniture leg set KON-011

Furniture leg set KON-011 — a ready-made modular composition of natural wood for making one tall decorative support. The set includes a wooden axle MLD-060 and seven geometric shapes of the KN series, compatible with each other in mounting diameter and selected into a single expressive structure.

When assembled, the furniture leg has a height of 730 mm, a maximum width of 120 mm, and a central axle diameter of 34 mm. Thanks to these dimensions, KON-011 can be used in the manufacture of writing and dressing tables, consoles, decorative under-table supports, furniture cabinets, work desks, and other custom interior items.

A feature of the set is the complex vertical pattern built on a combination of a cubic element, a sphere, a truncated conical shape, a flat disk, and polyhedral modules. Unlike a regular straight leg, KON-011 becomes a noticeable part of the furniture design and creates an expressive accent under the tabletop or furniture body.

The set belongs to the STAVROS wooden construction system. The standard composition can be used unchanged or adapted for an individual project: rearrange individual shapes, exclude some modules, or supplement the composition with other compatible elements with a mounting channel diameter of 34 mm.

Dimensions and characteristics of KON-011

• total height A — 730 mm;
• maximum width B — 120 mm;
• diameter of the central axis D — 34 mm;
• material — solid beech or oak;
• grinding quality — «Prestige»;
• execution with preparation for enamel painting is possible;
• the set is supplied unassembled;
• manufacturing — made to order.

The height of 730 mm is suitable for creating a furniture support under a tabletop, console, or compact table body. When designing the finished product, it must be taken into account that the final height of the furniture will be greater than the leg height by the thickness of the tabletop, apron, body, or mounting plate.

The maximum width of 120 mm is determined by the geometric shape KN-007. Before manufacturing furniture, it is necessary to check the free space under the body and ensure that the decorative elements will not come into contact with drawers, facades, guides, aprons, or adjacent supports.

The central axis has a cross-section of 34 × 34 mm. All main geometric elements of the set are designed for installation on an axis of the corresponding size, so the buyer does not need to independently check the compatibility of each individual part.

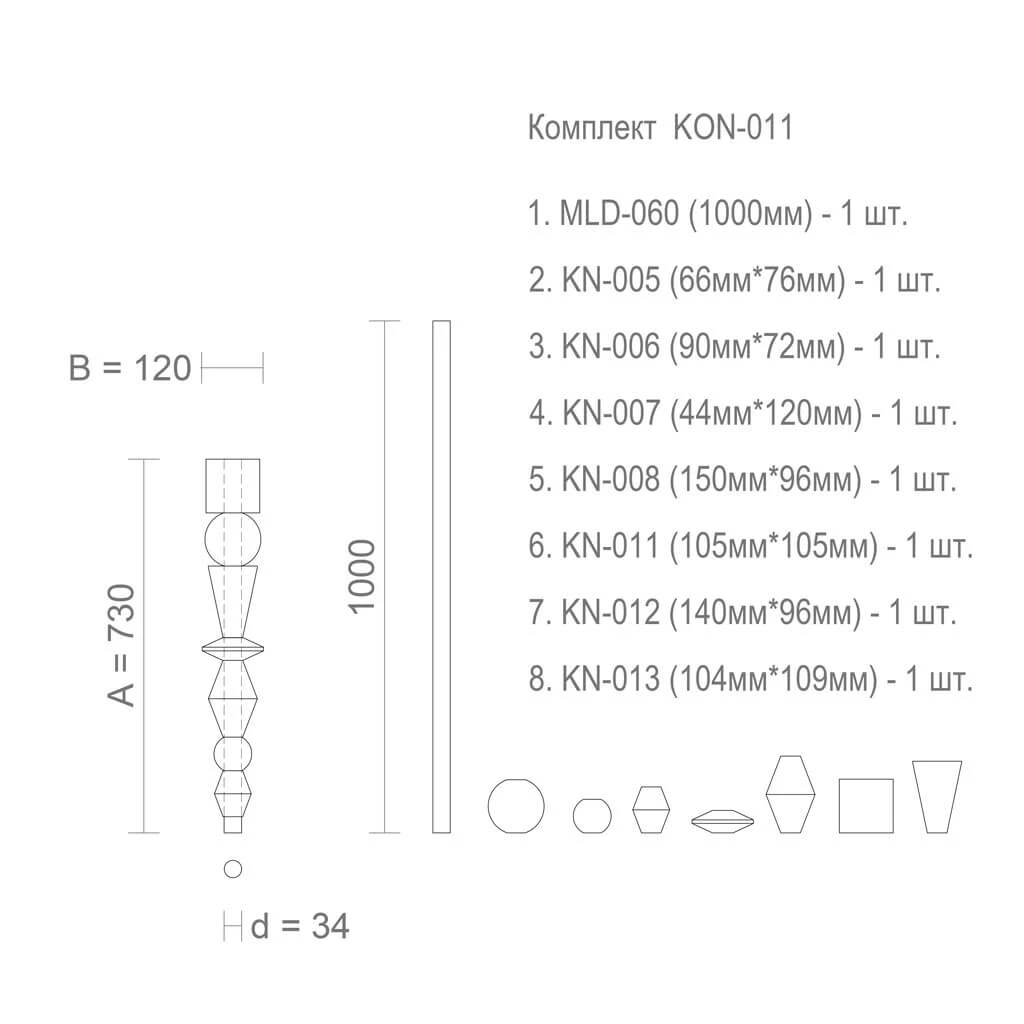

Furniture leg set composition

The KON-011 set includes:

• wooden molding MLD-060 size 34 × 34 × 1000 mm — 1 pc.;
• geometric figure KN-013 size 104 × 109 mm, mounting size 34 mm — 1 pc.;
• geometric figure KN-005 size 66 × 76 × 76 mm, hole 34 mm — 1 pc.;
• geometric figure KN-006 size 90 × 72 × 72 mm, hole 34 mm — 1 pc.;
• geometric figure KN-007 size 44 × 120 × 120 mm, hole 34 mm — 1 pc.;
• geometric figure KN-008 size 150 × 96 × 96 mm, hole 34 mm — 1 pc.;
• geometric figure KN-011 size 105 × 105 × 105 mm, hole 34 mm — 1 pc.;
• geometric figure KN-012 size 140 × 96 × 96 mm, hole 34 mm — 1 pc.

The wooden molding MLD-060 serves as the central axis. During assembly, it is trimmed to the design length, taking into account the total height of the leg, the placement of geometric elements, and the chosen method of attachment to the furniture body.

KN-013 forms the top cubic element and provides a visually confident transition from the tabletop or furniture body to the decorative part of the support. KN-011 creates a large rounded accent that softens the strict geometry of adjacent parts.

The elongated figure KN-012 forms a smooth transition from the wide upper part to the central disc-shaped element KN-007. Below are the multifaceted modules KN-008 and KN-006, separated by the rounded figure KN-005. As a result, the leg acquires a complex but balanced silhouette, clearly readable both in natural wood and after painting.

Which furniture is KON-011 suitable for

The KON-011 set is intended for furniture where the supports must perform not only a structural but also a decorative function. The model pairs especially well with minimalist tabletops and simple-shaped bodies: against their background, the complex geometry of the leg looks most expressive.

KON-011 can be used in the manufacture of:

• wooden legs for a desk;
• supports for a desk;
• legs for a vanity table;
• decorative supports for a console;
• legs for a furniture cabinet;
• underframe for a narrow wall-mounted table;
• supports for children's or teenage furniture;
• designer furniture for home, studio, or showroom;
• decorative posts and vertical interior elements.

In a compact desk, the set can be used as one of the prominent front supports. To create a symmetrical underframe, two or four identically assembled legs are used. In a long console, several sets can be distributed along the length of the tabletop, turning the supports into a repeating architectural rhythm.

The model is suitable for both an adult home office and a bright children's room. In its natural finish, KON-011 looks calm and graphic. After painting individual parts in different colors, the leg takes on a more playful and modern character.

Expressive geometry of the furniture support

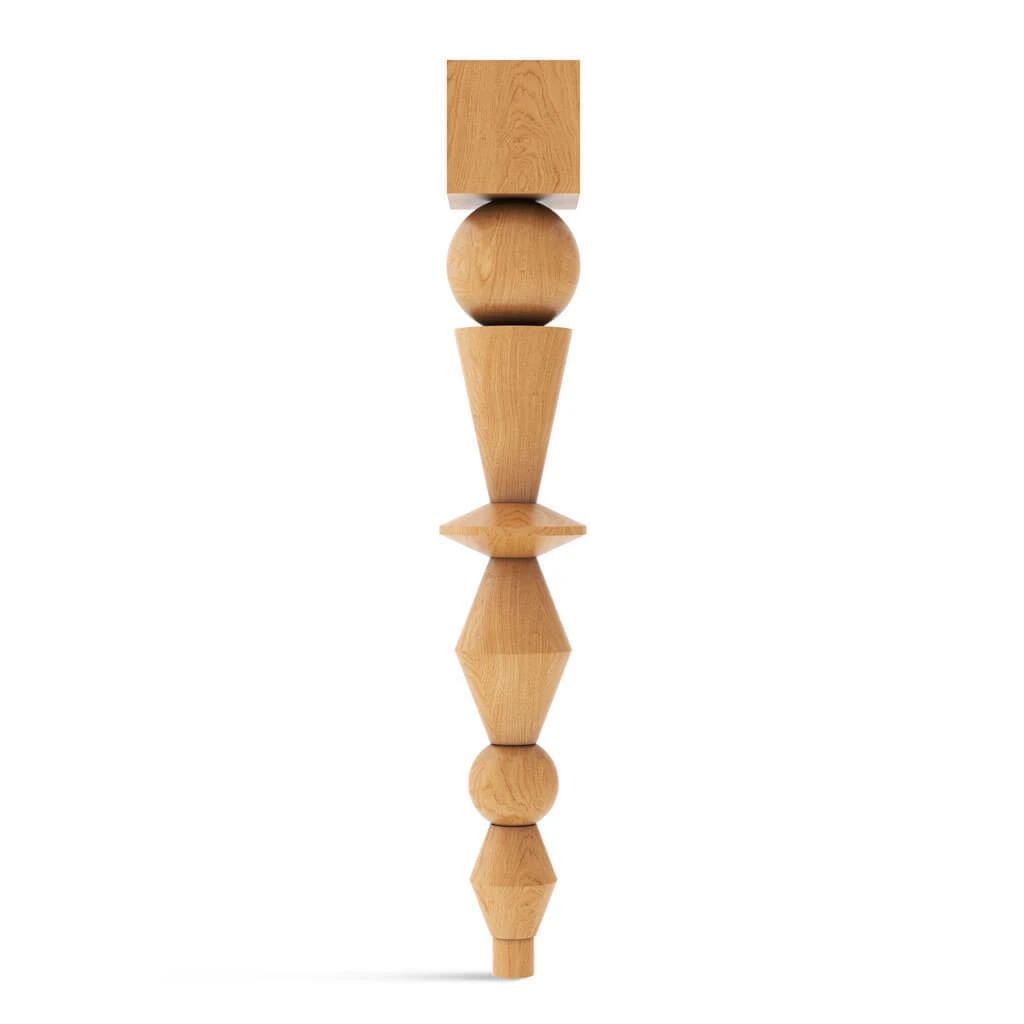

The design of KON-011 is built on a contrast of shapes. A rectangular top module, a sphere, elongated conical elements, a wide flat disc, and multifaceted figures are united on a single vertical axis. Thanks to this, the leg looks like a complete designer composition.

The cubic part under the tabletop creates a clear visual base. The sphere located below softens the transition and adds volume. The conical and diamond-shaped elements guide the eye vertically, while the wide disc KN-007 divides the composition into upper and lower parts.

This construction principle allows the leg to be used in different styles. In natural oak, it can become part of a modern interior with wooden panels and solid wood furniture. In bright colors, the set is suitable for eclecticism, pop art, children's rooms, and unusual custom projects. In a black-and-white palette, the geometry becomes more strict and graphic.

Furniture leg made of solid beech

Beech is suitable for projects where wooden elements are planned to be painted with opaque enamel. The material has a fairly calm texture and, after proper preparation, allows for a smooth painted surface.

The beech leg KON-011 can be made completely monochrome or individual modules can be painted in different shades. For example, the cubic and disc-shaped elements can be highlighted in one color, the rounded figures in another, and the multifaceted parts left in a neutral palette.

Soft green, blue, white, yellow, or coral shades are suitable for a children's desk. For a more formal office, you can use black, white, gray, dark blue, or deep green.

Beech can also be tinted with stain or coated with clear varnish. However, it is especially often chosen for painting when it is necessary to precisely match the color of the legs with the facades, wall panels, furniture fittings, or the overall interior palette.

Solid oak furniture leg

Oak is recommended for furniture where it is necessary to preserve the expressive natural wood grain. Large rounded and multifaceted surfaces show the texture of the solid wood well after treatment with oil, stain, or clear varnish.

The KON-011 oak set can be combined with a solid wood tabletop, a veneered furniture body, oak wall panels, baseboards, doors, and other wooden interior elements.

With a clear finish, the complex geometry of the leg is emphasized not only by the shape but also by the direction of the wood fibers. On a spherical element, the pattern appears soft, on a cubic part it is more graphic, and on multifaceted modules, the natural texture changes depending on the lighting.

To change the shade, oak can be tinted. A light finish is suitable for modern and Scandinavian interiors, medium wood shades are for calm residential furniture, and dark tinting is for offices, art deco, and expressive design projects.

Decorative Finishing Options

The set is supplied with a "Prestige" quality of sanding. The surface of the parts is prepared for subsequent decorative treatment. Before applying the final coating, it is recommended to perform a test assembly and check the position of all elements on the axis.

For finishing KON-011, you can use:

• wood oil;
• covering furniture enamel;
• stain or other tinting compound;
• clear varnish;
• tinted varnish;
• patina;
• a combination of several colors;
• combination of natural wood and painted parts.

Oil emphasizes the natural texture of beech or oak and preserves the natural appearance of the wood. Stain allows you to change the shade without covering the grain of the solid wood. Clear varnish creates a protective layer, while opaque enamel completely changes the color of the set.

The KON-011 geometry is particularly well-suited for combined painting. Each shape can be highlighted with a separate shade or a composition of two or three repeating colors can be assembled. This approach allows you to connect the leg with other interior details: facades, a chair, textiles, wall decor, or lamps.

For a calm design, the entire set can be painted in one color. In this case, the complex shape will be revealed through volume, shadows, and changes in lighting on rounded and faceted surfaces.

Solid and combined painting

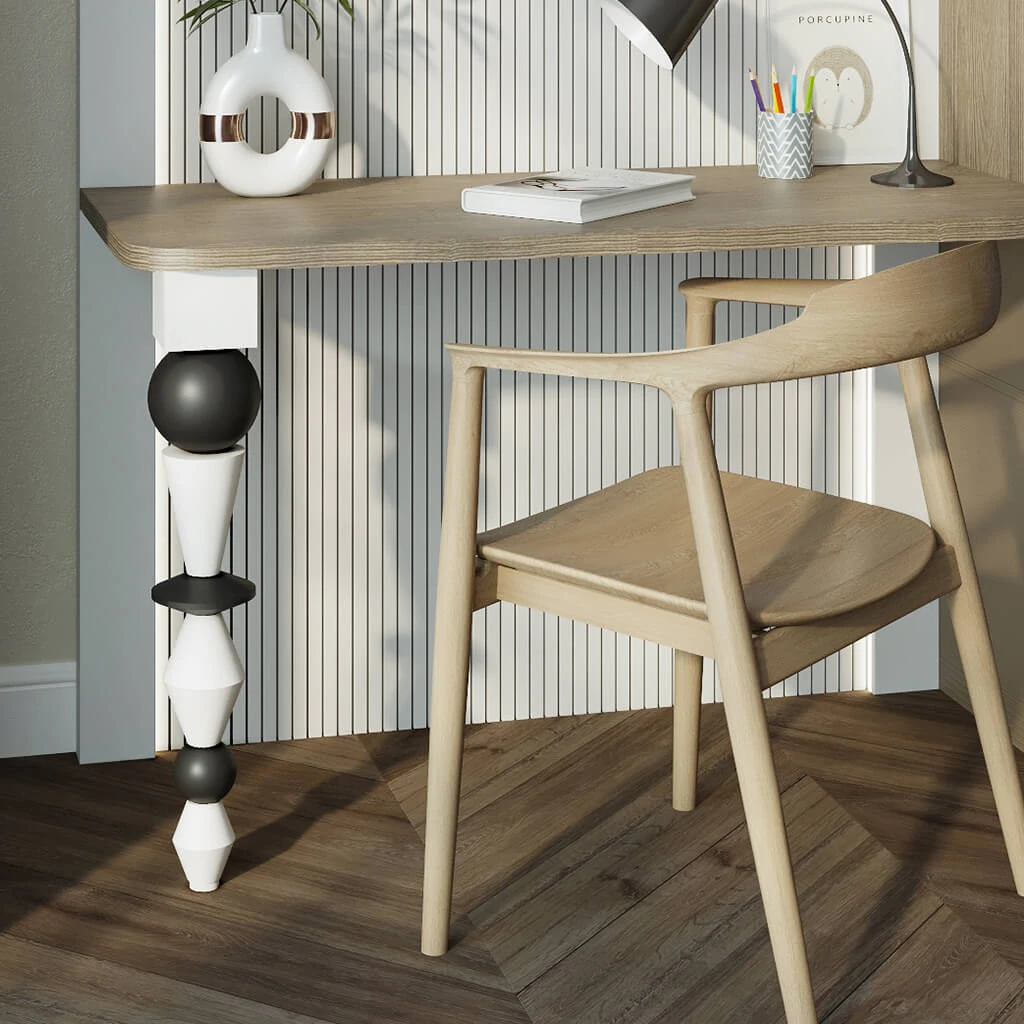

Solid painting makes KON-011 more cohesive and architectural. A white leg looks light and suits light-colored furniture. A black finish emphasizes the silhouette and pairs well with modern graphic interiors. Green, blue, terracotta, and pastel shades are suitable for children's and custom furniture.

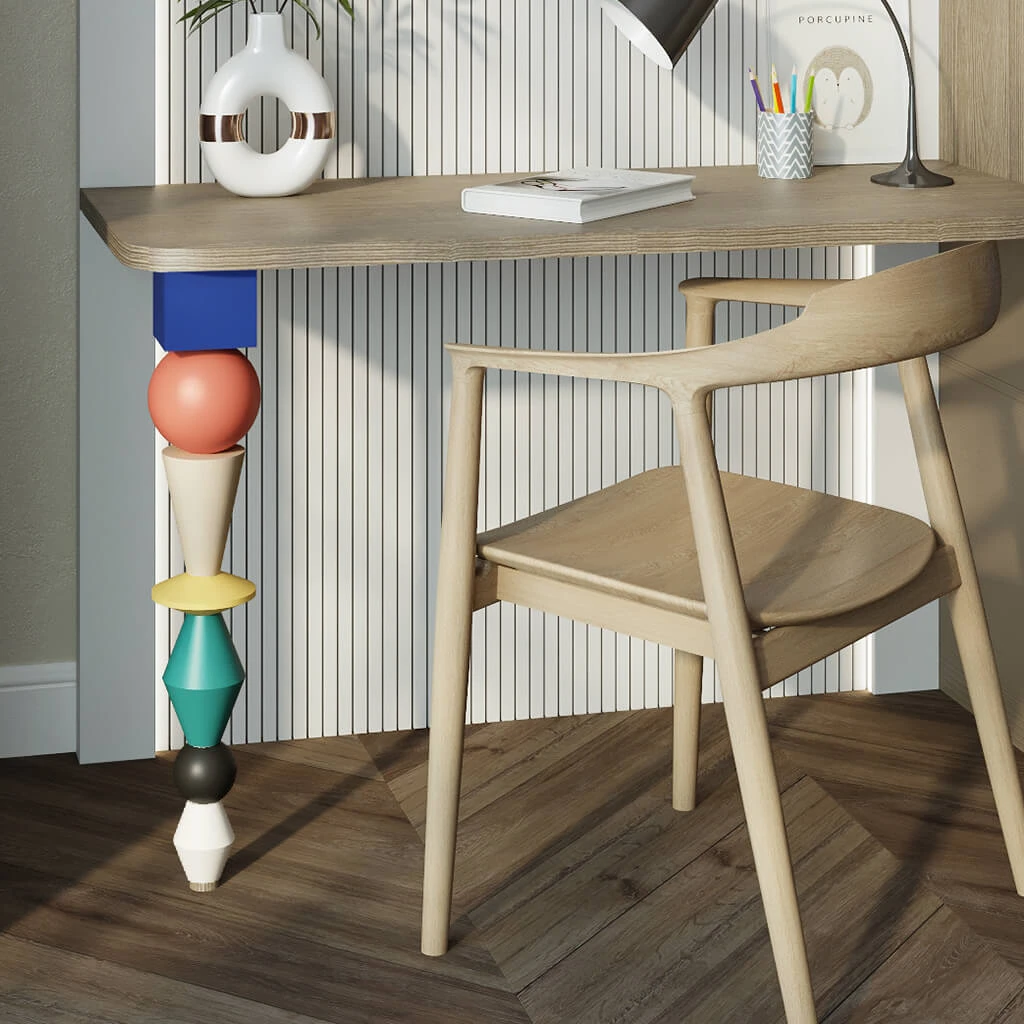

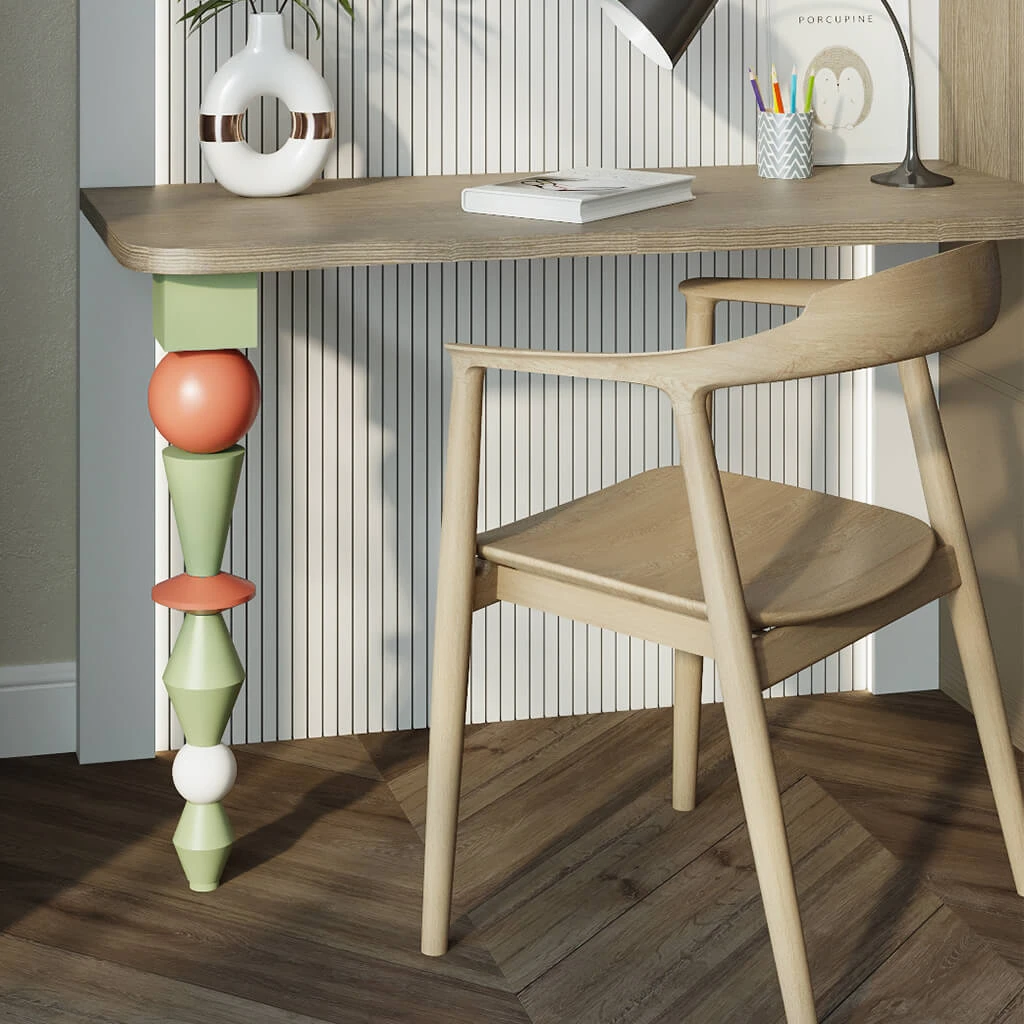

Combined painting allows you to turn the leg into an independent decorative object. The cubic module can be made in the color of the tabletop, the ball can be contrasting, the elongated parts can be neutral, and the wide disc can be used as a color separator.

Before serial painting of several sets, it is recommended to prepare a precise color scheme. This will help maintain the same sequence of shades on all furniture supports.

How to assemble a set of KON-011 furniture leg

KON-011 is supplied disassembled. Before final fixation, perform a dry assembly without glue and check the sequence of shapes, overall height, symmetry, and position of elements on the central axis.

Recommended work order:

1. Determine the design height of the finished furniture support.
2. Cut the MLD-060 axis to the required length.
3. Clean the surfaces of parts from dust after fitting.
4. Sequentially install the geometric shapes onto the axis.
5. Check the arrangement of elements according to the kit diagram.
6. Mark the position of each part on the axis.
7. Disassemble the test composition.
8. Apply suitable wood glue to the surfaces to be joined.
9. Install elements according to the completed markup.
10. Check the alignment and orientation of the parts.
11. Secure the composition until the glue is completely dry.
12. Remove excess glue and perform final finishing.

For installation, it is recommended to use PVA glue class D3 or another woodworking compound compatible with the selected wood species. During polymerization, the elements can be secured with masking tape.

If necessary, additional use of micro pins is allowed. The decision on mechanical fixation is made by the furniture master, taking into account the support structure, element arrangement, and expected load.

Using large elements as connecting nodes

Large geometric shapes can act as connecting modules. Two segments of a wooden axis can be glued into such a part from opposite sides if a longer vertical structure needs to be created.

This assembly method can be used not only for furniture legs, but also for decorative posts, interior columns, supports, stands, and other products made from construction set elements.

When connecting two axes, it is necessary to precisely maintain a single center line. Misalignment inside a large figure will lead to deviation of the entire structure, so a test fit is recommended before fixation.

Why it is better to paint after assembly

It is recommended to carry out painting, tinting, or varnishing after a full fitting and assembly of the set. A thick layer of paint and varnish material inside the mounting channel can reduce its working size and make it difficult to install the figure on the axle.

If the design project requires pre-painting individual elements in different colors, the internal mounting channel must be protected with masking tape, a plug, or other suitable material.

After the coating has dried, check the free fit of the parts. Do not install elements on the axle with excessive force, as this may damage the paint coating or cause cracking of the wooden figure.

Can the standard composition be changed?

KON-011 belongs to the modular wooden construction system. The standard sequence of parts can be preserved or adapted to a specific furniture project.

Allowed:

• change the order of geometric figures;
• exclude individual elements;
• add compatible modules;
• change the length of straight sections of the axle;
• assemble a shorter or elongated structure;
• develop your own coloring scheme;
• use parts for other interior products.

After changing the composition, it is necessary to recalculate the total height of the leg, the maximum width of the composition, the position of the joints, the distance to the furniture body and the method of fastening.

If several identical legs are required for one table, it is recommended to first assemble one control sample. After checking, its dimensions and markings are transferred to the remaining sets.

Attaching the leg to the tabletop or body

The KON-011 kit is designed for making a decorative furniture support. The specific method of attaching it to the tabletop, cabinet or other furniture body is selected separately.

Depending on the furniture design, the following may be used:

• metal mounting plates;
• threaded studs;
• wooden mounting plates;
• joinery connections;
• aprons;
• internal metal or wooden frame.

The installation method depends on the weight of the tabletop, the number of legs, the material of the body, and the expected load. For a work desk, it is necessary to consider not only vertical load but also lateral forces that occur during use.

If the tabletop is additionally attached to the wall, decorative legs can be used as front supports. For a freestanding product, sufficient spatial rigidity of the frame must be ensured.

Before manufacturing a series of furniture, it is recommended to assemble a prototype and check the stability of the structure under the design load.

Advantages of the KON-011 kit

• ready composition of compatible constructor elements;
• height 730 mm for desks, consoles, and other furniture;
• expressive combination of rounded, cubic, conical, and polyhedral forms;
• solid beech or oak array;
• single mounting size of elements — 34 mm;
• "Prestige" sanding quality;
• ability to prepare the surface for enamel;
• suitable for natural, solid, and combined finishes;
• ability to change the composition and sequence of shapes;
• suitable for custom and serial furniture production;
• supplied disassembled and convenient for transportation.

The main advantage of KON-011 is the ready compatibility of all components. The buyer does not need to separately select an axle, check mounting holes, or independently search for geometric shapes with suitable proportions.

At the same time, the set does not limit the designer to a single scheme. The composition can be adapted, and each part can be painted, tinted, or left in its natural form. This makes KON-011 a convenient base for creating furniture designed for a specific interior.

Manufacturing and delivery of KON-011

The KON-011 furniture leg set is made to order from solid beech or oak. The average production time is 5–10 days. If a ready-made set is in stock, shipment from the warehouse is carried out within three working days.

Delivery is carried out throughout Russia by the transport company CDEK. The set is supplied disassembled, which simplifies packaging, transportation, test assembly, and individual finishing of parts.

Before placing an order, it is recommended to determine:

• the required number of furniture legs;
• material — beech or oak;
• the type of finish;
• the color of each geometric element;
• the type of furniture and tabletop dimensions;
• the standard or modified composition of the set;
• the intended method of attaching the support.

The KON-011 set is suitable for furniture manufacturers, carpentry workshops, interior designers, and private customers who need unusual wooden legs for a desk, console, vanity table, or other custom furniture.

KON-011 combines natural wood, complex geometry, and the possibilities of a modular construction set. The set allows you to create an expressive furniture support that can be adapted in terms of material, color, composition, and method of decorative finishing.
