Article Contents:
- The meaning of the panel as an architectural element
- Vertical and diagonal rhythms with rails
- Oak and beech solutions — textured discipline
- Role of small rail layouts in creating a grid
- Beam as a structural element
- Profile made of wood in transition systems
- Panel jointing with skirting board
- Methods of creating deep shadows
- Practical aspects of panel installation
- Stylistic variations of panels
- Q&A: Creating panels from oak and beech
- Conclusion: STAVROS system for creating architectural walls
The wall becomes an architectural object when it stops being a background and becomes a structure.wooden planks on the wall, Decorative oak plank, Interior oak plank, Wooden planks for wall decoration, Wooden rails, Oak beam, Oak timber beam, Decorative wooden molding, Wooden profileandWooden skirting boards— these are materials from which spatial composition is built, where each line has its direction, each element its place in the hierarchy, each shadow its depth.
The meaning of the panel as an architectural element
What is a panel in the context of interior architecture? It is not simply cladding covering a basic wall. A panel is an autonomous construction with its own tectonics, forming a spatial layer between the main wall and the interior volume of the room. It creates distance, air, depth — what transforms a plane into an architectural element.
Architectural panel made of oak or beech consists of several components. The base — a frame made ofbeam, which is mounted on the wall and creates a load-bearing structure. Filling —Wooden rails, installed vertically, horizontally, or diagonally, forming the visible surface. Framing —Wooden profileorlayout, which create the panel's boundary and link it to other interior elements.
The meaning of the panel — creating a visual volume on a flat wall. Whenwooden planks on the wallare installed with gaps, shadow gaps of 10 to 50 millimeters (depending on the thickness of the rails and the method of installation) are formed between them. These gaps are perceived as a third dimension — the wall acquires depth that physically does not exist. Light falling at an angle casts shadows that enhance the effect of volume.
The panel acts as a filter between the room's space and the base wall. If a 30–50 millimeter air gap is left behind the rails, and the background is painted in a contrasting color, the panel begins to 'float' in front of the wall. This effect is enhanced by installing hidden backlighting in the gap — an LED strip laid along the perimeter of the panel creates contour lighting that visually separates the structure from the base.
The architectural meaning of the panel is manifested in its ability to structure large planes. A wall 5–6 meters long without division is perceived as a monotonous surface. Three panels of 150×250 centimeters, installed on this wall with an interval of 40–50 centimeters, break monotony, creating a rhythm of large elements and narrow gaps. Each panel becomes an independent object, but together they form a single composition.
The panel can be functional — hiding engineering communications, serving as a base for mounting a TV or shelves, improving room acoustics (rails with gaps partially absorb sound). But the main function is aesthetic: the panel transforms a technical surface into a work of architectural art, where material, geometry, and light create a spatial composition.
Vertical and diagonal rhythms with rails
Rhythm is the repetition of an element and pauses, which creates visual movement.Wooden planks for wall decorationVertically installed boards form a vertical rhythm that directs the gaze from bottom to top, visually increasing the height of the room. Diagonal boards create a dynamic rhythm that establishes directional movement and breaks the static nature of a rectangular space.
Vertical rhythm is built on the alternation of boards and gaps. The simplest scheme is a 1:1 ratio, where the width of the board equals the width of the gap.Decorative oak plankA 40×40 mm section, installed with a 40 mm gap, creates a balanced rhythm where mass and void are equal. Such a panel is perceived as a harmonious structure without dominance of either material or air.
A 2:1 ratio (60 mm board, 30 mm gap) creates a dense rhythm where wood predominates. The panel appears heavier and more substantial, suitable for rooms with high ceilings where visual weight is needed. A 1:2 ratio (30 mm board, 60 mm gap) creates a sparse rhythm where void dominates. The panel appears light and transparent, suitable for small spaces where it is important not to overload the volume.
Vertical boards can be varied in width, creating a complex irregular rhythm. Alternating narrow (20 mm), medium (40 mm), and wide (60 mm) boards with variable gaps form a dynamic composition that attracts attention and becomes a standalone decorative accent. This technique requires careful planning — random alternation creates chaos, not rhythm.
Diagonal rhythm radically changes the perception of space.Wooden railsInstalled at a 45-degree angle to the horizontal, they create a sense of movement directed upward and sideways. Such a panel visually expands a narrow room, as the gaze follows the diagonals rather than hitting verticals. The angle of inclination determines the intensity of the dynamics — the sharper the angle (30 degrees), the more rapid the movement; the more obtuse (60 degrees), the calmer the perception.
Installing diagonal boards is more complex than vertical ones. Each board requires two angled cuts — at the lower and upper points where it meets the panel’s edges. Material waste increases by 20–30 percent due to cutting losses. However, the visual effect justifies the cost — the diagonal panel becomes the main interior accent, impossible to ignore.
Combined rhythm — the combination of vertical and diagonal boards in one panel — creates a complex geometric composition. The central part of the panel is filled with vertical boards, while the side sections are diagonal, directed from the center to the edges. Such a construction forms a visual center that attracts the gaze and organizes space around it.
Rhythm is enhanced through color gradation.Interior oak plankNatural color, alternating with stained boards (walnut, wenge), creates a striped pattern that emphasizes rhythm and adds graphic quality. Gradient staining — gradual transition from light to dark from left to right — creates an illusion of depth and three-dimensional curvature of a flat panel.
Our factory also produces:
Oak and beech solutions — textural discipline
The choice of wood species determines not only the color and texture of the panel, but also its character — strict or soft, monumental or light, status-oriented or democratic. Oak and beech are the two main species for creating architectural panels, each with its own visual and physical properties.
Decorative oak plankOak has a pronounced ring texture with contrasting annual rings and medullary rays (radial light bands on tangential cuts). The natural color of oak varies from light golden to dark brown depending on growing conditions. Density around 700 kg/m³ makes oak strong and resistant to deformation, which is critical for large-format panels.
The textural discipline of oak boards is expressed in the strictness of the texture pattern. Each board has a clearly defined individual pattern, readable even from a distance of 3–4 meters. A panel made of oak boards is perceived as a set of independent elements connected by a common geometry but retaining visual autonomy. This creates an effect of material richness — the wall is not merely clad, but constructed from massive wooden beams.
Oak beamThe oak frame used for panel construction ensures structural reliability. An oak frame does not deform with changes in humidity, withstands significant loads (important when mounting a TV or shelves), and serves as a base for multiple cladding changes. The cross-section of an oak beam for panel frames is typically 50×50, 60×60, or 80×80 mm depending on the size of the structure.
Beech solutions are characterized by softness and uniformity.Oak timber beamIt has a fine-grained texture without sharp contrasts, a light rose or cream tone, density around 680 kg/m³. A beech panel is perceived as a single surface, where individual boards visually merge into a monolithic structure. This creates an effect of calmness and visual purity.
The textural discipline of beech — its neutrality. Beech does not compete with other interior elements for visual attention; it creates a background on which the rest of the composition unfolds. A beech panel behind a sofa does not distract from the furniture but emphasizes its shape. A beech wall in an office does not overload the workspace but creates an atmosphere of focus.
Combining oak and beech in one panel creates a contrasting composition. Vertical posts made ofoak beamswith an 80×80 mm cross-section, installed at 120 cm spacing, form dark verticals. The space between posts — horizontal beech boards with a 40×20 mm cross-section and 20 mm gaps — creates a light background. The contrast of dark and light, vertical and horizontal, thick and thin forms a complex multi-layered composition.
Surface treatment enhances the textural differences between species. Oak treated with oil and hard wax reveals the full depth of texture — annual rings become raised, medullary rays glow. Beech under matte lacquer retains smoothness and uniformity, creating a silk-like surface. Brushed oak (with selected soft fibers) acquires a pronounced relief, enhancing the play of light and shadow on the panel.
Get Consultation
Role of small grid strips in creating a grid
Decorative wooden molding— a thin strip 20–40 mm wide and 6–12 mm thick, applied to the panel surface to create a graphic grid. The role of grid strips is to divide a large plane into proportional sections, each perceived as a separate compositional element.
The grid of strips is built on the principle of modularity. A 120×240 cm panel is divided vertically by strips into three 40 cm sections. Then each section is divided horizontally by strips into four 60 cm parts. This results in a grid of 12 rectangular cells 40×60 cm. Within each cell, boards can be installed to create fill, or the cell remains empty and painted in a contrasting color.
Small grid strips create scale — they introduce human scale into large-format construction. A 3-meter-high panel without division is perceived as a monumental wall. The same panel, divided horizontally by strips at 90, 150, and 210 cm levels, acquires human proportions — the lower tier corresponds to table height, the middle to human height, and the upper to door height.
Grid strips can be flat (simple rectangular section) or shaped (with bevel, chamfer, groove). Flat strips create a clear graphic line, suitable for modern minimalist interiors. Shaped strips add plasticity, characteristic of classical styles. The choice of strip profile should align with the overall project style.
The grid can be regular (all cells the same size) or irregular (cells of different sizes). A regular grid creates a sense of order and discipline, characteristic of interiors with clear geometry. An irregular grid forms a dynamic composition where large cells alternate with small ones, creating visual rhythm and accents.
The color of the veneer determines its role in the composition. Veneer in the tone of the panel's main material (oak veneer on oak panel) works subtly, creating delicate divisions through shadow lines at joints. Contrasting veneer (black on light oak, white on dark) acts as a graphic accent, emphasizing the grid's geometry. Metallic veneer (in brass, copper, bronze) adds luxury, characteristic of art deco and modern classic styles.
Installing veneers requires precision. Intersections of vertical and horizontal veneers must be executed using a "beveled" method (cut at 45 degrees) or with corner brackets. Any misalignment of lines destroys the visual integrity of the grid. Veneers are attached with adhesive or finishing nails, whose heads are countersunk and sanded to match the material's color.
Beam as a structural element
Oak beamorOak timber beam— this is not just a hidden frame element behind cladding. In architectural panels, the beam can be a visible element that forms the composition's structure and creates a visual frame.
Structural beams are vertical posts and horizontal beams with a cross-section from 60×60 to 100×100 millimeters, installed on the panel's front face, dividing it into large sections. These elements protrude 20–40 millimeters above the plank plane, creating an additional relief level. Beams are painted in a contrasting color (dark oak on light birch planks) or retain a natural tone differing from the fill material.
Vertical beams divide a long wall into proportional vertical strips. Three beams installed 150 centimeters apart on a 5-meter wall create four sections. Each section is filled with planks installed horizontally, diagonally, or in geometric ornamentation. Beams act as dividers but simultaneously link sections into a unified system through repetition of section and color.
Horizontal beams create tiered divisions of the panel. Beams at 90 and 180 centimeters from the floor divide a 270-centimeter-high panel into three tiers. The lower tier (up to 90 centimeters) is filled with vertical planks, creating a base zone. The middle tier (90–180 centimeters) — horizontal, forming the main part. The upper tier (180–270 centimeters) — diagonal, creating a finish. Varied filling within a unified frame forms a complex yet orderly composition.
Beams can form geometric frames within the panel. A square frame of 80×80 millimeter beams installed at the panel's center creates an accent zone, within which a panel, mirror, TV, or simply contrasting planks of another color can be placed. The frame protrudes above the main plane, creating a picture-on-wall effect.
Structural beams also serve a functional role — shelves, lights, decorative elements are mounted to them. A 100×100 millimeter oak beam can withstand a load of up to 50 kilograms per linear meter, allowing its use as a load-bearing element for bookshelves, TV consoles, or hanging cabinets.
Connection of beams to planks is achieved in several ways. Insertion — planks are inserted into grooves cut into the beam, creating a hidden joint. Surface mounting — planks are attached to the beam's end, creating a visible joint that can be covered by veneer or left open as a decorative element. Combined — part of the planks are inserted, part mounted, creating complex intersection geometry.
Wooden profile in transition systems
Wooden profile— this is an element of variable cross-section that creates a smooth visual and structural transition between the panel and adjacent surfaces. The profile solves the problem of panel junction with walls, ceilings, doorways, creating compositional completeness.
Transition systems begin at the panel's perimeter.Profile made of wood— installed around the entire panel perimeter, creating a frame that separates the structure from the rest of the wall. The profile can be simple (bevel, chamfer) or complex (multi-step with rounded edges and ridges), depending on interior style.
Top transition — from panel to ceiling — is achieved using a cornice (ceiling profile), which creates a smooth visual connection. If the panel does not reach the ceiling by 20–30 centimeters, this gap can be left for concealed backlighting, creating a contour glow. The cornice profile is mounted at the panel's upper edge, covering the technical part of the LED strip and forming a decorative finish.
Side transitions — from panel to adjacent wall — are performed using vertical profiles that create side boundaries. If the panel is an accent (occupying only the central part of the wall, not the entire wall), side profiles emphasize the structure's autonomy. Profiles can protrude 10–20 millimeters beyond the panel plane, creating a visual frame, or be flush with planks, creating a restrained frame.
Bottom transition — from panel to floor — is most important, as it connects the vertical structure to the horizontal plane. This transition is achieved through the junction withwooden skirting board, which requires special attention to details.
The profile can be used to create internal transitions in multi-level panels. If the panel consists of two layers — base (solid cladding) and overlay (planks with gaps) — the transition between layers is finished with a profile that hides the base layer's end and creates a step. This step forms an additional shadow, enhancing the visual depth of the structure.
The profile's color and texture must match the panel's main material. An oak profile on an oak panel creates a monolithic impression. A contrasting profile (white oak on dark stained oak panel) acts as a graphic accent, emphasizing boundaries. A metallic profile (in bronze, brass) adds luxury but requires caution to avoid an excessive effect.
Panel junction with skirting board
— this is a critically important node, determining the visual completeness of the entire composition. Poorly executed junction creates a sense of incompleteness, destroying the impression of expensive finishing.wooden skirting board— this is a critically important node that determines the visual completeness of the entire composition. Poorly executed joints create a sense of incompleteness and ruin the impression of expensive finishing.
The first method — the panel is lowered to the floor, tightly abutting the floor covering, and the skirting board is installed over the lower part of the panel. This method creates continuity of the vertical structure but requires that the skirting board and panel be made of the same wood species and have matching finishes.
The second method — the panel ends at a height of 5–10 centimeters from the floor, and the skirting board is installed independently, filling the gap between the panel and the floor. The bottom edge of the panel is covered by a horizontal profile, creating a finish. The skirting board can be contrasting relative to the panel, creating a visual separation between the vertical structure and the floor.
The third method — integrated skirting board, which is an extension of the panel. The lower part of the panel is made of solidoak beamorbeech beamswith a cross-section of 80×120 or 100×150 millimeters, protruding 20–30 millimeters beyond the panel plane, forming a base zone. This beam serves as a skirting board, protecting the lower part of the panel from mechanical damage.
The skirting board height must match the panel's scale. For panels 2.5–3 meters high, a 80–120 millimeter skirting board is suitable. Too low a skirting board (40–60 millimeters) disappears against the large-scale structure. Too high (150–200 millimeters) visually "cuts off" the panel from the floor, disrupting compositional integrity.
The profile of the skirting board must match the profile of the panel. If the panel is framed with a rounded convex profile (radius), the skirting board must have a similar radius. If the panel has strict rectangular planks without decorative elements, the skirting board must be simple, with a bevel or without profiling at all.
Technically, the joint is achieved through hidden mounting. The panel is mounted on a frame made ofbeamwhose lower part is located 2–3 centimeters above the floor. The skirting board is mounted to the wall through this gap, abutting the panel tightly. Between the skirting board and the panel, silicone or putty may be applied to fill micro-gaps and create an ideal joint line.
Color harmony is critical.Wooden skirting boardsand the panel must be made from the same batch of wood to avoid differences in shade and texture. Even within the same species, variations may occur due to growth conditions. A single batch ensures visual continuity.
Methods for creating deep shadows
Shadow is not the absence of light, but an active compositional element that creates volume and drama. Deep shadow on an architectural panel is formed through the combination of element geometry, installation method, and lighting.
First method — increasing plank thickness and gaps.Wooden planks for wall decorationPlanks with a 50×50 mm cross-section, installed with a 50 mm gap, create shadow gaps approximately 40 mm deep (accounting for the relief of the background). These gaps are perceived as deep recesses, especially under side lighting. The thicker the plank, the longer the shadow it casts on the background.
Second method — multi-layer construction. Base layer — solid veneer or MDF cladding, painted in a dark color (black, graphite, dark brown). Second layer —Wooden railsinstalled on the frame at a distance of 30–50 mm from the base layer. Gaps between planks reveal the dark background, perceived as deep shadows. The contrast between light-colored planks (natural oak, whitewashed beech) and the dark background enhances the sense of volume.
Third method — stepped geometry. Planks are installed not in a single plane, but with variable protrusion. The first row protrudes 20 mm, the second — 40 mm, the third — 60 mm. This creates a stepped surface, where each step casts a shadow onto the one below, forming a cascade of shadows. This method requires precise calculation and complex installation, but creates an expressive relief.
Fourth method — diagonal end cuts. Instead of a straight end, the plank is cut at a 30–45 degree angle, creating a beveled edge. Under side lighting, this edge casts a long shadow on the background, enhancing visual depth. Diagonal cuts are applied to vertical planks installed at the top of the panel, where light falls from above.
Fifth method — integrated lighting. LED strips installed in gaps between planks create backlighting that enhances the contrast between light and shadow. The strip is mounted on the background, behind the planks, directing light upward or downward. Planks become silhouettes against the glowing background, and gaps transform into glowing slits, emphasizing the structure’s geometry.
Directional spot lighting (spotlights, wall sconces) installed at a 30–45 degree angle to the panel creates expressive shadows that highlight the relief. Fixtures are placed beside the panel at a distance of 50–100 cm, directing beams along the surface. Planks cast parallel shadows, forming a graphic pattern that changes depending on time of day and light source position.
The color of the background between planks is critical for shadow formation. A dark background (black, anthracite, wenge) enhances contrast, making shadows deepest. A light background (white, cream, light gray) softens contrast, creating soft half-shadows. A contrasting colored background (blue, green, terracotta) adds decorative appeal, turning shadows into part of the color composition.

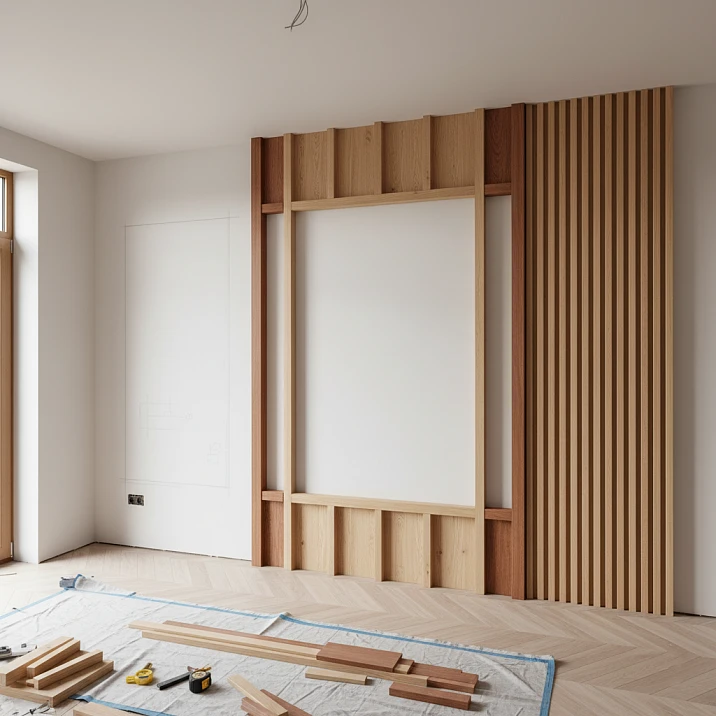

Practical aspects of panel installation
Creating an architectural panel fromwooden boards on the wallrequires a professional approach at every stage — from design to final finishing.
Design begins with measuring the room and creating a scaled drawing. The drawing indicates panel dimensions, positions of vertical and horizontal elements, plank spacing, frame beam cross-section, and profile types. Material consumption is calculated with a 15–20% reserve for trimming and potential defects.
Wall preparation. The surface must be leveled to no more than 3 mm deviation over 2 meters. An uneven wall will result in a skewed frame and poorly fitting planks. Leveling is achieved using plaster or mounting gypsum board on a metal frame.
Mounting the frame.Oak beamorOak timber beamis mounted to the wall using metal brackets or anchors. Vertical post spacing is 40–60 cm, horizontal crossbar spacing — 60–80 cm. The frame is set level and plumb; any misalignment will be visible on the finished surface.
Installing planks.Interior oak plankor beech plank is mounted to the frame using finish nails, concealed clips, or adhesive. Spacing is set using a template — a wooden strip of exact gap width — inserted between planks during installation. This ensures uniform gaps across the entire panel surface.
Mounting overlays and profiles.Decorative wooden moldingandWooden profileare installed after mounting the main planks. Joints are made using the "on the edge" method with precision to tenths of a degree. Overlays are mounted with adhesive and finish nails, whose heads are countersunk and sanded smooth.
Final finishing. The entire structure is sanded with 220–320 grit sandpaper to remove burrs and installation marks. Then, a protective finish — oil, varnish, or paint — is applied in 2–3 coats with intermediate sanding. The finish must be applied evenly to all elements to ensure visual continuity.
Stylistic variations of panels
Scandinavian style. Panel made from light-colored species (oak planksin the tone of the boards. The background between the boards — white or light gray.Wood skirting boardLoft. Panel made of
Loft. Panel from %soak planksdark tone (wenge, oak), with wide boards of 50×80 mm cross-section and 40 mm gaps. Rough finish, visible knots, brushed texture. Frame made ofoak beamcross-section 100×100 mm, open, forming part of the composition. Background — concrete, brick, or dark paint.
Modern classic. Panel made ofdecorative oakwith horizontal and vertical elements forming a rectangular grid. Boards of 40×50 mm cross-section, gaps of 20 mm. Framing —Profile made of woodwith beveled edges. Finish — matte varnish. Color — natural oak or walnut-toned.
Minimalism. Panel made ofbeech boardscross-section 20×40 mm, installed vertically with 40 mm gaps. No overlays, profiles, or framing — only the rhythm of thin boards. Finish — matte oil or monochromatic paint (white, gray, beige). Background — in the tone of the boards, shadows created only by geometry.
Eco-style. Panel made of different wood species — oak, beech, ash — preserving natural tones. Boards of varying widths (from 30 to 60 mm), installed at variable spacing, creating natural chaos. Unfinished or lightly brushed surfaces, oil finish. Integration of live plants — planters between boards.
Questions and Answers: Creating panels from oak and beech
Can a board made of boards be used in wet areas?
Panel made ofwooden stripscan be installed in bathrooms and kitchens, but requires special treatment. Wood must be impregnated with a hydrophobic compound, covered with a water-resistant varnish or waxed oil. Oak is more resistant to moisture than beech. Ventilation is essential — the air gap between the panel and the wall must be at least 30 mm to allow air circulation.
How to calculate the number of boards for a panel?
Formula: (panel width / (board width + gap width)) × panel height = total board length. Example: 3×2.5 m panel, 40 mm board, 40 mm gap: (3000 / (40 + 40)) × 2500 = 37.5 × 2500 = 93,750 mm = 94 meters. Add 15% reserve = 108 meters. Standard board length is 2.5–3 meters, so approximately 40 boards are needed.
Is vapor barrier needed behind the panel?
In living spaces with normal humidity, vapor barrier is not needed — wood must 'breathe'. In high-humidity areas (bathrooms, saunas), a vapor barrier membrane is installed behind the panel to prevent moisture from penetrating the wall and forming condensation. A ventilation gap is left between the membrane and the panel.
How to avoid cracking of oak boards?
Oak is prone to cracking under sudden humidity changes. Solution: acclimatization of the material — boards are left in the room for 5–7 days before installation to equalize wood moisture with air humidity. Fastening must allow for thermal expansion — avoid rigid gluing, use hidden clips.
Can the panel be painted after installation?
Yes, but it is more complex than painting boards before installation. When painting an installed panel, paint or varnish may enter gaps, causing stains. Solution: use an airless sprayer with minimal pressure, apply thin layers with intermediate drying. Ideally — paint boards before installation, and touch up ends after installation.
How to clean a panel made of boards?
Dry cleaning — vacuum cleaner with soft attachment, removing dust from gaps. Wet cleaning — slightly damp microfiber cloth, without excess water. Oil finish requires periodic renewal — every 2–3 years, surface is wiped with oil. Varnish finish requires no special care, only regular wiping.
Conclusion: STAVROS system for creating architectural walls
Architectural panels made of oak and beech — these are not decorative cladding, but spatial structures that define the character of the interior. STAVROS company offers a complete set of materials for creating such panels:wooden planks on the wall, Decorative oak plank, Interior oak plank, Wooden planks for wall decoration, Wooden railsof different species and cross-sections,Oak beam, Oak timber beamfor frames,Decorative wooden molding, Wooden profilefor transitions,Wooden skirting boardsto complete the composition.
Production of trim elementsSTAVROS ensures the geometric stability of elements — a critical parameter for creating panels with a regular rhythm. Each rail is manufactured on CNC machines with precision to 0.3 millimeters, guaranteeing uniform cross-section along the entire length and between batches.Manufacturer of trimcontrols the entire cycle — from wood selection to final finishing.
Buy oak wooden planks for wallscan be delivered to Moscow and St. Petersburg and throughout Russia. STAVROS offers consultation from panel design specialists, material calculation, and installation recommendations. Custom cross-sections and lengths can be manufactured for specific projects.
Buy wooden planksat STAVROS means obtaining material from a single batch of wood, with coordinated tone and texture. This is critical for creating visually cohesive panels, where any color variation in the rails will be noticeable. All material undergoes kiln drying to a moisture content of 10–12 percent, minimizing deformation after installation.
Oak and beech architectural panels are an investment in the longevity and aesthetics of interior design. Such finishes last 30–50 years without loss of quality, becoming the foundation around which the rest of the interior is formed. STAVROS creates materials for such panels, transformingwood trim itemsinto tools of architectural thinking, where the wall becomes a work of art.
