Furniture speaks to us through details. Not through its overall shape, not the color of the facade, and not even the type of wood—but through how it feels to the touch. The palm touches the handle before the eye has time to assess the overall appearance of the cabinet. That is why the correct choice of fittings is not a secondary issue resolved at the last moment, but a fundamental design decision made consciously.Mortise wooden handles— are one of the most exquisite such solutions: they disappear into the plane of the facade, do not protrude forward, do not disrupt the silhouette of the furniture—and yet work flawlessly.

What this design is, its real advantages, how to choose the size and install it correctly—we will break it down sequentially and without unnecessary words.

Furniture handle Altair HL-067M

from 39.14 $

Furniture Handle Alcor HL-066M

from 39.64 $

Ton HL-058-1M furniture handle

from 33.90 $

HL-070-1M decorative furniture handle insert

from 33.66 $

Ton HL-058-1M furniture handle

from 33.90 $

Atlas HL-071M furniture handle

from 27.05 $

Go to Catalog

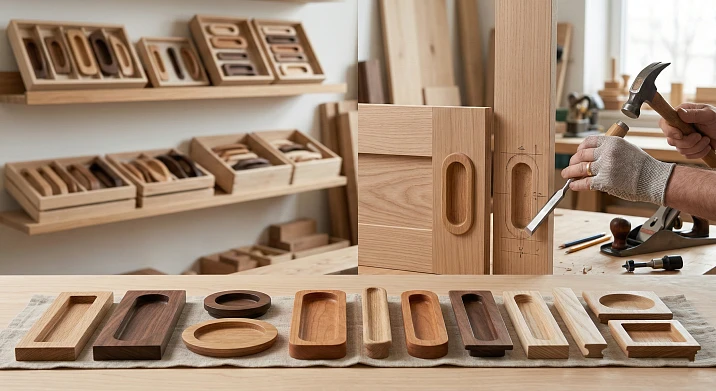

What are mortise wooden handles—construction and features

Watch video ...

Anatomy of a mortise handle: how it is constructed

A mortise handle is a furniture fitting that is mounted not on the surface of the facade, but flush with it. A recess—a groove or pocket—is cut into the facade, into which the handle is inserted so that its front surface aligns with the plane of the door or drawer, or is slightly recessed relative to it.

Structurally, a mortise handle consists of several elements: the handle body itself with the grip area (the groove where fingers go), a frame or flange that covers the edges of the cutout, and a mounting part—a shank or fixing plates that hold the handle in the groove from inside the facade. For wooden mortise handles, all three parts are typically made from a single piece of solid wood—oak or beech—without steel inserts or plastic elements. This makes them visually monolithic and tactilely uniform.

The depth of the milled groove for a mortise handle is usually 15–25 mm depending on the model. The shape of the groove is rectangular, oval, or trapezoidal. The grip area—the part where one or two fingers go for opening—has rounded edges: this is an ergonomic requirement, without which the handle would be uncomfortable.

Our factory also produces:

Wooden handrail L-087

from 29.67 $

Wooden finial L-088

from 28.67 $

Wooden Cap L-066

from 131.50 $

Wooden Cap L-081

from 25.55 $

Wooden Handrail L-082

from 32.53 $

Wooden Cap L-083

from 34.90 $

Wooden Finial L-084

from 47.24 $

Wooden Finial L-085

from 17.08 $

View Full Product Catalog

What wood are mortise handles made from

The wood for mortise handles must meet specific requirements: withstand years of bending and twisting loads, not delaminate in the area of thin groove walls, and maintain its shape well under humidity fluctuations. A random wood species is unacceptable here.

Beech—a classic choice for mortise handles. Its density is 680–750 kg/m³, the fiber structure is uniform, without large pores, which ensures equal strength throughout the cross-section of the part. Beech mills well, produces a clean cut without chipping, and is easily polished to a glossy surface.

Oak—a more premium option. The hardness of oak on the Janka scale is higher than that of beech, and the expressiveness of its grain is incomparably richer. A mortise handle made of oak with an open oil finish showcases all the beauty of natural wood: large pores, shimmering silkiness, a golden-brown hue with a grayish patina in the shadows.

In the catalogof furniture wooden handlesSTAVROS offers products made precisely from oak and beech—two species that ensure maximum durability under daily use. The products are manufactured using 3D milling, which guarantees geometric precision and reproducibility of each part.

How a mortise handle fundamentally differs from all others

All furniture handles are divided into two types based on their interaction with the facade: protruding and recessed. The mortise handle is the only representative of the second type among wooden products. Other types—surface-mounted, pull handles, knobs, profiles—protrude above the plane of the facade in one way or another.

This is not just a structural detail—it is a fundamental difference in furniture philosophy. A protruding handle draws attention to itself, becoming a decorative element. A mortise handle dissolves into the facade, giving priority to the wood grain, coating color, and overall shape of the product.

Difference between mortise and surface-mounted handles—pros and cons

Surface-mounted vs. mortise: what is the essence of the debate

This choice arises in every project involving wooden furniture with natural handles. Designers, clients, and furniture manufacturers prioritize differently—and that is precisely why both types exist and are in demand simultaneously.

A surface-mounted handle is installed on the surface of the facade using screws that pass through the door or drawer wall. The contact surface of the handle presses against the facade, and the entire fastening relies on two to four points.

A mortise handle is installed into a pre-cut groove and secured from the inside. Its front surface aligns with the plane of the facade or protrudes slightly—no more than 2–5 mm.

Advantages of mortise handles

Minimalist furniture silhouette. A facade without protruding fittings looks clean and monolithic. This is precisely the effect valued in Scandinavian style, minimalism, modern classic, and Japanese wabi-sabi aesthetics. Furniture with mortise handles appears more expensive—even if it is comparable in price to alternatives.

Safety in space. In narrow corridors, hallways, and children's rooms, protruding handles pose a constant risk of snagging clothing, getting bruises, or tearing fabric. A mortise handle completely eliminates this problem: there is nothing physically to catch on.

Connection durability. An overlay handle is held by bolt threads, which loosen over time. This is especially noticeable on cabinets with lightweight MDF fronts, where the threads become worn within a few years. A recessed handle, secured in a groove with adhesive or an internal mechanical lock, does not have this weakness.

Resistance to household dirt. An overlay handle has a gap between the body and the front panel — this is where dust, grease, and crumbs accumulate. In the kitchen, this gap becomes a hygiene issue. A recessed handle has no gap: it fits tightly into the front panel, and the grip area is easy to wipe clean.

Disadvantages of recessed handles

Installation complexity. Cutting a groove for a recessed handle is more difficult than drilling two holes for overlay handle bolts. This requires a router, a template, and certain skills. An error in the groove size — and the handle will be loose or won't fit at all.

Irreversibility. An incorrectly cut groove cannot be fixed without consequences for the front panel. An overlay handle can be repositioned by simply moving the mounting points. This is not possible with a recessed handle.

Limitations by front panel type. Recessed handles are suitable for front panels with a thickness of 18 mm and above. On thin panels, the groove depth consumes almost the entire thickness of the front panel, critically reducing strength.

Price. The production of a recessed handle is technologically more complex than that of an overlay handle — accordingly, the price is higher. This is a fair price for a more complex design and more demanding installation.

Comparison table: recessed vs. overlay

Sizes: long, short, brackets — how to choose for furniture

Handle length and its relationship with front panel size

The size of a recessed handle is not just a matter of grip comfort. It is a proportional solution that affects the visual perception of the entire furniture. Professional designers apply a simple rule here: the handle length should be from one-sixth to one-fourth of the front panel width (for horizontal placement) or from one-fifth to one-third of the front panel height (for vertical).

Short recessed handles (80–150 mm) — for front panels up to 400 mm wide. These are standard drawers of kitchen cabinets, small doors of overhead cabinets, sections of tall cabinets. A short handle in the center of a small front panel looks neat and proportionate.

Medium recessed handles (160–300 mm) — a universal range. Suitable for standard kitchen front panels 400–600 mm wide, for sliding wardrobe doors up to 2.2 m high with horizontal placement, for cabinets and dressers.

Wooden long handlesLong recessed handles (300 mm and above) — for wide front panels, tall vertical doors, tall cabinets. A long recessed handle on a narrow, tall front panel of a column cabinet creates a strong vertical line that visually 'stretches' the furniture upward. In furniture sets, this creates a sense of height and slenderness.

How to position the handle: horizontally or vertically

The orientation of the handle on the front panel is a separate design decision with clear logic.

Horizontal placement — for wide front panels, for drawers and horizontal sections. Horizontal emphasizes width, visually expands the furniture. Works well in low, wide TV stands, kitchen base cabinets, wide dresser drawers.

Vertical placement — for tall narrow cabinet doors, tall cabinets, refrigerator columns. The vertical orientation emphasizes height, making furniture appear more slender and architectural. In narrow hallways, a vertically placed long handle creates 'height' and scale.

Diagonal placement — a non-standard technique used in designer projects. A recessed handle at a 30–45° angle adds dynamism to the facade and breaks the monotony of the unit.

Groove depth and grip ergonomics

This parameter directly affects daily comfort of use. A groove that is too shallow (less than 15 mm) does not allow fingers to enter deeply enough — the handle is caught with fingertips rather than gripped securely. A groove that is too deep (more than 30 mm) on a small facade weakens its structure.

The optimal depth for comfortable use is 18–22 mm. It is within this range that the index and middle fingers enter the groove up to the full phalanx, ensuring a confident grip without straining the hand. This is important forwooden cabinet handlesin hallways and kitchens, where cabinets are opened hundreds of times a day.

Groove width and frame shape

The grip zone width of recessed handles varies from 30 to 60 mm. A narrow grip (30–35 mm) is for one finger. A wide grip (50–60 mm) is for two to three fingers simultaneously. For heavy sliding wardrobe doors or refrigerator columns, it is better to choose a wider grip: it reduces the load on the hinges when opening.

The frame of a recessed handle is the decorative border of the groove that covers the edges of the cutout in the facade. Some models have a minimal frame — 3–5 mm, and the handle literally 'grows into' the facade. Others have a wider frame — 10–15 mm, which becomes an independent decorative accent. The choice depends on the style: for minimalism — a thin frame; for neoclassical or eco-style — a wide frame.

Installing a recessed handle yourself — step by step

Tools and materials

Installing a recessed wooden handle is a job that requires a clear understanding of the sequence of actions. Improvisation here is costly: an error in marking or routing means a ruined facade.

Minimum set of tools:

• Hand router with a set of bits (straight groove bit with a diameter of 6 or 8 mm)

• Routing template (can be made from 10 mm plywood or purchased ready-made)

• Chisel and hammer for cleaning the corners of the groove

• Drill with a set of drill bits

• Carpenter's square and pencil

• Tape Measure and Metal Ruler

• Sandpaper (grit 180–240)

• Wood glue or solvent-free mounting adhesive

Step 1. Marking the handle position on the facade

Remove the facade from the furniture — installation while hanging is significantly more difficult and less accurate. Place the facade on a flat horizontal surface with the front side facing up.

Determine the center axis of the handle. For a horizontal handle: measure from the top or bottom edge of the facade a distance equal to the standard center-to-center distance (usually 20–30 mm from the edge for drawers, centered in height for doors). For a vertical handle: the middle of the handle should align with the horizontal center of the facade.

Draw the center axis with a pencil. Mark the extreme points of the groove: the groove length equals the length of the handle's grip zone plus 5 mm on each side for the frame. Trace the groove contour using the template.

Important point: check the marking with a square twice. An axis offset of even 2 mm is clearly noticeable in the finished product.

Step 2. Making or selecting a routing template

A template is an overlay frame made of plywood, inside which the router bit moves along the required contour. The internal size of the template equals the external size of the groove minus two diameters of the router's guide bushing.

If you are making the template yourself: cut a rectangle from 10–12 mm plywood with sides exceeding the groove by 80–100 mm on each side. Inside this rectangle, cut out the working window contour with a jigsaw with an accuracy of ±0.5 mm. Sand the inner walls until smooth — they will guide the router's guide bushing.

Step 3. Routing the groove

Place the template on the facade and secure it with clamps. Ensure it does not shift. Insert a straight groove bit of the required diameter into the router, install the guide bushing.

Milling is performed in several passes with increasing depth: the first pass — 5–6 mm, the second — another 5–6 mm, the third — up to the design depth. A single deep pass results in poor cut quality and overloads the tool.

Direction of router movement: always against the rotation of the cutter (climb milling causes chipping). For a right-hand rotating cutter — move clockwise along the inner contour.

After milling, the corners of the groove will be rounded — according to the cutter diameter. If the handle has rectangular corners, they need to be cleaned up with a chisel: carefully, using a square, without skewing.

Step 4. Handle preparation and fitting

Remove the template, clear away the chips. Fit the handle into the groove: it should go in without force, but also without play. The gap between the handle frame and the groove edges — no more than 0.3–0.5 mm on each side.

If the handle fits too tightly: carefully widen the groove with a chisel or needle file, removing 0.1–0.2 mm at a time and constantly checking by fitting. Don't rush — it's easy to widen, impossible to narrow.

If the handle is loose: the groove was either made with an error, or the template was inaccurate. In this case, the groove is filled with a wooden insert using glue and re-milled.

Step 5. Final installation

Apply a thin layer of wood glue to the handle frame (the part that contacts the front surface of the facade) and to the inner walls of the groove. Insert the handle. If the handle design includes internal mechanical fixation — tighten the mounting screws through the back side of the facade.

Immediately remove excess glue with a damp cloth — once dry, glue is much harder to remove. Secure the handle with clamps using soft pads for 2–4 hours.

After the glue has fully cured (24 hours at +18°C and above) install the facade on the furniture. The handle is ready for use.

Step 6. Finishing

If the handle is supplied without a finish — in the state as offeredunpainted wooden handlesfrom the catalog — it is processed after installation together with the facade. This is the correct approach: the finish will lay evenly at the joint between the handle and facade, without a visible line.

For oil finish: oil is applied with a brush or pad, left for 15–20 minutes, excess is removed with a dry cloth. After 24 hours of drying — a second thin coat. For varnish finish: priming, sanding with 220 grit, two coats of varnish with intermediate sanding.

Wooden cabinet handles: which are suitable for kitchen, bedroom, hallway

Kitchen: main requirements for handles

The kitchen is the most aggressive environment in terms of furniture hardware operation. Here handles are opened 50–80 times a day, there is constant moisture, grease, thermal fluctuations from the stove, and cleaning chemicals.

For kitchen furniturewooden cabinet handlesmust meet several requirements simultaneously:

• Hardness of the wood species. Soft wood wears down in the grip area with intensive use. Oak and beech are the right choices for the kitchen.

• Moisture resistance of the finish. An open oil or wax finish in the kitchen requires regular renewal. A more practical option is a closed lacquer or polyurethane finish that does not allow moisture penetration.

• Minimal number of gaps. Inset handles win over overlay handles precisely on this parameter: there are no gaps between the carcass and the facade, nowhere for grease and crumbs to get trapped.

• Hygienic shape. Simple rectangular or oval inset grooves are easier to clean than complex profiled overlay handles with decorative grooves.

Best shapes for inset handles in the kitchen: rectangular groove with a thin frame, oval groove for drawers with a grip width of 45–55 mm. Optimal length for base cabinets — 150–200 mm, for tall units — 300–400 mm in vertical orientation.

Bedroom: priority on aesthetics and quietness

In the bedroom, furniture is opened much less frequently than in the kitchen, and in a completely different way — slowly, smoothly, often in the dark. Here the strength requirements are lower, but aesthetic priorities come first.

For the bedroom, inset handles with more refined groove shapes are suitable: asymmetrical, with smooth curves, with a wide frame made of oak with open grain. On facades made of natural veneer or solid wood, an inset handle creates the effect of 'furniture without hardware' — exactly what is valued in modern bedroom sets.

A separate point — quiet opening. An inset handle does not produce metallic sounds when touched, does not clatter upon accidental impact. For the bedroom, this is a significant bonus.

For bedside tables with small drawers: short inset handles 80–120 mm in the center of the facade. For large sliding wardrobes: long vertical handles 400–600 mm, offset from the center of the facade towards the edge — precisely where the hand naturally grasps.

Hallway: safety and durability

The hallway is a high-traffic area where furniture is used under constant crowding: people put on shoes, hang jackets, drop bags. A protruding handle in a narrow corridor means bruises and torn pockets. It is for the hallway that the safety argument for an inset handle carries the most weight.

Wardrobes in the hallway are typically tall and narrow — tall cabinets with a facade width of 300–450 mm and a height of up to 2.2–2.4 m. For such facades, long vertical inset handles 400–500 mm, positioned in the upper third of the facade — at a height of 150–180 cm from the floor — are ideal. This is the ergonomically correct zone for an average-height adult.

The wood species for the hallway is unequivocally oak. There is no need for complex aesthetics here: maximum resistance to mechanical stress is required, which is higher in the hallway than in any other area of the apartment.

Children's room: focus on safety

In children's furniture, inset handles are a conscious choice dictated by safety concerns. No protruding elements a child could bump their head on. No metal overlays with sharp edges. Only a wooden surface, recessed flush with the facade.

For children's rooms, handles made of beech with a natural oil finish are preferable: such a coating does not release chemicals, is safe for skin contact, and is easy to renew. The groove shape should be wide, rounded, with soft transitions.

Study and living room: status and style

In a study, a wooden inset handle is an element of the overall 'workspace from natural materials' concept. Handles made of oak with an open grain, finished with dark oil or tinted wax, are appropriate here — they create a sense of weight, solidity, and seriousness.

For built-in library cabinets in the living room, long vertical handles 500–600 mm give the furniture an architectural scale, transforming it from a 'cabinet' into a 'bookshelf' in the full sense of the word.

Caring for wooden inset handles

Daily maintenance

A wooden inset handle does not require special care but needs regular attention. Daily — a damp cloth without aggressive chemicals. Weekly in the kitchen — wiping with a mild detergent without chlorine or abrasives. After each contact with liquid — dry thoroughly.

Do not use alcohol-containing products on handles with an oil finish: they wash the oil out of the pores, and the surface loses its protection. For oil finishes — only neutral agents, preferably specialized ones for wood care with wax.

Coating restoration

Once every 1–2 years (for kitchen furniture — annually), the surface of handles with an oil finish should be renewed. The procedure is simple: the surface is wiped dry, a thin layer of fresh oil is applied with a brush or pad, and after 15 minutes the excess is removed. The result — the handle looks like new.

A lacquer finish does not require such maintenance, but for deep scratches, restoration is more complex: local sanding and application of new lacquer with subsequent polishing of the restored area are needed.

Repair for loosening

If an inset handle starts to wobble in its groove — this is a sign that the adhesive bond has weakened. Solution: carefully remove the handle, clean the contact surfaces of old glue, apply fresh wood glue, and reinstall it, securing with clamps for 24 hours.

If the handle is held by mechanical screws — check their tightness. Wooden threaded inserts (threaded bushings) can loosen over time: they should be replaced with new ones using epoxy glue for reliable fixation in the facade.

How to choose an inset wooden handle: a practical algorithm

Three questions that determine the choice

To avoid getting confused in the assortment and making a mistake when purchasing, it is enough to consistently answer three questions.

First question: for what furniture and what room? The answer determines the requirements for wood species (kitchen and hallway — oak, bedroom and living room — oak or beech) and for the type of finish (kitchen — lacquer, bedroom — oil).

Second question: what is the facade size? The answer determines the optimal handle length according to the proportional rule (1/6–1/4 of the facade width or height) and the orientation (horizontal or vertical).

Third question: what is the interior style? The answer determines the groove shape (rectangular — for minimalism, rounded — for Scandinavian style, wide frame — for classic and eco) and the type of finish or detailing.

What to look for when purchasing

When choosing a specific model, pay attention to the following parameters:

• Geometric precision. The handle frame must be perfectly flat: check by placing it against glass. The slightest bend means the handle will not fit flush against the facade.

• Milling quality. The internal walls of the groove must be smooth, without steps, without signs of uneven feed. Roughness is a sign of poor-quality tools or a worn cutter.

• Wood moisture content. Damp wood continues to dry after installation and may crack. Check with a moisture meter: the acceptable range is 8–12%.

• Matching the wood species with the facade. If the furniture is made of oak, the handle should also be made of oak. Mixing species creates a mismatch in textures and color shades, which is especially noticeable with the same transparent finish.

FAQ: Answers to popular questions

Is it possible to install a mortise handle without a router?

In theory — yes, using a chisel and drill. In practice — the quality of the groove will be significantly worse: uneven walls, imprecise corners, risk of chipping. Acceptable for a single handle in a small project; for a set of 20+ facades — a router is definitely needed.

Are mortise handles suitable for MDF facades?

Yes, with MDF thickness from 18 mm. Thinner MDF does not provide sufficient depth for the groove. Important: when routing MDF, the router feed speed should be higher than when working with solid wood — otherwise the material melts from overheating.

Why are wooden handles better than metal mortise handles?

Metal mortise handles are cold to the touch, creating tactile discomfort in cool rooms. Wood maintains a temperature close to body temperature. Additionally, wood does not 'ring' when accidentally struck and does not scratch the furniture facade upon lateral contact.

What length to choose for a handle on a wardrobe door 2100 mm high?

For vertical placement: 350–420 mm (1/5 of the facade height). The center of the handle should be at a height of 145–160 cm from the floor — the standard grip height for an adult 165–185 cm tall.

How often should the coating of wooden handles be renewed?

In a kitchen with an oil finish — once a year. In a bedroom or living room — every 2–3 years. Handles with a lacquer finish practically require no maintenance — only careful cleaning.

Can wooden mortise handles be painted to match the facade color?

Yes, and this is one of the best ways to visually 'hide' the handle. Handles made of beech or oak without a finish are primed and painted with acrylic enamel to match the facade. The result is furniture with no visible hardware that opens as if by magic.

What is the difference between a shell handle and a mortise handle?

A shell handle is a type of mortise handle with a characteristic concave shell shape. It is mounted in a groove in the same way as a standard mortise handle but has a more decorative shape and a less pronounced frame. For more details on the range of shapes — see the sectionsolid wood furniture handles.

Are wooden mortise handles suitable for glass facades?

No. Routing glass for a groove is a technically complex and expensive operation, not comparable in price to the handle itself. For glass facades, overlay clamp handles made of metal or plastic are used.
