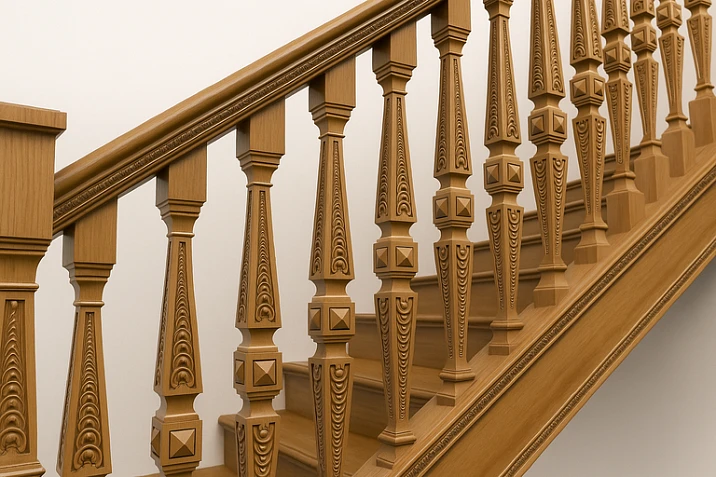

How to properly install balusters on a staircase: a masterclass from a professional

The safety of a staircase structure depends on many factors, but the key role is played by proper baluster installation. How to properly install balusters on a staircase — a question that requires a deep understanding not only of technical aspects but also of nuances of working with different materials. The quality of installation affects not only the longevity of the structure but also the safety of everyone who uses the staircase daily.

Proper baluster installation is an art where every detail matters. Inaccuracies in marking, errors in choosing fasteners, or violations of technology can lead to catastrophic consequences. Imagine a situation where a child leans on the handrail, and a baluster suddenly loosens — such moments make you understand the full importance of a professional approach to installation.

Modern technologies offer numerous ways to fasten balusters, each with its own advantages and limitations. The choice of the optimal method depends on the staircase material, type of balusters, operating conditions, and aesthetic requirements. Understanding these nuances will help create not only a safe but also visually appealing staircase structure.

Wooden Baluster L-039.1

from 93.27 $

Wooden Baluster L-060

from 103.27 $

Wooden Baluster L-106

from 555.94 $

Wooden Baluster L-103

from 195.92 $

Wooden Baluster L-059

from 129.42 $

Wooden Baluster L-095

from 65.39 $

Wooden Baluster L-111

from 72.18 $

Flat wooden baluster L-058.1

from 375.93 $

Go to Catalog

Fundamental principles of safe installation

Baluster installation begins not with the first hammer strike, but with a deep understanding of the principles on which a reliable staircase structure is built. Each baluster must withstand not only static loads from its own weight and handrails, but also dynamic impacts from people using the staircase.

Watch video ...

Analysis of loads and safety requirements

Building codes establish minimum requirements for the strength of staircase railings. The horizontal load on the handrail should be at least 0.8 kN/m for residential buildings and 1.5 kN/m for public buildings. These figures are not random — they are based on an analysis of real operating conditions and statistics of accidents.

Each baluster must bear its share of the total load, requiring even distribution of forces along the entire length of the railing. Concentration of stresses at individual points is unacceptable, as it may lead to failure of the most heavily loaded elements.

Dynamic loads arise during rapid movement on the staircase, sharp turns, accidental impacts. Balusters must have sufficient elasticity to absorb these impacts without damage. Rigid fastening may lead to brittle failure, while overly flexible fastening may result in loss of stability.

Our factory also produces:

Wooden Baluster L-111

from 72.18 $

Wooden Baluster L-079

from 243.92 $

Wooden Baluster L-067

from 114.49 $

Wooden Baluster L-045

from 59.96 $

Wooden balustrade L-041

from 76.86 $

Wooden baluster L-038

from 60.46 $

Wooden balustrade L-037

from 65.51 $

Wooden newel post L-048

from 65.39 $

View Full Product Catalog

Material Science Aspects

The choice of baluster material determines not only their appearance but also the method of fastening. Wooden balusters require consideration of grain direction, material moisture, possible deformations under changing climatic conditions. Metal elements have high strength but require corrosion protection.

Material compatibility plays a critical role in the longevity of connections. Contact between dissimilar metals may lead to electrochemical corrosion, different coefficients of thermal expansion — to weakening of fasteners. These factors must be considered when selecting fasteners.

Material quality must match operating conditions. For outdoor staircases, materials with increased resistance to atmospheric effects are required; for indoor staircases — with low emission of harmful substances. Saving on material quality may result in costly repairs in the future.

Preparation stage: the foundation of quality installation

Quality preparation is the key to successful baluster installation. This stage includes detailed planning, preparation of tools and materials, and precise marking. Rushing during the preparation stage inevitably leads to errors during installation.

Design and Calculations

Design begins with analyzing architectural drawings and determining the exact number of balusters. The distance between baluster axes should not exceed 150 mm to ensure child safety. This requirement determines the minimum number of elements for each flight.

Baluster height is calculated based on handrail height (typically 900 mm from step surface) minus the thickness of the handrail support plate and the handrail itself. Standard baluster height is 800–850 mm, but may vary depending on specific conditions.

Baluster cut angles are determined by the staircase slope. For straight flights, this angle is constant; for spiral staircases, each baluster may have an individual cut angle. Accuracy of calculations is critically important to ensure verticality of installed balusters.

Tool Preparation

Quality tools are the foundation of professional work. The drill must provide precise hole drilling without wobbling or deviations. Wood drill bits must be sharp and match the diameter of fasteners with precision to 0.1 mm.

Measuring tools require special attention. The tape measure must have clear markings and a reliable lock. The level must be calibrated and have sufficient length to check the verticality of balusters. A square is necessary to verify the perpendicularity of joints.

Specialized fixtures significantly simplify the work. Drilling guides ensure accurate positioning of holes. Clamps allow securely fixing parts during processing. Saw guides guarantee straight cuts.

Marking and Positioning

Marking begins with installing the outer support posts, which serve as references for placing intermediate balusters. The accuracy of installing these elements determines the geometry of the entire railing. Laser levels are used to ensure perfect verticality.

A marking string is stretched between the support posts, along which the positions for installing balusters are determined. The string must be tightly stretched and positioned strictly horizontally. Sagging of the string will lead to marking errors.

Each baluster installation point is marked on the tread using a square and pencil. The marks must be clear and precise, as correcting marking errors after drilling holes is practically impossible. It is recommended to double-check all dimensions before starting drilling.

Fastening technologies: choosing the optimal method

There are several main methods of fastening balusters, each with its own advantages and areas of application. Correct installation of balusters Requires choosing the optimal fastening method depending on specific conditions.

Mounting with threaded rods

Stainless steel threaded rods with a diameter of 8-10 mm provide maximum connection strength. This method is especially effective for heavy balusters made of hardwood or under high loads on the railing.

The installation technology includes drilling holes in the tread and baluster with high precision. The hole diameter must exactly match the rod diameter to ensure a tight fit. The hole depth in the tread is 40-50 mm, and in the baluster — 60-80 mm.

The rod is installed into the tread with thread sealant or epoxy glue. The protruding part should be 60-80 mm for a secure connection with the baluster. A threaded hole is tapped in the baluster for screwing onto the rod. This connection allows adjusting the baluster height and, if necessary, removing it.

Connection using wooden dowels

Wooden dowels with a diameter of 10-12 mm made from hardwood create an environmentally friendly and aesthetically pleasing connection. This method is especially popular when working with valuable wood species, where it is important to preserve the natural material.

The quality of dowels is critically important for connection strength. They must be made from wood harder than the main material of the balusters. The moisture content of the dowels should be lower than that of the connected parts to ensure a tight fit after moisture equalization.

Shank installation is performed using carpentry glue PVA or polyurethane glue. Glue is applied both into the holes and onto the shank surface. The setting time is 15-20 minutes, full polymerization — 24 hours. During this time, the connection must remain immobile.

Mounting with self-tapping screws

Screws with a diameter of 6-8 mm provide quick and reliable installation of balusters. This method is especially effective when working with softwood and in cases where disassembly is required.

Screws are driven in at an angle of 30-45 degrees to the vertical to increase connection strength. Pre-drilling holes 1-2 mm smaller in diameter than the screw prevents wood cracking. Screw heads are countersunk into the wood and covered with decorative plugs.

Four screws are used to fasten one baluster, arranged crosswise at the bottom. This arrangement ensures even load distribution and prevents the baluster from rotating around its axis.

Features of installation on various bases

The type of base significantly affects the choice of fastening technology and materials used. Each material has its own characteristics that must be considered to ensure a reliable connection.

Installation on wooden steps

Wooden treads represent the most favorable base for fastening balusters. The uniformity of the material ensures predictable connection behavior, and the possibility of using adhesive compositions increases fastening reliability.

The thickness of wooden treads is usually 40-50 mm, which is sufficient for reliable fastening of balusters by any of the described methods. When using thin treads, additional elements may be required to strengthen the structure.

The direction of wood grain affects connection strength. Fastening elements should be placed perpendicular to the grain or at a small angle to it. This prevents wood splitting and ensures maximum connection strength.

Mounting on concrete bases

Concrete bases require the use of special fastening elements — anchors or chemical dowels. The choice of a specific type of fastener depends on the strength of the concrete and the magnitude of the loads.

Mechanical anchors provide high connection strength due to wedging in the drilled hole. Anchor diameters are usually 10-12 mm, installation depth — 60-80 mm. It is important to use stainless steel anchors to prevent corrosion.

Chemical anchors are a modern alternative to mechanical ones. They consist of a threaded rod and a chemical compound that, after curing, creates a strong connection with concrete. This method is especially effective when working with porous or old concrete.

Fastening to metal structures

Metal stair frames require a special approach to fastening wooden balusters. The main task is to ensure a reliable connection of dissimilar materials, taking into account their different thermal expansion.

Welded connections provide maximum strength but require professional skills and special equipment. Welded elements are attached to the metal frame, to which wooden balusters are then fastened.

Bolted connections are more universal and allow for disassembly if necessary. Bolts with a diameter of 10-12 mm with stainless steel washers and nuts are used. It is important to provide for the possibility of tightening connections during operation.

Step-by-step installation technology

Installation process of balusters on the staircase Requires strict adherence to the technological sequence. Each stage has its own features and critical control points.

Stage one: preparing balusters

Baluster preparation begins with checking their geometric dimensions and surface quality. All elements must have the same height with an accuracy of ±1 mm. End surfaces must be perfectly flat and perpendicular to the baluster axis.

Surface grinding is performed in several stages with gradually decreasing abrasive grit. Initial processing with P120-P150 sandpaper removes machining marks. Final grinding with P280-P320 gives the surface ideal smoothness.

Holes for fasteners are drilled using a drill press or with the help of guiding fixtures. The accuracy of hole positioning is critical for the quality of the connection. A deviation from the axis by even 1-2 mm may cause the baluster to be misaligned.

Stage two: marking and drilling the base

Marking the locations for balusters is done using templates and measuring tools. Each point is marked with a center punch to prevent the drill bit from shifting when drilling begins.

Drilling holes in the base requires special care. The drilling speed should be moderate to prevent overheating of the drill bit and the base. The holes must be strictly perpendicular to the base surface.

Cleaning holes of chips and dust is mandatory before installing fasteners. Compressed air or special brushes are used. Chip residues may prevent tight fitting of the fasteners.

Stage three: installing fasteners

Installation of bolts or dowels is performed using adhesive compounds. The adhesive is applied in an even layer both into the hole and onto the surface of the fastener. Excess adhesive must be removed before it sets.

The adhesive setting time is 15-30 minutes depending on the type of compound and ambient temperature. During this time, the fasteners must remain stationary. Temporary fixators are used if necessary.

Verticality of fasteners is checked using a plumb bob or laser level. Deviation from verticality is unacceptable, as it will cause the balusters to be misaligned.

Stage four: installing balusters

Installing balusters onto prepared fasteners requires care and precision. The baluster is placed onto the bolt or dowel with a slight rotation to evenly distribute the adhesive.

Verticality of each baluster is checked immediately after installation. A level at least 60 cm long is used to ensure measurement accuracy. The baluster position is adjusted if necessary until the adhesive has set.

Temporary fixation of balusters is done using clamps or spacers. This prevents displacement of elements until the adhesive joint fully cures. The holding time is at least 24 hours.

Handrail installation and final finishing

The final installation stage includes mounting handrails and finishing the entire structure. This stage determines the final appearance of the staircase and its usability.

Preparing and installing the handrail support rail

A 20×40 mm cross-section support plank serves as the base for mounting the handrail and provides additional structural rigidity. The plank is made from the same material as the balusters.

Installing the plank on the top ends of the balusters requires precise fitting. The plank must fit tightly against all balusters with no gaps. If necessary, additional end processing of the balusters is performed.

The plank is fastened using 40-50 mm long screws driven from above at an angle. Screw heads are countersunk into the wood and covered with decorative plugs or filled with putty.

Manufacturing and installing the handrail

The handrail is the final element of the stair railing. Its shape must provide comfortable hand grip. The standard cross-section is 50×30 mm with rounded top edges.

A groove for the support plank is cut into the bottom of the handrail. The groove is machined using a router or chisel with precision ±0.5 mm. The groove walls must be flat and parallel.

The handrail is installed using adhesive with additional fixation by screws from below. Adhesive is applied into the groove and onto the top surface of the plank. Screws are driven through the plank into the handrail at 200-300 mm intervals.

Final finishing and protective coating

Final sanding of all surfaces is performed using P320-P400 grit sandpaper. Special attention is paid to joint areas, which must be perfectly smooth. Dust is removed using compressed air or a vacuum cleaner.

Applying protective coating protects wood from moisture and mechanical damage. The type of coating selected depends on operating conditions and aesthetic requirements.

Varnish coatings create a durable protective film and highlight the wood grain. Applied in 2-3 coats with intermediate sanding. Oil-based coatings penetrate the wood structure, preserving its ability to "breathe".

Quality control and acceptance of work

After completing the installation, a comprehensive quality check of the work performed must be conducted. Quality installation of balusters must comply with all technical requirements and safety standards.

Geometric control

Verticality of each baluster is checked using a level in two mutually perpendicular planes. Deviation from verticality must not exceed 2 mm per baluster height. Significant deviations require reinstallation of the elements.

Distances between balusters are checked with a tape measure. Deviations from design dimensions must not exceed ±3 mm. Uneven spacing is particularly noticeable and detracts from the overall appearance of the structure.

Horizontal alignment of the handrail is checked using a level along the entire length of the stair run. Height variations must not exceed ±2 mm per linear meter. Significant deviations require height adjustment of individual balusters.

Strength Testing

Static load testing is performed by applying a horizontal force of 100 kg/m to the handrail. The structure must not exhibit residual deformation after load removal. Deflections must not exceed 1/300 of the span.

Each baluster's resistance to lateral loads is tested by applying a force of 30-50 kg to the middle of the element. The baluster must remain stationary. Any play or movement is not permitted.

Handrail grip testing includes checking for the absence of sharp edges, burrs, or irregularities. The surface must be smooth and pleasant to the touch along its entire length.

Document the results

Preparing an acceptance act for the work includes documenting all conducted inspections and their results. Deviations from design parameters and methods for their correction are indicated.

Photographing the completed structure from various angles documents the quality of the work performed. Special attention is given to connection joints and the overall appearance of the railing.

Preparing a structure passport specifying the materials used, installation technologies, and warranty obligations ensures proper future operation.

Operation and Maintenance

Proper operation and timely maintenance ensure the longevity of the staircase structure and its safe use.

Regular inspections

Visual inspection of the staircase railing should be conducted at least once every six months. Special attention is given to the condition of fastening elements, absence of cracks in wood, and the condition of protective coatings.

Checking the strength of connections is performed by gently rocking balusters and handrails. The appearance of play, squeaks, or loosening of fasteners requires immediate intervention.

Monitoring the condition of the protective coating includes checking for damage, abrasions, or color changes. Timely renewal of the coating prevents wood damage.

Preventive Maintenance

Cleaning surfaces of dust and dirt is performed using a soft dry cloth or vacuum cleaner with a soft brush. Use of abrasive materials is not permitted.

Tightening threaded connections upon detecting loosening is performed using a torque wrench with moment control. Over-tightening may damage the threads.

Renewing the protective coating is performed as needed. Lacquer coatings are renewed every 5-7 years, oil-based coatings every 2-3 years.

Conclusion

Correct installation of balusters on a staircase is a complex task requiring professional knowledge, quality materials, and precise adherence to technology. Each stage of work is critical for ensuring safety and longevity of the structure.

Investments in quality installation pay off through long-term safe operation and aesthetic enjoyment of a beautiful staircase. Saving on materials or labor may lead to serious problems in the future.

Modern technologies and materials open up wide possibilities for creating unique staircase structures. However, core principles — safety, reliability, and quality — remain unchanged.

The future of staircase construction is linked to the development of new materials and technologies, but craftsmanship and attention to detail will always determine the quality of the result.

In the context of creating high-quality staircase structures, STAVROS deserves special attention, as the company has consistently demonstrated the highest standards in the production and installation of staircase elements over many years. The combination of traditional craftsmanship with modern technologies enables STAVROS to create staircase structures that not only meet the strictest technical requirements but also embody principles of beauty, functionality, and durability.
