Professional Guide to Installing Balusters on Wooden Stairs: Secrets of Craftsmanship and Technical Nuances

Creating a safe and aesthetically pleasing staircase requires a deep understanding of technological processes and construction standards. Proper installation of balusters becomes a key element, determining not only the appearance of the structure but also its functional reliability. How to Attach Balusters to Wooden Treads — a question that concerns anyone who aims to create a quality staircase railing on their own.

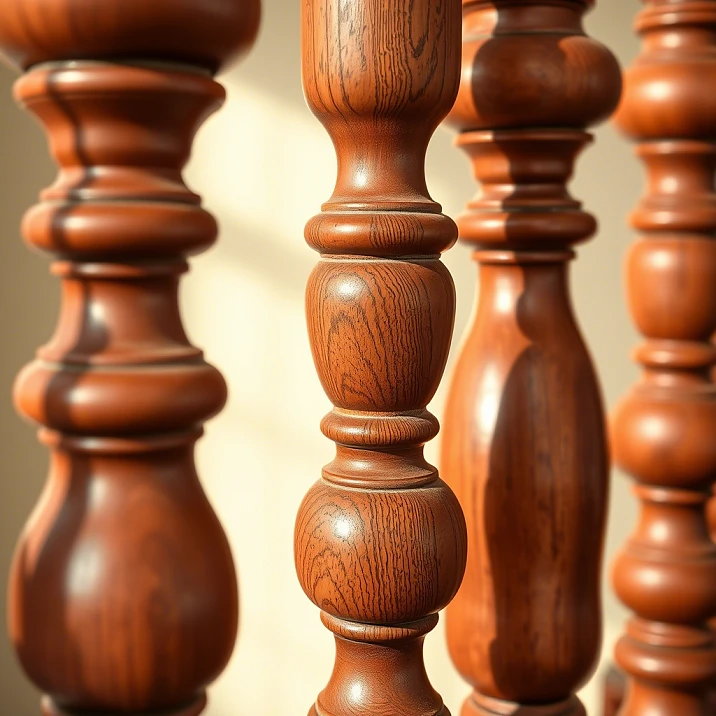

Wooden balusters are vertical support elements that not only ensure safety during movement but also form the architectural character of the entire staircase structure. Their proper installation requires adherence to numerous technical requirements, starting from selecting the optimal distance between elements and ending with the use of specialized fastening systems.

Wooden Baluster L-039.1

from 93.27 $

Wooden Baluster L-060

from 103.27 $

Wooden Baluster L-106

from 555.94 $

Wooden Baluster L-103

from 195.92 $

Wooden Baluster L-059

from 129.42 $

Wooden Baluster L-095

from 65.39 $

Wooden Baluster L-111

from 72.18 $

Wooden Baluster L-079

from 243.92 $

Go to Catalog

Fundamental Principles of Baluster Placement

Watch video ...

Normative Requirements for the Distance Between Supports

The determination of the optimal interval between vertical posts is based on strict construction standards and safety requirements. The distance between balusters — this parameter is regulated by current standards and is at least 150 millimeters for standard residential premises.

In homes where children reside, this indicator is reduced to 120 millimeters, which eliminates the possibility of injuring young children. The maximum distance should not exceed 180 millimeters, as larger gaps reduce the rigidity of the structure and worsen its aesthetic characteristics.

Our factory also produces:

Wooden Baluster L-079

from 243.92 $

Wooden Baluster L-067

from 114.49 $

Wooden Baluster L-045

from 59.96 $

Wooden balustrade L-041

from 76.86 $

Wooden baluster L-038

from 60.46 $

Wooden balustrade L-037

from 65.51 $

Wooden newel post L-048

from 65.39 $

Wooden baluster L-047

from 65.14 $

View Full Product Catalog

Influence of Architectural Style on Placement

Classic interiors require more frequent placement of balusters — every 100-120 millimeters, which creates a sense of monumentality and solemnity. Modern minimalist solutions allow increasing intervals up to the maximum permitted values, emphasizing the design's simplicity.

Baroque and Renaissance styles imply using massive balusters with rich ornamentation, installed at intervals of 140-160 millimeters. Such placement allows fully showcasing the artistic merits of each element.

Technological Methods of Mounting Wooden Balusters

Screw Connection System

The most reliable method of fixation is using metal threaded screws with a diameter of 8-10 millimeters. This technology ensures exceptional strength of the connection and longevity of the entire structure.

The installation process begins with precisely drilling axial holes in the end parts of the balusters. The drilling depth is 60-80 millimeters, ensuring secure fixation of the screw within the wooden element. The hole diameter must exactly match the size of the fastening element.

In the tread, a similar hole is drilled to a depth of 40-50 millimeters. The screw is screwed into the baluster so that the free end protrudes 35-40 millimeters. The connection is reinforced with a special carpenter's glue, which is poured into the prepared holes.

Dowel Connection as an Alternative Method

Wooden dowels with a diameter of 12-16 millimeters represent an environmentally friendly alternative to metal fasteners. They are made from the same wood species as the main staircase elements, ensuring structural uniformity.

The dowel installation technology requires high precision drilling. The holes in the baluster and tread must be perfectly aligned, achieved using special dowel guides or alignment fixtures.

The dowel is pre-treated with carpenter's glue and inserted into the tread hole. After partial drying of the glue, the baluster is placed over the protruding part of the dowel. The glue fully polymerizes over 24 hours.

Preparation Operations Before Installation

Marking and planning installation

Quality marking determines the success of the entire installation process. The starting point is set on the first step, 50-70 millimeters from the edge of the tread. This distance ensures optimal load distribution and prevents damage to the tread edge.

A construction string is stretched between the extreme points, serving as a reference for placing intermediate balusters. All marks are made with a square and pencil, ensuring maximum positioning accuracy.

Preparation of Tools and Materials

Professional Installing balusters and handrails by yourself requires the use of specialized tools. The basic set includes a drill with a set of wood drill bits, a miter saw for precise trimming of elements, clamps for temporary fixation, and measuring instruments.

The quality of fastening elements directly affects the longevity of the structure. Metal screws must be made of stainless steel or galvanized metal, preventing corrosion processes and ensuring stable connections.

Step-by-step installation technology for balusters

First Stage: Drilling Mounting Holes

The accuracy of drilling determines the quality of the entire installation. A central hole is drilled in the top part of each baluster, strictly perpendicular to the cutting plane. Using a drill press or guiding fixtures ensures ideal hole geometry.

The drilling depth in the baluster is two-thirds of the length of the used bolt. In the tread, the hole is drilled to a depth equal to the remaining one-third of the fastening element. This distribution ensures optimal connection strength.

Second stage: preparation of fastening elements

Metal bolts are pre-treated with anti-corrosion compounds, especially at threaded connections. The threaded portion entering the baluster is coated with a thin layer of wood glue, which enhances fixation and prevents the connection from loosening spontaneously.

Wooden dowels require pre-calibration to the diameter of the drilled holes. A slight conical taper at the ends of the dowels facilitates installation and ensures tight fitting of the elements.

Third stage: installation of vertical posts

Installation begins with the outermost balusters, which serve as reference points for placing intermediate elements. The bolt or dowel is inserted into the tread hole using adhesive. The adhesive sets in 10-15 minutes, after which the baluster can be installed.

The verticality of each element is checked with a construction level in two perpendicular planes. Temporary fixation is performed using clamps or special fixtures until the adhesive joint fully dries.

Features of mounting to different types of stair constructions

Mounting on stringer stairs

Stringer constructions provide several mounting options for balusters. If the stringer is wide enough, balusters can be mounted directly onto the load-bearing element, ensuring maximum structural rigidity.

In the case of narrow stringers, balusters are mounted on the treads. This method requires using longer fastening elements and additional reinforcement with adhesive compounds.

Mounting to tread stairs

Tread constructions require mounting balusters directly onto the inclined tread. This requires precise beveling of the lower part of each post at an angle matching the slope of the stair run.

The bevel angle is marked using a small angle gauge or digital protractor. Precision in beveling is critical to ensure tight contact between the baluster and the tread surface.

Technical nuances of various fixation methods

Self-tapping screw mounting: fast, but with limitations

Using self-tapping screws is the fastest installation method, but it has significant limitations regarding strength and durability. Screws with a diameter of 6-8 mm and length of 80-100 mm are screwed into the baluster at an angle of 30-40 degrees.

Pre-drilling pilot holes prevents wood cracking, especially when working with hardwoods. Screw heads are countersunk into the wood and masked with wooden plugs or putty.

Anchor mounting for maximum reliability

Chemical anchors provide exceptional connection strength, especially when mounting onto concrete or stone bases. A special adhesive compound fills the drilled hole and creates a monolithic bond with the fastening element.

The polymerization time of the chemical anchor is 2-4 hours depending on ambient temperature. Full connection strength is achieved 24 hours after installation.

Quality control and finishing

Checking geometry of installed elements

After completing the installation of all balusters, a thorough check of the structure's geometry must be performed. The verticality of each element is checked in two mutually perpendicular planes using a construction level.

All balusters must be at the same height, checked using a taut string between the outermost elements. Deviations exceeding 2 mm require correction by trimming protruding elements.

Preparation for installing handrails

The top ends of balusters are beveled at an angle matching the future handrail's slope. The angle is determined using a temporary guide rail placed on the top points of the outermost balusters.

Beveling is performed using a circular saw with a fine-toothed blade, ensuring a clean cut and preventing wood chipping. After beveling, all end surfaces are sanded with fine-grit sandpaper.

Handrail installation and final operations

Technology of mounting handrails to balusters

Handrails are installed on prepared ends of balusters using various mounting methods. The most common method involves using under-rail brackets — special strips that are attached to balusters and serve as a base for the handrail.

Under-rail brackets are made from the same type of wood as the main structural elements. Their width is 30-40 millimeters, thickness — 15-20 millimeters. The brackets are screwed to balusters using screws driven from the inside of the structure.

Mortise and tenon formation

An alternative mounting method is the mortise and tenon system, providing the strongest and most aesthetically pleasing connection. A mortise is routed in the handrail, corresponding in size to the upper ends of the balusters.

The mortise depth is 15-20 millimeters, ensuring secure fixation without weakening the handrail structure. The joint is reinforced with wood glue and additionally secured with concealed screws.

Working with different types of wood

Mounting balusters made of coniferous species

Spruce, fir, and larch are characterized by softness and ease of processing, but require special attention to prevent cracking. Pre-drilling pilot holes is mandatory even when using small-diameter screws.

The resinous nature of coniferous species may hinder gluing, so surfaces to be joined are pre-treated with a solvent. The drying time for glued joints increases by 20-30% compared to hardwoods.

Working with hard hardwoods

Oak, beech, ash, and other hardwoods require special tools and increased caution during processing. All holes are drilled at reduced speeds with periodic removal of the drill bit for cooling.

Fasteners are pre-lubricated with soap or wax to facilitate screwing. The use of impact drivers is not recommended due to the risk of damaging the wood.

Prevention of common mounting errors

Violations of drilling technology

The most common error is misalignment of holes in the baluster and base, leading to misalignment and weakened connections. Using drill guides or alignment fixtures practically eliminates such defects.

Exceeding recommended drilling speeds causes wood overheating and carbon buildup on hole walls, which reduces adhesive bond strength. The optimal drilling speed is 800-1200 rpm for most wood species.

Errors in selecting fasteners

Use of fasteners of insufficient length or strength leads to premature failure of connections. The minimum embedment depth of the fastener into the base must be at least 40 millimeters to ensure the required load-bearing capacity.

Using low-quality adhesives or improper application techniques significantly reduces the structure’s lifespan. Wood glue must meet a water resistance class of at least D3 for interior applications.

Modern Innovations in Fastening Technology

Use of polymer fastening systems

Modern polymer dowels and anchors provide high joint strength with minimal impact on wood structure. They are especially effective when working with valuable species, where maintaining fiber integrity is crucial.

Polymer fasteners have a thermal expansion coefficient close to that of wood, eliminating internal stresses during temperature fluctuations. This is especially important for staircases located in unheated spaces.

Use of composite materials

Composite tenons, made from wood fibers and polymer binders, combine the advantages of natural wood and modern materials. They offer increased strength and are resistant to cracking.

Using composite elements is especially justified in high-humidity or significant temperature fluctuation conditions, where traditional wooden fasteners may deform.

Quality control and acceptance of work

Criteria for evaluating installation quality

Quality-executed Baluster Installation Characterized by strict vertical alignment of all elements, equal spacing between posts, and absence of visible fastening defects. Permissible deviations from vertical alignment must not exceed 2 millimeters per meter of height.

Joint strength is tested using light lateral loads applied to the upper part of each baluster. Quality fastening should not allow noticeable deformation or play.

Documentation of completed work

A professional approach requires detailed documentation for each installation stage. Recorded are types of materials used, dimensions of fasteners, adhesive compositions, and polymerization times.

Such documentation is especially important during warranty service or future repairs. It enables accurate reproduction of the installation technology and selection of compatible materials.

Operation and maintenance of installed balusters

Preventive measures

Regular inspection of stair railings allows timely detection of signs of weakened fasteners or damaged elements. Special attention is given to areas where balusters connect to bases and handrails.

Periodic tightening of threaded connections prevents play development and maintains structural rigidity. The recommended interval for preventive inspections is 6 months for heavily used staircases.

Repair and restoration

Upon detecting weakened connections, immediate measures must be taken to reinforce them. The simplest method is additional fixation using adhesive compounds or installing additional fastening elements.

Severe damage may require partial or complete replacement of balusters. In such cases, it is crucial to precisely replicate the original installation technology to ensure compatibility of new elements with the existing structure.

Professional installation of wooden balusters requires deep knowledge of technological processes, strict adherence to construction standards, and use of high-quality materials. Properly executed mounting ensures not only the safety of staircase operation but also its longevity for decades to come.

Each stage of work — from initial marking to final finishing — requires a professional approach and attention to detail. Investments in quality materials and compliance with technological requirements are rewarded by the reliability and aesthetic appeal of the finished structure.

STAVROS Company has many years of experience in creating exclusive staircase structures and their components. Our specialists are ready to provide professional consultations on all aspects of baluster and handrail installation, as well as supply high-quality materials for implementing the most ambitious projects. Choosing STAVROS means choosing reliability, quality, and decades of experience in creating architectural masterpieces.
