Reliable handrail connection to balusters: professional installation methods for a durable staircase structure

A perfect staircase begins with small details. Every connection, every fastener affects the overall strength and aesthetics of the structure. Especially important is to know, how to attach the handrail to balustersbecause the quality of this connection determines the safety of everyone who will use the staircase. Improper installation may lead to structural loosening, squeaking, and even serious injuries.

Imagine a staircase where every touch of the handrail gives a feeling of reliability and comfort. Where there is not even the slightest play, no hint of instability. Such a result is achieved by properly connecting all elements of the railing. But how to achieve such perfection? What secrets do master carpenters hide, creating staircases for centuries?

In the world of modern construction, there are many ways to attach handrails to support posts. From traditional dowel joints to innovative metal systems – each method has its advantages and areas of application. Choosing the optimal option depends on the staircase material, interior style, expected loads, and the owner's personal preferences.

Wooden Baluster L-099.1

from 49.61 $

Wooden Baluster L-039.1

from 94.23 $

Wooden Baluster L-060

from 104.33 $

Wooden Baluster L-106

from 561.67 $

Wooden Baluster L-103

from 197.94 $

Wooden baluster L-097

from 37.39 $

Wooden Baluster L-059

from 130.76 $

Wooden Baluster L-095

from 66.06 $

Go to Catalog

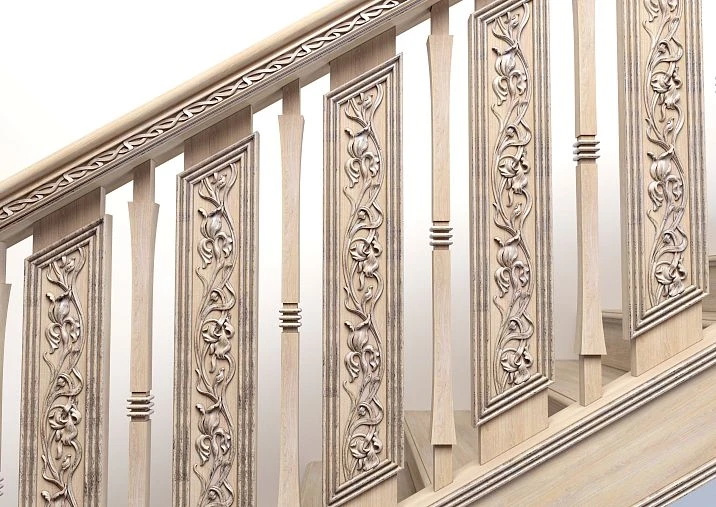

Anatomy of the ideal connection: principles of reliability

Watch video ...

Physics of loads in stair structures

The handrail of a staircase experiences complex loads during operation. Vertical forces arise when leaning on the handrail, horizontal forces occur under lateral impacts, and torsional moments occur under uneven weight distribution. Each connection must withstand these multi-directional forces without deformation or weakening.

Dynamic loads are especially critical. When a person quickly ascends the staircase while leaning on the handrail, impact forces arise that are multiple times greater than static loads. That is why simple gluing or surface mounting is insufficient – deep mechanical connections are required.

Load distribution along the handrail length is also uneven. Maximum forces occur at the beginning and end of the staircase run, where people most often grip the handrail. Intermediate sections experience lower loads, but require equally reliable fastening to ensure overall structural rigidity.

Our factory also produces:

Wooden Baluster L-111

from 72.92 $

Wooden Baluster L-079

from 246.43 $

Wooden Baluster L-067

from 115.67 $

Wooden Baluster L-045

from 60.58 $

Wooden balustrade L-041

from 77.66 $

Wooden baluster L-038

from 61.08 $

Wooden balustrade L-037

from 66.19 $

Wooden newel post L-048

from 66.06 $

View Full Product Catalog

Material aspects of connections

Wood is a living material that constantly changes under the influence of temperature and humidity. These changes create internal stresses in the joints, which may lead to their weakening or failure. Properly designed fastening must compensate for these deformations.

Different wood species behave differently under changing environmental conditions. Coniferous species are more stable but less strong. Hardwood species have high strength but react more strongly to humidity changes. These characteristics must be considered when choosing the fastening method.

The direction of wood fibers is critically important for connection strength. Fastening across the grain provides maximum shear strength but may lead to splitting under high loads. Fastening along the grain is less strong but safer in terms of material integrity.

Traditional fastening methods: time-tested solutions

Dovetail joints: the classic of carpentry craftsmanship

The dovetail joint remains the gold standard in the world of wooden construction. This method provides maximum strength with minimal use of additional materials. The essence of the technology lies in creating a protrusion (dovetail) on one part and a corresponding groove on another.

Various types of dovetails are used to attach handrails to balusters. A rectangular dovetail provides maximum contact area and is suitable for structures with high loads. A round dovetail is easier to manufacture and sufficient for most residential staircases. A "swallowtail" shaped dovetail prevents the joint from being pulled out under load.

The dovetail size must correspond to the thickness of the connected parts. The optimal dovetail length is 1/3 of the thickness of the receiving part, but not less than 20 millimeters. The dovetail width should not exceed 2/3 of the part's width to avoid weakening its structure.

Technology of making dovetail joints

Creating a quality dovetail joint requires high precision and specialized tools. Marking is done using a marking gauge or special templates. Even minor deviations in dimensions will weaken the joint or make assembly impossible.

Groove cutting is performed using chisels of various widths or a router. Handwork requires great skill but allows for perfect fitting. Mechanical processing is faster and more accurate but requires specialized equipment.

Fitting the joint is the most critical stage. The dovetail must fit into the groove with slight force, without gaps or misalignment. An overly tight fit may cause wood cracking, while an overly loose fit weakens the joint.

Strengthening dovetail joints

Modern carpentry adhesives significantly increase the strength of dovetail joints. Polyurethane compounds create water-resistant joints that do not fall short of wood's strength. Epoxy adhesives provide maximum strength but require precise proportions when mixing.

Wooden dowels additionally secure the dovetail joint and prevent weakening as the glue dries. Dowels are made from the same wood species as the main parts, ensuring identical deformation under humidity changes.

Metallic reinforcement elements are used in critical structures. Hidden screws passing through the dovetail create additional mechanical connections. Such reinforcement is especially important for handrails subjected to significant dynamic loads.

Modern fastening technologies: innovations in action

Integrated mounting systems

Hidden fastening systems allow creating aesthetically perfect joints without visible fasteners. These technologies are especially popular in modern interiors, where minimalism and clean lines are valued.

Magnetic fastening systems use powerful neodymium magnets to secure the handrail to balusters. Metal plates are embedded into the wood and become invisible after finishing. Such systems allow quick disassembly of the handrail for maintenance or replacement.

Pneumatic fasteners operate on the principle of expansion under pressure. Special bushings are installed into holes in balusters, and the handrail is secured using compressed air. This technology ensures even load distribution and eliminates stress concentration.

Modern screw connections

Modern screw systems have moved far beyond simple self-tapping screws. Special confirmers for furniture production are adapted for staircase structures. They provide high joint strength with minimal damage to wood.

Countersunk-head screws allow creating hidden joints. The hole for the screw head is drilled to a certain depth, and after tightening, it is covered with a wooden plug. With proper execution, the fastening point becomes almost invisible.

Bronze or stainless steel screw bushings are glued into wood and allow multiple assembly-disassembly cycles. This is especially important for removable handrails or structures requiring periodic maintenance.

Specialized methods for different types of staircases

Helical staircases: characteristics of curved structures

Helical staircases impose special requirements on handrail fastening. The curved shape creates additional stresses in joints, and the variable radius of curvature complicates fitting elements.

Flexible handrails made of laminated wood allow creating smooth curves without joints. Such handrails are manufactured by gluing thin plates and then bending them according to a template. Fastening to balusters is done at equal intervals using special clamps.

Segmented handrails are assembled from individual straight sections connected at angles. Each segment is fastened to a group of balusters using traditional methods, and joints between segments are reinforced with metal plates or special connectors.

Cantilever staircases: working with increased loads

Cantilever staircases without central support create significant loads on railings. In such structures, the handrail often serves a load-bearing function, requiring especially strong fastening to balusters.

Metallic reinforcing elements are discreetly embedded into wooden handrails. A steel strip or tube takes on the main loads, while the wood serves a decorative function. Fastening to balusters is done through a metal frame.

Glued handrails made of multiple wood layers provide high strength while preserving the aesthetics of natural wood. Fibers in different layers are oriented in various directions, enhancing the overall structural strength.

Preparatory work: the foundation of quality installation

Precise marking and measurements

The quality of handrail connection to balusters largely depends on the accuracy of preliminary marking. All balusters must be installed strictly vertically and at equal distances from each other. Even minor deviations will lead to uneven load distribution and weakening of the structure.

The height of the balusters should be identical to within a millimeter. A laser level or a taut string is used for control. All protruding parts of the balusters are cut to a single line parallel to the staircase's slope.

Marking the locations for handrail attachment is done using a template or based on previously measured dimensions. The distances between mounting points must exactly match the distances between balusters. An error exceeding 1-2 millimeters is not permissible.

Tool and material preparation

Quality tools are essential for successful installation. Drill bits must be sharp and match the diameter of the fasteners. Dull drill bits may split the wood or create uneven holes.

Measuring instruments require regular calibration. An inaccurate ruler or level can nullify all efforts toward quality installation. Professional craftsmen use only verified and calibrated tools.

Fastening materials must match the conditions of use. For humid areas, stainless or galvanized elements are used. In dry conditions, ordinary steel with subsequent protective treatment is acceptable.

Step-by-step installation technology

Installation of handrail support rail

A handrail support rail significantly simplifies handrail installation and increases connection reliability. It is a wooden strip attached to the upper ends of balusters and serves as the base for the handrail.

The dimensions of the handrail support rail must match the handrail profile. The rail width is typically 20-30 millimeters, thickness 15-20 millimeters. The rail material must be the same species as the handrail or compatible in physical properties.

The rail is fastened to the balusters using screws or dowels. When using screws, their heads are countersunk into the wood and covered with wooden plugs. Dowel joints are more labor-intensive but provide better aesthetics.

Handrail fitting and installation

The handrail must exactly replicate the staircase's geometry. For straight runs, this is not difficult, but curved sections require special attention. Cardboard or thin plywood templates help accurately determine the handrail shape.

Grooves in the lower part of the handrail are cut using a router or chisels. The groove depth must match the thickness of the handrail support rail with a small allowance for glue. The groove width is made 1-2 millimeters wider than the rail width to compensate for inaccuracies.

Trial installation of the handrail allows identifying and correcting defects before final mounting. The handrail must fit snugly onto the rail along its entire length without gaps or misalignment. Additional fitting may be required if necessary.

Final fixation

Before final installation, all connection surfaces are cleaned of dust and shavings. Glue is applied evenly to the handrail support rail and into the handrail groove. Excess glue is removed before it sets.

The handrail is placed in position and clamped with clamps or weights. The holding time under load depends on the glue type and ranges from 2 to 24 hours. Premature removal of load may weaken the connection.

Additional fixation using screws from below through the handrail support rail ensures maximum connection reliability. Screws are driven at an angle to avoid protruding above the handrail surface. Screw length must be less than the combined thickness of the rail and handrail.

Alternative mounting methods

Direct mounting without a support rail

Some handrail designs provide direct mounting to balusters without intermediate elements. This method requires higher manufacturing precision but offers better aesthetics and reduced structural thickness.

Handrail mounting to balusters Mounting without a rail is done via dowel joints or concealed screws. Holes are drilled precisely at the centers of the balusters, and the connection is reinforced with glue.

Dowel joints provide strength and aesthetics but require high drilling accuracy. Dowel diameter is typically 8-10 millimeters, depth of insertion into the handrail is 15-20 millimeters, and into the baluster is 10-15 millimeters.

Metallic connecting elements

Special metallic connectors allow creating disassemblable handrail structures. Such systems are especially popular in commercial buildings where periodic maintenance or staircase modernization is required.

Threaded connectors consist of two parts: one screwed into the baluster, the other into the handrail. Connection is achieved using a threaded coupling or nut. This system allows adjusting the connection tension and compensating for wood shrinkage.

Bayonet latches provide quick connection and disconnection of elements. The handrail is installed by simply rotating it a quarter turn. Such systems are convenient for temporary structures or exhibition stands.

Quality control and testing

Visual inspection of connections

After completion of installation, all connections undergo thorough visual inspection. Gaps between the handrail and balusters, glue residue on visible surfaces, unevenness, or wood chips are not permitted.

Handrail geometry is checked using a level and tape measure. Deviations from horizontal should not exceed 2 millimeters per meter of length. Handrail height above steps must remain constant along the entire staircase length.

Surface quality is assessed under good lighting. All defects must be corrected before applying the final finish. Minor irregularities are sanded, deeper defects are filled with wood putty.

Load testing

Connection strength is tested by applying test loads. A horizontal load of 100 kilograms is applied to the handrail at several points. Connections must not show signs of weakening or deformation.

Dynamic tests simulate real operating conditions. Sudden loads are applied to the handrail, mimicking a person’s impact during rapid stair movement. Quality connections withstand such impacts without damage.

Long-term tests are conducted over several weeks with periodic application of loads. This allows identifying gradual weakening of joints that may occur due to wood shrinkage or adhesive creep.

Features of working with different wood species

Coniferous species: pine, spruce, larch

Coniferous species are characterized by softness and ease of processing, but require special attention when mounting handrails. Soft wood may compress under load, leading to weakening of joints.

Pre-drilling holes for fasteners is mandatory for coniferous species. The hole diameter should be 1-2 mm smaller than the fastener diameter. This ensures tight fit without risk of wood splitting.

Resin content in coniferous species may hinder gluing. Connection areas must be cleaned with a solvent and lightly sanded to improve adhesive bonding. Some adhesives are specifically designed for resinous wood.

Hardwood species: oak, beech, ash

Hardwood species provide maximum joint strength but require more powerful tools and special processing techniques. High wood density may cause cracking if improperly fastened.

Pre-drilling for hardwood species should be done with sharp bits at low speeds. Wood overheating may cause charring and structural weakening. Periodic cooling of the bit with water prevents overheating.

Adhesive joints in hardwood species exhibit exceptional strength. Dense wood structure ensures good adhesion, and high material strength allows creating thin adhesive joints without risk of failure.

Final Treatment and Protection of Joints

Sanding and surface preparation for finishing

After completing assembly, all joints require final finishing. Joint areas are sanded to remove irregularities and tool marks. Abrasives of varying grits, from coarse to fine, are used.

Small defects are filled with wood putty. The putty color must match the wood species. After drying, filled areas are sanded to achieve a smooth surface.

Dust removal before applying finish is mandatory. Dust is removed using compressed air or adhesive cloth. Dust residue may cause finish defects and reduce adhesion.

Protective coatings

Selection of protective finish depends on staircase usage conditions. For indoor staircases in dry areas, varnish finish is sufficient. In humid conditions, water-resistant compositions are required.

Priming improves adhesion of the final finish and equalizes wood absorption. Primer is applied in a thin, even layer and thoroughly rubbed in. After drying, primer is lightly sanded with fine abrasive.

Finish is applied in multiple layers with intermediate sanding. Each layer must fully dry before applying the next. Quality finish not only protects wood but also enhances its natural beauty.

Maintenance and repair

Preventive measures

Regular maintenance extends the service life of handrail baluster joints. Periodic inspection for loose fasteners allows timely detection and resolution of issues.

Tightening threaded connections should be done carefully. Excessive force may damage threads or split wood. Torque wrench is used or tightening force is controlled by feel.

Updating protective finish prevents moisture penetration into joints. Update frequency depends on usage intensity and is typically 3-5 years for indoor staircases.

Repair of weakened joints

Joint weakening may occur due to wood shrinkage, fastener wear, or exceeding calculated loads. Timely repair prevents further structural damage.

Restoring mortise-and-tenon joints may require replacing worn elements. New tenons are made to fit enlarged mortises. Sometimes, installing additional dowels or using stronger adhesive is sufficient.

Fastener replacement is performed with similar or stronger elements. When replacing screws with bolts, changes in joint loading characteristics must be considered.

Innovative solutions and development prospects

Composite Materials in Staircase Construction

Modern composite materials offer new possibilities for handrail fastening. Fiber-reinforced plastic elements have high strength at low weight and are corrosion-resistant.

Hybrid constructions combine advantages of different materials. Metal frame provides strength, wood offers aesthetics, and composite elements ensure durability. Such solutions are especially promising for outdoor staircases.

Bio-composites based on natural fibers represent an eco-friendly alternative to synthetic materials. They combine composite strength with the eco-friendliness of natural materials.

Smart Technologies in Staircase Construction

Integrating electronic systems into handrails opens new possibilities for enhancing comfort and safety. Built-in sensors can monitor joint condition and alert when maintenance is needed.

Handrail heating systems provide comfort in cold weather. Heating elements are integrated into the handrail structure and connected to a smart home system.

LED lighting embedded in the handrail improves staircase visibility at night. Modern LED elements have a lifespan exceeding 50,000 hours and consume minimal energy.

Economic aspects of various fastening methods

Comparative cost analysis

Selection of handrail fastening method affects not only quality but also overall project cost. Traditional mortise-and-tenon joints require significant labor but provide maximum durability.

Modern fastening systems are more expensive to purchase but significantly reduce installation time. For commercial projects with tight deadlines, this may be a decisive factor.

The cost of maintaining different types of connections also varies. Detachable structures are more expensive to manufacture but cheaper to maintain. Non-detachable connections are initially more economical but may require complete replacement during repair.

Long-term economic efficiency

The impact on property value should also be considered. A well-executed staircase enhances the attractiveness of the property and may increase its market value.

The impact on property value should also be considered. A well-executed staircase increases the attractiveness of the property and may increase its market value.

The energy efficiency of some modern solutions allows for reduced operating costs. For example, handrails with integrated heating can lower overall heating expenses.

Conclusion

Mastercraft handrail to newel connections Combines traditional carpentry techniques with modern innovative solutions. Each method has its advantages and areas of application, but all require a deep understanding of materials, precision in execution, and attention to detail.

Properly executed connections ensure not only the safety and longevity of the structure, but also the aesthetic perfection of the entire staircase. Investments in quality installation pay off multiple times due to long service life and minimal maintenance costs.

Technological advancements open new opportunities for improving staircase structures. Composite materials, smart systems, innovative fasteners — all serve one goal: creating staircases that combine beauty, functionality, and reliability.

The future of staircase construction is linked to the integration of various technologies and materials. However, the core principles of quality installation remain unchanged: precision, neatness, and the professionalism of the installer.
