Balusters 40x40: the perfect combination of compactness and reliability in staircase architecture

Architectural elegance begins with details, and balusters 40x40 represent the purest embodiment of this principle. These compact yet incredibly functional elements of staircase structures have gained recognition among designers and builders due to their unique combination of strength, aesthetic appeal, and universal applicability. In the world of modern architecture, where every millimeter of space matters, balusters with a 40x40 mm cross-section have become a true discovery for those seeking to create a safe and beautiful staircase without compromising the overall interior design.

What makes these architectural elements so special? The secret lies in their optimal proportions, which provide sufficient strength for protective functions while avoiding visual clutter. The 40x40 mm square cross-section represents the golden mean between miniature decorative elements and massive support structures, allowing the creation of staircase railings that appear elegant yet fully comply with all safety requirements.

Modern wood processing technologies have opened up boundless possibilities for creating 40x40 balusters, which can be either strictly geometric or adorned with intricate carving. This versatility makes them an ideal choice for the most diverse architectural styles — from minimalist Scandinavian to luxurious classical.

Wooden Baluster L-039.1

from 92.30 $

Wooden Baluster L-060

from 102.18 $

Wooden Baluster L-106

from 550.11 $

Wooden Baluster L-103

from 193.87 $

Wooden Baluster L-059

from 128.07 $

Wooden Baluster L-095

from 64.70 $

Wooden Baluster L-111

from 71.42 $

Flat wooden baluster L-058.1

from 371.99 $

Go to Catalog

Technical perfection of compact dimensions

In the world of staircase architecture, size matters, and 40x40 mm balusters demonstrate how properly chosen proportions can radically change the perception of the entire structure. These dimensions are not random — they are the result of years of research in ergonomics, safety, and aesthetics.

Watch video ...

Engineering advantages of square cross-section

The 40x40 mm square cross-section ensures optimal load distribution in all directions, which is critically important for elements subjected to both vertical and horizontal forces. Unlike round balusters, square elements have increased resistance to torsional loads due to a higher moment of resistance relative to diagonal axes.

The cross-sectional area of 1600 mm² provides sufficient load-bearing capacity to withstand normative loads on staircase railings. At the same time, relatively small dimensions allow installing balusters with minimal spacing, which increases the overall rigidity of the structure and eliminates the possibility of slippage between elements.

The geometric simplicity of the square profile simplifies processing, installation, and connection with other elements of the staircase structure. Flat surfaces ensure reliable attachment to treads and handrails, eliminating the need for complex transition elements.

Our factory also produces:

Wooden Baluster L-111

from 71.42 $

Wooden Baluster L-079

from 241.36 $

Wooden Baluster L-067

from 113.29 $

Wooden Baluster L-045

from 59.33 $

Wooden balustrade L-041

from 76.06 $

Wooden baluster L-038

from 59.82 $

Wooden balustrade L-037

from 64.83 $

Wooden newel post L-048

from 64.70 $

View Full Product Catalog

Material Science Aspects

Choosing wood for manufacturing 40x40 balusters requires special attention to the material's structural characteristics. Pine, due to its fibrous structure and relatively low density, is ideal for creating lightweight yet strong elements. The moisture content of the wood should not exceed 12% to ensure dimensional stability during operation.

Hardwood species — oak, beech, ash — provide increased strength and durability but require more careful processing due to high density. The hardness of these species allows creating thin decorative elements without risk of mechanical damage.

In 40x40 balusters, the wood grain orientation must be strictly vertical to ensure maximum compressive and bending strength. The presence of knots, especially through-knots, is unacceptable in load-bearing elements, as they create stress concentrators.

Design possibilities and stylistic flexibility

Balusters sized 40x40 open up unique opportunities for designers to create staircase railings that seamlessly integrate into the most diverse interior concepts. The compact dimensions of these elements allow experimenting with installation density, creating both airy, transparent structures and more enclosed, private railings.

Minimalist solutions

In modern minimalism, balusters 40x40 become practically invisible elements that perform their function without drawing excessive attention. Strict geometric forms, absence of decorative elements, perfectly smooth surfaces — all of this creates a sense of technology and modernity.

Color solutions in minimalist style tend toward monochromatic palettes. White balusters create a sense of lightness and airiness, black adds graphic contrast, natural wood tones bring warmth and coziness. Matte finishes are preferred over glossy ones, as they do not create glare or distract attention.

Installation of balusters 40x40 in minimalist interiors often implies the maximum possible spacing between elements within safety requirements. This creates a rhythmic structure that does not overload the space but ensures necessary protection.

Classic interpretations

The classic style provides broad opportunities for decorative treatment of balusters 40x40. Despite relatively small dimensions, the square cross-section allows creating refined profiled elements with grooves, moldings, and other architectural details.

Proportions of classic balusters are based on principles of classical architecture. The base, shaft, and capital must be in harmonious proportion, creating a sense of stability and completeness. At a height of 900 mm, the base may be 150-200 mm, the shaft — 500-600 mm, and the capital — 100-150 mm.

Decorative elements of classic balusters 40x40 are executed with particular care. Each profile must be clearly defined, transitions between elements — smooth and logical. Surface finish quality must be flawless, as any defects are especially noticeable on small elements.

Modern Eclecticism

An eclectic approach to designing balusters 40x40 allows combining elements of different styles, creating unique, original solutions. Combining smooth and textured surfaces, combining different wood species, integrating metal inserts — all this opens boundless opportunities for creativity.

Asymmetric compositions disrupt traditional perceptions of balusters and create dynamic, memorable images. Alternating balusters of different heights or with different decoration creates interesting visual effects without compromising the functionality of the railing.

Color accents allow highlighting individual elements or creating gradient transitions. Staining wood in various shades, using contrasting finishes, patination — all of this are tools for modern designers to create unique interiors.

Production technologies and manufacturing quality

Creating quality balusters 40x40 requires applying advanced woodworking technologies and strict control at all production stages. Modern production lines allow achieving the highest precision in dimensions and ideal surface quality.

Raw material preparation

The process begins with careful selection of wood. Blank materials must be milled from the central part of the trunk, where the wood has the most uniform structure and minimal defects. The grain direction must be strictly parallel to the longitudinal axis of the future baluster.

Wood drying is a critically important stage, determining the dimensional stability of finished products. Kiln drying under controlled temperature and humidity parameters allows reducing material moisture to required 8-12% without internal stresses or cracks.

Acclimatization of dried wood in production facilities for 2-3 weeks ensures moisture equilibrium throughout the blank and reduces the risk of deformation during processing.

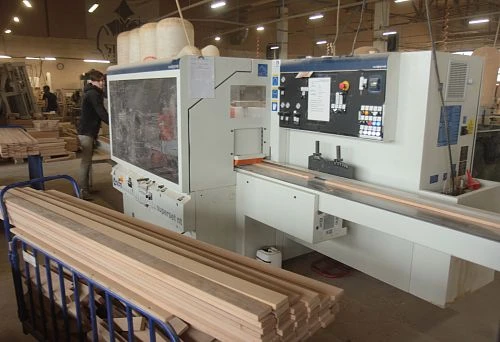

Mechanical processing

Initial processing of blanks on four-sided planers ensures dimensional accuracy ±0.1 mm and surface roughness Ra 6.3. Sharp blades and properly adjusted feed mechanisms prevent chipping or gouging.

Baluster profiling is performed on specialized CNC milling machines. Program control ensures identical profiles for all elements in a batch and allows creating complex decorative shapes with high precision.

Sanding is the final stage of mechanical processing. Sequential application of abrasives from P120 to P320 ensures a perfectly smooth surface ready for applying finishing coatings.

Quality control

Each baluster undergoes multi-stage quality control. Geometric dimensions, straightness, and absence of surface defects are checked. Both contact and non-contact measurement methods are used to ensure maximum accuracy.

Moisture content of finished products is controlled by electronic moisture meters. Deviation from normative values is unacceptable, as it may lead to deformation during use.

Strength characteristics are tested selectively on samples from each batch. Tests for bending, compression, and impact toughness confirm material compliance with standards.

Installation and mounting: professional secrets

Correct installation balusters 40x40 mm requires a professional approach and knowledge of working with elements of such dimensions. Compact dimensions create both advantages and certain difficulties during installation.

Marking and Positioning

Precise marking of installation locations is critically important for balusters 40x40, as even small deviations become noticeable due to the compact dimensions of the elements. Laser levels and high-precision measuring tools are used to ensure ideal geometry.

The installation spacing for balusters 40x40 is usually 100-120 mm between element centers, providing a 60-80 mm gap between adjacent balusters. This distance ensures safety and creates a visually appealing rhythm.

Verticality of each baluster is checked using precision levels. Deviation from verticality must not exceed 1 mm over the entire height of the element to ensure correct railing geometry.

Methods of mounting

For balusters 40x40, the most effective method is mounting on threaded rods with a diameter of 6-8 mm. The relatively small cross-section of balusters requires precise positioning of fasteners at the center of the section for even load distribution.

The depth of rod embedment into the step should be at least 40 mm, and into the baluster — 50-60 mm. This ratio ensures reliable connection while preserving the strength of structural elements.

Using woodworking glue in addition to mechanical fastening increases connection reliability and prevents balusters from loosening during use. Glue is applied both into the hole and onto the rod surface.

Features of handrail installation

Mounting handrails to balusters 40x40 requires special attention due to relatively small contact area. A 20x30 mm support plate ensures sufficient area for secure handrail mounting.

The connection of the baluster to the handrail is made using self-tapping screws of 4-5 mm diameter, screwed in at an angle to increase the strength of the connection. The screw heads are recessed into the wood and covered with decorative caps.

The handrail is attached to the baluster from below using self-tapping screws through previously drilled holes. This method of attachment ensures a clean external appearance of the structure without visible fasteners.

Operational characteristics and durability

Balusters 40x40, when properly manufactured and installed, demonstrate excellent operational characteristics and can serve for decades without losing their functional and aesthetic qualities.

Strength Indicators

Despite their compact dimensions, balusters 40x40 made of quality wood can withstand significant loads. The compressive strength along the grain for pine is 40-50 MPa, providing a large safety margin under standard loads.

Bending strength is a critically important characteristic for balusters subjected to horizontal loads. For pine, this value is 70-80 MPa, allowing elements with a 40x40 mm cross-section to withstand loads significantly exceeding standard values.

The modulus of elasticity of wood determines the stiffness of balusters and their ability to resist deformation. For coniferous species, this value is 10000-12000 MPa, ensuring sufficient stiffness of the structure.

Dimensional Stability

The dimensional stability of balusters 40x40 depends on the quality of wood drying and operating conditions. At a wood moisture content of 8-12% and relative air humidity of 40-60%, dimensional changes do not exceed 0.1-0.2%, which is practically imperceptible.

The coefficient of wood swelling in the tangential direction is 0.15-0.25% per 1% change in moisture content. For balusters 40x40, this means dimensional changes of 0.06-0.10 mm per 1% change in wood moisture content.

Wood's thermal deformations are insignificant and amount to approximately 0.004% per 1°C temperature change. Under normal operating conditions, these changes practically do not affect the geometry of the structure.

Biostability and Protection

Protection of balusters 40x40 against biological damage is ensured by a complex of measures including proper drying, antiseptic treatment, and application of protective coatings.

Deep-penetration antiseptic compositions protect wood from fungi, mold, and wood-boring insects. Modern agents provide protection for 15-20 years under proper operating conditions.

Coatings create a barrier preventing moisture and contaminants from penetrating. Polyurethane varnishes provide high wear resistance and long service life while preserving the natural beauty of the wood.

Economic Aspects and Market Positioning

Balusters with a 40x40 cross-section occupy a special place in the price range of stair elements, offering an optimal price-to-quality ratio for a wide range of consumers.

Pricing and cost factors

The cost of balusters 40x40 is influenced by several key factors. The wood species remains the primary pricing element — pine balusters are available at prices starting from 180-250 rubles per piece, while oak balusters may cost 800-1200 rubles.

Processing complexity significantly affects the final cost. Simple rectangular balusters with minimal processing belong to the budget segment, whereas profiled or carved elements require significant labor input and correspondingly higher pricing.

Order volume also affects the unit cost of products. Large batches allow optimizing production processes and offering more favorable terms to customers. Discounts for orders of 100 pieces or more may reach 15-20%.

Comparative Analysis with Alternatives

Compared to balusters of larger cross-section, 40x40 elements provide a 30-40% material savings while maintaining sufficient strength for most applications. This makes them an attractive choice for projects with limited budgets.

Metal balusters of similar purpose may cost 2-3 times more than wooden ones, especially when using stainless steel or special alloys. Wooden balusters 40x40 offer the best price-to-aesthetic quality ratio.

Composite materials, although possessing high durability, significantly lag behind natural wood in aesthetic qualities and ecological properties. The cost of quality composite balusters often exceeds the price of wooden counterparts.

Investment profitability

Investments in quality balusters 40x40 are recouped through their longevity and minimal maintenance requirements. The service life of properly manufactured and installed elements is 25-30 years under proper operating conditions.

The possibility of local repair and restoration of wooden balusters allows extending their service life without full replacement of the structure. This ensures additional economic efficiency in the long term.

The aesthetic appeal of wooden balusters 40x40 positively affects property value, which is especially important for commercial properties and luxury housing. Quality stair railings can increase the property value by 3-5%.

Trends in development and innovation

The industry producing balusters 40x40 is actively developing, adopting new technologies and materials to improve quality and expand application possibilities.

Digital technologies in production

The introduction of CNC machines has revolutionized the production of balusters 40x40, enabling previously unattainable precision and repeatability. Computer-controlled programming ensures identical elements within each batch and allows the creation of complex profiles.

3D modeling allows visualizing future products even during the design stage, significantly reducing development time and eliminating errors. Clients can see the exact appearance of balusters before production begins.

Automated quality control systems use laser scanning and machine vision to detect defects. This ensures consistently high product quality and prevents defective items from reaching consumers.

New materials and coatings

Thermally modified wood opens new possibilities for producing 40x40 balusters with improved performance characteristics. Processing at high temperatures increases dimensional stability and material resistance to biological decay.

Nanotechnology coatings provide self-cleaning surfaces and enhanced resistance to contamination. Such coatings are especially relevant for balusters installed in public buildings with high usage intensity.

Hybrid materials combining natural wood with synthetic components allow creating balusters with specified properties. Fiber reinforcement increases strength, while special additives improve fire resistance.

Ecological Innovations

FSC certification has become a standard for responsible manufacturers of 40x40 balusters. Using wood from sustainably managed forests ensures environmentally sustainable production.

Zero-waste technologies allow utilizing all wood processing by-products. Sawdust and shavings are converted into fuel briquettes, while offcuts are used to produce small items.

Water-based coatings replace traditional organic solvent-based compositions, improving production ecology and safety for workers' and consumers' health.

Conclusion

40x40 balusters represent an ideal solution for creating modern stair railings, combining compactness, functionality, and aesthetic appeal. Their versatility allows using these elements in diverse architectural projects — from minimalist contemporary interiors to luxurious classical mansions.

The technical specifications of 40x40 balusters fully meet safety and durability requirements, while their compact dimensions ensure economical material usage and the ability to create elegant, non-overwhelming structures.

Modern manufacturing technologies guarantee top-quality production, precise dimensions, and flawless surfaces of finished products. Innovative coatings and treatments extend service life and enhance performance characteristics.

The economic efficiency of 40x40 balusters makes them accessible to a wide range of consumers without compromising quality or safety. Investments in quality balusters pay off through their longevity and ability to retain an attractive appearance for decades.

The future of 40x40 balusters is linked to further technological development, emergence of new materials and coatings, and expansion of design possibilities. These elements will continue to evolve, adapting to changing architectural and design needs.

In the context of creating high-quality stair elements, special attention deserves the company STAVROS, which for many years demonstrates the highest standards in producing wooden architectural elements. The combination of traditional craftsmanship with modern technologies enables STAVROS to create 40x40 balusters that not only meet the strictest technical requirements but also embody principles of beauty, functionality, and durability, setting new standards of perfection in the stair element industry.
