Geometric Furniture Leg MN-192M

Geometric Furniture Leg MN-192M is a specialized solution for creating sturdy and stable compact-sized furniture. Made from natural oak or birch with an increased diameter of 60 mm, this model is available in two sizes — 150 mm and 240 mm — making it an ideal choice for mid-height furniture with enhanced requirements for strength and stability.

Model MN-192M is specifically designed for projects where compactness must be combined with maximum reliability. The increased diameter of 60 mm ensures exceptional strength even at relatively low leg heights, opening new possibilities for creating low and mid-height furniture with enhanced stability.

Geometric shape with clear lines and proper proportions corresponds to modern interior design trends, where functional aesthetics and quality execution are valued. Each leg undergoes strict quality control at all production stages, guaranteeing flawless results in the finished product.

Advantages of compact dimensions with increased diameter

The unique combination of compact height and increased diameter of 60 mm creates legs with exceptional strength characteristics. The cross-sectional area is 2827 mm², ensuring maximum stability even under significant loads on relatively low furniture.

Size 150 mm is ideal for coffee tables, low consoles, ottomans, and other furniture where visual lightness is important while maintaining maximum functionality. The increased diameter allows using heavy stone or solid wood tops without compromising structural stability.

Size 240 mm is a universal solution for standard-height furniture — dining tables, work surfaces, chests, and bedside tables. This height combined with a 60 mm diameter ensures an optimal balance between aesthetics and functionality.

Geometric surface treatment creates sharp edges and clear lines that not only give a modern appearance but also increase the section’s resistance moment. This technical solution allows achieving maximum structural rigidity while preserving elegant forms.

High-quality natural wood

Oak legs MN-192M demonstrate exceptional strength and durability due to high wood density and natural resistance to deformation. The increased diameter allows fully utilizing the advantages of oak wood, creating legs with maximum load-bearing capacity.

Oak hardness is 1360 units on the Janka scale, which combined with the increased diameter ensures the ability to withstand extreme loads. Natural tannins in the wood composition protect the material from biological damage and significantly extend the product’s service life.

The pronounced texture of oak growth rings is especially effectively displayed on the surface of a large diameter, creating a unique pattern even under various types of finishes. Each leg has individual texture features, giving furniture uniqueness and exclusivity.

Birch legs MN-192M are characterized by uniform dense structure and excellent workability. The fine-grained texture of birch ensures ideal adhesion of all types of finishes, and the light natural tone serves as an excellent base for any kind of staining or coloring.

The stability of birch wood’s geometric dimensions is especially important for legs with increased diameter, where even minor deformations may affect the overall furniture geometry. Uniform material density ensures predictable behavior under various operating conditions.

Optimal size range for mid-height furniture

Size 150 mm creates ideal proportions for low-strength furniture. Coffee tables with such legs can support granite or marble tops weighing up to 80 kg per set of four legs without losing stability.

This height is especially popular in modern interiors, where visual lightness of furniture is valued while maintaining maximum functionality. Low consoles and bedside tables with 150 mm legs create a floating-in-air effect due to increased clearance under the body.

Size 240 mm provides a standard tabletop height of 750 mm when used with a base of 100–120 mm height and a tabletop thickness of 25–40 mm. This is a universal solution for dining tables, work surfaces, and kitchen furniture.

Increased diameter of 60 mm at a height of 240 mm creates legs with exceptional resistance to lateral loads, which is critically important for dining tables and work surfaces. The calculated load for a set of four legs is up to 300 kg of evenly distributed load.

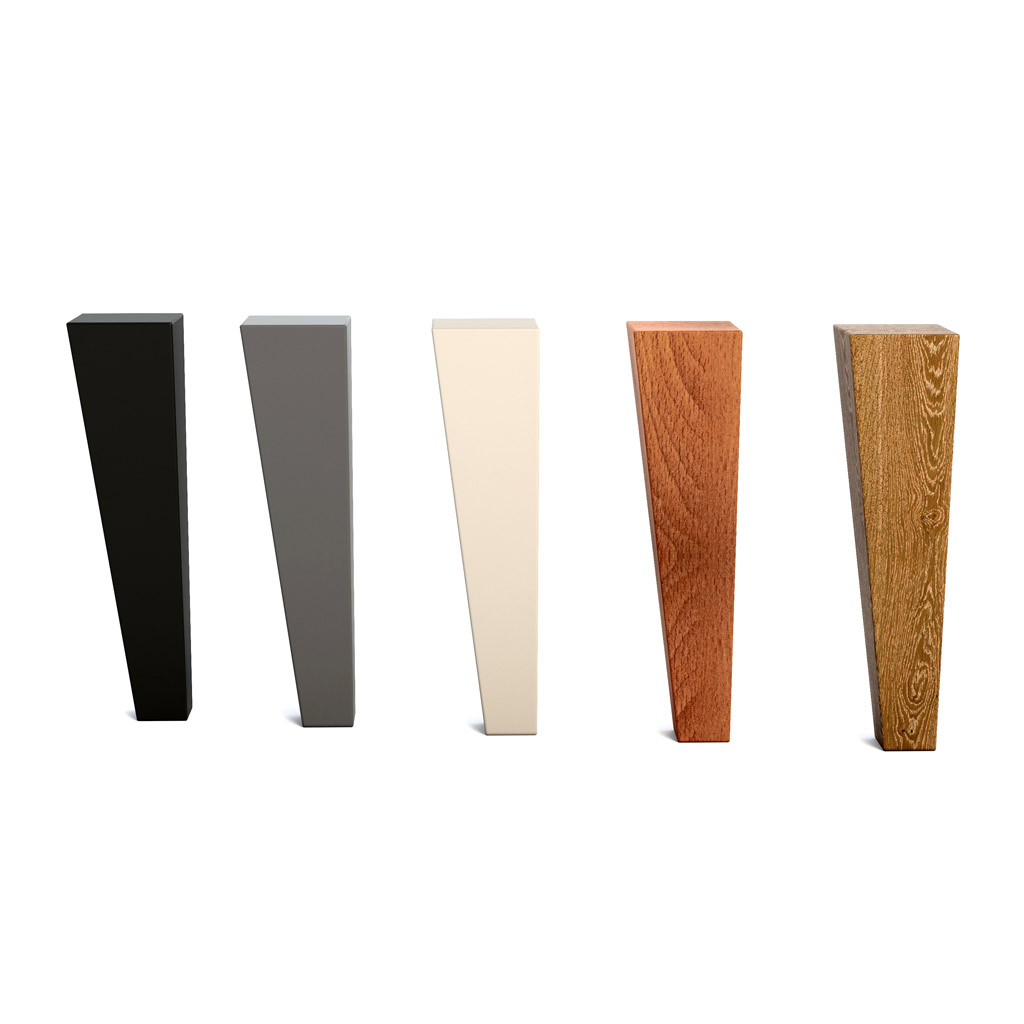

Modern finish palette

Gray enamel RAL 7001 creates a stylish modern look, ideal for office and commercial interiors. Neutral tone ensures universal application and easy combination with any tabletop and facade materials.

The gray finish application technology is optimized for the increased diameter surface, ensuring perfectly even tone without transitions or defects. The matte finish is practical for use and hides minor stains.

Black enamel RAL 9005 gives legs elegance and creates striking contrasts in the interior. The deep black color on the increased diameter surface produces especially impressive effects and highlights the premium quality of the furniture.

Multi-layer black finish technology ensures rich color saturation and high resistance to abrasion. Special pigments are resistant to fading and maintain tone depth even under intense lighting.

Walnut stain with patina uses the advantages of increased surface area to create complex decorative effects. Patina creates an effect of noble aging with natural darkening in the recesses of the geometric profile.

White enamel RAL 9010 creates a classic elegant look, suitable for traditional and modern interiors. The increased leg diameter emphasizes the solidity of the furniture while preserving the visual lightness of the white color.

Cherry stain reveals the natural beauty of wood, giving it a noble reddish-brown tone. The increased diameter surface particularly vividly displays the natural texture of oak and beech.

Technical specifications and strength parameters

The increased diameter of 60 mm provides a cross-sectional area of 2827 mm², which is 80% larger than standard legs with a diameter of 44 mm. This is critically important for ensuring high load-bearing capacity and resistance to longitudinal bending.

The calculated load on a leg of 150 mm size is up to 180 kg, and for a size of 240 mm - up to 160 kg. These characteristics allow creating furniture for the heaviest countertops and intensive commercial use.

The section resistance moment of a 60 mm diameter leg is 10179 mm³, providing exceptional structural rigidity. The critical longitudinal bending force for a 240 mm high leg exceeds 1200 kg, significantly surpassing all practical requirements.

Manufacturing accuracy is ensured by modern CNC equipment. Dimensional deviations do not exceed ±0.5 mm for diameter and ±1.0 mm for height, guaranteeing perfect compatibility in sets.

The residual moisture content of the wood is 8±2%, ensuring dimensional stability during operation. Special drying technology eliminates internal stresses and deformations even in large-diameter products.

Production technologies and quality control

Wood selection for legs with increased diameter is carried out according to especially strict criteria. Only central parts of the trunk with uniform structure, free of knots, cracks, and other defects that could affect the product's strength are used.

Stocks with a diameter of 60 mm require special drying technology with gradual moisture reduction and precise temperature control. The process takes 6-8 weeks and includes several stabilization cycles to fully eliminate internal stresses.

Geometric processing is performed on specialized equipment capable of processing large-diameter blanks with high precision. Processing programs are individually optimized for each size and ensure ideal profile geometry.

Quality control includes checking all geometric parameters, absence of surface defects, compliance with wood moisture and density requirements. Each leg undergoes individual inspection before final processing.

Application in various types of furniture

Journal tables with 150 mm legs gain exceptional stability due to the increased support diameter. The ability to use heavy stone or solid wood countertops opens up new design possibilities.

Low consoles and cabinets with MN-192M legs create a modern look with clear geometric lines. The increased clearance under the furniture facilitates cleaning and creates a visual sense of lightness.

Dining tables with 240 mm legs provide standard comfortable height and can support countertops of any weight. The increased diameter guarantees no wobbling even during active use.

Kitchen furniture especially benefits from using legs with increased diameter. Kitchen tables, islands, and work surfaces gain maximum stability and longevity under intensive use.

Installation and mounting

Mounting legs with a diameter of 60 mm requires the use of reinforced fasteners. Bolted connections M8 or M10 with wide washers are recommended for even load distribution.

Pre-drilling is performed with 8-10 mm diameter drills depending on the type of fastener and wood species. The drilling depth should be 85-90% of the fastener element length.

To ensure maximum structural rigidity, it is recommended to use metal plates or embedded elements in the furniture body. This is especially important when using heavy countertops.

Vertical alignment control is performed using a construction level. The allowable deviation from vertical is no more than 1 mm per 200 mm of leg height.

Care and Maintenance

Enamel finishes require regular cleaning with mild detergents without abrasive additives. The increased surface area facilitates maintenance and allows easy preservation of the original appearance.

Tinted surfaces require periodic treatment with protective compounds every 8-12 months. The large leg diameter ensures good access for preventive maintenance.

In case of minor coating damage, immediate local restoration is recommended. The increased surface area allows performing spot repairs without noticeable transitions.

Climate control in the room is especially important for large-diameter legs. Optimal air humidity 45-65% and temperature 18-24°C prevent wood deformation.

Design solutions

Compact dimensions of MN-192M legs are ideal for creating minimalist furniture, where clear proportions and functional aesthetics are valued. The increased diameter creates visual stability without excessive bulk.

Geometric shapes with large diameter look striking in modern interiors, creating expressive accents. Contrasting finishes highlight the architectural solutions and quality of execution.

Combining different finishes within a single project allows creating dynamic compositions. For example, black legs with white countertops or gray supports with wooden surfaces.

Economic Efficiency

Compact size range simplifies logistics and reduces storage costs. Two sizes cover most needs for mid-height furniture with enhanced strength requirements.

High quality of materials and processing ensures long-term economic benefit. Investments in quality hardware pay off through minimal maintenance and replacement costs.

The versatility of application allows using one leg model for various types of furniture, reducing overall component costs and simplifying production planning.

The geometric furniture leg MN-192M represents an optimal solution for creating sturdy and stable compact and medium-sized furniture. The combination of an increased diameter of 60 mm with carefully selected heights of 150 mm and 240 mm ensures maximum functionality with a modern design. Using natural oak or beech wood guarantees exceptional durability, while a wide range of finishes allows implementing any design concept. Investing in MN-192M legs is justified by their reliability, versatility, and ability to create premium-quality furniture for the most demanding projects.
