How to install wooden balusters without damaging the staircase geometry

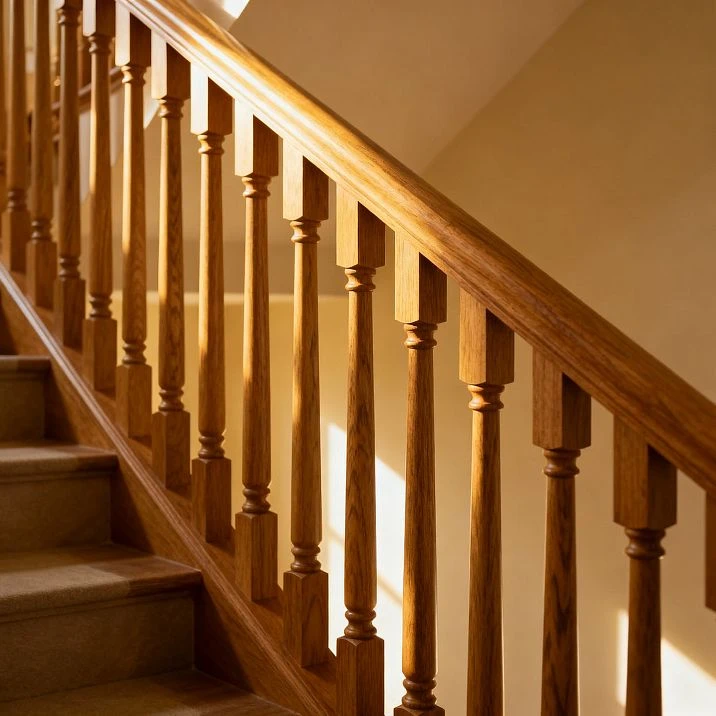

You ascend the stairs, and suddenly feel — the handrail wobbles. A baluster sways, the fastening loosens. Or the opposite: the staircase is sturdy, but the balusters are crooked, the spacing between them is uneven, one is higher, another lower. The staircase geometry is ruined, and no beauty of wood can save the impression. All because errors were made during installation — incorrect marking, weak fastening, rushing, lack of knowledge of the technology.

How to install wooden balustersTo ensure the staircase serves for decades, is safe, beautiful, and meets all standards? This is not simply a matter of screwing in self-tapping screws. It is an entire system: precise axis marking, selection of correct installation spacing, consideration of staircase slope, reliable fastening, proper connection with handrail and treads. An error at any stage leads to problems — from visual defects to real danger.

In this article, we will examine the entire baluster installation technology from A to Z. We will learn how to make perfect marking, which fasteners to choose for different constructions, how to avoid typical errors and correct already made mistakes. We will also consider regulatory requirements — because the staircase must not only be beautiful but also safe, complying with construction and fire safety standards.

Wooden Baluster L-039.1

from 90.95 $

Wooden Baluster L-060

from 100.69 $

Wooden Baluster L-106

from 542.07 $

Wooden Baluster L-103

from 191.04 $

Wooden Baluster L-059

from 126.19 $

Wooden Baluster L-095

from 63.76 $

Wooden Baluster L-111

from 70.38 $

Wooden Christmas balls SUV-002

from 11.79 $

Go to Catalog

Marking: the basis of precise geometry

Watch video ...

Defining the baluster installation line

The first and critically important step - defining the line along which all balusters will be installed. This line must be strictly parallel to the stringer or tread of the staircase and located at a specific distance from the edge of the step.

For stringer staircases (where treads rest on a load-bearing beam from above), balusters are installed 50-70 mm from the front edge of the tread. This ensures optimal load distribution and visual balance. If installed closer to the edge, balusters will interfere with walking and cause tripping. If installed farther away, the railing loses its effectiveness and strength.

For tread staircases (where treads are inserted into grooves of side beams), the installation line is determined by the center of the tread or slightly offset toward the inner edge. Here, it is important to consider the thickness of the stringer and the mounting construction.

Marking is done using a chalk line (plumb line). The end support posts are installed - at the start of the flight (on the first step or on the floor before the staircase) and at the end (on the last step or on the landing of the second floor). Between the posts, a chalk-covered or pigment-coated line is stretched. The line is pulled taut and then sharply released - it strikes the treads, leaving a clear straight line. This line is the axis for installing all intermediate balusters.

Our factory also produces:

Wooden Baluster L-079

from 237.83 $

Wooden Baluster L-067

from 111.64 $

Wooden Baluster L-045

from 58.47 $

Wooden balustrade L-041

from 74.95 $

Wooden baluster L-038

from 58.95 $

Wooden balustrade L-037

from 63.88 $

Wooden newel post L-048

from 63.76 $

Wooden baluster L-047

from 63.52 $

View Full Product Catalog

Calculating the baluster spacing

The spacing - the distance between the axes of adjacent balusters - depends on several factors: the cross-section of the balusters themselves, the depth of the treads, safety requirements, and aesthetics.

Safety norms: according to SNiP, the distance between vertical elements of the railing (the gap between balusters) must not exceed 150 mm for residential buildings and 120 mm for children's facilities. This is done to prevent children from squeezing between balusters or getting their heads stuck.

Calculation: if the baluster width is 50 mm and the maximum allowable gap is 150 mm, the spacing (distance between centers of adjacent balusters) will be 50 + 150 = 200 mm. For a denser installation (which looks more elegant and solid), you can reduce the gap to 100-120 mm, making the spacing 150-170 mm.

Attachment to treads: it is convenient to install balusters according to the principle of "one baluster per step" (at the center of each step) or "two balusters per step" (at the edges of the tread). This creates a clear rhythm and simplifies marking.

If the "one per step" option is chosen, measure the tread depth (tread) - usually 250-300 mm. The baluster is installed at the center or offset 50-70 mm from the front edge. On all steps, the installation point should be at the same distance from the edge - then, viewed from the side, all balusters will align into an ideal vertical line.

If the "two per step" option is chosen, divide the tread into three equal parts. The first baluster is installed at the boundary of the first and second thirds, the second at the boundary of the second and third. Alternatively, use calculation: measure the horizontal distance between the installation points of the end balusters on two adjacent steps (usually around 250-300 mm), divide this distance in half - you get the spacing between two balusters on one step.

Marking the slope and vertical alignment

The staircase runs at an angle (usually 30-45 degrees). Balusters, however, must stand strictly vertically, while the handrail runs parallel to the slope of the staircase. This creates a geometric challenge: you must cut the top and bottom ends of the balusters so that they stand vertically, yet fit tightly against the inclined handrail above and the treads below.

Marking the bottom cut: if the baluster is mounted to a horizontal tread, the bottom cut is made at 90 degrees to the baluster axis (a simple perpendicular cut). If the baluster is mounted to an inclined stringer, the bottom cut is made at an angle equal to the staircase's incline.

Marking the top cut: the top end of the baluster, which will abut the handrail, is cut at an angle equal to the staircase's incline. If the staircase angle is 35 degrees, the top cut is made at 35 degrees.

For precise marking, use a protractor (angle gauge) or a drafting compass. Measure the actual incline angle of the staircase (it may differ from the design angle). This angle is transferred to the baluster. Use a miter saw with an adjustable angle setting - set the required angle and make a clean cut.

Checking verticality: after installing each baluster, its verticality is checked using a bubble or laser level in two planes (along the flight and across). A deviation exceeding 2-3 mm per meter of height is unacceptable - the baluster will appear visually crooked.

Marking on treads and handrail

On each step, at the baluster installation point, a mark is made. This is done using a square: from the chalk line, perpendiculars are drawn to the edge of the step. At the points where these perpendiculars intersect the central line, crosses or dimples (from a punch) are made - these are the centers of future mounting holes.

Marking is also done on the bottom ends of the balusters. If the baluster is round (turned), two diagonal lines are drawn through the center of the end - the point of intersection is the center that must be aligned with the mark on the step. If the baluster is square, diagonals are drawn from the corners.

Marking is also done on the handrail (after its preliminary fitting) to indicate where the top ends of the balusters will land. This can be done by placing the baluster against the intended location on the step and marking on the handrail where its top will be.

Types of fastening: choosing a reliable connection

Threaded rods: the classic of reliability

Fastening wooden balustersMounting threaded metal rods is considered the most reliable and technologically advanced method. A rod is a metal rod with threads on both ends (or along its entire length). Standard sizes: diameter 8-10 mm, length 100-150 mm.

Installation technology:

In the bottom end of the baluster, a blind hole (not through) is drilled at the center, slightly larger in diameter than the rod (e.g., for an M8 rod, use a 9 mm drill bit). The hole depth is 50-70 mm. The rod is screwed into this hole using wood glue (PVA, polyurethane, or epoxy) - one end remains outside, protruding 50-80 mm.

In the tread (or stringer) at the marked point, a hole of the same diameter is drilled to a depth of 50-70 mm. The hole is filled with glue. The baluster with the protruding rod is mounted onto this hole - the rod enters the tread, the glue sets, creating a strong connection.

Advantages of the method:

• High strength - metal inside wood creates a rigid axis

• The baluster stands strictly vertically, does not wobble

• Hidden connection - fasteners are not visible from the outside

• Suitable for any type of baluster (turned, carved, square)

Disadvantages:

• Requires precise drilling - the hole must be exactly centered and perfectly vertical

• Hard to fix errors - if the baluster is installed crookedly, removing it without damage is difficult

Self-tapping screws: fast and simple

Screwing with self-tapping screws - the simplest and fastest method, suitable for self-installation without special skills. Use construction screws 70-100 mm long, 5-6 mm in diameter, preferably with a countersunk head.

Installation technology:

The baluster is installed at the marked location on the step. From below, through the step, a 4 mm drill bit (slightly smaller than the screw diameter) is used to drill a hole. The drill bit passes through the step and enters the lower end of the baluster by 30-40 mm. Then, from below, the screw is screwed in - it passes through the step and enters the baluster, pulling it into place.

The screw head remains under the step, not visible from below. From above, on the tread, no fasteners are visible - the baluster simply stands. For added strength, you can additionally apply wood glue to the lower end of the baluster before installation.

Advantages:

• Ease and speed of installation

• No special fasteners required

• Easy to dismantle if needed (unscrew the screw from below)

Disadvantages:

• Lower strength compared to bolts

• Not suitable for stringer staircases (no access from below)

• The screw may split the baluster if the wood is hard or has a knot

Dowel joints: traditional connection

A dowel is a cylindrical wooden rod (usually made of hardwood - beech, oak), inserted into holes in the connected parts with glue. Standard sizes: diameter 8-12 mm, length 40-60 mm.

Installation technology:

Holes for the dowel are drilled into the lower end of the baluster and into the step - each hole 25-35 mm deep, diameter exactly matching the dowel diameter (usually 8 or 10 mm). The dowel is coated with wood glue, inserted halfway into the hole in the step. The baluster is then fitted onto the protruding part of the dowel. The glue sets, creating a strong connection.

Advantages:

• Ecological (all wood, no metal)

• Good strength when properly executed

• Hidden connection

Disadvantages:

• Requires very precise drilling (holes must be coaxial)

• Strength depends on the quality of the glue and the wood of the dowel

• Hard to dismantle - permanent connection

“Birdsmouth” system: for professionals

This is a traditional joinery connection of mortise and tenon, where a trapezoidal tenon is cut on the lower end of the baluster, and a corresponding mortise is cut into the step. The “birdsmouth” shape provides mechanical interlocking - the tenon cannot exit the mortise without destroying the connection.

Installation technology:

Using a router or chisel, a trapezoidal tenon (widening downward) is cut on the lower end of the baluster. A corresponding mortise is routed into the step. The tenon is coated with glue and driven into the mortise with a mallet (rubber mallet). For additional fixation, wedges can be used.

Advantages:

• Maximum connection strength

• Withstands high tensile loads

• Traditional technology, proven over centuries

Disadvantages:

• Requires high skill and special tools

• Very labor-intensive

• Practically impossible to dismantle without damage

Mounting nodes: treads and handrail

Mounting to treads on stringers

When the staircase is built on stringers (treads lie on top of the load-bearing beam), balusters are mounted directly to the tread (horizontal part of the step). This is the simplest option, allowing any type of fastener to be used.

mount wooden balusters to stepsIn this case? The optimal method is bolts or screws from below. Sequence:

1. Marking on the tread (50-70 mm from the front edge)

2. Installing the baluster in place, checking vertical alignment

3. Temporary fixation with clamps or tape

4. Drilling a hole from below (for bolts - blind hole in the baluster, for screws - through hole)

5. Installing fasteners with glue

6. Removing temporary fixation, final check of vertical alignment

Important: the tread must be sufficiently thick (minimum 40 mm) to ensure secure mounting. If the tread is thin (30 mm), it is better to use an additional plank (sub-baluster) from below, to which the balusters are mounted, and the plank is then mounted to the tread.

Mounting to stringers

A staircase on stringers has side load-bearing beams into which the treads are inserted into grooves. Balusters in such constructions are usually mounted not to the treads, but to the stringer itself from the side. This complicates the task, as there is no access from below.

Main method - bolts screwed into the stringer from the side at an angle. Technology:

1. Marking on the side surface of the stringer for baluster installation locations (taking into account the slope)

2. At each point, an angle of about 80 degrees (almost vertical, but slightly inclined for better grip) is drilled to a depth of 60-70 mm

3. A bolt is screwed into the hole with glue, protruding 50-60 mm

4. A blind hole for the bolt is drilled at the bottom end of the baluster (cut at an angle corresponding to the staircase's slope)

5. The baluster is placed over the protruding bolt, set vertically, and secured

Alternative method - mounting on a sub-baluster. This is a wooden plank (usually 40-50 mm thick) that is mounted along the entire length of the stair run. Balusters are mounted to this plank using any convenient method (bolts, dowels, screws from below). Advantage - easier marking and installation, all balusters on one plane. Disadvantage - additional part, increasing the structure's thickness.

Mounting to the handrail from above

The top ends of the balusters must be securely connected to the handrail (railing). Several methods exist, the choice depends on the handrail's construction and aesthetic requirements.

Method 1: Groove in the handrail

A groove (slot) is milled into the bottom of the handrail along its entire length, 15-20 mm deep and as wide as the balusters. The top ends of the balusters (cut at an angle) fit into this groove. Fixation is achieved using carpenter's glue and small finishing nails or screws, screwed into the baluster through the groove at an angle (hidden fastening).

This method ensures a smooth handrail line, all balusters precisely equidistant from each other, a strong connection, and a professional appearance.

Method 2: Bolts from below

Similar to mounting to treads: a bolt is screwed into the top end of the baluster, a hole is drilled from below into the handrail, and the baluster is connected to the handrail via the bolt. This method is suitable for thick, solid handrails.

Method 3: Mounting plates

Special metal mounting elements - plates or angles - are used, mounted to the baluster from the side and to the handrail from below with screws. This method is not the most aesthetic (fasteners are partially visible), but it is fast and provides good strength.

how to attach handrails to wooden staircase balustersIs that correct? The main rule: the connection must be rigid, without play. A wobbling handrail is a sign of poor installation and a real danger. After installation, check: grasp the handrail, press down and sideways with force — there should be no play, creaking, or sensation of movement.

Support posts: reinforced mounting

Support posts (tumblers) are installed at the beginning and end of the stair run, on turning platforms. They are thicker and taller than balusters (section is usually 100x100 mm or diameter 100-120 mm, height 120-150 cm). They bear the main load, so the mounting must be especially secure.

The optimal method of mounting posts is anchor bolts. A hole 100-120 mm deep is drilled into the floor (or thick step). A metal sleeve (insert) is inserted. A bolt hole is drilled into the lower end of the post. The anchor bolt passes through the post from bottom to top, enters the sleeve in the floor, and is tightened with a nut. This results in a very strong connection capable of withstanding significant loads.

Additionally, the post can be secured to the wall (if it is close to the wall) using a metal angle bracket or anchor. This adds rigidity to the structure.

Common mistakes and their correction

Error 1: Uneven spacing between balusters

Symptom: balusters are positioned at different distances from each other, there is no visual rhythm, it looks sloppy.

Cause: inaccurate marking, measuring "by eye", accumulation of error when marking each subsequent baluster from the previous one (not from a common central line).

Correction: if the balusters are not yet permanently fixed — redo the marking. Strike a single central line with a mason’s line, calculate the exact spacing, mark all points at once, measuring distances from one base point (first post). If the balusters are already fixed — it’s more complicated. You may need to remove (carefully, to avoid damage) and reposition them.

Prevention: mark carefully, with verification. After applying all marks, walk along with a tape measure to ensure distances are equal. Use a template — a wooden strip equal in length to the installation spacing, apply it sequentially to check.

Error 2: Balusters are not vertical

Symptom: balusters are leaning forward, backward, or sideways. Especially noticeable on turned balusters with symmetrical profiles.

Cause: the mounting hole was drilled not strictly vertically, the baluster was installed without level control, the top or bottom end was incorrectly cut.

Correction: if the baluster is mounted on a bolt or dowel with glue — removal is difficult, it is likely to need replacement. If mounted with screws — unscrew, check the hole, possibly enlarge it in the required direction, reinstall the baluster with level control. For minor tilting, thin wooden wedges can be used under the bottom end.

Prevention: control the verticality of each baluster during installation using two levels (one along the run, another across). Drill mounting holes using a drill stand or guides ensuring verticality of the drill bit.

Error 3: Balusters wobble, play in mounting

Symptom: the baluster can be rocked by hand, there is movement, creaking.

Cause: insufficient mounting depth (short bolt, small hole), absence of glue, weak fastening (thin screws), dried-out wood.

Correction: depends on the type of fastener. For bolts — can be reinforced with glue (inject epoxy glue via syringe into the gap around the bolt). For screws — replace with longer and thicker ones, add an additional screw at an angle. For dowels — redo with longer dowels and quality glue.

Prevention: use fasteners of sufficient length (engagement depth in step and baluster not less than 50 mm on each side), always apply glue (even if mechanical fastening is used), allow glue to fully dry before applying load (24–48 hours).

Error 4: Handrail runs in waves, not straight

Symptom: looking along the handrail, it appears to rise and fall, not forming a straight line.

Cause: balusters are mounted at different heights, top ends are cut at different angles or heights, handrail is mounted unevenly.

Correction: remove the handrail, check the height of all balusters (from step to top end). If discrepancies exist — level them, trim overly high ones or raise overly low ones (using thin strips with glue). Ensure all top cuts are at the same angle. Reinstall the handrail using a taut string as a reference for a straight line.

Prevention: when marking and cutting balusters, use a template — one standard baluster, against which all others are marked and cut. This guarantees equal height and cut angles.

Error 5: Cracks in balusters from fasteners

Symptom: cracks radiate from the mounting point (especially at ends), the wood has split.

Cause: fastener too thick for baluster diameter, hole drilled too close to edge, dry hard wood without pre-drilling, bolt or screw driven in with excessive force.

Correction: it is better to replace a cracked baluster (cracks will widen over time). As a temporary measure — you can glue the crack with wood glue and a thin wire or clamp, but this is not reliable.

Prevention: always drill holes for fasteners, do not drive screws or bolts "dry" into hardwood. The drill bit diameter should be slightly smaller than the fastener diameter (for M6 screw, use 4-5 mm). Avoid installing fasteners in knot areas. Do not over-tighten — tighten until snug, but without excessive force.

Fire and Technical Requirements

Height Requirements for Guardrails

According to SNiP 2.08.01-89 and SP 54.13330.2016, the height of guardrails (from stair surface to top of handrail) for staircases in residential buildings should be:

• Minimum 900 mm for staircases with flight height less than 12 m

• Minimum 1200 mm for staircases with height over 12 m and for outdoor evacuation staircases

For staircases in childcare facilities, guardrail height shall be at least 1200 mm, and the distance between vertical elements (balusters) shall not exceed 100 mm (to prevent a child's head from passing through).

This means that with a standard baluster height of 900 mm (from stair to bottom of handrail) plus handrail thickness of 50-80 mm, the total guardrail height will be 950-980 mm — this meets the requirement for residential buildings.

Strength and Loads

SNiP stipulates that stair railings must withstand a horizontal load of at least 0.3 kN (approximately 30 kg) per linear meter. For childcare facilities — 0.4 kN. This means that if you lean or push on the handrail, it should not break or deform.

Strength is ensured by:

• Adequate baluster cross-section (minimum 40x40 mm for square, 40 mm diameter for round)

• Reliable fastening (embedment depth not less than 50 mm)

• Correct installation spacing (not more than 200 mm between centers of adjacent balusters)

• Rigid connection of handrail to balusters

Strength test (per GOST 25772-83): a horizontal load of 30 kg is applied at the midpoint of the railing for 1 minute. There should be no residual deformation, damage, or play.

Fire safety requirements

Special requirements are established for evacuation staircases (used for exiting buildings during a fire):

• Tread width not less than 900 mm (for residential buildings) and 1200 mm (for public buildings)

• Stair slope not more than 1:1 (45 degrees)

• Treads with equal width and height within one flight

• Guardrail height not less than 1200 mm

• Handrails must be continuous along the entire length of the flight

Wooden staircases and guardrails in evacuation routes are permitted in low-rise residential buildings (up to 3 floors). In buildings above 3 floors, evacuation staircases must be made of non-combustible materials.

For ordinary interfloor staircases in private homes (non-evacuation), there are no material restrictions — wood is permitted. However, it is recommended to treat wood with fire-retardant compounds (antipyrenes) to reduce flammability.

Material requirements

Wood for balusters and handrails must be:

• Dry (moisture content not more than 12% per GOST 8242-88)

• Free of large knots, cracks, and rot

• Hardwood species for load-bearing elements (oak, beech, ash, larch)

Fastening elements:

• Metal parts (bolts, screws) must be made of corrosion-resistant materials or have protective coating (galvanization, anodizing)

• The wood adhesive must be moisture-resistant (class D3 or D4 according to EN 204)

The coating (varnish, paint, oil) must be non-toxic and emit no harmful substances. For residential premises, water-based or low volatile organic compound (Low VOC) formulations are used.

Inspection frequency

Handrail guardrails (especially in public buildings) are subject to periodic technical condition inspections:

• Visual inspection for cracks, looseness, and corrosion of fasteners - annually

• Strength check (load testing) - every 5 years for public buildings

In private homes, mandatory inspections are not required, but it is recommended to inspect the staircase annually, check the reliability of baluster fastenings (ensure they do not wobble), tighten loose connections, and renew protective coatings.

Tools and materials for installation

Required tools

• Miter saw (or miter box with hacksaw) - for precise angled cutting of balusters

• Electric drill or screwdriver with a set of wood drill bits (diameters 4, 5, 8, 10 mm)

• Bubble level (length 600-1000 mm) and laser level for checking vertical alignment

• Tape measure, square, and angle gauge for marking

• Painter’s chalk line for marking the central axis line

• Chisels and mallet (for "birdsmouth" joint connections)

• Clamps for temporary fixation

• Center punch and pencil for marking

Consumables

• Fasteners: M8x100-150 mm bolts, 5x70-100 mm wood screws, dowels with 8-10 mm diameter

• Wood glue: PVA (for non-critical joints), polyurethane glue (water-resistant, for critical joints), epoxy glue (maximum strength)

• Sandpaper grit 120-180 for smoothing cut ends after trimming

• Protective-decorative coating: varnish, oil, or wood paint

Estimated material consumption

For a staircase with 14 steps (standard flight for one floor), installing one baluster per step plus two support posts:

• Balusters: 14 pcs

• Support posts: 2 pcs

• Handrail: 4-5 linear meters

• M8x120 bolts: 16 pcs (14 balusters + 2 posts)

• PVA glue: 0.5 L

• Varnish or oil: 1-1.5 L (including handrail)

Conclusion

Fastening wooden balustersThis is a process where every detail matters. Precise marking, correct fastener selection, vertical alignment control, secure connection to the handrail — all these elements combine to produce a result that serves for decades and looks professional. Errors at any stage lead to problems: wobbling balusters, crooked handrails, uneven steps — all of which spoil the impression and reduce the staircase’s safety.

The main principle of quality installation is not to rush. It is better to spend an extra hour on careful marking than to redo it later. It is better to use reliable fasteners (bolts with glue) rather than save time on screws, which will loosen over time. It is better to check the vertical alignment of each baluster with a level than to later see that the entire guardrail runs in waves.

Compliance with regulations is not bureaucracy, but real safety. Guardrail height of 900 mm, baluster spacing no more than 150 mm, joint strength — all these requirements are based on long-term practice and statistics of accidents. A staircase with guardrails meeting regulations protects against falls, especially for children and elderly people.

If you lack experience in carpentry, don't have tools, or simply don't want to risk it — it's better to consult professionals. Professional installation of balusters costs 500–800 rubles per baluster (including labor and fasteners). For a staircase with 14 steps, this amounts to 7,000–11,000 rubles. This is not a small sum, but it pays off with a guaranteed result: the staircase will be sturdy, beautiful, safe, and last as long as a solid wood product should — 50 years or more.

STAVROS company offers not only solid wood balusters of all shapes and sizes, but also installation consultations. On the website, in the articles section, you can find detailed instructions, video tutorials, and professional tips. And if questions arise during installation — STAVROS specialists will help you by phone or in the online chat. Because STAVROS’s goal is not just to sell material, but to help create a staircase that will be used by generations.
